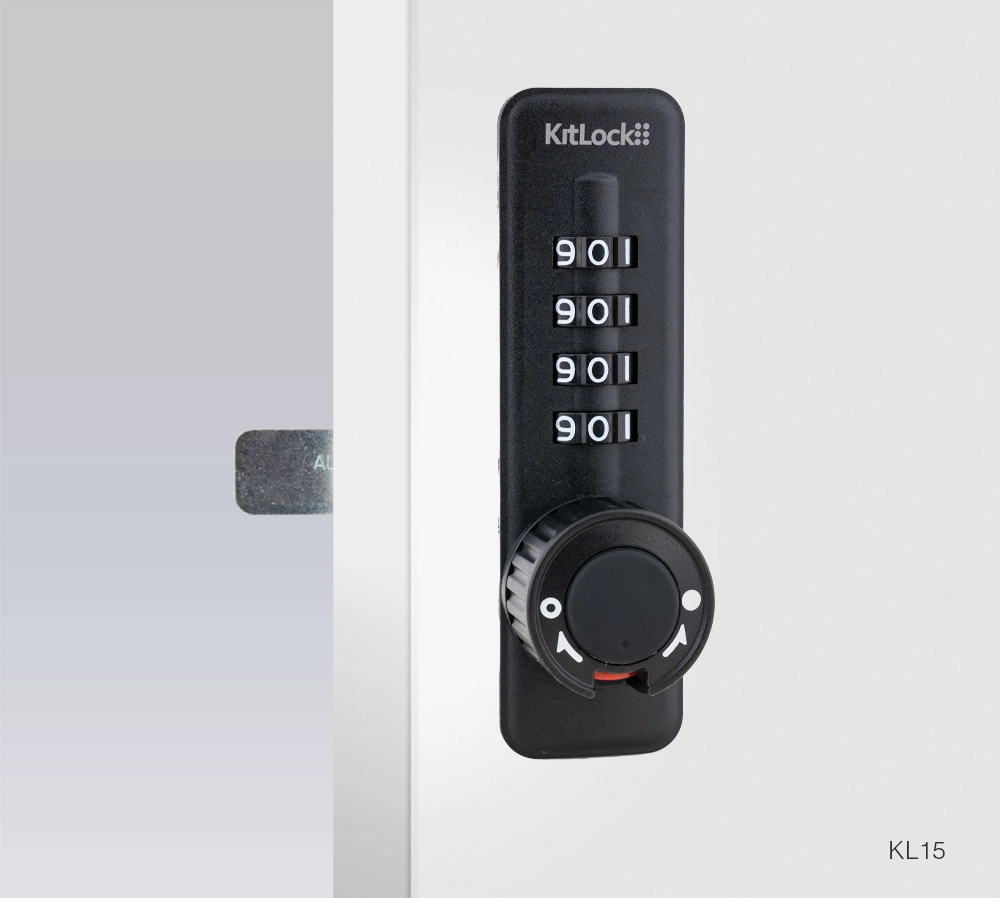

Codelocks KL15 KitLock Mechanical Combination Lock
KL15 KITLOCK MECHANICAL COMBINATION LOCK
KL15 KITLOCK MECHANICAL COMBINATION LOCK
Simple, tough and good value for money, the KL15 offers mechanical keyless access suitable for a variety of locker and cabinet applications.
The KL15 can be surface mounted with an ergonomically designed surface trim plate that provides additional grip allowing ease of opening. If it’s a sleek look that will better suit the application, the KL15 can also be flush fitted.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
DOWNLOADS
↓ KL15 Brochure
↓ KL15 Data Sheet

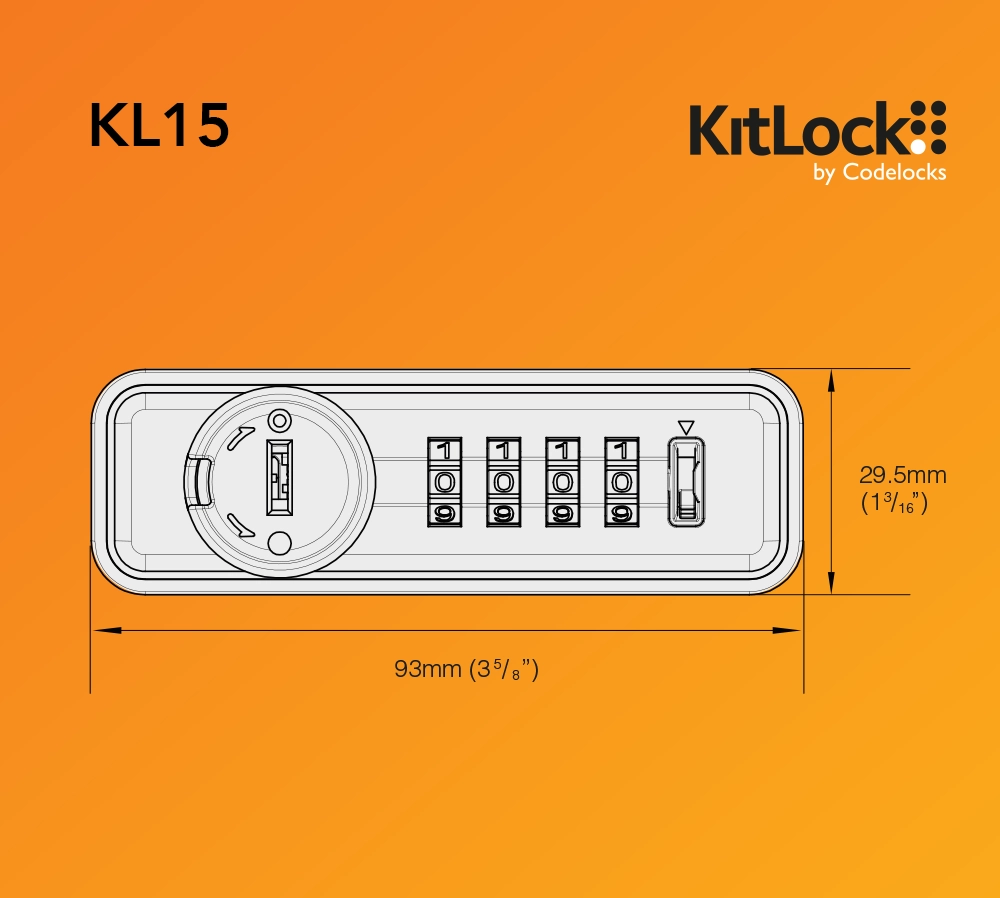

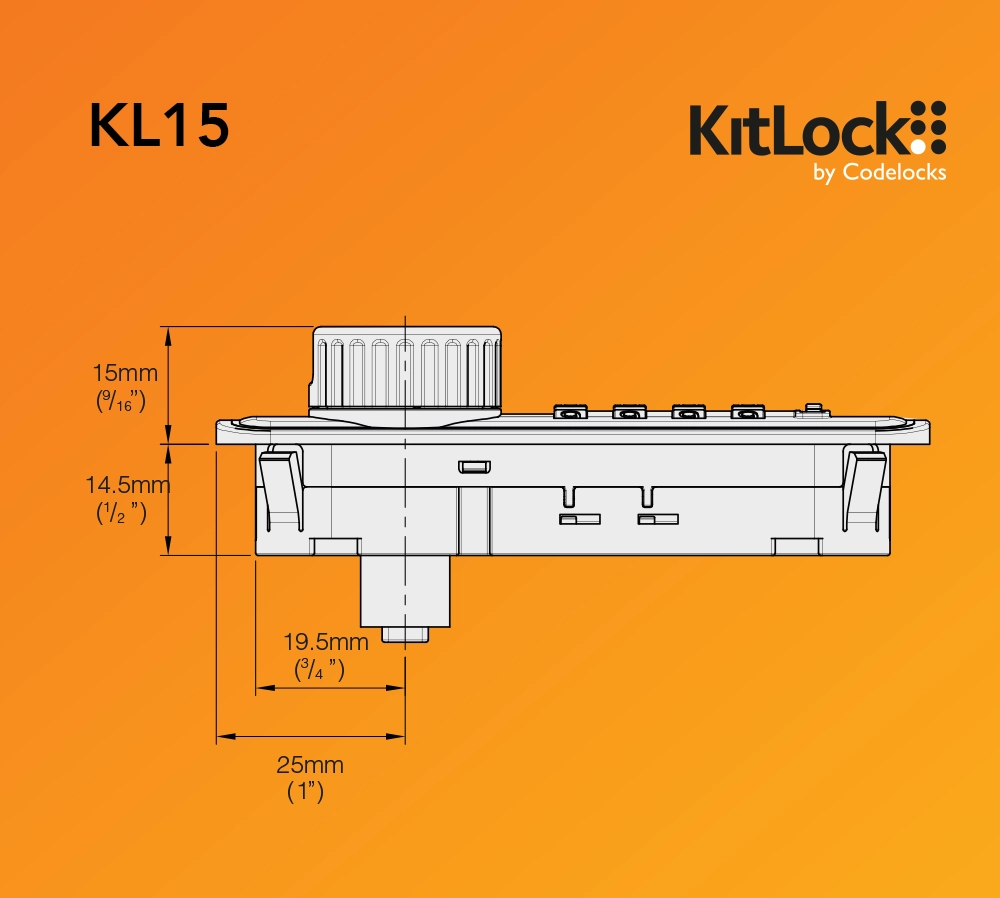

↓ KL15 Technical Dimensions
↓ Public Function Installation and Operating Instructions
↓ Private Function Installation and Operating Instructions
COLLECTION
KL15
PRODUCTION
Made in UK
CODES
Single code storage - up to 10,000 code combinations
FINISH
Black
DOOR PREP
3 1⁄4" x 3⁄4" (83mm x 20mm)
USER LEVELS
User
USER TYPES
Code
SURFACE MOUNT
Fixed spindle suitable for panel thickness - 1⁄32" - 11⁄16" (0.8mm - 18mm)
FIXINGS

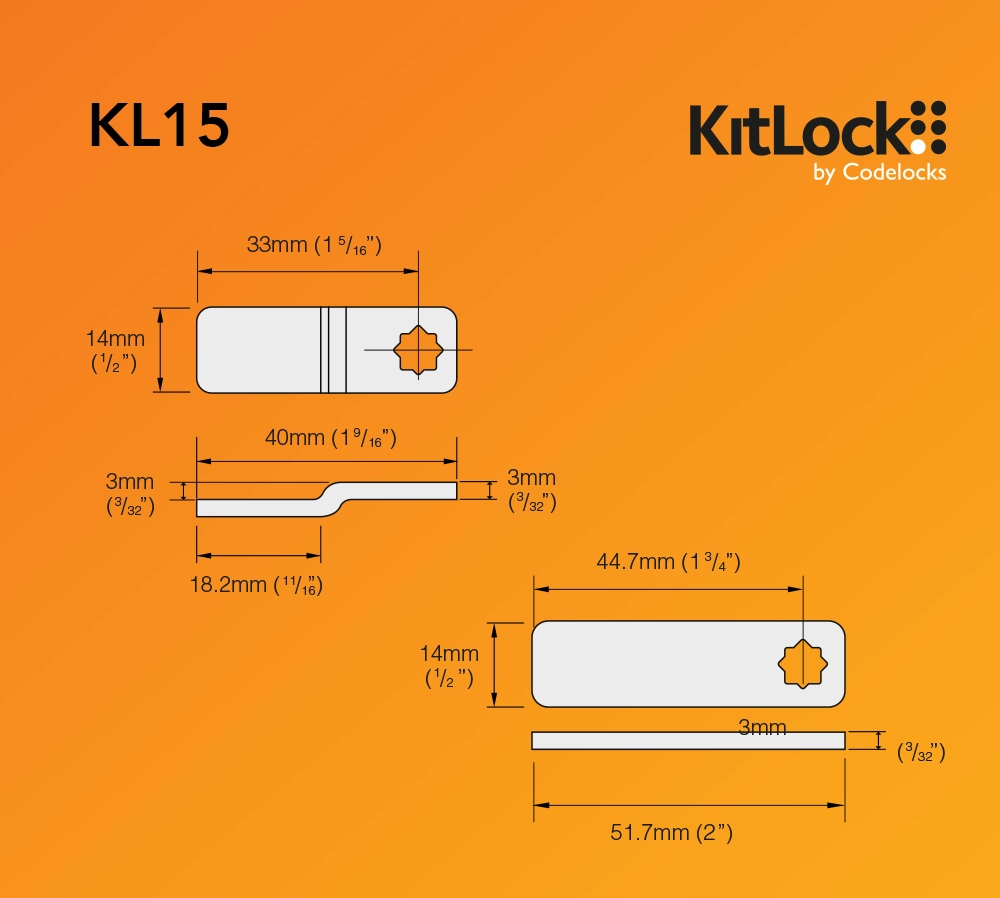

Back plate(s) and cam supplied - Additional back plate and cam available
INDICATORS
- Locked (red)
- Unlocked (green)
LATCH TYPE
Cam
LOCK MATERIAL
Plastic
SUITABLE FOR
- Internal
- External
CODE CHANGE METHOD
Keypad (On Door)
APPLICATION LEAD TIME
3 to 5 working days
FUNCTION
- Public
- Private
HANDLE
Anti-vandal
MOUNTED
Flush or Surface
ORIENTATION
- Vertical
- Left Handed
- Right Handed
PUBLIC FUNCTION
The KL15 Public Function is ideal for short term, multiple occupancy applications. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock, the lock remains open ready for the next user.

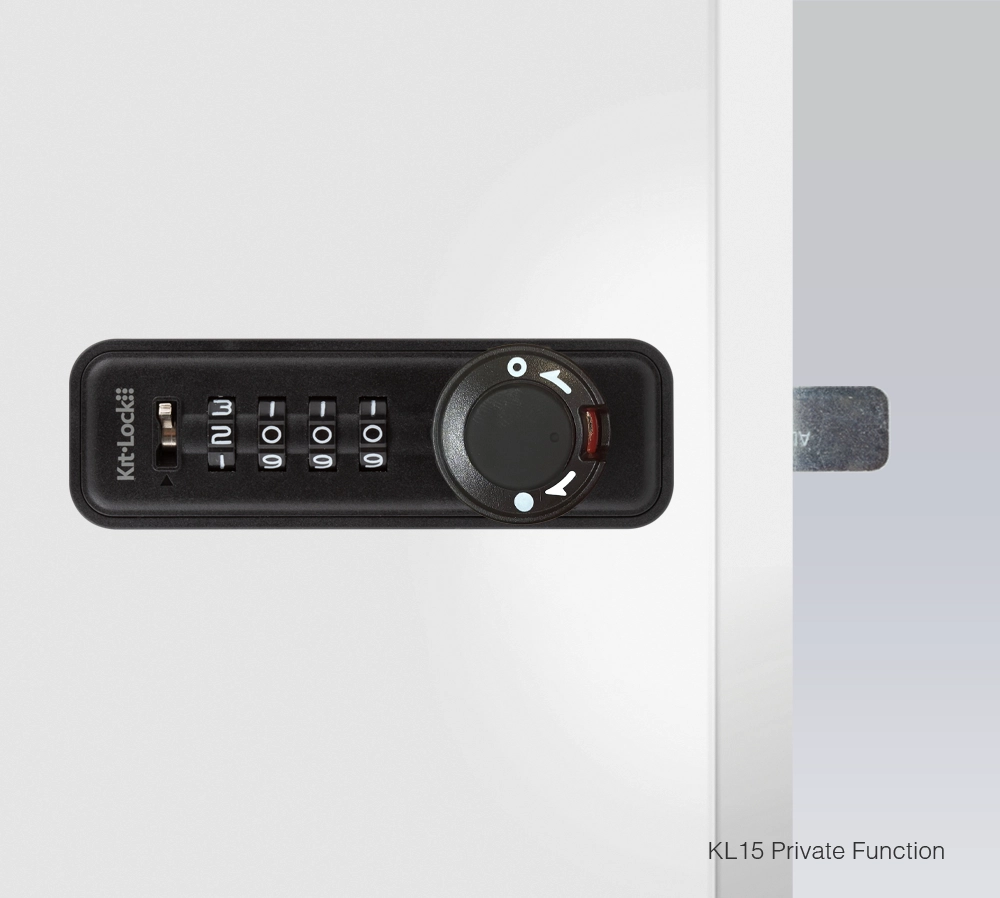

PRIVATE FUNCTION
The KL15 Private Function is ideal for use where the same, personal 4 digit code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.
KEY FEATURES
- Salt spray tested
- No keys to manage
- 4 wheel combination
- Code retrieval function
- High / low humidity tested
- High / low temperature tested
- Up to 10,000 unique combinations
CLEAN
Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96% 3 , providing an additional measure of protection over sanitisation.
