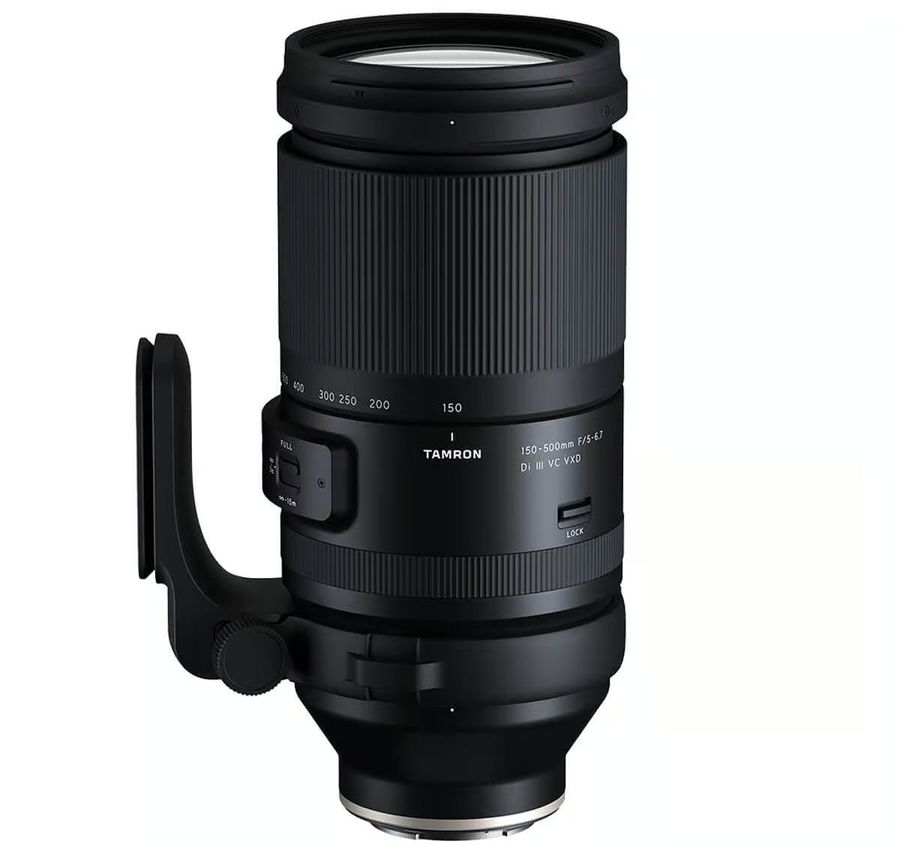

Tamron 150-500mm F/5-6.7 DI III VC VXD Camera Lens
150-500MM F/5-6.7 DI III VC VXD CAMERA LENS
150-500MM F/5-6.7 DI III VC VXD CAMERA LENS
Compact and lightweight 500mm ultra telephoto zoom.
Ultra-telephoto 150–500mm zoom lens for full-frame mirrorless cameras.
FEATURES
CIRCULAR APERTURE
A 7-blade diaphragm is configured to retain a smooth, circular-shaped aperture opening even when stopped down by two stops from the wide-open aperture. This produces a smooth-edged bokeh in background highlights.
MOISTURE-RESISTANT CONSTRUCTION
For greater protection when shooting outdoors, leak-resistant seals throughout the lens barrel help protect your equipment. The Connector Port on the Nikon Z mount model is the water-proofed USB Type-C variety.
BBAR-G2 COATING
TAMRON has long been an innovator of coating technologies that prevent ghosting and flare. Second-generation BBAR-G2 Coating is a groundbreaking advancement that provides vastly improved performance compared to the original BBAR (Broad-Band Anti-Reflection) Coating. The coating corrects for ghosting and flare to an unprecedented extent and renders fine subject detail with true clarity and stunning contrast even under backlit conditions.
ZOOM LOCK SWITCH
The 150-500mm F5-6.7 VC VXD has a switch that can lock the zoom ring at the 150mm focal length if desired. This prevents the unwanted extension of the lens barrel due to the weight of the lens during transportation.
TAMRON LENS UTILITY™
With the Nikon Z mount version, users can employ the dedicated TAMRON Lens Utility software for computers and devices with Android™ [1] OS that was developed in-house by TAMRON[2]. This application enables users to easily update the lens to the latest firmware themselves without going through the camera[3].
- 1 Android is a trademark of Google LLC.
- 2 To Connect your PC and lens, use the TAMRON Connection Cable (USB Type-A to Type-C/Model CC-150, or USB Type-C to Type-C/Model CC-350) sold separately.
- 3 As the 70-300mm F4.5-6.3 is not equipped with a Focus Set Button, certain functions cannot be customized.
FLUORINE COATING
The front surface of the lens element is coated with a protective fluorine compound that is water- and oil-repellent. The lens surface is easier to wipe clean and is less vulnerable to the damaging effects of dirt, dust, moisture and fingerprints.
INFORMATION
CLOSE-UP CAPABILITIES
- Minimum Object Distance : 0.6m (23.6") (Wide) / 1.8m (70.9") (Tele)
- Maximum Magnification Ratio : 1:3.1 (Wide) / 1:3.7 (Tele)
BRAND
Tamron
PRODUCT TYPE
Lens
MODEL
A057
FORMAT
Mirrorless
APERTURE PERFORMANCE
- Maximum Aperture : F5-6.7
- Minimum Aperture : F22-32
- Aperture Blades : 7 (circular diaphragm)
WEIGHT
- Sony : 1725g/60.8oz (w/o tripod mount)
- Fujifilm : 1710g/60.3oz (w/o tripod mount)
- Nikon : 1720g/60.7oz (w/o tripod mount) tripod mount 155g/5.5oz
FILTER SIZE
ø82mm
MAXIMUM DIAMETER
ø93mm
FOCAL LENGTH
150-500 mm
PRODUCTION
Made in US
LENGTH
- Sony : 209.6mm/8.3"
- Fujifilm : 209.9mm/8.3"
- Nikon : 212.3mm/8.4"
FEATURES AT A GLANCE
- Compact 8.3″ length and lightweight 60.8oz design.*
- VC image stabilization enables sharp handheld shooting.
- VXD linear motor delivers fast, precise autofocus performance.
- Optical design includes special glass and hybrid aspheres.
- Impressive close-focusing capability for dramatic detail shots.
- 75° zoom ring rotation allows quick focal length changes.
- Compatible with Fujifilm X, Nikon Z, and Sony E mounts.
DI III
For full-frame mirrorless cameras
PRODUCT BROCHURE
150-500mm Brochure
TECHNICAL DRAWING
ANGLE OF VIEW (DIAGONAL)
16° 25'-4° 57' (for full-frame format), 10° 59'-3° 18' (for APS-C format)
OPTICAL CONSTRUCTION
25 elements in 16 groups
WARRANTY
6-Year Limited
STANDARD ACCESSORY
- Round-shaped hood
- Lens caps
- Tripod mount
COMPATIBLE MOUNT
ULTRA-TELEPHOTO 500MM FOR FULL-FRAME MIRRORLESS PROVIDES SHOOTING ENJOYMENT IN A TRULY COMPACT SIZE
- Considering its pairing with mirrorless cameras, TAMRON pursued a compact size that allows handheld shooting while developing the 150-500mm F5-6.7. With a length of 8.3" (209.6mm)* and maximum diameter of 93mm, the 150-500mm F5-6.7 is astonishingly compact for a 500mm-class ultra-telephoto zoom lens.
- Even when extended to the 500mm telephoto end, the lens has a length of around 11.1" (283mm). Another distinctive feature is that the arc of rotation of the zoom ring is small—only 75°—which enables swift adjustment to the desired focal length with minimal movement. *Length is based on the Sony-mount lens
TECHNOLOGY
LENS HOOD DESIGNED WITH RUBBERIZED FRONT
The end of the included lens hood is protected with flexible, shock-absorbing front rim to prevent cracks and damage.
FLEX ZOOM LOCK MECHANISM
The FLEX ZOOM LOCK mechanism quickly locks or unlocks the zoom at any position simply by sliding the zoom ring. Photographers can shoot at any zoom setting without the lens extending unintentionally.
BRAND RING
The “”brand ring”” on the lens mount is a sign of trust with the user, and the smooth curved surface and glossy surface treatment give the camera a unique and dignified appearance that is pleasing to both the eye and the hand.
REDESIGNED SLIDE SWITCHES FOR IMPROVED OPERABILITY
The design of the slide switches has been improved for better operability based on ergonomics. The sloped bevel around the slide switch draws your finger naturally to the right position. To prevent accidental operation, for example, when removing the lens from a case or camera bag, the switches have a low profile. This new design provides a smooth and comfortable user experience.
DETAIL
BUILT WITH MIRRORLESS IN MIND
– Fast Hybrid AF
– Eye AF
– Direct Manual Focus (DMF)
– In-camera lens correction (shading, chromatic aberration, distortion)
– AF Assist
NIKON Z MOUNT COMPATIBLE WITH TAMRON LENS UTILITY™ SOFTWARE
With the Nikon Z mount version, users can employ the dedicated TAMRON Lens Utility software for PC that was developed in-house by TAMRON. This application lets users easily update the lens to the latest firmware themselves without going through the camera.* On the firmware information screen, you can check the version of your lens and update it if a newer firmware version is available.
HIGH-SPEED, HIGH-PRECISION AF MEANS YOU’LL NEVER MISS A PHOTO OPPORTUNITY
The 150-500mm F5-6.7 zoom’s AF drive system is equipped with the VXD (Voice-coil eXtreme-torque Drive) linear motor focus mechanism.
VXD delivers extreme high-speed and high-precision movement and ensures exceptionally responsive performance. Focus tracking performance is also very high. The linear motor also suppresses drive noise and vibrations during focusing, making it ideal for shooting both still photos and video in environments that demand quietness.
VC IMAGE STABILIZATION FOR STEADY SHOOTING, PARTICULARLY IN THE ULTRA-TELEPHOTO RANGE
When shooting in the ultra-telephoto range, even the smallest vibrations can lead to loss of image clarity.
The 150-500mm F5-6.7 is equipped with VC (Vibration Compensation) functionality to support sharp images despite unavoidable camera shake. VC delivers powerful support for handheld shooting of scenes with low light levels, such as evening scenes and indoor shots, without the use of a tripod.
MOD OF 23.6" (0.6M) WHEN SHOOTING AT THE 150MM SETTING
The 150-500mm F5-6.7 lets users freely enjoy telephoto macro shooting of subjects at close-up distances. The lens has an MOD of 23.6″ (0.6m) at 150mm, and 70.9″ (1.8m) at 500mm. More remarkably, the maximum magnification ratio at 150mm is 1:3.1, offering excellent close-up shooting capabilities for an ultra-telephoto zoom lens.
In addition to capturing dynamic shots by getting close to the subject, it enables tele-macro photography at close range, something that is not possible with conventional ultra-telephoto zoom lenses. The 150-500mm F5-6.7 can be used in a wide range of situations from plants to insects to tabletop photography.
UNCOMPROMISING HIGH IMAGE QUALITY THROUGHOUT THE ENTIRE ZOOM RANGE
In addition to covering a broad range of focal lengths, the 150-500mm F5-6.7 has high resolving power with excellent image-rendering performance across the entire zoom range.
The optical construction features 25 elements in 16 groups. The effective placement of special lens elements—including one XLD (eXtra Low Dispersion), five LD (Low Dispersion) and two hybrid aspherical lens elements—enables the 150-500mm F5-6.7 to produce sharp, clear images while controlling chromatic aberrations.
BBAR-G2 (Broad-Band Anti-Reflection Generation 2) Coating is used to suppress ghosting and flare, which commonly occur under backlit conditions. These features allow the lens to produce finely detailed images of a wide variety of subjects including wild animals, birds, nature, and sports, while producing soft and beautiful bokeh effects.
MASTERING THE MAGICAL WORLD OF 500MM ULTRA-TELEPHOTO WITH AN ASTONISHINGLY COMPACT ULTRA-TELEPHOTO ZOOM LENS.
The TAMRON 150-500mm F/5-6.7 Di III VC VXD (Model A057) is an ultra-telephoto zoom lens for Sony E, Nikon Z and Fujifilm X mirrorless cameras that seamlessly blends high image quality with intuitive, convenient operation.
Despite its impressive 500mm focal length, this lens maintains a remarkably light and compact design, measuring just 8.3″ (209.6mm) in length and 60.8oz (1725g) in weight. It features VC image stabilization for sharp handheld ultra-telephoto shots.
The optical construction incorporates special glass elements and hybrid aspheres to correct optical aberrations. With a remarkable closest focusing distance, it’s also perfect for striking close-ups. Plus, the arc of rotation of the zoom ring is only 75° to enable swift adjustment to the desired focal length with minimal movement. From landscapes to wildlife to sports photography, the TAMRON 150-500mm F/5-6.7 offers versatility for capturing a wide range of subjects with exceptional clarity and ease.
FOCUS LIMITER FOR FASTER SUBJECT ACQUISITION
Furthermore, the 150-500mm F5-6.7 VC is equipped with a Focus Limiter switch. This feature allows you to restrict the focus drive range to suit your shooting conditions.
- Prevents Mis-focusing : Restricting the focus range helps prevent the lens from accidentally shifting focus to obstacles or unintended objects.
- Faster Recovery : Even if the focus is lost, limiting the range ensures a much faster recovery time to find the subject again.
To autofocus across the entire range from the MOD to INF, please set the Focus Limiter switch to the “FULL” position
Focus Limiter Settings by Mount
- For Sony E-mount : ∞ – 3m, ∞ – 15m, FULL
- For Nikon Z-mount : MOD – 10m, 10m – ∞, FULL
- For FUJIFILM X mount : MOD – 10m, 10m – ∞, FULL
SWITCHES TO SUPPORT COMFORTABLE SHOOTING
Switchboxes of the 150-500mm F5-6.7 employs different functions for each compatible mount.
FOR SONY E AND FUJIFILM X-MOUNT
The Sony E and FUJIFILM X-mount version features a VC mode selection switch with three modes, thereby enabling selection of the ideal VC mode to match shooting conditions and preferences.
– Mode 1: Standard
– Mode 2: Exclusively for panning
– Mode 3: Framing priority
FOR NIKON Z MOUNT
The Nikon Z mount version features a Linear/Non-Linear switch to change the response of the focus ring when using the manual focusing setting. This allows you to shoot according to your intention, depending on the shooting scene, such as focusing precisely on subjects in the distance or video recording.
– Non-Linear: The rotation speed of the focus ring changes the amount of focus movement.
– Linear: The rotation angle of the focus ring changes the amount of focus movement.
FOR FUJIFILM X-MOUNT
The FUJIFILM X-mount version features an “”MF SPEED switch””. The switch allows you to select between two focusing speeds during manual focus shooting. This switch is useful when you are using the camera’s LCD monitor to magnify the image for precise focusing. It facilitates accurate shooting in the telephoto to ultra-telephoto range of 225-750mm (full-frame equivalent).
– Mode 1: For normal manual focusing
– Mode 2: When fine manual focusing adjustment is required
