Thermador Warming Drawer 30'' WD30W
WARMING DRAWER 30'' WD30W
WARMING DRAWER 30'' WD30W

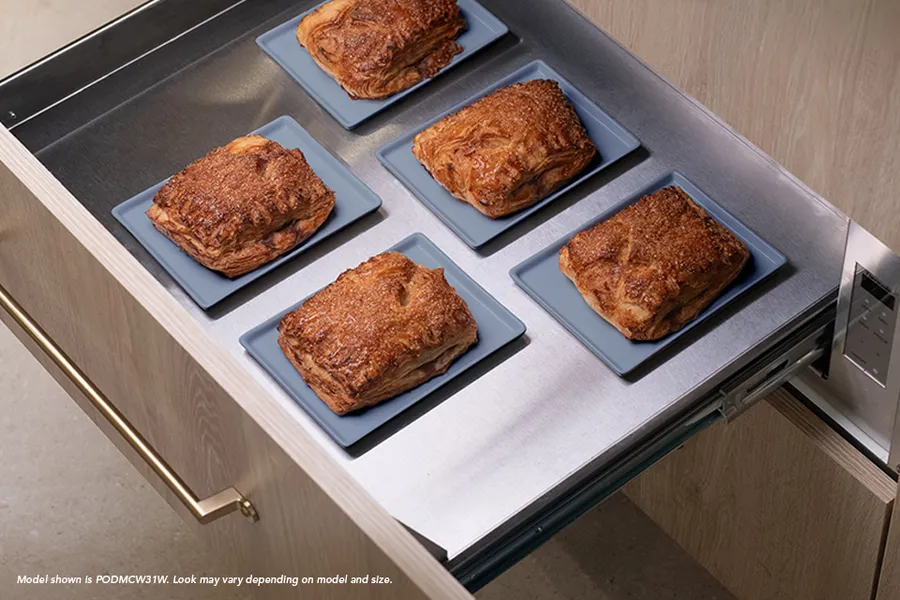

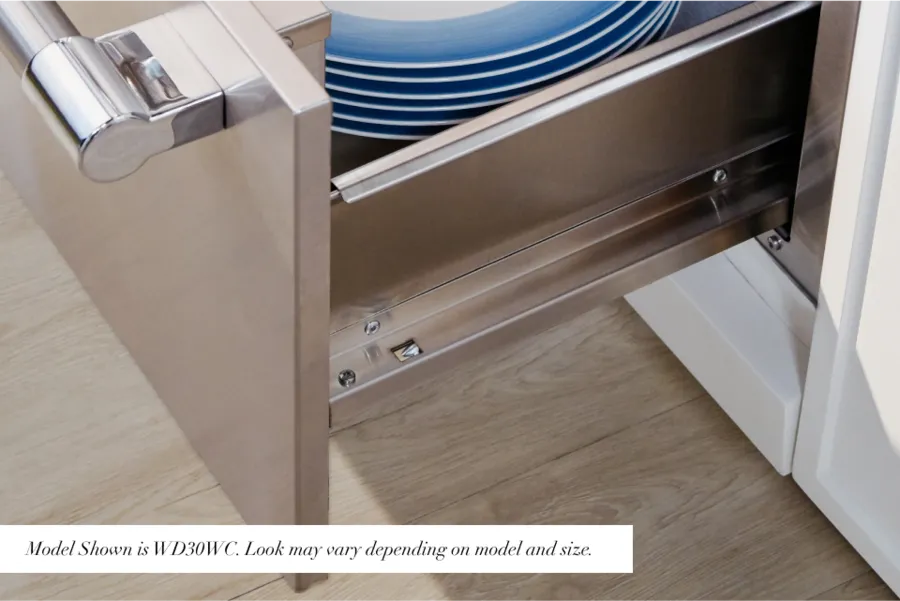

Telescopic Rails
Featuring a telescoping ball-bearing design for smooth opening and closing that supports up to a 40 lbs. load.
HIGHLIGHTS

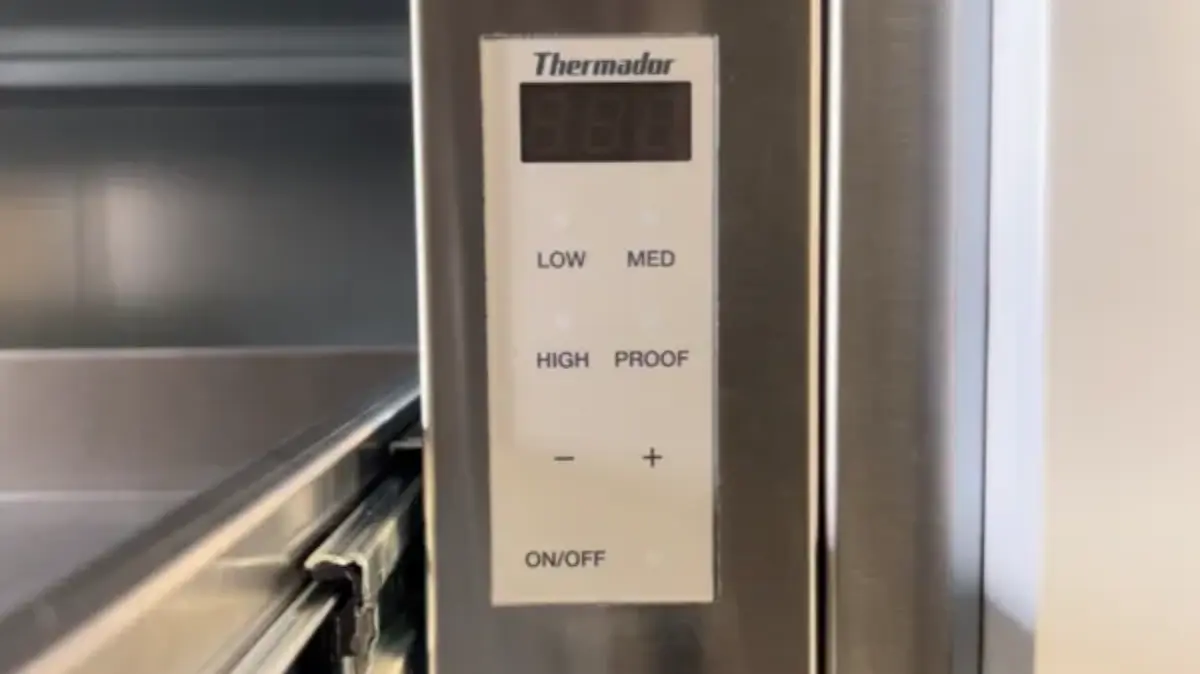

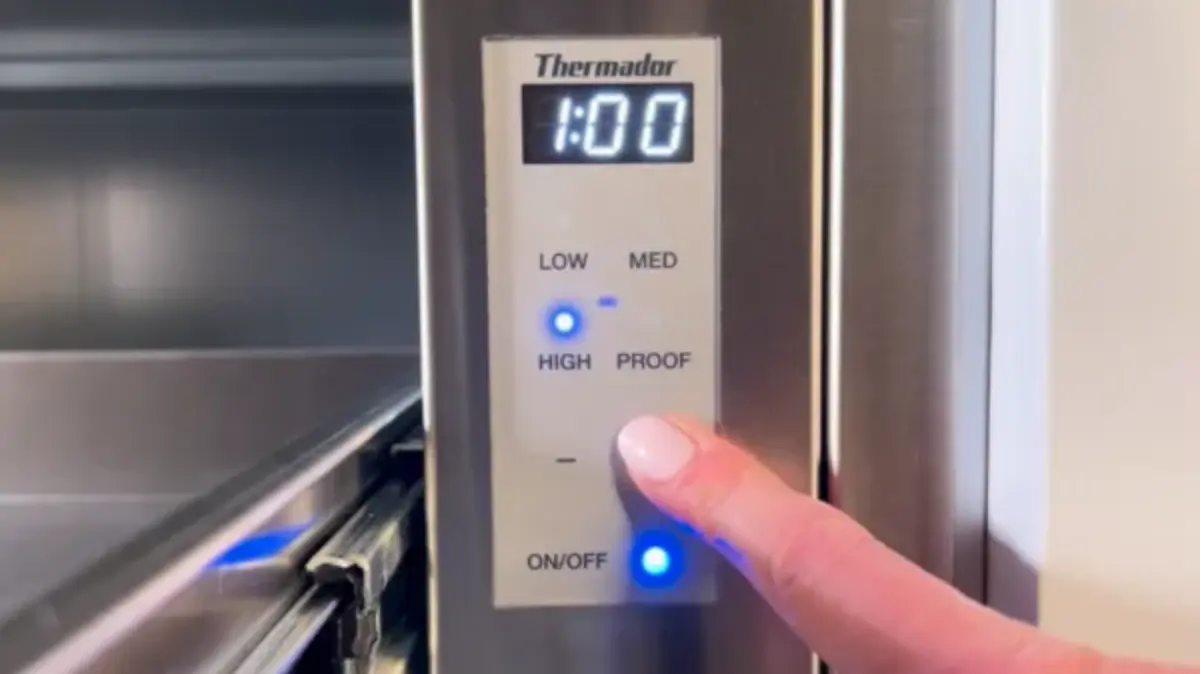

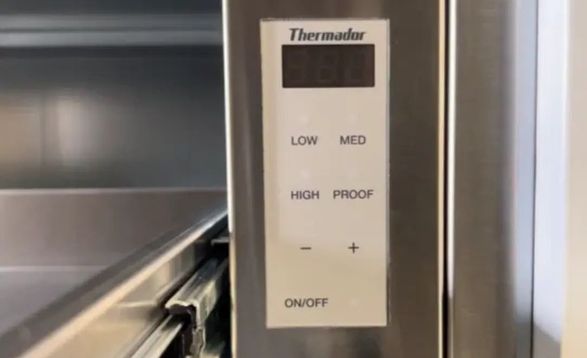

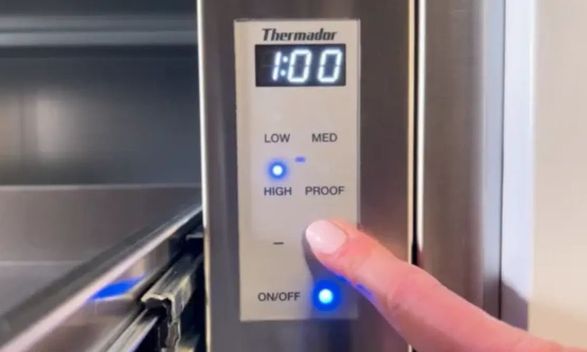

FOUR CONVENIENT TEMPERATURE SETTINGS
Warming mode with convenient temperature settings including high, medium, low and proof.
PREVENT SLAMMING WITH SOFTCLOSE® DRAWERS
SoftClose® door prevent slamming and ensure ultra smooth closing of the Warming Drawer.
PROOF MODE FOR ALL YOUR BAKING NEEDS
Use Proof Mode to ensure your dough recipes achieve your desired texture and taste. Proofing provides a draft-free environment to rise dough in.

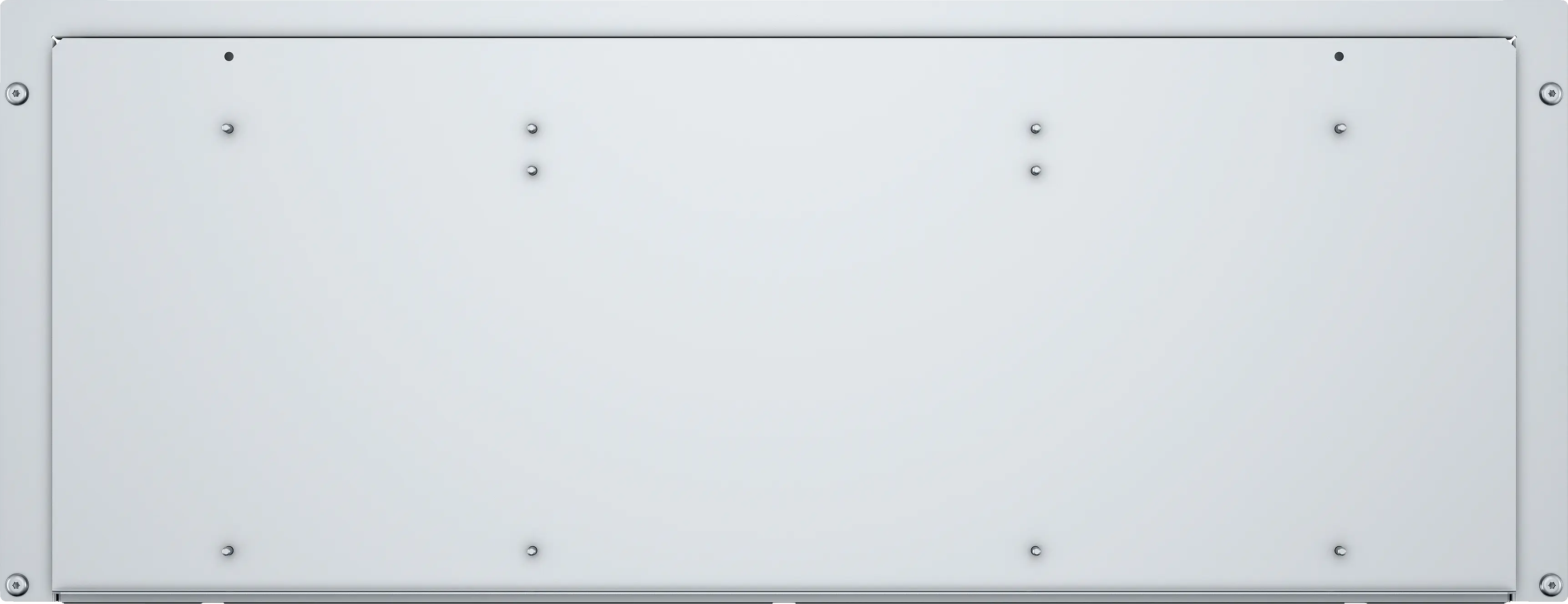

CUSTOM PANEL READY
The custom panel-ready model lets you create a custom panel to match the warming drawer to existing cabinetry and includes pull-to-open functionality. The fully flush-mounted design creates a seamless appearance, giving you the ultimate in design flexibility.
INFORMATION

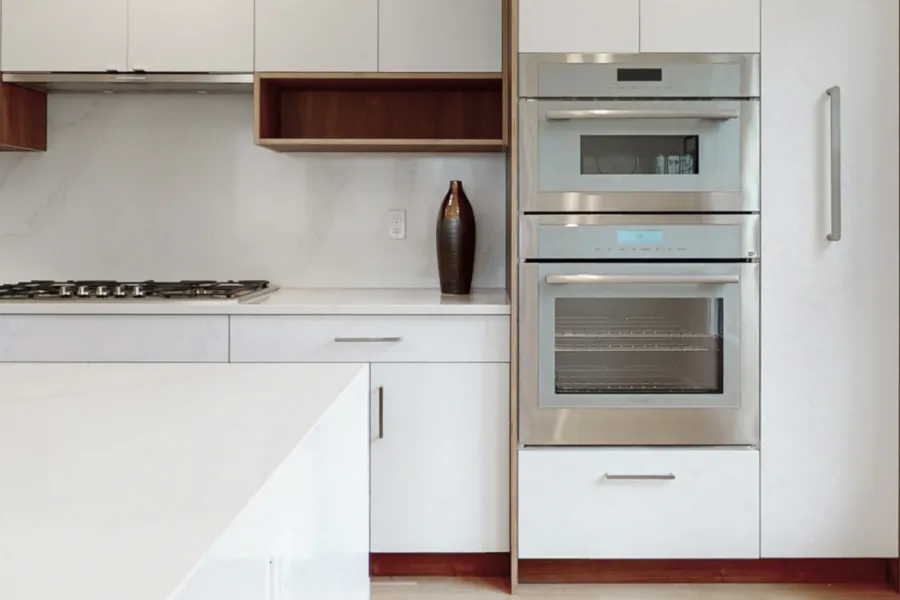

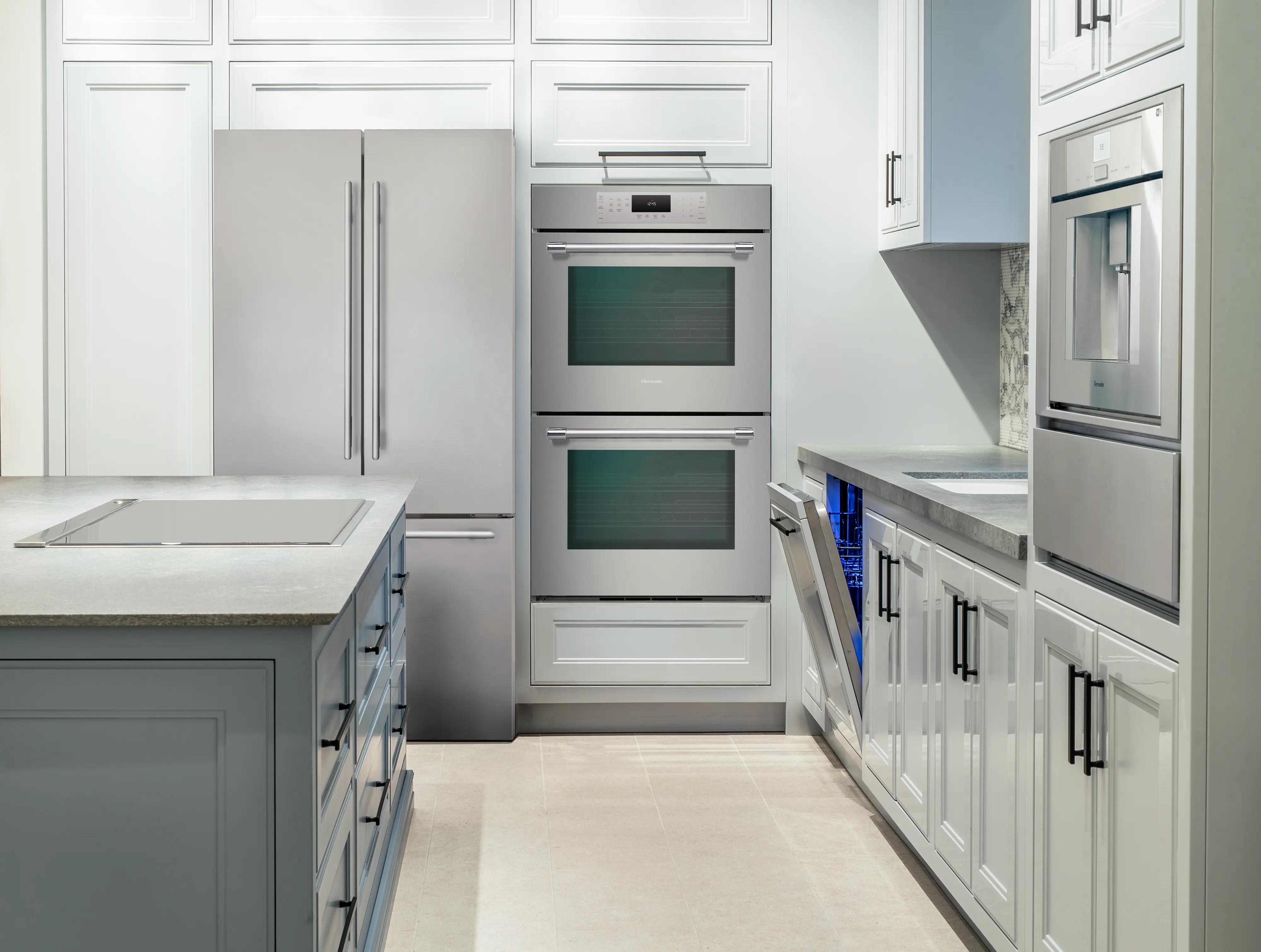

PAIRS WITH THERMADOR OVENS
Installs vertically under Thermador speed, steam or wall ovens.
MODEL
WD30W
VOLTS
120 V
BRAND
Thermador
PRODUCT TYPE
Warming Drawers
CONNECTIVITY
Home Connect® WiFi-enabled : No
PLUG TYPE
120V-3 prong
FREQUENCY
60 Hz
OVERALL APPLIANCE DIMENSIONS
- Height : 9 7/16''
- Width : 29 3/4''
- Depth : 23 3/4''
POWER CORD LENGTH
84''
NET WEIGHT
72.000 lbs
PRODUCT PACKAGING DIMENSIONS
- Height : 14 1/2''
- Width : 35 5/8''
- Depth : 30 1/2''
CAVITY DIMENSIONS
- Height : 7 11/16''
- Width : 21 7/8''
- Depth : 20 1/4''
REQUIRED CUTOUT SIZE
- Height : 9 1/4'
- Width : 28 1/2''
- Depth : 23 1/2''
CAVITY CAPACITY
2.2 Cu Ft
AMPS
15 A
CAVITY CAPACITY
2.2 Cu Ft
COLOR
Not Applicable
WARRANTY
Limited Warranty Parts and Labor : 2 Year
DINNER PLATE CAPACITY
27
DINNER PLATE DIAMETER
10 1/2 "
ADA COMPLIANT
ADA Compliant (When Installed to ADA requirements) : No
PROOF MODE
Yes
SOFTCLOSE® DOOR/DRAWER
Yes
AUTOMATIC SHUT-OFF TIMER
No
SABBATH MODE
No
TEMPERATURE SETTINGS
100° – 190° F
POWER LEVELS
- High
- Medium
- Low

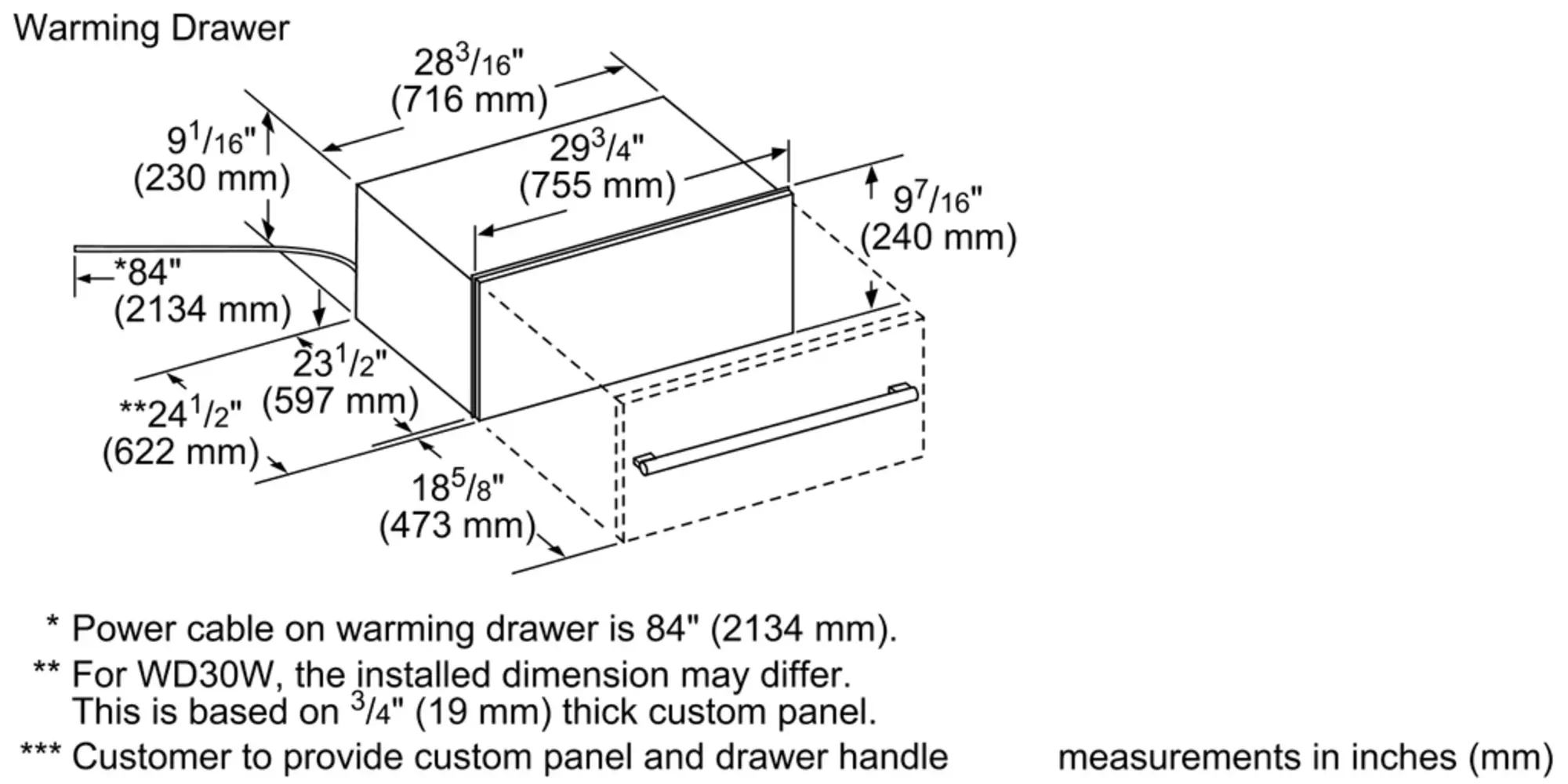

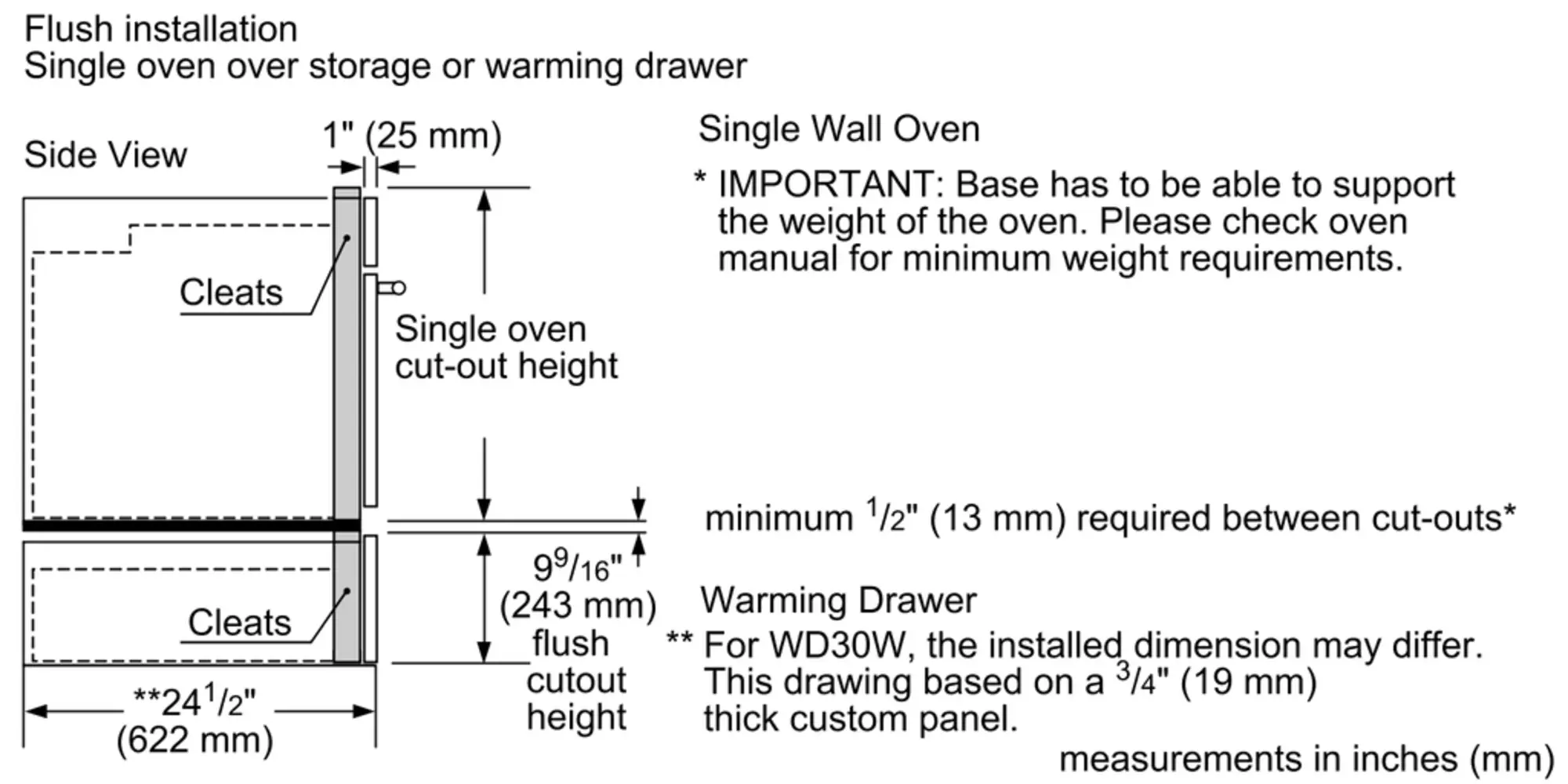

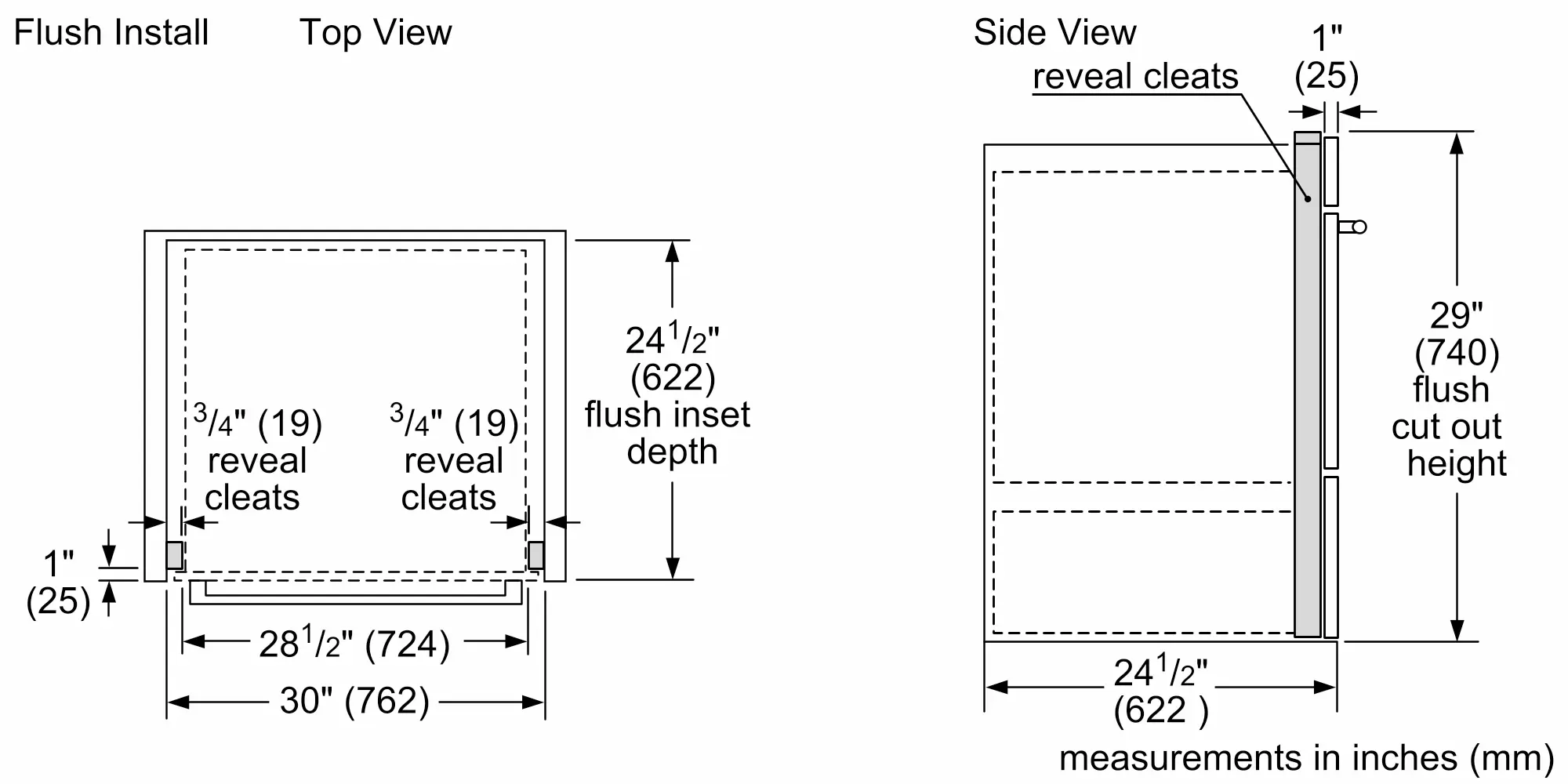

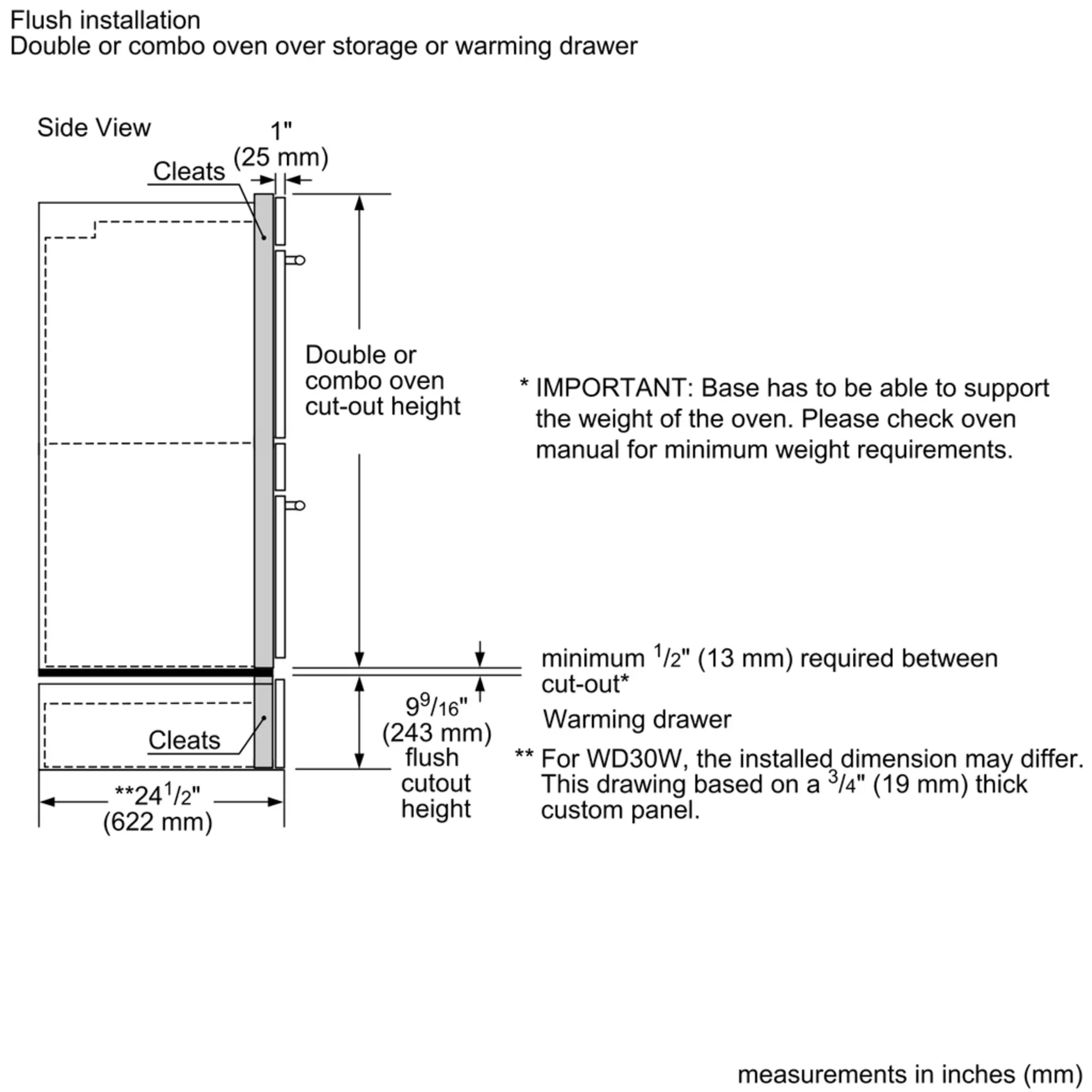

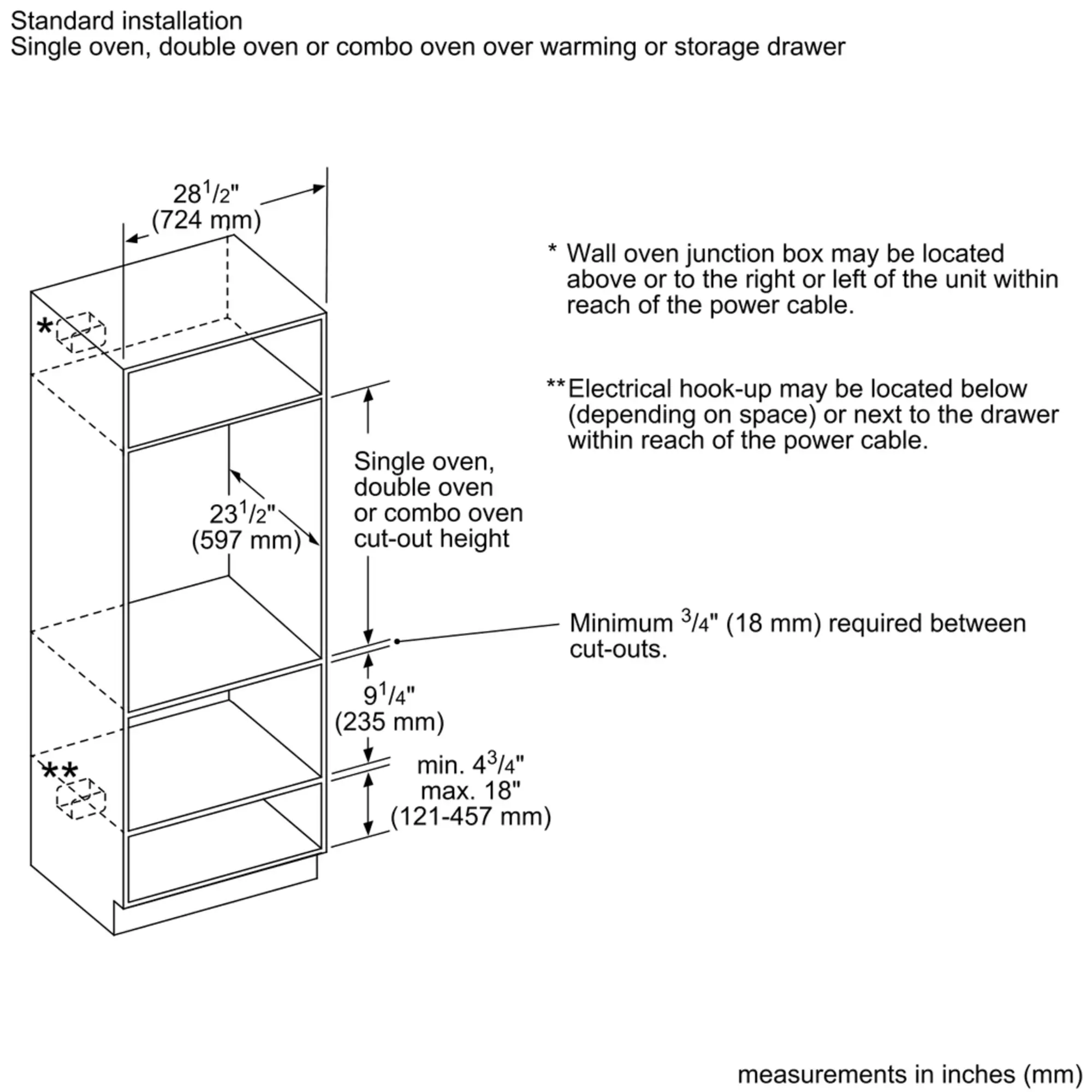

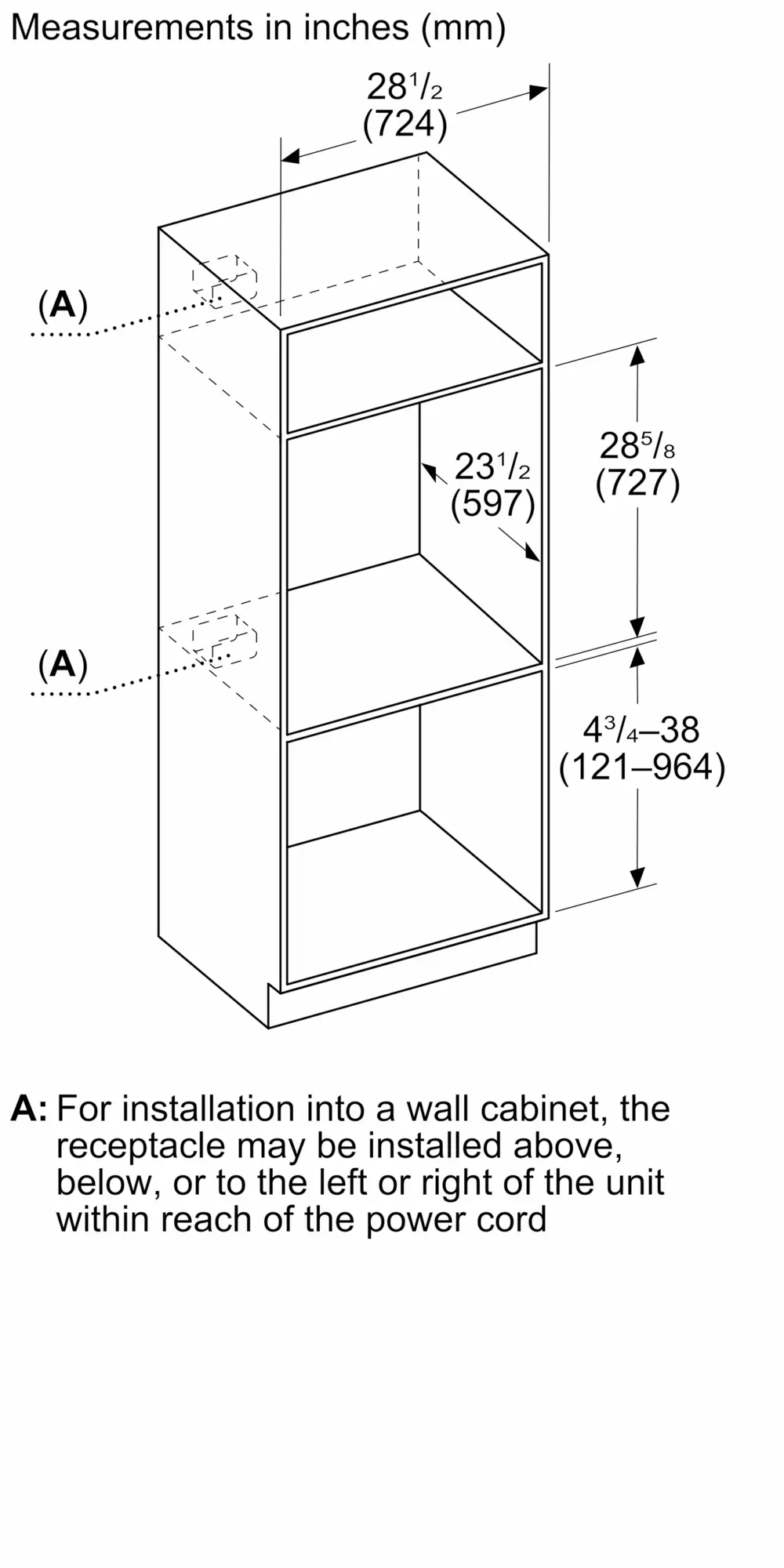

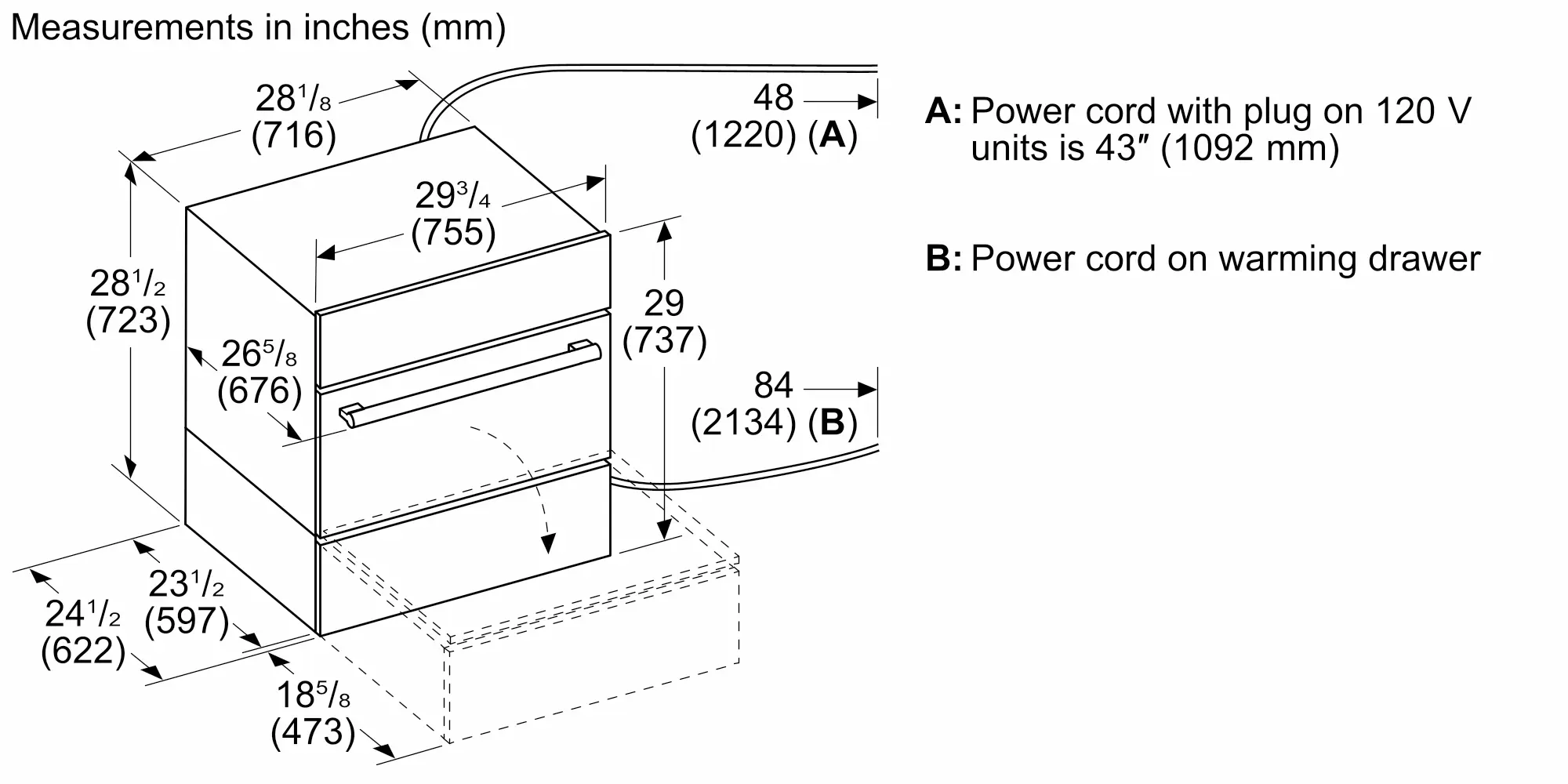

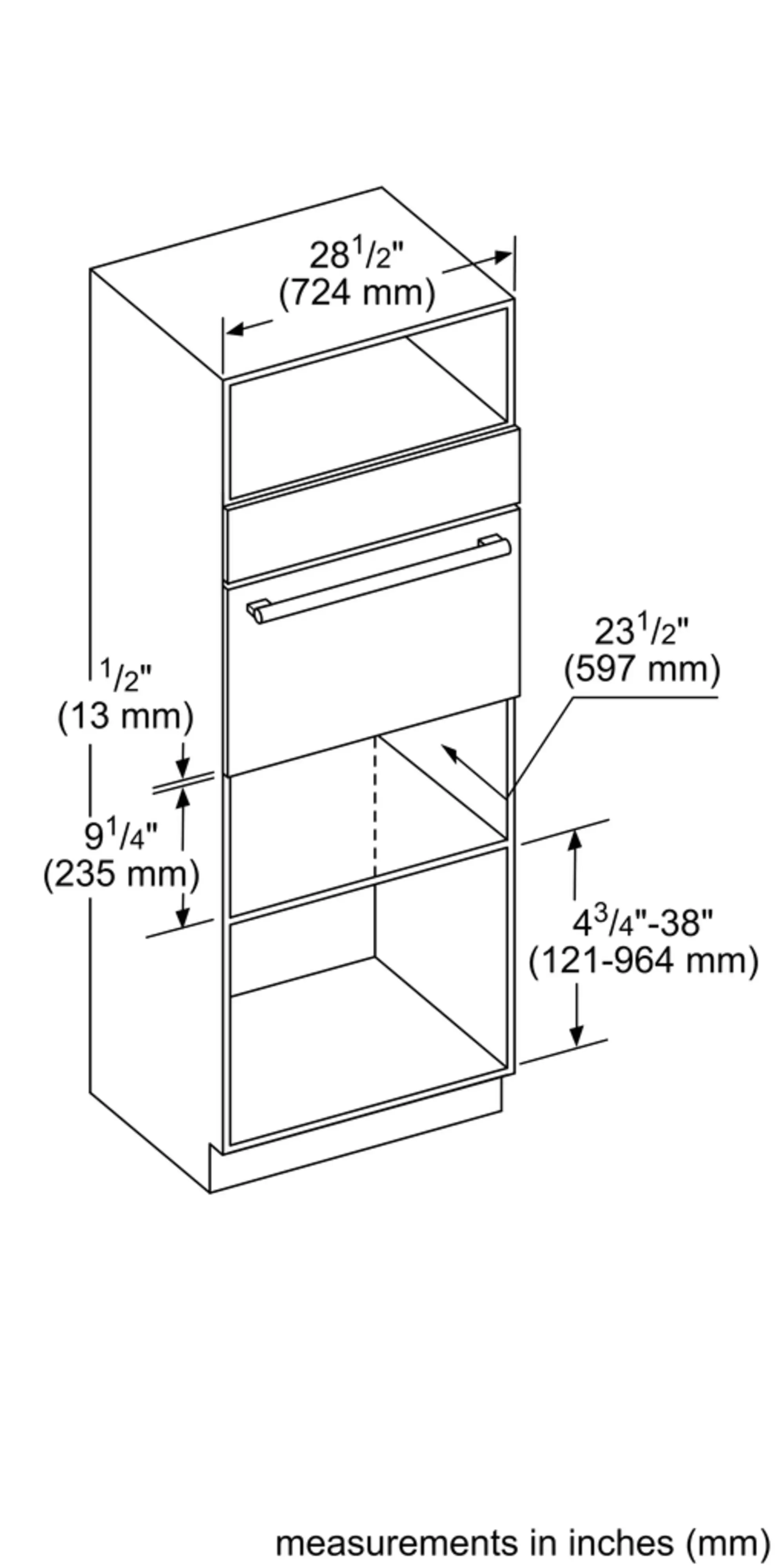

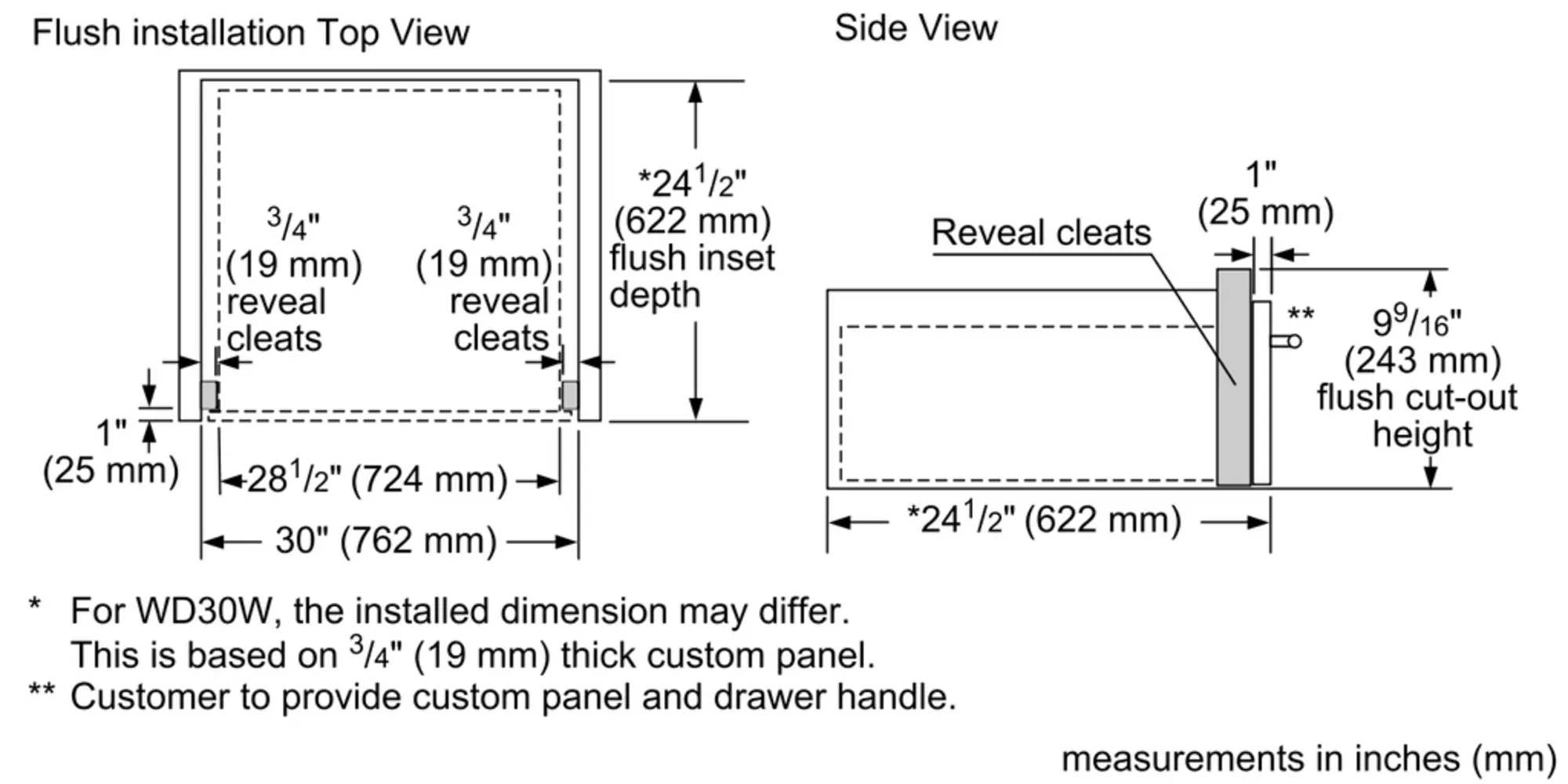

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
