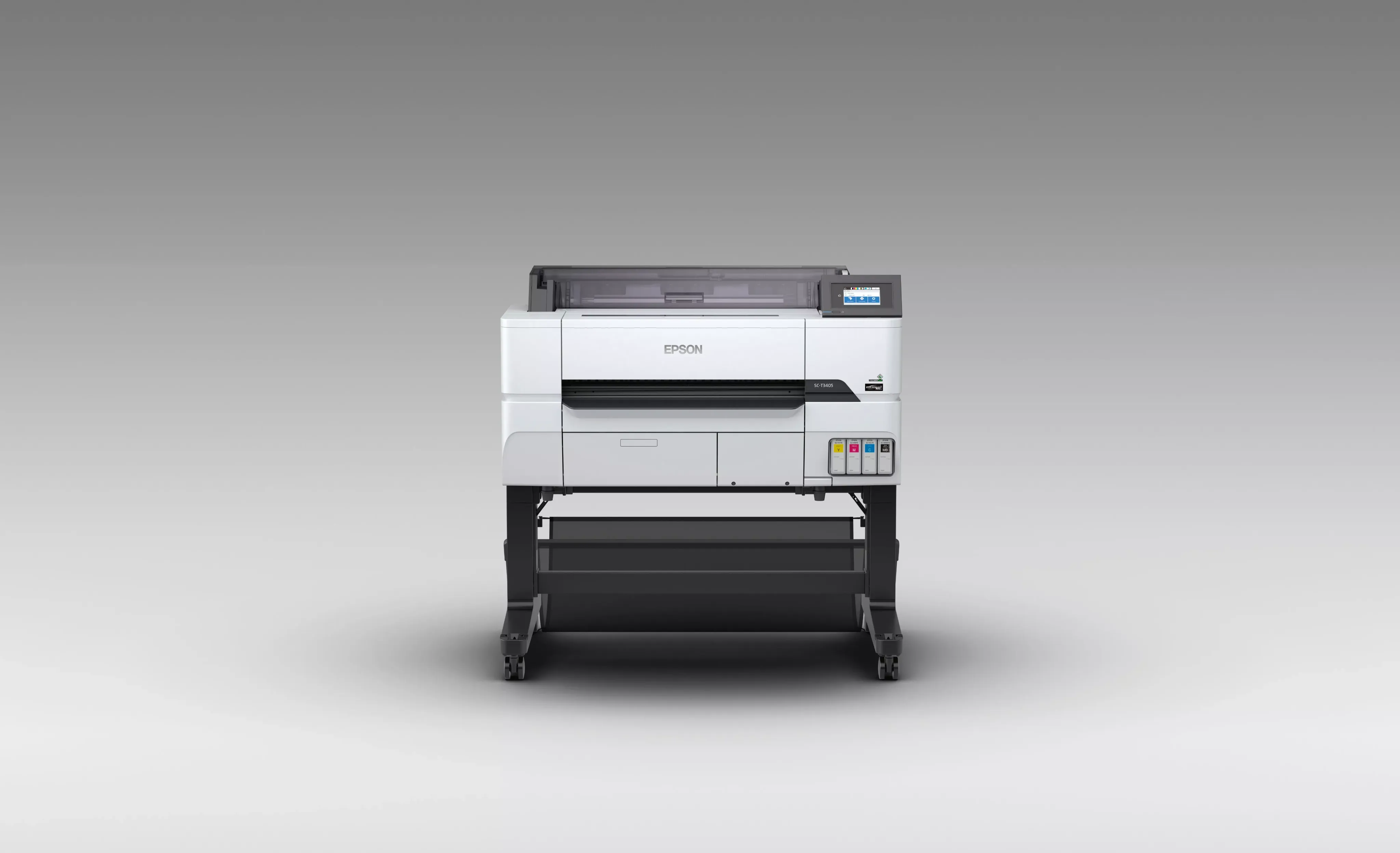

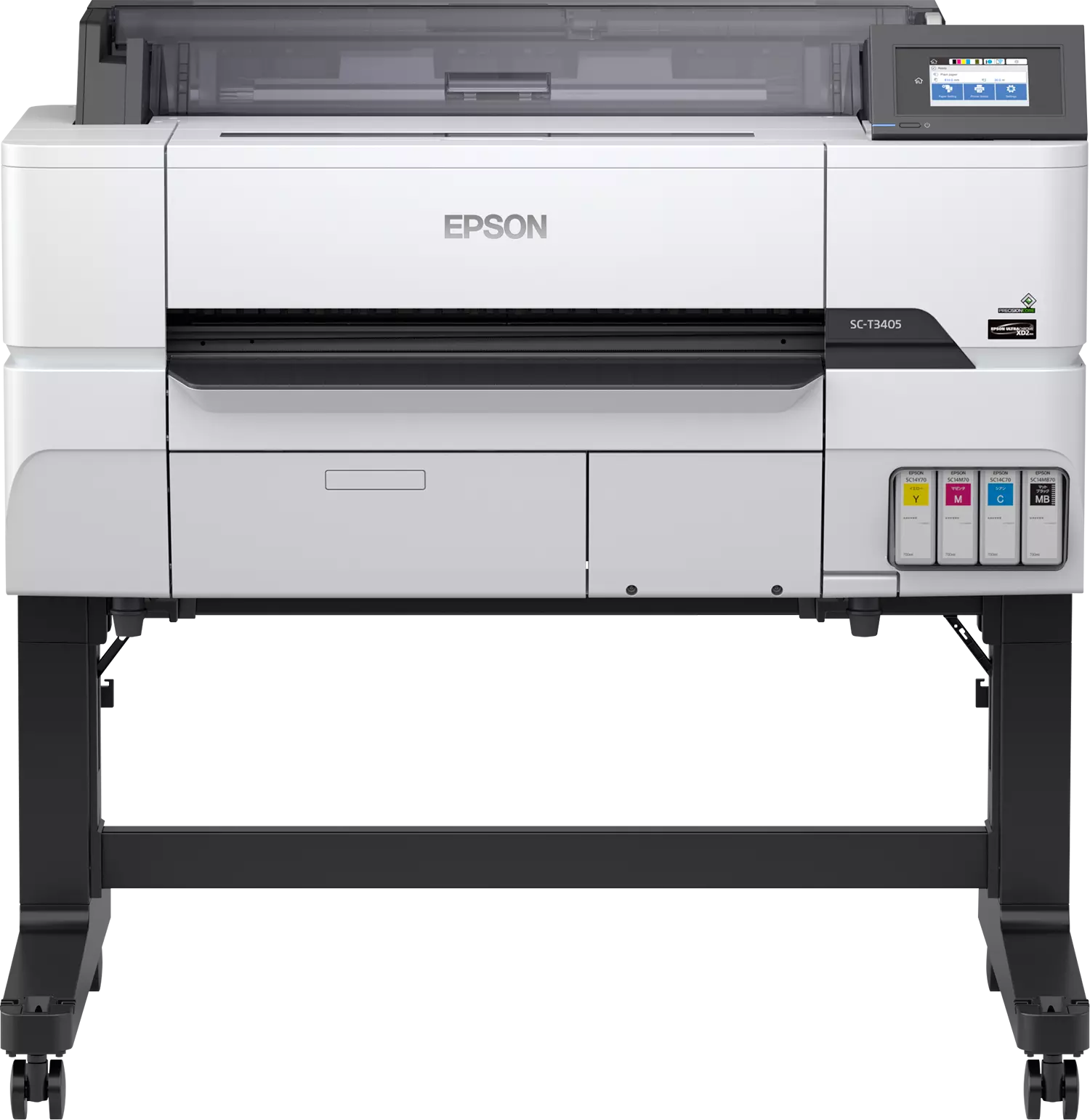

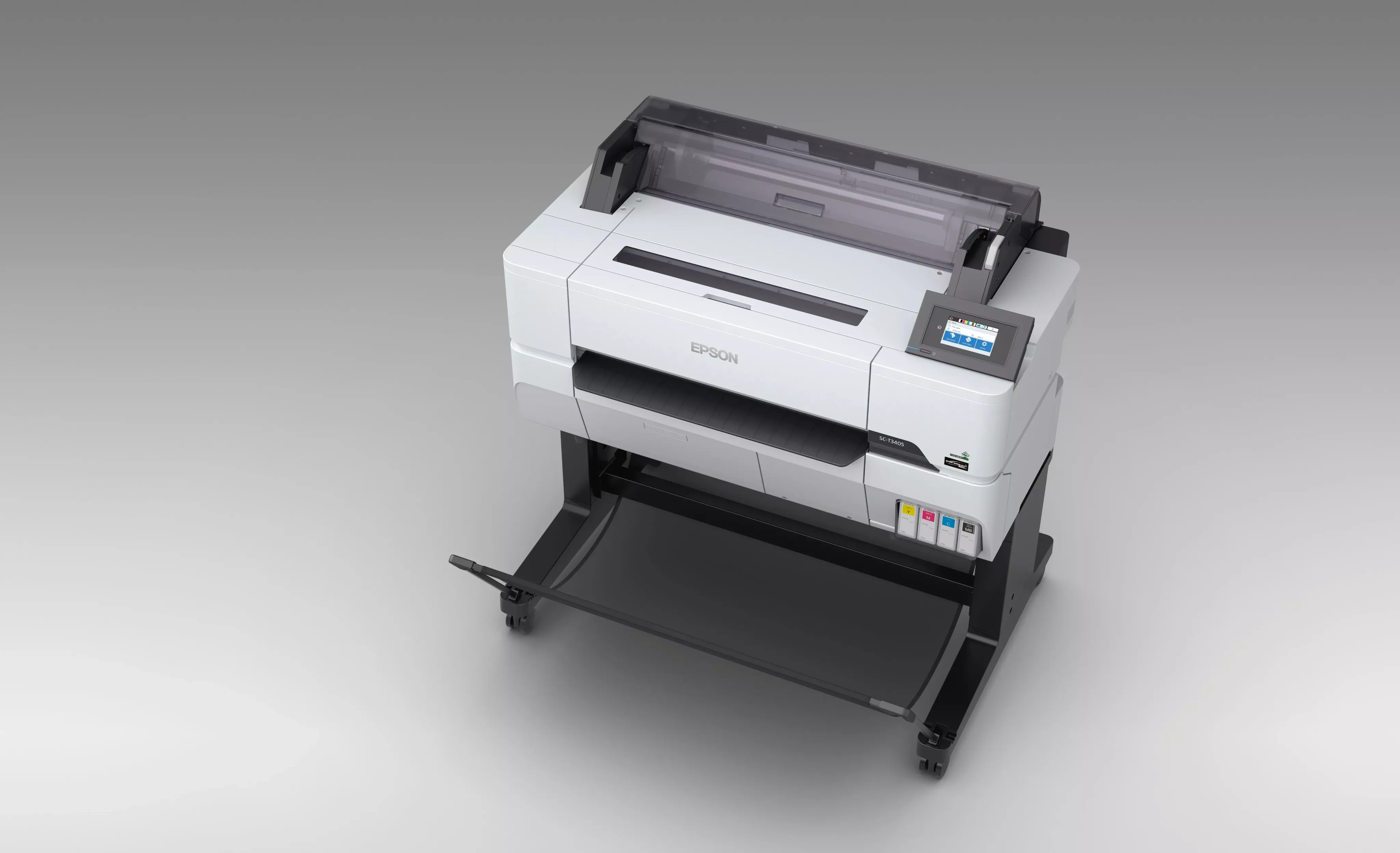

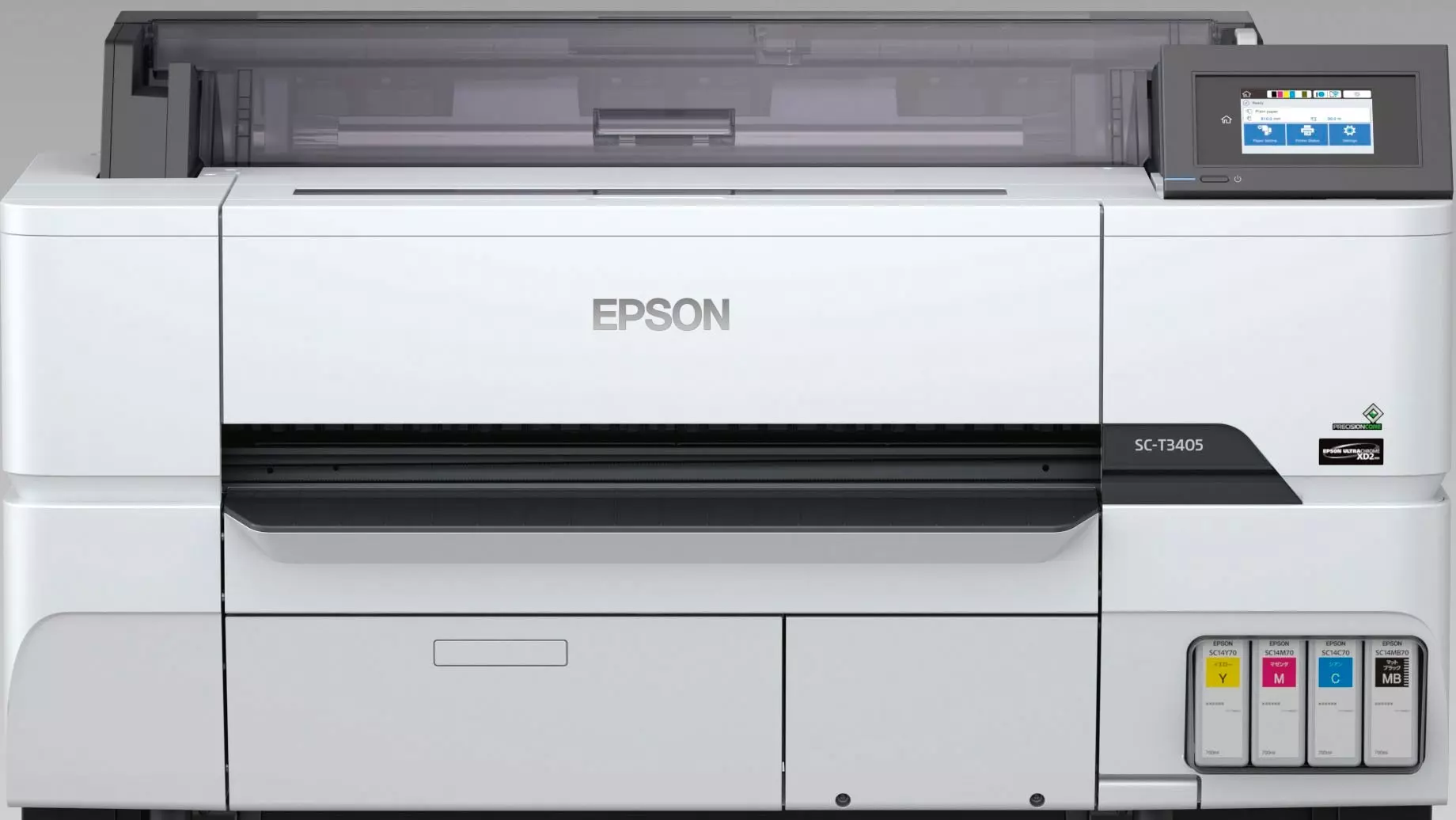

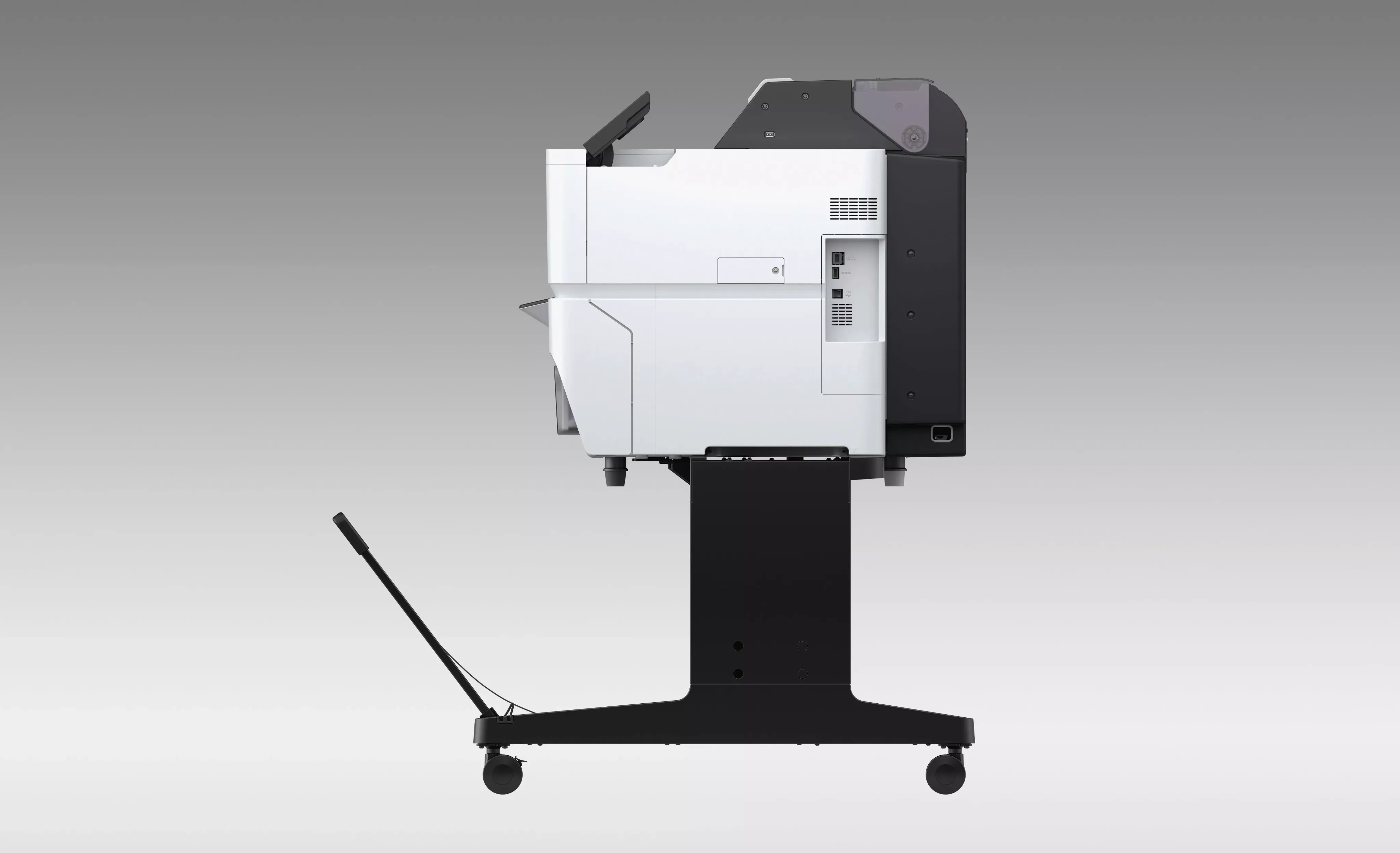

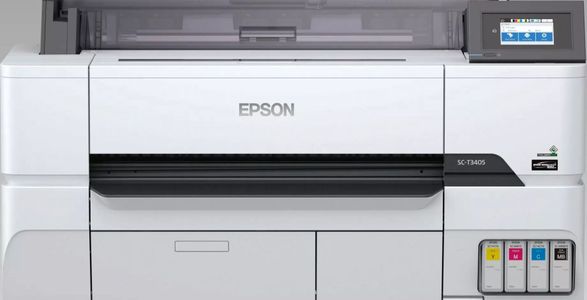

Epson Flexible Large Format Technical Printer
FLEXIBLE LARGE FORMAT TECHNICAL PRINTER
FLEXIBLE LARGE FORMAT TECHNICAL PRINTER
If you’re an engineer or architect, or work with topography plans, city management or territory scale studies, and need to print accurately, reliably and in fine detail then the SC-T3405 has been designed to meet your needs.
INFORMATION
BRAND
Epson
PRODUCT TYPE
Printer
TECHNOLOGY
- Printing Method : PrecisionCore™ Print Head
- Ink Technology : Pigment ink, Ultrachrome® XD2
PRODUCE HIGH-QUALITY
This technical large format printer (LFP) can also produce high-quality posters, whether for schools, for retailers’ in-store signage or for high-visibility colourful posters advertising events.
LINE ACCURACY
+/-0.1
WARRANTY
24 months On-site service
PRODUCT WEIGHT
64 kg
EASE OF USE - WIRELESS PRINTING
From your desktop or mobile device
PRODUCT DIMENSIONS
- Width : 1.080 mm
- Depth : 750 mm
- Height : 1.060 mm
DETAIL
- Unobtrusive design :Thoughtfully designed to fit seamlessly into most environments
- Peace of mind : Unique Nozzle Verification Technology (NVT) helps prevent misprints
- Legal Statement : Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase
PRODUCTION FLEXIBILITY
110ml/350ml/700ml invk cartridges
PANEL
- Diagonal :10.9 cm
- Type : Color, Touchscreen,
PRINTABLE LENGTH
Roll91 Minimum
MOBILE AND CLOUD PRINTING SERVICES
Apple AirPrint
COMPATIBLE OPERATING SYSTEMS
Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
IN THE BOX
- AC cable & Ink set
- Maintenance Tank
- Warranty document
- Setup guide & Spindle Unit(s)
- SureColor T-Series Printer
- Printer Stand with stacking print basket
MEMORY
Printer: 1 GB
EMULATIONS
ESC/P-R, HP-GL2, RTL
SOUND POWER
Operation:7.5 B (A)
POP DRAFT MODE
Print A1 posters in as little as 24 seconds
OPTIONAL EXTRAS
Cover Plus warranty extensions, Roll feed spindle 24" LFP
POWER CONSUMPTION
- 38 Watt
- 13 Watt (standby)
- 0.25 Watt (Power off)
PAPER / MEDIA HANDLING
- Compatible Paper Thickness : 0.05 mm - 0.3 mm
- Print Margins Roll Media : Mode 1: 3 mm (top), 3 mm (bottom)
- Print Margins Sheet Media : Mode 1: 3 mm (top), 3 mm (right), 20 mm (bottom), 3 mm (left)
- Paper Formats : A1, A2 (42.0x59.4cm), A2+, A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B1 (72.8x102.8 cm), B2 (51.4x72.8 cm), B3, B4, B5, 17", 24"
SECURITY
- TLS, & SSL,
- IPSec, IPv6
- IEE 802 & SNMP
PRINTING RESOLUTION
2,400 x 1,200 DPI
NOISE LEVEL
- Operation (Roll):50 dB (A)
- Standby:32 dB (A)
MEDIA HANDLING
- Auto cutter
- Borderless Print
- Roll Paper
PRODUCT SAFETY WARNINGS
Contains 1,2-benzisothiazol-3(2H)-one. May produce an allergic reaction.
Contains 2,4,7,9 -tetramethyldec - 5-yne-4,7-diol. May produce an allergic reaction. Always follow the information on the product label
INTERFACES
- USB 3.0
- Ethernet 1000
- Wi-Fi Direct
- Wireless LAN IEEE 802.11b/g/n
DIRECT PRINT
- Touchscreen
- Direct Print
- Direct scan-to-print without PC
- Direct print from USB
SCANNER NOT INCLUDED WITH DELIVERY
Yes
OPTIONAL SOFTWARE & SOLUTIONS
Epson Print Automate
PRINT
- Nozzle Configuration : 800 Nozzles Black, 800 Nozzles per Color
- Minimum Droplet Size : 4 pl, With Variable-Sized Droplet Technology
- First Page Out : Monochrome25 Seconds, Colour25 Seconds
- Colours : Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]
- Colours Capacity :Black [110ml, 350ml, 700ml], Cyan [110ml, 350ml, 700ml], Yellow [110ml, 350ml, 700ml], Magenta [110ml, 350ml, 700ml]
FEATURES

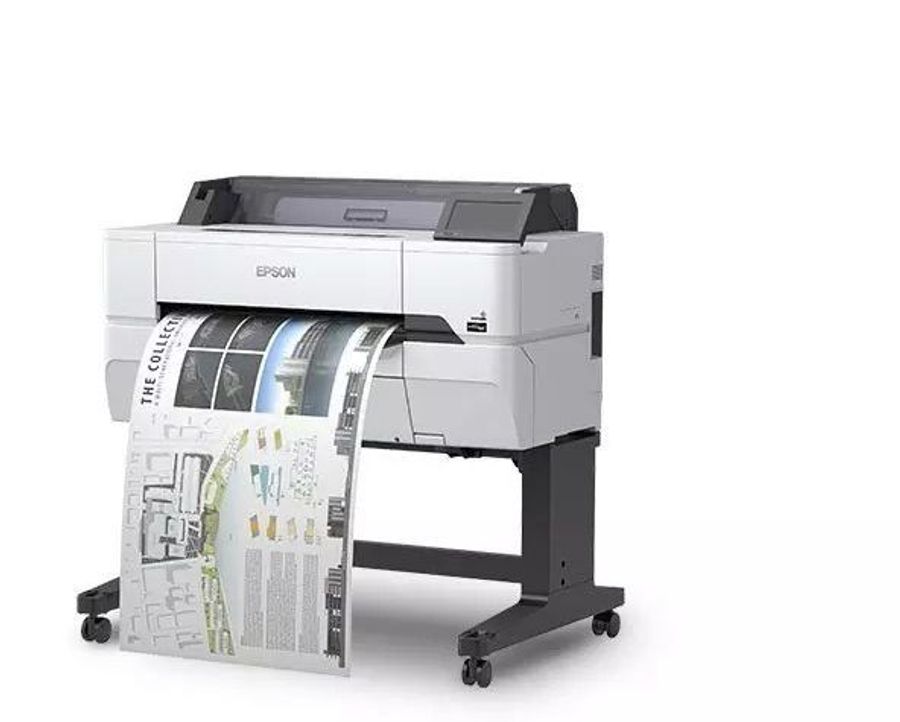

UNOBTRUSIVE DESIGN

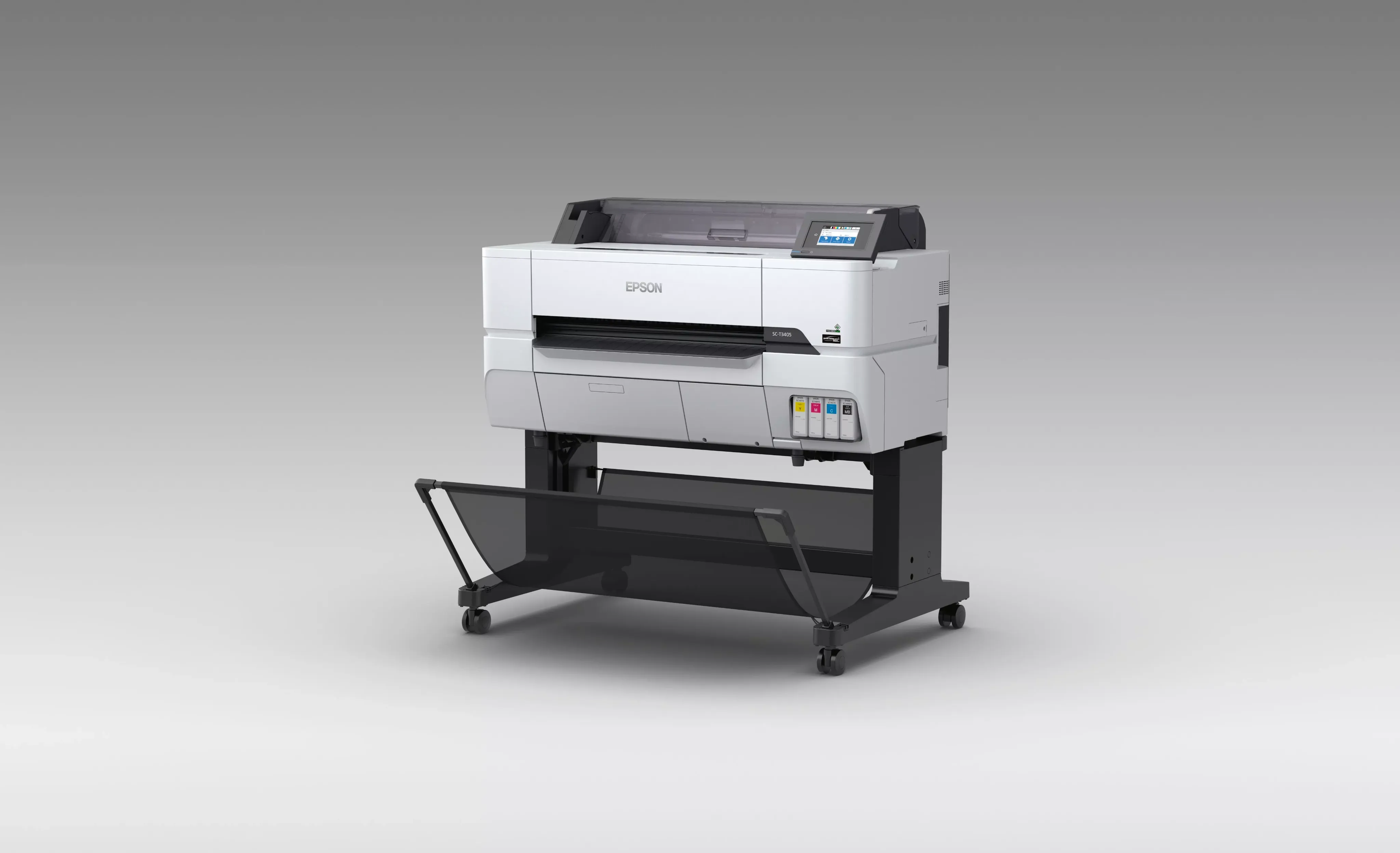

Due to its discreet design this printer fits seamlessly into busy professional working environments (stand included).
PEACE OF MIND
Even occasional users can expect consistent print quality. Unique Nozzle Verification Technology (NVT) helps prevent misprints by constantly monitoring for any blockages.
EASY TO USE
The SC-T3405 allows users to print wirelessly from PCs, tablets and smartphones. Users can also enlarge documents by connecting (via USB) to another printer or scanner. It also features a highly intuitive 4.3-inch touchscreen.
PRODUCTIVITY

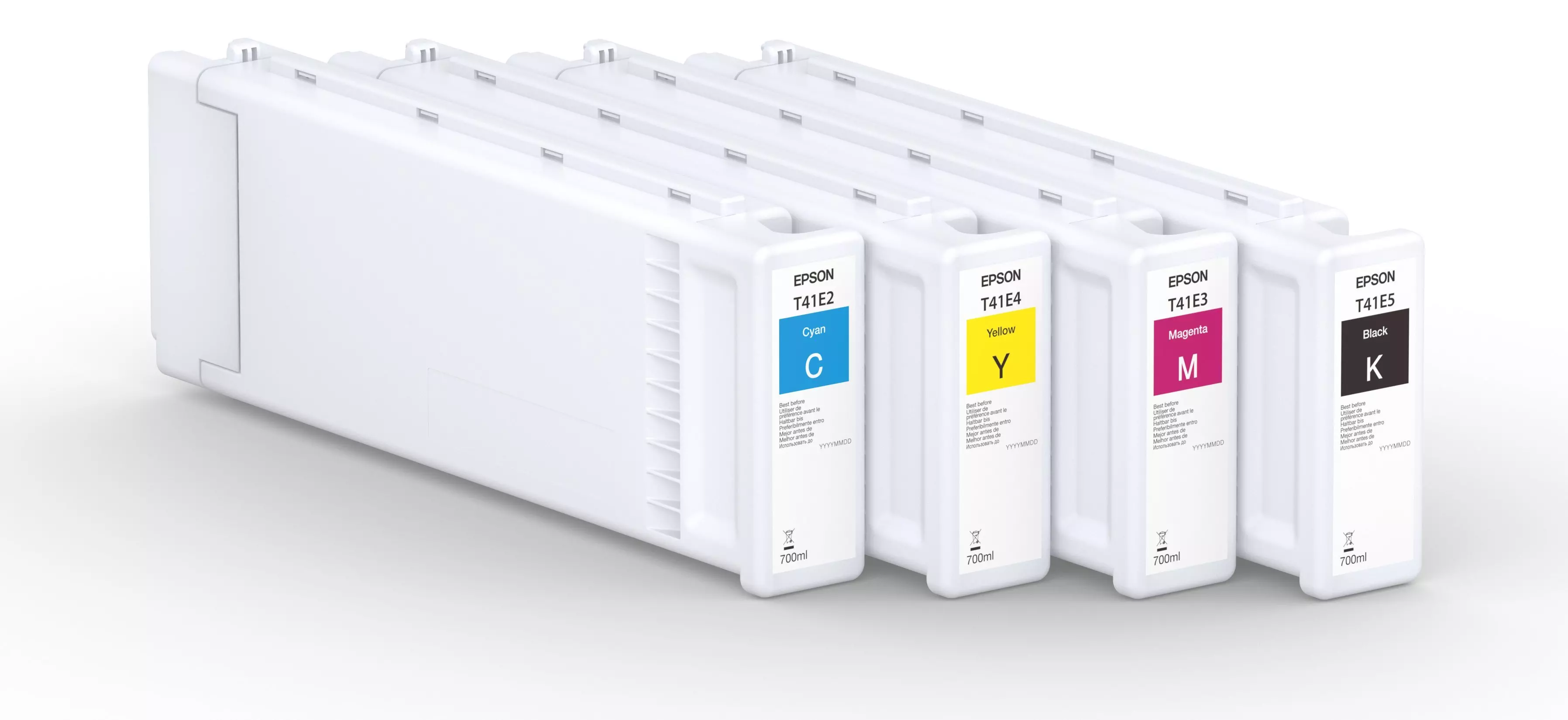

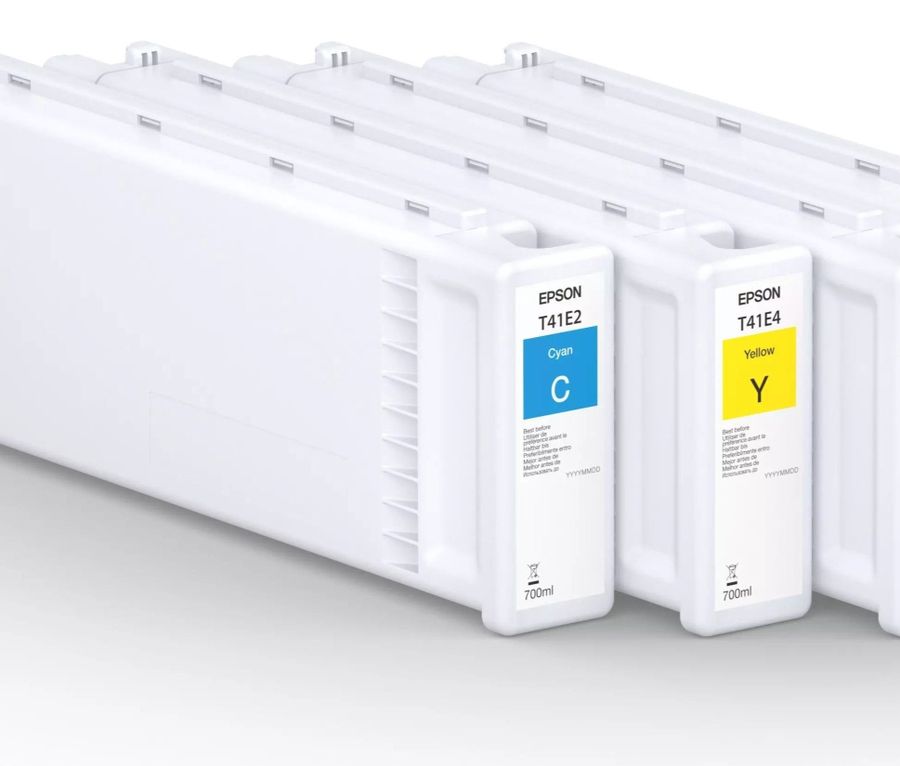

The new 700ml cartridges means you have the option to lower your TCO and reduce the amount of interventions during long print runs, meaning you pay less to print than you would with smaller cartridges. With the introduction of POP Draft Mode, you can now print banners and posters in as little as 24 seconds.
FLEXIBILITY
The addition of 700ml ink cartridges means that the SC-T3405 is capable of handling a wider range of applications, including high-precision CAD and technical drawings, and GIS data. Combined with two further cartridge sizes (110ml and 350ml), this allows you to react to changing print demands quickly, and handle unforeseen requests in an instant. Also, the 4-colour pigment UltraChrome XD2 inks used are smudge and water-resistant.
