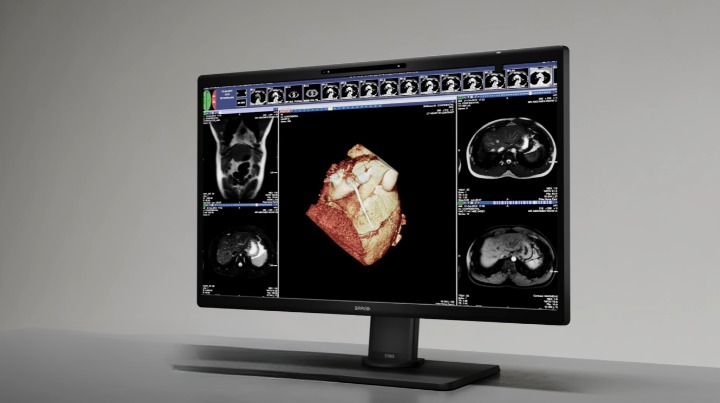

Barco Eonis 3D (MDRC‑8127) Monitar
EONIS 3D (MDRC‑8127) MONITAR
EONIS 3D (MDRC‑8127) MONITAR
Autostereoscopic 3D with advanced eye-tracking & lenticular lens projection.
INFORMATION
BRAND
Barco
PRODUCT TYPE
Monitar
ARTICLE NUMBERS
- K9301153A2X
- MDRC-8127 SLIB
COLOR IMAGING
Yes
BIT DEPTH
30 bit
ACTIVE SCREEN SIZE (DIAGONAL)
684 mm (26.96")
PRODUCTION
Made in Belgium
SCREEN TECHNOLOGY
IPS
ALL-IN-ONE VERSATILITY FOR ANY WORKFLOW
Eonis 3D comes in a comfortable, standard 27” size – perfect for any desk. And without the need for special eyewear, Eonis 3D renders complex anatomical structures with exceptional clarity and true depth, allowing for intuitive interpretation of pathologies.
ASPECT RATIO (H:V)
16:9
AMBIENT LIGHT PRESETS
Yes, reading room selection
MAXIMUM LUMINANCE (PANEL TYPICAL)
330 cd/m²
PIXEL PITCH
0.1554 mm
ACTIVE SCREEN SIZE (H X V)
597 x 336 mm (23.49 x 13.22")
RESPONSE TIME ((TR + TF)/2) (TYPICAL)
14 ms
NET WEIGHT WITH STAND
10.6 kg
NET WEIGHT W/O STAND
7.6 kg
DIMENSIONS WITH STAND
- Width : 624 mm
- Height : 479~579 mm
- Depth : 225 mm
DIMENSIONS W/O STAND
- Width : 624 mm
- Height : 386 mm
- Depth : 66 mm
DIMENSIONS PACKAGED
- Width : 755 mm
- Height : 285 mm
- Depth : 570 mm
HEIGHT ADJUSTMENT RANGE
100 mm
NET WEIGHT PACKAGED
15 kg (without optional accessories)
TILT
-5° to +25°
SWIVEL
-30° to +30°
MOUNTING STANDARD
VESA (100 mm)
SCREEN PROTECTION
N/A
POWER CONSUMPTION
- 35 W (nominal)
- < 0.5 W (hibernate)
- < 0.3 W (switched off)
REMOTE QA MANAGEMENT
A Class 1 medical device, Eonis 3D integrates seamlessly with existing PACS and imaging platforms while its ergonomic design supports eye comfort during extended viewing sessions. Advanced calibration through its front sensor and integration with QAWeb Enterprise software maintains consistent image quality across the entire display, during its entire lifespan.
DOWNLOAD
↓ Data Sheet
RECOMMENDED MODALITIES
All digital images, except digital mammography.
GRAY IMAGING
Yes
VIEWING ANGLE (H, V)
178°
HOUSING COLOR
- Black (RAL 9004)
- White (RAL 9003)
USB PORTS
UPSTREAM:
-2x USB-B 2.0
-1x USB-C 3.2 (DisplayPort Alt Mode, Power Delivery up to 100W)
DOWNSTREAM:
-2x USB-A 2.0
-1x USB-C 2.0 (side of the display, Power Delivery up to 7.5W
PATHOLOGY SETTING
Yes
COLOR GAMUT NTSC
82%
COLOR GAMUT SRGB
99%
VIDEO OUTPUT SIGNALS
1x DisplayPort 1.4 (MST)
SRGB DELTA E2000 (TYPICAL)
- Average: < 3
- Max: < 5
VIDEO INPUT SIGNALS
-2x DisplayPort 1.4
-1x USB-C 3.2 DisplayPort Alt Mode
DISCOVER EONIS VISION, INCLUDING AVATAR MEDICAL’S 3D SOFTWARE
The Eonis Vision bundle brings glasses-free augmented reality to clinical consultations. It consists of the Barco Eonis 3D monitor and Avatar Medical’s advanced 3D imaging software.
POWER RATING
-100-240 Vac, 50/60 Hz, 2.5-0.9 A
-USB-C output: 5VDC 3A, 9VDC 5A, 15VDC 5A, 20V 5A
-USB-C output (side): 5VDC 1.5A
DICOM CALIBRATED LUMINANCE
250 cd/m²
CONTRAST RATIO (PANEL TYPICAL)
1000:1
SUPPLIED ACCESSORIES
- User Guide
- Quick Install Sheet
- Documentation disc
- Video cables
- Mains cables
- USB cable
POWER REQUIREMENTS
This device shall only be powered by the medical approved power supply of Adapter Tech., type ATM200T-P240:
-Input: 100-240 Vac, 50-60 Hz, 2.5-0.9 A
-Output: 24 Vdc, 8.3 A
QA SOFTWARE
QAWeb Enterprise
STORAGE PRESSURE
50 to 106 kPa
MEDICAL-GRADE RELIABILITY & LONGEVITY
Experience transformative visualization that helps to improve patient opt-in rates, enhance surgical preparation, and accelerate learning curves for residents and students!
WARRANTY
3 years
OPERATING PRESSURE
70 kPa
TEMPERATURE
-Operating temperature : 0 °C to 35 °C (20 °C to 30 °C within specs)
-Storage temperature : -20 °C to +60 °C
HUMIDITY
-Operating humidity : 20 % to 80 % (non-condensing)
-Storage humidity : 10 % to 85 % (non-condensing)
DISCOVER THE WORLD'S FIRST GLASSES-FREE, MEDICAL 3D DISPLAY
Revolutionize medical visualization across patient consultations, surgical planning, and medical education with Eonis 3D, Barco’s pioneering 3D monitor solution. This groundbreaking technology delivers uncompromised glasses-free 3D imaging, providing you with unprecedented depth perception and easy spatial understanding.
FEATURES
-4K resolution on standard-size 27” screen
-Effortless switching between 2D & 3D for any task
-DICOM-compatible, Class 1 medical-grade display
STEADY COLOR
No
FRONT SENSOR
Yes, Front Consistency Sensor
CERTIFICATIONS
- UKCA (UK)
- CCC (China)
- KC (Korea)
- BIS (India)
- CE (Medical Device)
- FDA Class I 510(k) exempt
SCREEN PROTECTION
No
RESOLUTION
8MP (3840 x 2160 pixels @ 60 Hz)
DETAIL
SAFETY SPECIFIC:
- IEC 62368-1:2018
- EN IEC 62368-1:2020+A11:2020
- IEC 60601-1:2005+A1:2012+A2:2020
- EN 60601- 1:2006+A1:2013+A12:2014+A2:2021
- AAMI ES 60601-1:2005+A1:2012+A2:2021
- CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)
EMI SPECIFIC
- INMETRO (Brazil)
- IEC 60601-1-2:2014+A1:2020 (Ed.4.1)
- EN 60601-1-2:2015+A1:2021 (Ed.4.1)
- FCC part 15 Class B
- ICES-001 Level B
- VCCI (Japan
