Codelocks KL1200 NetCode
KL1200 NETCODE
KL1200 NETCODE
For more challenging locker environments, the kitlock by codelocks kl1200 netcode® electronic locker lock1 includes all the benefits of standard kitlocks but is tougher and more robust.
The kl1200 netcode® locker lock includes the standard kl1200 features; additional programming, stainless steel buttons, dual fixing points, increased battery life but now with improved updated features.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
COLLECTION
KL1200
PRODUCTION
Made in UK
FINISH
- Black
- Silver Grey
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
BATTERY OVERRIDE
A 9 volt pp3 battery can be placed against external contacts
BUTTONS
2 x 5 + Programming
CODE CHANGE METHOD
Keypad (On Door)
SUITABLE FOR
- Internal
- External
IP RATING
IP54 when fitted with gasket
KEYPAD
11 individual round buttons
MEMORY
Non-volatile memory will be retained
WHAT IS CODELOCKS NETCODE® TECHNOLOGY?
Since it's launch in 2014, codelocks netcode® technology has grown rapidly in functionality and versatility, developing a global reputation for bringing control and convenience to many applications. Working in harmony with our codelocks and kitlock locking solutions, using netcodes for flexible, temporary access enables business owners to reduce overhead costs and facilitate consumer self-service whilst simultaneoustly increasing staff productivity and profits.
USER TYPES
Code
DOOR THICKNESS
Ready to fit doors up to 25mm (1")
FUNCTION
NetCode®
HANDED
Non Handed

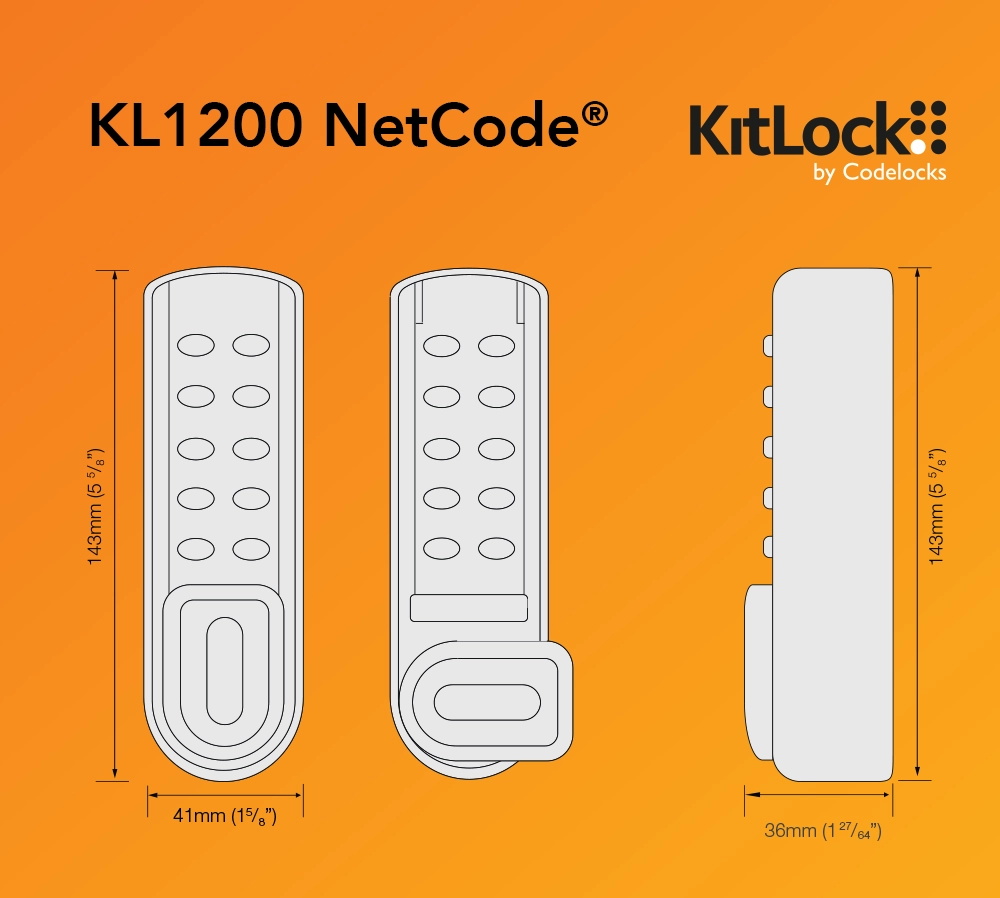

LOCK DIMENSIONS
- Width : 41mm
- Depth : 37mm
- Height : 143mm
OPERATIONS
Up to 50,000 opening per 2 x 1.5 AAA batteries
LATCH TYPE
Cam
LOCK MATERIAL
Zinc Alloy
NEW FEATURE! DUAL AUTHORIZATION
This new feature requires two valid user codes or two valid netcodes to be entered for access to be granted. This adds an additional level of access control!
PUBLIC FUNCTION
In this function the kitlock operates with a single user code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.G. Hot desking in an office or a locker in a sports club.
NEW FEATURE! RESTRICTED OPERATION TIME
Control access between set hours. This feature is ideal for locker rental outside the normal office hours, and repeats every day automatically.
KEY FEATURES
- Slam latch accessory available
- IP54 rated when fitted with gasket
- 8 digit Master and Sub-Master Code
- All parts / fixings / templates included
- Supports 20 User Codes in Private Function
- Up to 50,000 operations from 2 x AAA batteries (supplied)
- Audible keypad
- Battery override
- 11 button keypad
- 4 digit User Code
- Auto unlock feature
- 6 digit Technician Code
NEW FEATURE! CODELOCKS NETCODE® TECHNOLOGY
Netcode® technology allows for flexible, temporary access. Generate access codes with restricted use, specifying a start date and time, and setting a fixed duration after which the code will no longer be accepted. Create netcodes via the codelocks connect portal and api.2
NEW FEATURE! ADD UP TO 20 USER CODES
In private function it is now possible to support 20 individual users, each with their own code. This is ideal for multi-person applications such as shared equipment lockers.
NEW FEATURE! AUTO-OPEN
In public function the updated kl1200 netcode® locker lock can be programmed to automatically unlock at a specific time enabling the lockers to be cleaned for next day use.
FINISHES
- Black
- Silver Grey
THREE MODES OF OPERATION
The kl1200 netcode® retains the standard public and private functions.
USER LEVELS
- Master
- Sub Master
- Technician
- Standard User
POWER
2x AAA
ORIENTATION
Vertical
PRIVATE FUNCTION
This is the default function and is already pre-programmed in new locks. This function is used where the same code will be repeatedly used, e.G. An employee with the same locker/drawer in the workplace.
ENABLING NETCODE®
To enable netcode® function, the lock requires initialization via the codelocks connect portal. Visit codelocksconnect.Net and complete the following steps :
- Sign in or create a codelocks connect portal account
- Add your lock and follow the initialization steps
NETCODE
This function allows temporary access. Create date and time-sensitive codes via the codelocks connect portal or your own application with our simple API (application programming interface).
CLEAN
Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96% 3 , providing an additional measure of protection over sanitisation.
