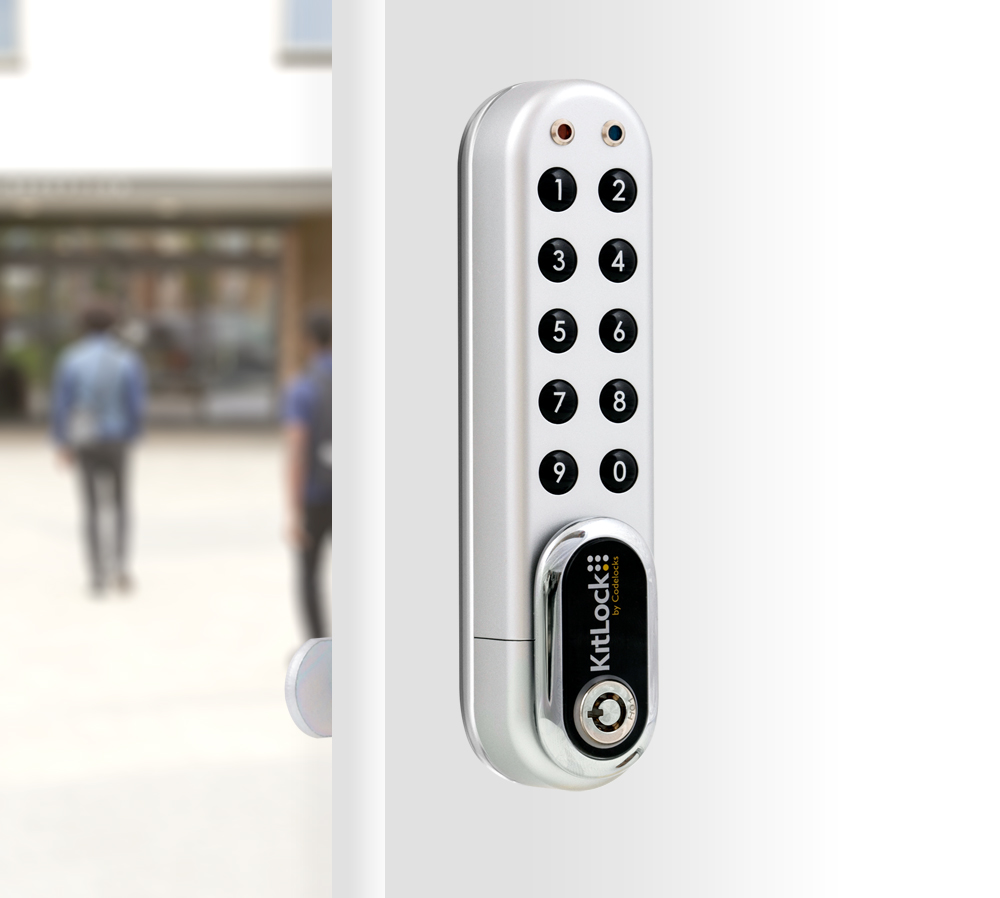

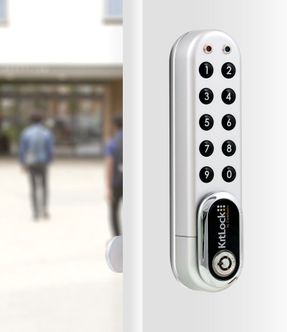

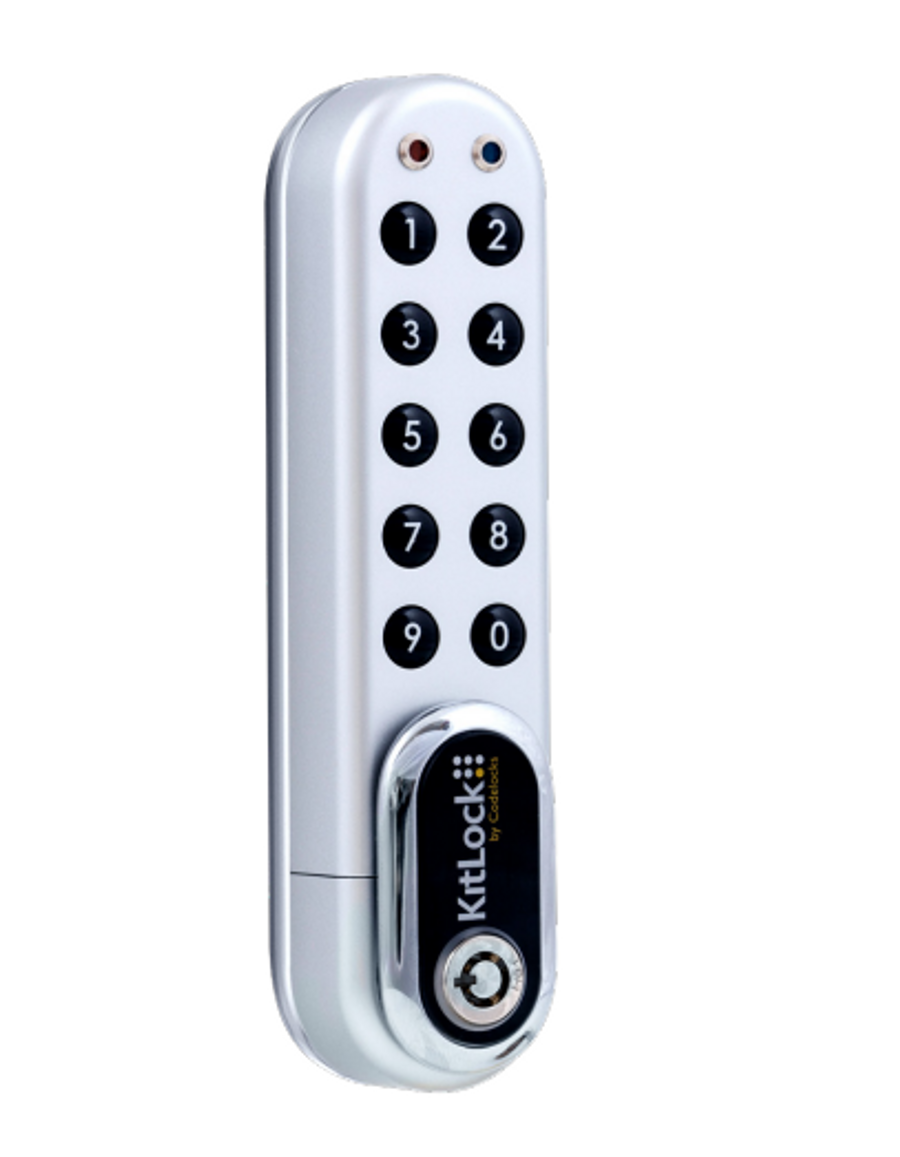

Codelocks KL1000 G3 NetCode® KitLock Locker Lock
KL1000 G3 NETCODE® KITLOCK LOCKER LOCK
KL1000 G3 NETCODE® KITLOCK LOCKER LOCK
The KL1000 G3 NetCode® utilizes technology that allows generation of date and time-sensitive, temporary access codes : NetCodes.
Applying advanced technology to our core products. The KL1000 G3 NetCode® KitLock offers key override and front battery change capabilities providing ease of use and peace of mind.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
USER TYPES
- Code
- NetCode®
LATCH TYPE
- Cam
- Slam Latch

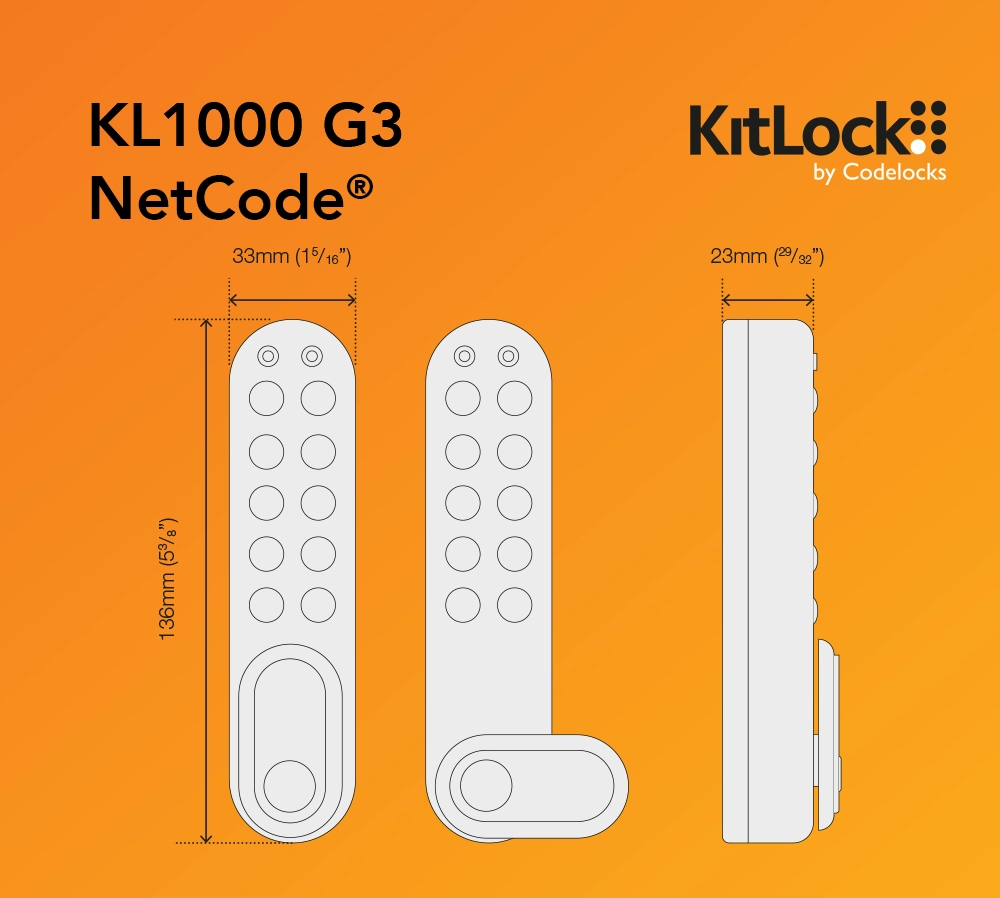

LOCK DIMENSIONS
5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
IP RATING
IP54 when fitted with gasket (IP55 available for special order)
BUTTONS
2 x 5 + Programming
CODE CHANGE METHOD
Keypad (On Door)
PANEL & HAND FINISH
The updated chrome effect back panel and handle finishes reflect their surroundings giving the lock a slimmer, more subtle aesthetic. The KL1000 G3 NetCode® offers key override and front battery change capabilities providing ease of use and peace of mind.
CODES
- 20 4-digit User Codes
- 6-digit Technician Code
- 8-digit Master and Sub-Master Code
USER LEVELS
- User
- Master
- Sub Master
- Technician
ORIENTATION
Vertical
POWER
2x AAA
SUITABLE FOR
Internal & External
PRODUCTION
Made in United Kingdom
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
DETAIL
BATTERY OVERRIDE
A 9 volt PP3 battery can be placed against external contacts
SPINDLE
Fitted with 15⁄16" (24mm) spindle as standard, optional 3⁄8" (10mm) and 11⁄8" (29mm) spindles supplied
LOCK MATERIAL
Mixed Plastic and Alloy
COUNTDOWN TIMER
Open after X hours
PRIVATE FUNCTION
This is the default function and is already pre-programmed in new locks. This function is used where the same code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.
PUBLIC FUNCTION
In this function the KitLock operates with a single User Code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.g. hot desking in an office or a locker in a gym.
NETCODE®
This function allows temporary access. Create date and time-sensitive codes via the Codelocks Connect Portal or your own application with our simple API (Application Programming Interface).
TECHNOLOGY
The KL1000 G3 NetCode® utilizes technology that allows generation of date and time-sensitive temporary access codes: NetCodes. Once generated, NetCodes can be shared via email or SMS1 , and will expire after their set duration - ideal for visiting service engineers, delivery personnel and short/medium-term locker rental. Sharing the same fittings & fasteners as the KL1000 Classic, this lock is easily retrofitted, ideal for upgrading existing installations with increased flexibility and convenience for both guests and staff.
DOOR THICKNESS
Ready to fit doors up to 25mm (1")
MEMORY
Non-volatile memory will be retained
FINISH
Silver Chrome
OPERATIONS
Up to 100,000 operations per 2 x AAA batteries
NETCODE®
Available via the App or online Portal
KEY FEATURES
- Key Override
- Keyless entry
- Easy install or retrofit
- Front battery change
- Up to 20 User Codes
- Silver Chrome finish
- Two year guarantee
- Auto-unlock after a set time
- Slam latch accessory available
- Private, Public and NetCode® Functions
