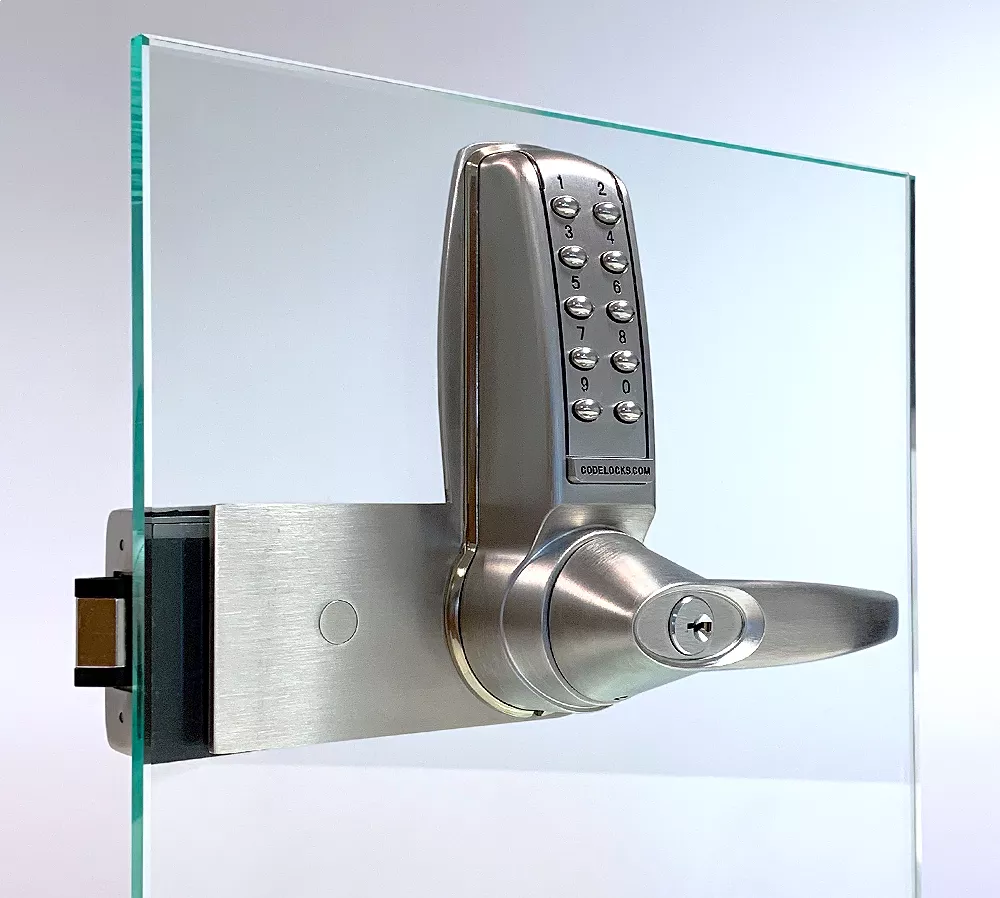

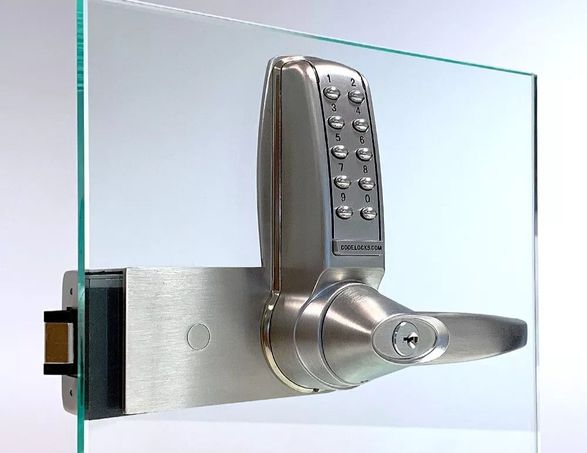

Codelocks Cl4000 Electronic Glass Door Lock
CL4000 ELECTRONIC GLASS DOOR LOCK
CL4000 ELECTRONIC GLASS DOOR LOCK
Medium duty brushed steel latchbolt head with 5 /16” (8mm) follower. Supplied with a flat strike plate for fitting to a solid door frame.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
BUTTONS
2 x 5 + Programming
CODE CHANGE METHOD
Keypad (On Door)
MEMORY
Stores up to 80 User Codes
DOOR THICKNESS
- 8mm (5⁄16")
- 15mm ( 10⁄16")
FINISH
Brushed Steel
INSTALL OPTIONS
Vertical only
KEYED ALIKE
Available
OCODE
User Codes 4, 5 or 6 digits long
DIMENSIONS
- Total Height : 6 3/4 inches (171 mm)
- Total Width (bottom) : 6 1/4 inches (159 mm)
- Top Width : 2 1/2 inches (63 mm)
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
LOCK MATERIAL
Zinc Alloy
KEYPAD
Individual stainless steel buttons
HANDED
Non Handed - Locks will fit doors hung on the left or right
REMOTE RELEASE
Two rem ports are provided for connection to exterior switches or alarm systems.
STOREROOM FUNCTION
Fitted as standard i.e. the latch can be retracted by turning the key.
USER TYPES
Code
SUITABLE FOR
Internal

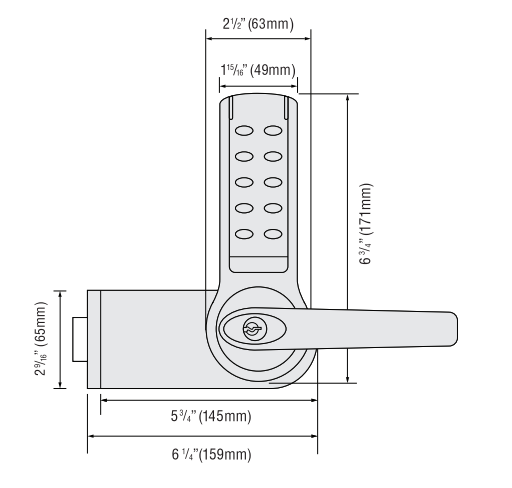

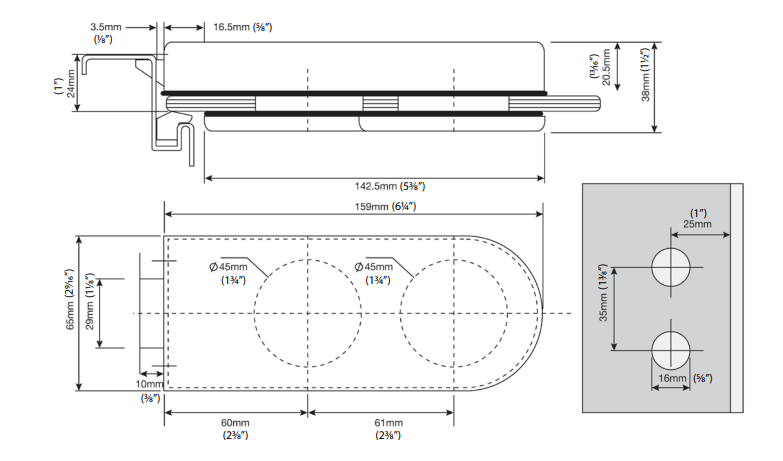

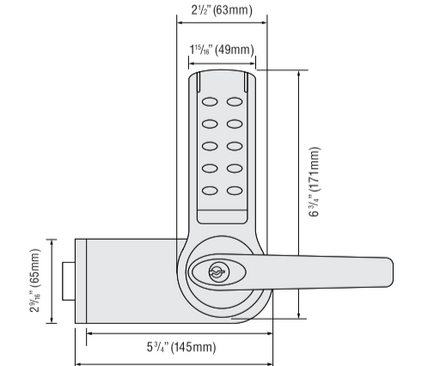

TECHNICAL DRAWINGS
CODE MANAGEMENT
Program and manage codes via the keypad while the lock is on the door. All models also feature a Code Free option.
CLASSROOM FUNCTION
Tailpiece supplied to allow (when fitted) lock to be left in passage function when the key is removed.
POWER
4x N
SPINDLE
5⁄16" (8mm) square spindle
RONDO STRIKE BOX
To use when installing to a glass door with a glass side panel as opposed to a solid frame. Available to purchase as a separate product.
ORIENTATION
Vertical
OPERATIONS
Up to 140,000 per set of 4 x ‘N’ cells
DETAIL
Outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights up, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into passage function so that anyone can open the door without using a code (classroom function tailpiece required). Passage function can also be programmed via the keypad.
