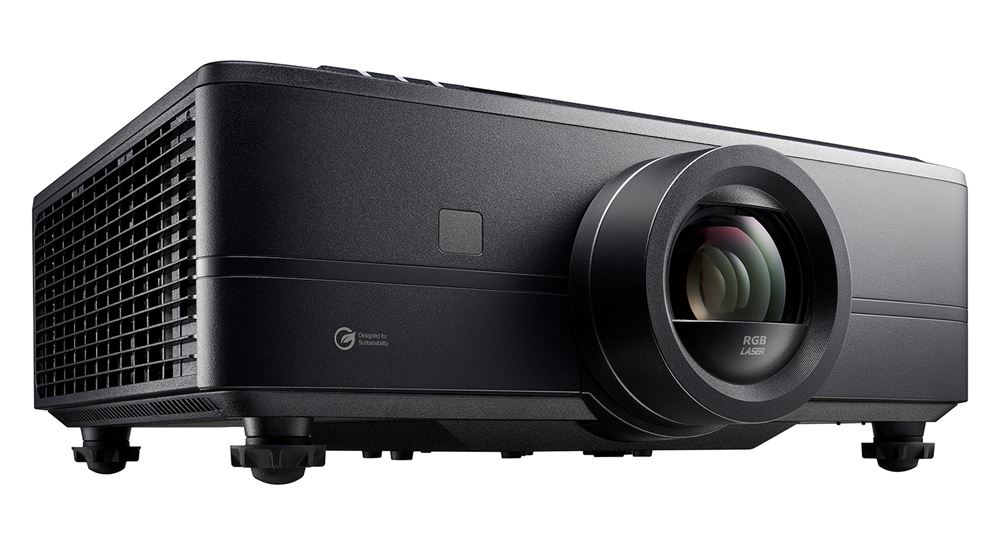

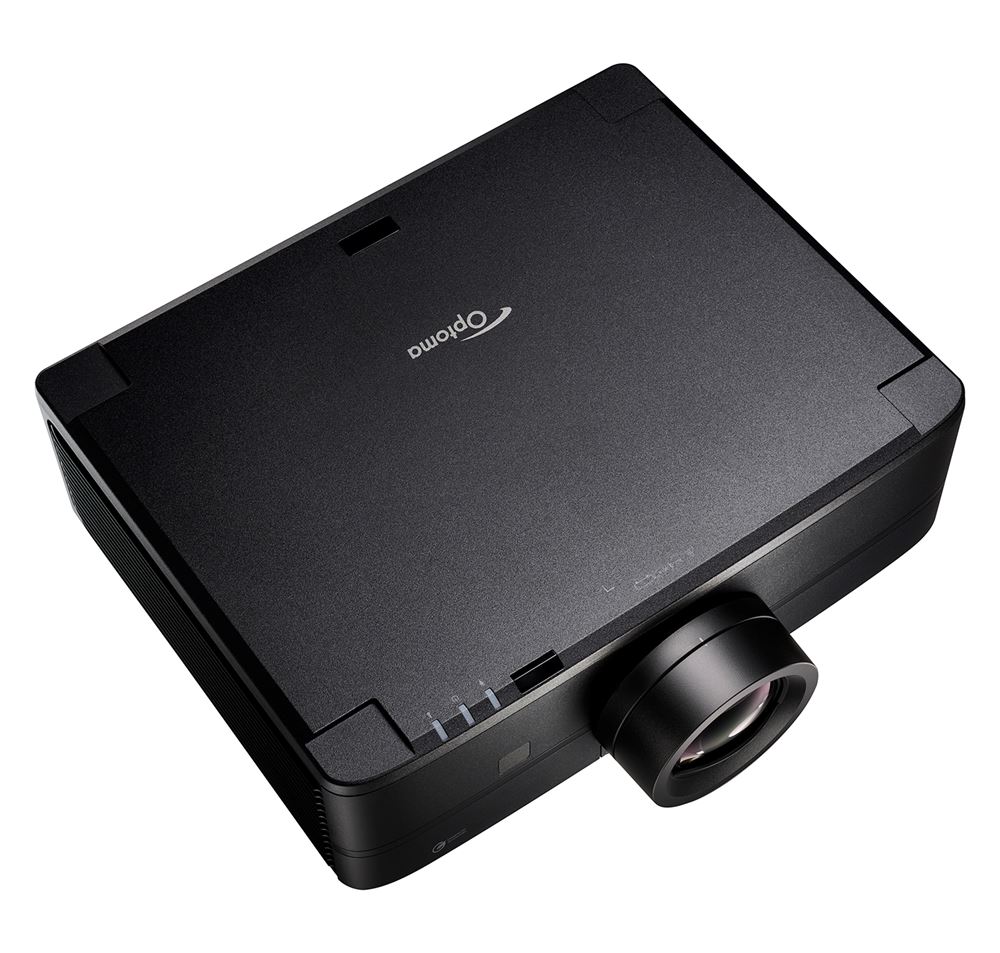

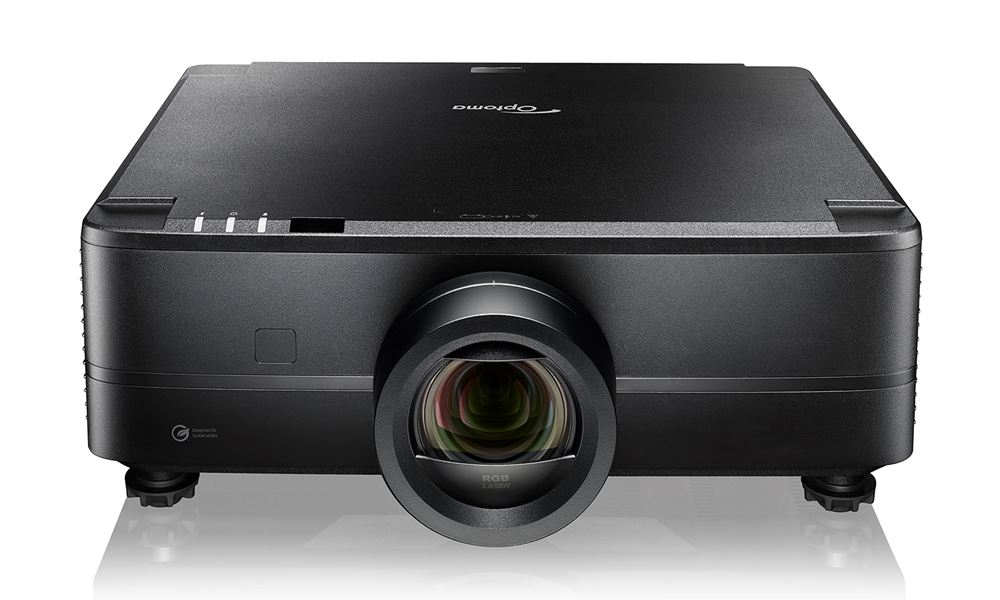

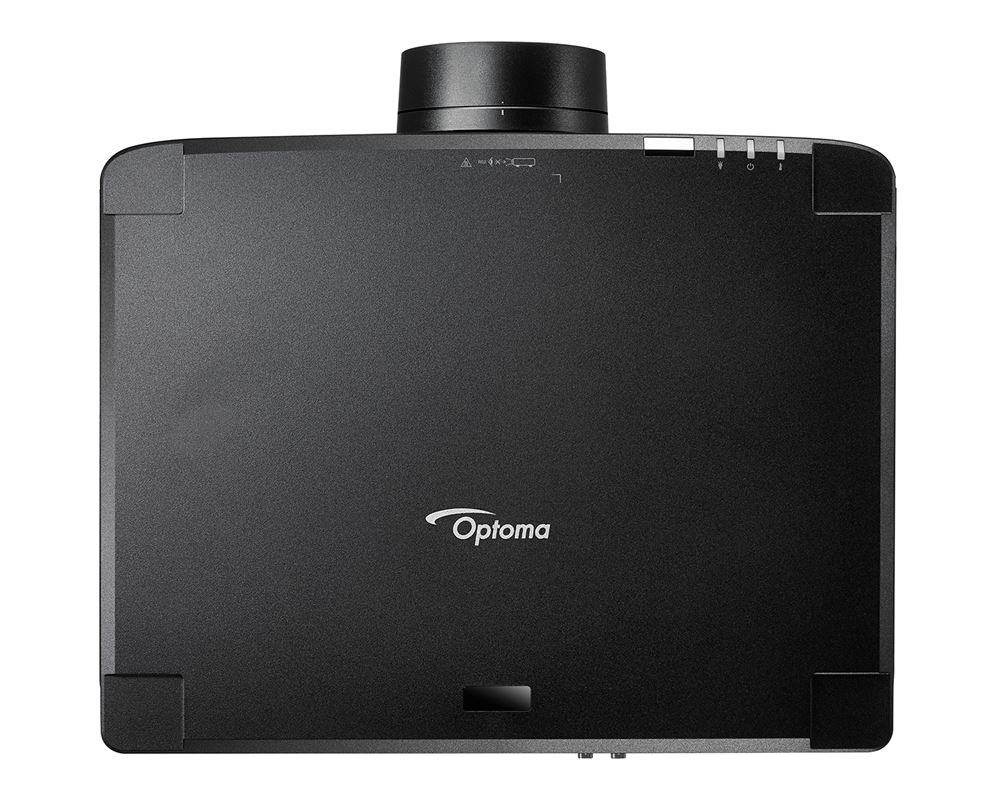

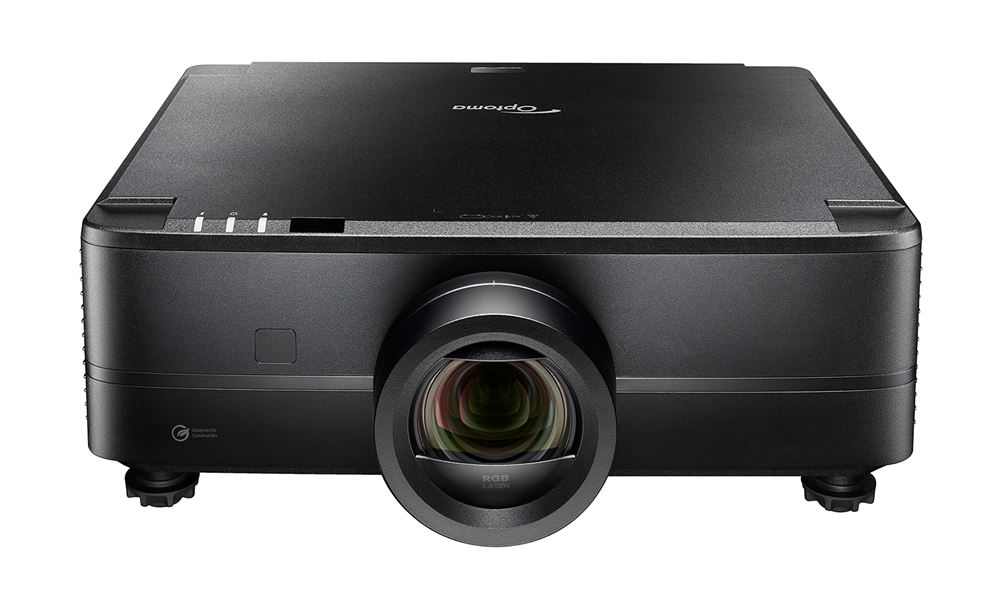

Optoma UHZ78LV Projector
UHZ78LV PROJECTOR
UHZ78LV PROJECTOR
Bright 4K UHD RGB Triple Laser home entertainment projector
Discover the ultimate home cinema experience with our cutting-edge 4K UHZ78LV projector, powered by Dolby Vision® and PureEngine™ Ultra technology for stunning visuals and unmatched clarity and colour accuracy.
Dolby Vision and HDR10+ deliver stunning picture quality, bringing your favourite films and TV shows to life. Dolby Vision optimises each frame individually, resulting in a more dynamic and immersive viewing experience. HDR10+ enhances the dynamic range and colour precision of your content, providing greater visual detail and depth.
Featuring RGB triple laser technology, the UHZ78LV combines true-to-life colour accuracy (98% DCI-P3 / 96% BT.2020) and sharper resolution with a long-lasting and reliable cinematic experience, offering up to 30,000 hours of uninterrupted viewing.
INFORMATION
BRAND
Optoma
PRODUCT TYPE
Projector
LAMP INFO
- Laser Life : 30,000 hours
- Light source type : DuraCore MultiColor Laser
DIMENSIONS
- Width : 486 mm
- Depth : 432 mm
- Height : 176 mm
POWER
- Power consumption (min) : 130W
- Power consumption (max) : 281W
- Power consumption (standby) : 0.5W
KEYSTONE CORRECTION
Vertical & Horizontal : +/-30°
SCREEN SIZE
2.03m ~ 7.62m (80" ~ 300") diagonal
BRIGHTNESS
5,000 lumens
RESOLUTION
UHD (3840x2160)
INPUT LAG
8.50ms
NOISE LEVEL
Min. : 25dB & Max. : 28dB
SECURITY
- Security Bar
- Kensington Lock
- Password Protected Interface
VOLTAGE
100 ~ 240V
FREQUNECY
50 ~ 60Hz
RATIO
- Contrast ratio : 4,500,000:1
- Native aspect ratio : 16:9
- Aspect ratio - compatible : 4:3,16:9
OPERATION
- 24/7 operation : Yes
- 360° operation : Yes
GROSS WEIGHT
14.8 kg
NET WEIGHT
11.5 kg
DOWNLOADS
↓ Maunal
↓ Data Sheet
THROW RATIO
1.25:1 ~ 2:1
PROJECTION DISTANCE
2.2m - 13.3m
POWERED BY DOLBY VISION® AND HDR10+
Experience cinema-quality picture with incredible brightness, contrast, and colour
NATIVE OFFSET
100%
LENS SHIFT
- Vertical : +/-55%
- Horizontal : +/-25%
OPERATING CONDITIONS
- Non-operating 90%
- 0°C~40°C/32°F~104°F
- Max. altitude 3,048m/10,000ft
- Max. humidity operating 80%
PUREENGINE™ ULTRA
Enjoy smooth motion, sharp details, and customised picture settings
NETWORKING
LAN - control : Yes
UNIFORMITY
90%
FLEXIBLE INSTALLATION
Adapt to any space with 1.6x zoom, lens shift, and 360-degree projection
SCAN RATE
- Vertical : 24 ~ 240Hz
- Horizontal : 15 ~ 255Khz
ZOOM
1.6
ZOOM TYPE
Motorised
MODE
The UHZ78LV also features IMAX Enhanced mode to deliver finely mastered content for a bigger and brighter experience, bringing the gold-standard for cinema to the centre of your home.
FLEXIBILITY
Designed for flexibility, 5000 lumens of brightness ensures vivid image quality in any room, while easy installation features like lens shift, 360-degree projection, keystone and 4 corner correction mean you can create a true home cinema experience, wherever you choose to watch.
4K UHD RGB TRIPLE-LASER TECHNOLOGY
Immerse yourself in stunning visuals with 5000 lumens and 98% DCI-P3 colour accuracy
DETAIL
Immerse yourself in stunning visuals with PureEngine™ Ultra, delivering carefully calibrated colour and incredible detail. Whether it’s fast-paced action or dramatic visuals, the UHZ78LV delivers smooth motion with striking clarity. Watch movies as the director intended with Filmmaker Mode. ISF modes automatically adjust the picture for the perfect viewing experience, day or night.

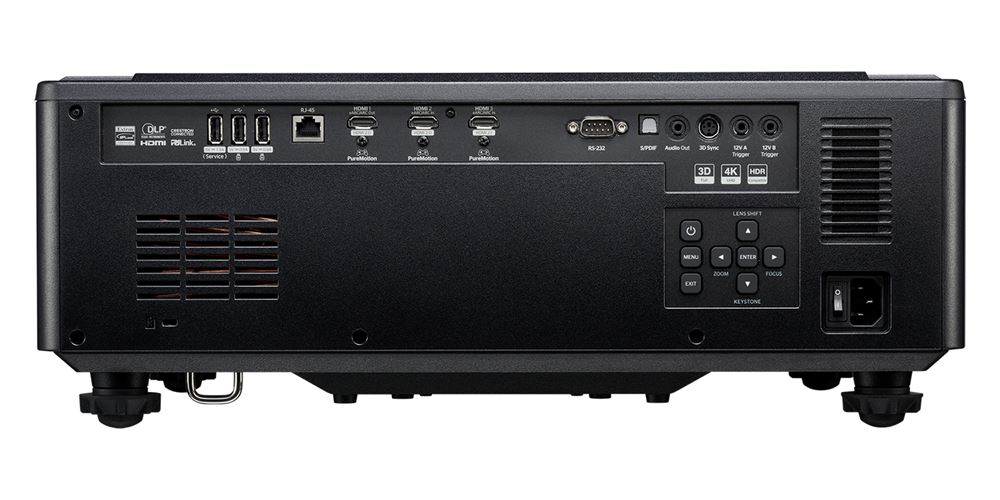

CONNECTIVITY CONNECTIONS
- Inputs 1 x HDMI 2.1, 2 x HDMI 2.0 (eARC)
- Outputs 1 x USB-A power 1.5A, 2 x USB-A power 2A, 1 x 3D sync, 1 x Audio 3.5mm, 1 x S/PDIF
- Control 1 x RJ45, 1 x RS232, 2 x 12V trigger
FOCAL LENGTH
18.72mm~29.59mm
DISPLAY TECHNOLOGY
DLP®
OSD / DISPLAY LANGUAGES
- Arabic
- Czech
- Danish
- Dutch
- English
- Farsi
- Finnish
- French & German
- Greek
- Italian
- Polish
- Hungarian
- Indonesian
- Japanese
- Norwegian
- Portuguese
- Romanian
- Russian
- Turkish
- Spanish
- Swedish
- Vietnamese
- Chinese (simplified)
- Chinese (traditional)
DETAIL
CINEMATIC ENTERTAINMENT, ANYTIME
5000-lumens ensures stunning visuals even in well-lit environments. Whether you’re hosting a daytime movie marathon or enjoying sports events, the high brightness allows you to experience vivid colours and sharp details without compromising image quality.
VIBRANCE REDEFINED WITH TRIPLE LASER RGB PRECISION
Triple laser RGB technology offers exceptional color vibrancy with a wider, more accurate spectrum. Its three-laser system enhances contrast, depth, and brightness, delivering an immersive, lifelike viewing experience.
DESIGNED FOR THE FUTURE
-We are committed to reducing the overall environmental footprint of our products so we can do right by the planet. -Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design, manufacturing, packaging, and logistics, to usage.
POWERED BY DOLBY VISION® AND HDR10+
Dolby Vision® optimizes each frame of your content, elevating your cinema experience by delivering remarkable brightness, contrast, and color that bring cinematic experiences to life.
Meanwhile, HDR10+ enhances your content’s dynamic range and color precision, providing greater visual detail and depth.

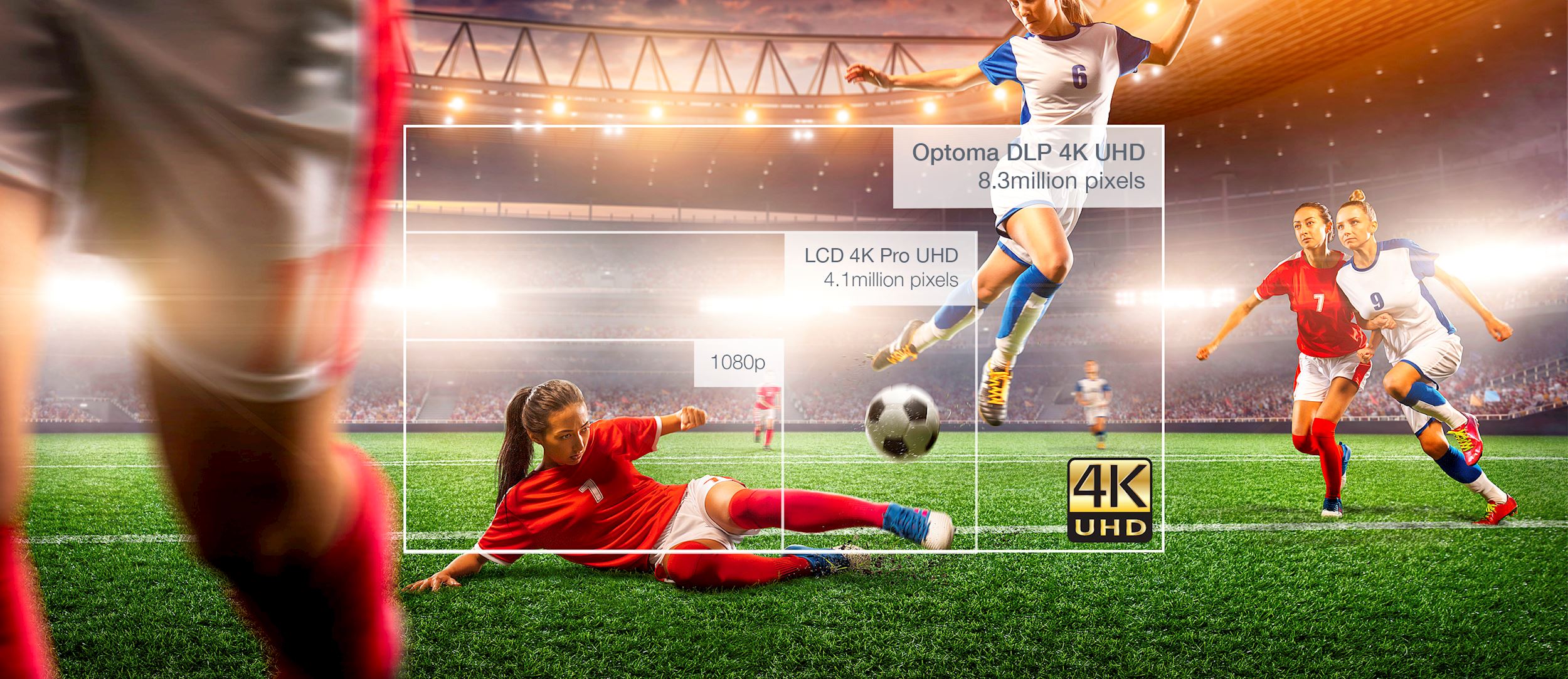

TRUE 4K UHD RESOLUTION
-Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.
-Ultra HD 4K resolution delivers sharper, life-like images and richer colours - allowing you to sit closer to the screen and enjoy a more immersive experience.
CINEMA GRADE COLOUR ACCURACY
Delivering 98% DCI-P3 coverage and featuring a wide colour gamut mode with 96% BT.2020 coverage, the UHZ78LV ensures accurate and lifelike colours.
Whether you’re watching movies or playing games, the UHZ78LV brings brilliant hues and deeper blacks to your screen.and color precision, providing greater visual detail and depth.
PUREENGINE ULTRA
Experience Optoma’s Next-Gen Visual Enhancement with PureEngine™ Ultra
Carefully calibrated by our color experts, PureEngine™ Ultra boosts color output, contrast, and image detail, delivering lifelike color reproduction and stunning visuals.
Customize settings to suit your preferences and enjoy an unparalleled viewing experience.and color precision, providing greater visual detail and depth.
