Laboiteconcept Square Cc Vinyl Turntable Walnut
SQUARE CC VINYL TURNTABLE WALNUT
SQUARE CC VINYL TURNTABLE WALNUT
The new edition of the turntable.
A revisited version of this iconic turntable , with a sleek, elegant design and the same demanding performance to enhance vinyl listening.
INFORMATION
BRAND
La Boite Concept
PRODUCT TYPE
Vinyal Player
MATERIAL
High-quality materials ensure flawless stability, with less vibration.
ARM
The 20 cm long, lightweight and rigid aluminum tone ARM incorporates a cell holder. Its one-piece, conical design eliminates reflections and standing waves.
The ARM is fitted with low-friction bearings to guarantee high reading accuracy. The ARM's counterweight is specifically pre-set for the square turntable 's top-of-the-range ortofon om10 cell, eliminating the need for additional configuration or adjustment.This top-of-the-range cell features a diamond with an elliptical profile to ensure perfect tracking of the grooves on vinyl records. It offers a frequency response between 20 hz and 25 khz.
DIMENSIONS
- Height : 10.8 cm
- Length & Width : 35 cm
SPEEDS
Two speeds are available: 33 and 45 rpm. A simple button on the SQUARE CC platter enables manual speed changes, making it easy to switch between the two speeds.
COUNTERWEIGHTS
Plug & play" installation: no settings to make, no counterweights to adjust
PLAYBACK
Aluminum ARM fitted with an ortofon om10 elliptical diamond cell for high-precision playback.
ENVIRONMENT
Indoor
VIBRATION
Tripod Anti-vibration System By La Boite Concept
LOCAL AND SUSTAINABLE

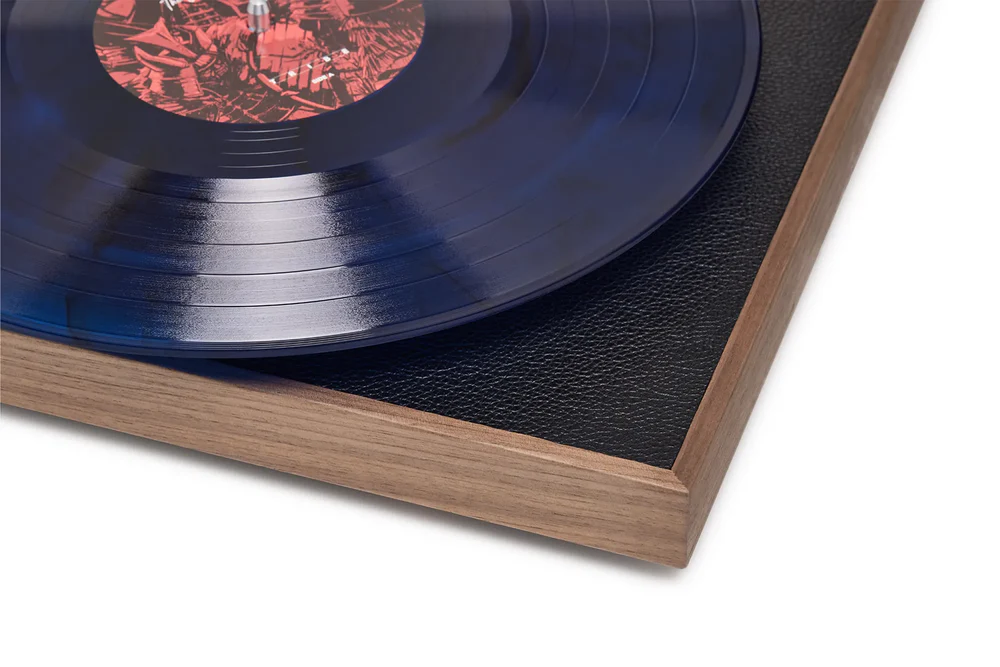

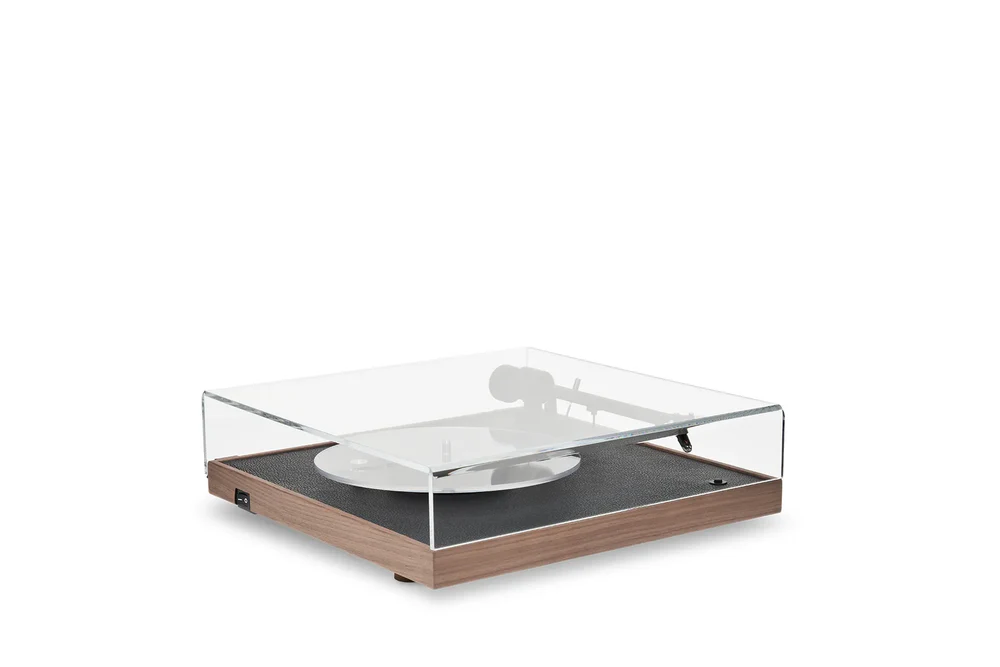

This new edition of the square cc turntable is made in europe. Its black-tinted mdf top ensures rigidity. It is surrounded by a walnut frame, further emphasizing its square design. The wood is machined, painted and varnished in the Basque country. The top is covered in leather, adding a touch of refinement. A removable acrylic cover made in France protects the turntable. The square turntable components are manufactured in europe and assembled in our new factory in hossegor (landes, France).
MODES
The square cc turntable features 2 modes: preamplified and non-preamplified. A connector on the rear of the turntable makes it easy to switch between these two outputs. The integrated phono mm pre-amplifier amplifies the vinyl output by 34db, so you can connect the turntable directly to your hi-fi system, amplifier or active loudspeaker.
PRODUCTION
Made in France
USE
Entertainment
ITEM
Decorative
COLLECTION
Square
DESIGN
The multiroom speaker with a timeless design, compact size and high performance.
TECHNICAL SPECIFICATIONS

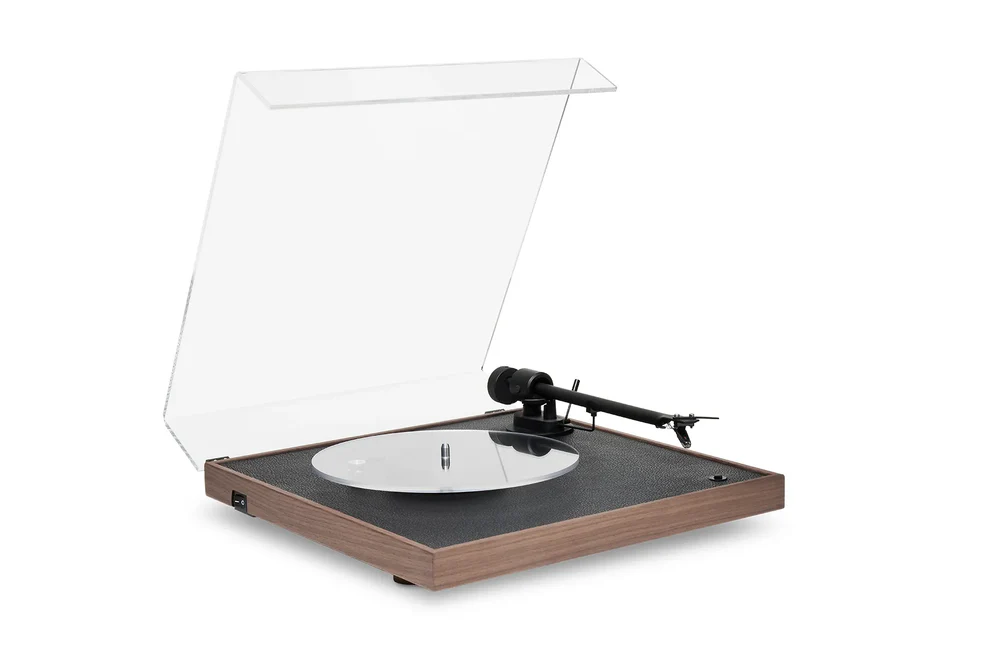

This new edition of the square cc turntable is a belt-driven model featuring an aluminum tone ARM on which an ortofon om10 cartridge is mounted. High-quality components make this turntable an aesthetically pleasing, high-fidelity solution for discovering or rediscovering the world of vinyl, and listening to 33 and 45 rpm records.
BACKING
Transparent Vinyl Backing
INTERNAL BELT
Internal Belt Drive Disc Holder
NEW EDITION: SQUARE CC

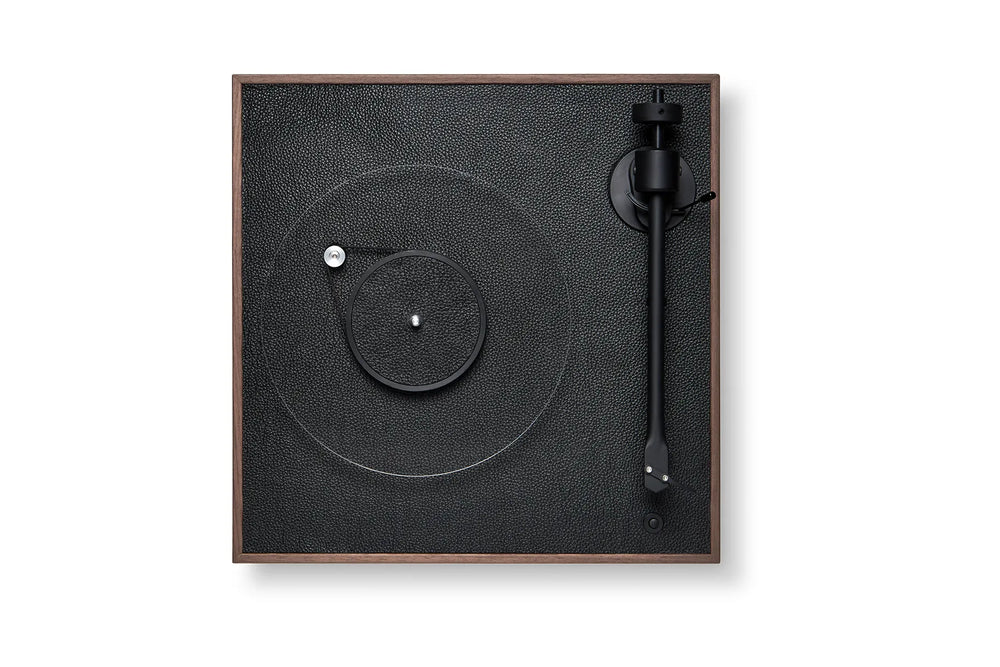

La boite concept unveils the new edition of its square cc turntable, a turntable with a revisited design, still minimalist, and faithful to its demand for uncompromising sound reproduction.Radically uncluttered, square cc features a square walnut or oak case, a subtly off-center vinyl platter and a leather finish. Designed for optimum sound reproduction, it meets the expectations of vinyl lovers thanks to its two operating modes: pre-amplified or non-pre-amplified.
VINYL SUPPORT
The transparent Plexiglass® vinyl support reveals the rotation mechanism: a sub-platter mounted in a 0.001 mm main bearing with a hardened steel axle and brass ring to prevent vibration or bearing play. The sub-platter is rotated by a low-vibration belt system. The SQUARE turntable is driven by a mains-powered synchronous motor for maximum stability and silence.
WEIGHT
4.5 KG
SHIPPING
Free
ANTI-VIBRATION SYSTEM
What's more, the square cc turntable incorporates a tripod anti-vibration system developed by la boite concept, to avoid parasitic vibrations that can interfere with vinyl playback.
Thanks to these cork pads, the turntable rests on 3 points directing the vibration to the rear. This solution absorbs vibrations, translating only those of the vinyl groove. This technology neutralizes parasitic bass vibrations from a loudspeaker, allowing the square cc turntable and loudspeaker to be combined on the same surface.
