Codelocks Cl5210 Heavy Duty Electronic Tubular Latchbolt
CL5210 HEAVY DUTY ELECTRONIC TUBULAR LATCHBOLT
CL5210 HEAVY DUTY ELECTRONIC TUBULAR LATCHBOLT
The CL5210 is a heavy duty electronic tubular mortise latch.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
DOOR THICKNESS
1 3⁄8" - 2 3⁄8" (35mm - 60mm)
CODES
CodesUser Codes 4, 5 or 6 digits long
DETAIL
The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will lock the door. Now available in Solid Black finish.
BUTTONS
3 x 4
CODE CHANGE METHOD
Keypad (On Door)
ORIENTATION
Vertical
KEYED ALIKE
Available
HANDED
Non Handed - Locks will fit doors hung on the left or right
FINISH
- Flat Black
- Brushed Steel
- Polished Brass

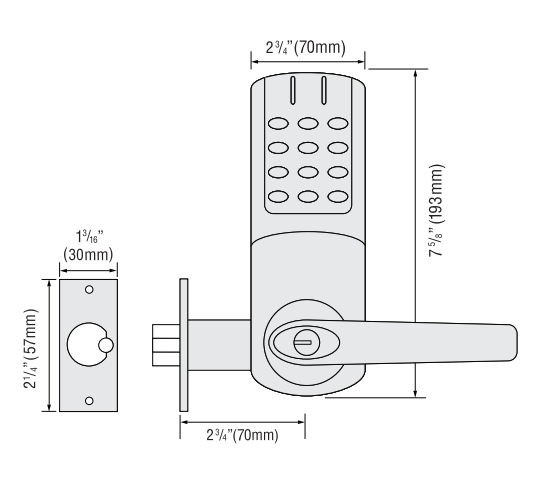

DIMENSIONS
- Height : 7 5/8 inches (193 mm)
- Width : 2 3/4 inches (70 mm)
- Bottom projection : 2 3/4 inches (70 mm)
LATCH TYPE
Tubular Latchbolt
KEYPAD
Individual stainless steel buttons
OPERATIONS
Up to 200,000 per set of 8 x AAA batteries
LOCK MATERIAL
Zinc Alloy
MEMORY
Stores up to 80 User Codes
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
KEY FEATURES
- Tubular Mortise Latch
- Brushed Steel finish
- Allows up to 80 User Codes
- 3-hour UL 10C certification
- PVD low maintenance finish
- Now available in Solid Black finish
- Over 200,000 operations from 4 x AA cells (provided)
- Code Free entry
- Alarm release included
- Lever handle lock for doors hung on the left or right
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
SUITABLE FOR
- Internal
- External
SPINDLE
Two part 8mm (5⁄16") spring loaded spindle
USE
- Allows up to 10 one-time User Codes to be entered
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
USER TYPES
Code
APPLICATION LEAD TIME
3 to 5 working days.
CLEAN BY CODELOCKS
Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
The coating utilizes a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitization.
