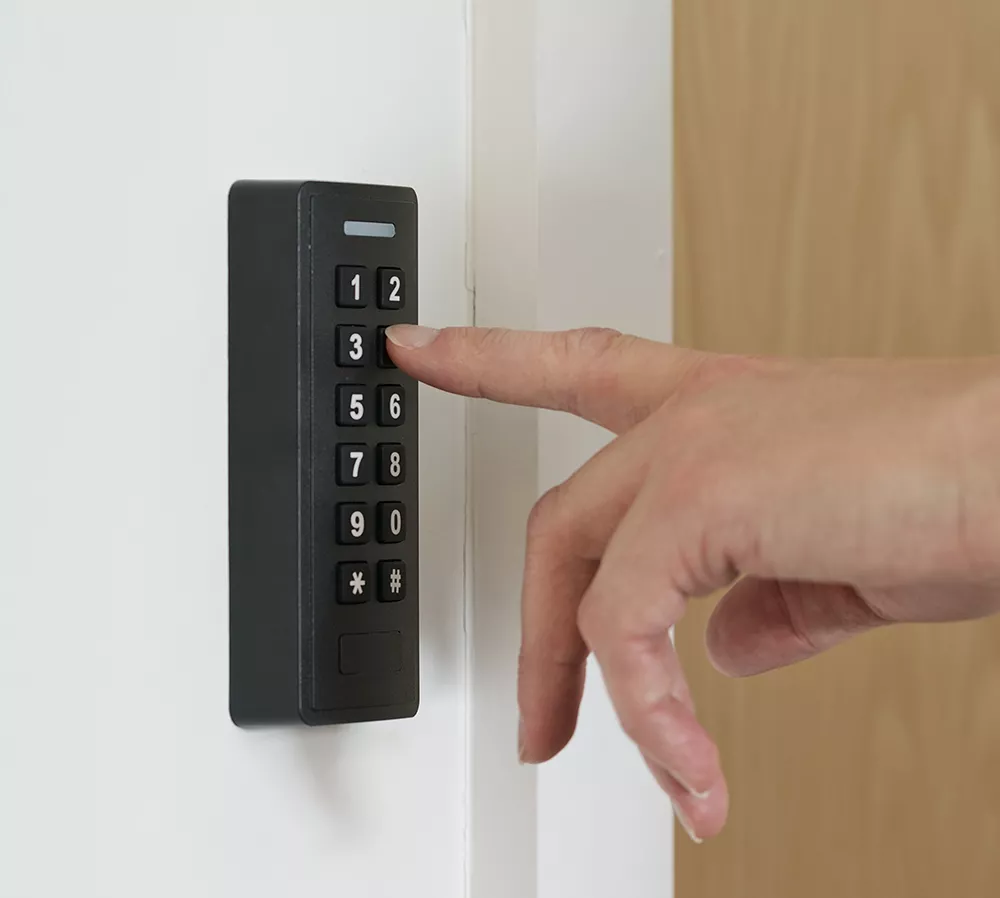

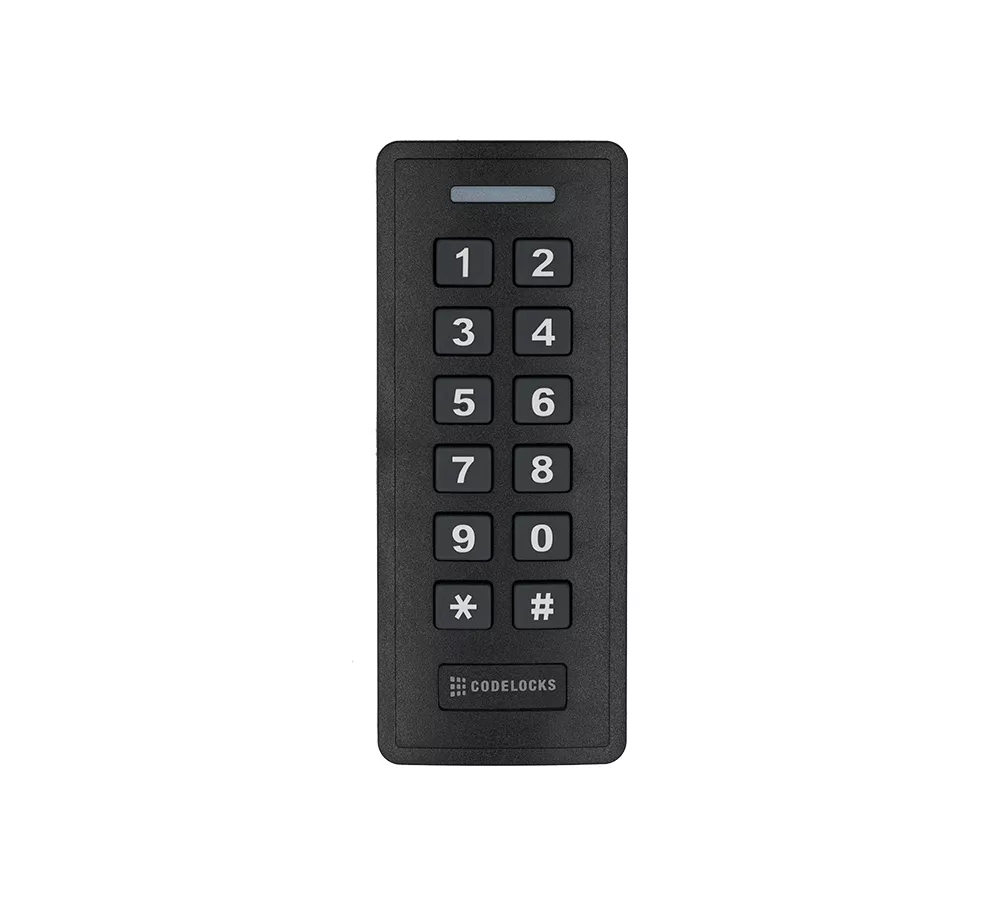

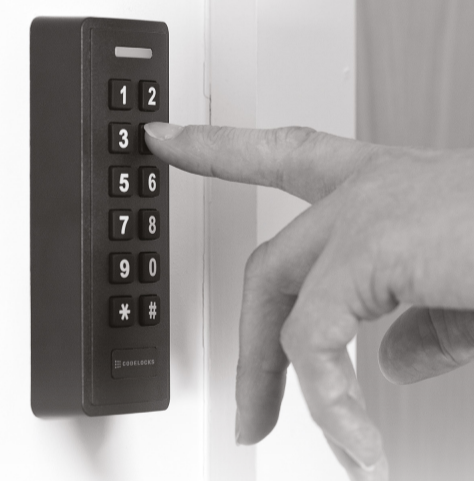

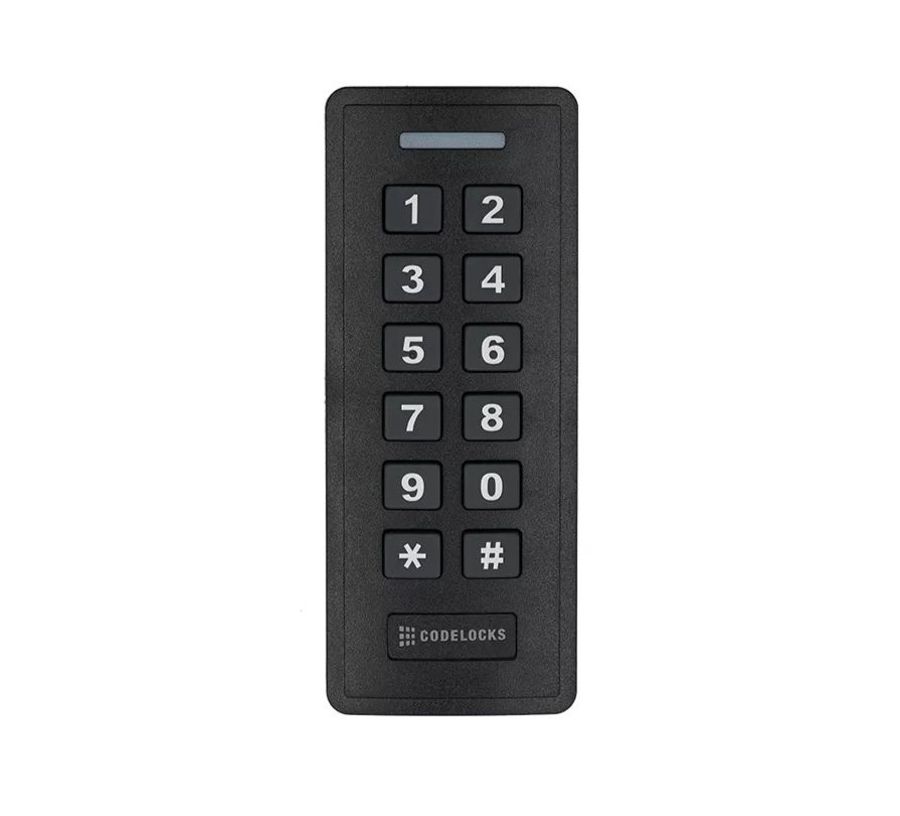

Codelocks A3 Dual Standalone Door Controller with RFID
A3 DUAL STANDALONE DOOR CONTROLLER WITH RFID
A3 DUAL STANDALONE DOOR CONTROLLER WITH RFID
Compact, standalone programmable door controllers with RFID functionality.
Featuring three models, each bringing unique qualities to the range, the a3 door controllers provide a compact, affordable proximity access control system allowing flexible entry for up to 1,000 users.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
COLLECTION
A3 Dual
PRODUCTION
Made in UK
LOCK DIMENSIONS
- Width : 2 in (49.5mm)
- Length : 4 7⁄8 in (123mm)
- Height : 7⁄8 in (22mm)
LOCK MATERIAL
Zinc Alloy
KEYPAD
12 individual buttons
CLIENTS – SMART CARDS
Up to 600
MAX. CAPACITY
Up to 600
FINISH
Black
IP RATING
IP66
BUTTONS
2 x 6
ORIENTATION
Vertical
USER TYPES
- Code
- Card
SUITABLE FOR
- Internal
- External
DETAIL
Surface mounted RFID mifare® compatible door controller with keypad. Provides proximity access for up to 600 code/card clients,including two panic clients. Advanced functions and access modes available.
COMPATIBLE WITH
13.56mhz Mifare® (ISO 14443 Type A) & 125khz
WIEGAND
Input/output: 26-37 bits PIN output:4 bits, 8 bits (ASCII), 10 digits virtual Number
INPUTS/OUTPUTS
- Relay
- Alarm
- Push-to-exit
- Door contact
- Wiegand input
- Wiegand output
WARRENTY
2 Years
WORKING CURRENT
100mA
USER LEVELS
- User
- Panic
- Master
HUMIDITY
10%RH ~ 98%RH
READ RANGE
60mm (23 /8”)
TEMPERATURE
-40°C ~ 60°C (-40°F ~ 140°F)
VOLTAGE
12-18V DC
A3 SIMPLE DOOR CONTROL

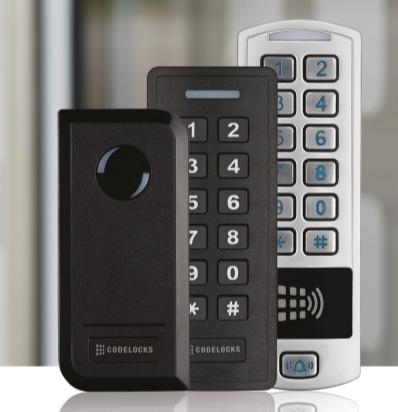

Introducing the a3 range from access by codelocks. Compact, standalone programmable door controllers with RFID functionality.
The a3 range includes three compact standalone door control models suitable for internal and external applications. For use with magnetic locks and electric strikes, the range provides proximity access for up to 1000 users. Eliminate the hassle of missing keys and doors being left unlocked all day. The a3 range of door controllers offer a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs
FEATURES
- Conforms To Ip66
- Mifare® Compatible
- Anti-tamper Sensor
- Three Models Available
- Configurable Penalty Time
- LED Status Indicators And Backlit Keypad
- Card, Code And Panic Clients
- Fixings / Templates Included
- Flush Or Surface Mount Options
- Alarm And Doorbell Connections
- Master Programming Cards Included
IDLE CURRENT
35mA
DOWNLOAD
↓ Access By Codelocks Brochure
FUNCTIONS
PULSE MODE
Allows An Adjustable Re-lock Time To Be Set Between 1-99s(5s Default).
LATCH MODE
Enables Passage Functionality Allowing Code Or Card Client Free Access.
DUAL AUTHORISATION
Requires A Valid Code And Card Client To Be Presented In Order To Allow Access.
READER MODE
Where The Unit Acts As A Wiegand Reader Linked To Another Unit.
PENALTY TIME ALL MODELS
Presenting An Incorrect Card Or Code Client 10 Times Will Incur A 30 Second Time Delay Before Any Further Use Is Possible.
DOOR INTERLOCK A3 DUAL & A3 VANDAL RESIST
Sometimes referred to as a ‘door airlock’ system, this function allows two door controllers to be linked. For example, the first door will require closing before the second door can be opened.
