CRESTRON FLIPTOPS CONNECTORS
CRESTRON FLIPTOPS
Bring clean, convenient connectivity to the table.

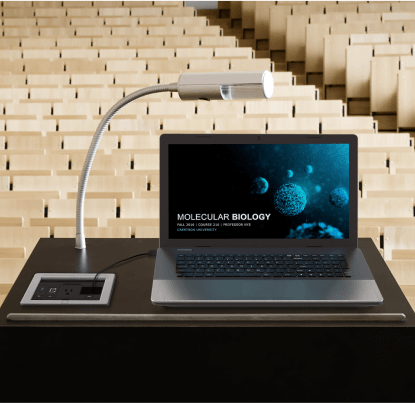

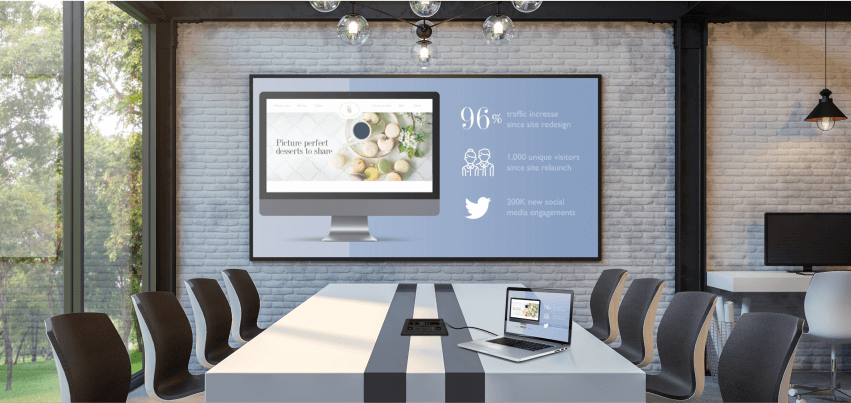

FT2 Series FlipTop™ cable management systems make it simple to connect at a conference room table or lectern.
All connections and cables are concealed inside beautiful drop-in industrial designs. And with their highly modular design, FT2 FlipTops can easily be configured and updated to meet the specific needs of any meeting space.
INFORMATION
BRAND
Crestron
PRODUCT TYPE
Cable Connector
BRIGHT
Highly visible backlit symbols make it easy to find what you’re looking for
SOFT, SMOOTH, AND SILENT
Push a button and the door silently retracts and disappears when activated
UNOBSTRUCTED SURFACES AND VIEWS
Pass-through lid allows connections to be concealed with cables fully extended while lid is closed
SPECTACULAR
Aesthetic design: Two finishes, no exposed screws
NO MORE POWER ANXIETY
40w, Fast-charging Usb-c™ Usb-a Power
KEY FEATURES
FT2 Series FlipTops are built to the same high standards as your most beautiful furnishings. No gaps or visible screws and the high-quality finishes complement any décor. All connections and cables are close to the surface and ready to use — no reaching into a dark hole.
ENVIRONMENT
Indoor

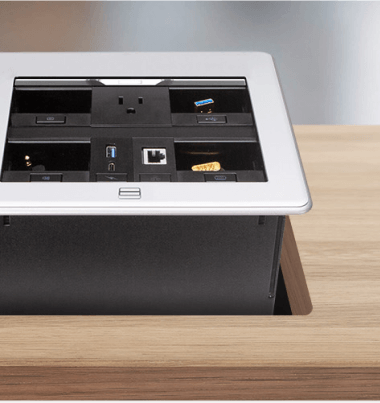

FAST INSTALLATION
FT2 FlipTops are designed to fit in same industry standard cutout size as other major manufacturers and install and/or upgrade in a fraction of the time.
CABLES BACK IN THE TABLE
Touch a button, cables retract
DESIGN
Highly Modular
FAST AND SIMPLE INSTALLATION
Spend less time under the table
RECTANGULAR CUTOUT
Fits a 5 3/4 x 7 1/8 in. (146 x 181 mm)

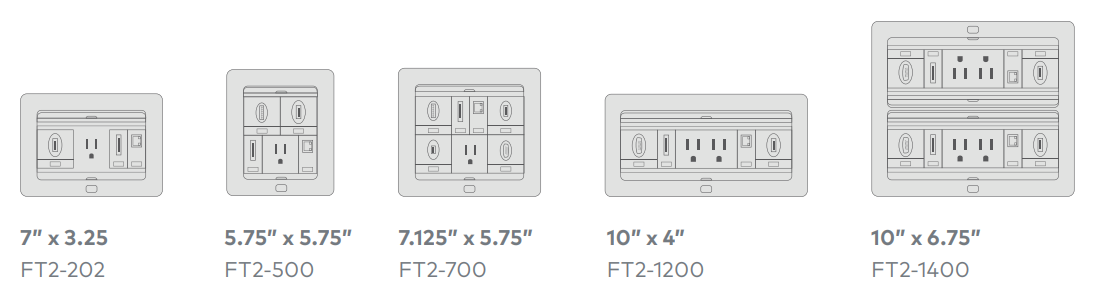

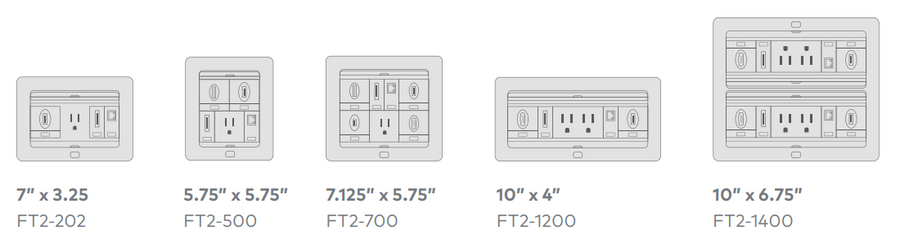

SIZES
EVERYTHING YOU NEED AT YOUR FINGERTIPS
Ft2 series fliptop™ cable management systems make it
Simple to connect at a conference room table or lectern.
All connections and cables are concealed inside beautiful
Drop-in industrial designs. And with their highly modular
Design, ft2 fliptops can easily be configured and updated To meet the specific needs of any meeting space.
CABLES
High-quality interface cables, like stereo audio, audio,mini-trs, dvi-d, HDMI, rca, and VGA, for connecting devices. See the fliptop configurator for full list.
SHELVES, SHROUDS, AND MOUNTS
Convenient under table shelf for any ft2 fliptop, hdbaset® transmitter, switch or dmps. Easily installed shrouds conceal pass-through cables, gravity retractors, and the fliptop itself. Under table brackets allow retractors to be mounted to the center slots of fliptops.
POWER SUPPLIES
An additional power supply (ft2a-utk-pwr) can be added to support installations using two USB rapid charging modules.
FINISHES
Choose from timeless sophistication with our black finish, or let modern elegance shine through with alloy. Each is crafted to elevate your workspace aesthetic.
CONNECTIVITY

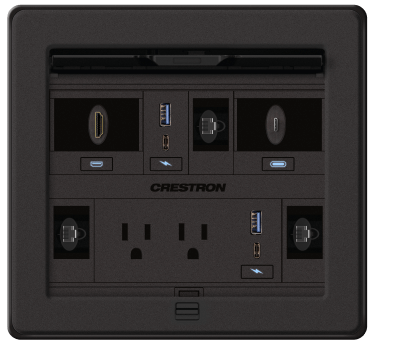

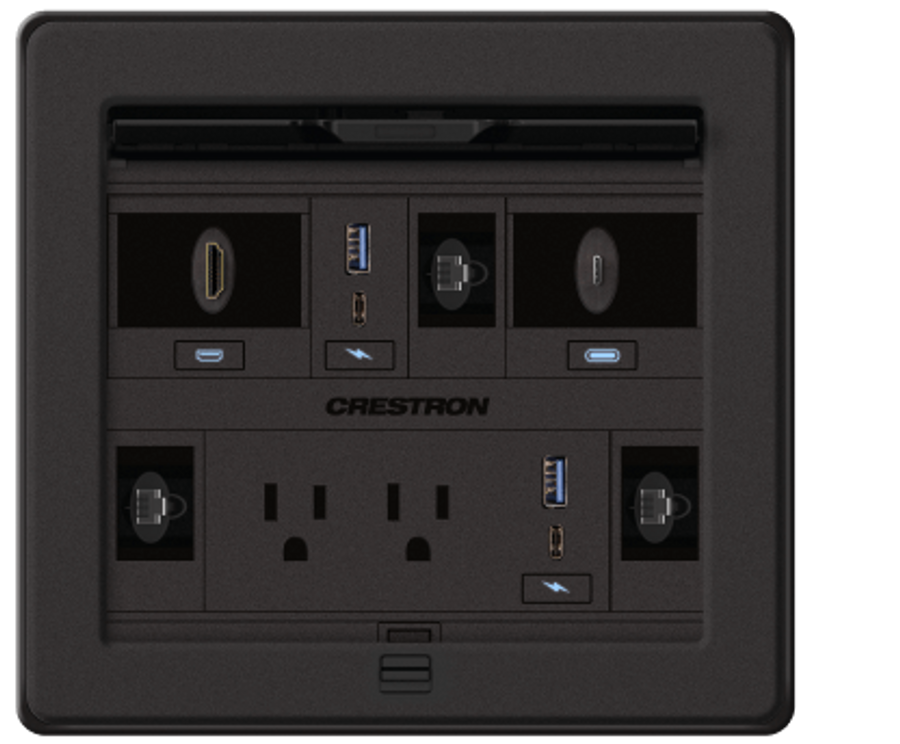

PREMIUM ACTIVE FLIPTOP
Supports USB-C charging modules, one-touch or vertical gravity retractors, pass-through lid, and all active 4K connector plates. All labels are backlit.
- One-touch retractors with programmable functionality
- USB-A and USB-C can be used simultaneously
- Active connector plates preserves 4K60 4:4:4

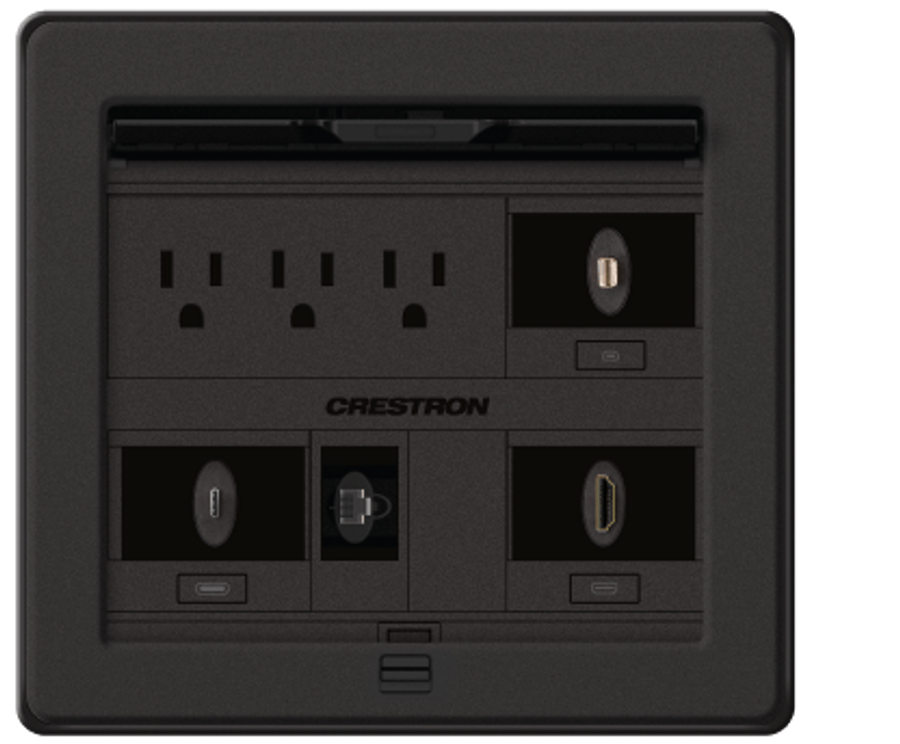

STANDARD PASSIVE FLIPTOP
Supports AC power, basic pass-through cables, passthrough lid, flush-mount connectors in keystone plates, and gravity retractors with their precision track and pulley mechanism.
- Both active and passive support modules
- Gravity-assisted track and pulley cable mechanism
- High-performance pass-through cables such as VGA USB, HDMI® , etc.
TECHNICAL TABLE
TECHNICAL TABLE
| TYPE | ELECTRICAL | MECHANICAL |
|---|---|---|
| AC Power Outlets Provide power outlets at the surface of the FlipTop. Available for many different countries along with a universal outlet. | Yes | Yes |
| USB-C and USB-A Charging Independent of AC configuration, it provides one USB Type-C™ charging port and one USB Type-A charging port, which can be used simultaneously to quickly charge mobile phones or tablets at the table. | Yes | No |
| Pass-Through Cables A high-performance, purpose-built interface cable that can be pulled out smoothly for use and then dropped back into the FlipTop when done. | Yes | Yes |
| Pass-Through Lid Allows connections to be concealed with cables fully extended while the lid is closed, leaving surfaces and views unobstructed. | Yes | Yes |
| Gravity Retractors A gravity-assisted track and pulley mechanism that allows ample cable to be pulled out smoothly for use, and then retract gently by lifting the cable vertically above the FlipTop. | Yes | Yes (no backlit labels) |
| One-Touch Retractors An electrically clutched, spring powered retraction mechanism that allows ample cable to be pulled out smoothly for use, and then retract with the touch of a button. | Yes | No |
| Keystone Connector Plates Enables installation of standard flush-mount keystone connectors | Yes | Yes |
| Active Connector Plates Offer a panel-mount interface solution. Each model is labeled with a backlit international symbol indicating the connection type, which is clearly visible to the user when selecting a connection at the table. | Yes | No |
