Maytag 30-inch Wide Gas Cooktop with Power™ Burner
30-INCH WIDE GAS COOKTOP WITH POWER™ BURNER
30-INCH WIDE GAS COOKTOP WITH POWER™ BURNER COOKTOP
Take charge of your cooking experience with Maytag® gas cooktops. The 15,000-BTU Power™ Burner delivers heat on demand to sear flavor and juices into main dishes, while the simmer burner on this 30-inch gas cooktop allows for delicate control of savory sauces and soups.
And this 4-burner cooktop will clean with ease thanks to features like the dishwasher-safe knobs and heavy-duty DuraClean™ cast-iron cooktop grates.
INFORMATION
FRONT CONTROLS
Front controls keep your cooktop knobs close at hand so you can manage your meals without breakin' a sweat.
BRAND
Maytag
PRODUCT TYPE
Gas Cooktop with Power™ Burner
15,000-BTU POWER™ BURNER
Exclusivo quemador que brinda máxima potencia y rapidez de cocinado, para obtener resultados precisos y consistentes en todo tipo de platillos.
COOKTOP FEATURES
ADA Compliant, Flex-Choice™ Simmer Burner, Power™ Burner
FEATURES
Flex-Choice™ Simmer Burner, Power™ Burner, ADA Compliant
CERTIFICATIONS
- UL : Yes
- ADA Compliant : ADA Height and Side Reach Compliant
ELECTRICAL
- Amps : 15
- Hz : 60
- Volts : 120
- Power Cord Included : Yes
MODEL
MGC7430DS
KNOB TYPE
Dishwasher-Safe Plastic
NET WEIGHT
52 lbs
GROSS WEIGHT
58 lbs
COMMON SIZE
30 in

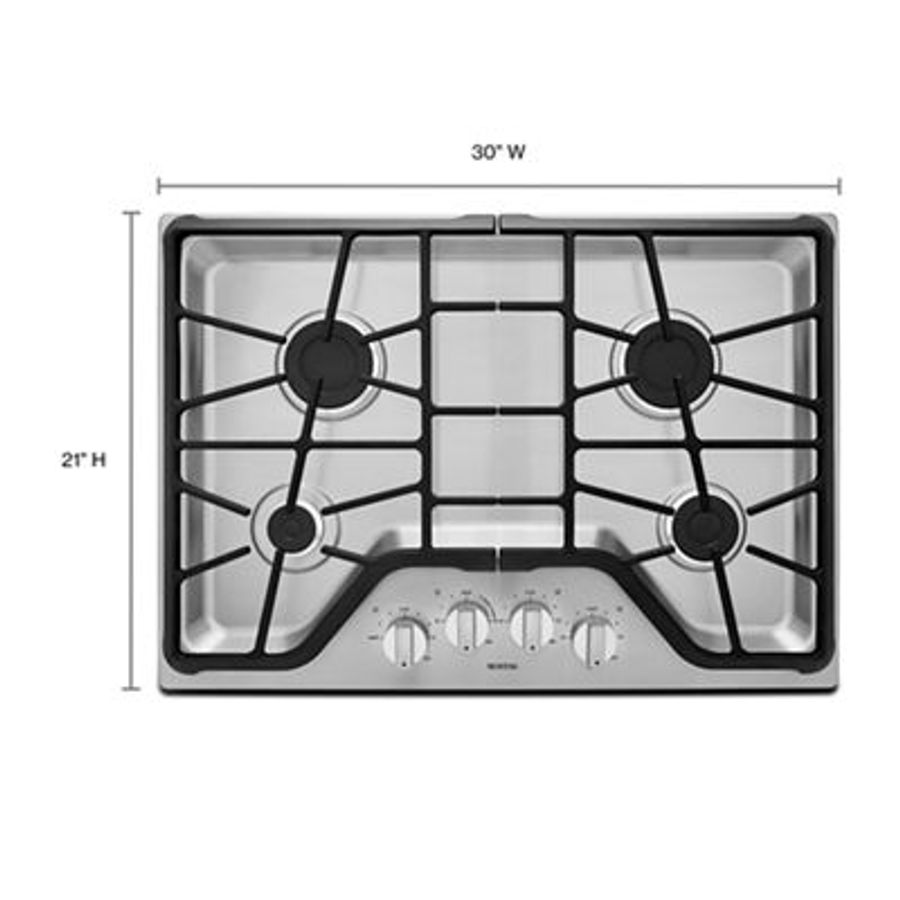

DIMENSION
- Width : 30 in
- Height : 3.6875 in
- Depth : 21 in
CUTOUT DIMENSION
- Width : 28.5 in
- Height : 5.25 in
- Depth : 19.938 in
CUTOUT WIDTH MAX
29.313 in
CUTOUT DEPTH MIN
19 in
CUTOUT DEPTH MAX
20 in
MAXIMUM HEIGHT
4 in
MINIMUM HEIGHT
3.375 in
KNOB COLOR
Stainless Steel
SIMMER BURNER
The simmer burner provides 800 to 5,000 BTUs of precise, adjustable heat to give your cooktop both a full-power simmer burner and warming setting all in one.
DESIGNED, ENGINEERED, AND ASSEMBLED IN THE USA
From Tennessee to you, these cooktops are designed, engineered and assembled in the U.S.A.
LP CONVERTIBLE
Yes - Kit Included
POWER OUTAGE COMPATIBLE
Yes
GRATE DETAILS
- Number of Grates : 2
- Grate Details : Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish
COOKTOP SURFACE COLOR
Color Coordinated
DOWNDRAFT VENT
No
COMBINATION MATCH WITH OVEN
- MEW9527
- MEW9530
HEATING ELEMENT ON INDICATOR LIGHT
No
DIGITAL DISPLAY
No
COOKTOP SURFACE MATERIAL
Stainless/Porcelain Coated Steel
INSTALLS OVER BUILT-IN OVEN
Yes
DIGITAL DISPLAY
No
HOT SURFACE INDICATOR LIGHT
No
IGNITION TYPE
Direct Spark Ignition
CONTROLS
- Control Type : Knobs
- Control Location : Front
10 YEAR LIMITED PARTS WARRANTY
With a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin' for years.
FUEL TYPE
Gas
INSTALLS OVER BUILT-IN OVEN
Yes
ELEMENT/BURNER
- Number of Grates : 2
- Power Boost : No
- Cooktop Type : Standard
- Automatic Pan Detection : No
- Right Rear Element-Burner Power : 9,100 BTU
- Right Rear Element-Burner Type : Burner
- Cooktop Element Style : Sealed Burner
- Left Front Element-Burner Power : 5,000 BTU
- Left Front Element-Burner Type : Simmer
- Left Rear Element-Burner Power : 15,000 BTU
- Left Rear Element-Burner Type : Power™ Burner
- Number of Cooking Element-Burners : 4
- Right Front Element-Burner Power : 12,000 BTU
- Right Front Element-Burner Type : Burner
