Codelocks A3 Dual Standalone Door Controller with RFID

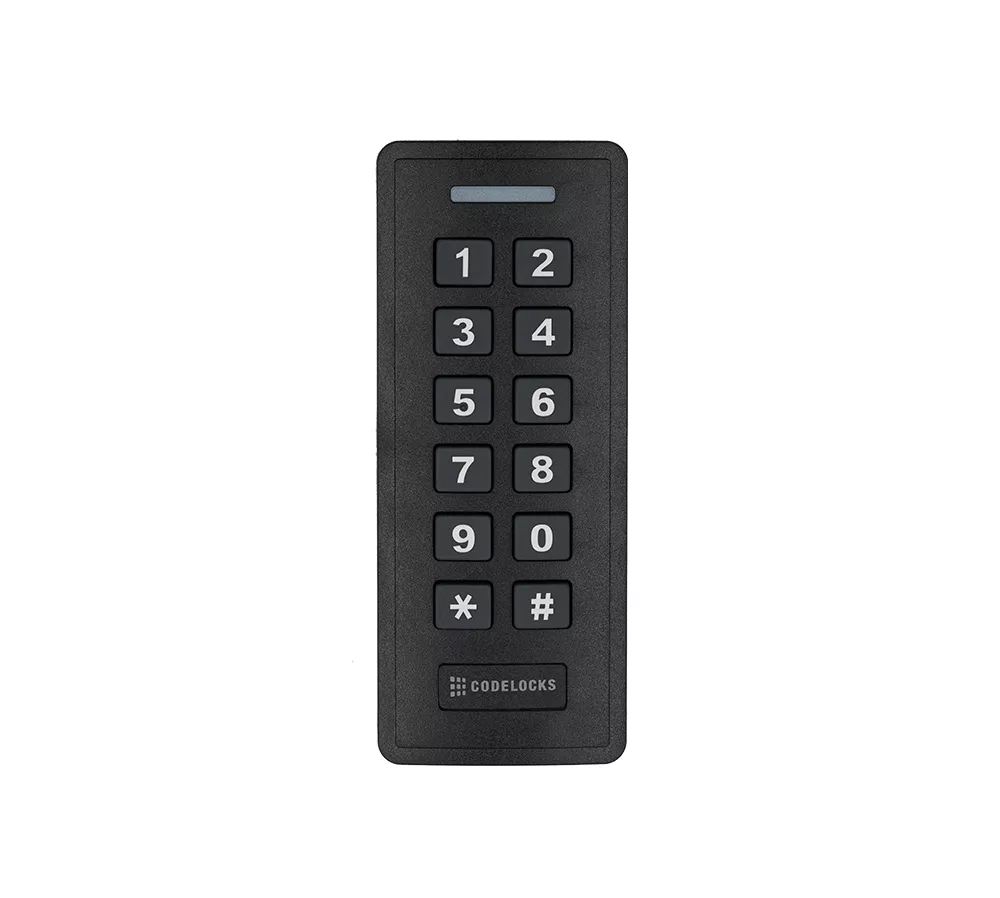

A3 DUAL STANDALONE DOOR CONTROLLER WITH RFID
A3 DUAL STANDALONE DOOR CONTROLLER WITH RFID
Surface mounted RFID MIFARE® compatible door controller with keypad. Provides proximity access for up to 600 Code/Card Clients, including two Panic Clients. Advanced functions and access modes available.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
LOCK MATERIAL
Zinc Alloy
BUTTONS
Buttons2 x 6
KEYPAD
12 individual buttons
CLIENTS – SMART CARDS
Up to 600
FINISH
Black
IP RATING
IP66
ORIENTATION
Vertical
VOLTAGE
12-18V DC
LOCK DIMENSIONS
- Width : 49.5 mm (2 in)
- Length : 22 mm (4 7⁄8 in)
- Height : 123 mm (7⁄8 in)
SUITABLE FOR
- Internal
- External
IDLE CURRENT
35mA
WORKING CURRENT
100mA
USER TYPES
- Code
- Card
DETAIL
Compact, standalone programmable door controllers with RFID functionality. Featuring three models, each bringing unique qualities to the range, the A3 door controllers provide a compact, affordable proximity access control system allowing flexible entry for up to 1,000 users.
HUMIDITY
10%RH ~ 98%RH
READ RANGE
60mm (23 /8”)
MODELS
Three models available
CONFIGURABLE
Configurable penalty time
CARDS INCLUDED
Master Programming Cards included
LED STATUS
LED status indicators and backlit keypad
USER LEVELS
- Master
- User
- Panic
SENSOR
Anti-tamper sensor
CONNECTIONS
Alarm and doorbell connections
DOOR CONTROLLERS
Eliminate the hassle of missing keys and doors being left unlocked all day. The A3 range of door controllers offer a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.
MOUNT OPTIONS
Flush or surface mount options
TEMPERATURE
-40°C ~ 60°C (-40°F ~ 140°F)
FUNCTIONS
CONFIGURABLE RELAY ALL MODELS
- Pulse Mode allows an adjustable re-lock time to be set between 1-99s (5s default).
- Latch Mode enables passage functionality allowing Code or Card Client free access.
DOOR INTERLOCK A3 DUAL & A3 VANDAL RESIST
Sometimes referred to as a ‘Door Airlock’ system, this function allows two door controllers to be linked. For example, the first door will require closing before the second door can be opened.
MULTIPLE ACCESS MODES A3 DUAL & A3 VANDAL RESIST
- Dual Authorisation requires a valid Code and Card Client to be presented in order to allow access.
- Reader Mode where the unit acts as a Wiegand reader linked to another unit.
PENALTY TIME ALL MODELS
Presenting an incorrect Card or Code Client 10 times will incur a 30 second time delay before any further use is possible.
