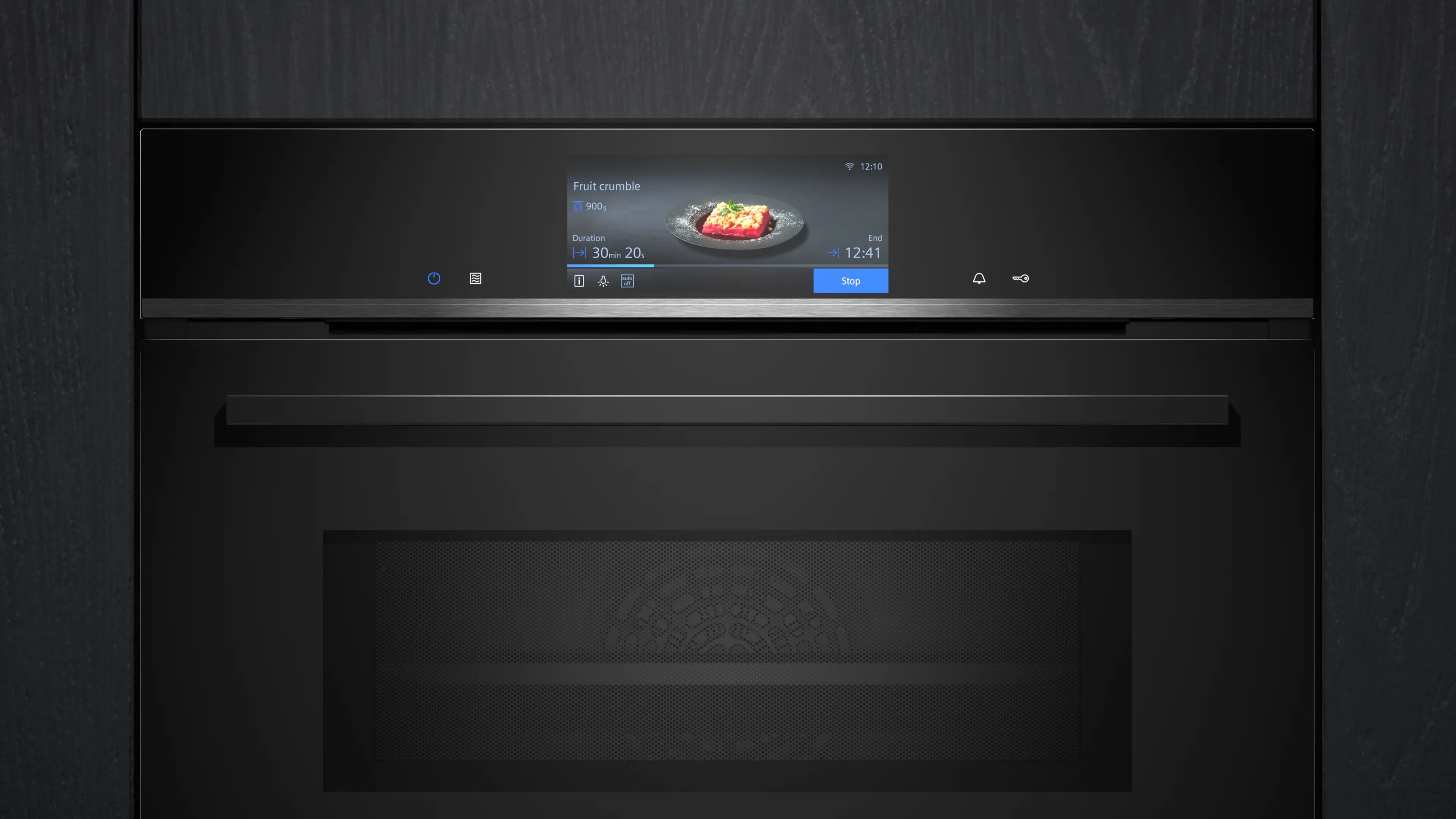

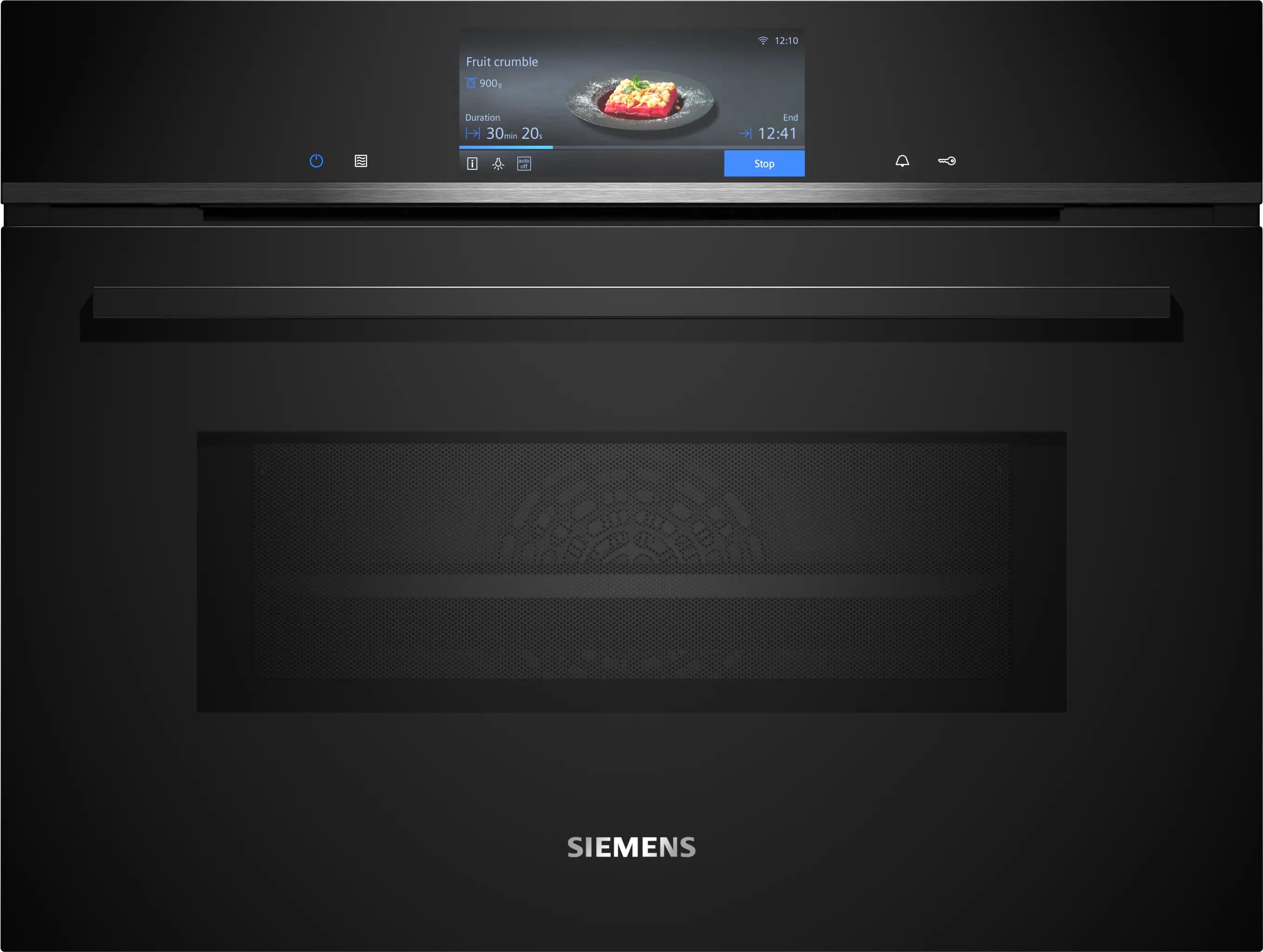

Siemens iQ700 Built-in compact oven with microwave function 60 x 45 cm Black
IQ700 BUILT-IN COMPACT OVEN WITH MICROWAVE FUNCTION 60 X 45 CM BLACK
IQ700 BUILT-IN COMPACT OVEN WITH MICROWAVE FUNCTION 60 X 45 CM BLACK
Model no. : CM778GNB1B
INFORMATION
BRAND
Thermador
PRODUCT TYPE
Coffee Machine
HEATING MODES COMBINABLE WITH MICROWAVE FUNCTION
- 4D hot air
- Full width grill
- Half width grill
- Hot air grilling
- Conventional heat
CAVITY CAPACITY
45 l
INSTALLATION TYPE
Built-in
MAXIMUM MICRO-WAVE POWER
900 W
HOME CONNECT
Yes
DOOR COLOUR
Black
COOKING-ASSISTANT IN HOME CONNECT APP
yes (available with connected Home Connect account)
AUTOMATIC DOOR OPENING VIA VOICE CONTROL
No
COLOR / MATERIAL PANEL
Black
COLOUR OF APPLIANCE
Black
PRODUCT DIMENSIONS
- Height : 455 cm
- Width : 594 cm
- Depth : 548 cm
PACAKGES DIMENSIONS
- Height : 540 cm
- Width : 650 cm
- Depth : 680 cm
WEIGHT
36.0 kg
NUMBER OF POWER LEVELS
5
CAVITY DIMENSIONS
- Height : 237.0 mm
- Width : 480 mm
- Depth : 392.0 mm
DOOR OPENING
Handle
RANGE OF TEMPERATURE
30-300 °C
MAXIMUM HEIGHT FOR INSTALLATION
455 mm
MAXIMUM WIDTH FOR INSTALLATION
568 mm
HEATING METHODS ONLY VIA HOME CONNECT APP
- Let rest
- pre-heating
MINIMUM HEIGHT FOR INSTALLATION
450 mm
MINIMUM WIDTH FOR INSTALLATION
560 mm

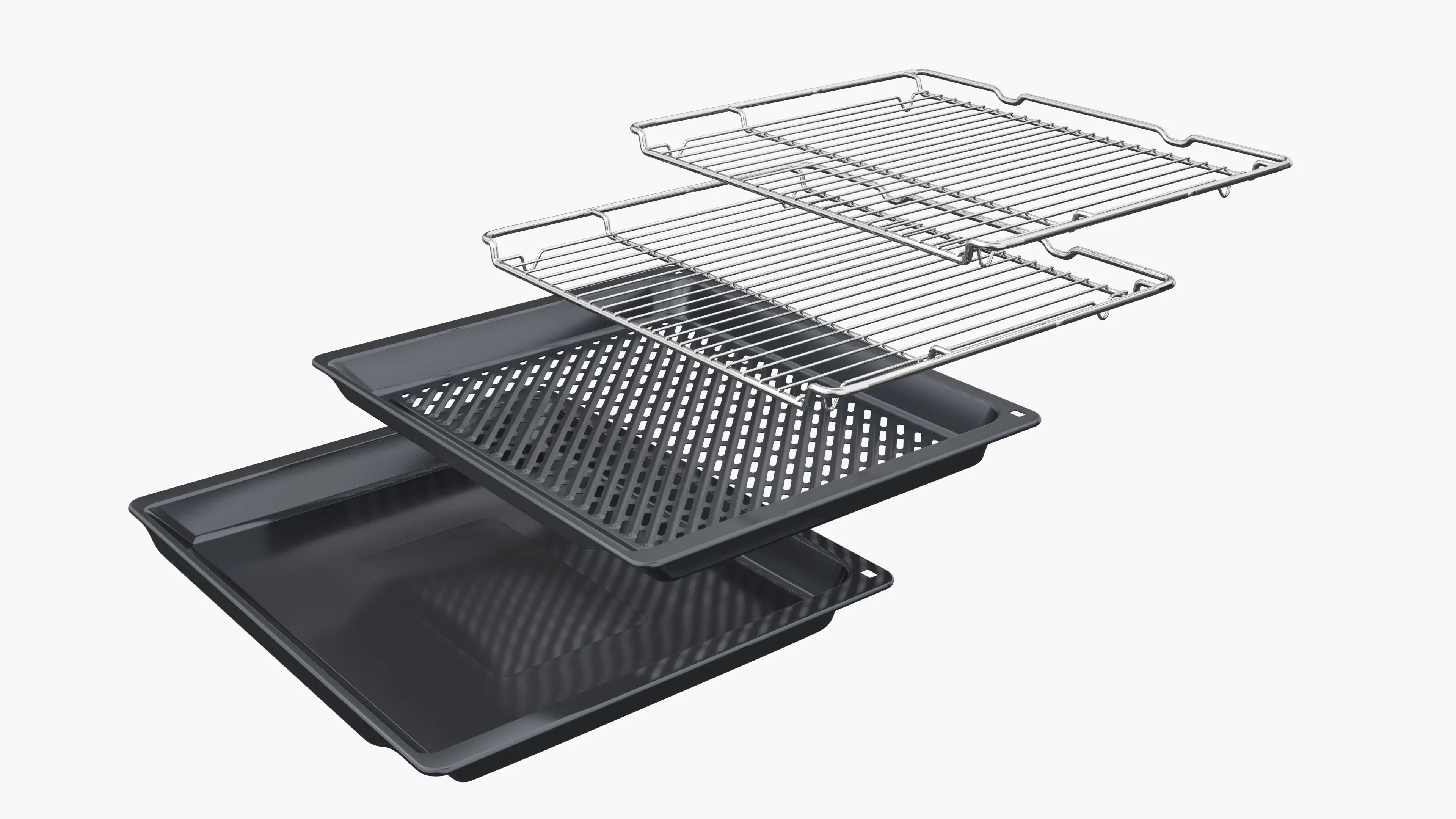

INCLUDED ACCESSORIES
- 1 x universal pan
- 1 x air fry & grill tray
- 2 x combination grid
NUMBER OF HEATING & COMBINATION MODES
22
NOMINAL POWER
220-240 V
DISPLAY CONTROL
TFT touchdisplay
SAFETY DEVICE
- Door lock
- Child-proof lock
HEATING TYPES
- Air fry
- Warming
- CoolStart
- 4D hot air
- Microwave
- Dehydrate
- Bottom heat
- Pizza setting
- Pre-heating
- Hot air grilling
- Full width grill
- Hotair gentle
- Intensive heat
- Half width grill
- Conventional heat
- Conventional heat gentle
- low temperature cooking
PLUG TYPE
no plug (electrical connection by electrician)
LENGTH ELECTRICAL SUPPLY CORD
150 cm
VOICE CONTROL VIA VOICE ASSISTANT
yes (available with connected Home Connect account & third party, e.g. Alexa, is required)
INCLUDED USER MANUALS
[EN]
CONNECTION RATING
3600 W
FUSE PROTECTION
16 A
PIZZA SETTING
Yes
DEPTH FOR INSTALLATION
550 mm
INTEGRATED CLEANING SYSTEM
Pyrolytic+Hydrolytic
MEMORY FOR INDIVIDUAL SETTINGS (1 SETTING)
No
SUPPORTING SYSTEMS
Dishes
COOLSTART
Yes
QUICK START
No
HOTAIR
4D (even heat distribution on any level )
LESS TIME NEEDED FOR PREHEATING
Yes
SENSORS
-Baking sensor with time prediction -RoastingSensor Plus with time prediction
HOME CONNECT FEATURES
-iService Remote -Remote Monitoring and Control

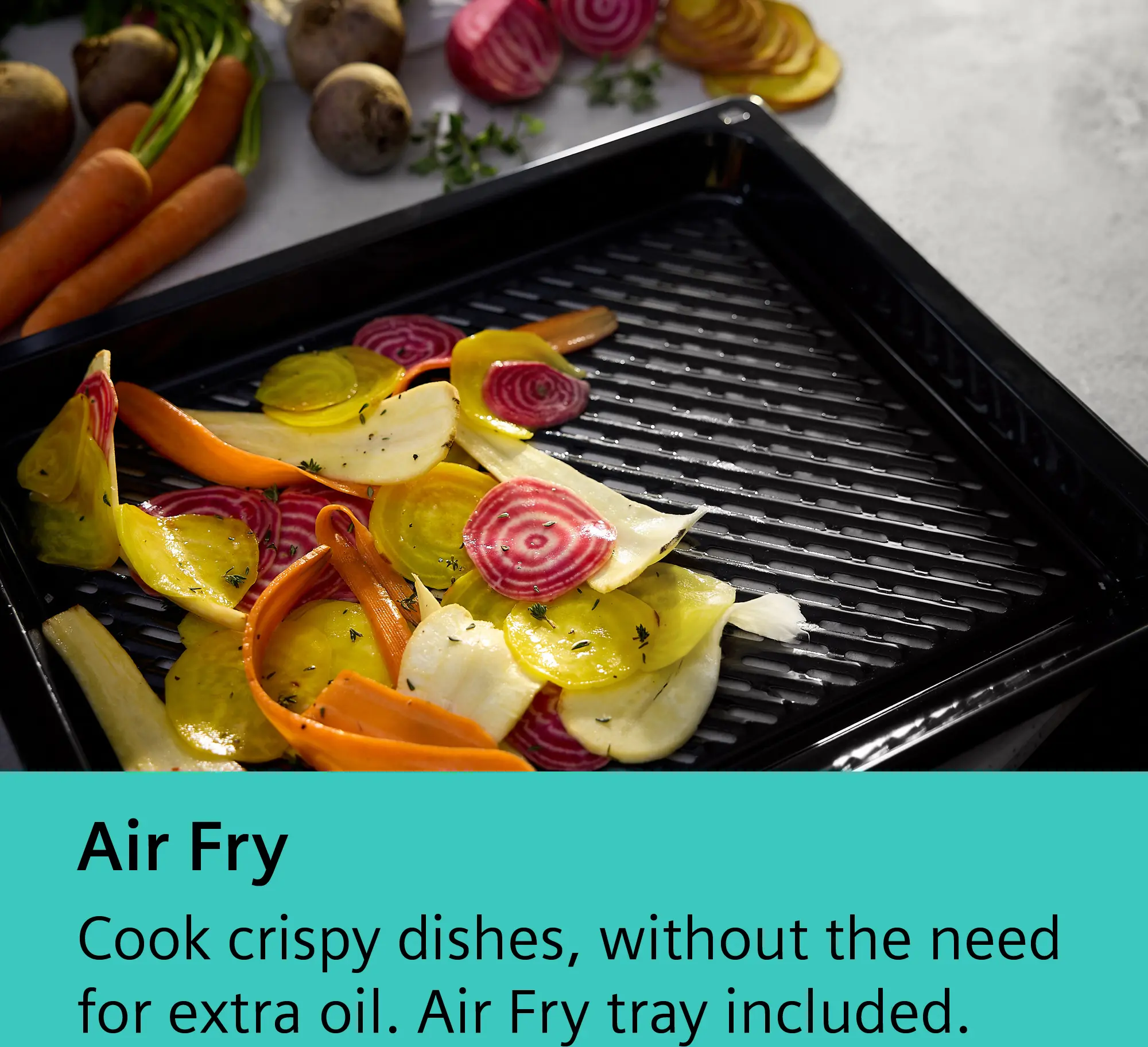

AIR FRY FUNCTION
Yes
CRISP FUNCTION
Yes

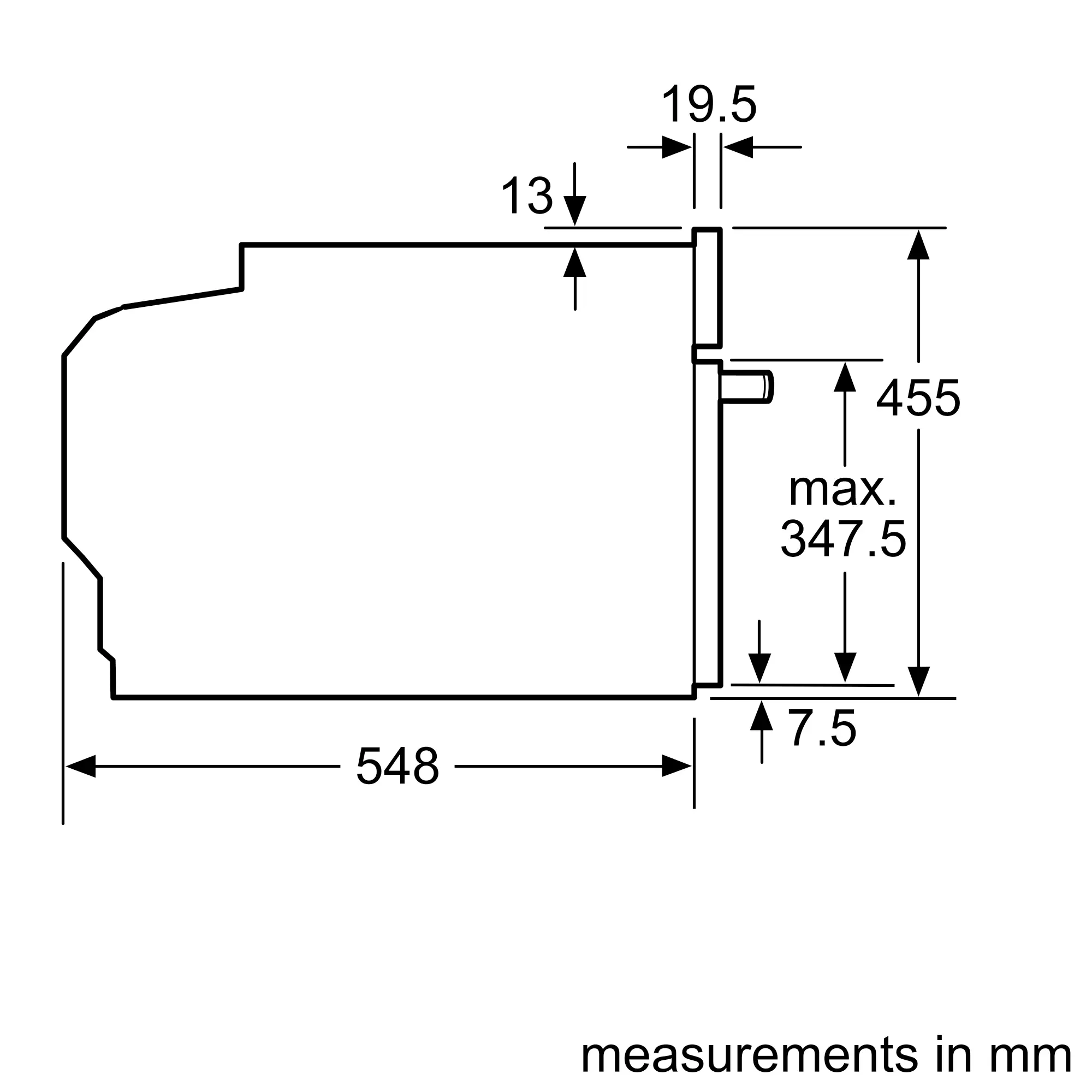

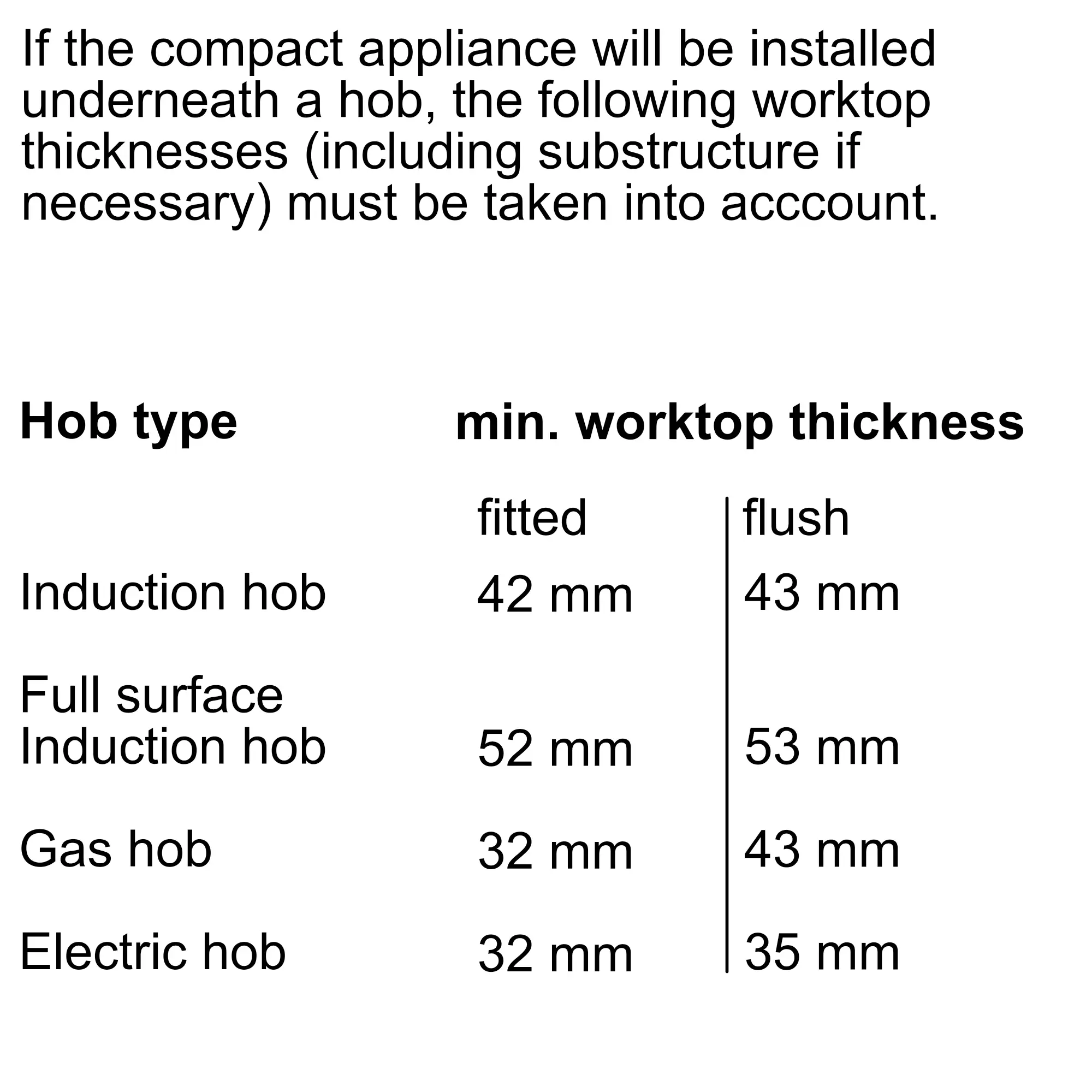

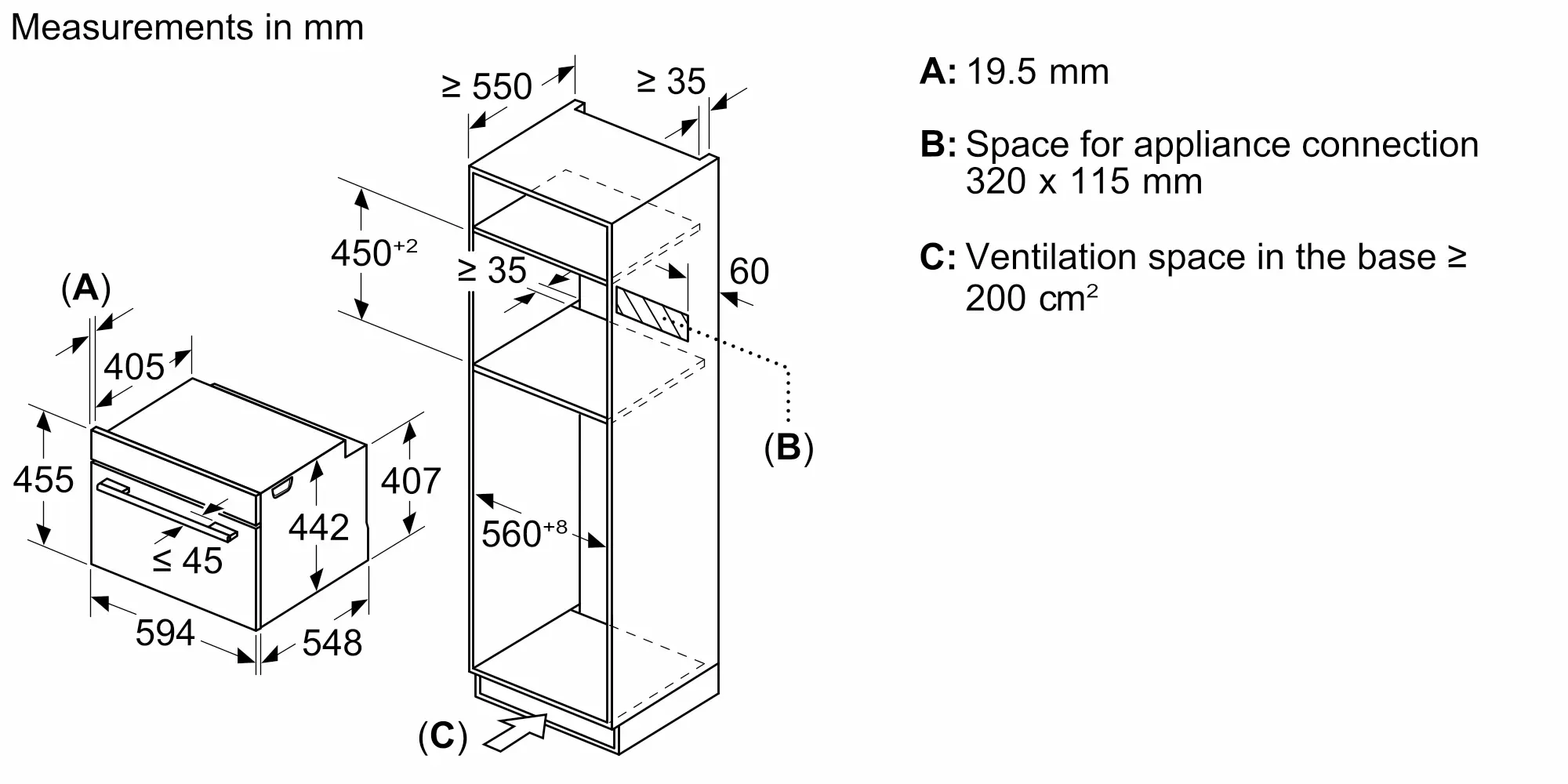

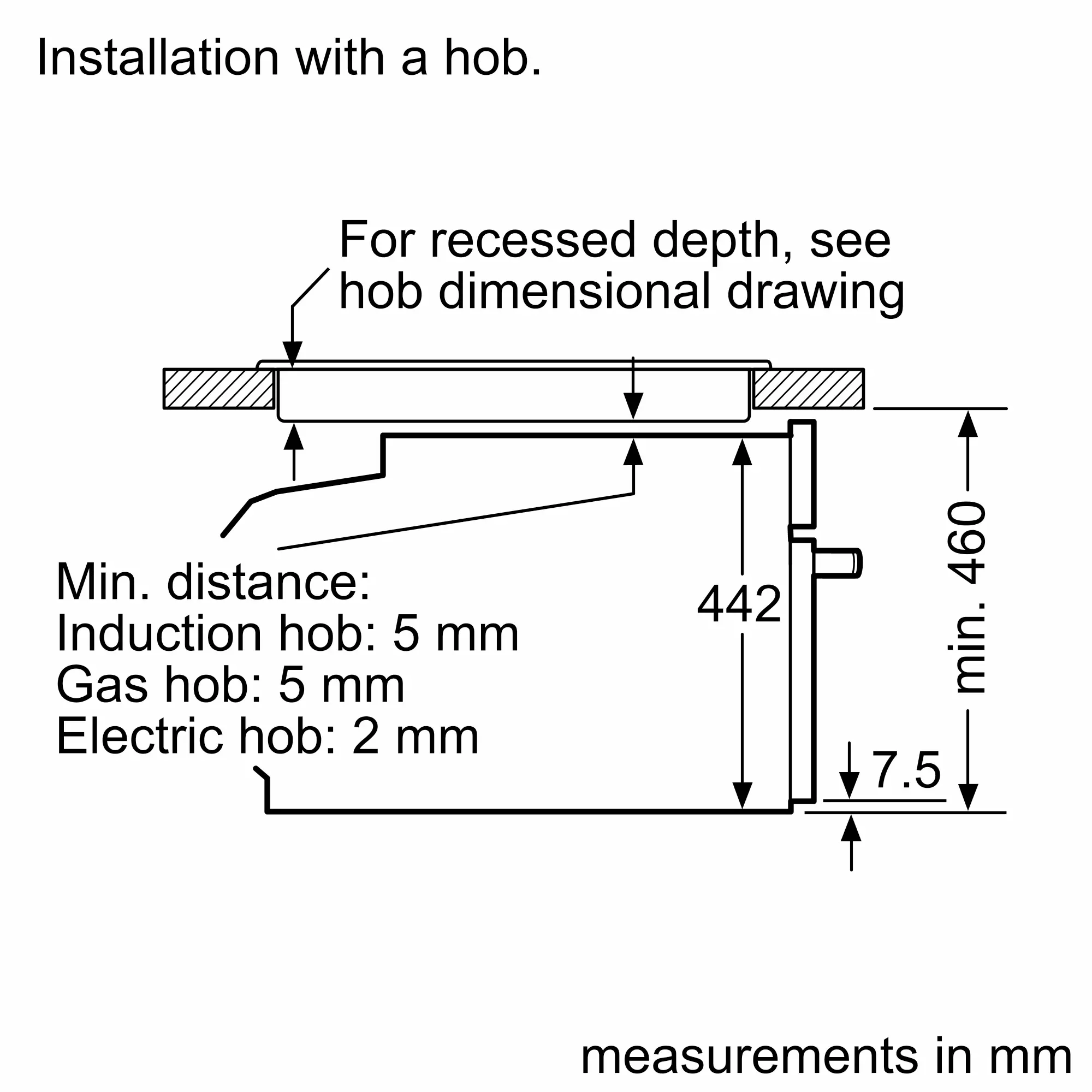

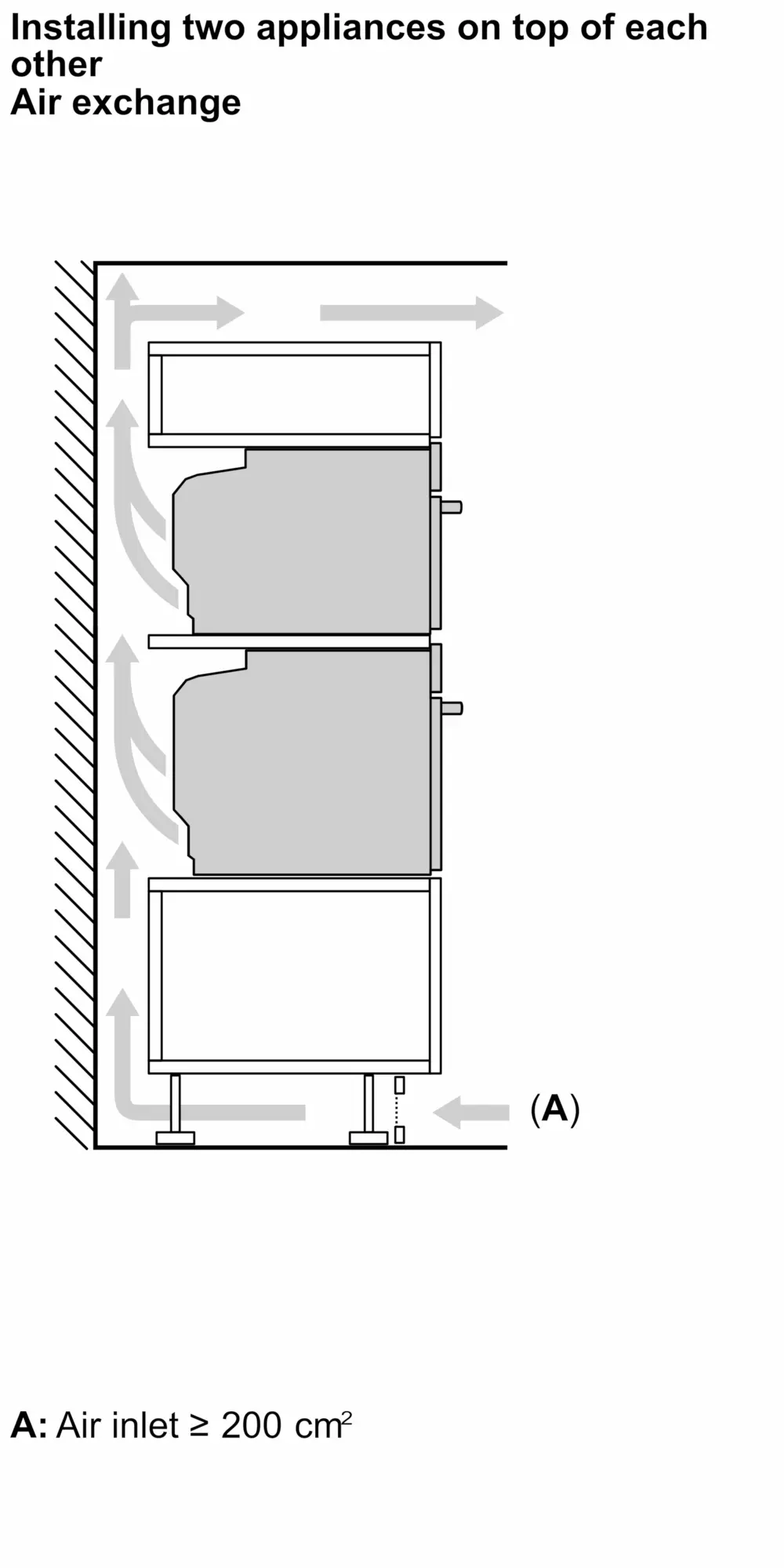

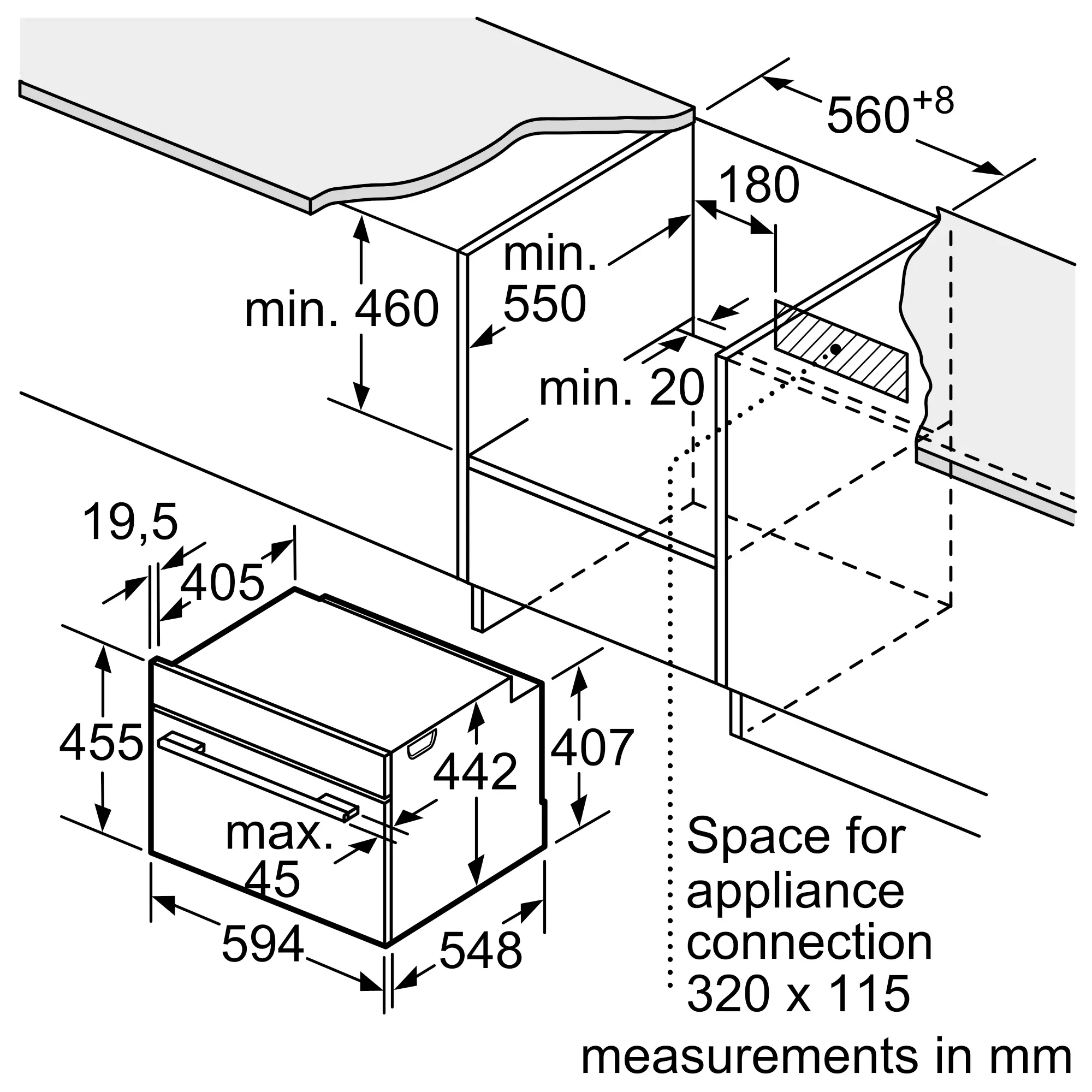

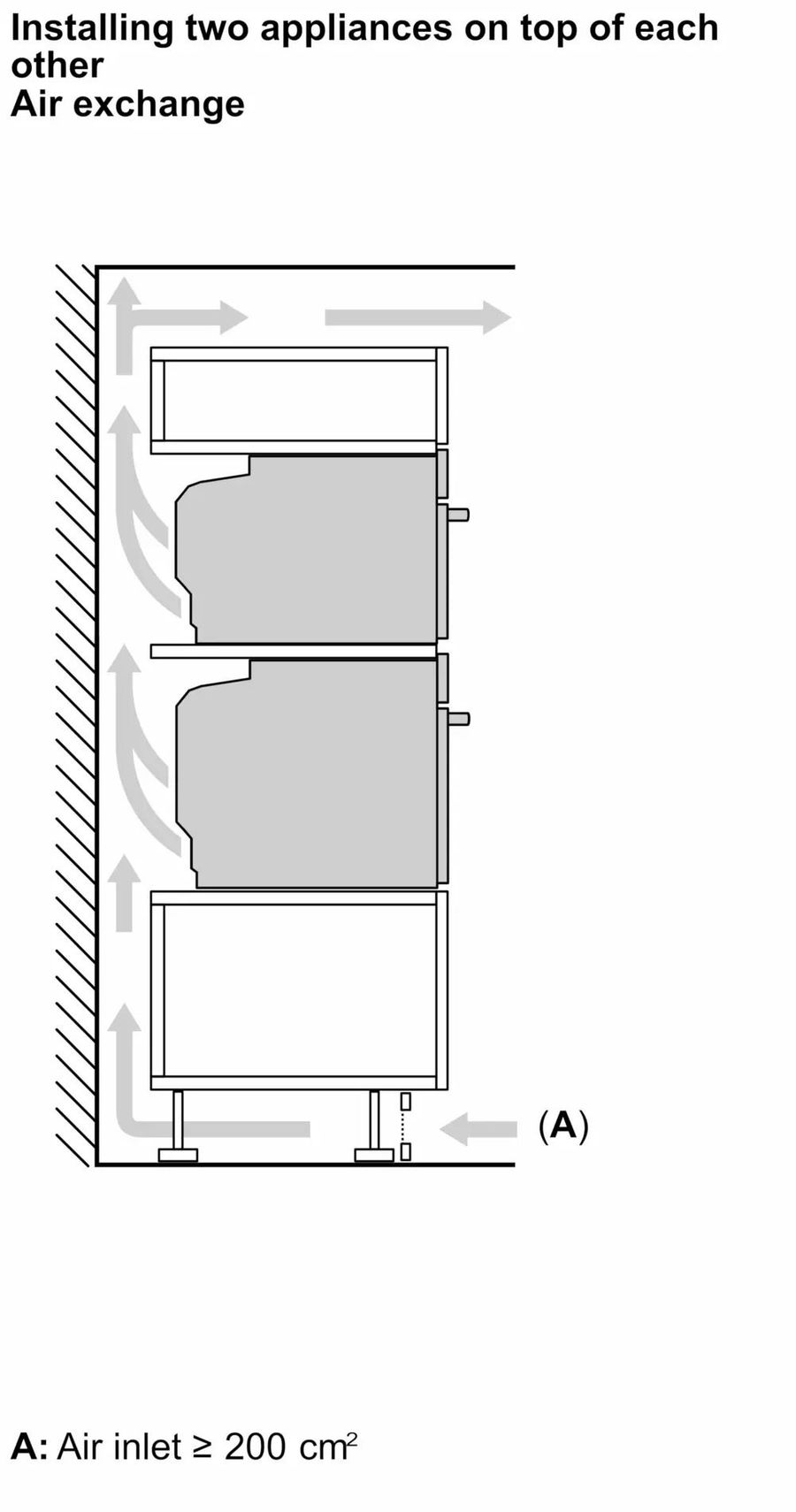

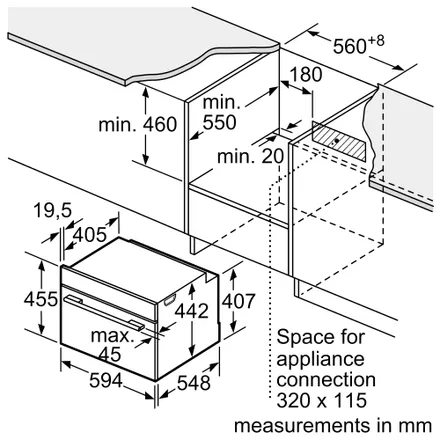

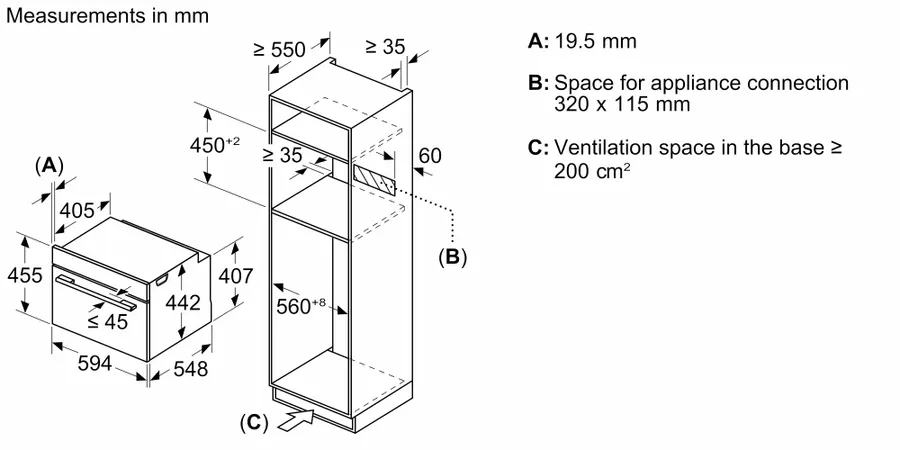

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
HIGHLIGHTS

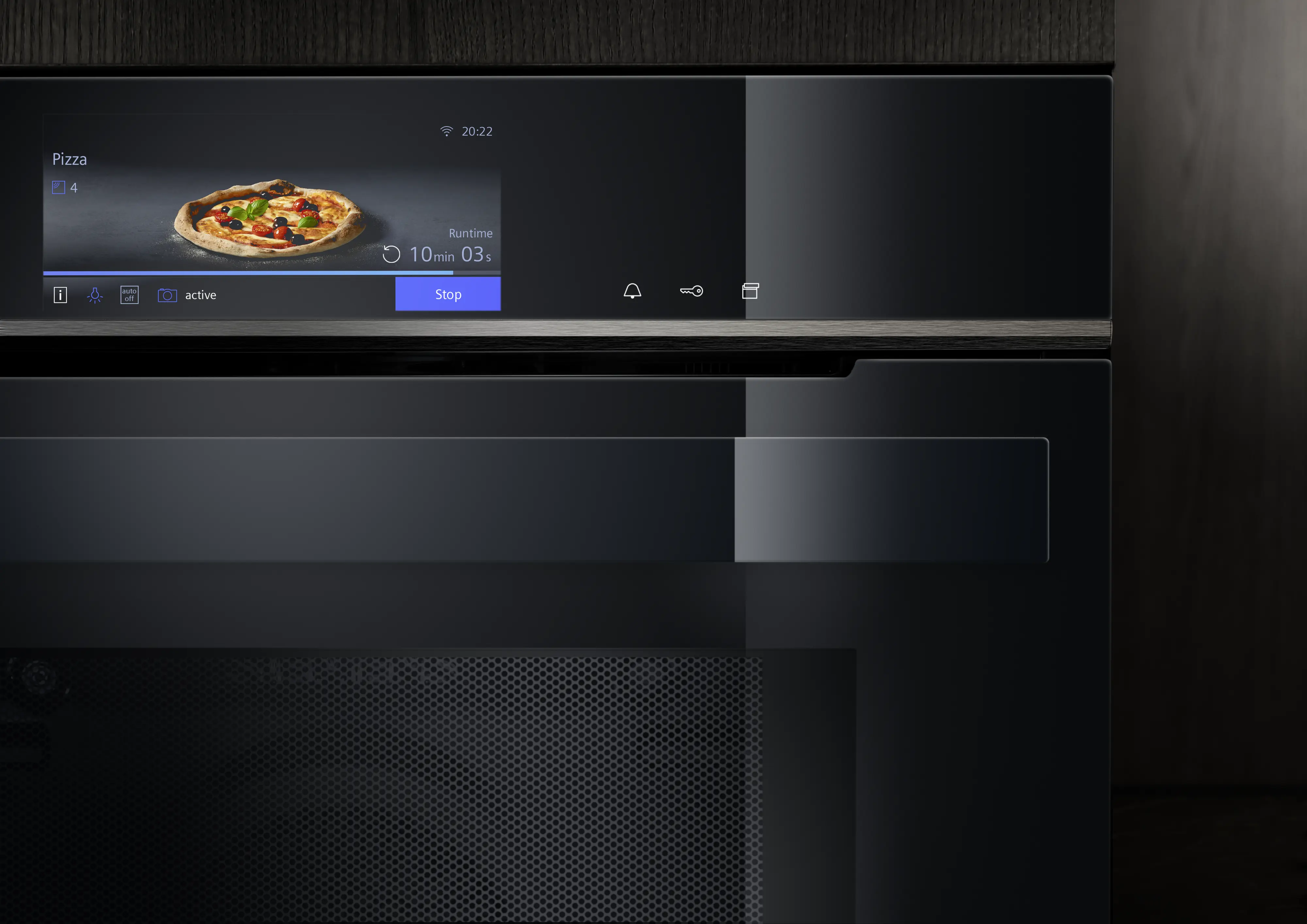

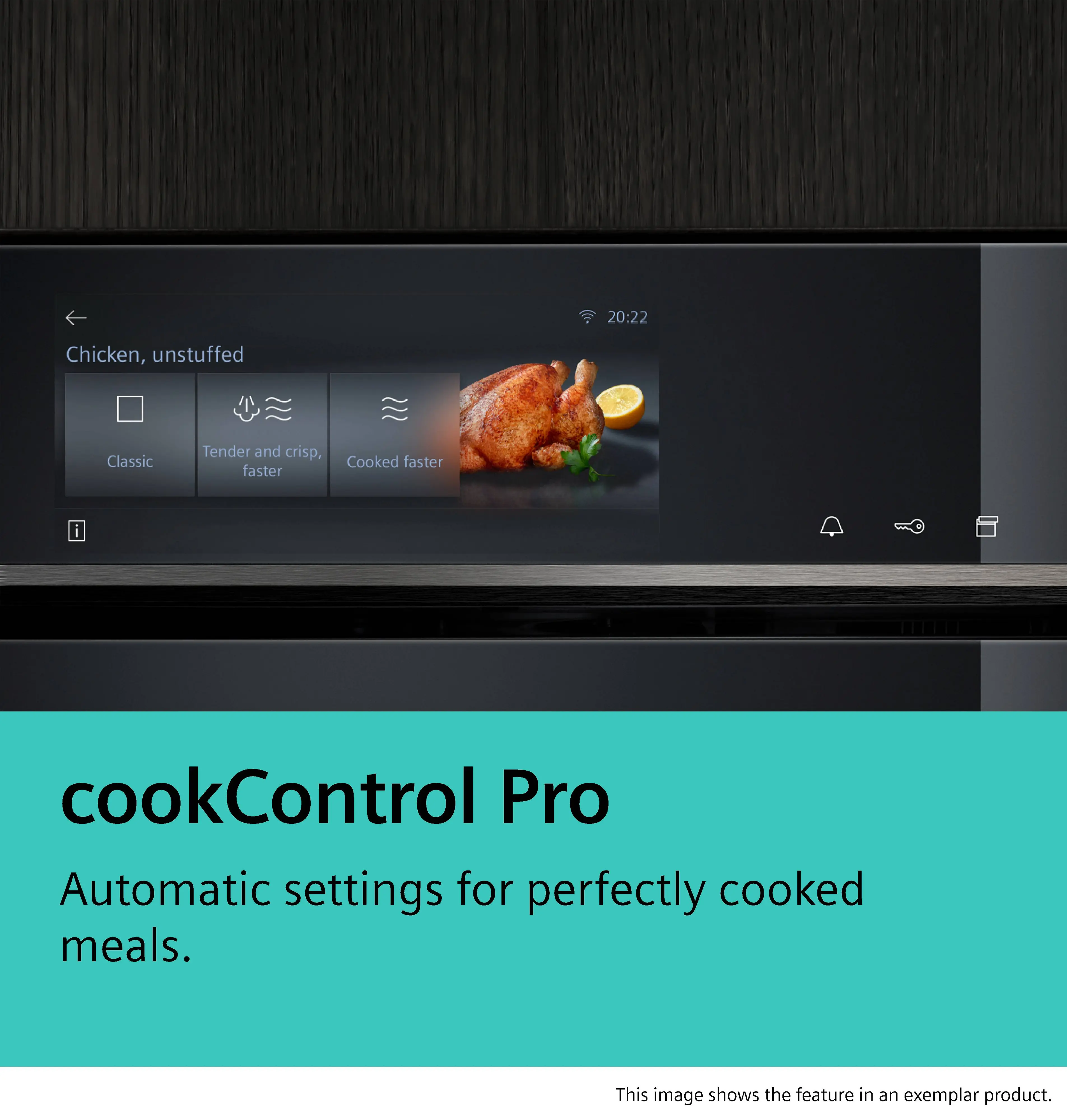

COOKCONTROL PRO: EXCELLENT RESULTS, WHATEVER THE RECIPE.
Overcooked food is a thing of the past. Your oven's pre-installed, automated baking and roasting programmes ensure ideal results.
Simply select your dish via the intuitive TFT-Touchdisplay and let the oven's sensors control the process. Simply select the suggestion that best suits your preferences and time. The oven automatically applies the correct settings and functions, and turns off when your dish is ready, so you can relax while your food cooks. Even more programmes can be downloaded by syncing your oven with your registered Home Connect account.
ACTIVECLEAN®: THE AUTOMATIC, SELF-CLEANING OVEN SYSTEM.
Hang up your oven-cleaning gloves for good. Thanks to the activeClean® function, your oven now cleans itself. Just remove any loose remnants, and let the oven do the rest. At the touch of a button, any leftovers from baking, roasting and grilling are turned to ash at a high temperature. Simply use a damp cloth to wipe surfaces clean, and you are done.
HOME CONNECT WITH REMOTE CONTROL: UNLOCK THE FULL POTENTIAL OF YOUR SMART OVEN.
Unlock your oven's full potential. Simply sync your oven with your registered Home Connect account (www.home-connect.com) to control it from anywhere, and enjoy digital services – even with Amazon Alexa or Google Assistant voice control.
Start and stop cooking programmes, change settings and manage favourites – all without being in the kitchen. Settings are synced between the app and oven, and you get push notifications when the programme is done. Software downloads keep your oven up to date. Enjoy cooking on your own terms.
BAKINGSENSOR PLUS AND ROASTINGSENSOR PLUS: PERFECT BAKING AND ROASTING RESULTS.
Get the best results whenever you bake or roast. Cooking meat, poultry or fish is now easier than ever. The bakingSensor Plus measures the moisture level in the oven during the fully-automatic baking process, ensuring perfect results.
The roastingSensor Plus measures the temperature at three different points in the meat, for highest accuracy. And Home Connect keeps you updated on estimated cooking time. To enjoy time prediction with bakingSensor Plus and roastingSensor plus, just sync your oven with your registered Home Connect account.

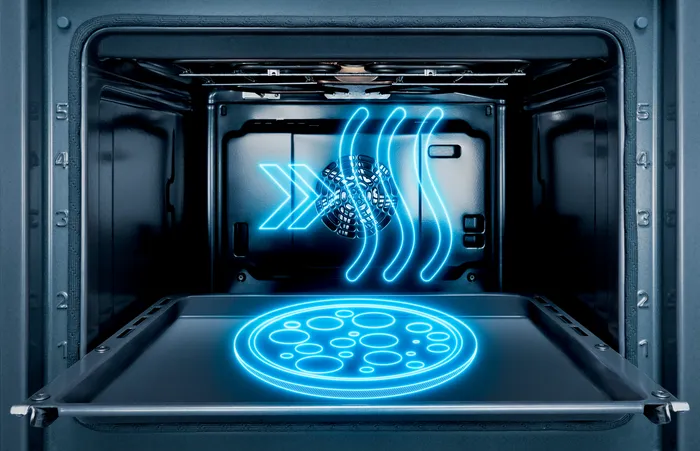

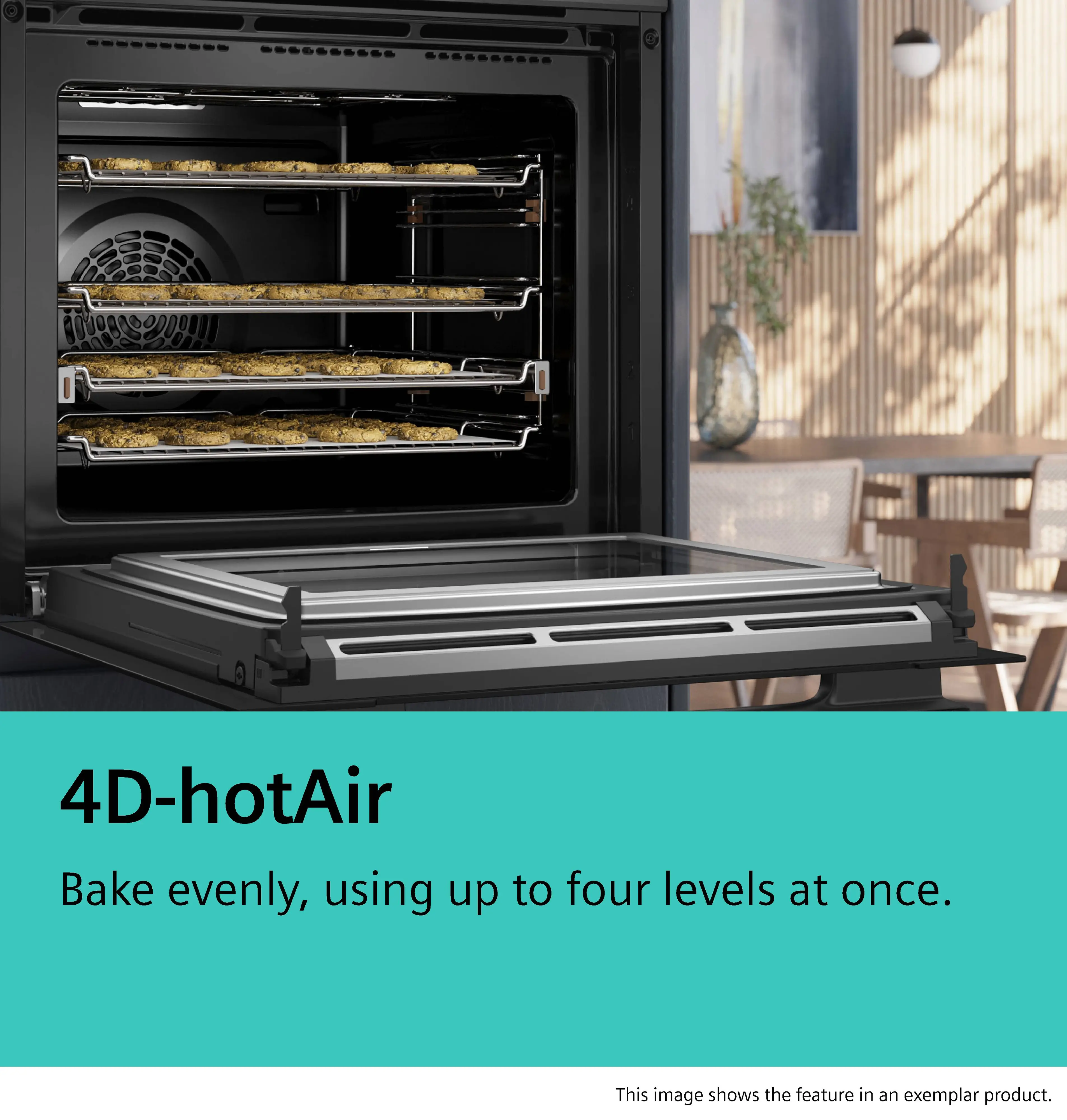

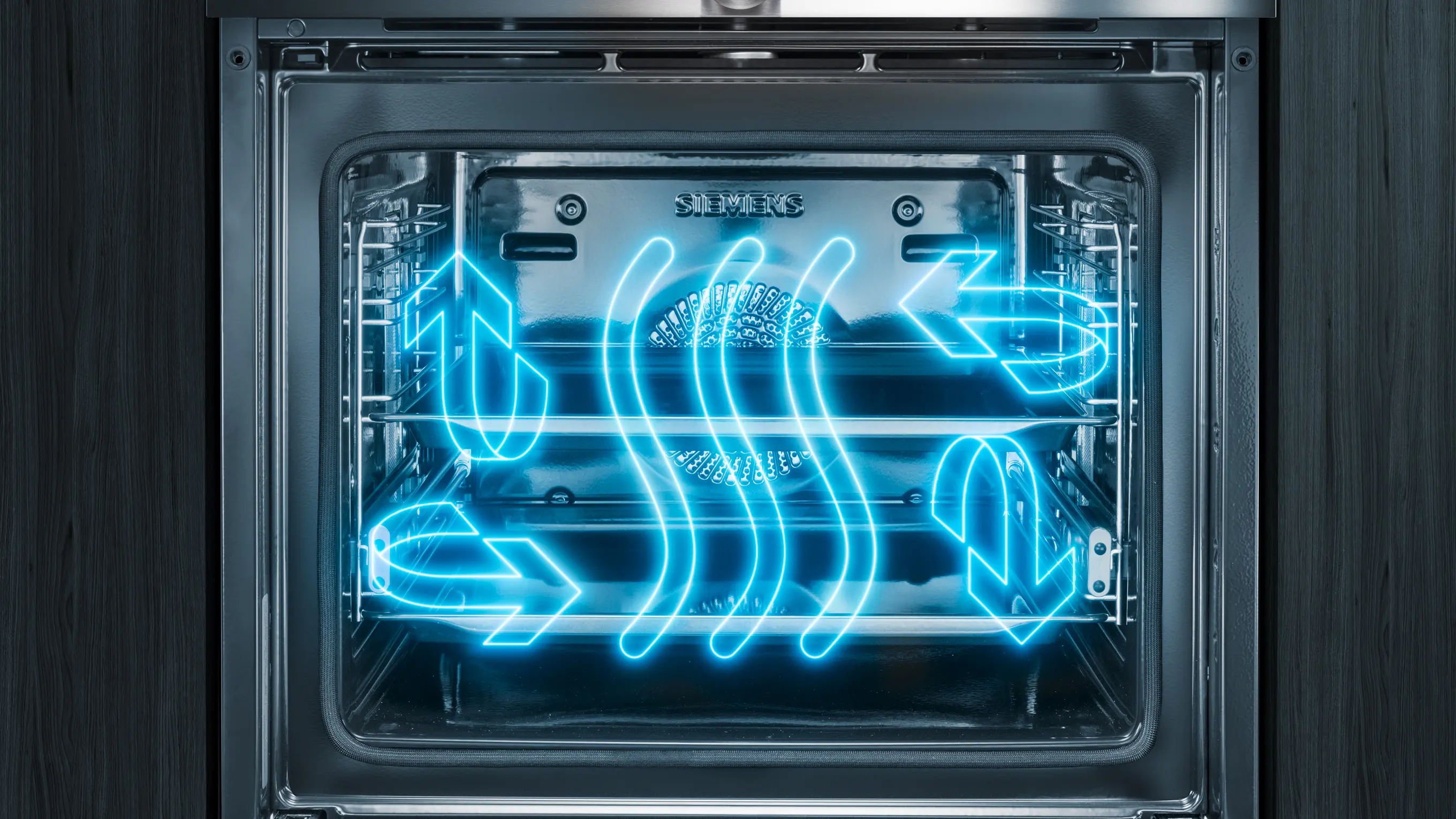

4D HOTAIR – EVEN HEAT DISTRIBUTION FOR EXCELLENT RESULTS ON ANY LEVEL.
Getting even baking results used to be tricky, but not any more. With 4D hotAir, an innovative fan moves heat fast and powerfully through the oven’s interior. Place your trays on any rack, from one to four, and your dishes will come out perfectly baked and evenly browned. Or bake pastries on four levels at the same time, and enjoy excellent results.
EASY AND SAFE HANDLING OF TRAYS AND RACKS - TELESCOPIC RAIL SYSTEM (ONE LEVEL).
Pull out baking trays safely. With the telescopic rails the baking trays or racks can be pulled out of the oven without tilling over, the rails hold them securely in position.
FASTPREHEAT – HEAT THE OVEN QUICKLY. COOLSTART – ELIMINATE PREHEATING FOR FROZEN FOODS.
The fastPreheat function heats the oven rapidly. With coolStart you can speed up the cooking of frozen food as there’s no preheating needed – your dish will be done in the same number of minutes you see on the packaging. Both intelligent functions save you precious time when you need fast results.

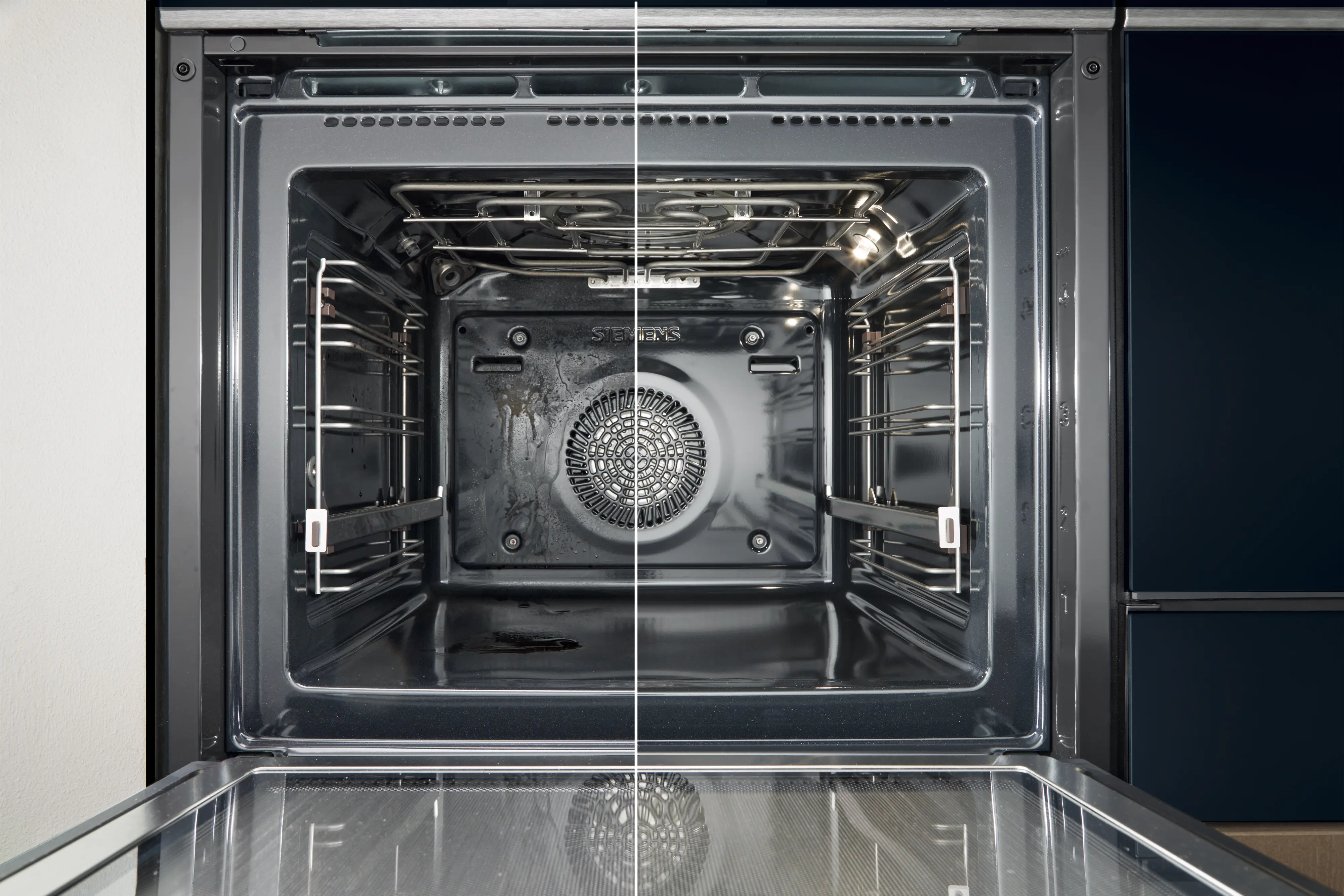

HUMIDCLEAN PLUS: SOFTENS DIRT BY VAPORISING SOAPY WATER. MAKING IT EASY TO WIPE AWAY.
Welcome to quick cleaning. With humidClean Plus, cleaning your oven is easier than ever before. Simply add a drop of detergent to 400 ml of water.
Pour this rinsing solution onto the centre of the bottom of your oven, once completely cooled. Just set the humidClean Plus cleaning programme and let the oven do the rest. Once the programme is finished, you can easily remove the dirt soaked up by the vapour with a cloth or a soft brush.
WORLD OF RECIPES: DELICIOUS INSPIRATION TO MATCH YOUR LIFESTYLE.
Searching for versatile dishes to match your lifestyle can be overwhelming.
Now, however, you don't have to look far for the right recipe: Discover an inspiring selection of delicious recipes with Home Connect and recipe partner apps like Kitchen Stories and Foodfittery. Simply select a recipe and transfer the settings directly to your oven. Enjoy flexible meal preparation, and above all: delicious meals. To enjoy this feature just connect your oven to your registered Home Connect account.
ONLINE SUPPORT: THE EASY WAY TO LEARN EVERYTHING ABOUT YOUR OVEN.
Familiarising yourself with your new oven is now easier than ever. With the Home Connect app, you have instant access to everything you need to know.
Use the interactive user manual to find solutions, tips and tricks to get the most out of your oven. If you have any problems, simply use remote diagnostics to clarify the next steps. Siemens Customer Service will access the appliance with your permission to find and fix any issues. To enjoy this benefit, just sync your oven with your registered Home Connect account.

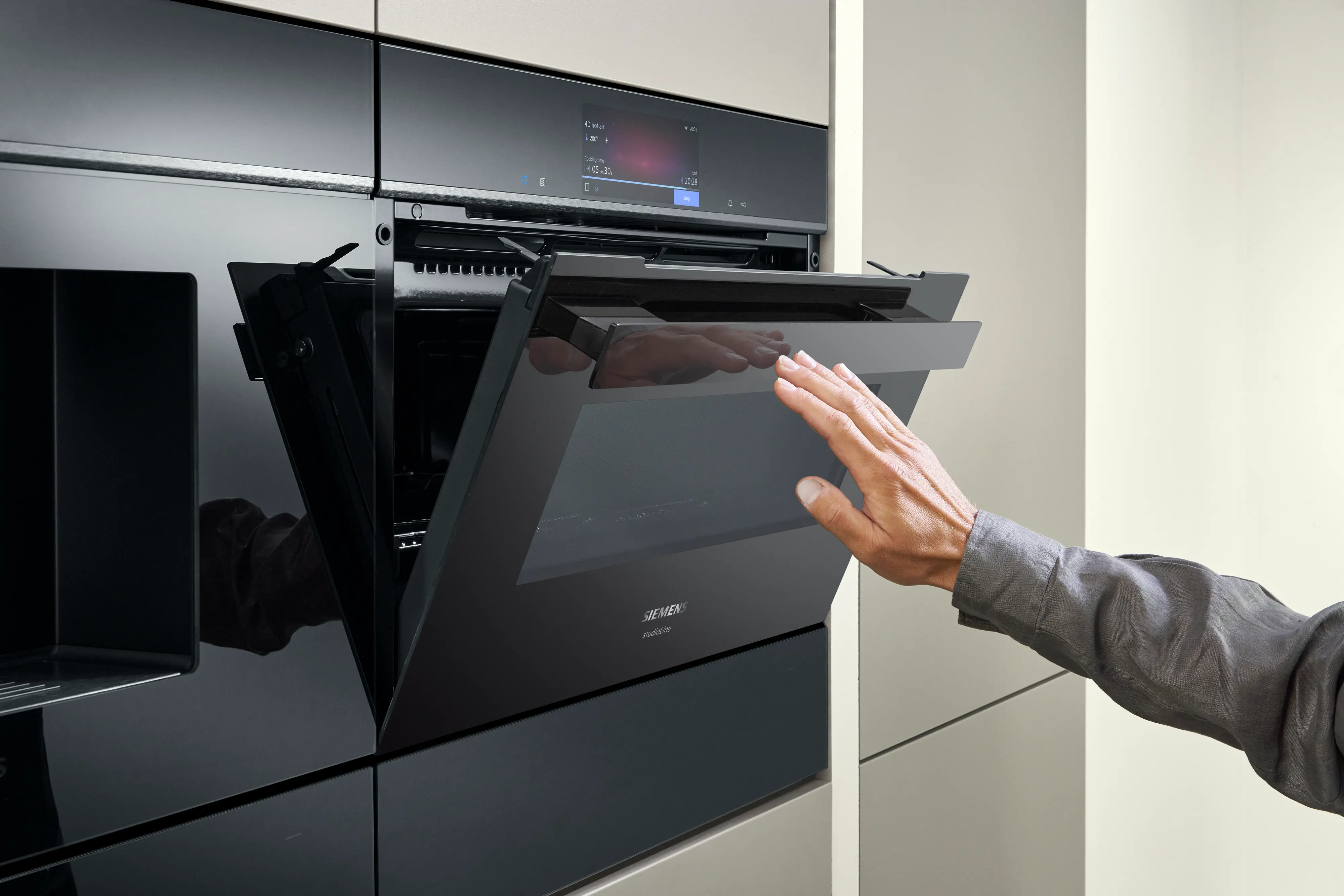

SOFTMOVE: GENTLE OPENING AND CLOSING OF THE OVEN DOOR.
Relaxed operation of the oven without pressing and pulling. The intelligent damping mechanism ensures that the oven door opens and closes gently.
INVERTER TECHNOLOGY: CONSTANT MICROWAVE POWER FOR GRADUALLY HEATED FOOD.
Now you can heat your meal in the microwave, without affecting the quality of the food. Inverter models provide constant power at the required level, ensuring your food is heated gradually. Now you can savour the taste of gently prepared food.
VARIOSPEED: PREPARE EXCELLENT DISHES 50% FASTER.
Have more time to let your culinary creativity shine. varioSpeed intelligently combines heating and microwave functions to reduce your cooking time by up to 50%, without sacrificing the quality or flavour of your food. Perfect cooking just got a whole lot quicker.
