Nordica Extraflame Gardenia Xxl Steel Stoves
GARDENIA XXL STEEL STOVES
GARDENIA XXL STEEL STOVES

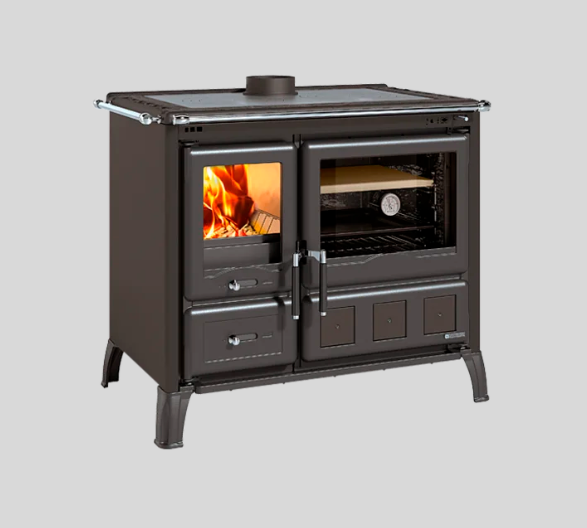

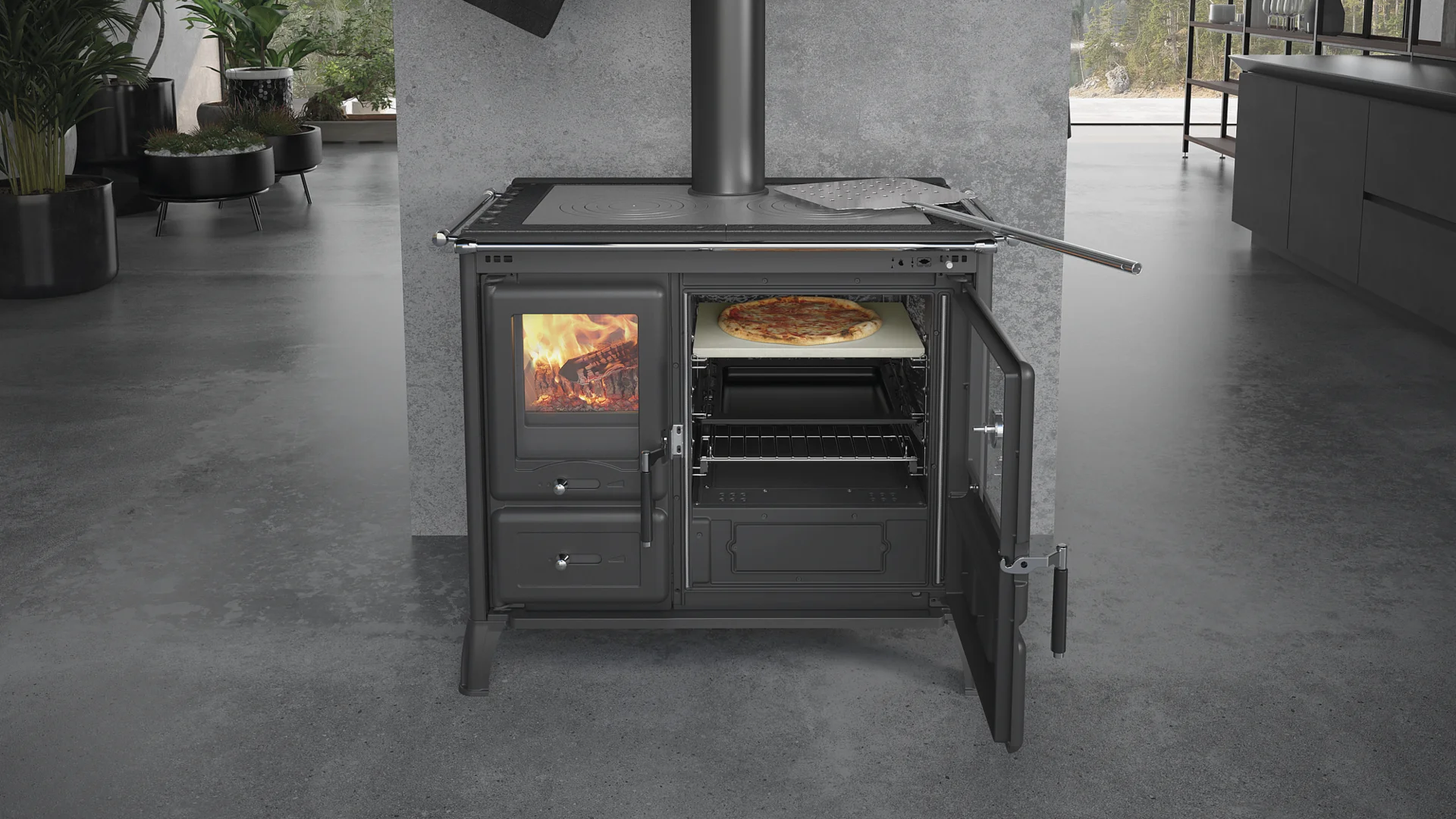

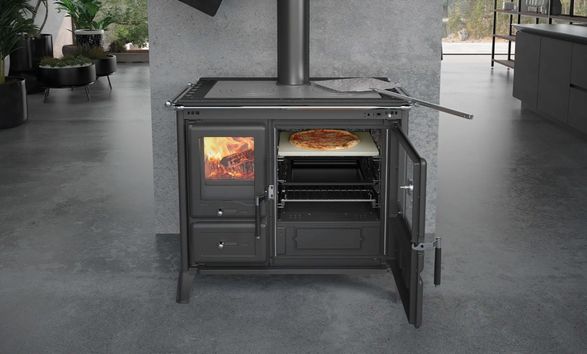

Wood-burning cooker with a 78-litre oven entirely in cast iron, an excellent material for heat storage and gradual release, ensuring constant temperatures and always even cooking. Easy Pizza kit included: a dedicated baking stone and a professional pizza peel to expand your culinary possibilities.
TECHNOLOGY
GLASS CLEANING SYSTEM
A system of pre-heated air which removes any deposit from the fire-door glass.
DOORS IN CAST IRON
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
POST COMBUSTION
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
DIRECT OUTDOOR AIR INTAKE (BBC)
Air intake system which draws fresh air from outside directly into the adjust system combustion regulation of the firebox of the appliance.
INFORMATION
CHARACTERISTICS
Cast iron oven (78 l) with steam release valve and pull-out rails
PRODUCT TYPE
Stove
BRAND
Nordica Extraflame
ADJUSTABLE
Adjustable primary and secondary air for better combustion management
NOMINAL THERMAL POWER
4.5 - 10.5 k
EFFICIENCY
89 - 86 %
DIMENSIONS
- Width : 950 mm
- Height : 864 mm
- Depth : 704 mm
REPLACE DIMENSIONS
- Width : 296 mm
- Height : 306 mm
- Depth : 460 mm
OVEN DIMENSIONS
- Width : 438 mm
- Height : 408 mm
- Depth : 436 mm
MAXIMUM LOG LENGTH
30 cm
NET WEIGHT
247 kg
FIREBOX OPENING DIMENSIONS
- Width : 225 mm
- Height : 210 mm
HOURLY CONSUMPTION
1.2 - 2.8 kg/h
OVEN CAPACITY
77.9 L
ENERGY CLASS
HEATABLE M³
301 m³ (*)
SEASONAL EFFICIENCY
76 %
FRAME
Enamelled cast iron doors, facade and frame
FEET
Ash-collection tank and enamelled cast-iron feet
FUMES OUTLET DIAMETER (Ø)
150 mm B/T
AVAILABLE VERSIONS
Finish Anthracite Black
HEARTH
Refractory Hearth
DOOR
Double glass fire door
GLASS
Ceramic glass
ADVANTAGES
- Upper or rear smoke outlet
- Extractable ash drawer
- Handrail in three parts
- Post-combustion system for low emissions

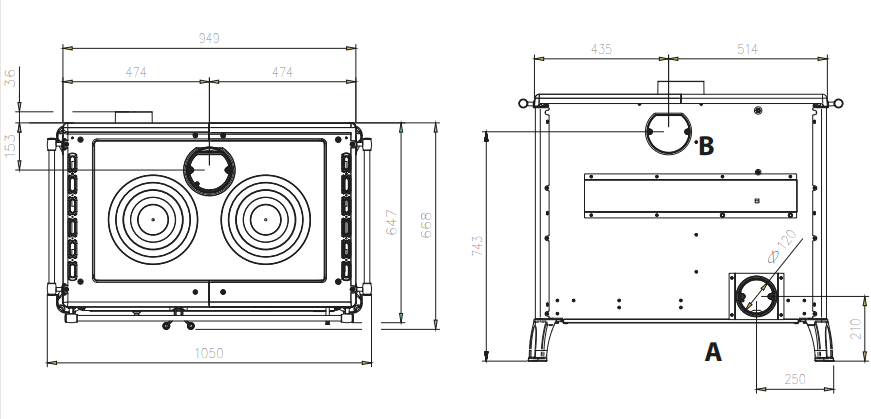

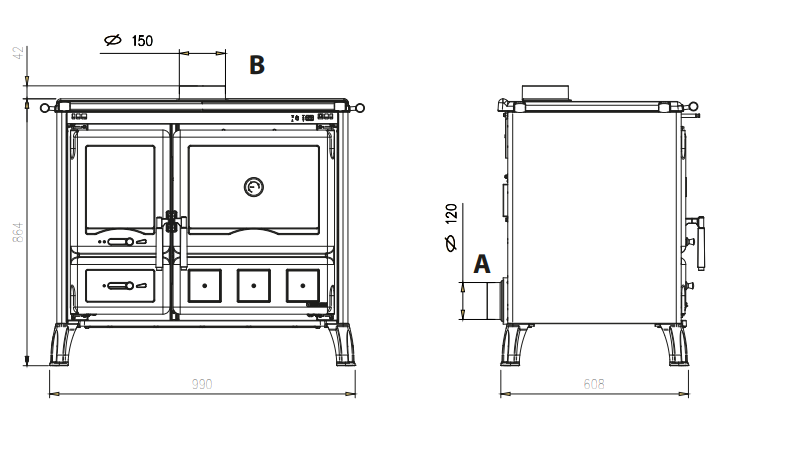

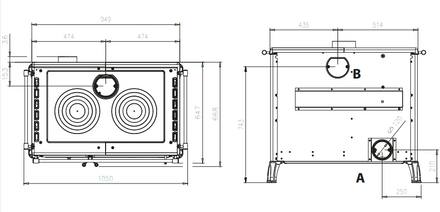

TEHNICAL DRAWINGS
CERTIFICATIONS
BLMSCHV
German regulations on controlling emissions.
ECODESIGN
European certification defining the ecodesign guidelines for biomass products.
CE
The CE marking indicates conformity with EU standards, enabling the free marketing of marked products within the European market.
FLAMME VERTE
French trademark of the ADEME agency for the environmement and the energy. The products “Flamme Verte” approved guarantee the best high energy performances and respect for the environment.
MFB
Only for Germany: The products is ready to be connected to a multiply chimney connection , just when the installation is made in accordance with requirements of the regional and national standards, and when observed the norms DIN EN 13384-2, DIN V 1816-1, DIN 18896 and MFeuV-2007 (Muster- Feuerungsverordnung), and that the district chimney sweeper has checked and approved the correct installation.
