Thermador Freedom® Built-in Bottom Freezer 36'' Panel Ready
FREEDOM® BUILT-IN BOTTOM FREEZER 36'' PANEL READY
FREEDOM® BUILT-IN BOTTOM FREEZER 36'' PANEL READY
Softclose® doors and drawers for a quiet experience
SoftClose® doors provide a quiet luxurious experience each time you open or close the door. SoftClose® Drawers offer an ultra-smooth glide when you open or close the drawers.
FEATURES

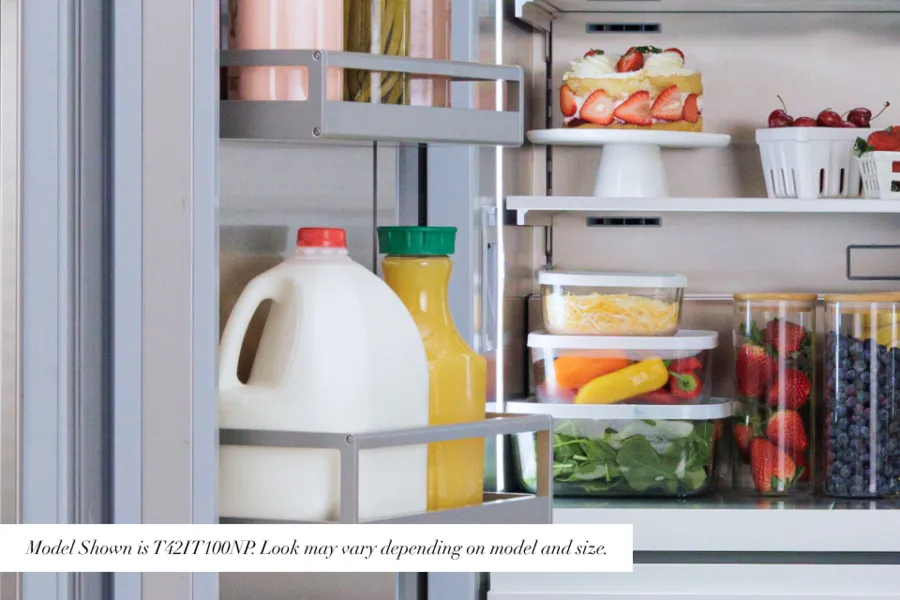

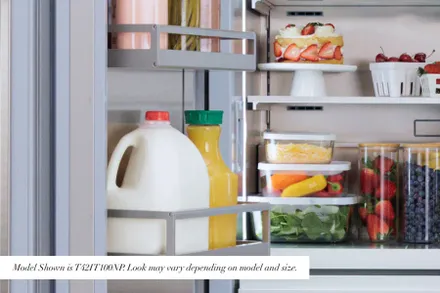

GALLON BINS KEEP LARGER ITEMS WITHIN REACH
The shelving system has been redesigned specifically to accommodate gallon-sized containers, while offering a variety of placement options on the refrigerator door.

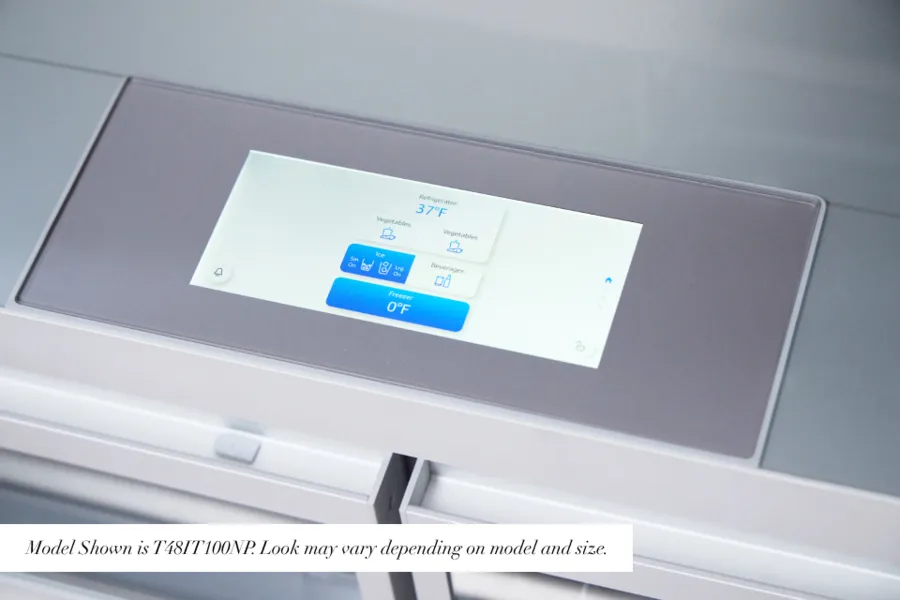

FULL-COLOR TOUCHSCREEN DISPLAY
Controlling your refrigerator has never been easier. Quickly access and adjust settings with an all new touchscreen that’s easy to reach and intuitive to use.

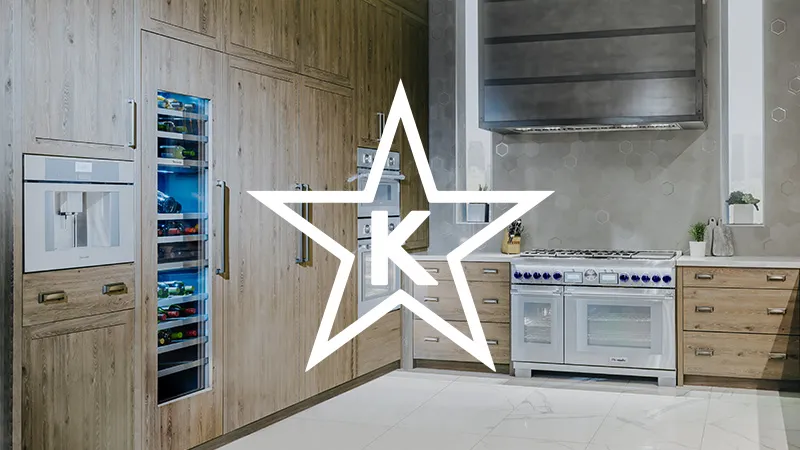

STAR-K CERTIFIED
This appliance is Star-K certified making it possible to use it on the Sabbath or the holidays.

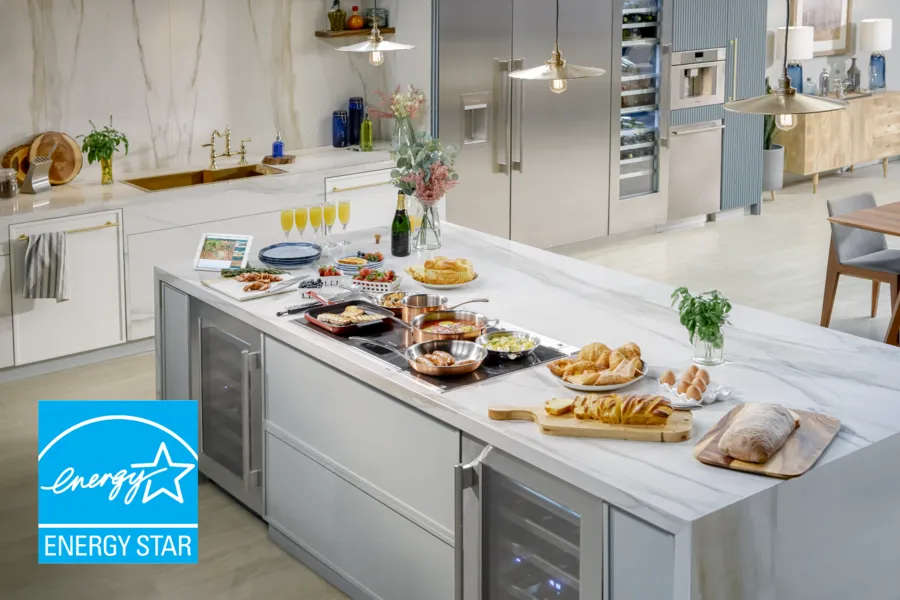

ENERGY STAR® CERTIFIED
This product is ENERGY STAR® certified.
ALL-LEG LEVELING FOR QUICKER INSTALLATION
All-leg leveling allows for quicker and faster installation.

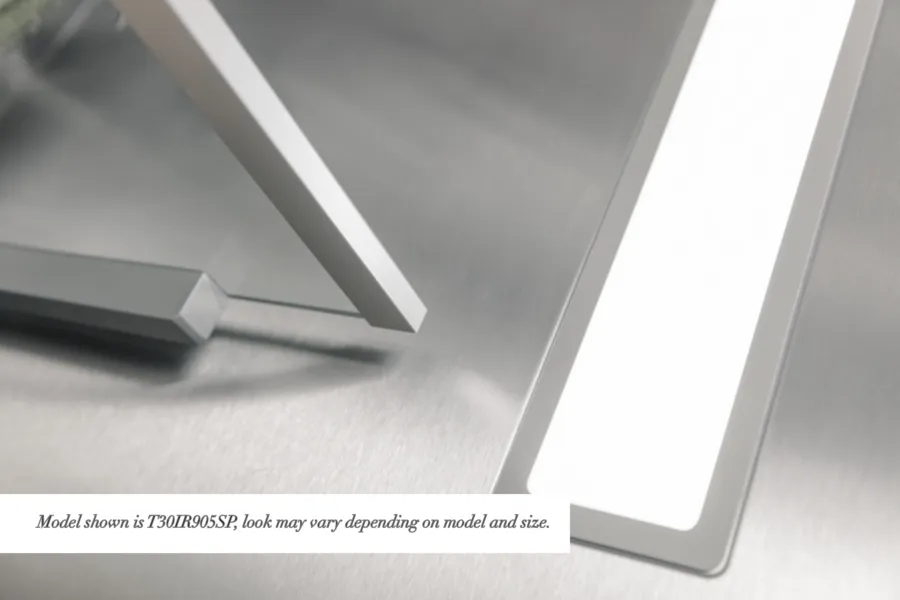

LED THEATER LIGHTING
The theater-style, diffused lighting ensures visibility while limiting hot spots. Model shown in image is T30IR905SP Fresh Food Column.

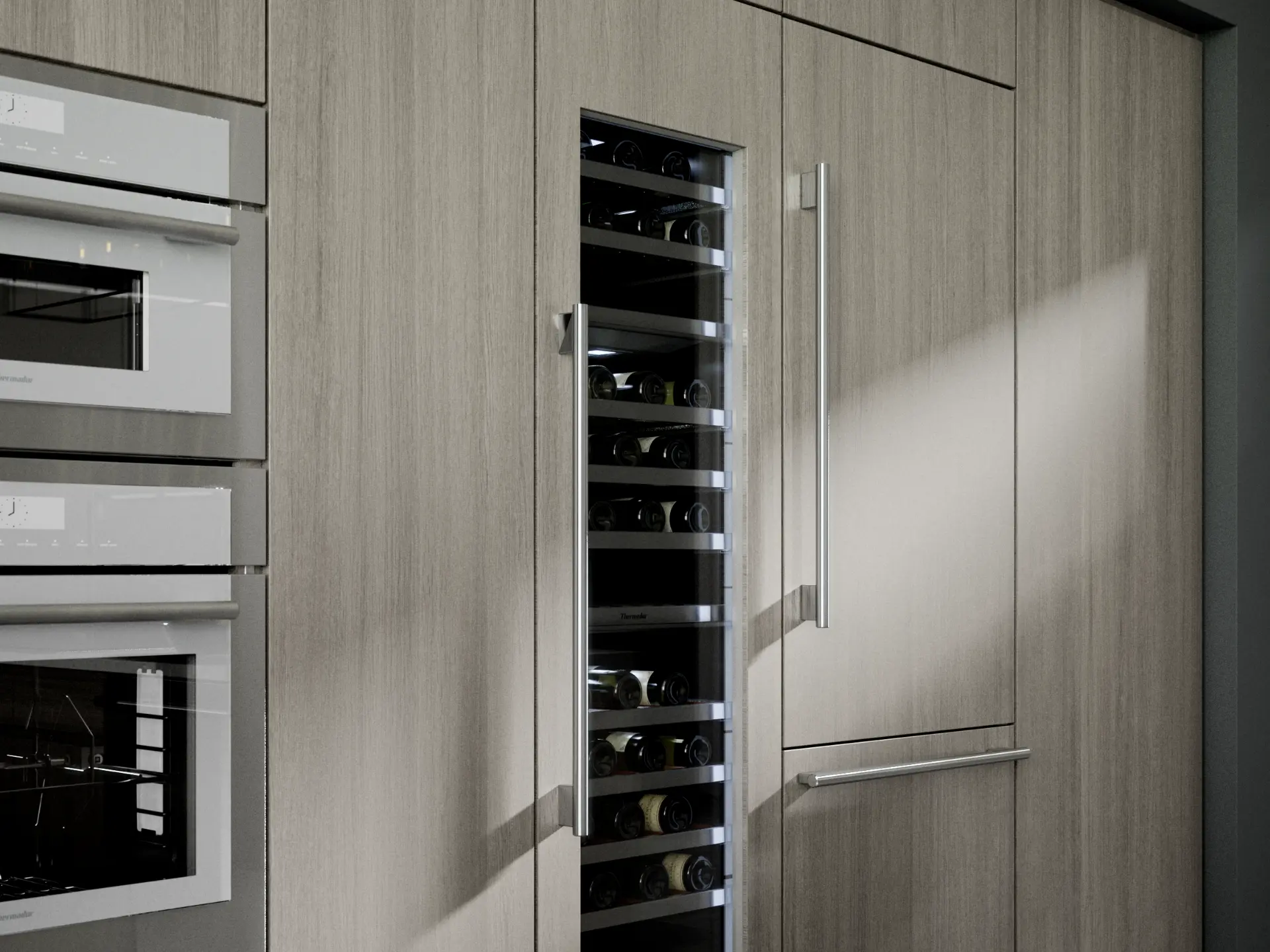

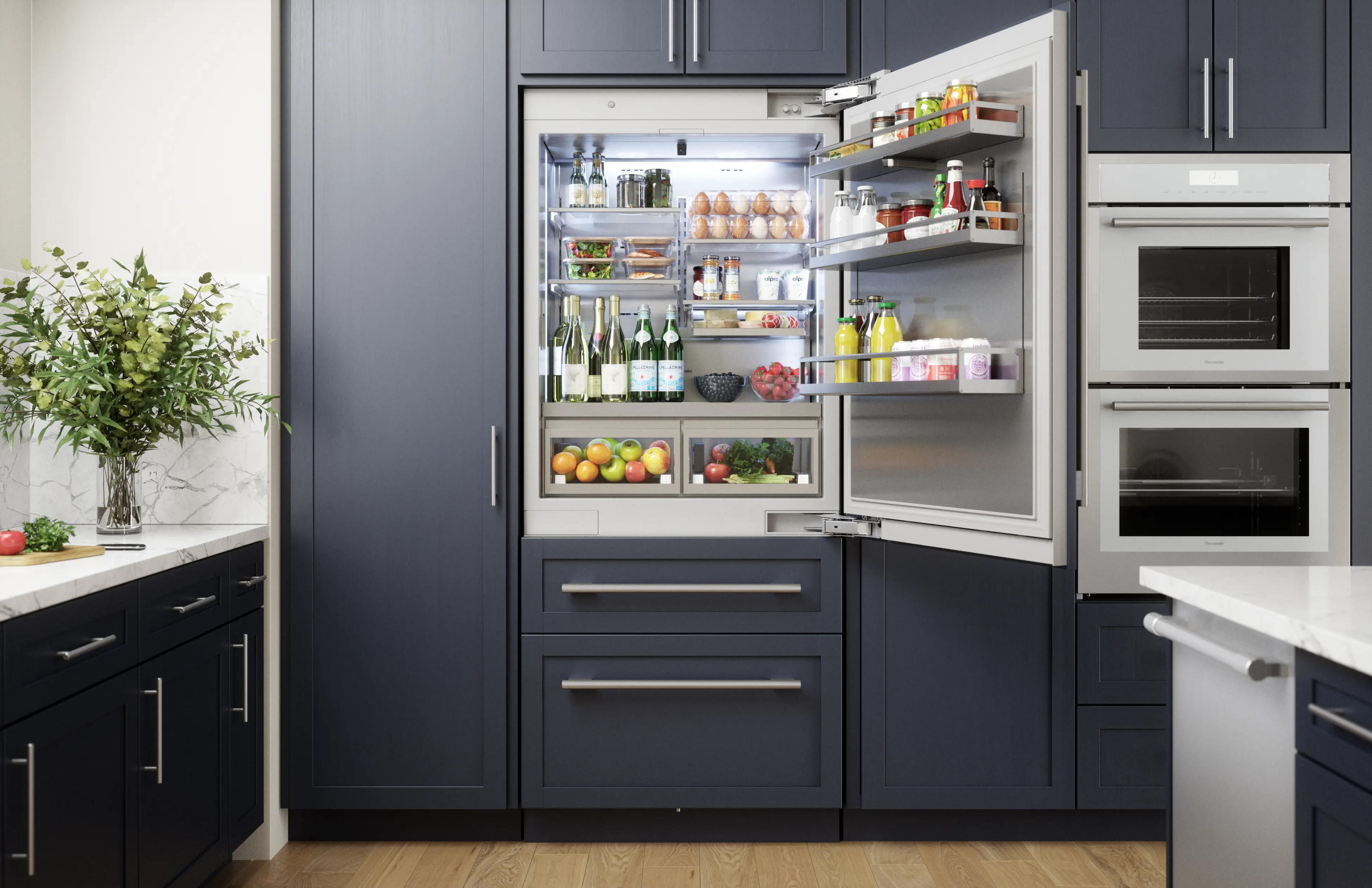

CUSTOM PANEL READY FOR SEAMLESS INTEGRATION
Custom Panel Ready with front paneling that matches your kitchen’s custom cabinetry for complete integration.

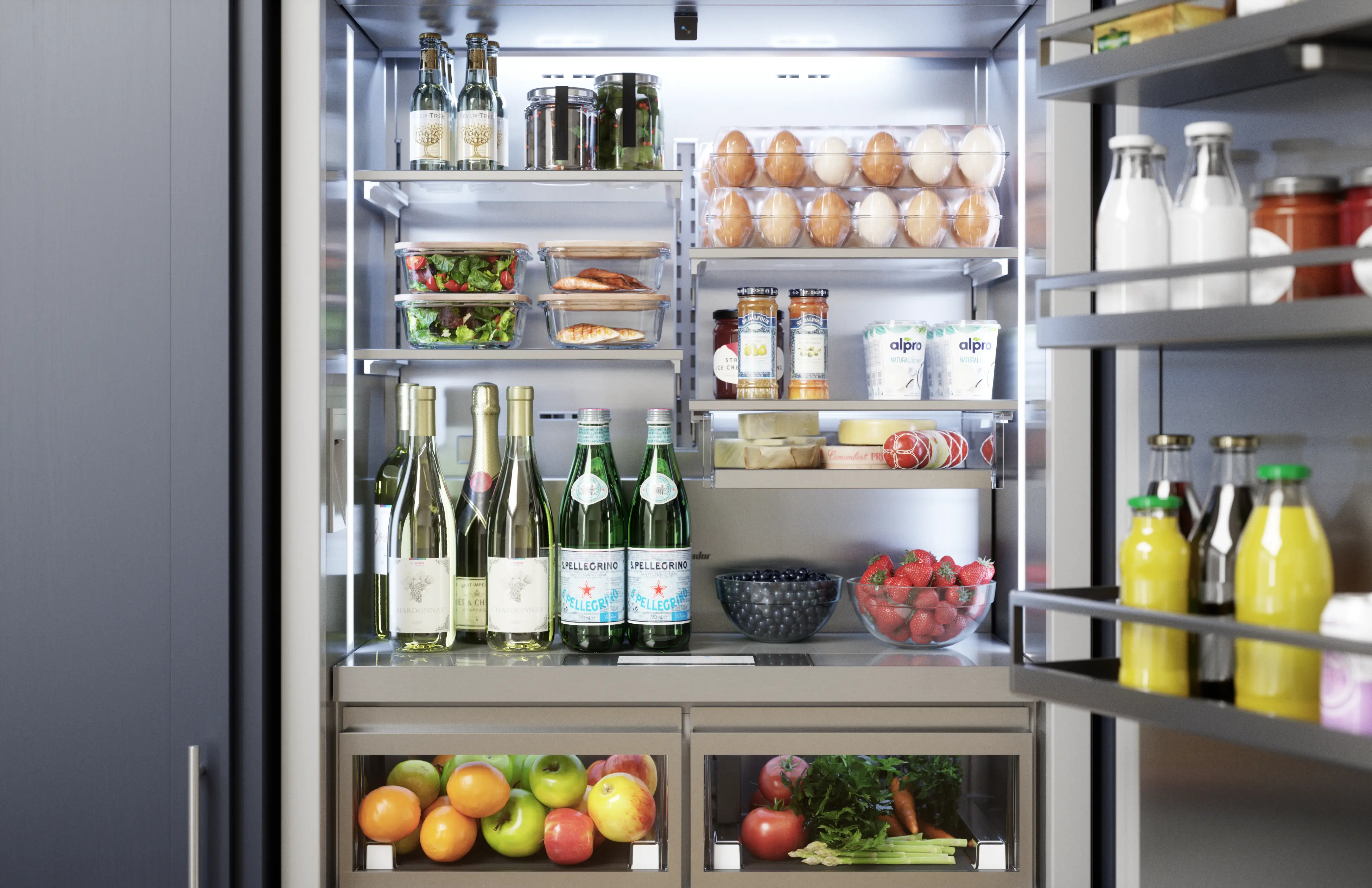

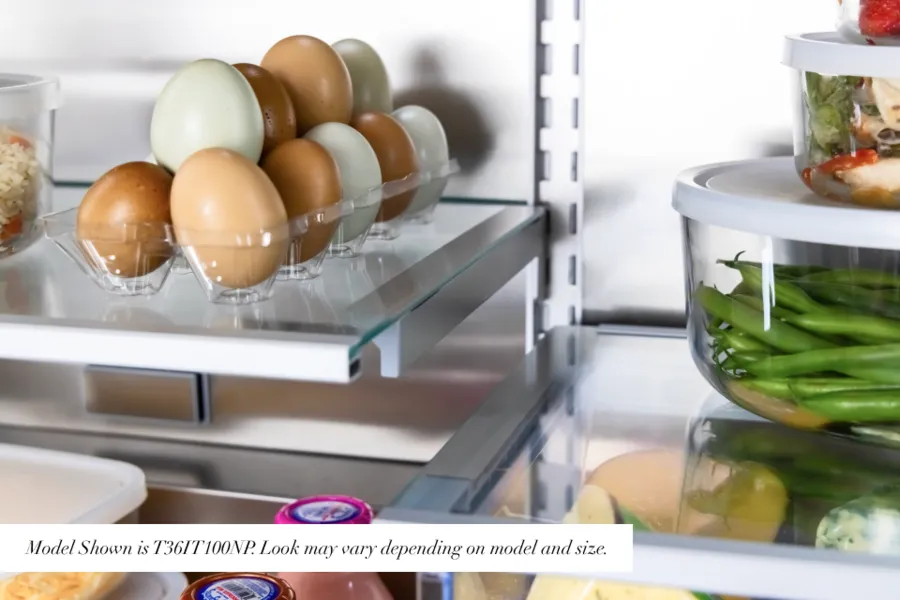

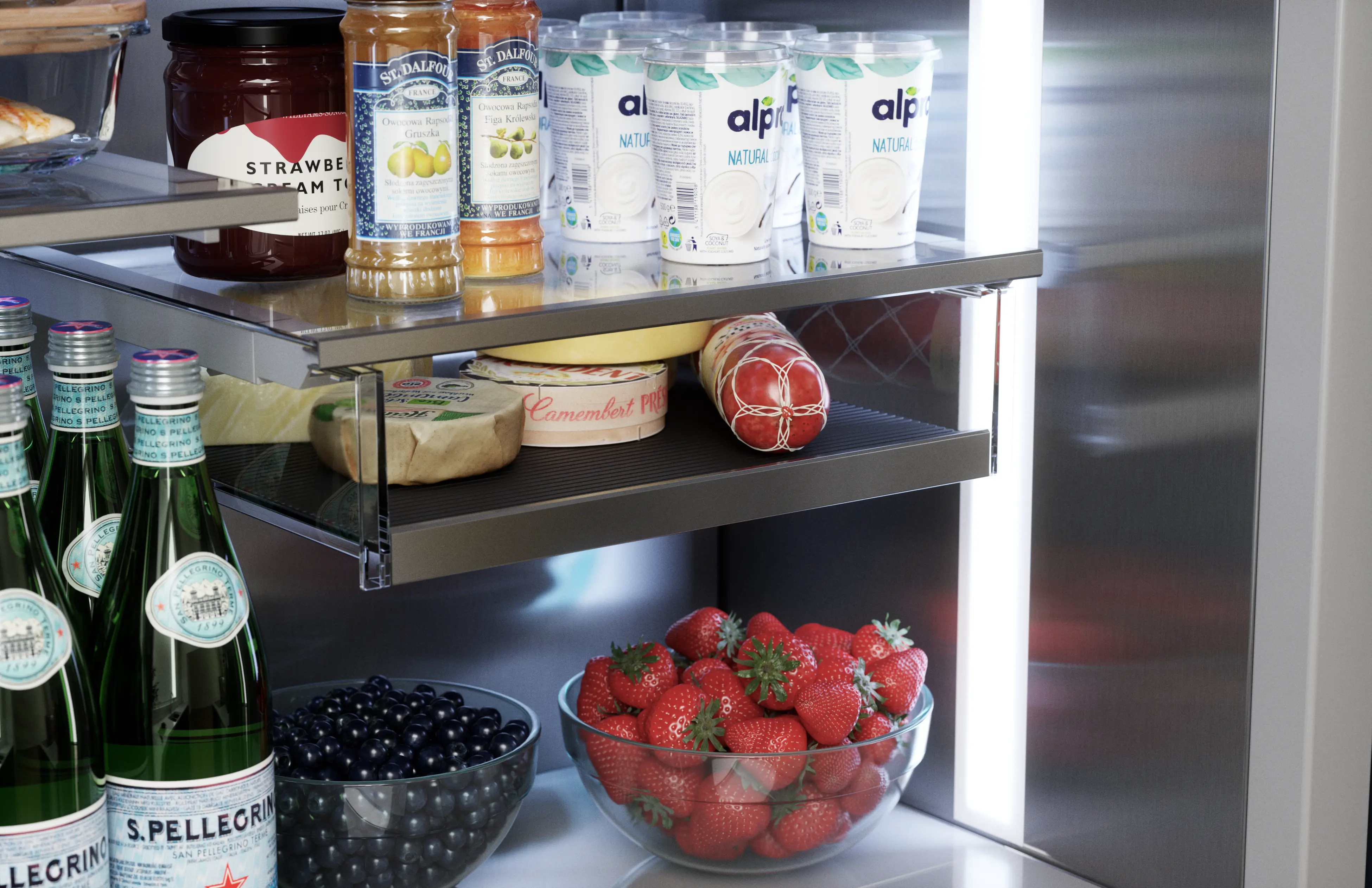

ADJUSTABLE SHELVING TO MEET YOUR STORAGE NEEDS
Split-level shelves allow for increased personalization to meet your storage needs.

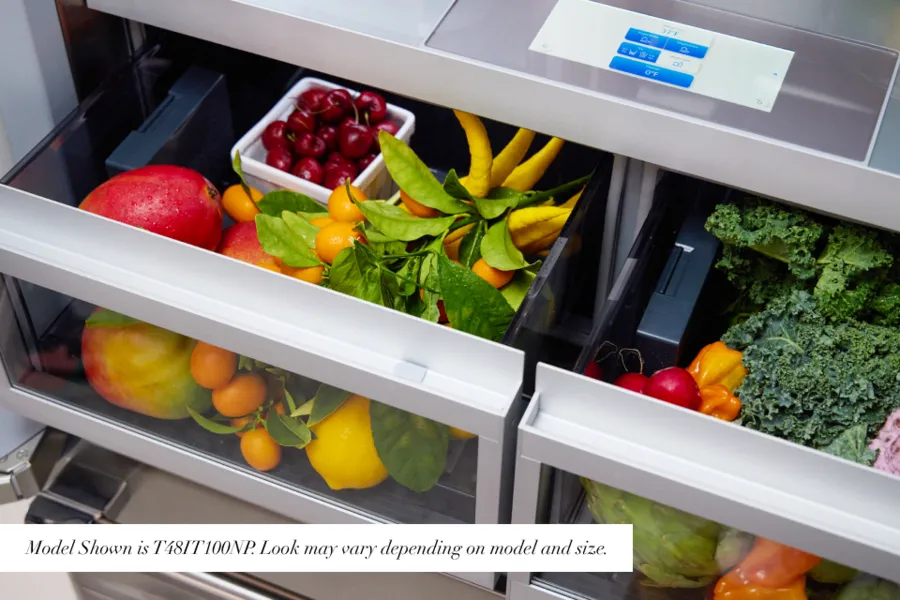

THERMAFRESH® DRAWERS KEEP FRUITS AND VEGETABLES FRESH
ThermaFresh® Pro enables you to set the optimal temperature and humidity. ThermaFresh® Drawers features an ethylene absorber that slows down the ripening process so produce stays fresh longer.

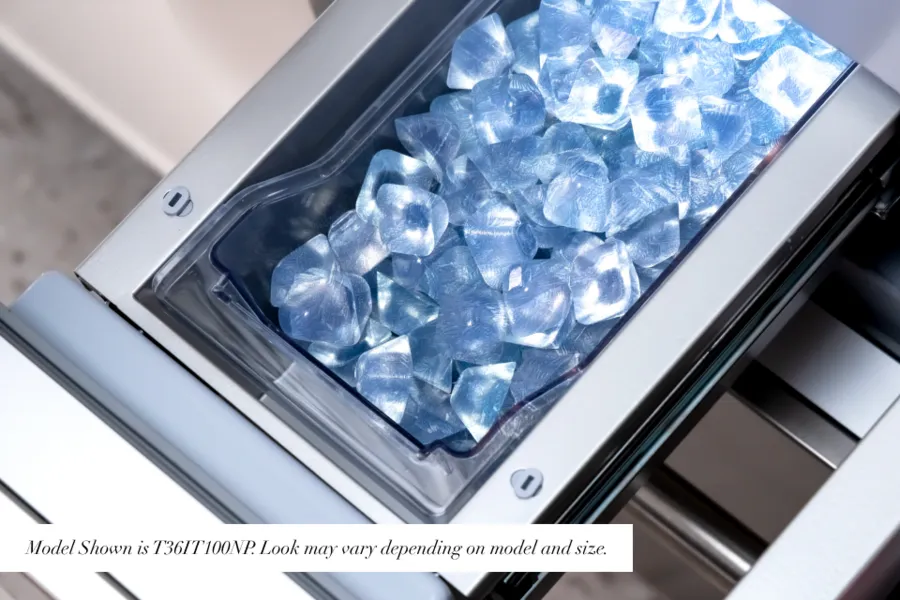

DIAMOND SHAPED ICE FOR ELEVATED BEVERAGES
With a dedicated ice zone, Thermador Diamond Ice is an eye-catching addition to any party with a unique shape that keeps drinks cold. Use Diamond Ice in your favorite craft cocktails to make a lasting impression made with a filtered automatic ice maker.

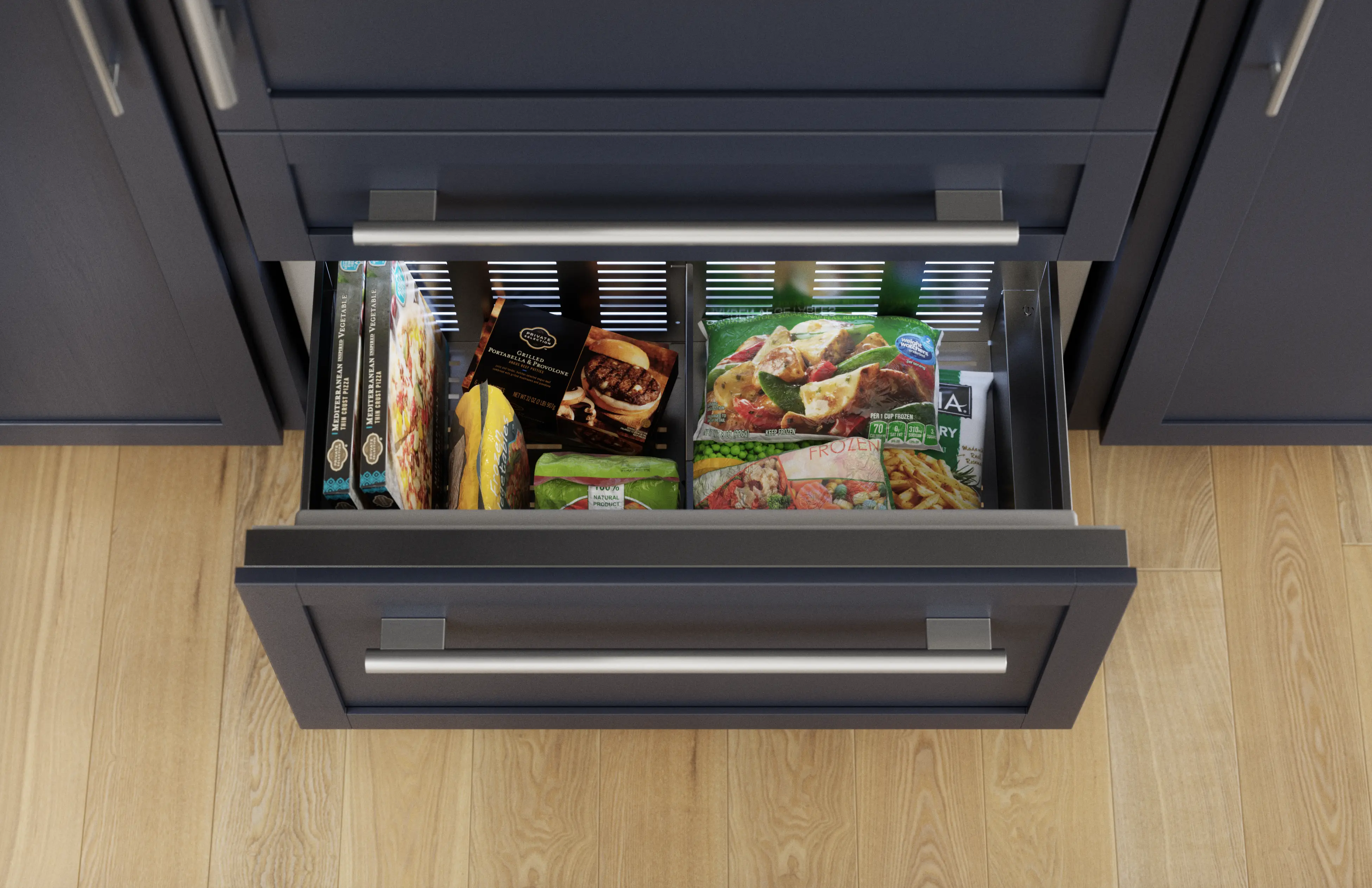

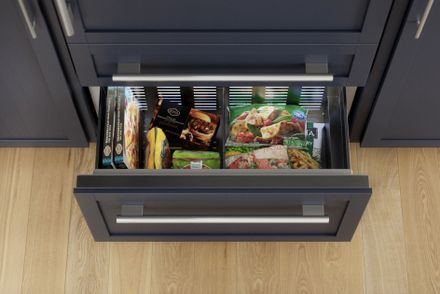

FREEZE. CHILL. STORE. ALL IN ONE DRAWER
The ThermaFlex™ Drawer offers you the flexibility to change the temperature based on your storage needs. Pre-set temperatures include: Freezer, Soft Freeze, Refrigerator, Beverages, Meat/Fish, Deli/Cheese and Cake.
GET ITEMS COOLER FASTER WITH SUPERFREEZE®
SuperFreeze® brings food to its ideal preservation temperature after placing it in the freezer when you need items to get cooler, faster.
SLEEK INTERNAL WATER DISPENSER WITH FILTER REMOVES 99% IMPURITIES, STORES UP TO 4 PRESET AUTO FILLS
Discreetly positioned inside, the internal water dispenser provides easy access to filtered water. The UltraClarityPro® filter removes 99% of impurities. One‑Touch Auto Refill stores up to four presets on the dispenser and six in HomeConnect app—assign presets to bottles, cups, or mugs and it refills automatically. This seamless integration not only maintains the sleek design of your kitchen but also puts fresh, clean water right at your fingertips
WI-FI ENABLED CONTROL, NOTIFICATIONS & REFRIGERATOR INVENTORY THROUGH BUILT-IN CAMERAS
Remotely access the built-in cameras inside your refrigeration to view your refrigeration inventory from your mobile device. Wi-Fi Enabled Refrigeration allows for remote temperature control, notifications when the door is left open via Home Connect® app. It works with smart home devices and services like Amazon Alexa and allows you to set up automatic reorders on your water filter with Amazon Alexa Smart Reorder.
INFORMATION
CONNECTIVITY
- Home Connect® WiFi-enabled : Yes
- Home Connect® Features : Access Recipes, Camera in the Appliance, Remote Monitoring and Control
BRAND
Thermador
PRODUCT TYPE
Freezer
MODEL
T36IB100SP
COLOR / MATERIAL HOUSING
Grey

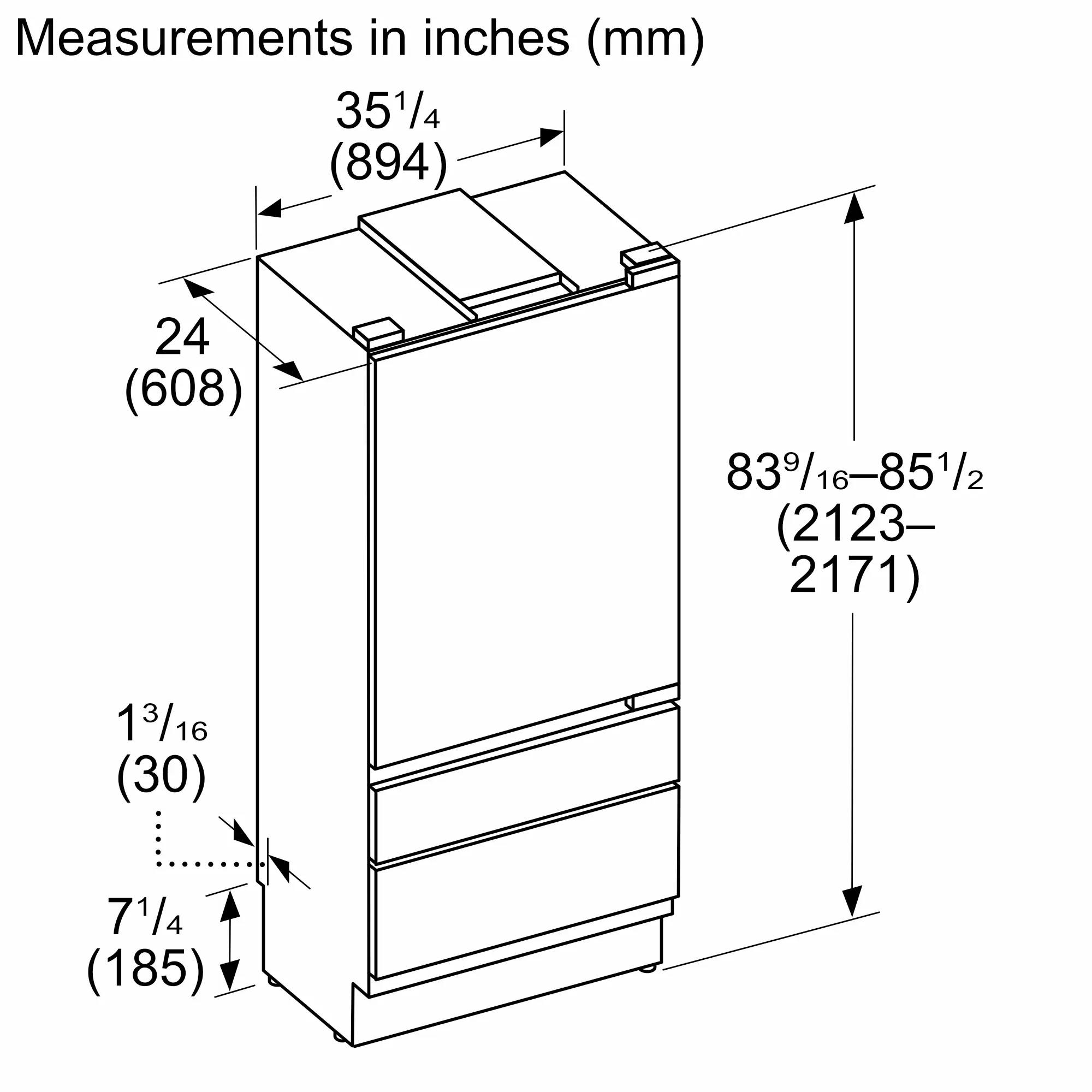

OVERALL APPLIANCE DIMENSIONS
- Height : 83 9/16"
- Width : 35 1/4"
- Depth : 24"
REQUIRED CUTOUT SIZE
- Height : 84 in
- Width : 36 in
- Depth : 25 in
GROSS WEIGHT
527.000 lbs
POWER CORD LENGTH
118_in
FREEZER GROSS CAPACITY
6.1 Cu Ft
TOTAL UNIT GROSS CAPACITY
18.8 Cu Ft
INCLUDED ACCESSORIES
- 1 x cartridge for water filtering system
- 1 x ice cube scoop
- 2 x Ethylene absorber
REFRIGERATOR GROSS CAPACITY
12.7 Cu Ft
ENERGY STAR® CERTIFIED
Yes
PANEL READY
Yes, Panel and Handle Sold Separately
COLOR
Not Applicable
WATER FILTER
Yes
ICE MAKER
Yes
SABBATH MODE
Yes
COMFORT AND CONVENIENCE
- SuperCool : Yes
- SuperFreeze® : Yes
- Door Open Alarm Fridge : Yes
- Number of Adjustable Glass Shelves : 4
- Number of Refrigerator Door Bins : 3
- Ice Storage Capacity : 4 lbs
- Ice Production Per 24 Hours : 4 lbs

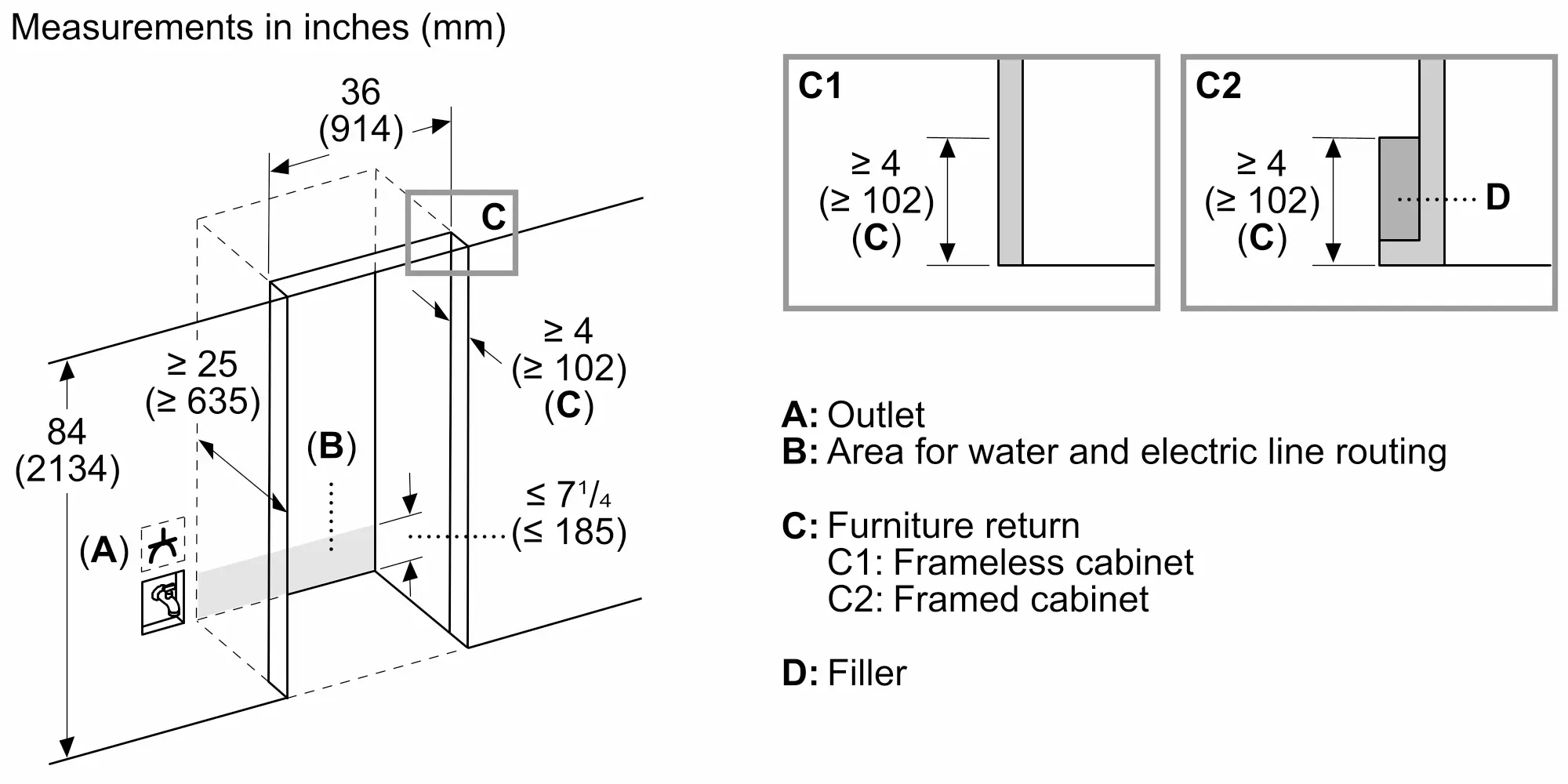

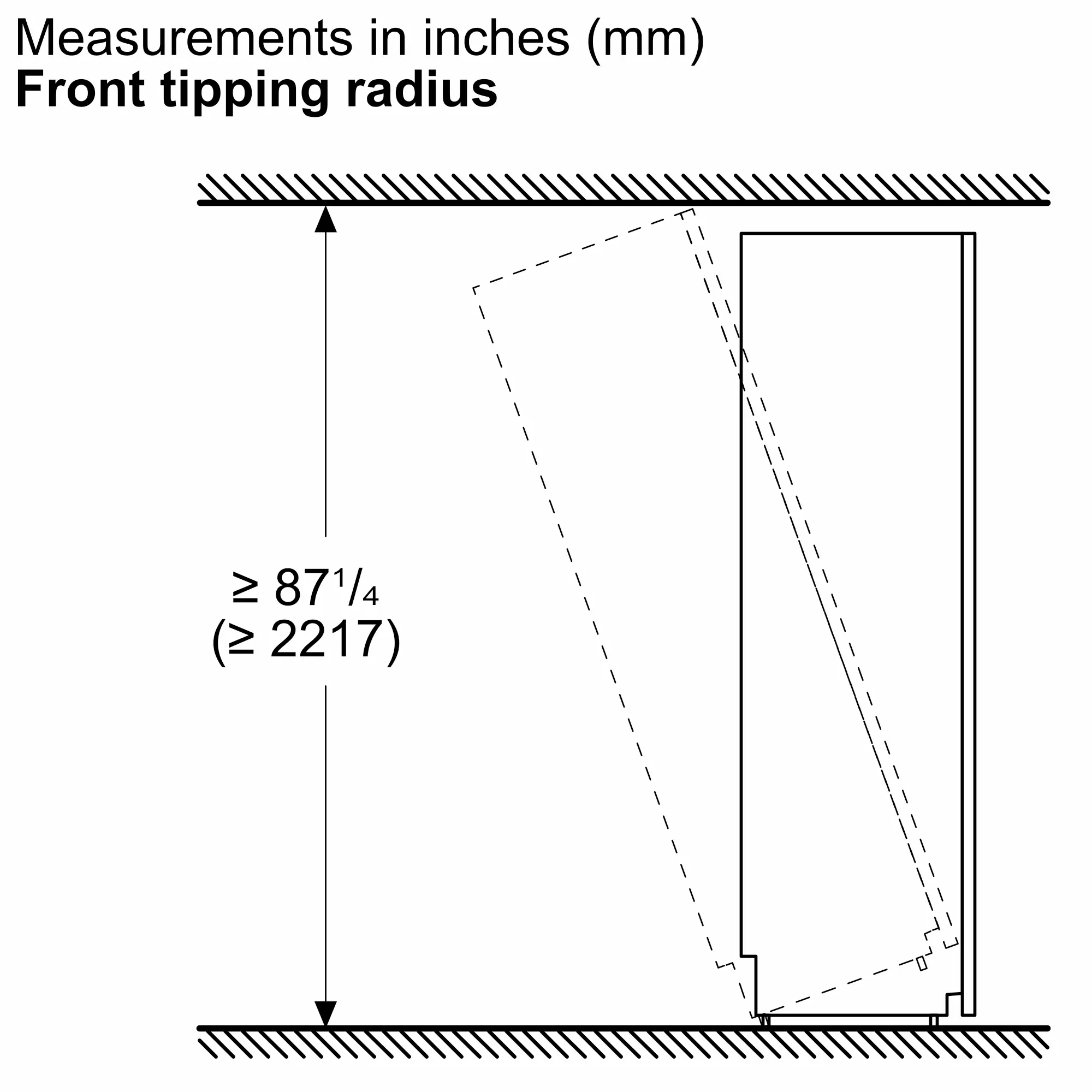

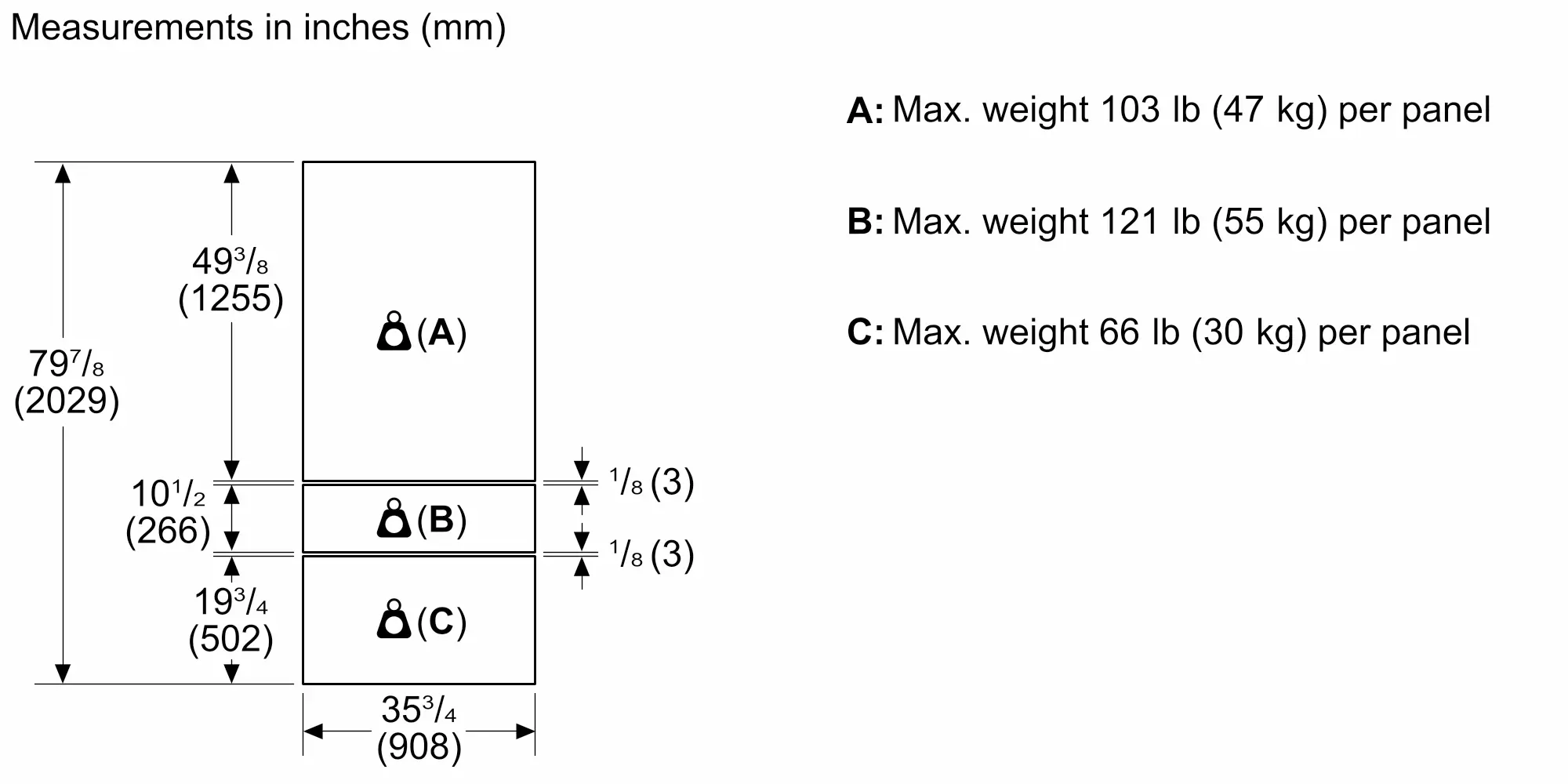

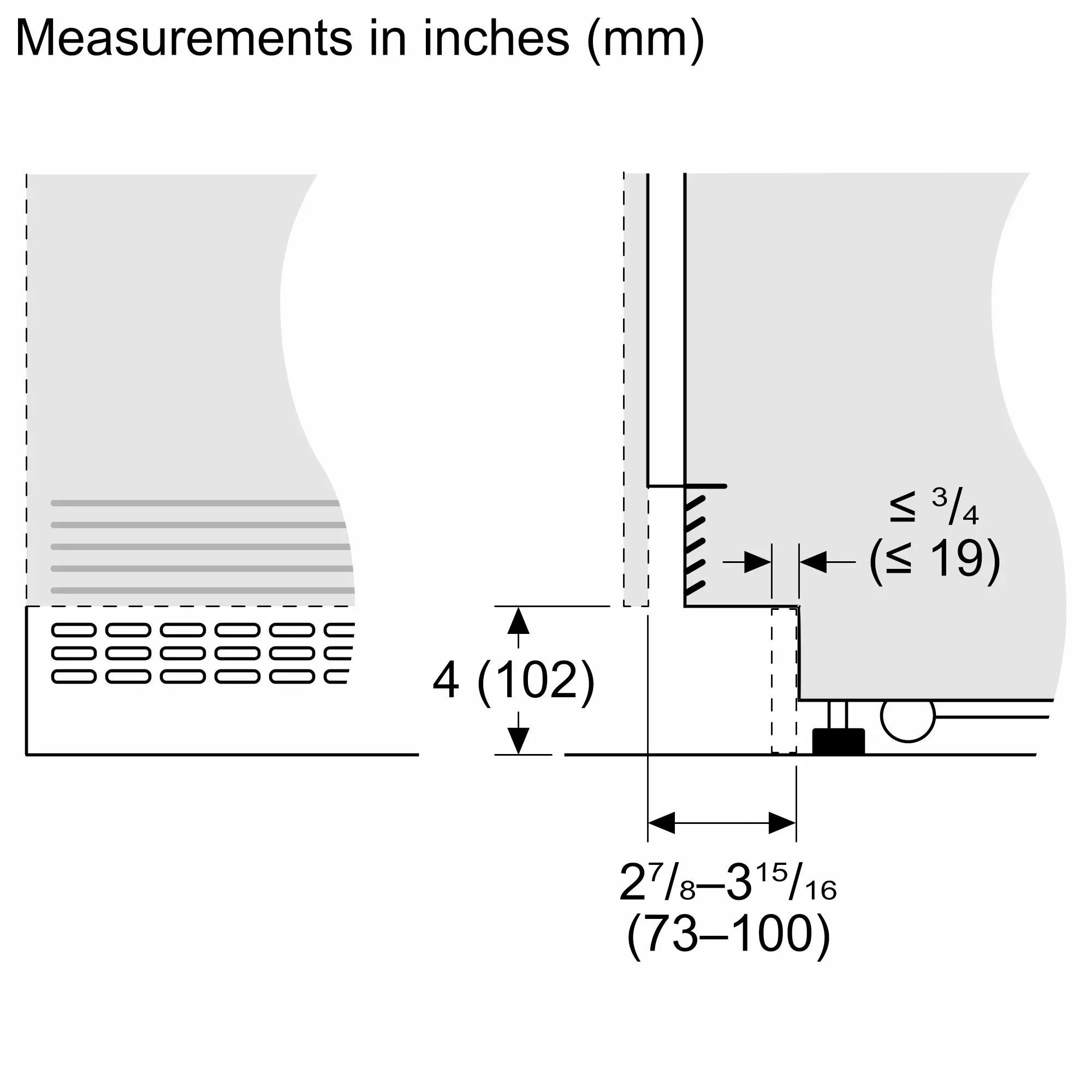

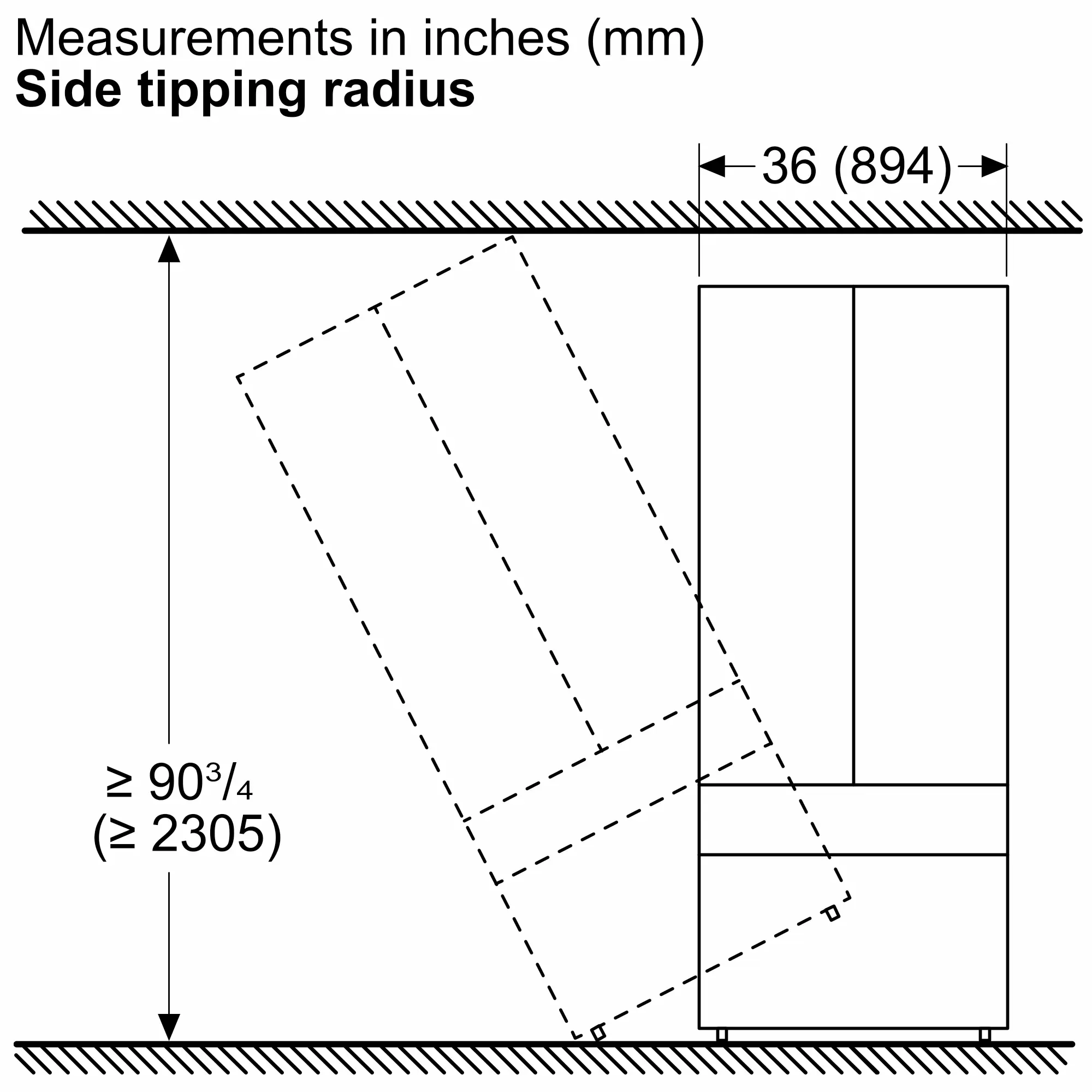

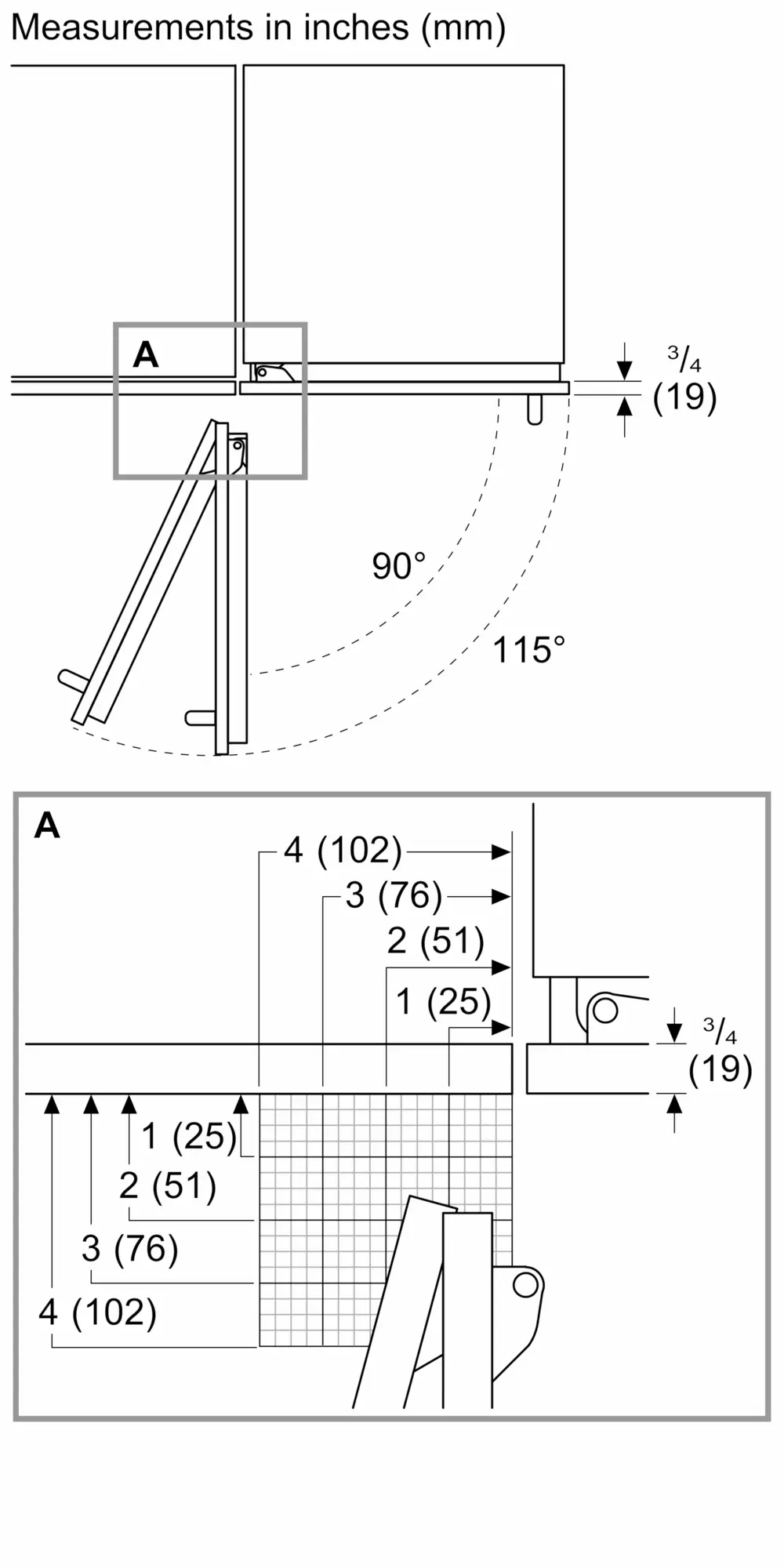

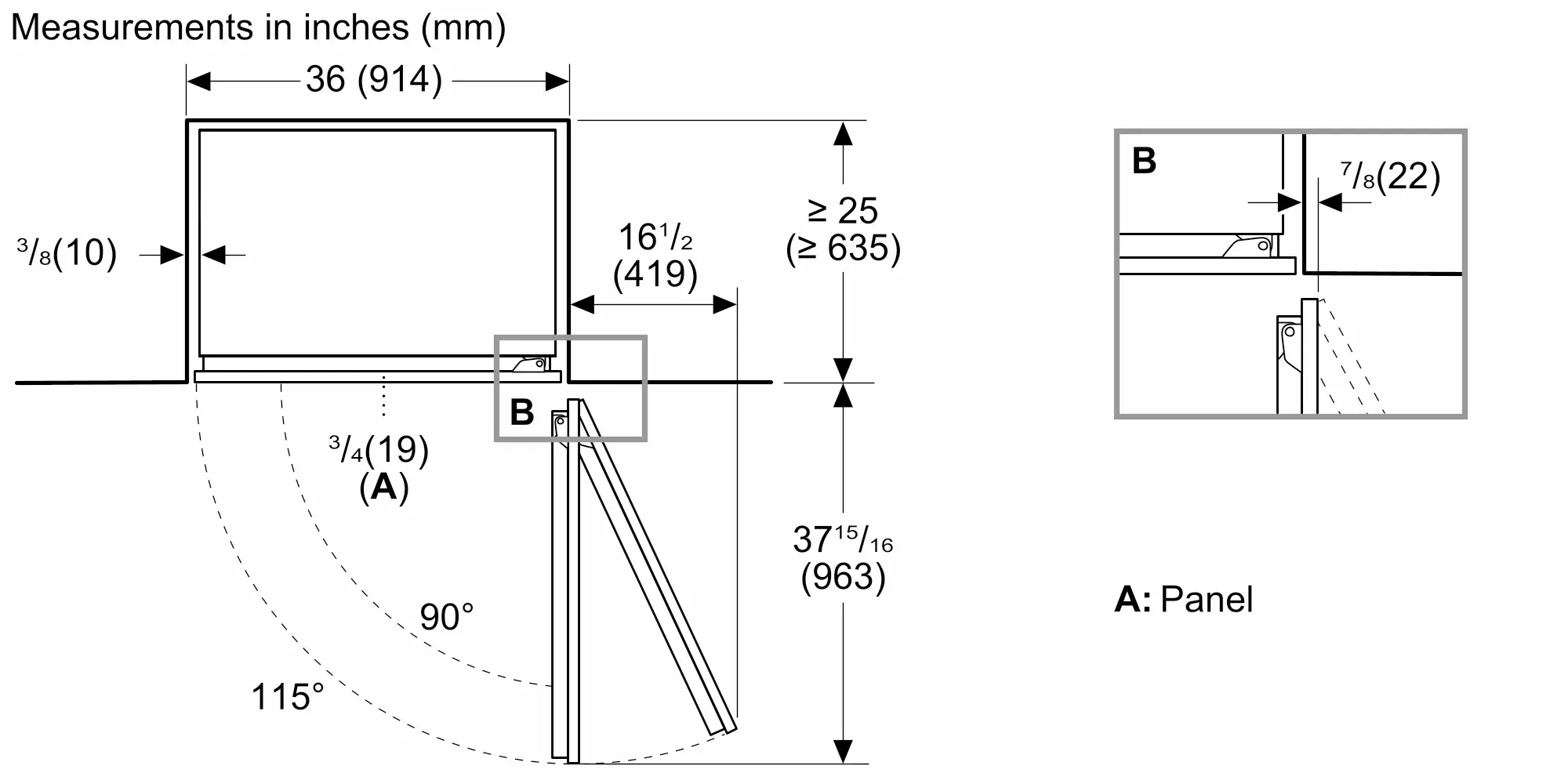

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
