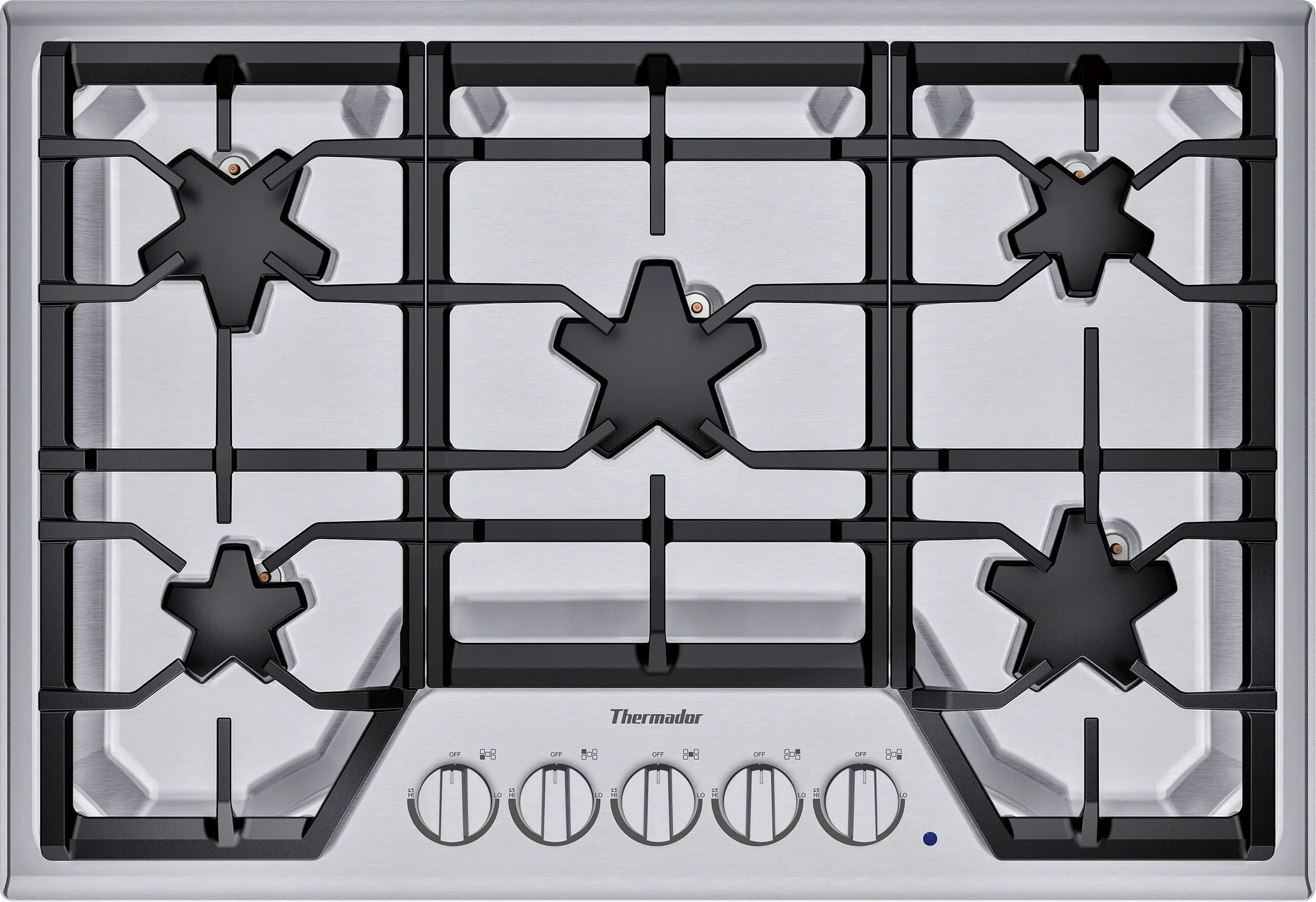

Thermador Masterpiece® Gas Cooktop 30'' Stainless Steel
MASTERPIECE® GAS COOKTOP 30'' STAINLESS STEEL
MASTERPIECE® GAS COOKTOP 30'' STAINLESS STEEL
MD24BS

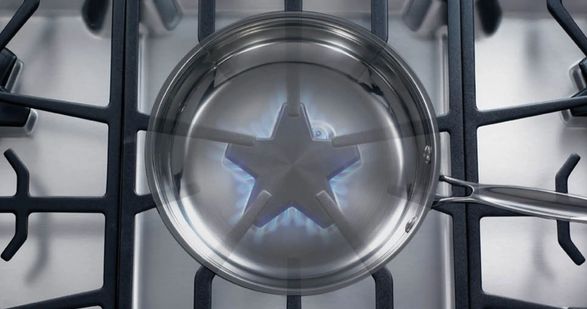

Patented Star® Burner’s unique five-point design offers more ports and more flame distribution that a round burner.
INFORMATION
BRAND
Thermador
PRODUCT TYPE
Gas Cooktop
NTOTAL NG BTUS
52000 Btu
EXTRALOW® BURNERS
No
PRODUCTION
Made in United States
CONVERTIBLE TO LP (KIT REQUIRED)
Yes
CODE
SGS305TS
TOTAL LP BTUS
45200 Btu
PLUG TYPE
120V-3 prong
GAS TYPE PRESET
Natural gas 15 mbar (USA)
REQUIRED CUTOUT SIZE
- Height : 3 13/16''
- Width : 28 15/16''
- Depth : 19 1/8''
OVERALL APPLIANCE DIMENSIONS
- Width : 31"
- Height : 3 13/16"
- Depth : 21 1/4"
PACKAGING DIMENSIONS
- Height : 8 3/8''
- Width : 37 1/8''
- Depth : 24 3/4''
AMPS
15 A
POWER CORD LENGTH
60''
16,000 BTU CENTER BURNER
This high heat burner is perfect for rapid boiling and high heat searing.
VOLTS
120 V
NET WEIGHT
36 lbs
HOME CONNECT® WIFI-ENABLED
No
INCLUDED ACCESSORIES
3 x cast iron pan support
ALTERNATIVE GAS TYPE (NOZZLE SET INCLUDED
Liquid gas 27,5 mbar (USA)
ADA COMPLIANT (WHEN INSTALLED TO ADA REQUIREMENTS)
No
COMFORT AND CONVENIENCE
- Griddle : No
- Sealed Burners : Yes
- Special Features : Reignition
- ExtraLow® Burners : No
- Pedestal Star® Burners : No
- Number of Gas Burners : 5
BURNER PERFORMANCE
- Total BTU Load (NG / LP) : 52,000 / 45,200 BTU
- Power of Front Left Burner (NG / LP) : 8,000 / 6,000 BTU
- Power of Back Left Burner (NG / LP) : 10,000 / 9,100 BTU
- Power of Center Burner (NG / LP) 16,000 / 15,000 BTU
- Power of Back Right Burner (NG / LP) : 8,000 / 6,000 BTU
- Power of Front Right Burner (NG / LP) : 10,000 / 9,100 BTU
SURFACE MATERIALS
Stainless Steel
GRATE MATERIALS
Cast Iron with Rubber Feet
DOWNLOADS
↓ Supplement
↓ User manuals 1
↓ User manuals 2
↓ Warranty Service
↓ Installation Instruction
↓ Product Specification Sheet
WATTS
1,800 W
LOCATION OF CONTROL PANEL
Front
FEATURES & BENEFITS
- 30" 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment
- Powerful 16,000 BTU center burner for rapid boiling and high heat searing
- Continuous grates allow pots and pans to move effortlessly across the cooktop
- Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
ENERGY SOURCE
Gas
MINIMUM DISTANCE FROM COUNTER FRONT
1 1/2" in
CIRCUIT BREAKER
15 A
FREQUENCAY
60 Hz
WARRANTY
Limited Warranty, Entire Appliance, Parts and Labor : 2 Year

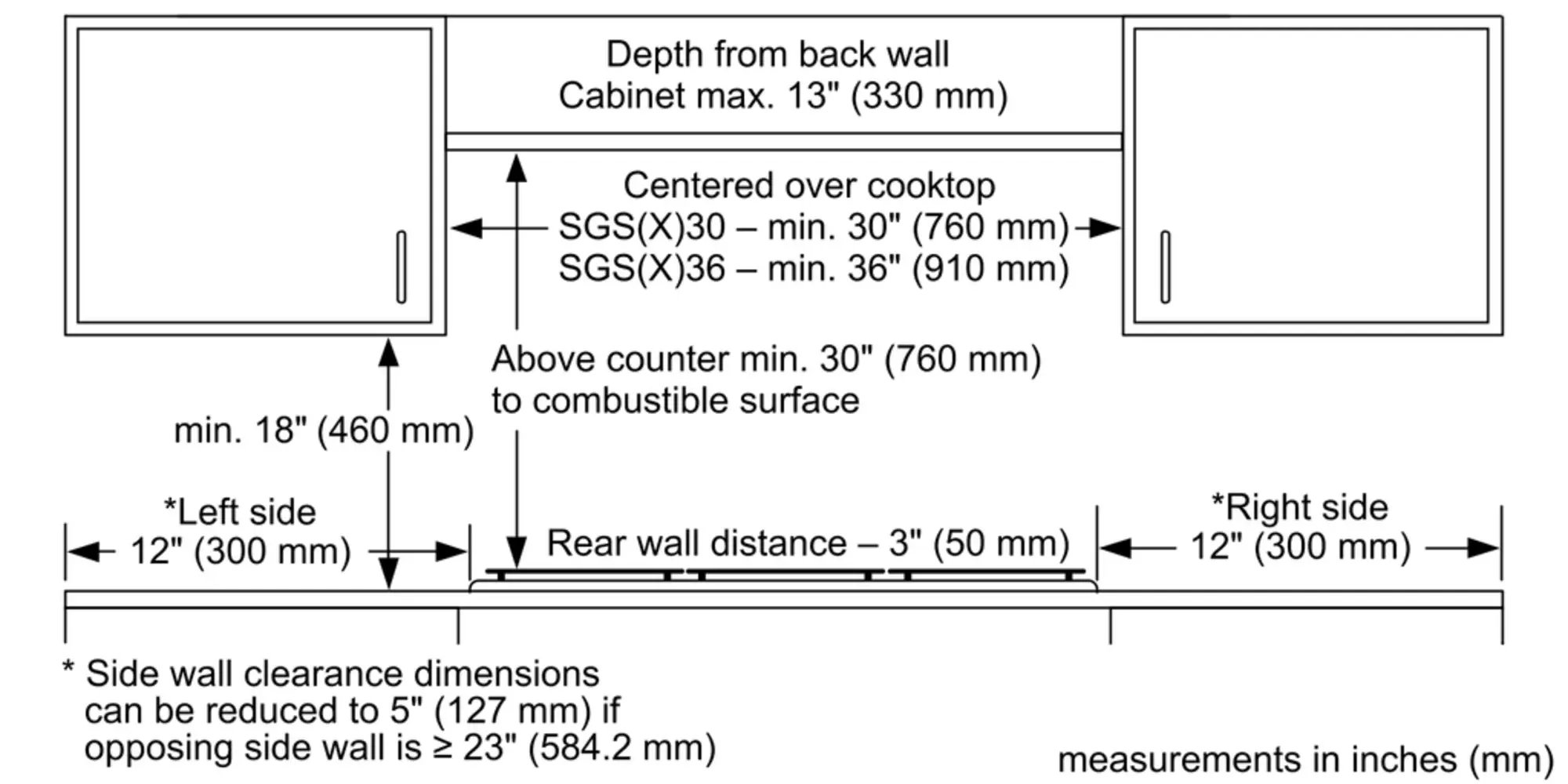

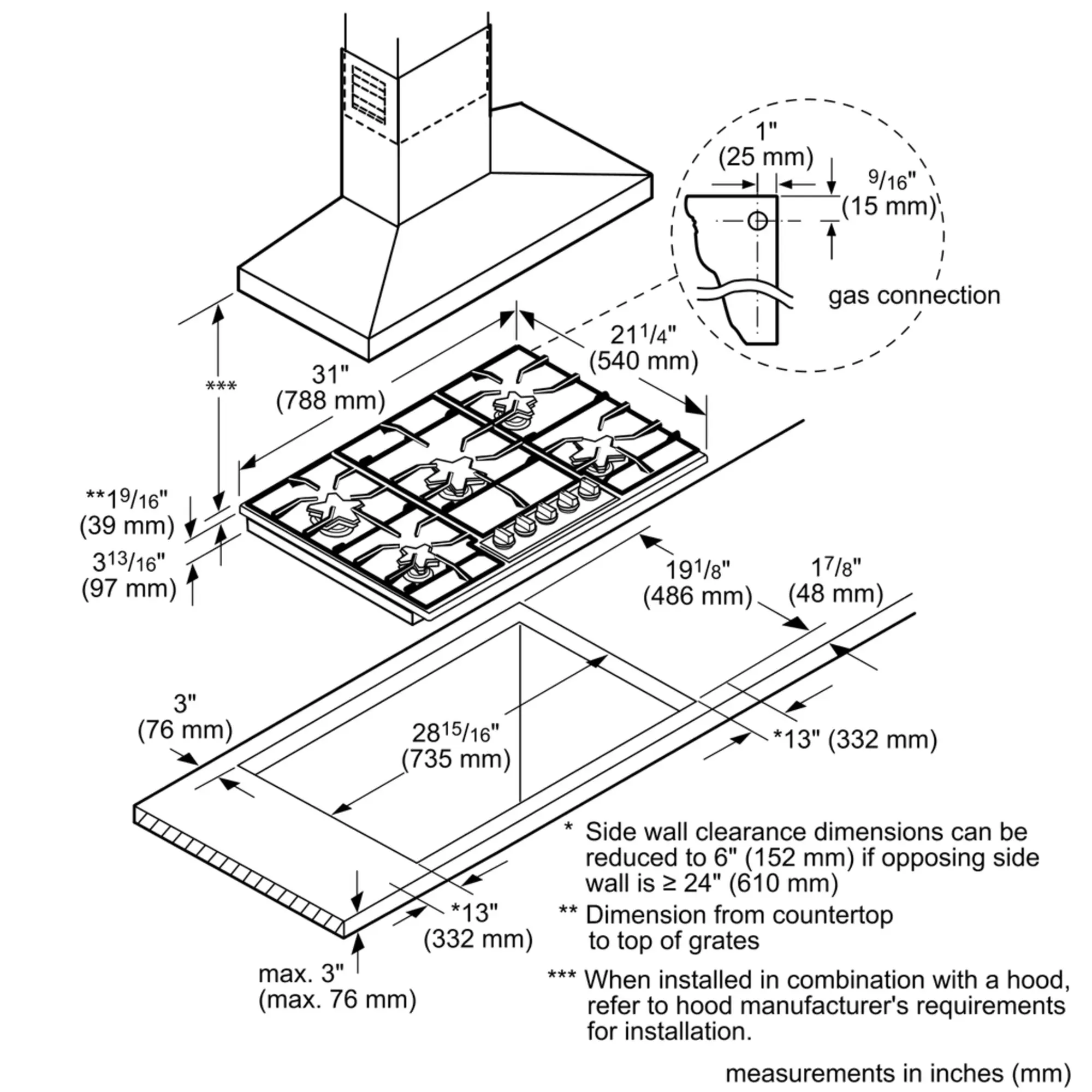

TECHNICAL DRAWINGS
HIGHLIGHTS
ELECTRONIC RE-IGNITION KEEPS YOUR FLAME IGNITED
Your burners will automatically re-ignite in case the flame goes out.

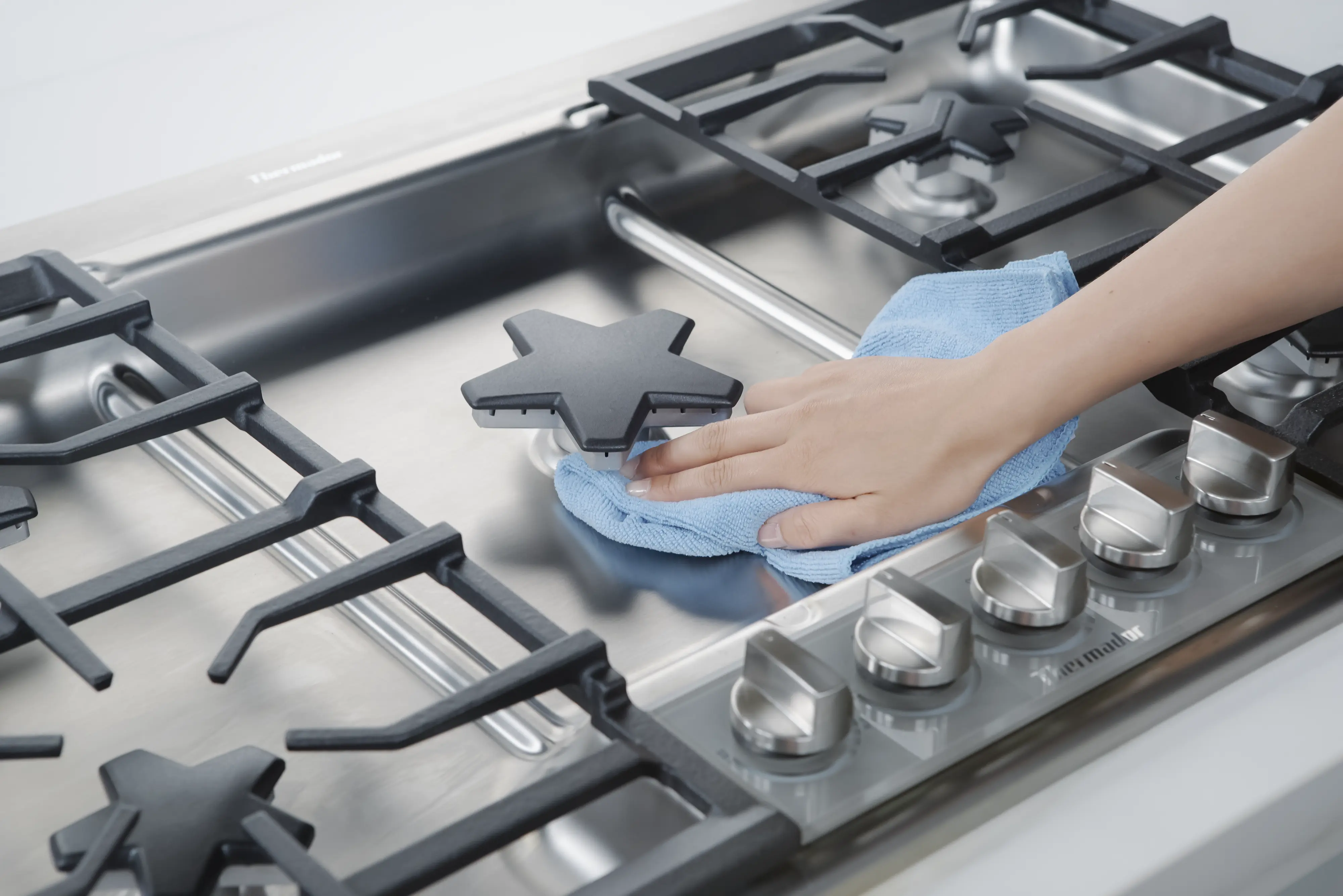

SEALED BURNERS MAKE CLEAN UP EASIER
The burner box is covered and safe from spills, making clean up easier.

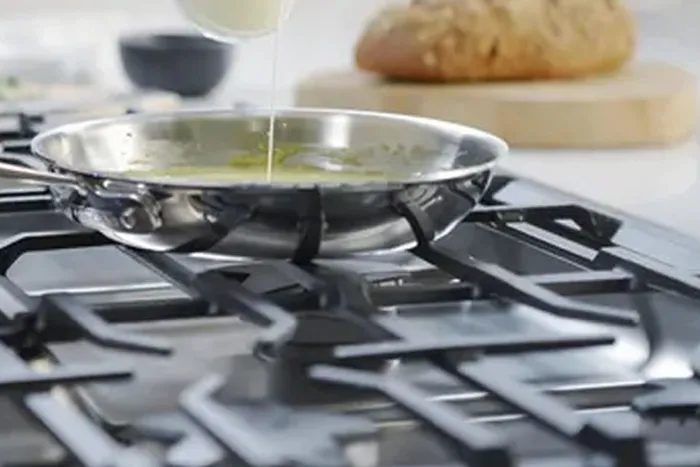

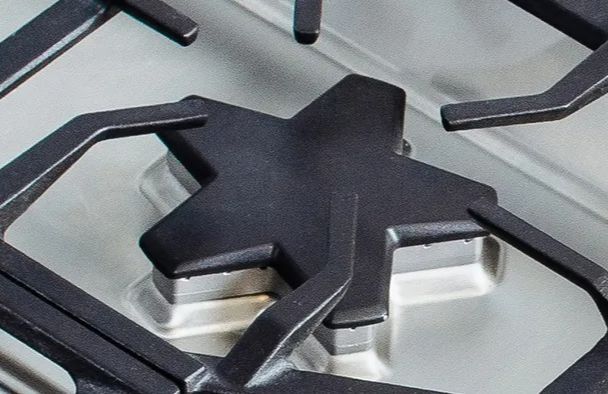

CONTINUOUS GRATES MAKE IT EASY TO MOVE PANS
The connected gridwork allows for moving pots and pans effortlessly across the cooktop.

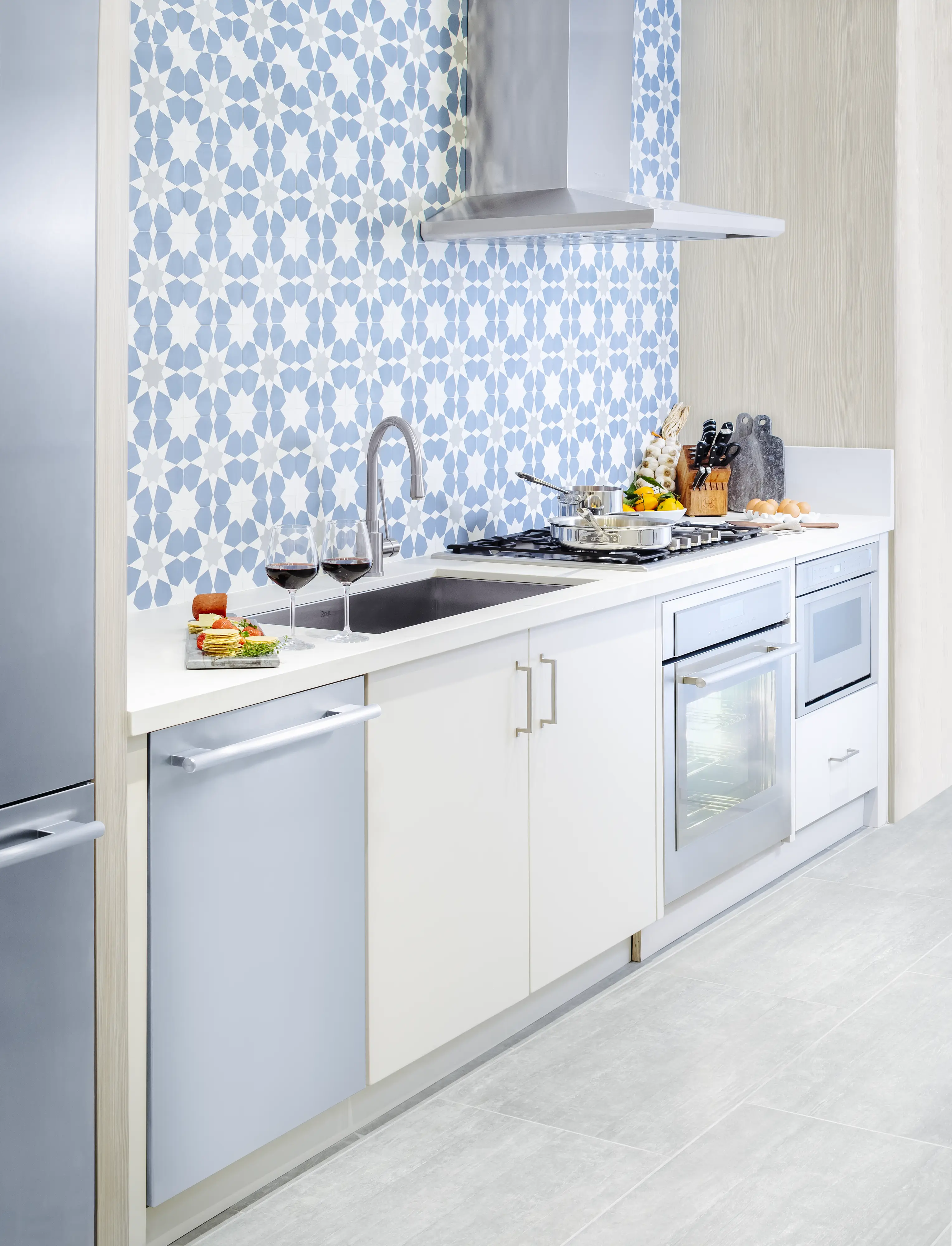

30-INCH COOKTOP WITH FUNCTIONALITY OF A 36-INCH COOKTOP
30-inch 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment.
STAR-K SABBATH COMPLIANT
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.

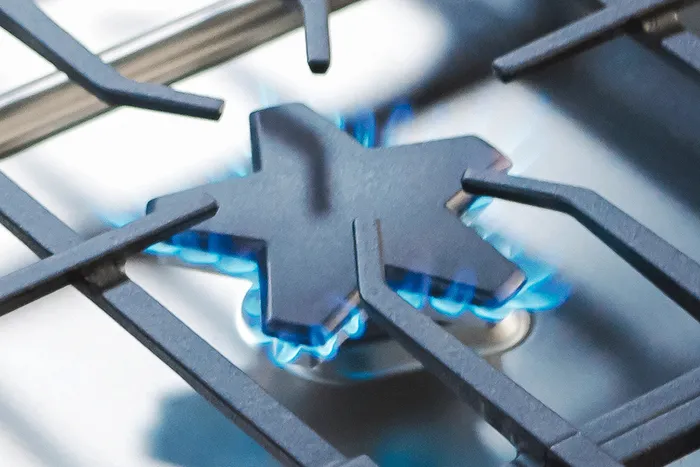

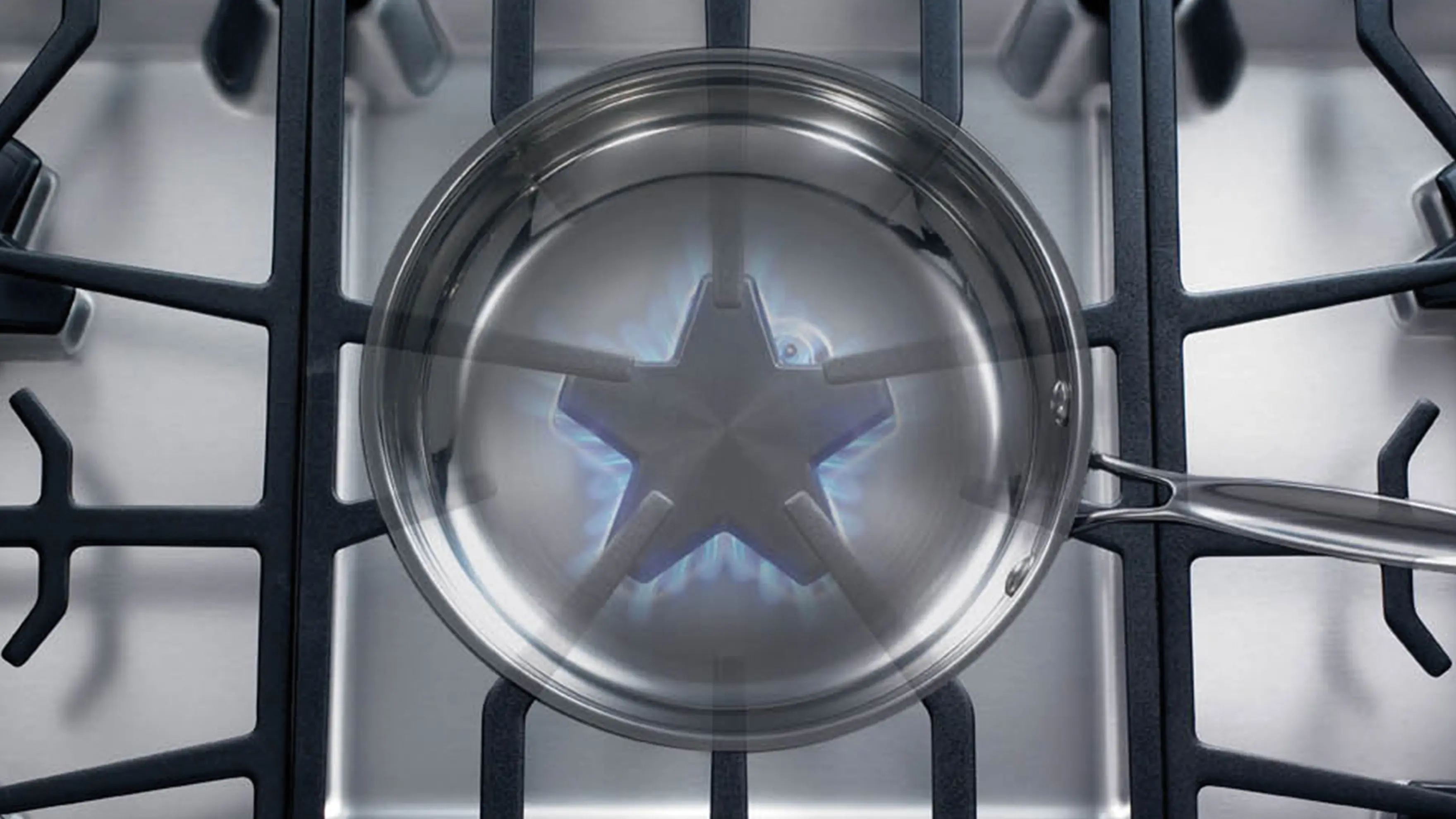

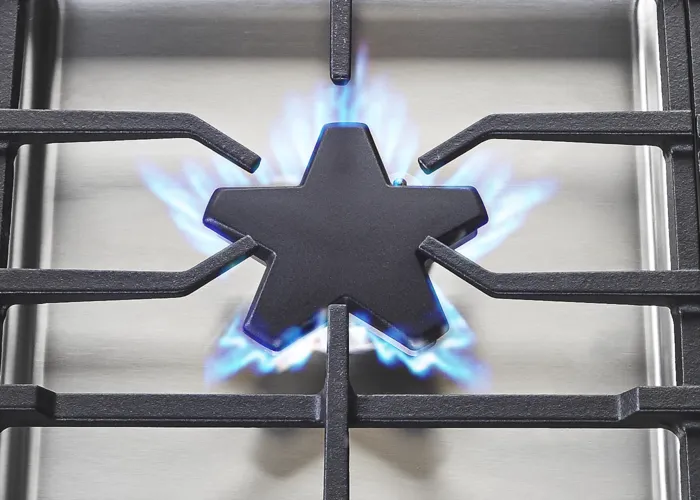

OUR STAR® BURNER PROVIDES EQUAL FLAME DISTRIBUTION
Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
