Pietroberto Vittoria 90 Forcella - Fork Mixer
VITTORIA 90 FORCELLA - FORK MIXER
VITTORIA 90 FORCELLA - FORK MIXER
Once the ingredients have been added to the bowl, the safety guard has been lowered and the mixer can be started .
INFORMATION
BRAND
Pietroberto
PRODUCT TYPE
Fork Mixer
BELT
Belt drive from motor to main components
MOVEMENTS
Movements on bearings and bushings
INTERNAL DIAMETER OF THE TANK
726 mm
COLLECTION
Vittoria
PRODUCTION
Made in Italy
INSTALLED POWER
-0.75 kW (single-speed machine) -1.1 kW (2-speed machine)
SUPPLY VOLTAGE
- 230/50/3+T
- 400/50/3+T
- 220/60/3+T
- 230/50/3+T+N
BOWL
- Stainless steel bowl cover, bowl, and tool guard
- Polyethylene bowl scraper blade with stainless steel support
USE
Kitchen
FORK TOOL SPEED
20.5 and 31 rpm
FRAME
Cast Iron Frame
BOWL CAPACITY
90kg of dough2 speed motor
SAFETY
Safety guard made of X5 Cr Ni 1810 stainless steel

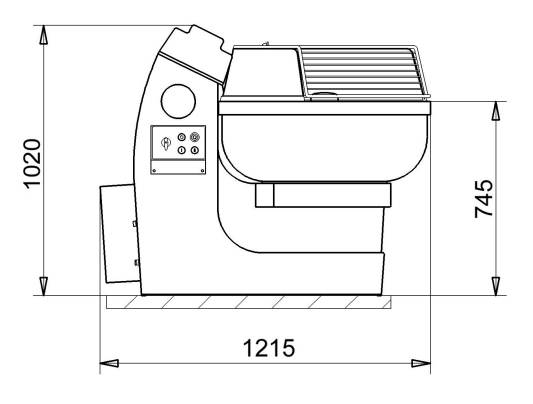

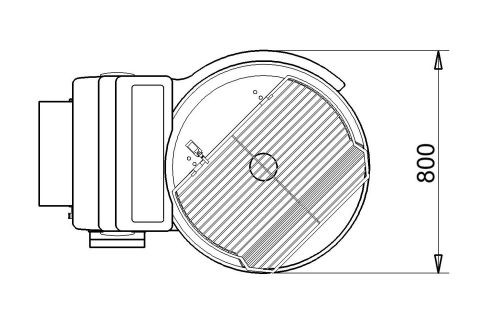

TECHNICAL DRAWINGS
BASQUE VOLUMES
105 lt
TUB DEPTH
278 mm
WEIGHT
395 kg
POWER
1.1 Kw

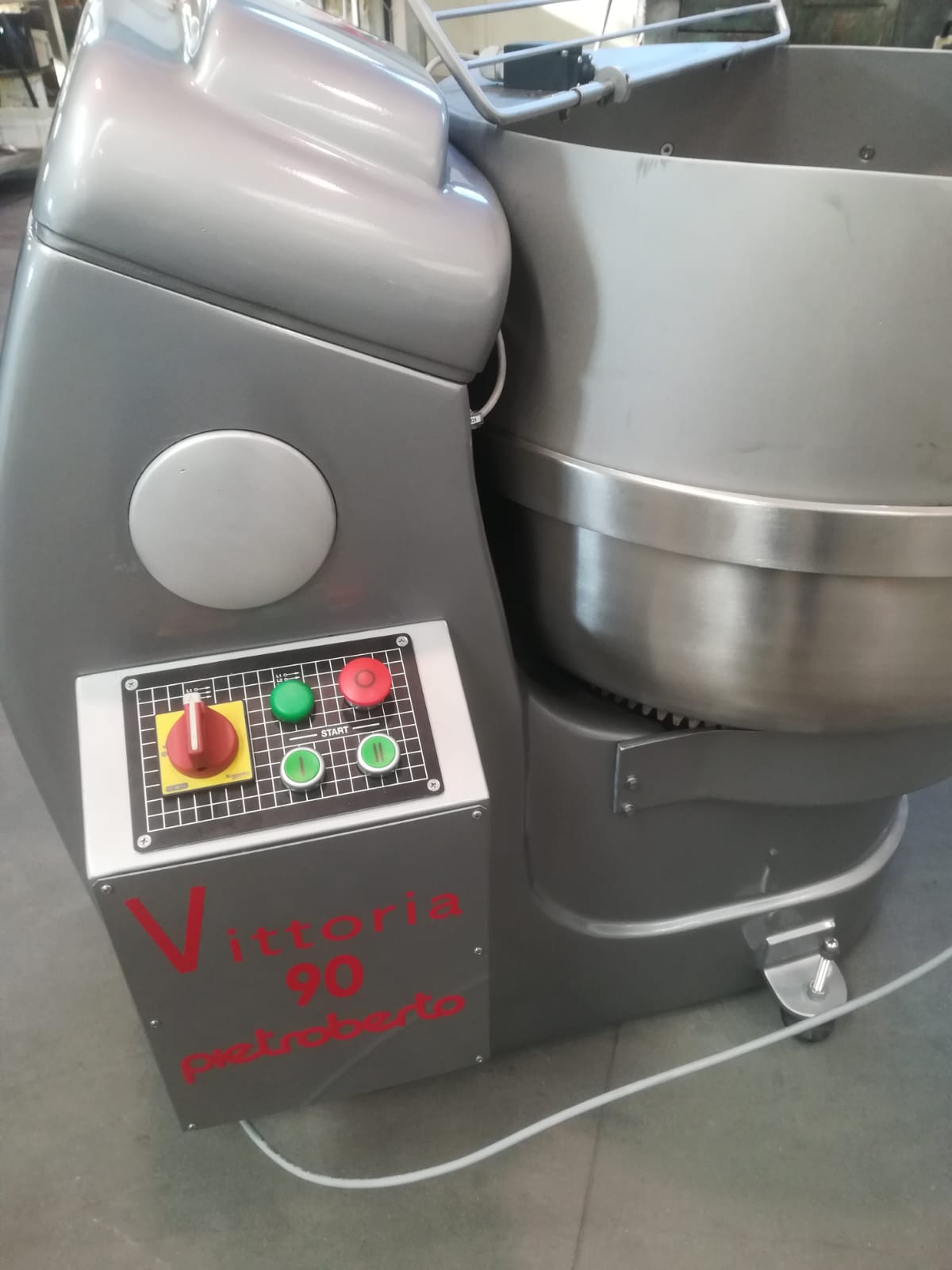

CONTROL PANEL
Control panel and electrical system with IP55 protection class
DETAIL
- Other grease lubrication
- Gears made of spheroidal cast iron operating in an oil bath
- Can be supplied with 1 or 2 speeds, including single-phase
MACHINE SPEED
- Single-speed machine tool speed : 22 rpm
- 2-speed machine tool speed : Giri/minutes 20.5 (1a well.) & rpm 31 (2nd speed)
MACHINE
The machine is built in compliance with current accident prevention, hygiene, and electrical regulations
SHAFT
Steel Shafts
VOLTAGE
200 V
FREQUENCY
50hz
DOWNLOAD
↓ Data Sheet
MIXING PROCESS
The mixing process is performed as if by human hands, and the dough is soft, well-aerated, and easy to remove. Additional ingredients can be made even during mixing.
