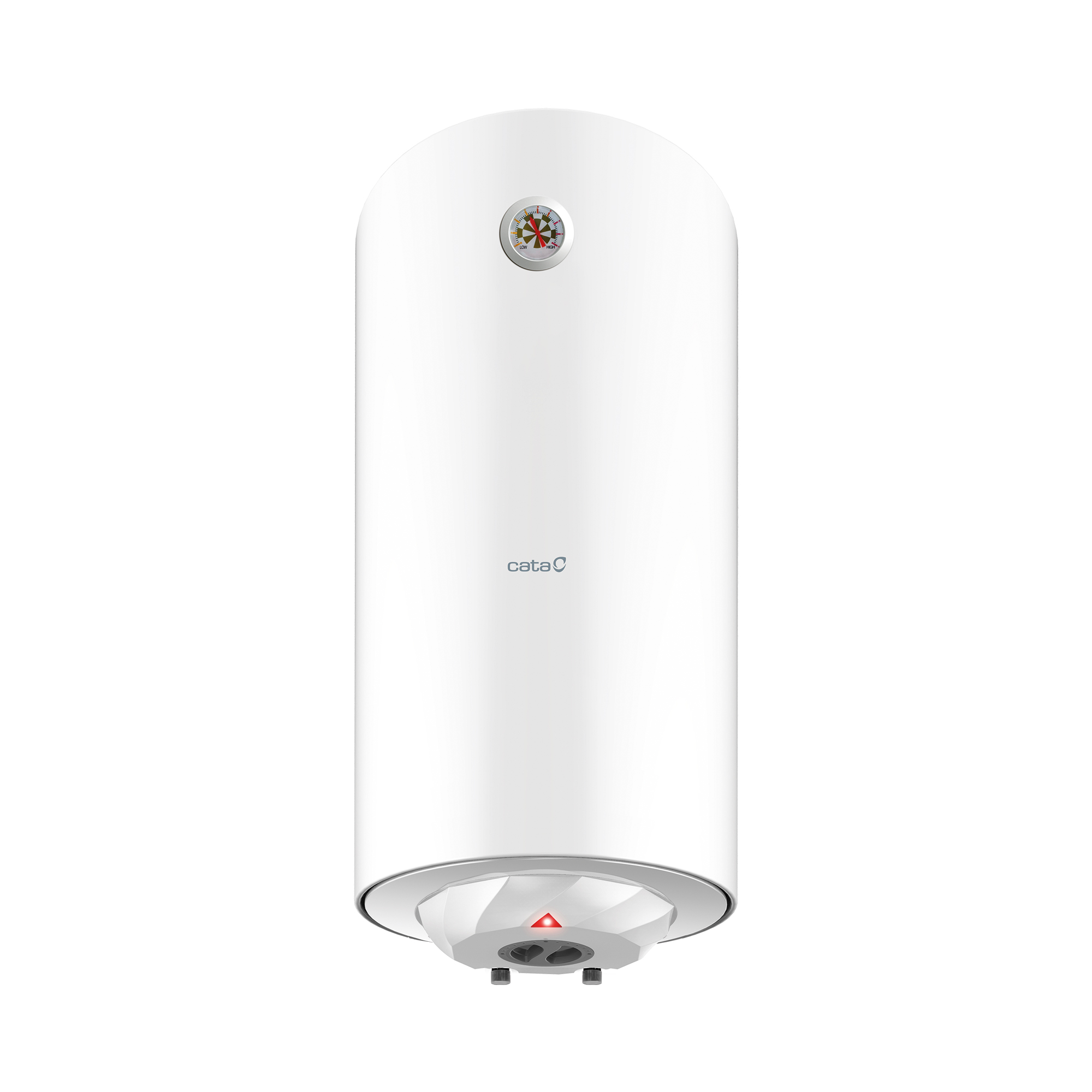

Cata CTR-100-M Electric Boilers
CTR-100-M ELECTRIC BOILERS
CTR-100-M ELECTRIC BOILERS
Code : 03113001
information
PRODUCTION
Made in Spain
BRAND
Cata
PRODUCT TYPE
Electric Boilers
EAN
8422248081559
CAPACITY
100 L
USE
Cooking
NUMBER OF PEOPLE
3-5
DIMENSIONS
- Height : 970 mm
- Width & Depth : 450 mm
ELECTRIC SHOCK PROTECTION
Class I
INSTALACIÓN
Vertical
PLUG TYPE
Type F
HEATING TIME 15°C–65°C
233.4 min
POWER CORD LENGTH
1.5 m

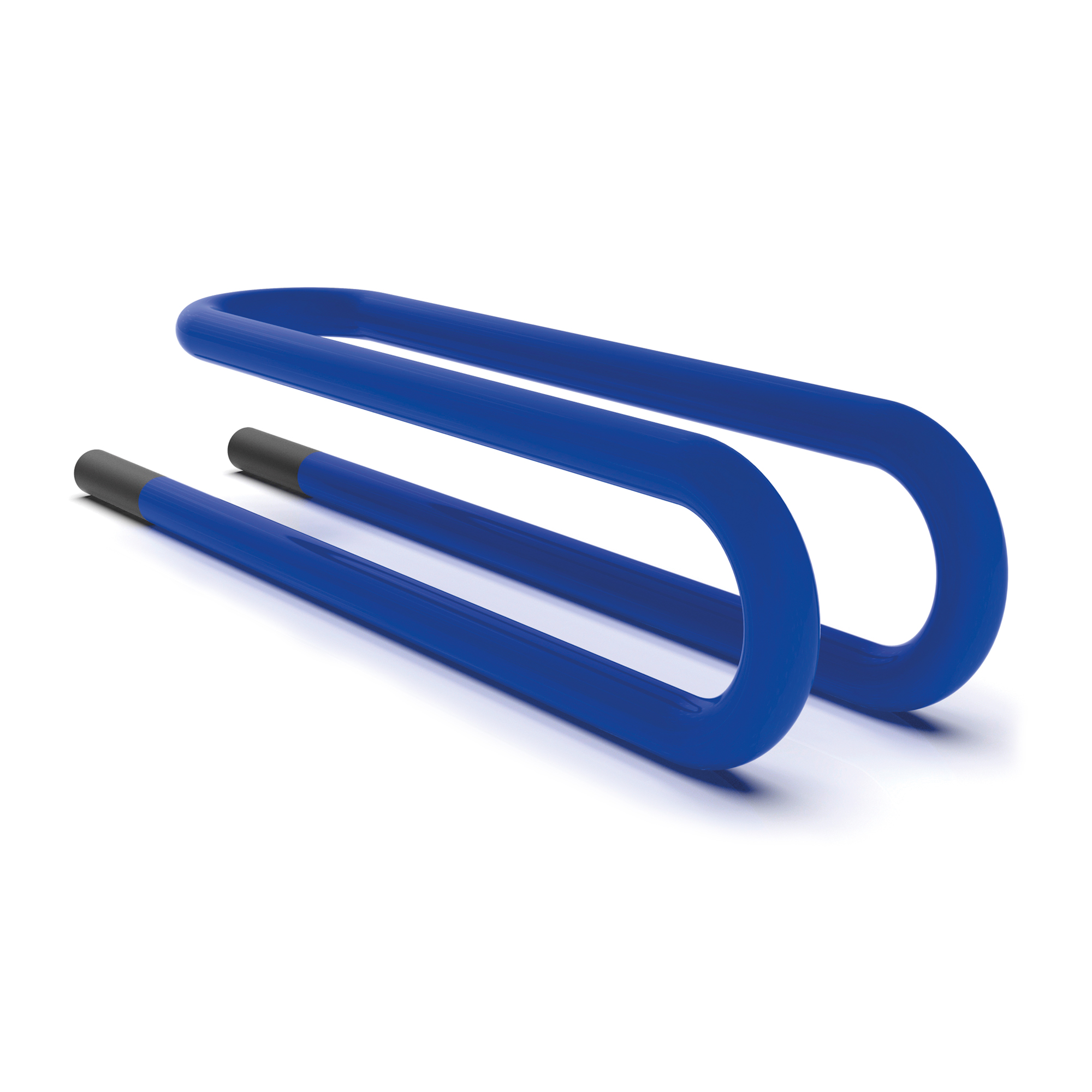

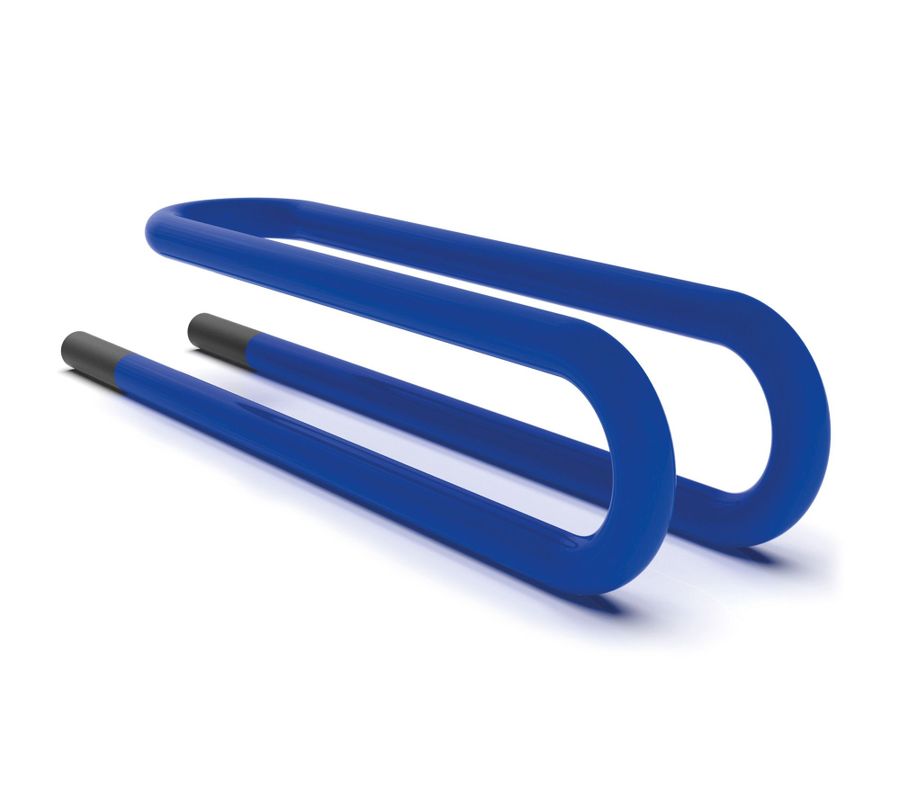

TYPE OF HEATING ELEMENT
Enamel
COATING THICKNESS
5 mm
SAFETY
- Overheating protection : Yes
- Safety temperature (°C) : 69
- Water protection index : IPX4
- Maximum working pressure : 0.75 (Mpa)
- Magnesium anode dimensions : D22x296 mm
STATIC LOSSES AT 65°C (KWH/24H)
1.43
TEMPERATURE
- Minimum fixed temperature : 30
- Maximum settings temperature : 75
FUNCTION
Electricity
SUBFAMILY
Electric
CONTROL
- Heating indicator : Yes
- Control type : Mechanical
- Control position : Bottom

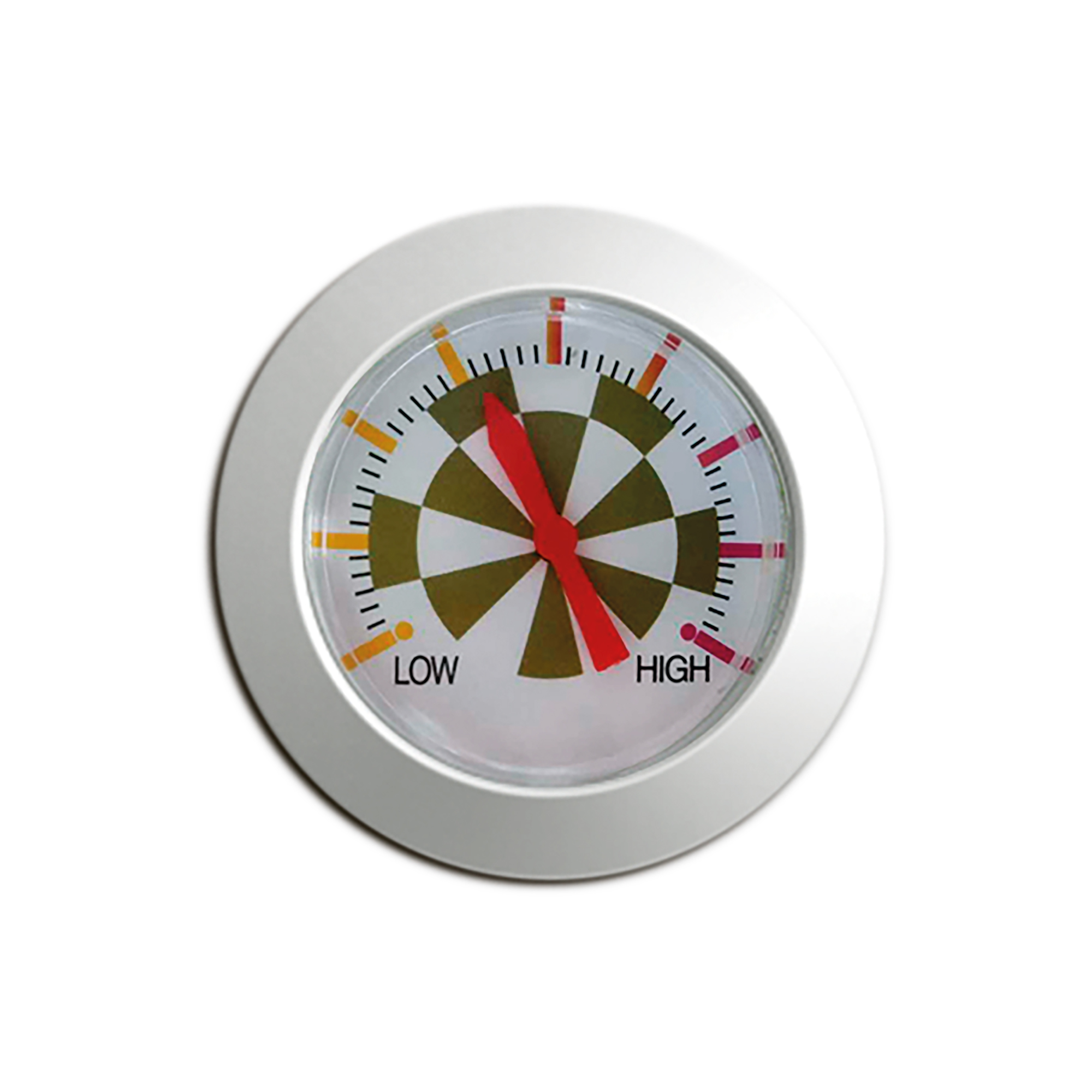

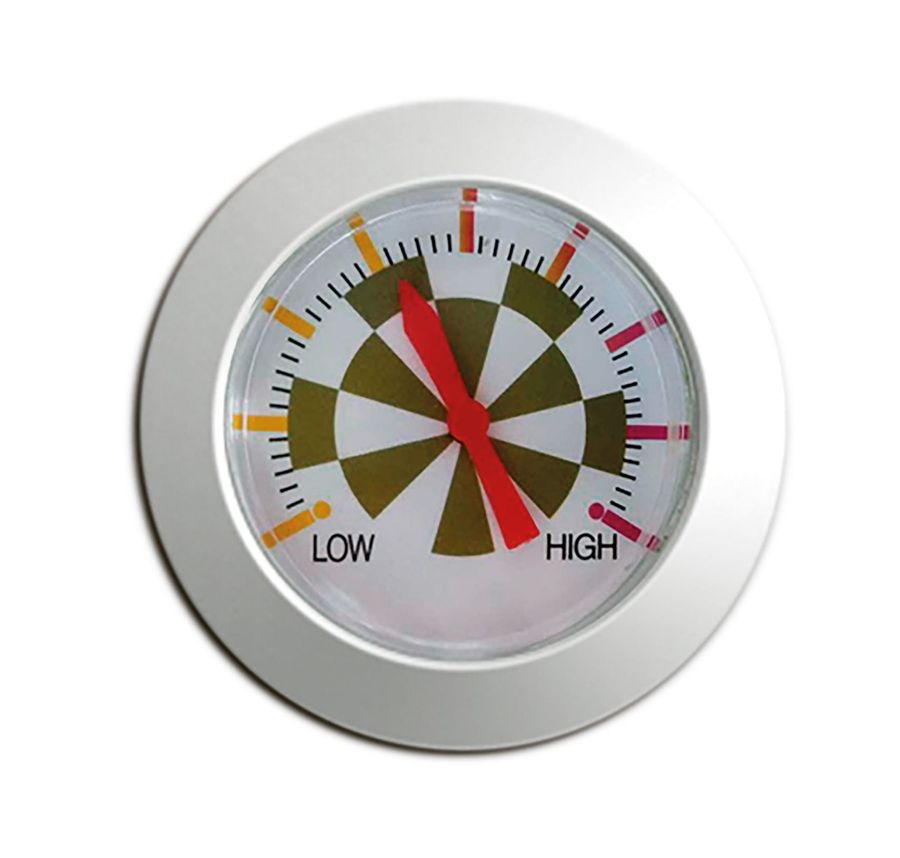

- Temperature indicator : Yes
NOMINAL INPUT POWER
1500 W
NOMINAL VOLTAGE
220-240 V
NOMINAL FREQUENCY
50/60 Hz

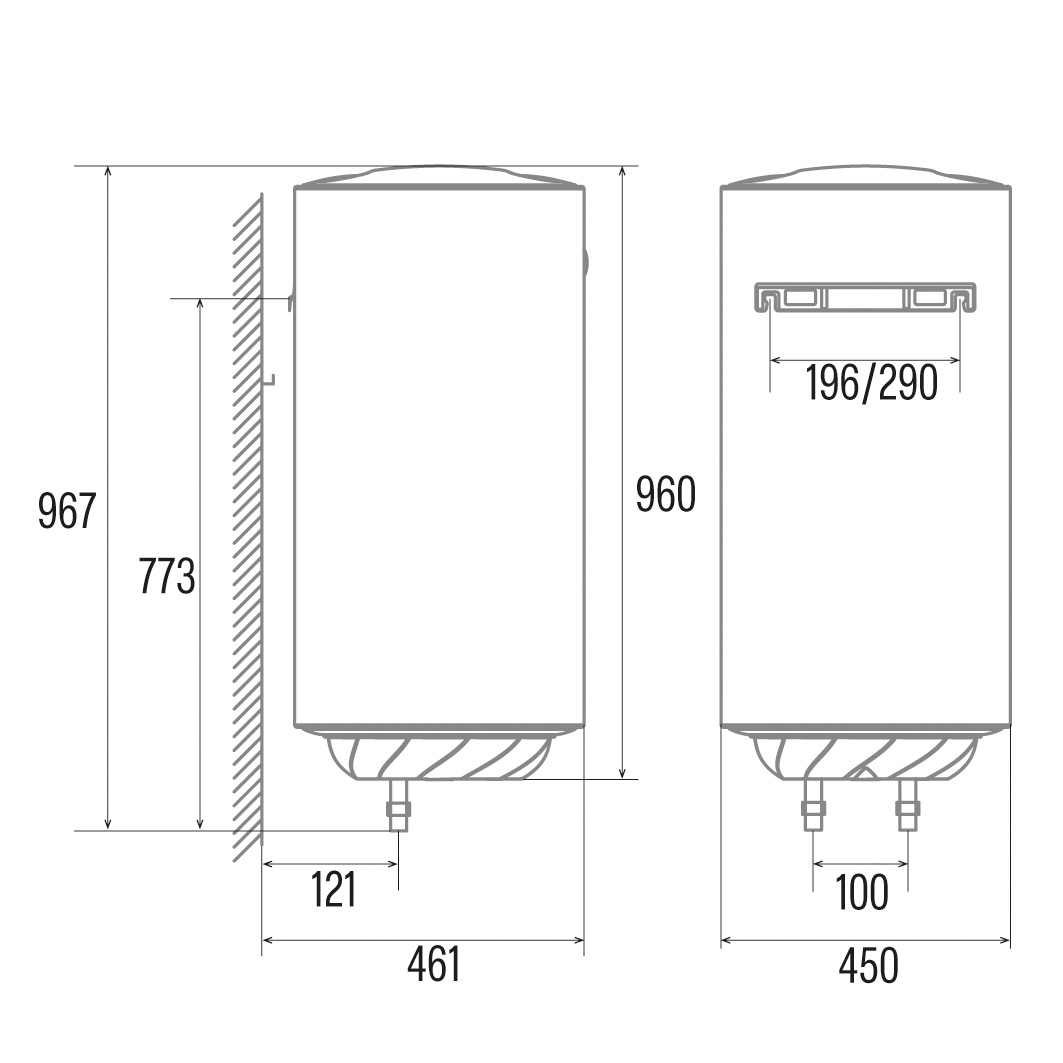

TECHNICAL DRAWING
