kratki Wood burning cast iron stove KRATKI K9 Ø 150 10 kW
WOOD BURNING CAST IRON STOVE KRATKI K9 Ø 150 10 KW
WOOD BURNING CAST IRON STOVE KRATKI K9 Ø 150 10 KW
K9 cast iron wood stove - heats from 85 m² to 125 m²
One of the strengths of the K9 stove is the hearth walls, which are made of high-quality cast iron with an impressive thickness of 8 mm.
INFORMATION
BRAND
kratki
PRODUCT TYPE
Wood Burning Stove
EQUIPMENT
Ashpan
ADDITIONAL CLOSING
No
MAX BILLET LENGTH
35 cm
THERMAL EFFICIENCY (%)
75
FLUE GAS TEMPERATURE (OC)
289

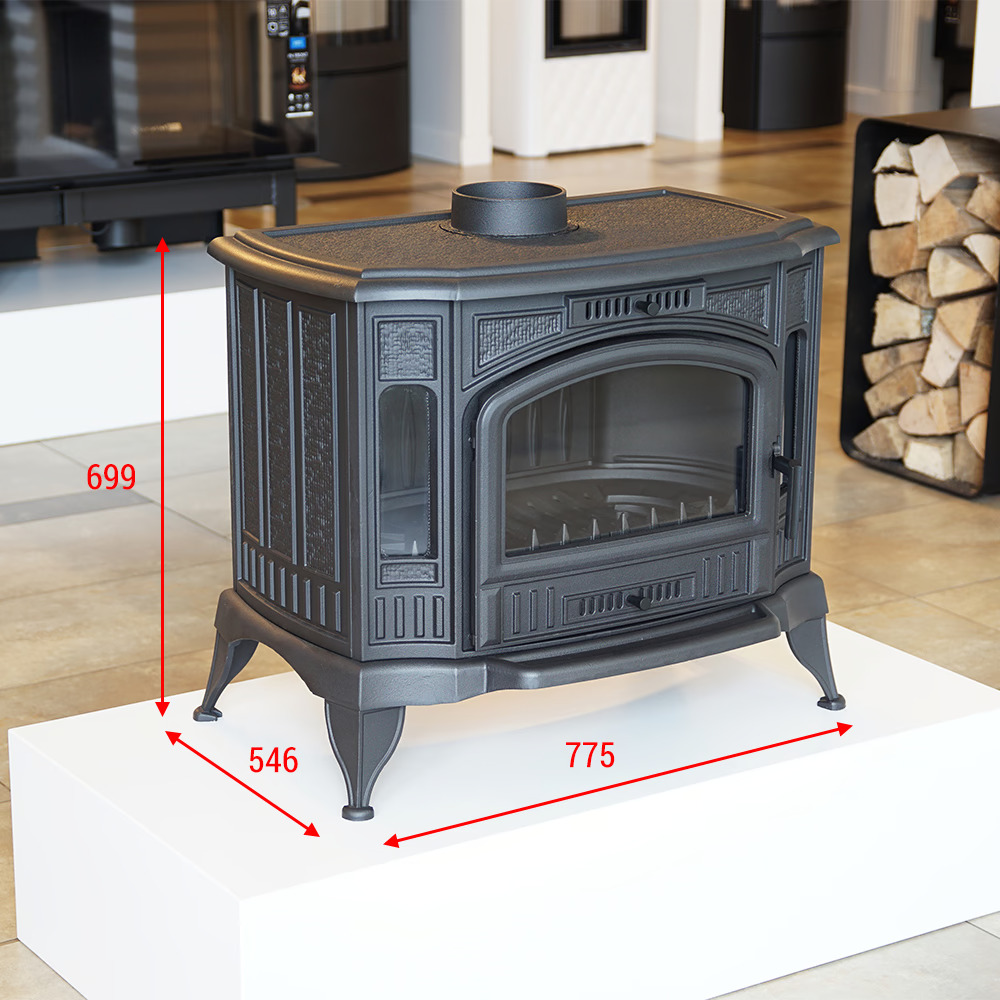

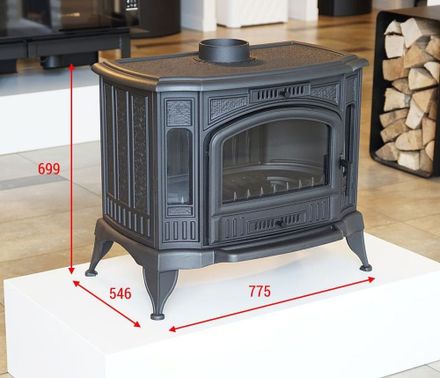

PHYSICAL PARAMETERS
- Height : 69.9 cm
- Width : 77.5 cm
- Depth : 54.6 cm
WEIGHT
165 kg
SKU
KOZA/K9/150
COLOR
Black
BASE MATERIAL
Cast iron
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.148
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
DIAMETER OF THE FLUE GAS OUTLET
150
EEI
98
ENERGY CLASS
A
HEAT OUTPUT FOR SPACE HEATING (KW)
10
SEASONAL ENERGY EFFICIENCY (%)
65
CO EMISSION (MG/M3)
1856
DOOR OPENING
Left
NOX EMISSION (MG/M3)
108
POLLEN EMISSION (MG/M3)
14
FLUE GAS MASS FLOW (G/S)
11.4
FRONT
Cast iron front with ceramic glass
NUMBER OF PIECES IN A PACKAGE.
2
EAN
5901350053966
CERTIFICATES
Ecodesign
HEATING POWER RANGE (KW)
8.5 - 12.5
OGC EMISSION (MG/M3)
78
NOMINAL POWER (KW)
10
DETAIL
This guarantees maximum heat utilisation and trouble-free operation for many years. The robustness of the construction is also confirmed by the stove's weight of up to 165 kg, which testifies to its durability and reliability. The firebox, measuring 30x30x55 cm, is designed to provide optimal combustion conditions. It allows logs of up to 35 cm in length to be laid, which increases user comfort and combustion efficiency.

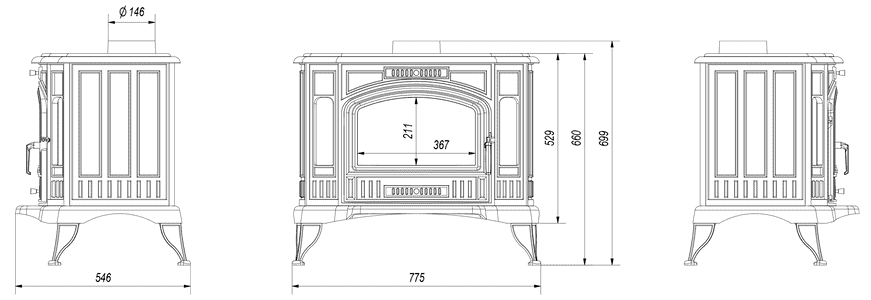

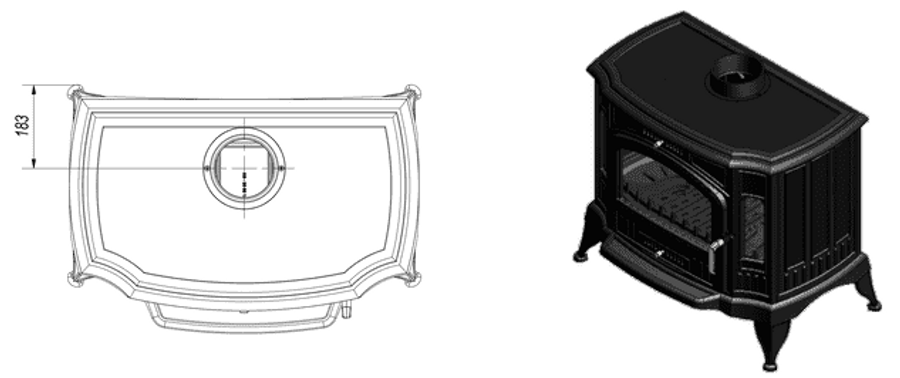

TECHNICAL DRAWINGS
ADVANTAGES
Maximum Heat Utilisation And Trouble-free Operation Thanks To Hearth Walls Made Of High Quality 8 Mm Thick Cast Iron.
- Intuitive Adjustment Of Air Supply,
- The Ash Drawer Makes Cleaning The Stove Easy,
- The K9 Stove Meets The Criteria Of The Ecodesign.
- Manual Control Of The Combustion Process Via The Ash Pan,
- Deflector To Extend The Flue Gas Path For Optimum Energy Utilisation,

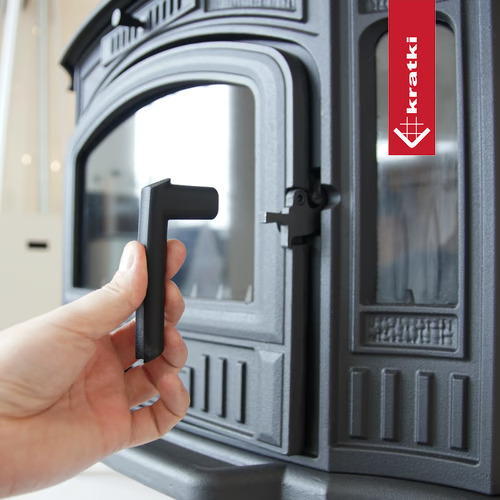

- The Cold Handle System Allows The Handle To Be Removed When The Stove Is On Fire,
- The Decorative Hurdle Makes It Easy To Keep Clean And Keeps The Wood From Falling Out,
- The Clean Glass System (Air Control Blades) Reduces Soot Build-up,
- The Adjustable Flue Outlet (At The Back Or On Top Of The Stove) Allows For Use In Various Installation Conditions,
- Classic Cartridge Front Fitted With Heat-resistant Ceramics Withstanding Temperatures Up To 600°c,
