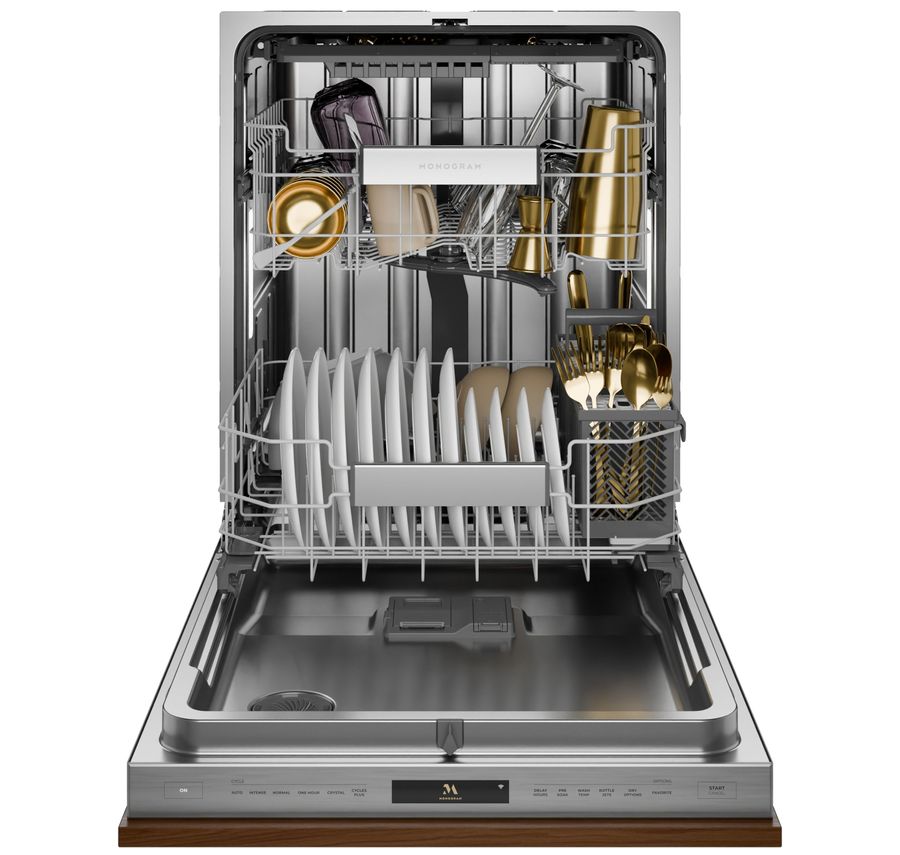

Monogram Monogram 24" Premium Fully Integrated Dishwasher - Panel Ready
MONOGRAM 24" PREMIUM FULLY INTEGRATED DISHWASHER - PANEL READY
MONOGRAM 24" PREMIUM FULLY INTEGRATED DISHWASHER - PANEL READY
INFORMATION
BRAND
Monogram
PRODUCT TYPE
Dishwasher
CODE
ZDT900SIYII
COLOR APPEARANCE
Panel Ready
QUIET FEATURES
38 dBA (Normal Cycle) and 37 dBA (Quiet Cycle) based on results from base model ZDT900SSYSS
BRILLIANT SURROUND LED LIGHTING
Illuminates the entire interior for effortless loading and unloading
DESIGN STYLE

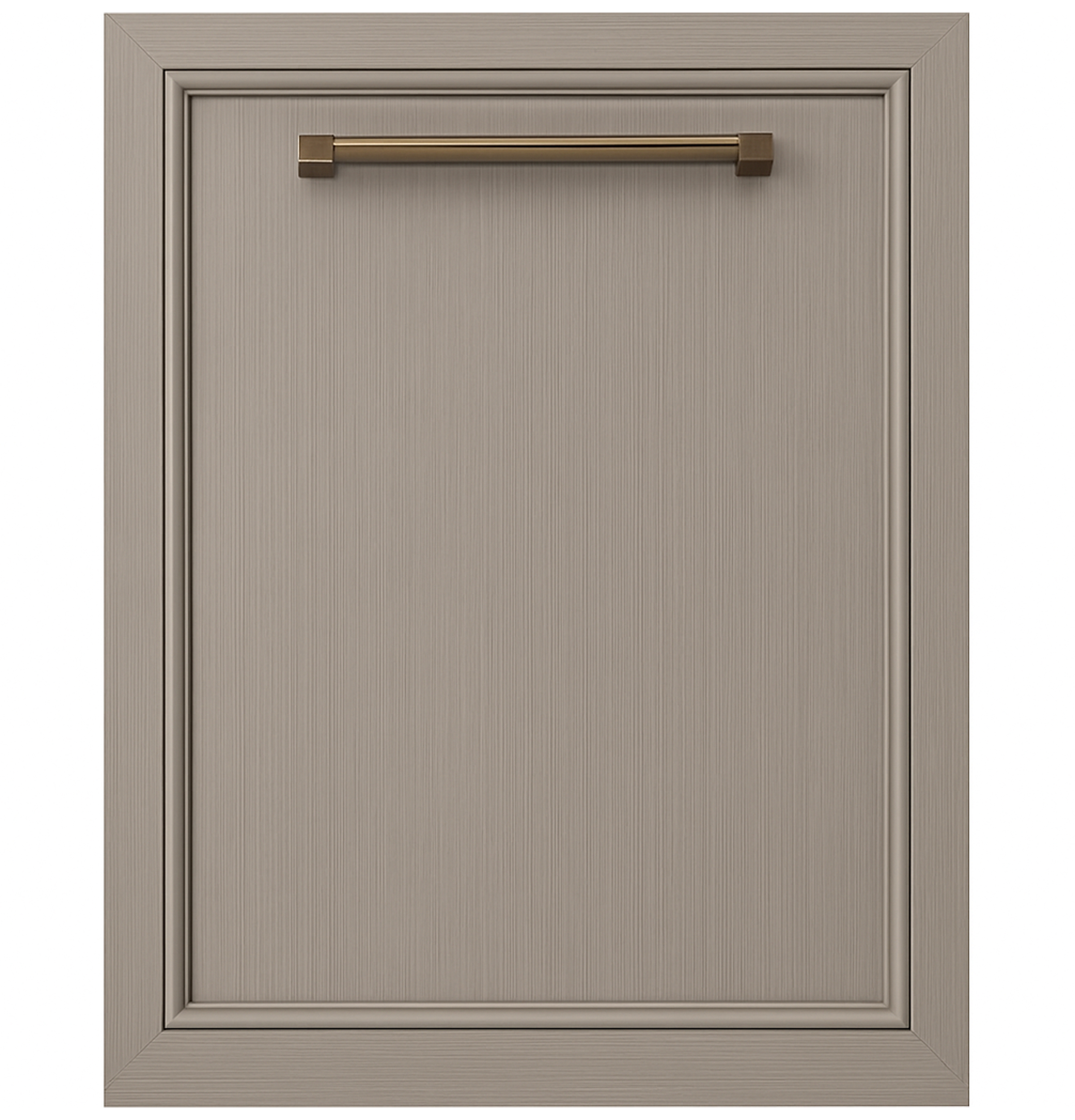

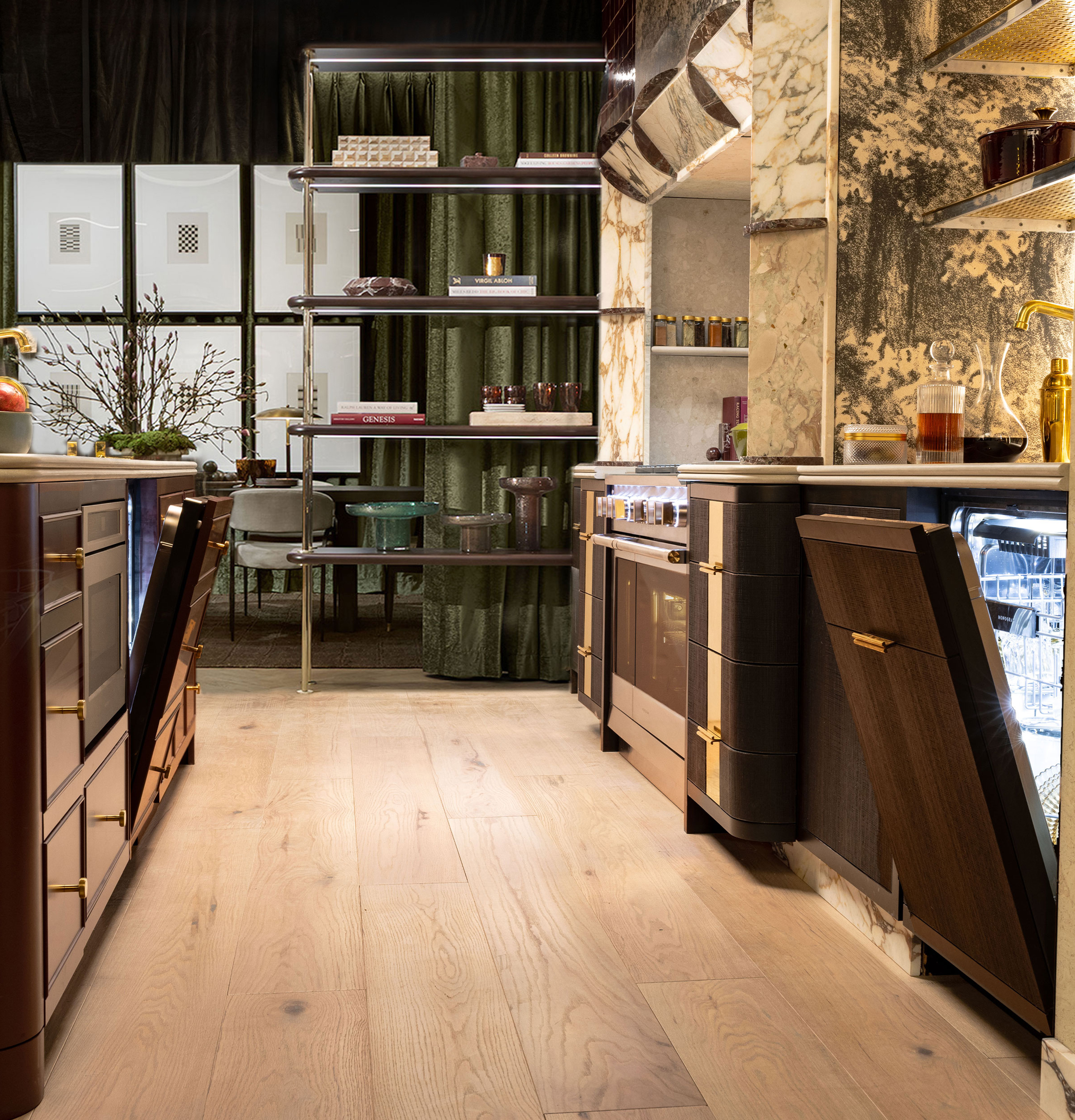

Integrated Custom Panel
DOOR STYLE
Long Door with Top Controls
INSTALLATION
True Flush
DOOR INSULATION
Mastic
WIFI CONNECTED WITH SMARTHQ™
Protect and enhance your appliance with remote access, ongoing updates and alerts
INTUITIVE NAVIGATION
Glass touch controls and a brilliant LCD screen elevate the everyday chore into an effortless ritual
MOTOR TYPE
Variable Speed
OUTER WRAP
Bitumen + Full-wrap Blanket
POWER / RATINGS
- Hertz : 60
- Watts : 1296
- Calrod Heater Watts : 1200
- Energy Consumption (kWh/year) : 240
- Electrical Requirements : 120 V; 60 Hz; 10.2 A
- Power Connection : Factory installed - w/offset flat plug, optional hardwire kit WD21X23559
DIMENSIONS - 1
- Overall Depth : 24 in
- Overall Height : 34 in
- Overall Width : 23.75 in
DIMENSIONS - 2
- Cutout Depth : 24 in
- Cutout Height : 33.5 in
- Cutout Width : 24 in
NET WEIGHT
126 kg
DEPTH WITH DOOR OPEN
25.5 in
HEIGHT W/LEGS EXTENDED - MAXIMUM HEIGHT
34.625 in
APPROXIMATE SHIPPING WEIGHT
139 kg
HEIGHT W/ LEGS RETRACTED - MINIMUM HEIGHT
33.375 in
WARRANTY
- Labor Warranty : Limited 2-year entire appliance
- Parts Warranty : Limited 2-year entire appliance
- Warranty Notes : Limited 5-year rack and electronic control,Ltd Lifetime SS tub and inner door

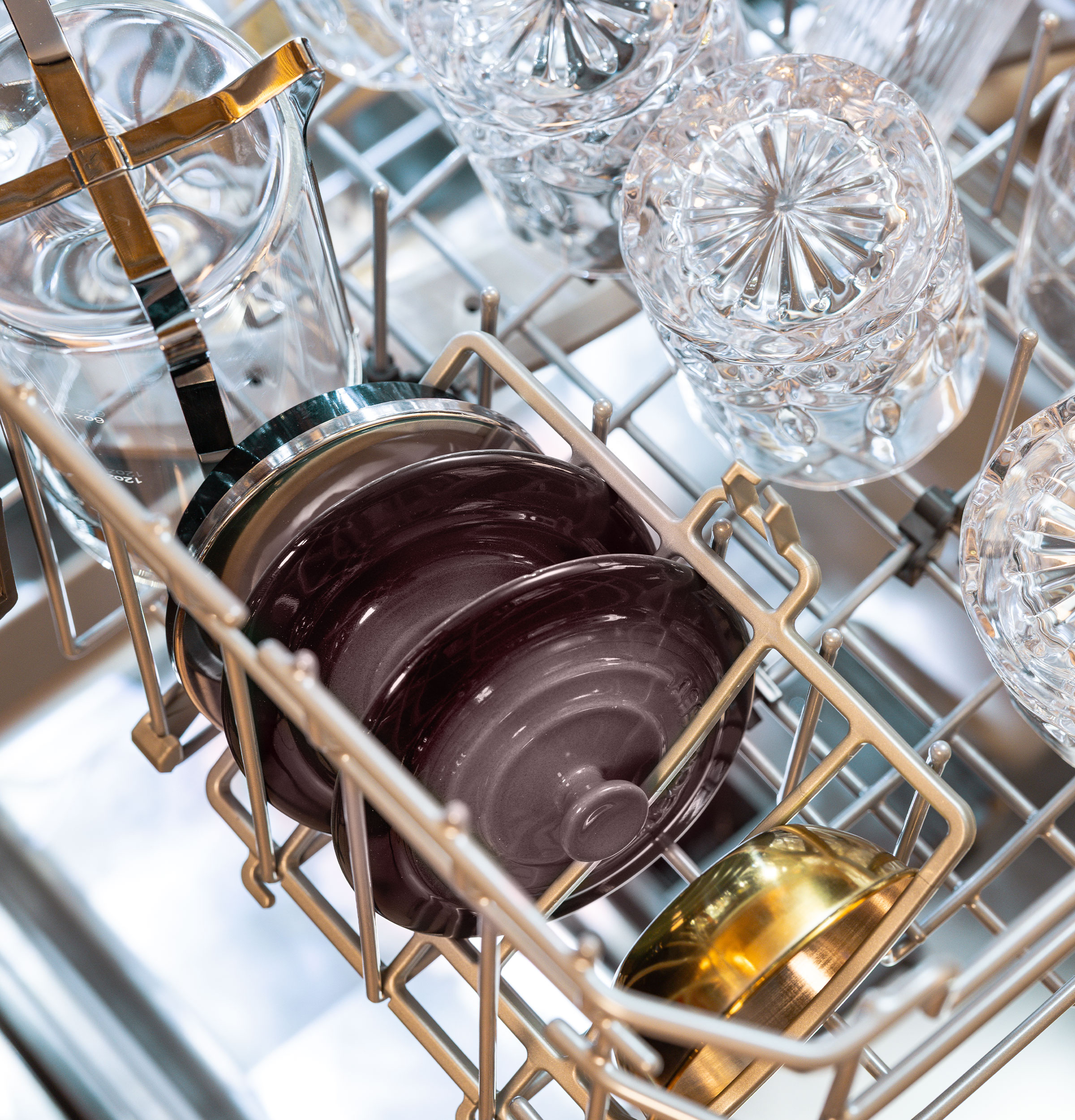

LOWER RACK
- Ball-Tip Tines
- Multi-Position Fold Down Tines
- 1 Rack handle
COLLECTION
Designer
INTERIOR LIGHTING
LED
RACK FEATURES
Ball-Tipped Tines,2 Fold-Down Tines - Lower,Adjustable Upper Rack,3 Piece Silverware Basket
FLOOR PROTECTION
Floor Protect with Alert
LEVELING SYSTEM
Front Adjustable Leveling Legs
NUMBER OF CYCLES
10
NUMBER OF OPTIONS
11
WATER FILTRATION SYSTEM
100% Filtration with Hard Food Disposer and Removable Filter
NUMBER OF PLACE SETTINGS
16
OU CERTIFIED
No
WASH SYSTEM FEATURES
Variable Speed Dual Pumps and Motors,90+ Water Jets with 6 Pressurized Wash Zones,3 Pressurized Wash Arms (Upper Nozzle, Middle Wash Arm, Variable Pressure Lower Wash Arm),Bottle Wash Jets,Dedicated Flatware and Utensil Wash Jets,Third Rack Wash Manifold,Automatic Temperature Control with Hidden Heater,Hard Food Disposer with Removable Filter
PRODUCT TYPE
Built-In
RACK COLOR
Silver
DETAIL
- Sabbath Mode : Yes
- WiFi Connect : Built-In
- Wash System : 900 Series
- Sensor : Clean Sensor
- Showroom Power Mode : Yes
- Tub Type : Tall Tub
- Tub and Door Liner : Stainless Steel

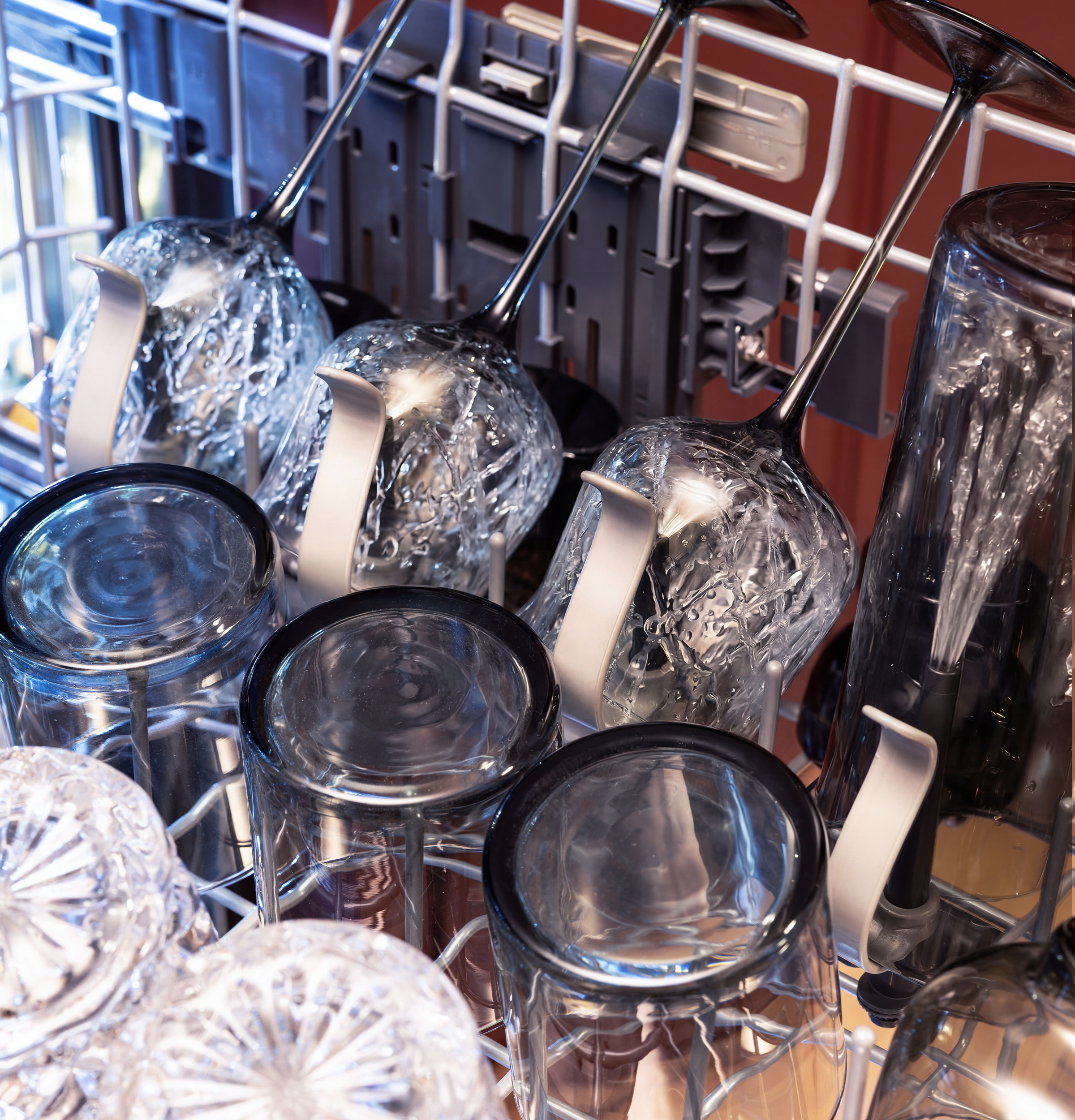

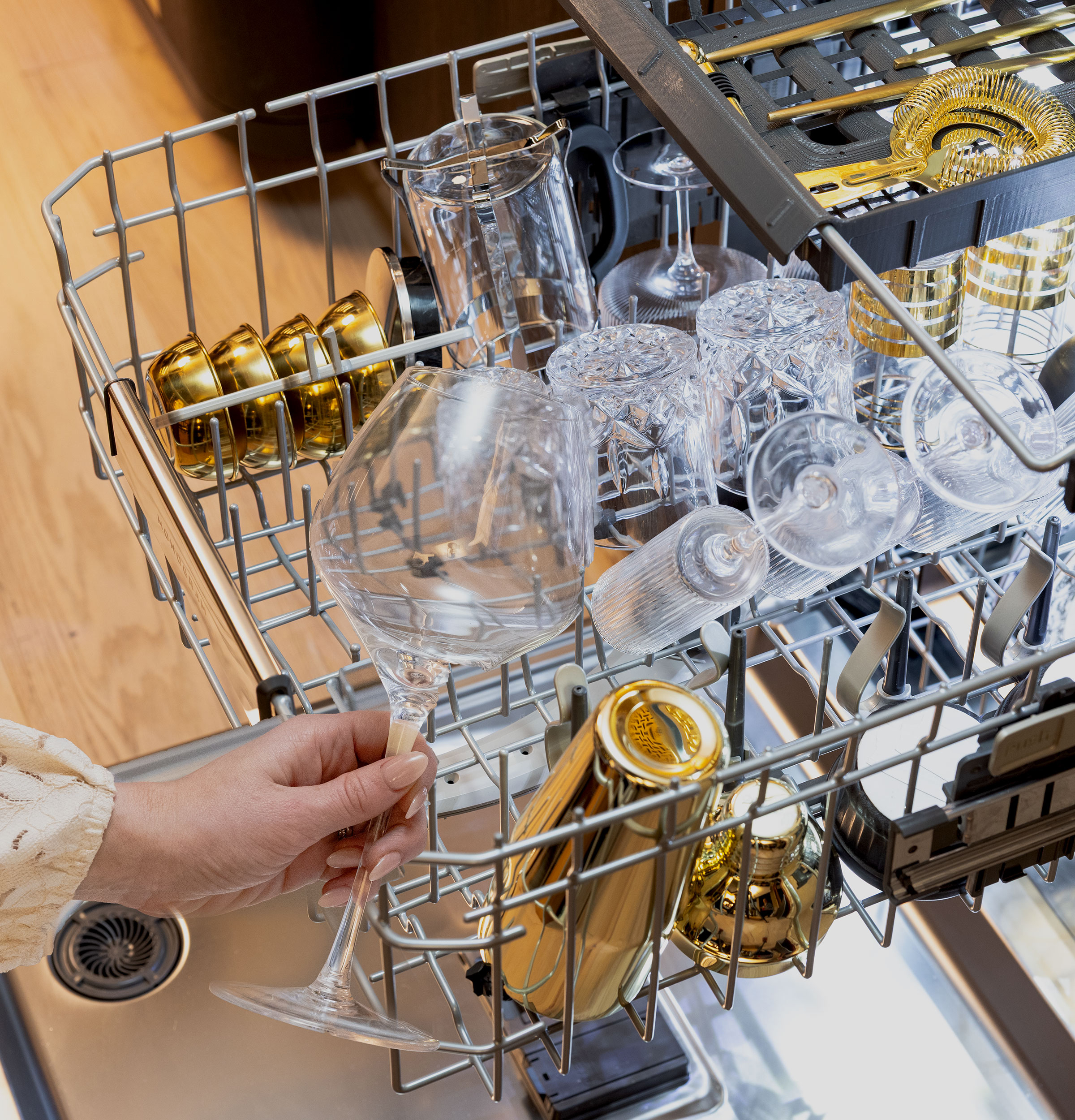

- Upper Rack : Premium Height Adjustable,Ball-Tipped Tines,2 Stem Safe Shelves,1/2 fixed tines, 1/2 fold down tines,1 Rack handle
FEATURES
DUAL DRY SYSTEM
A precise drying system, featuring dual fans and heaters, gently and efficiently dries even the most challenging items, including champagne flutes
HYDROSAVE™ CYCLE
Reduces water usage by more than 25%**, ideal for conserving resources and efficiently cleaning lightly soiled dishes. **Compared to Normal Cycle 4-place setting soil load

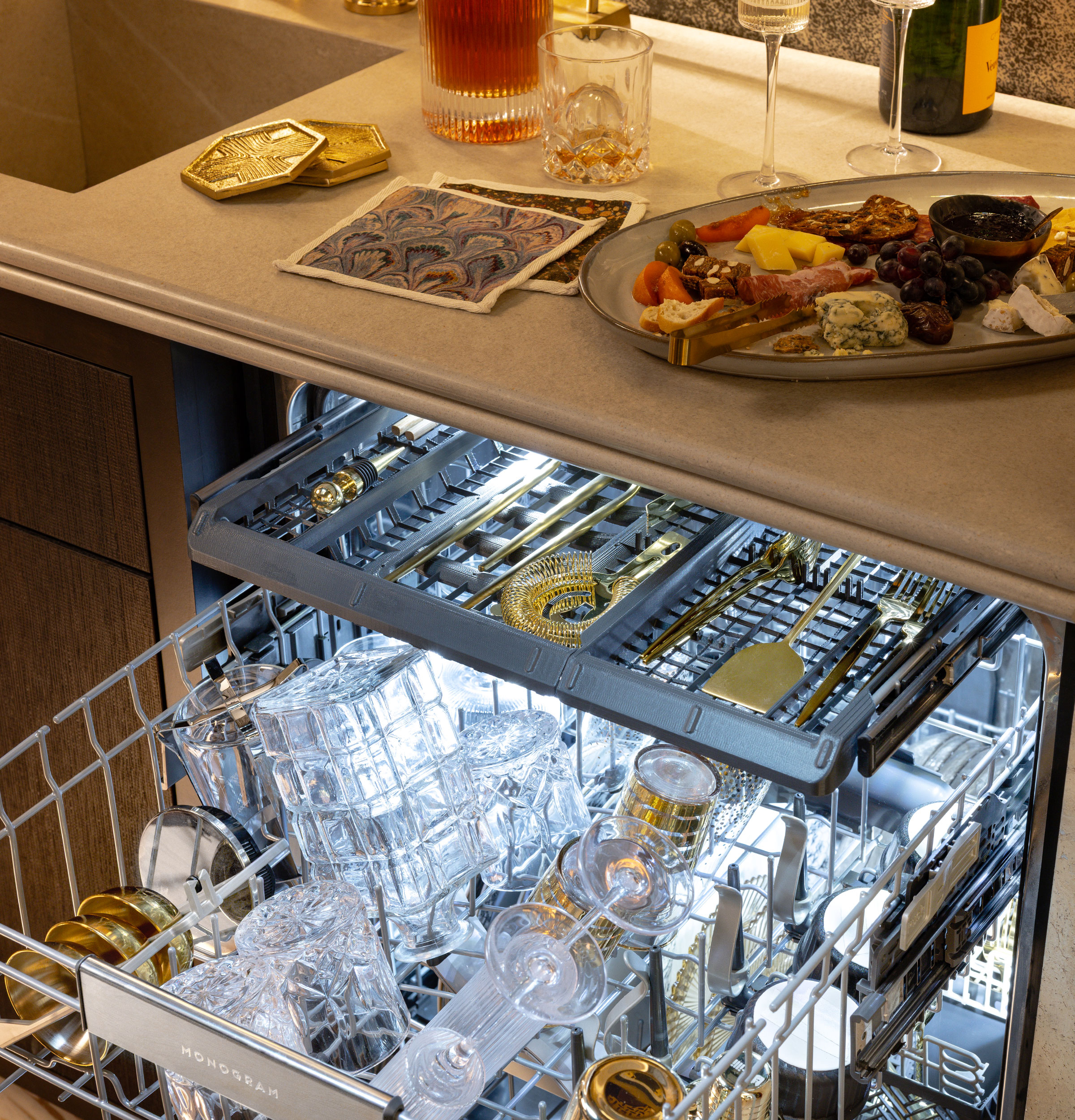

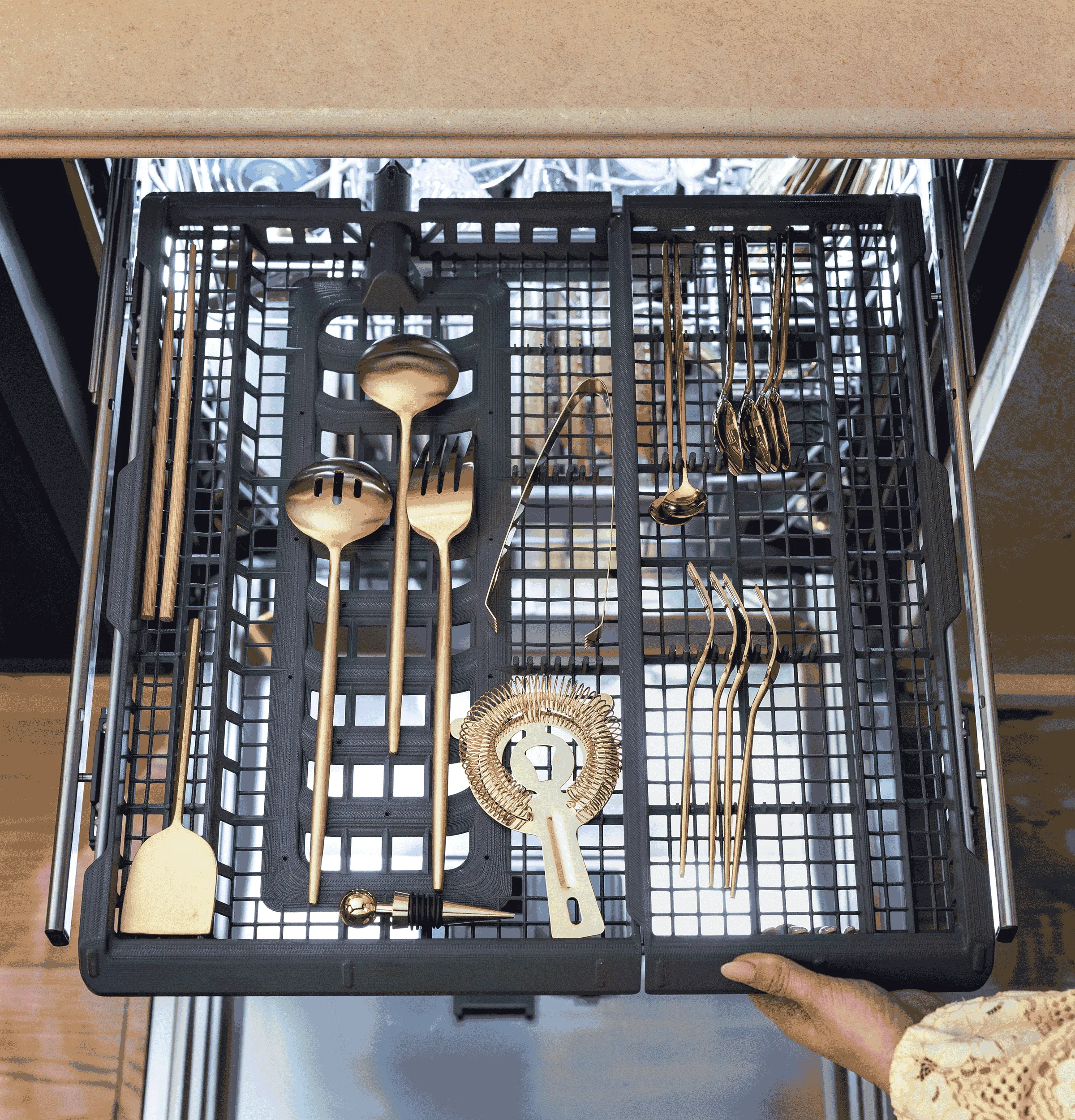

ENTERTAINER'S VERSATILE THIRD RACK WITH WASH MANIFOLD
The smooth-gliding, full-extension third rack offers added flexibility for larger items below, with an integrated wash manifold that ensures utensils are precisely spaced and thoroughly cleaned

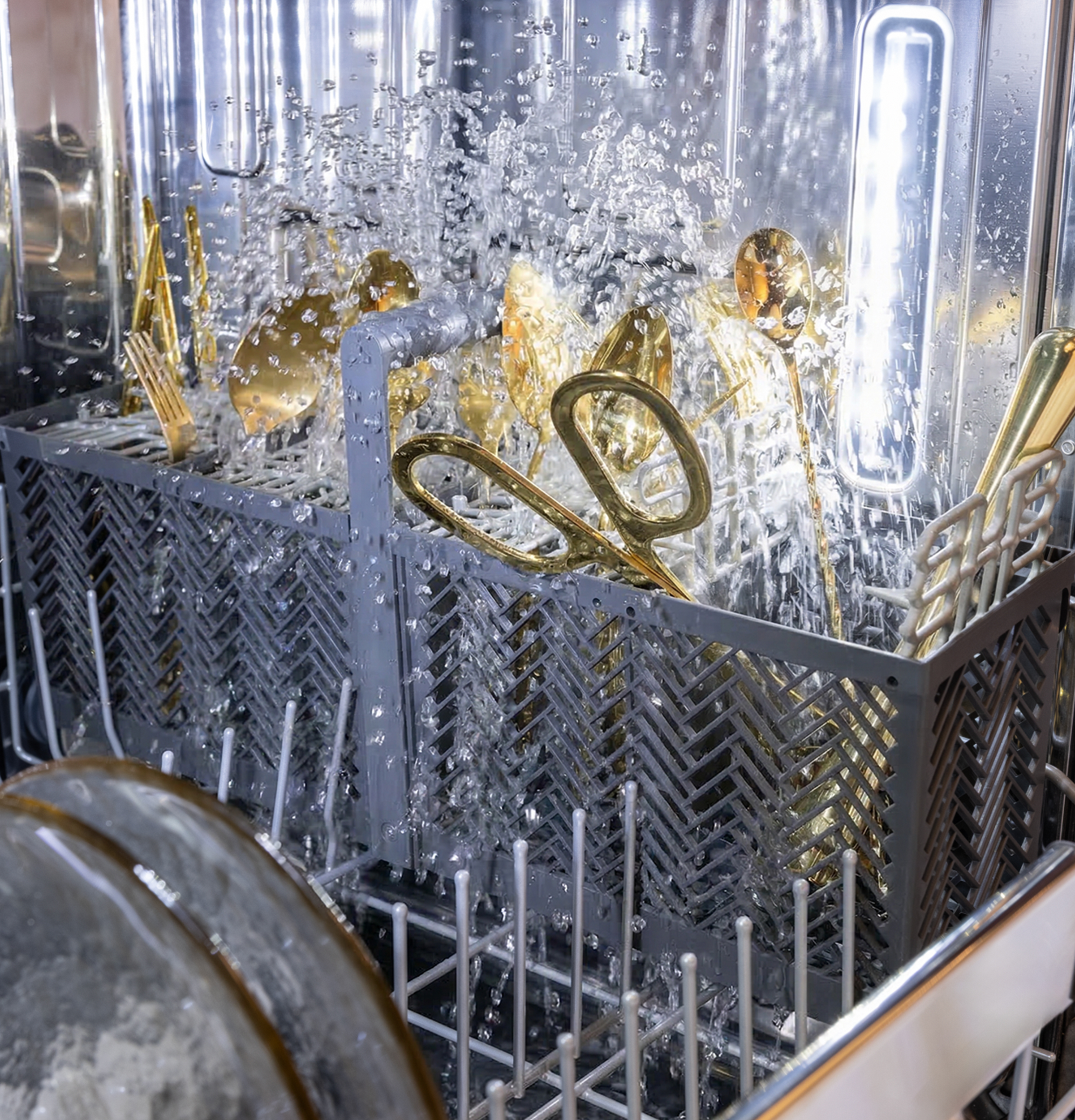

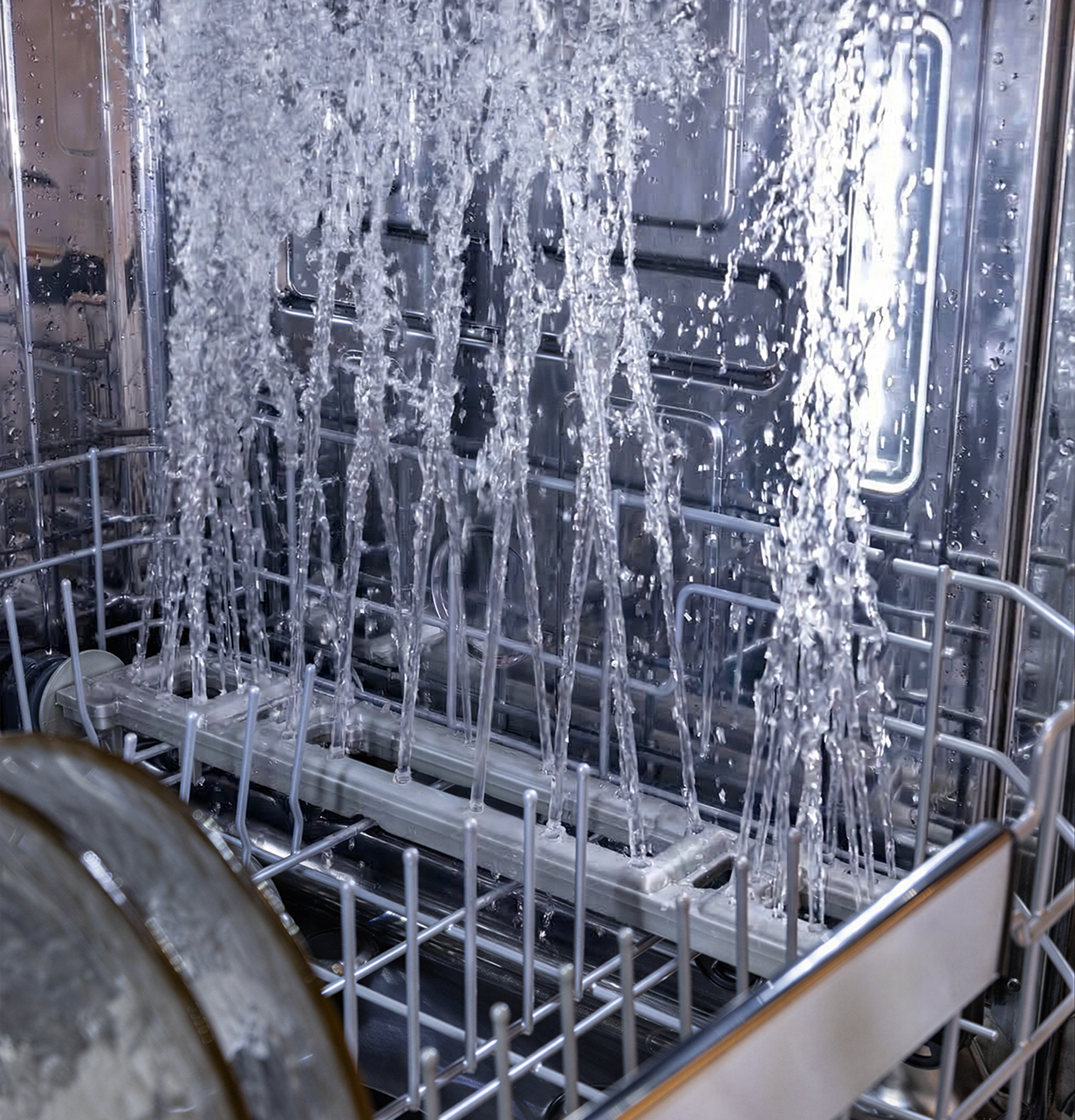

ADVANCED WASH SYSTEM
Over 90 powerful wash jets, including dedicated utensil and bottle jets, plus a hard food disposer deliver a 360° clean to every corner of the dishwasher

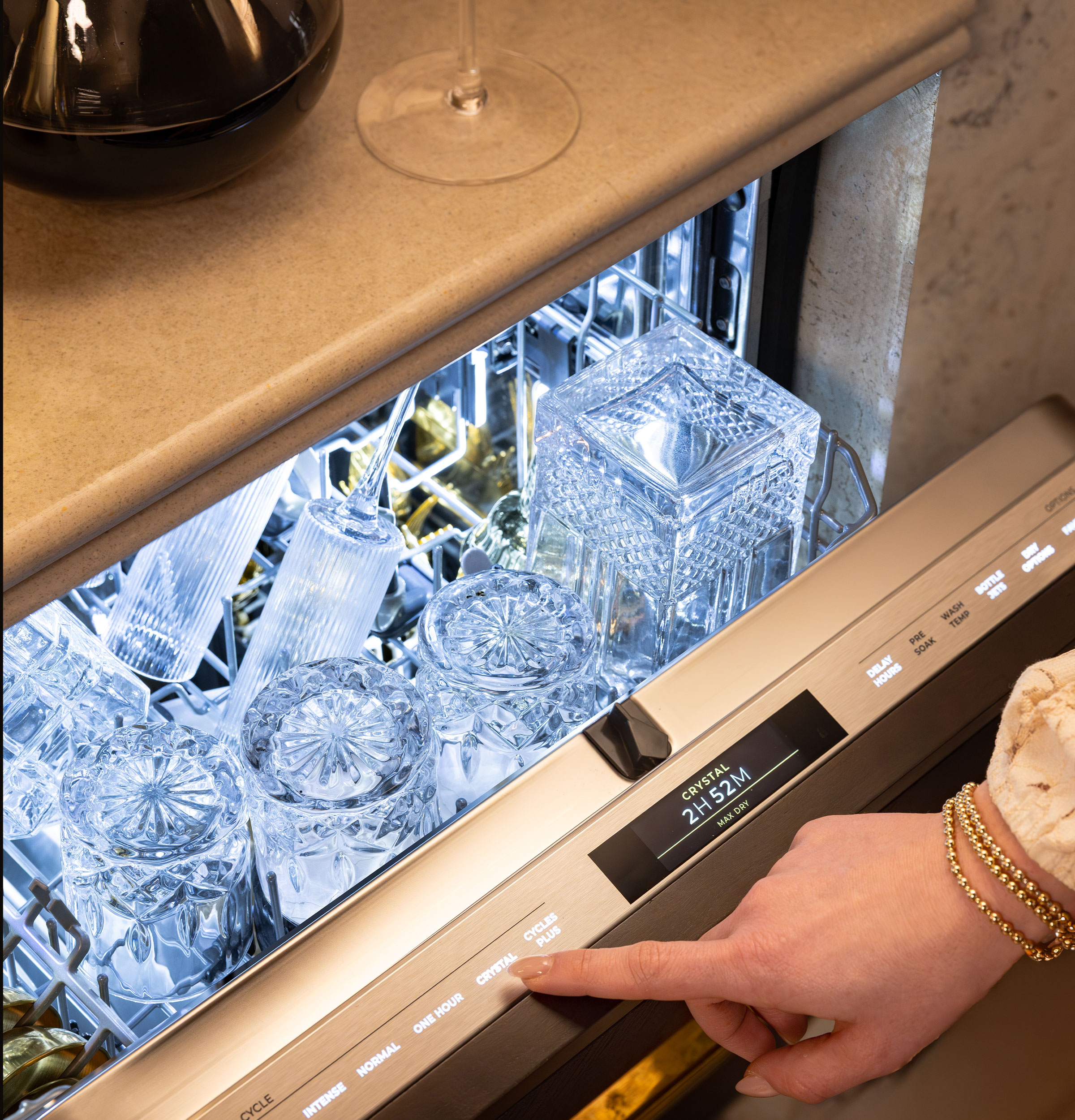

TAILORED WASH CYCLES
Designed for hosting and everyday use, featuring a dedicated Crystal Cycle along with specialty options such as PrepRinse™ and Dishwasher Cleaning for added care and convenience
37 DBA QUIET OPERATION
Harmonizing power and serenity, engineered to deliver flawless cleaning at a quiet 38 dBA in Normal cycle and 37 dBA in Quiet cycle, making this the quietest dishwasher in the industry* *Based on the Quiet Wash Cycle achieving 37dba. Industry defined as residential dishwashers sold in North America, assessed January 1st 2026

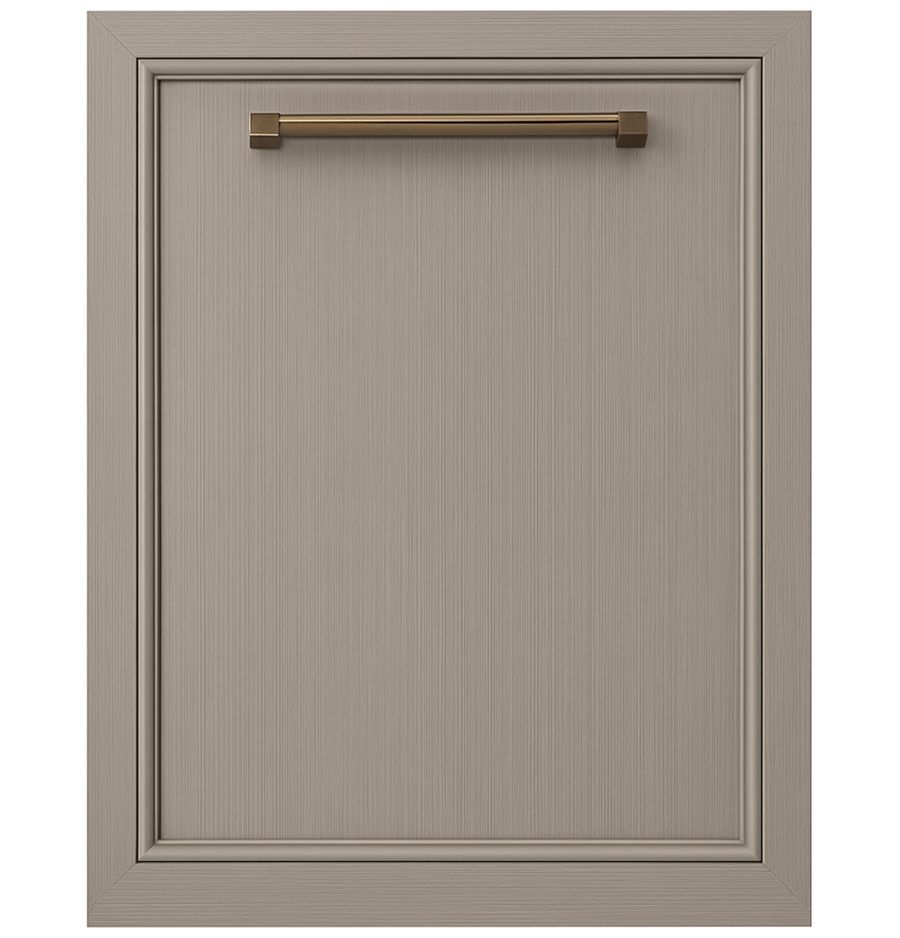

COMPATIBLE WITH MONOGRAM HANDLES
Choose a custom handle or elevate your dishwasher's look by selecting a Statement (ZXADH1STYSS) or Minimalist (ZXADH1MNYSS) Collection handle or one of our Designer Collection handles in Brass (ZXADTH1PVB1) or Titanium (ZXADTH1PVT1), SOLD SEPARATELY and require the Dishwasher Handle Installation Kit (ZXADIIY) for install
KEY FEATURES

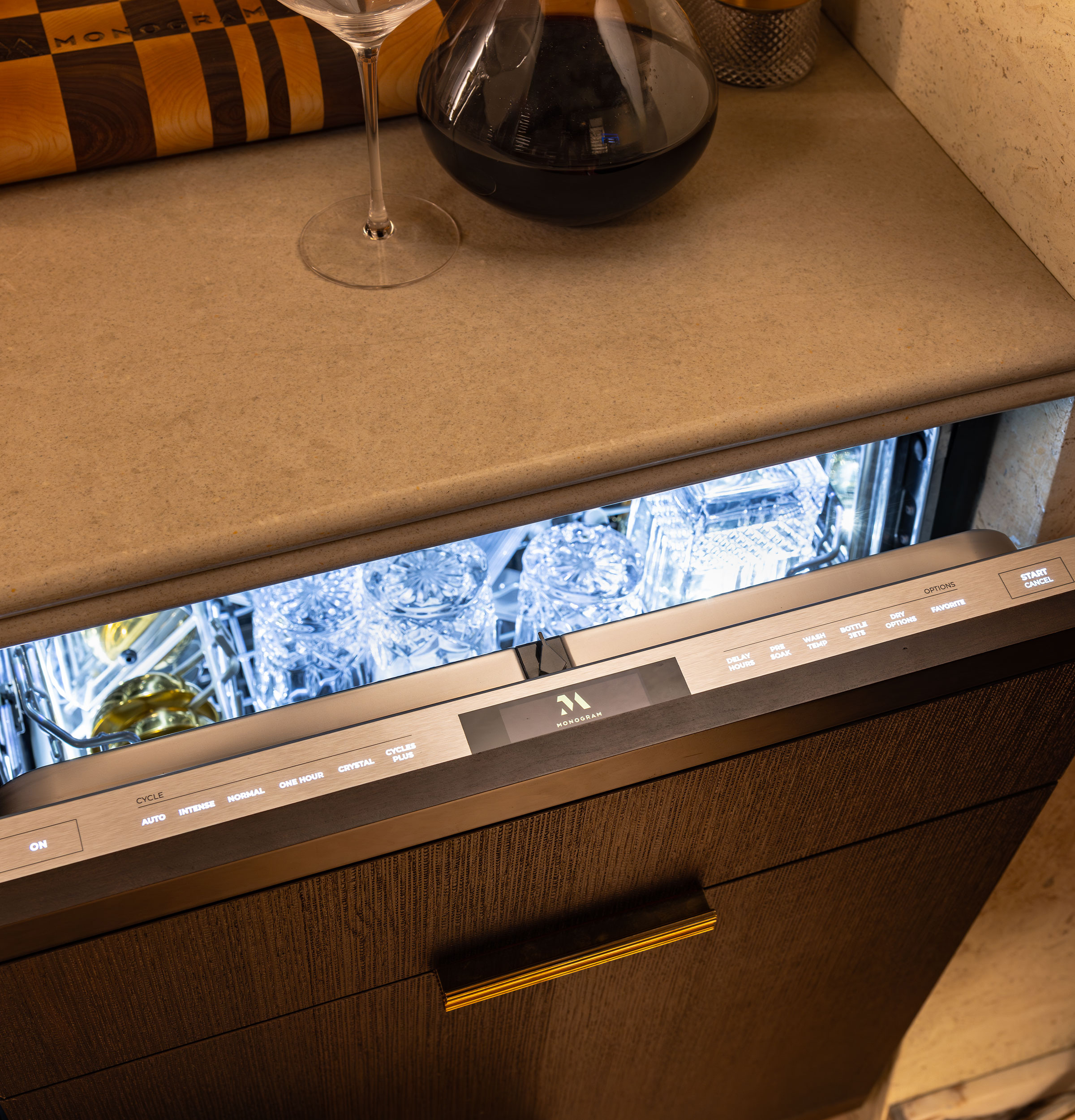

- Control Type : Intuitive Touch Controls with Brilliant LCD Screen
- Dispenser : Rinse Aid with Indicator and Adjustment,Electronic Low Rinse Aid Sensor
- Connected Capabilities : Amazon Alexa,The Google Assistant,IFTTT,Amazon Dash Replenishment,Sonos,Google Home
- Connected Features : Smart Assist II,Bottle Wash Jets,1/2 Load Wash Zones,Rinse,Cascade Platinum Plus/Shine,Child Lock,Dishwasher Cleaning
- Cutlery Tray : Smooth Glide Full-Extension on Stainless Steel Ball Bearings with Wash Manifold + 1/3 Removeable for Tall Items Below
- Dishwasher Control Features : Hi-Resolution Color LCD Control Display,Last Cycle Memory,Audible End-of-Cycle Signal
- Dishwasher Cycles : Auto,1 Hour Wash & Dry,Intense,Crystal,Normal,Cycles Plus,Favorites,PrepRinse,Dishwasher Cleaning,CASCADE PLATINUM PLUS,HydroSave,Quiet
- Dishwasher Drying Features : Dual Dry System (2 Fans, 2 Heaters) with 3 Settings (Power Dry, Max Dry, Off)
- Dishwasher Options : Delay Start 1-12 Hr.,Pre Soak,Wash TempBoost,Sani (Certified to NSF Standard 184),Heated Dry,Wash Zone Upper Only,Wash Zone Lower Only,Start/Reset,Bottle Wash,Silverware Wash
