JAO-21 SCREEN LED PANEL
JAO-21 SCREEN LED PANEL
21.5" Smart Terminal for the patient bedside
Barco's JAO21 bedside terminal has been specifically designed for use in a clinical environment - by patients as well as clinical staff. It offers multi-touch access to a host of tools and services - all presented on a high-quality LED panel for the best viewing comfort.
INFORMATION
BRAND
Barco
TYPE
a-Si TFT-LCD
SOFTWARE DRIVER
- Linux
- Windows
WEB CAMERA/MICROPHONE
- 2M webcam with Digital Mic
- With Camera private latch
DIMENSIONS
- Depth : 45 mm (1.8 in)
- Width : 529.8 mm (20.9 in)
- Height : 346.7 mm (13.6 in)
LUMINANCE
250 cd/m² (Typ.)
VIEWING ANGLE
89/89/89/89 (Typ.)(CR≥10)
ARS5 MOUNTING I/O
- 1x RJ45
- 1x Power Jack
- 1x USB3.0 Type A
- 1x 6P6C RJ11 service call
IP RATING
IP65 front
BACKLIGHT
WLED [17S4P] , 30K hours
AUDIO JACK
- USB Audio Chip
- Dual Earphone Jacks, one with Mic input
STORAGE
M.2 SSD (Factory default 64GB )
CPU
Intel Kabylake-U 3965U on board
WEIGHT
- With JAOHandset : 6.4 kg (14.11 lbs)
- Without JAOHandset: 5.92 kg (13.05 lbs)
POWER INPUT
- Input : 100~240 Vac / 50~60Hz
- Output : 90W Medical Adapter (19V @ 4.74 A Adapter)
PHONE CRADLE & SMART HANDSET
Separated Packing for Phone cradle with JAOHandset
TEMPERATURE
- Operation Temperature : 0~40°C (20~80 % RH, non-condensing)
- Storage Temperature : -20~50°C (20~80 % RH, non-condensing)
MATERIAL
- Metal Bracket
- Easy wipe design and anti-bacterial PC-ABS Plastic
SYSTEM MEMORY
- 2x DDR4 slots
- Up to 32G ( Factory default is 4GB)
OPERATING SYSTEM
- Secondary : Windows 10 IoT
- Primary : Ubuntu LTS 16.04 or after
RESOLUTION
FHD (1920x1080)
DOWNLOAD
↓ Data Sheet
SPEAKER
Speaker 2W*2
3D GRAPHICS
Integrated Intel Graphic
COOLING
Fanless
CONNECTIVITY
1x Intel GbE LAN
TOUCH SCREEN
PCAP multi-touch with 10 fingers (supports gloves touch)
OPTIONAL EXTENDED CABLES FOR ARS5
- USB Cable x1
- RJ45 Cable x1
- RJ11 6P6C Cable x1
- VESA Mounting Screws : 2x Thumbscrew
WARRANTY
24-months standard warranty Up to 5-years extended warranty contracts available
MOUNTING
75x75 & 100x100mm VESA mounting, Compatible with ARS5 Arm Head
WI-FI / BT
Wifi 802.11 a/b/g/n/ac +Bluetooth 4.2
PACKAGE DROP
Follows ISTA 2A STD IEC60068-2-32, 1 corner, 3 edges and 6 faces
COLORS
- Chassis plastic housing : Barco White
- Touch border : Black, Pantone#: RAL9004
- Logo and icon screening texture : Pantone#: RAL7047
RFID / SMART CARD READER
- Optional 2nd Smart Card Reader
- Combo Smart card + High frequency RFID reader
- RFID reader supports both RFID card tapping and parking
ACCESSORIES INCLUDED IN THE PACKING - PSU
- EU Power Cord
- Power Cable extended cable
- 90W Medical Adapter (19V @ 4.74 A Adapter)
CERTIFICATIONS
EUROPEAN STANDARDS APPLIED PRODUCT SAFETY
EN 6060-1: 2006+ A11: 2011 + A1: 2013+ A2: 2014
EUROPEAN HARMONIZED STANDARDS APPLIED PRODUCT SAFETY
EN 62368-1
RADIO
- EN 300 328: V2.2.2
- EN 301 893: V2.1.1
EMC
- EN 60601-1-2: 2015
- EN 301 489-1: V2.2.3
- EN 301 489-17: V3.2.2
HEALTH
EN 62311:2008
ROHS
EN 63000:2018
AUSTRALIA/ NEW ZEALAND CERTIFICATION
- RCM SDoC
- Transfer CE to AU AS/NZS 4268, and include WIFI 5GHz Band 4
DETAIL
DESIGNED FOR THE PATIENT ROOM
Featuring an easy-clean design, and a front screen that is IP-65 rated, this bedside terminal fully complies with the latest hygiene and safety standards (EN/UL 60601-1 certified*).
A PERSONALIZED PATIENT EXPERIENCE

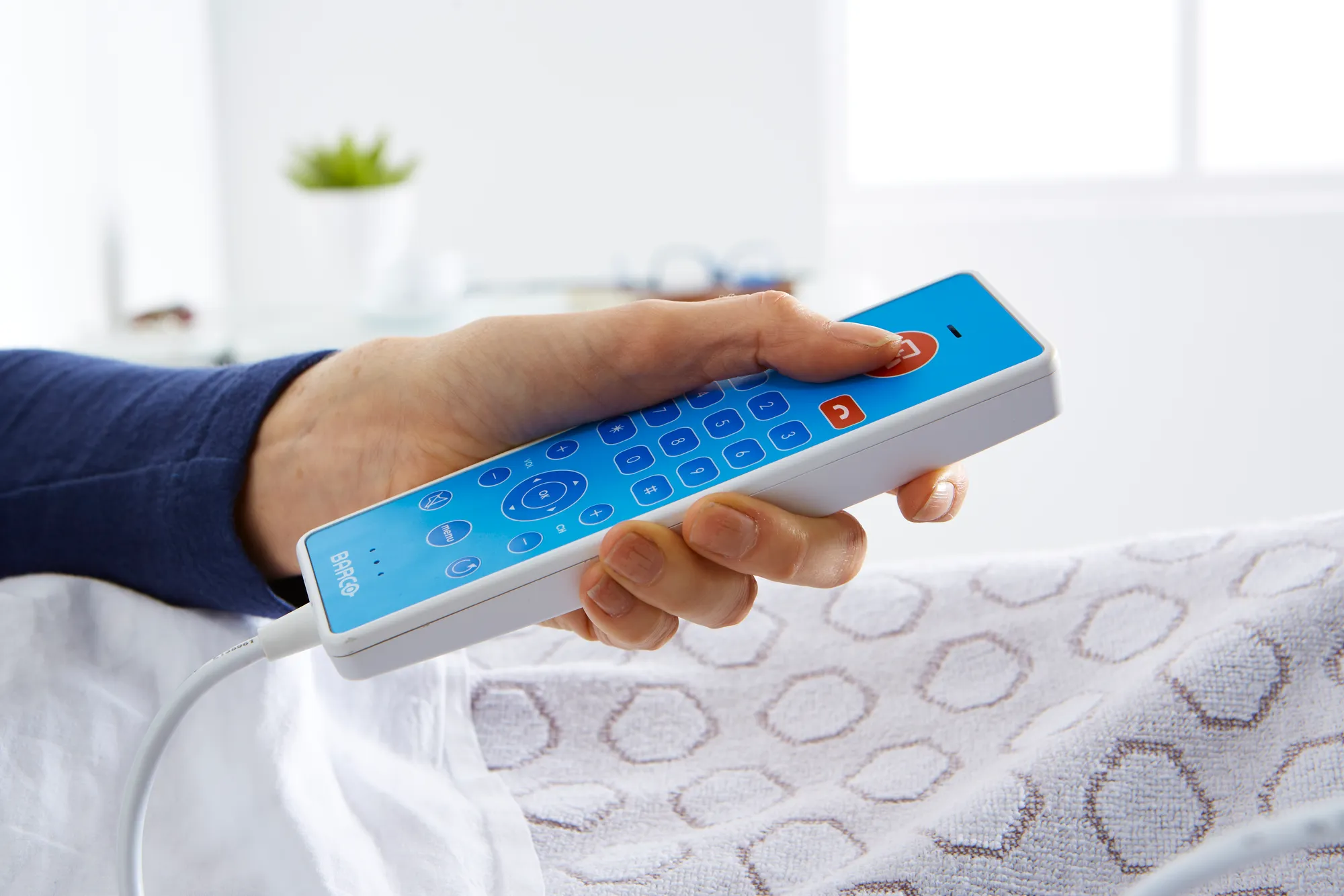

You can order JAO21 with a smart handset, featuring an integrated keypad and optional service call button to boost patient comfort even more. Thanks to the integrated smart card and RFID reader for patient authentication, patients can access a host of personalized services, such as meal ordering, medication information, and information about the care team. That's exactly how JAO21 enables the most personalized patient experience.
ENGAGING AND EMPOWERING PATIENTS

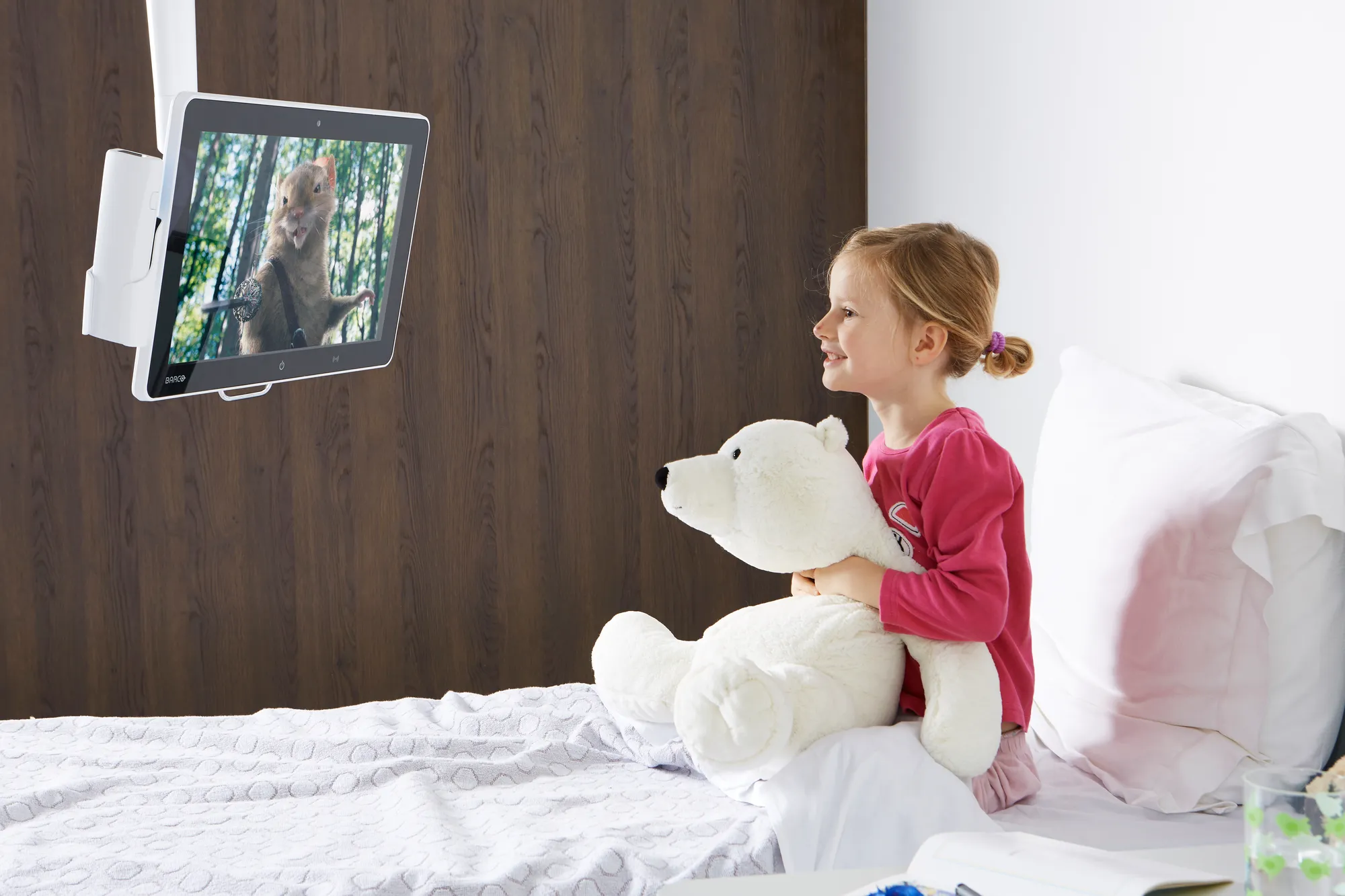

JAO21 brings patients everything they need for an incredible infotainment experience. Thanks to this bedside device, patients won't have to miss their favorite TV or radio show while in the hospital. They can surf the net, play games, order video-on-demand, and much more.
The terminal's full HD video playback capabilities and HDM™ input to connect game consoles, Blu-ray players, smartphones, or tablets all contribute to keeping your patients happy during their hospital stay.
AT YOUR SERVICE, FOR YOUR CONVENIENCE
JAO terminals have been designed by experts in software for interactive patient care. It means we know how to make hardware and software work together. With our software development kit, we provide the perfect tool for any patient room.
What's more, thanks to our Custom Configuration Program, we can customize every bedside terminal to match your specific needs.
