Kratki Wood Burning Cast Iron Stove Kratki K10 Ø 150 10 Kw
WOOD BURNING CAST IRON STOVE KRATKI K10 Ø 150 10 KW
WOOD BURNING CAST IRON STOVE KRATKI K10 Ø 150 10 KW
Maximum Use Of Energy
Maximum use of heat and trouble-free operation thanks to the walls of the device made of high-quality cast iron with a thickness of 8 mm.
Combustion of fuel particles thanks to the deflector, which extends the exhaust gas path.
INFORMATION
BRAND
Kratki
PRODUCT TYPE
Stove
FRONT
Cast iron front with ceramic glass
NUMBER OF PIECES IN A PACKAGE.
2
SKU
KOZA/K10/150
EAN
5901350054079
EQUIPMENT
Ashpan
ADDITIONAL CLOSING
No
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
PHYSICAL PARAMETERS
- Width : 38.9 cm
- Depth : 73 cm
- Height : 56.8 cm
WEIGHT
109 kg
NOMINAL POWER (KW)
9.5 kw
THERMAL EFFICIENCY (%)
75 %
FLUE GAS TEMPERATURE
323 oC
OPTIMAL LOG LENGTH
300 mm
MAX BILLET LENGTH
35 cm
CERTIFICATIONS / COMPLIANCE
Certificates : Ecodesign
BASE MATERIAL
Cast iron
COLOR
Black
DOOR OPENING
Left
OPTIONAL EQUIPMENT
None
ENERGY CLASS
A
EEI
98.8
DIAMETER OF THE FLUE GAS OUTLET
150
HEAT OUTPUT FOR SPACE HEATING
9.5 kW
SEASONAL ENERGY EFFICIENCY
65 %
CO EMISSION
1825 mg/m3
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.147
POLLEN EMISSION
9 mg/m3
NOX EMISSION
128 mg/m3
SAFETY AT THE HIGHEST LEVEL
- Decorative fence helps to maintain tidiness and protects against falling out of wood.
- The Classic front of the stove is equipped with heat-resistant ceramics that can withstand temperatures up to 660°C.
OGC EMISSION (MG/M3)
86 mg/m3
FLUE GAS MASS FLOW (G/S)
9.1

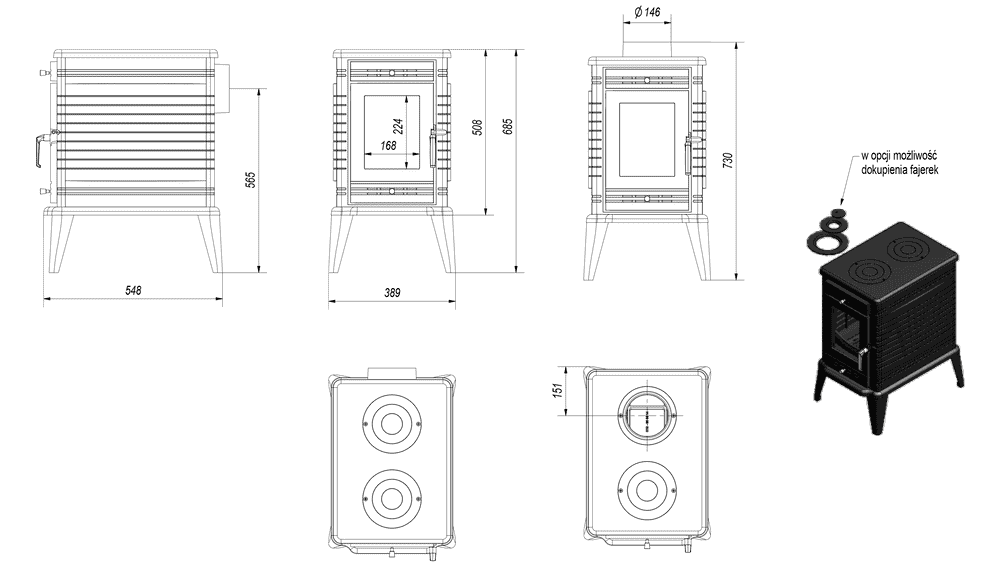

TECHNICAL DRAWING
CONVENIENT TO USE
- The cold handle system allows for disassembly when the stove is in use.
- Reduced soot deposition through a system of pure glass (air curtain).
- Ash drawer/ashtray, where burnt wood remains are gathered and grated for easy ash removal.
- The possibility of different assembly, thanks to the adjustable flue gas outlet from the back or top of the stove.
