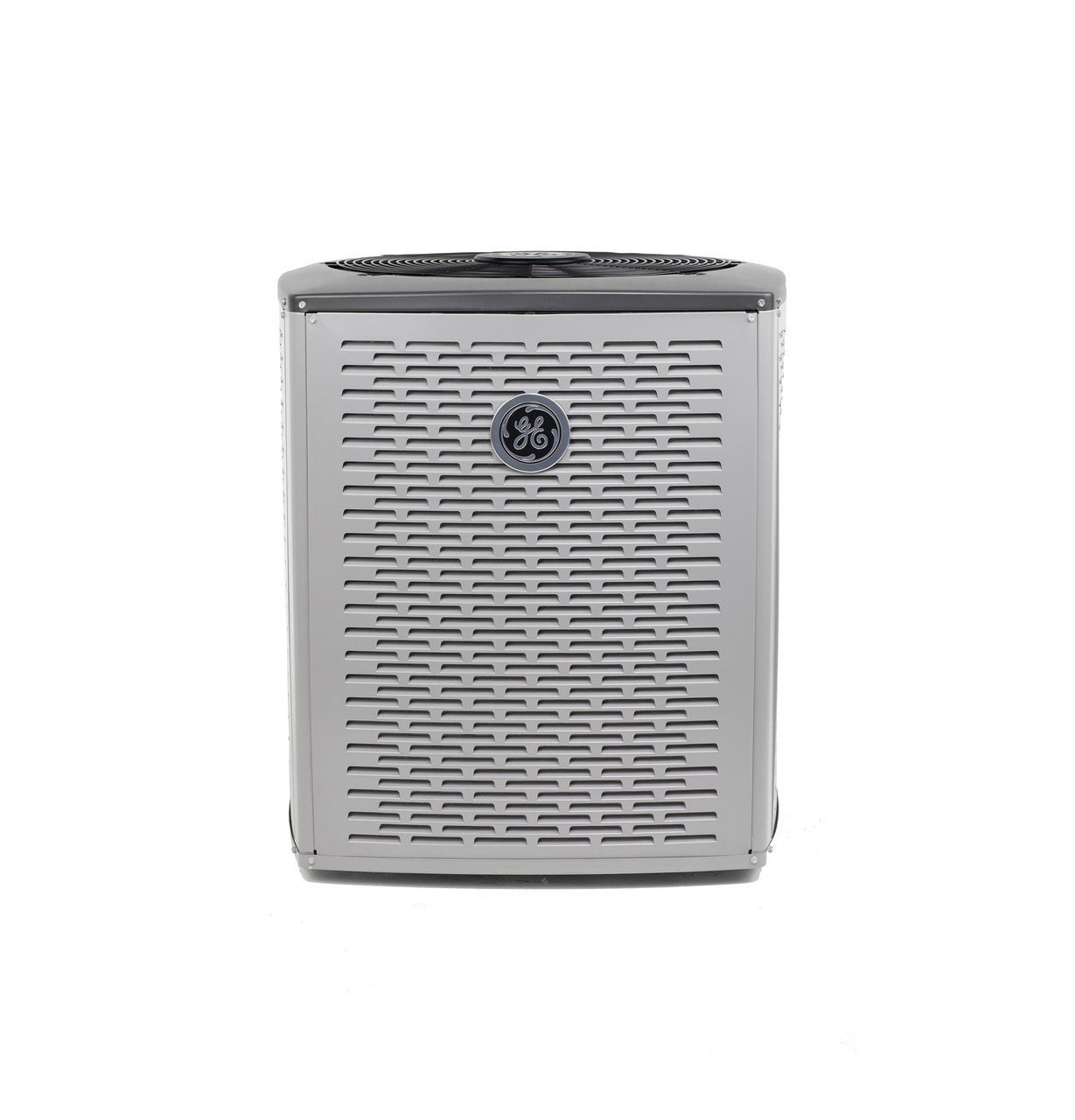

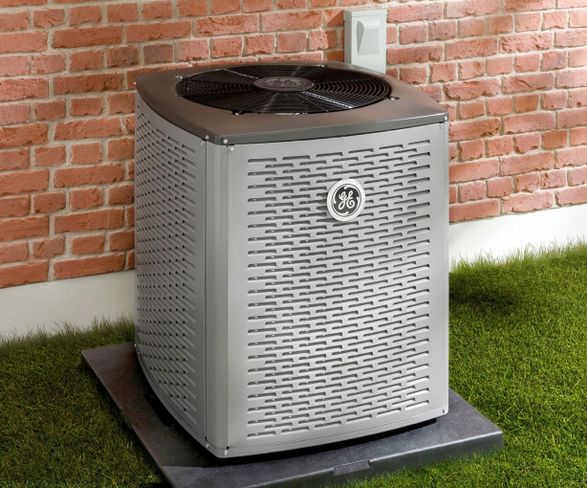

Ge Appliances 5-ton 23 Seer Inverter Air Conditioner
5-TON 23 SEER INVERTER AIR CONDITIONER
5-TON 23 SEER INVERTER AIR CONDITIONER
NS23A60MA4
INFORMATION
BRAND
Ge Appliances
PRODUCT TYPE
Air Conditioner
HIGH TEMPERATURE
Internally protected against high temperature motor overload conditions
COMPRESSOR TYPE
Inverter
MODEL
NS23A60MA4
COLOR APPEARANCE
Gray
LABOR WARRANTY
No Warranty

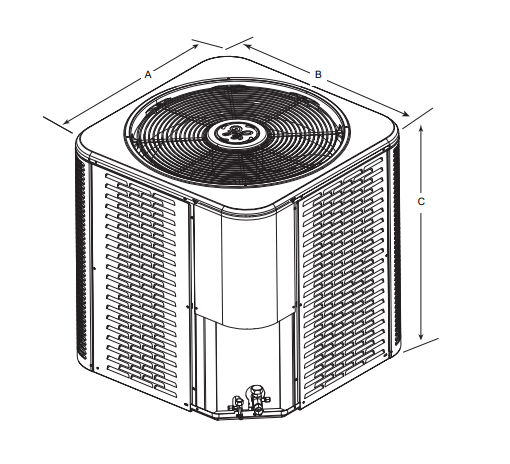

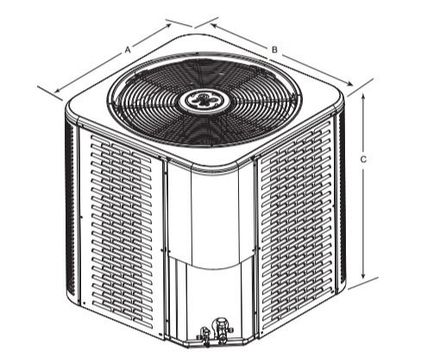

DIMENSIONS
- A Overall Width : 37.8 in
- B Overall Depth : 35.8 in
- C Overall Height : 43.8 in
NET WEIGHT
147 lb
APPROXIMATE SHIPPING WEIGHT
157 lb
QUIET OPERATION
The world is noisy. Your home shouldn't be. Inverter options are designed to keep quiet day in and day out.
SHIPPING WEIGHT
300 Lbs
SEER
23

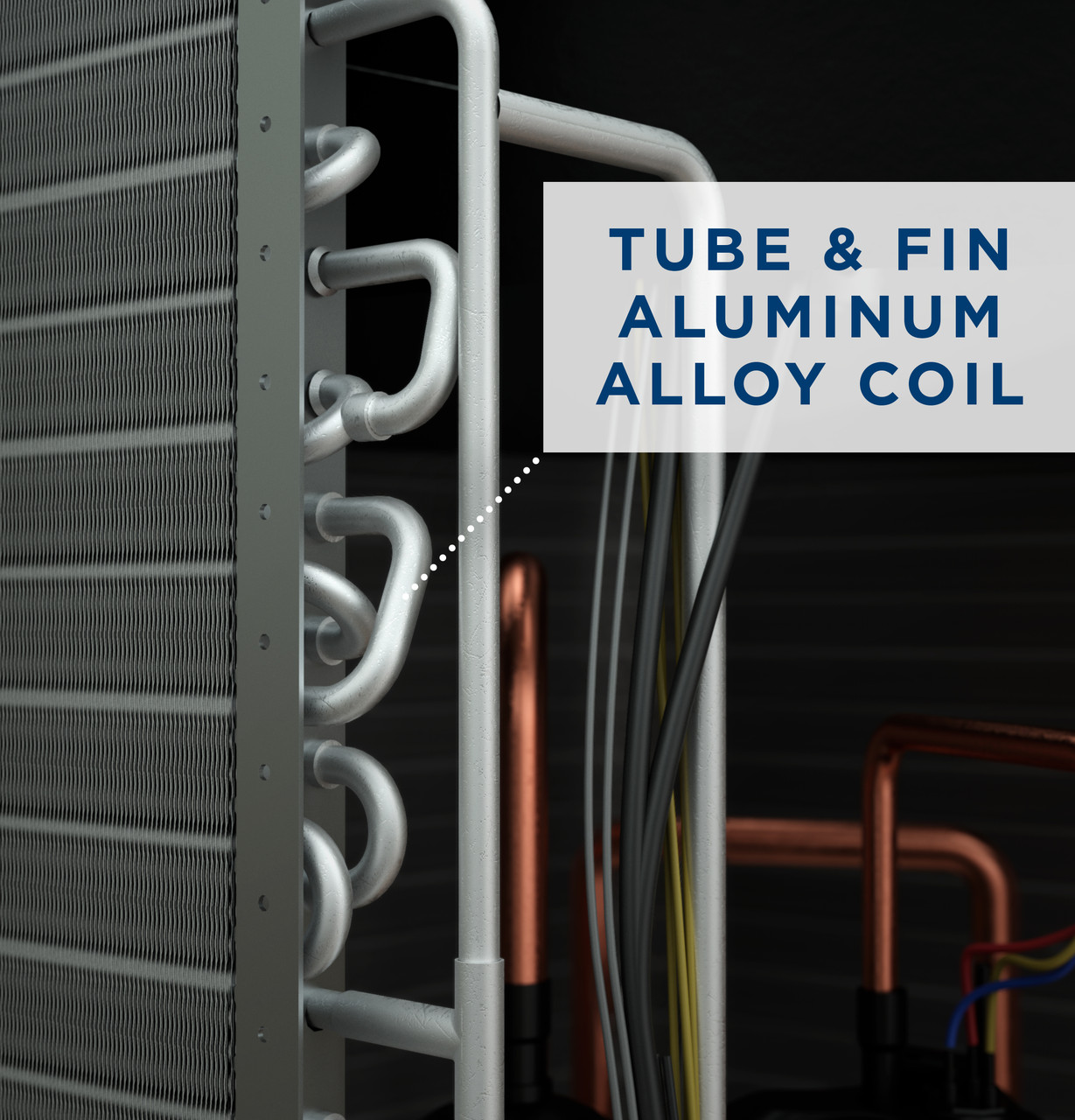

ANTI-CORROSION COILS
Durable tube and fin aluminum alloy coils help ward off corrosion and can help extend the life of your unit.
DESIGN
- Designed to perform in temperatures up to 125°F
- Designed for installation with a standard 24V thermostat and non-communicating equipment
- Offers three cooling operating modes to fine-tune the unit’s performance to the application and consumer’s needs in 24V applications
LOWER ENERGY BILLS
Save money on your energy bills with high efficiency, ENERGY STAR Certified AC/HP.
PARTS WARRANTY
- Limited 5-year entire appliance
- Limited 10-year entire appliance with registration
TONNAGE
5
VOLTAGE/HZ/PHASE
208-230/60/1
VOLTAGE RANGE
197-253
MIN.CIRCUIT AMP
27.4
OUTDOOR FAN MOTOR
- Rated Hp : 1/3
- Nom. RPM : Var. Spd.
- Full Load (Amps) : 2.6
COMPRESSOR
- R410A refrigerant
- Variable rotary speed compressor on 2-, 3-, and 4-ton units
- Grommet-mounted compressor for quiet operation
- Heavy-duty compressor sound blanket for quiet operation
- Inverter-driven scroll compressor on 5-ton units for true variable capacity operation, precision environmental control, and exceptional energy savings.
SOUND POWER1 (LOW)
65
MAX. OVERCURRENT DEVICE (AMPS)
45
SOUND POWER1 (HIGH)
76
REFRIG. CHARGE (OZ.) *
191

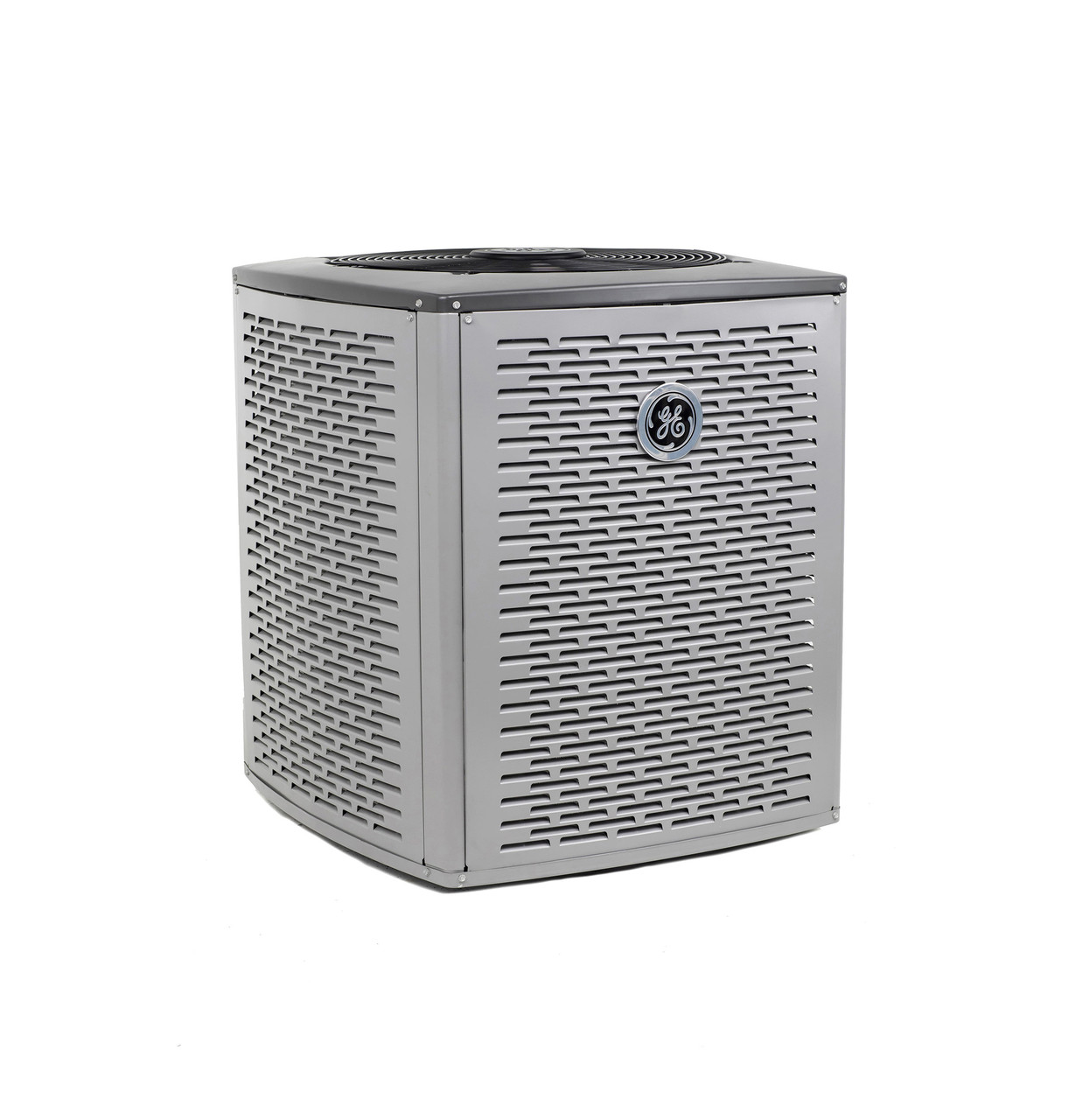

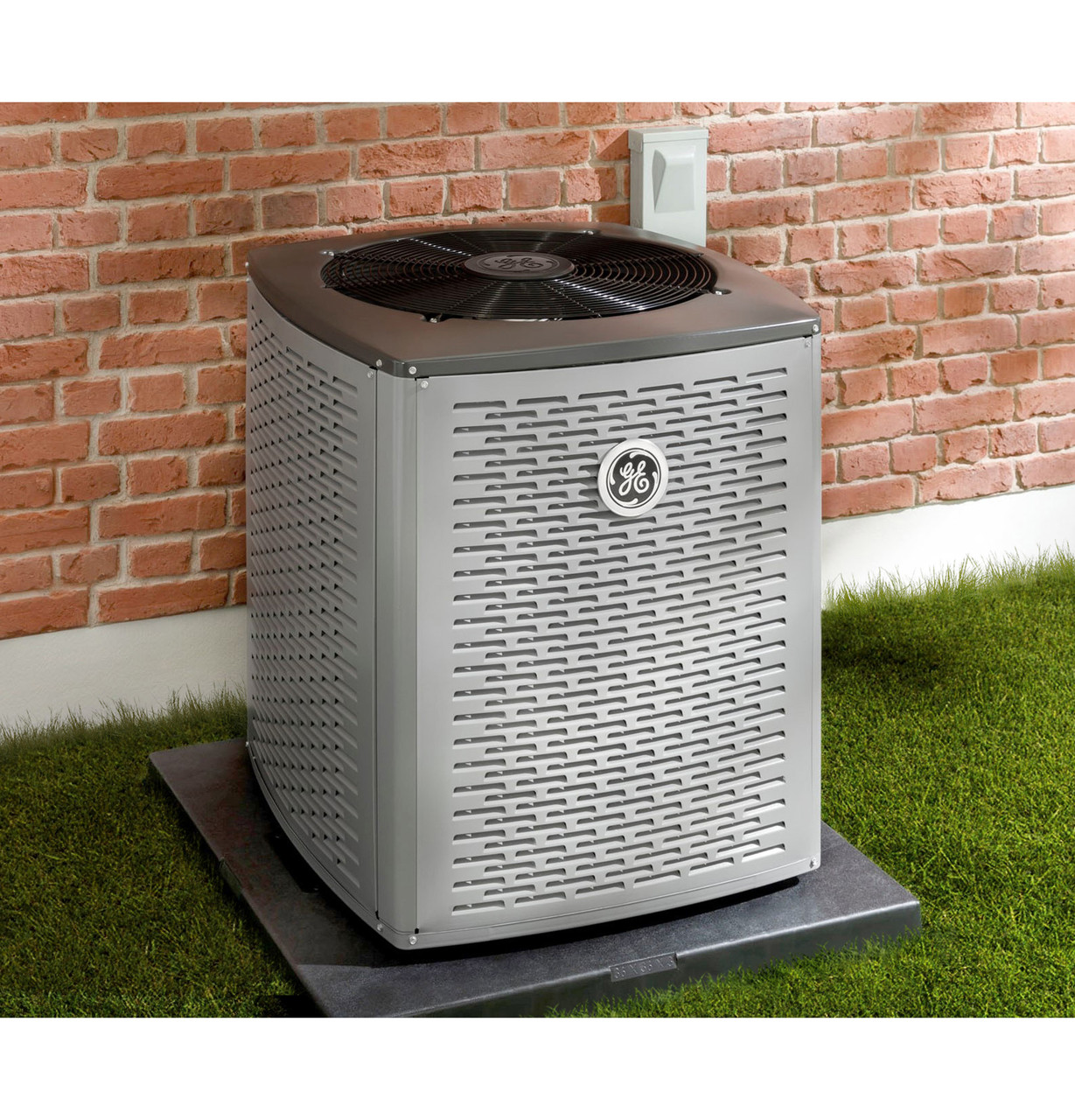

BEAUTIFULLY DESIGNED
You take pride in the way your home looks. We do too - that's why we've styled these units with a modern design to complement your curb appeal.
ESTIMATED SOUND PRESSURE (DBA)2 SOUND POWER1 (LOW)
- One Meter (3.3 feet) : 57
- Two Meters (6.6 feet) : 51
- Three Meters (9.8 feet) : 47
TXV
H4TXV03
SENSIBLE CAPACITY (COOLING)
41,150
ESTIMATED SOUND PRESSURE (DBA)2 SOUND POWER1 (HIGH)
- One Meter (3.3 feet) : 68
- Two Meters (6.6 feet) : 62
- Three Meters (9.8 feet) : 58
EER2 (COOLING)
12.0
AHRI RATED CAPACITY
55.500
DOWNLOADS
↓ Warranty
↓ Sales Guide
↓ Service Manual
↓ Specification Guide
↓ Installation Instructions
↓ Refrigerant Piping Guidelines
FEATURES
TAILORED TO YOU

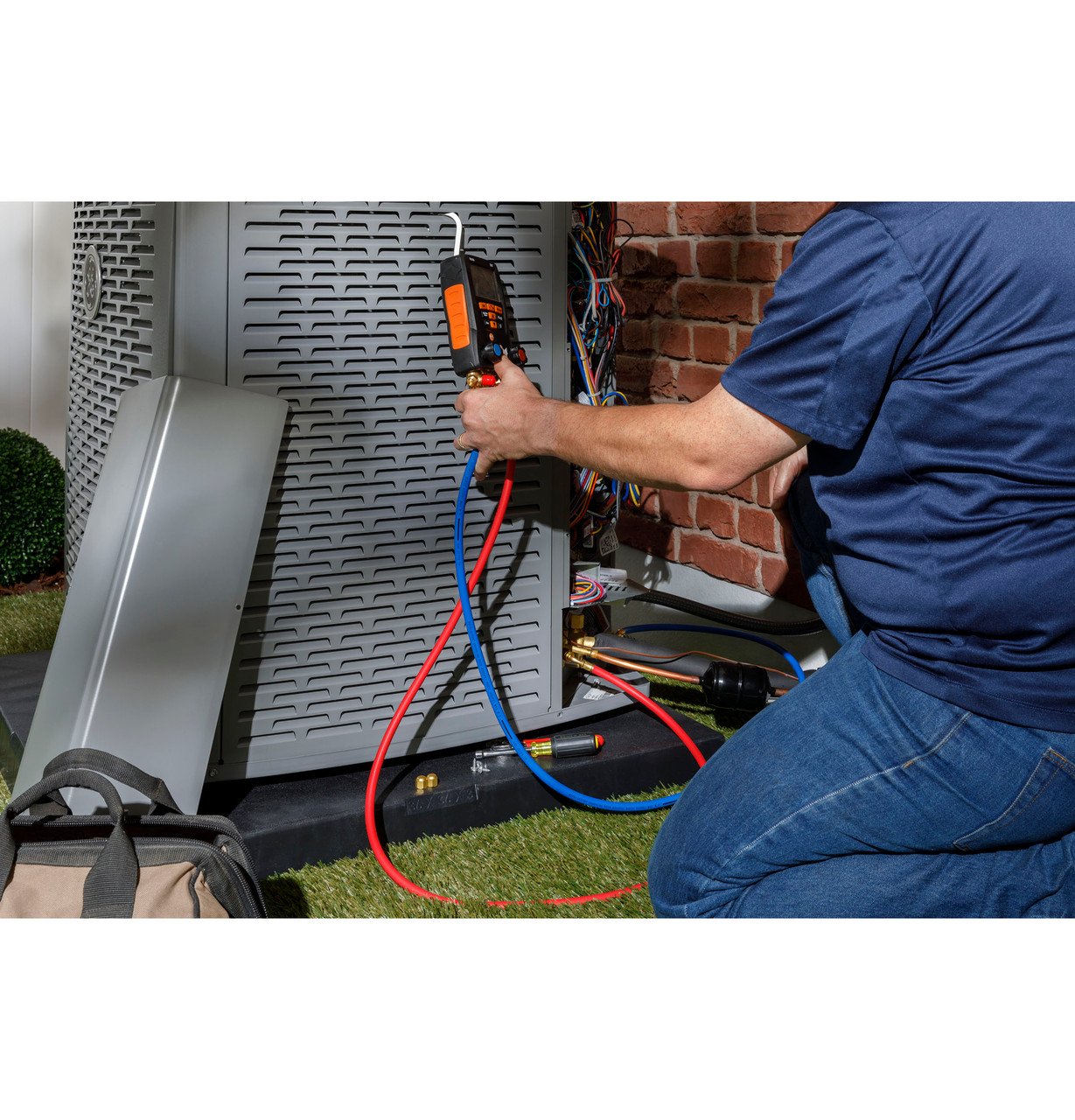

Your installer can choose from five operating modes to dial in the ideal settings for your home, making sure your system runs at peak performance for your unique needs.
MADE TO LAST
We start with high-quality materials and components and then test our units to extreme conditions to ensure they'll perform in your environment, wherever you are. A high-quality cabinet and thicker top grille help prevent damage from hail and other things (like a poorly thrown baseball).
AN ICONIC BRAND
GE Appliances are used in 50% of U.S. homes. You can have peace of mind knowing the iconic GE brand carries a legacy of quality, reliability, and innovation.

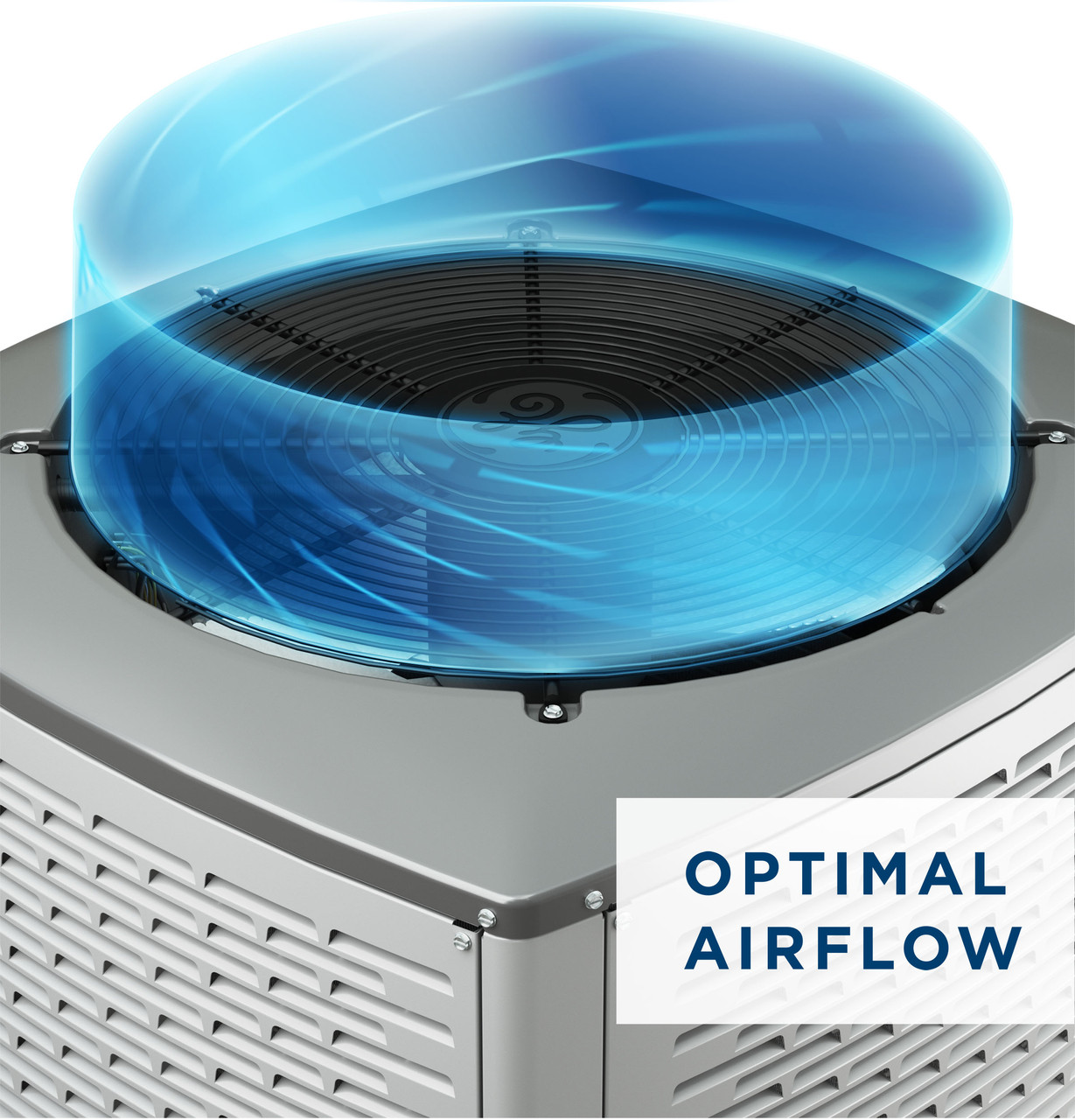

OPTIMAL AIRFLOW
Design features like a unique louver design and swept-wing blades create a higher-performing unit with more airflow and better efficiency to help save you money; that's a win-win!
TEN-YEAR WARRANTY
You can double the standard five-year warranty just by registering your equipment. It's a simple way to bring peace of mind that your GE unit will keep you comfortable season after season. See warranty documentation for full information.
