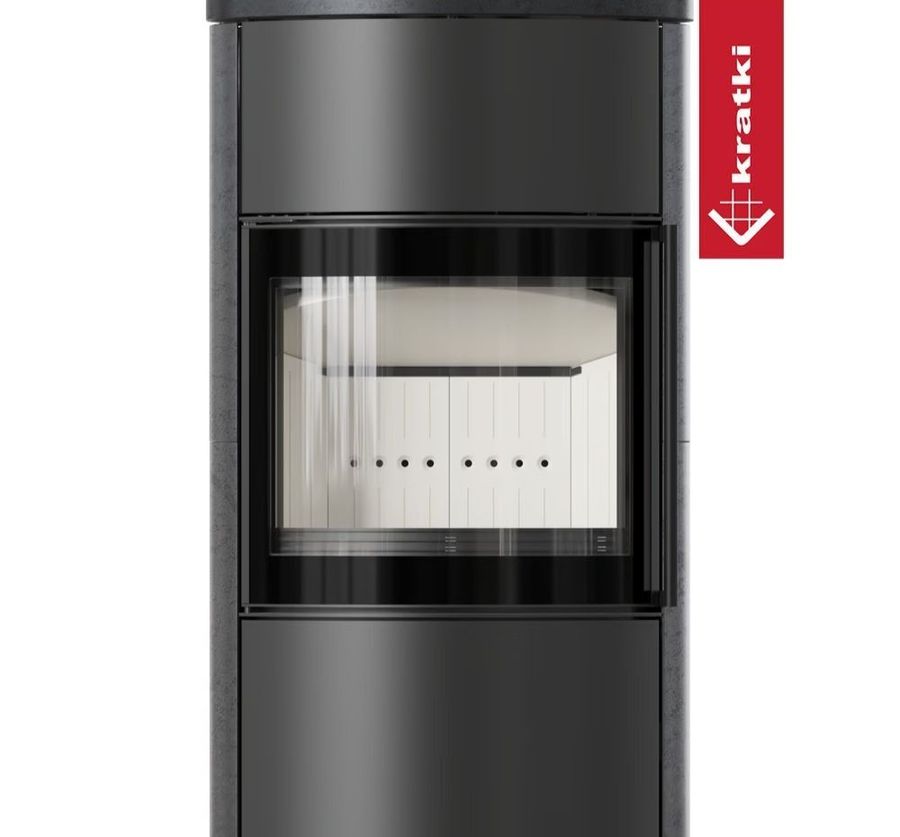

Kratki Bjorn Ø 150 7kw Free-standing Steel Stove
BJORN Ø 150 7KW FREE-STANDING STEEL STOVE
BJORN Ø 150 7KW FREE-STANDING STEEL STOVE
High decorative gold satin storage ceramic; ceramic cover

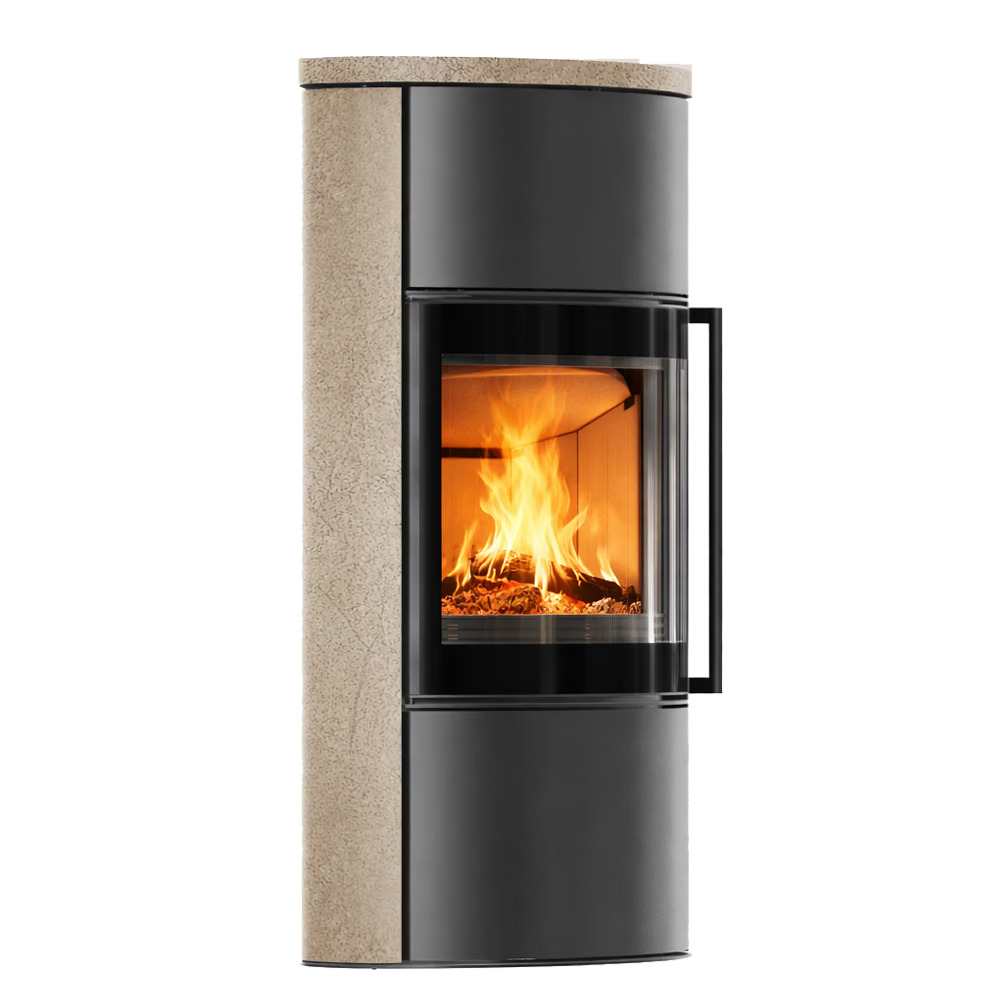

Bjorn with decorative heat-storing ceramics is a modern freestanding stove that redefines the concept of industrial elegance.
The combination of a panoramic view of the fire with the austerity of architectural concrete makes this device the focal point of any arrangement. It blends perfectly with loft, minimalist, and modern styles.
INFORMATION
BRAND
Kratki
PRODUCT TYPE
Stove
SKU
- Grey Satin : BJORN/W/GS/P
- Grafite Satin : BJORN/W/GFS/P
- Gold Satin : BJORN/W/GLS/P
EAN
- Grey Satin : 5903751402923
- Grafite Satin : 5903751402763
- Gold Satin : 5903751402602
ENERGY CLASS
Class A
BASE MATERIAL
Concrete & Steel
FLUE GAS TEMPERATURE
224 (oC)
AIR INTAKE DIAMETER
125 mm
OPTIMAL LOG LENGTH
200 mm
MAX BILLET LENGTH
50 cm
DIMENSIONS - PHYSICAL PARAMETERS
- Width : 76.1 cm
- Depth : 46 cm
- Height : 132.9 cm
DIAMETER OF THE FLUE GAS OUTLET
150 mm
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.093
CERTIFICATES
- KRATKI PRO
- Ecodesign
- BImSchV 2
- 7* Flamme Verte
- Designed for recuperation

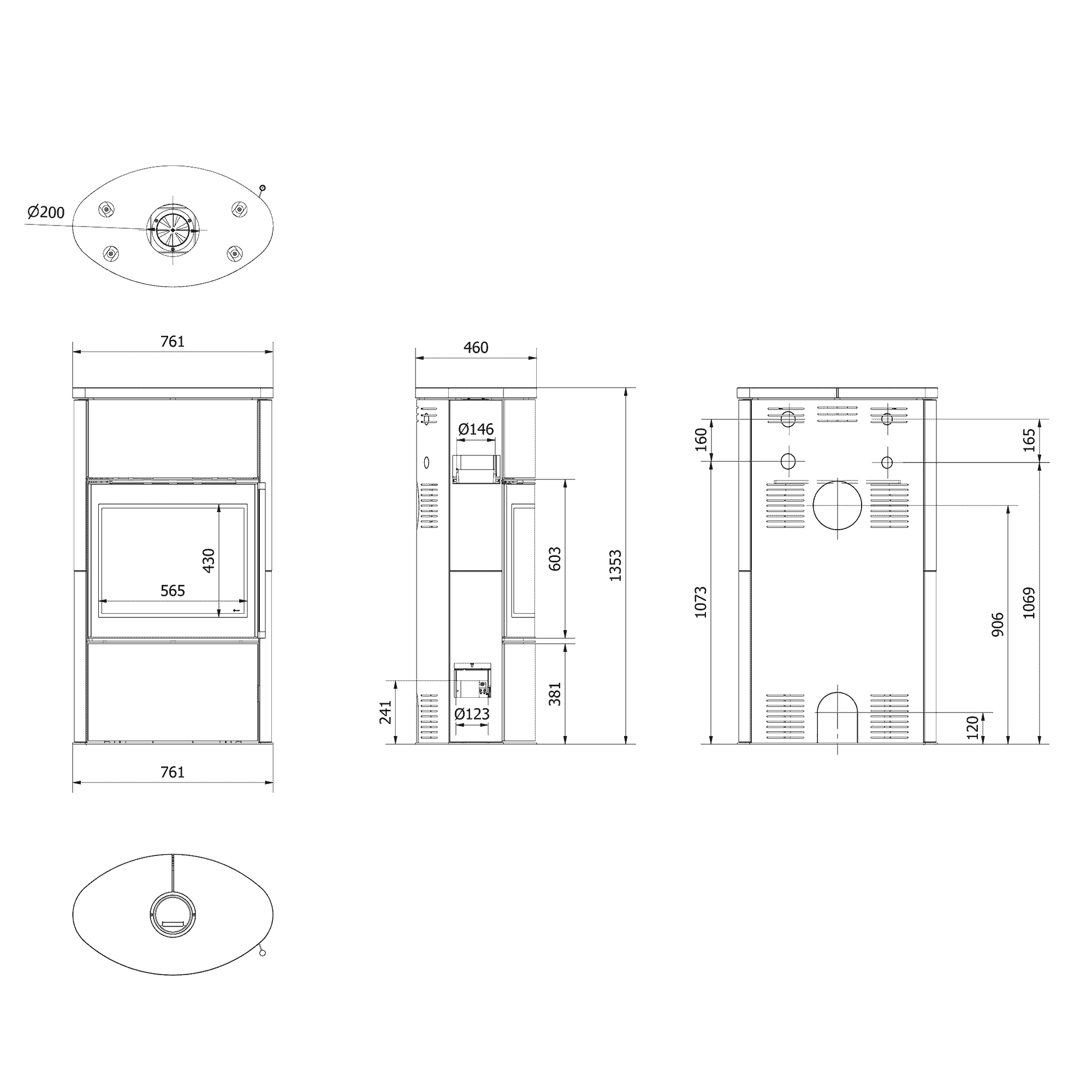

TECHNICAL DRAWING
CO EMISSION
1165 (mg/m3)
POLLEN EMISSION
28 (mg/m3)
OGC EMISSION
64 (mg/m3)
NOX EMISSION
93 (mg/m3)
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
SEASONAL ENERGY EFFICIENCY
69.4 (%)
EEI
105
USE
Heating
FRONT
Steel front with bent painted glass
AVAILABLE COLORS
3
COLOR LINING
White & Black
COVER TYPE
Steel & Ceramic
NOMINAL POWER
7 kw
THERMAL EFFICIENCY
79.4 %
WEIGHT
- Grafite Satin : 218 kg
- Grey & Gold Satin : 342.73 kg
ITEM
The large, panoramic glass with a black decor showcases the flames, giving the interior a unique atmosphere. The ability to personalize the color of the concrete and the interior of the firebox allows you to perfectly match the stove to the character of your home. This solution not only heats effectively but also serves as a sophisticated decorative element.
ADDITIONAL CLOSING
No
FLUE GAS MASS FLOW
8.4 (g/s)
DOWNLOADS
↓ Energy Class
↓ Product card
↓ Technical drawing
↓ Energy card (UE) 2015/1186
↓ Print Dop Dop_kratki_bjorn_w_gls_p
↓ Ecodesign Printing Bjorn_7_ecodesign_EU_2015_1185
EVEN MORE ECOLOGICAL AND EFFICIENT
The bjorn stove with decorative heat-storing ceramics has been designed with the future and the environment in mind. The device meets ecodesign standards and other strict environmental requirements of regional regulations regarding emission standards for fireplaces and other SOLID fuel heating appliances, including ecodesign, bimschv 2, and flamme verte. It has also been tested to the rigorous en 16510 standard.
Thanks to its sealed combustion chamber and outside air intake, the stove works perfectly with heat recovery systems (mechanical ventilation), making it an excellent choice for modern, energy-efficient homes.
FINISHES
QUALITY, DESIGN, AND CUSTOMIZATION OPTIONS
The bjorn model with decorative heat-storing ceramics is available in both high and low versions. However, these are not the only personalization options for this heater.

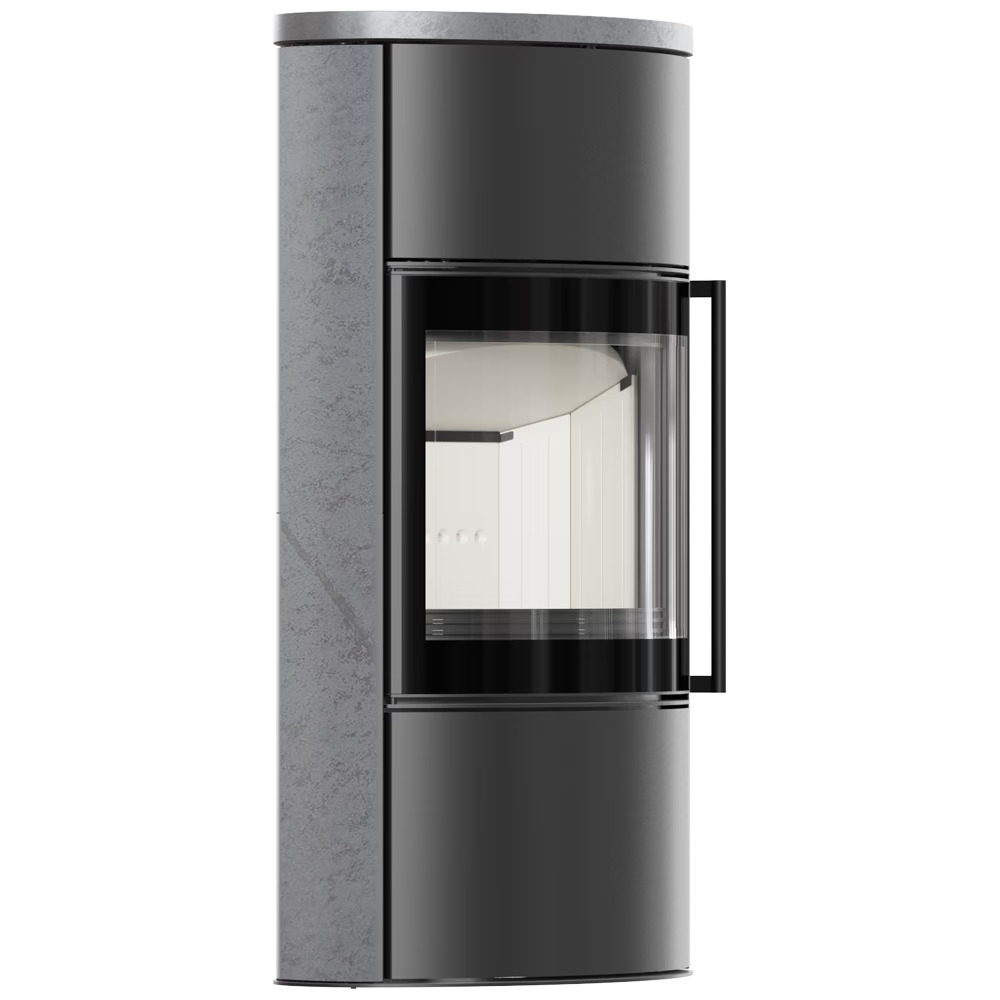

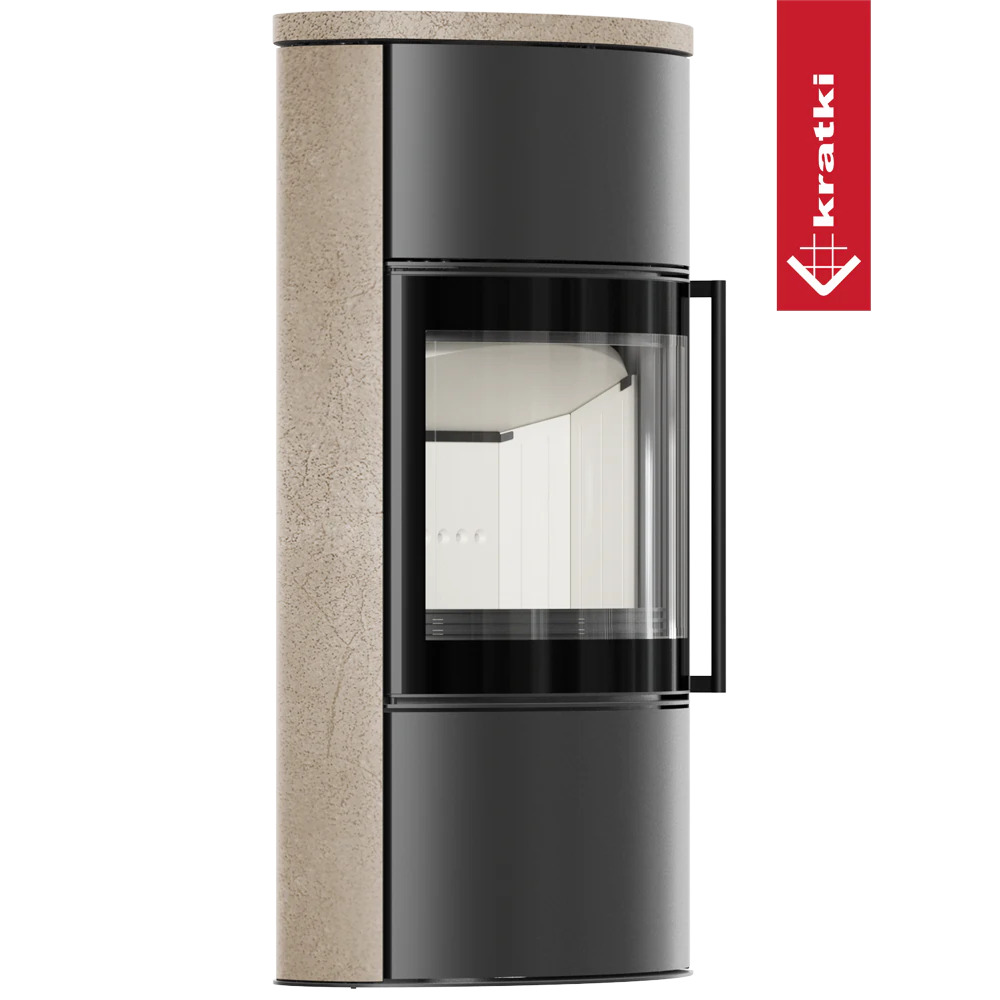

What distinguishes the BJORN model with decorative heat-storing ceramics is the casing, available in three shades: Grey Satin (GS), Gold Satin (GLS), and Graphite Satine (GFS). The solid construction, innovative technical solutions, and attention to detail ensure reliability and safe operation. You can also choose a stove cover made of steel or concrete. The interior of the stove is lined with TERMOTEC heat-storing material (available in white or black), which increases heating efficiency.
The BJORN series belongs to the Kratka PRO line, which means the highest quality of workmanship and a 10-year warranty.
WHY CHOOSE BJORN/BETON
DESIGNER FINISH
Housing made of decorative heat-storing ceramics in three colors (grey, gold, graphite satin).
HEAT ACCUMULATION
Thanks to decorative heat-storing ceramics, the stove casing releases heat even several hours after it has been extinguished.

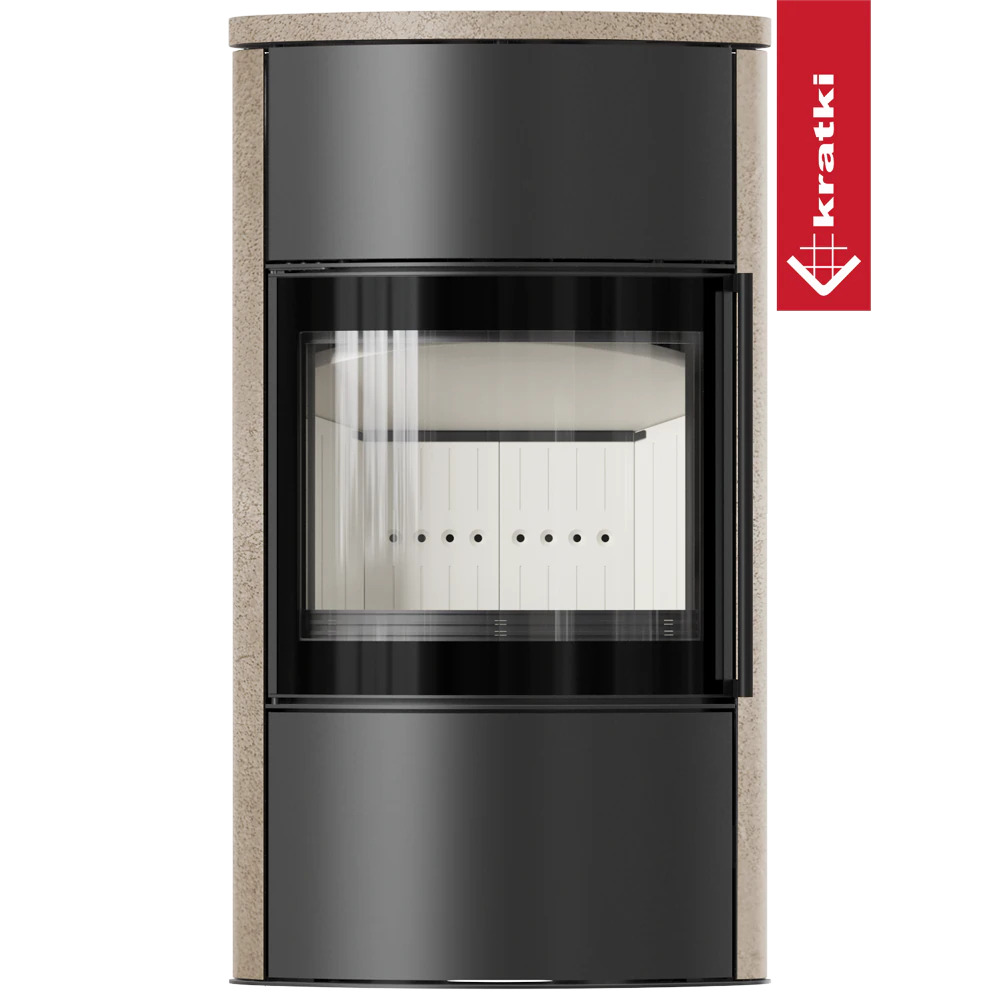

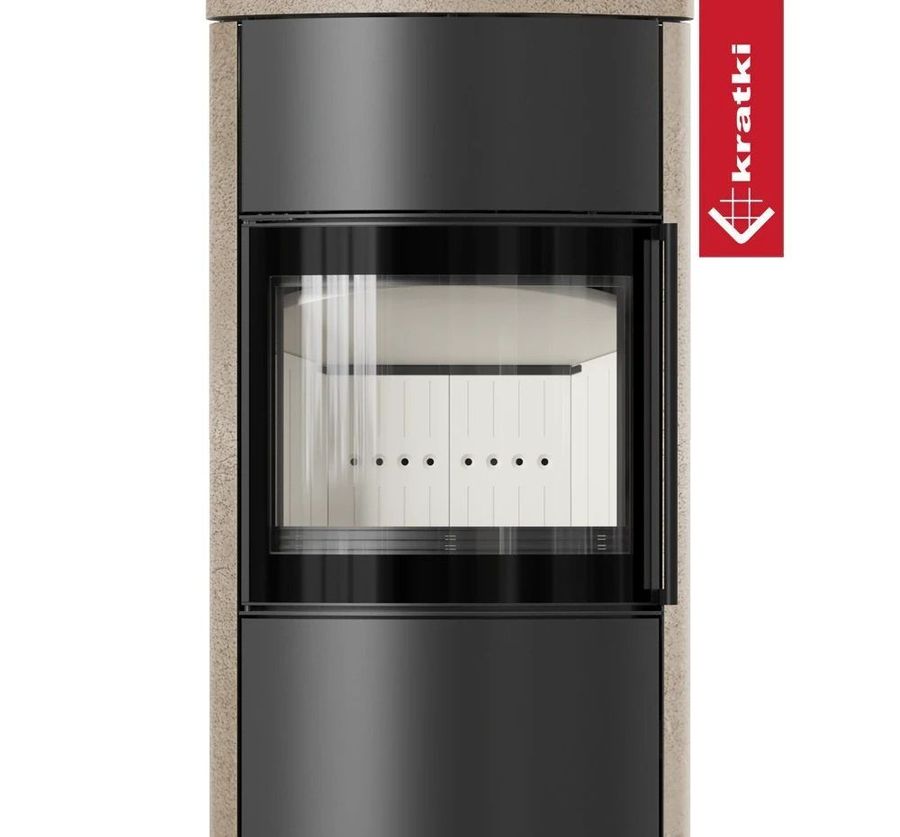

PANORAMIC VIEW OF THE FIRE
A large glass pane with a black decor adds elegance and optically enlarges the front
CLEAN GLASS SYSTEM
The air curtain reduces soot build-up.
PUSH-TO-OPEN INSPECTION DOOR
Aesthetic access to service elements.
EASY INSTALLATION
Adjustable leveling legs and a hole in the base for easy installation.
UNIVERSAL CONNECTION

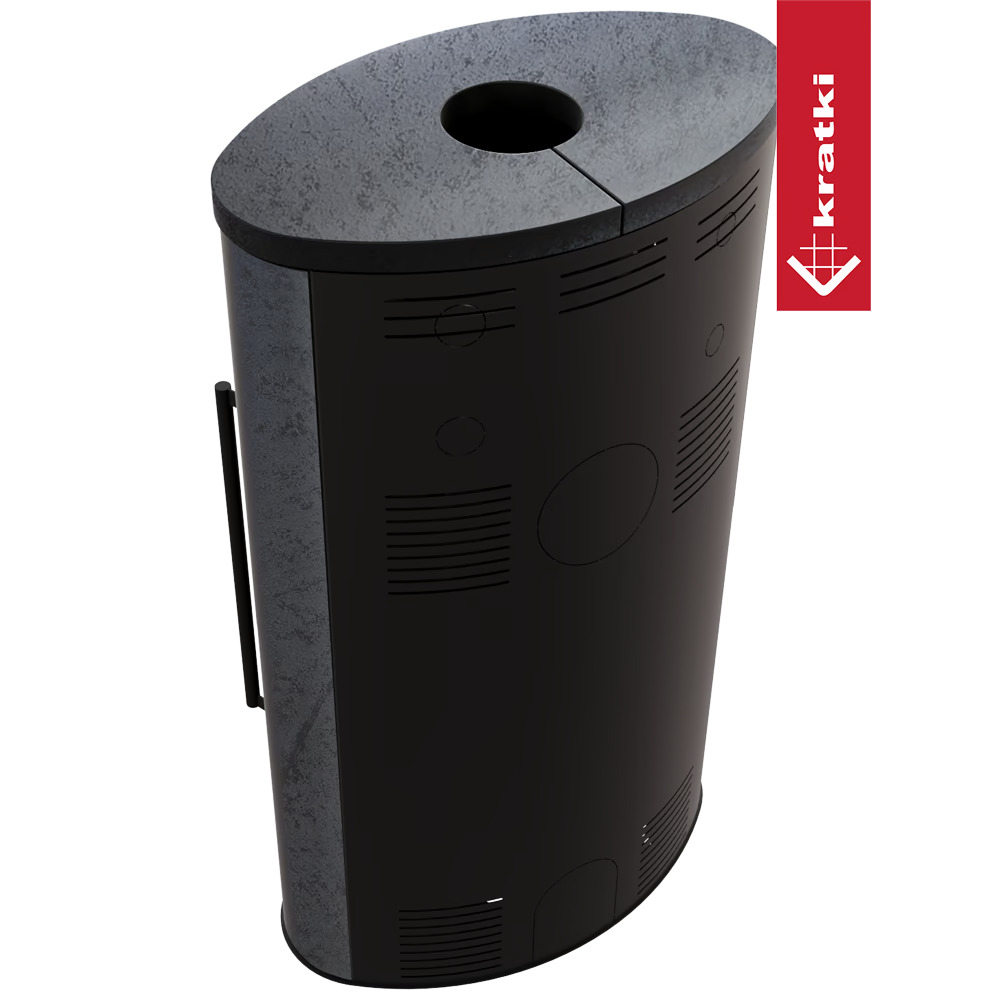

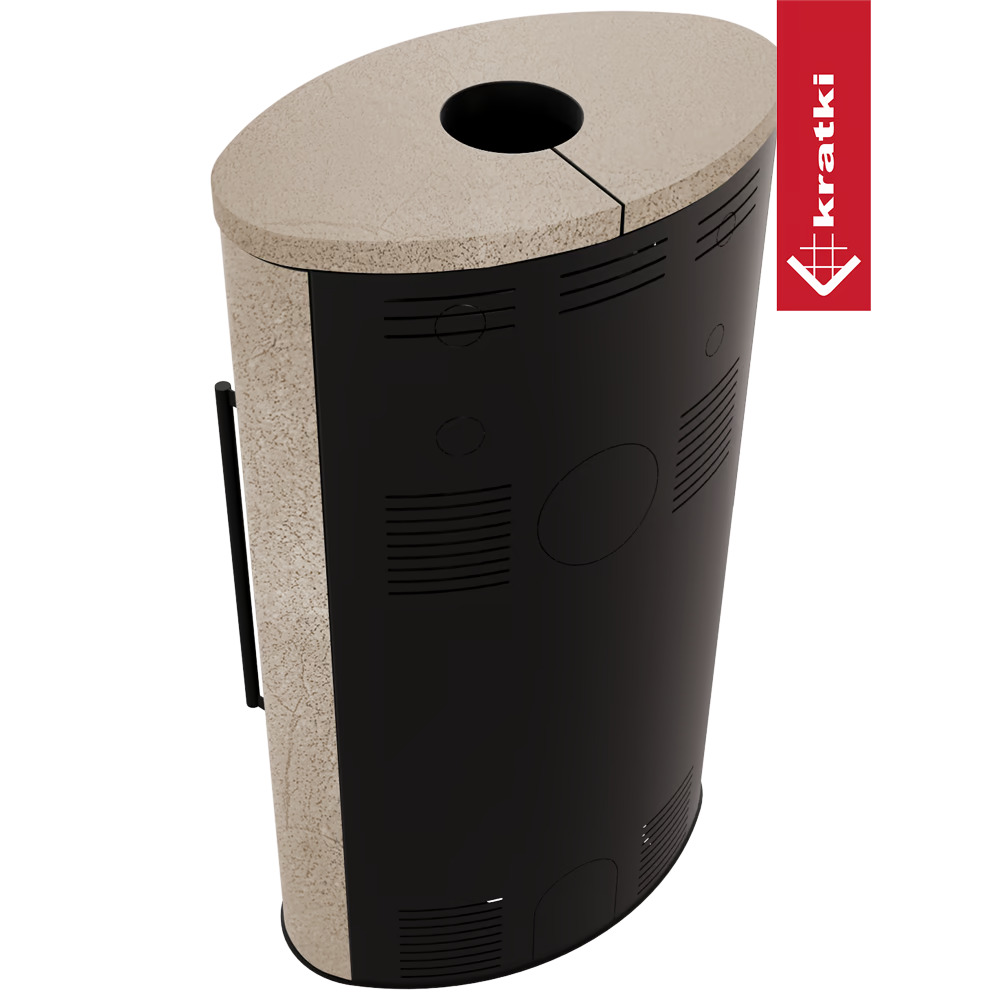

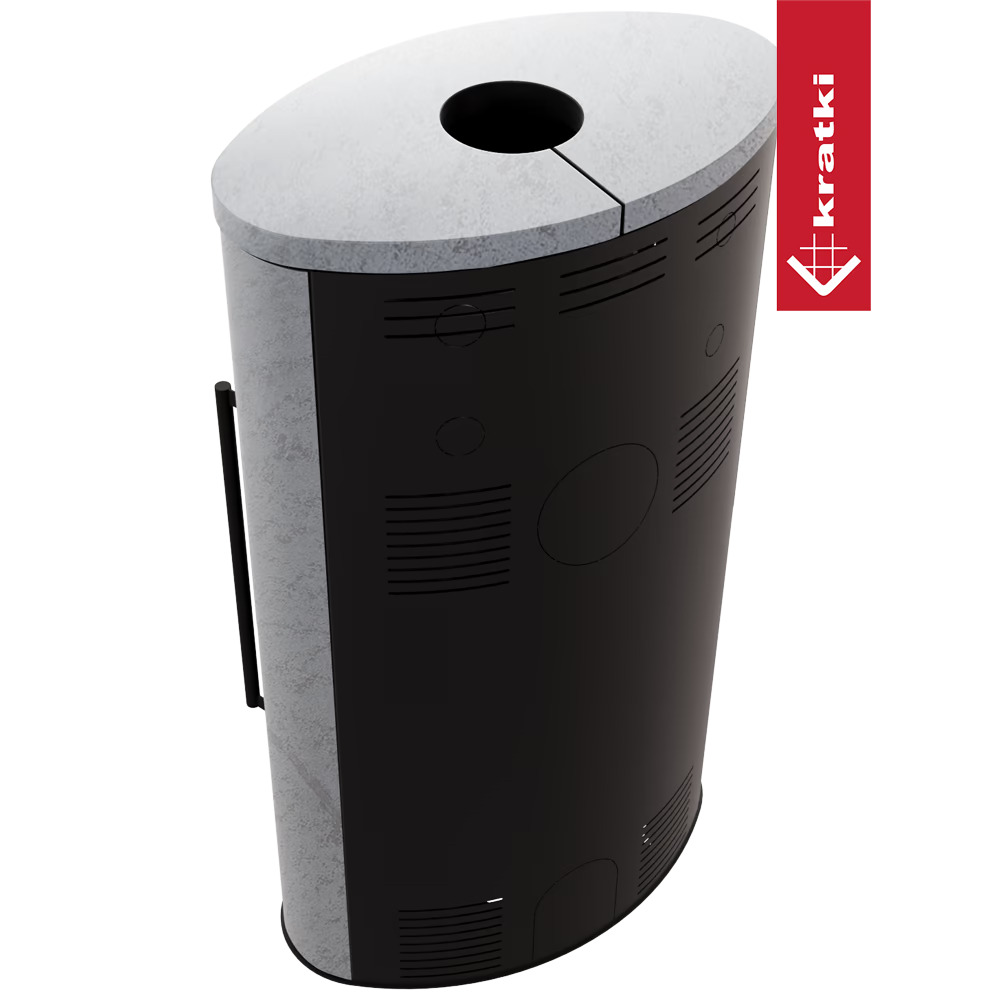

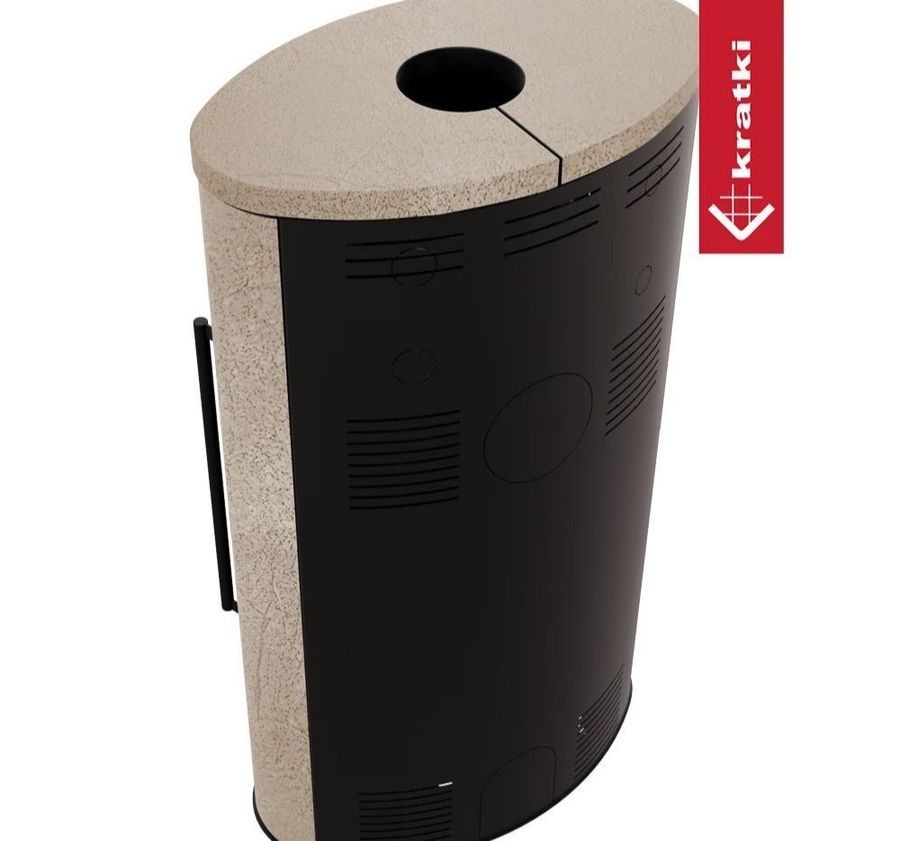

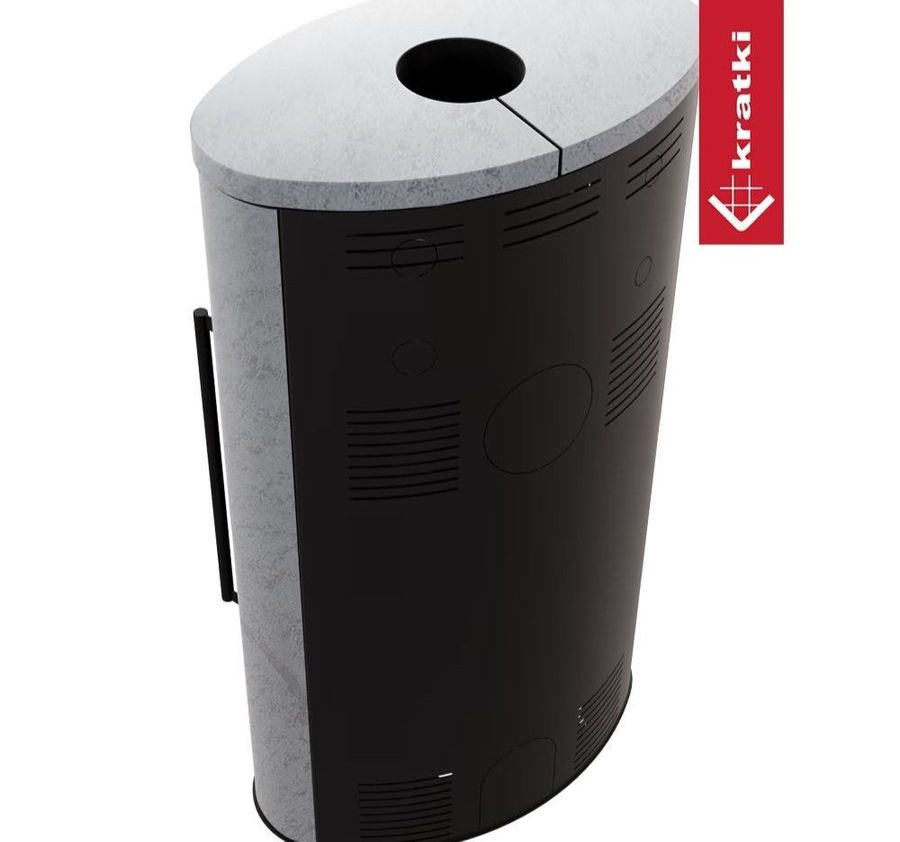

Possibility of connecting the exhaust outlet from the top or rear and the air intake (diameter 125) from the bottom or rear.
HEAT-RESISTANT GLASS
Front with heat-resistant curved glass - temperature resistance up to 660°C guarantees safe use.
ECO-FRIENDLY COMBUSTION
Triple combustion chamber ventilation system guarantees high efficiency and low emissions.
EASE OF USE
A deeper combustion chamber holds more wood and prevents ash spillage.
MEETS STANDARDS
Compliance with Ecodesign, BImSchV 2, Flamme Verte, and adaptation to homes with heat recovery.
SAFE HANDLE
The long rail handle does not heat up, ensuring comfortable operation.
HIGH EFFICIENCY
The deflector system extends the exhaust gas path, increasing heat recovery.
PERSONALIZATION OPTIONS
3 housing colors to choose from (decorative storage ceramics), TERMOTEC combustion chamber lining available in white or black, cover selection (steel or decorative storage ceramics).
