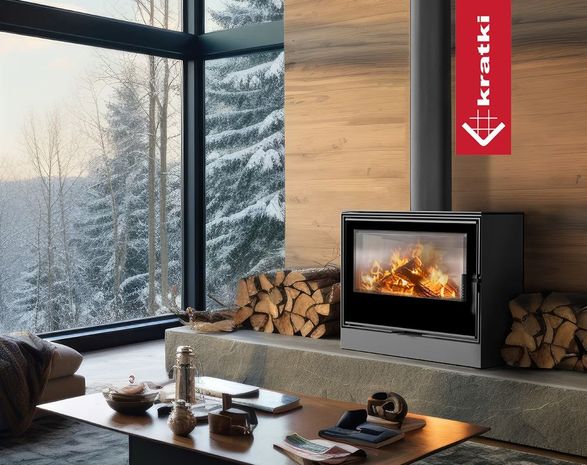

kratki Wood Burning Steel Stove Kratki Kari 80 Ø 180 12 Kw Self Closing Door
Wood Burning Steel Stove Kratki Kari 80 Ø 180 12 Kw Self Closing Door
WOOD BURNING STEEL STOVE KRATKI KARI 80 Ø 180 12 KW SELF CLOSING DOOR
Kari represents a modern approach to heating, combining the benefits of a fireplace cassette with an elegant built-in. The KARI built-in fireplace not only acts as an efficient source of heat, but is also an eye-catcher as a major element of interior design. It is characterised by its minimalist design, which blends well with many decorative styles, from classic to modern.
INFORMATION
BRAND
kratki
PRODUCT TYPE
Wood Burning Stove
DESIGN
Perforated handle design for natural cooling
MINIMUM REQUIRED ACTIVE AREA OF INLET GRILLE
≥500 cm2
ADJUSTABLE
Adjustable feet to compensate for uneven floors and level the stove,
SKU
KARI/80/BA1
EAN
5903751240242
REQUIREMENTS OF THE ECODESIGN
Thanks to the use of innovative technological solutions and high-quality materials, KARI not only provides comfortable heating, but also cares for the environment. The stove meets the requirements of the ECODESIGN, as well as the strict German BlmschV II standard. We are confident in the quality of our appliances. By betting on our product you ensure peace of mind, trouble-free use and satisfaction with your purchase.
THERMAL EFFICIENCY
75 %
RECUPERATION
Designed for homes with recuperation.
OPTIMAL LOG LENGTH
300 mm
MAX BILLET LENGTH
50 cm
MINIMUM REQUIRED ACTIVE FIELD OF OUTLET GRILLES
≥700 cm2
DIAMETER OF THE FLUE GAS OUTLET
180
DIMENSIONS - PHYSICAL PARAMETERS
- Width : 77 cm
- Height : 66.8 cm
- Depth : 50 cm
WEIGHT
199.27 kg
AIR INTAKE DIAMETER
100 mm
ADDITIONAL CLOSING
Yes
CERTIFICATES
- Ecodesign
- BImSchV 2
- Designed for recuperation
BASE MATERIAL
Steel
HEATING POWER RANGE
6 - 16 kW
HEAT RESISTANT
Heat resistant glass with a temperature resistance of up to 600°C,
ENERGETIC EFFICIENCY
- EEI : A
- CO emission (mg/m3) : 1208
- Pollen emission (mg/m3) : 34
- NOx emission (mg/m3) : 102
- OGC emission (mg/m3) : 54
- Seasonal Energy Efficiency (%) : 98
- Heat output for space heating (kW) : 65
- CO emission (at 13% O2) ≤ given in % : 12
FRONT
Steel front with painted glass
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
FLUE GAS TEMPERATURE
319 oC
FLUE GAS MASS FLOW (G/S)
11.5
DETAIL
KARI is more than just a heat source - it is an aesthetically pleasing and functional device that will enrich any interior, providing heat and comfort for years to come. Choose KARI for your home and enjoy not only warmth, but also style and quality at the highest level.
CONTROL
Intuitive air supply control
ENERGY CLASS
A

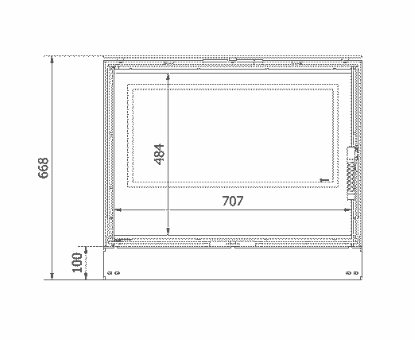

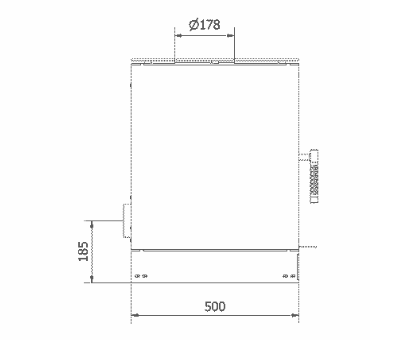

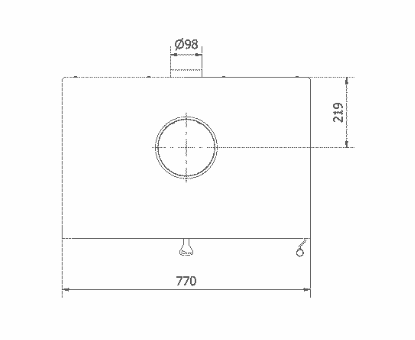

TECHNICAL DRAWINGS
NOMINAL POWER
12 kW
NUMBER OF PIECES IN A PACKAGE
1
TRIPLE AERATION SYSTEM
Triple aeration system of the combustion chamber contributes to the high efficiency of the combustion process.
EQUIPMENT
- Adjustable feet M10
- Air intake - built in
- Decorative glass
- Ashpan & Combustion chamber lining
COLORS
- White
- Black
ADVANTAGES
- Cast iron grate and easy access to the steel ash pan.
- Clean glass system allows the glass to be kept clean.
- Steel deflector extending the flue gas path for optimal energy utilisation.
- External components - build-up and top plate - made of 5 mm thick steel.
- Complies with ECODESIGN criteria and the strict German standard BlmschV II.
- Air intake provided by means of an external spigot with a diameter of fi 100, located in the back plate.
- Stove covered with a specially designed paint mixture, with increased scratch resistance and characterised by a uniform and smooth structure.
