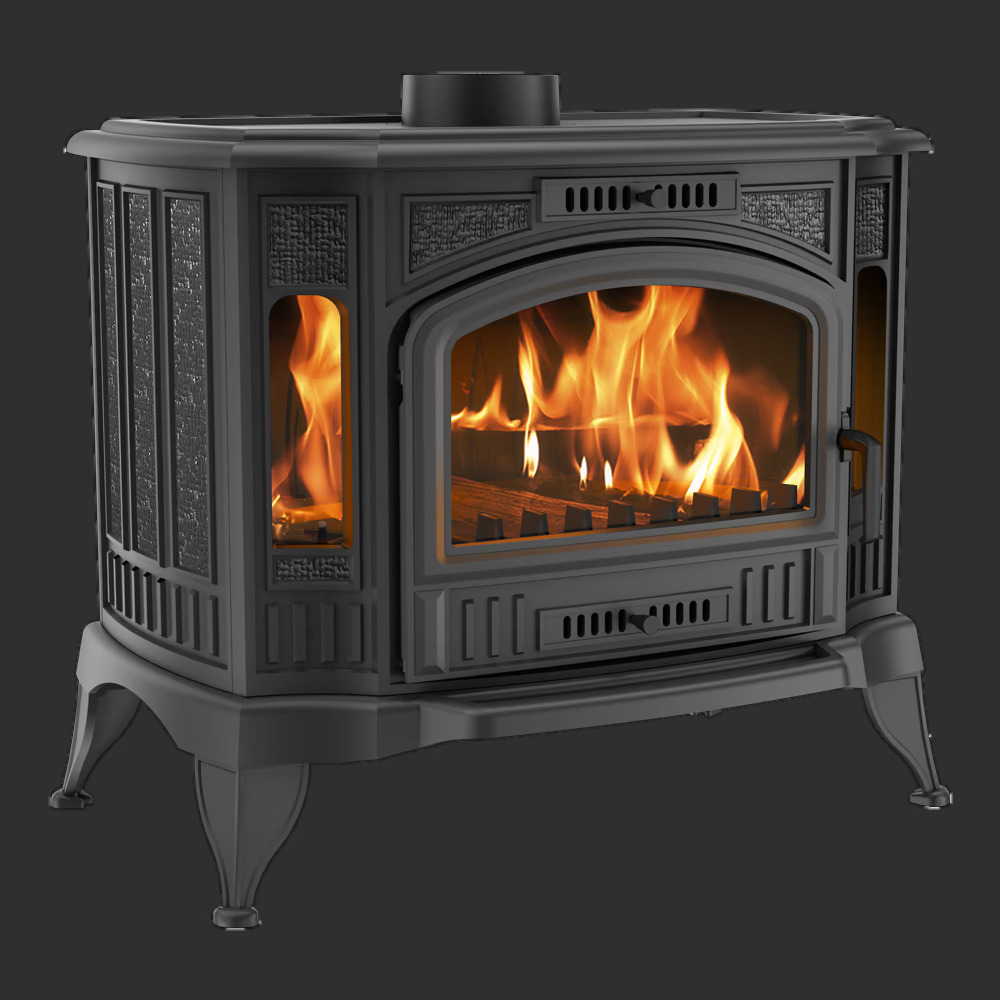

WOOD BURNING CAST IRON STOVE KRATKI K9 AUTOMATIC AIR CONTROL Ø 150 10 KW PYROLYSIS
WOOD BURNING CAST IRON STOVE KRATKI K9 AUTOMATIC AIR CONTROL Ø 150 10 KW PYROLYSIS
One of the strengths of the K9 stove is the hearth walls, which are made of high-quality cast iron with an impressive thickness of 8 mm.
This guarantees maximum heat utilisation and trouble-free operation for many years. The robustness of the construction is also confirmed by the stove's weight of up to 165 kg, which testifies to its durability and reliability.
INFORMATION
BRAND
kratki
PRODUCT TYPE
Wood Burning Stove
HEAT OUTPUT FOR SPACE HEATING
10 kw
NOMINAL POWER
10 kw
HEATING POWER RANGE (KW)
7.0 - 13.0
OPTIMAL LOG LENGTH
350 mm
THERMAL EFFICIENCY
75 %
FLUE GAS TEMPERATURE (OC)
289
DIAMETER OF THE FLUE GAS OUTLET
150
EEI
98
ENERGY CLASS
A
WEIGHT
166 kg
MAX BILLET LENGTH
35 cm

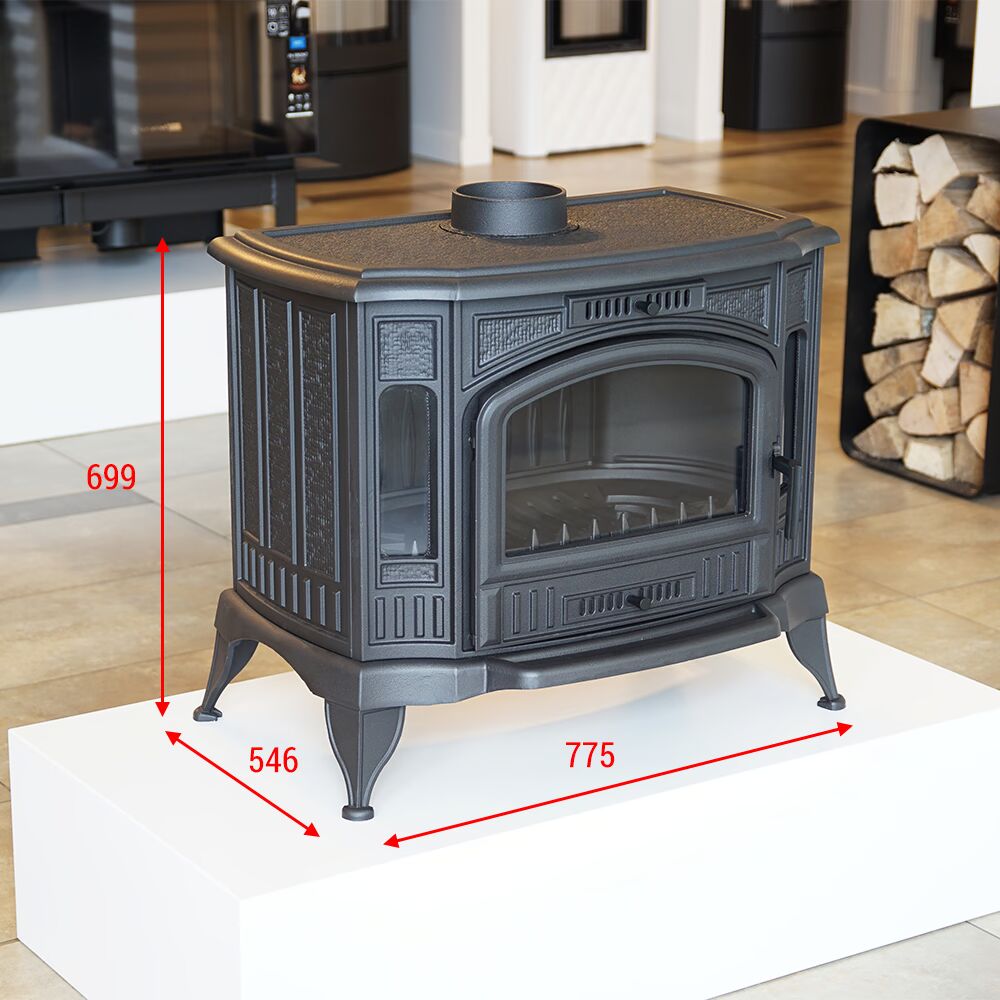

PHYSICAL PARAMETERS
- Height : 69.9 cm
- Width : 77.5 cm
- Depth : 54.6 cm
SEASONAL ENERGY EFFICIENCY
65 %
COLOR
Black
BASE MATERIAL
Cast iron
ENVIRONMENT
Indoor
OPTIONAL EQUIPMENT
Automatic air supply control

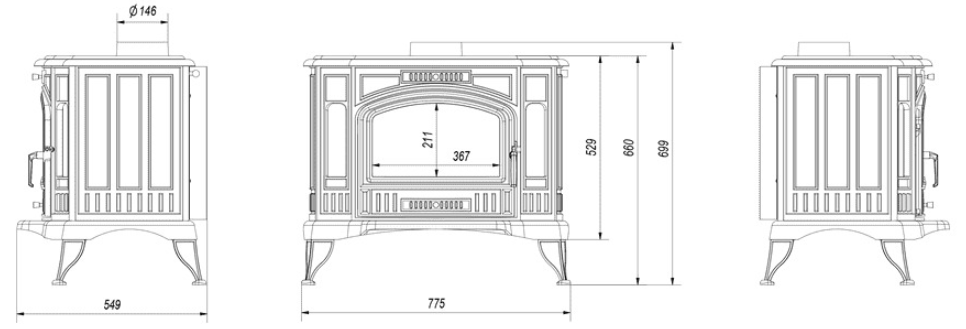

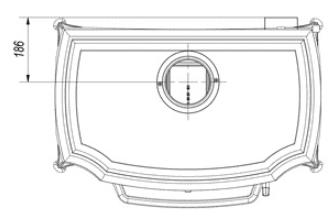

TECHNICAL DIAGRAM
DOWNLOADS
↓ Product Card
↓ Technical Drawings
↓ Energy Card (Ue) 2015/1186
↓ Instruction Kozy_zeliwne_15
↓ Print Dop Dop_kratki_koza_k9_150_asdp_pyroliza
USE
Heating
SKU
Koza/K9/150/Asdp/Pyroliza
CERTIFICATES
Ecodesign
EAN
5903751034629
NUMBER OF PIECES IN A PACKAGE.
2
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.148
POLLEN EMISSION (MG/M3)
14
CO EMISSION (MG/M3)
1856
FLUE GAS MASS FLOW (G/S)
11.4
OGC EMISSION (MG/M3)
78
ADDITIONAL CLOSING
No
NOX EMISSION (MG/M3)
108
FIREBOX
The firebox, measuring 30x30x55 cm, is designed to provide optimal combustion conditions. It allows logs of up to 35 cm in length to be laid, which increases user comfort and combustion efficiency.
FRONT
Cast iron front with pyrolysis glass
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
ADVANTAGES
-Maximum heat utilisation and trouble-free operation thanks to hearth walls made of high quality 8 mm thick cast iron, -Deflector to extend the flue gas path for optimum energy utilisation, -Classic cartridge front fitted with heat-resistant ceramics withstanding temperatures up to 600°c,

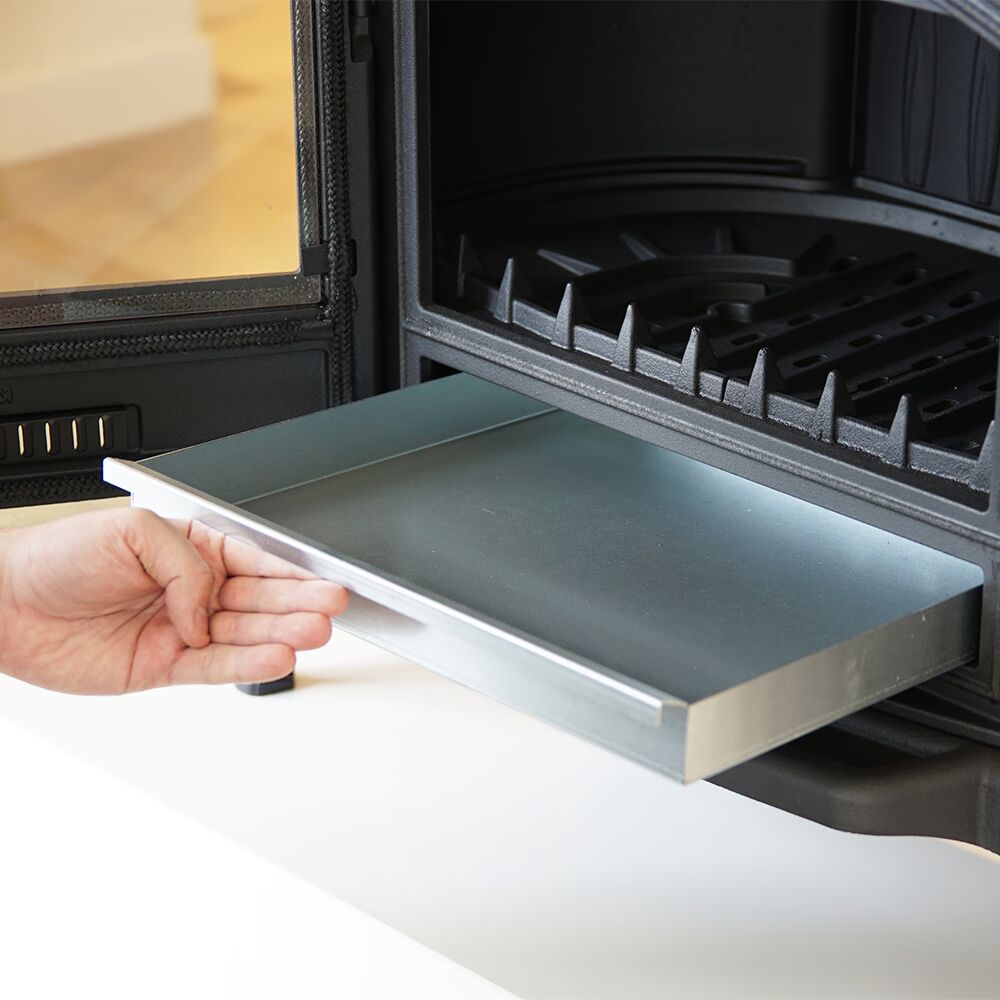

-The decorative hurdle makes it easy to keep clean and keeps the wood from falling out, -The cold handle system allows the handle to be removed when the stove is on fire, -Intuitive adjustment of air supply, -Manual control of the combustion process via the ash pan, -The ash drawer makes cleaning the stove easy, -The clean glass system (air control blades) reduces soot build-up, -The adjustable flue outlet (at the back or on top of the stove) allows for use in various installation conditions, -The k9 stove meets the criteria of the ecodesign.
