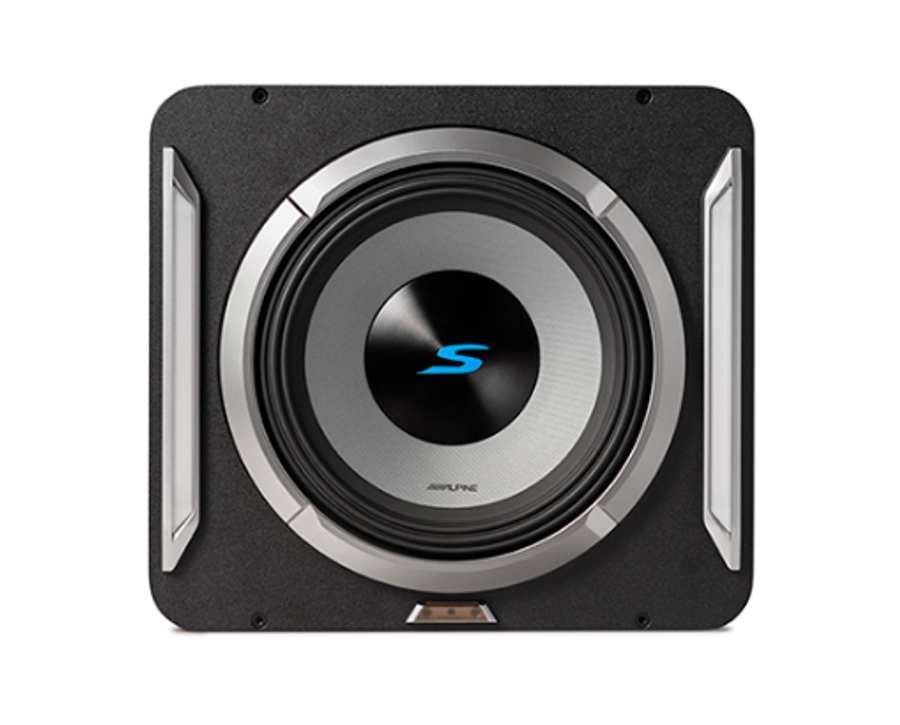

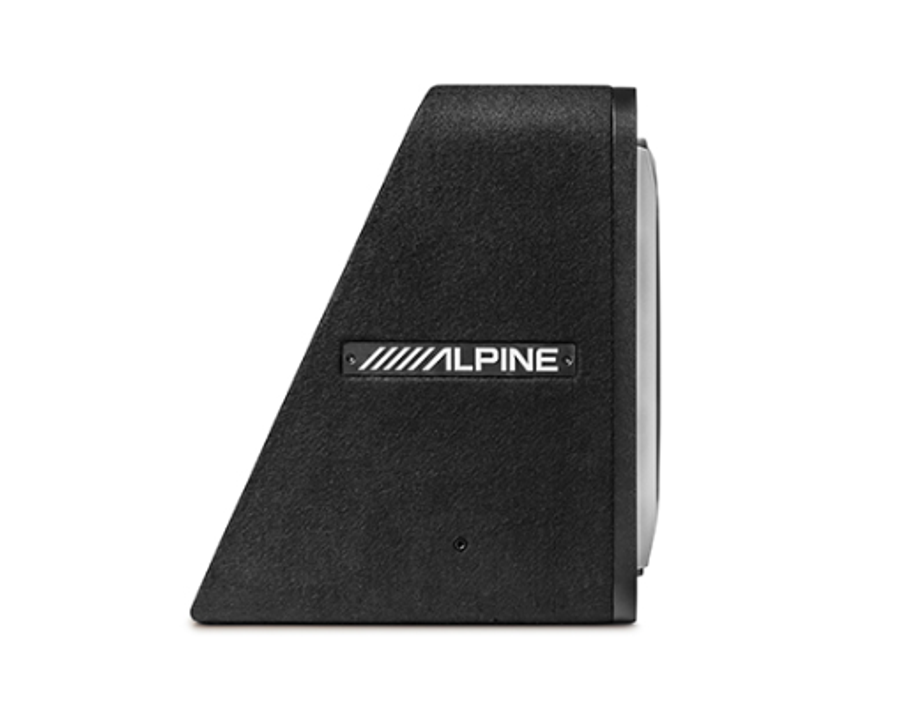

Alpine S2-SB12 Prismalink® Preloaded Subwoofer Enclosure
S2-SB12 PRISMALINK® PRELOADED SUBWOOFER ENCLOSURE
S2-SB12 PRISMALINK® PRELOADED SUBWOOFER ENCLOSURE

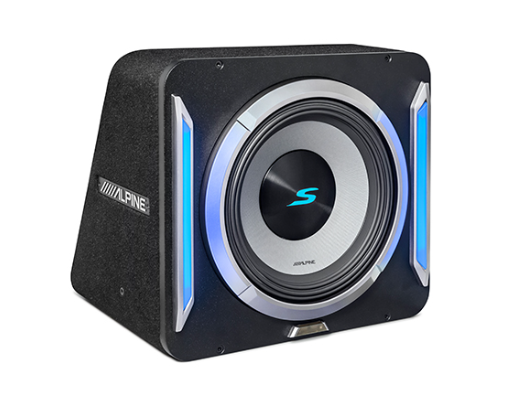

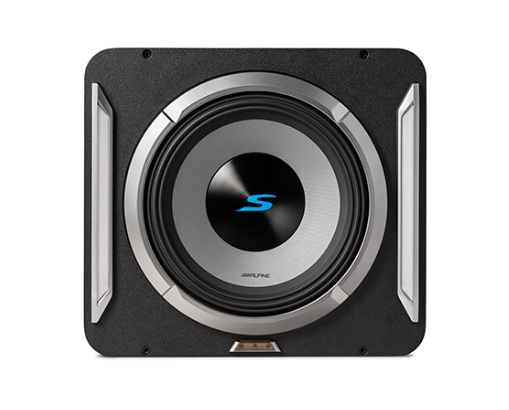

This 12-inch wedge style subwoofer enclosure seamlessly blends style, performance, and expandability, delivering powerful bass with a visual RGB lighting experience.
FEATURES
ILLUMINATE YOUR AUDIO

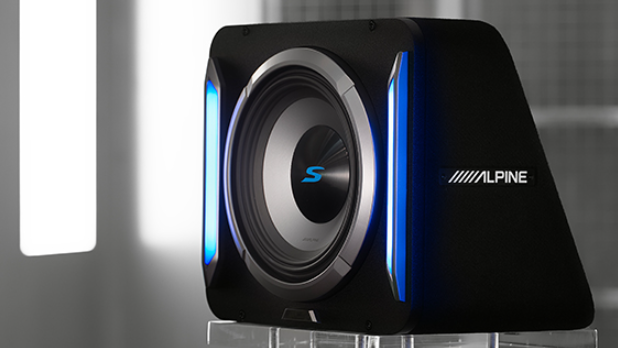

Color and sound collide to bring you an intentionally crafted 12-inch wedge style subwoofer enclosure, designed for optimal bass performance and vehicle fitment, and an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations.
S-SERIES PERFORMANCE

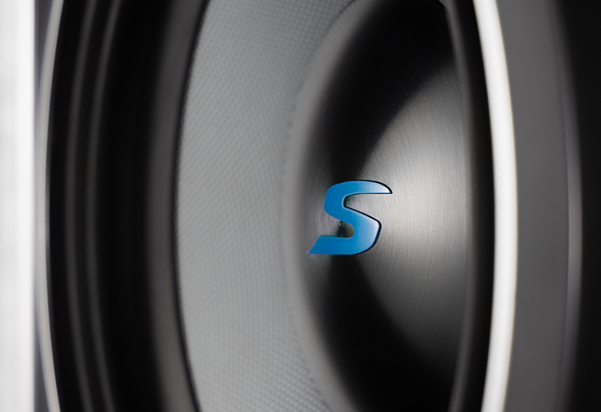

PrismaLink® Enclosures come preloaded with Alpine’s next-generation S-Series Subwoofers, which feature a lightweight but rigid cone material and Alpine Proprietary High-Amplitude Multi-Roll (HAMR) surround that contribute to enhanced “punch” and accurate bass performance..
MULTI-LINK LIGHTING

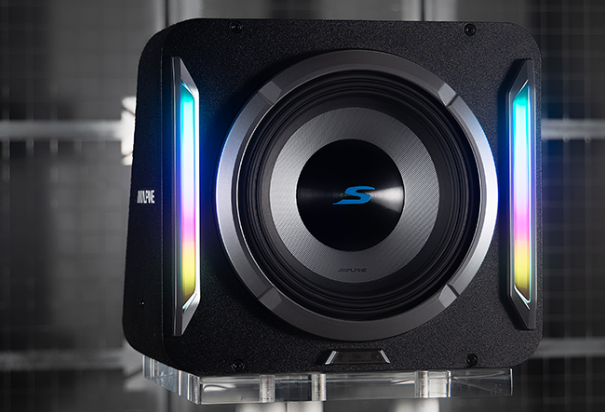

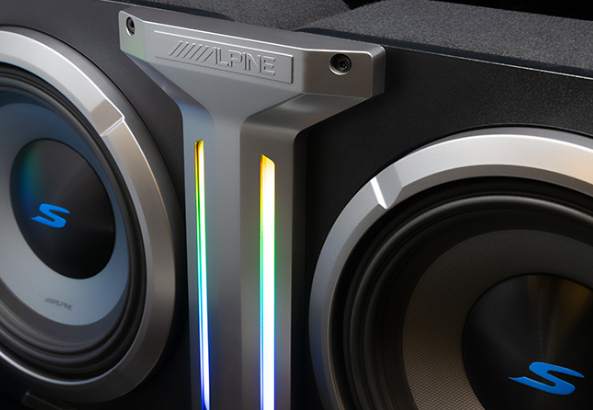

The PrismaLink® Subwoofer Enclosures feature a pre-wired, RGB light integration in the enclosure trim bars that’s able to connect across the optional subwoofer linking brackets (KTX-LK12, sold separately) for a brilliant, uninterrupted display of color that’s controlled by an included IR remote or the iLX-W670 Digital Multimedia Display with touchscreen Lighting Link control.
LIGHTING LINK CONTROL WITH ILX-W670

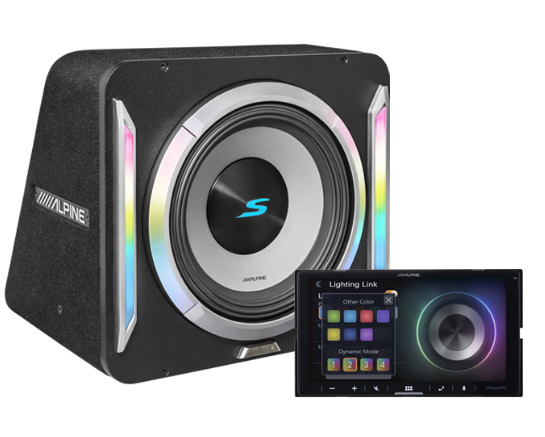

Manage the integrated RGBW trim bars effortlessly through the intuitive Lighting Link control screen on the iLX-W670 Receiver. With a simple touch, users can easily change the ambiance, adjust colors, and change modes on the PrismaLink® enclosures.
Whether it's setting the perfect vibe for a late-night drive or enhancing the atmosphere of a weekend getaway, the intuitive interface empowers users to tailor their lighting experience with precision and ease.
INFORMATION
BRAND
Alpine
PRODUCT TYPE
Amplifier
INCLUDED
RGBW Multi-color Trim Bar Lighting with IR Remote included
PRELOADED
Preloaded S2-W12D4 12” S-Series Subwoofer
DIMENSIONS
- Width : 16.5”
- Height : 15”
- Depth : 13.25”
MAGNET WEIGHT
64 oz
PRODUCTION
Made in England
USE
Entertainment
NOMINAL IMPEDANCE
2Ω
LIGHTING MODES
12 static colors, 4-dynamic modes
ENVIRONMENT
- Indoor
- Outdoor
VOICE COIL
2.6”
X-MAX (1-WAY)
15mm
DUAL
Dual 4ω voice coils wired in parallel for a 2ω load
POWER HANDLING
- 600W RMS
- 1800W PEAK
MULTI-LINK CAPABLE
Multi-link capable (link 2 or more enclosures together)
SENSITIVITY
86db
ENHANCED
Enhanced “punch” and accurate bass
DETAIL
- Lighting link control via ilx-w670 head unit
- Carbon fiber / poly propylene subwoofer cone
- Compatible with the ktx-ebkt mounting brackets
- Lightweight construction, high output, low distortion
- High-amplitude multi-roll (hamr) surround for high excursion
- Compatible with the ktx-lk12 12” linking bracket for multi-link application
