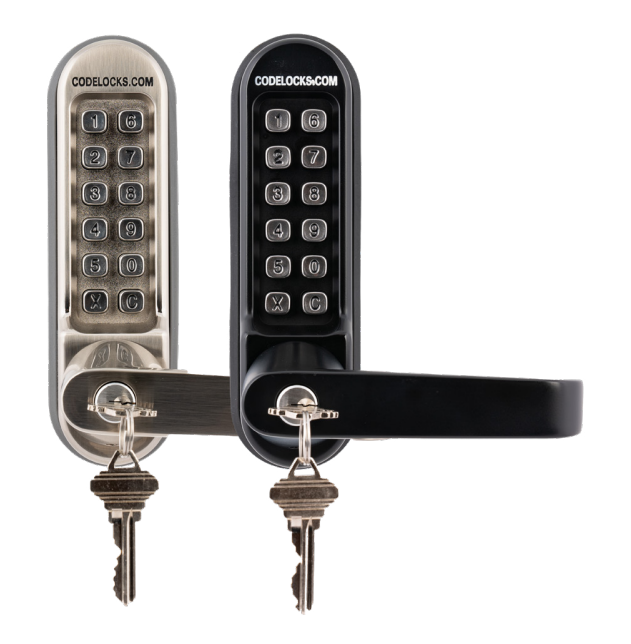

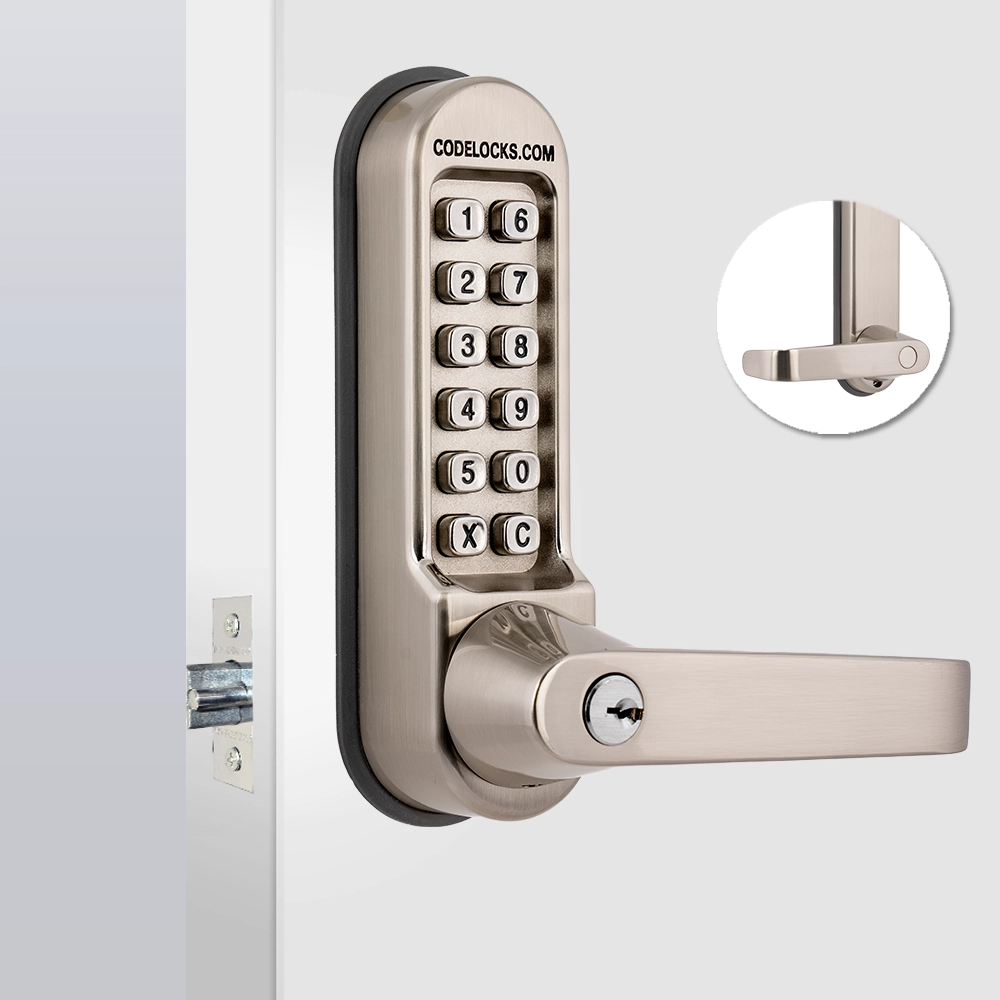

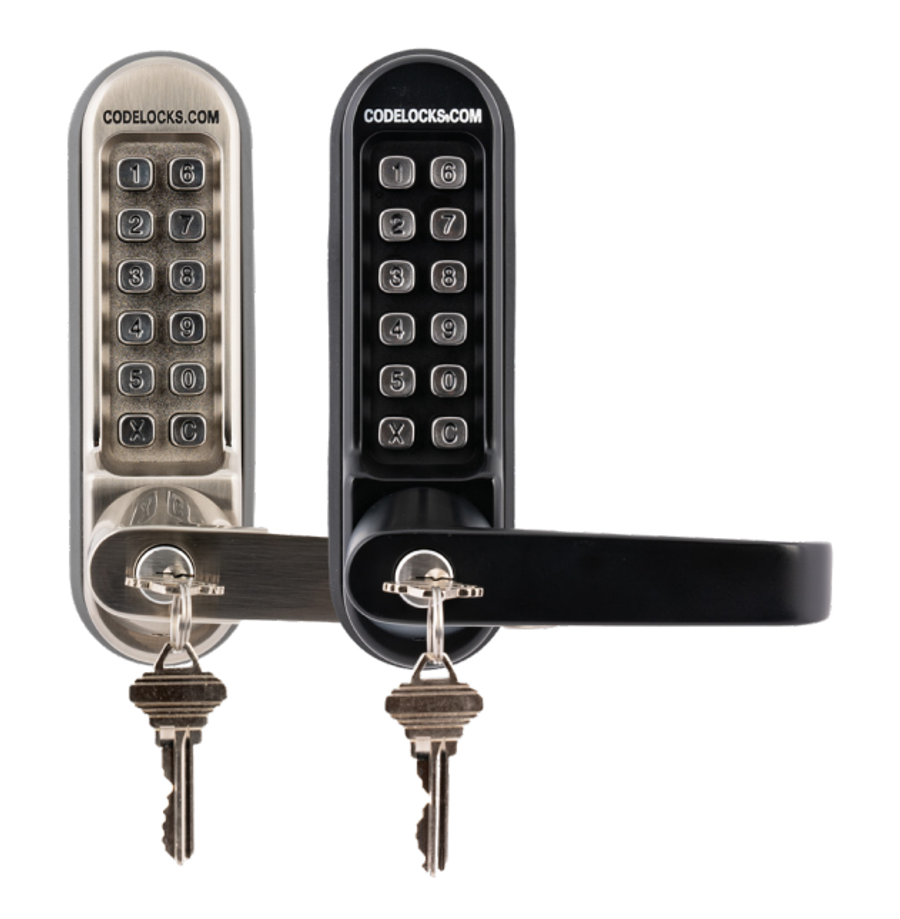

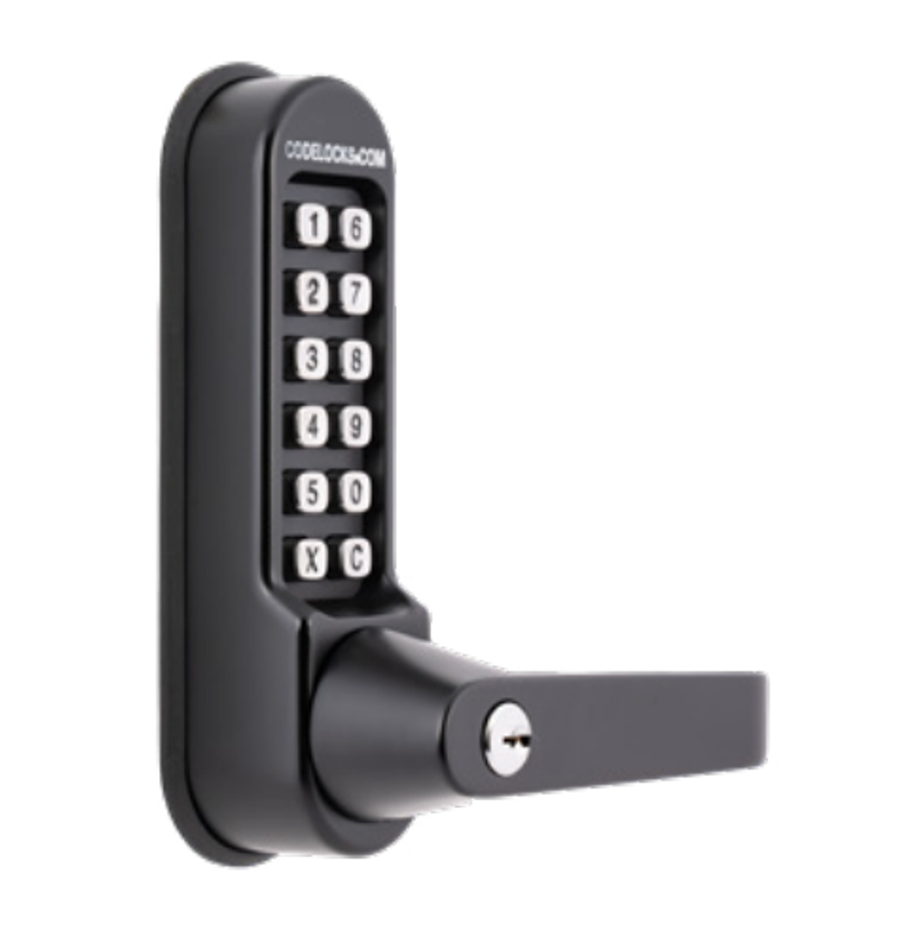

Codelocks CL510 & CL515 Tubular Latch with Key Override Door Lock
CL510 & CL515 TUBULAR LATCH WITH KEY OVERRIDE DOOR LOCK
CL510 & CL515 TUBULAR LATCH WITH KEY OVERRIDE DOOR LOCK
Heavy duty mechanical lock with tubular latch, redesigned lever handle. With key override and code free option.
Medium duty tubular latch with key override and ‘anti-shim’ plunger. Latch retracts by turning inside handle freely, or the outside handle after code input. The CL515KEY model provides a Code Free option. The outside lever will retract the latch freely until disabled.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
SUITABLE FOR
- Internal
- External
FINISHES
- Marine Grade
- Stainless Steel
SPINDLE
Two part 8mm (5⁄16) spring loaded spindle
BUTTONS
2 x 6
PRODUCTION
Made in USA
HANDED
Non Handed - Locks will fit doors hung on the left or right
MODELS
- CL550KEY : Mortise Lock
- CL510KEY : Tubular Latch
- CL510KEY : BB Tubular Latch with Back to Back
- CL555KEY : Mortise Lock with Code Free Access
- CL515KEY : Tubular Latch with Code Free Access
- CL515KEY : BB Tubular Latch with Code Free Access and Back to Back
USER TYPES
Codes
OPERATION
Vertical
CODE CHANGE METHOD
Tumblers (Off Door)
KEYPAD
12 stainless steel buttons
LATCH TYPE
- 60mm Mortise Latch
- 70mm Mortise Latch
CODES
Single code storage - 2,047 non sequential combinations available
LOCK MATERIAL
Zinc Alloy
DOOR THICKNESS
35mm - 60mm (1 3⁄8" - 2 3⁄8")
NON-HANDED
Lever handles are easily secured on site to suit the door hand using an M5 Set Screw.
KEY FEATURES
-Key Override – two keys supplied -Locks can be supplied ‘Keyed Alike' -Full size redesigned lever handles with return to door -Suitable for wooden doors between 13⁄8" and 23⁄8" thick. -Large three coil lever return spring suitable for high traffic use -Limited lifetime guarantee -2,047 non-sequential code combinations -Code Free access option -Suitable for internal and external use -Compatible with XT2 Weather Cover
APPLICATION LEAD TIME
3 to 5 working days
LOCK DIMENSIONS
177mm (7") x 48mm (1 7⁄8")
FLEXIBLE ACCESS WITH KEY OVERRIDE
The cl500key offers improved versatility, allowing you to manage entry with a code, code free operation, or the override key to suit a wide range of access needs. The addition of a key override functionality provides a reliable back up to code access, ideal for scenarios requiring additional control or emergency override. This flexible design makes the cl500key an excellent choice for commercial, industrial, and residential applications.
APPLICATIONS
The CL500KEY is designed for installation to high traffic areas
- Healthcare facilities
- Offices and workplaces
- Schools and universities
- Transportation and logistics
- Warehouses and industrial sites
USE
Security
PLUNGER
Anti-shim
UPGRADE EXISTING INSTALLATIONS
Front and back plates are available for use with existing locks, providing an easy, cost-effective upgrade.
REDESIGNED LEVER HANDLE
A standout feature, the newly engineered lever handle is tougher and ergonomically superior. Its durability and design improvements make it an excellent choice for heavy-duty use in high traffic areas.
CLEAN
-Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
-The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation.
TECHNICAL DRAWINGS
DOOR LOCK

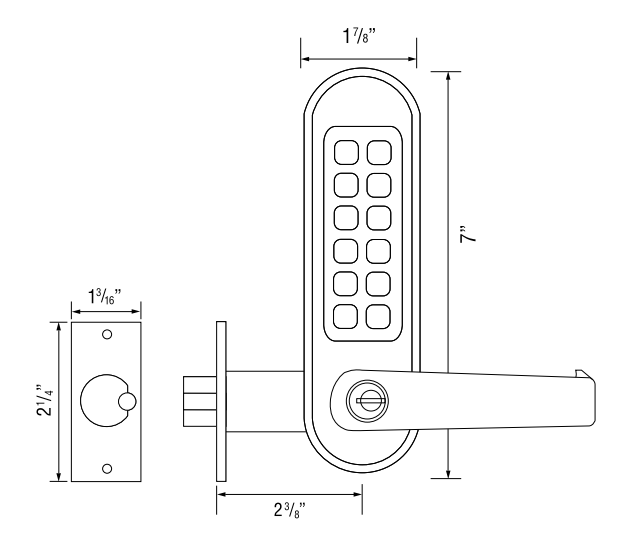

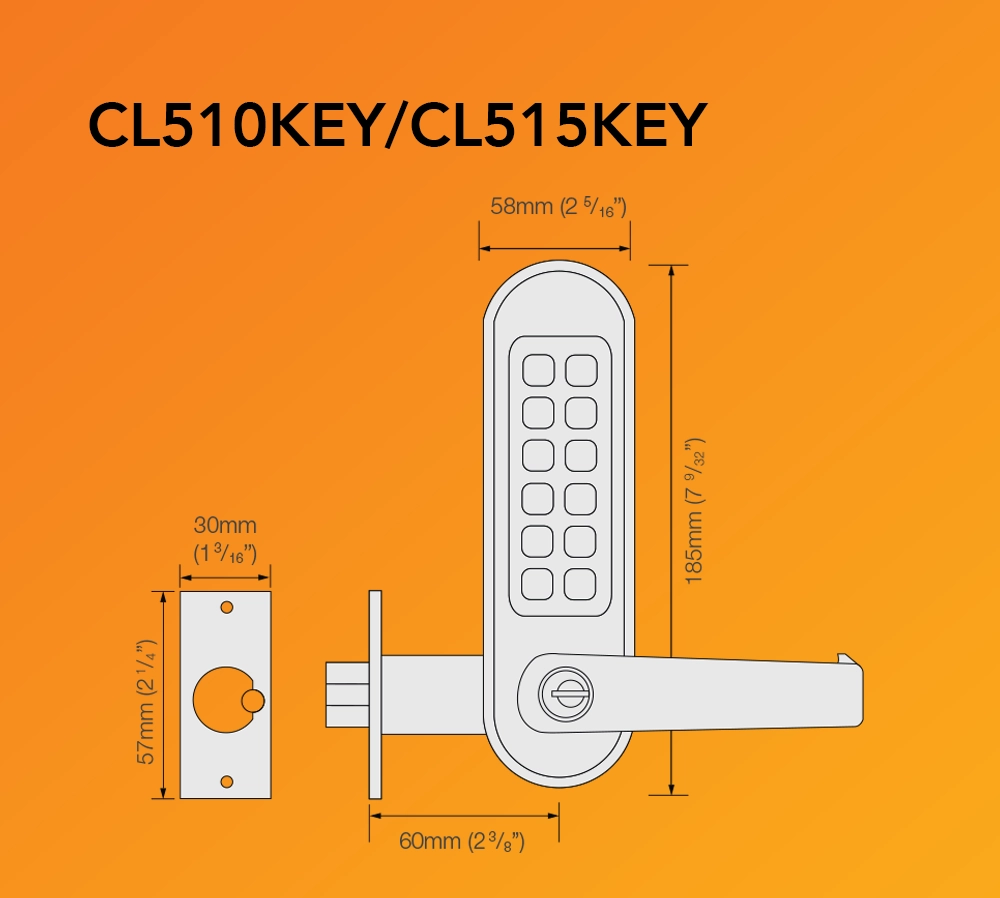

- CL510KEY/CL515KEY

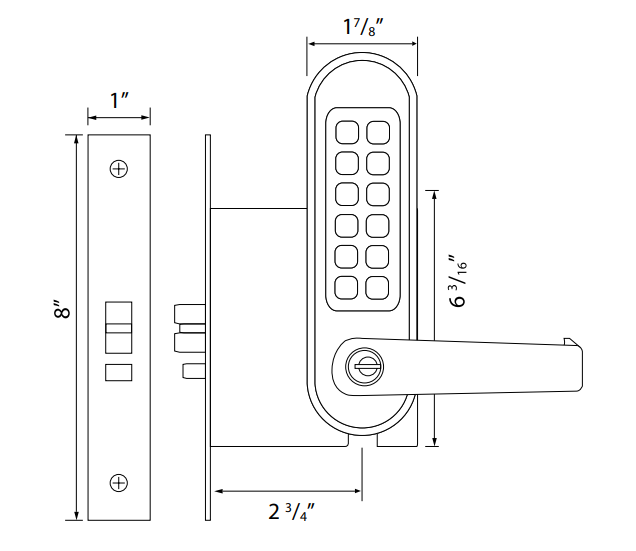

- CL550KEY/CL555KEY

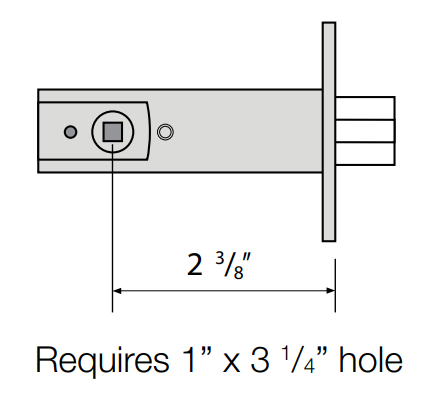

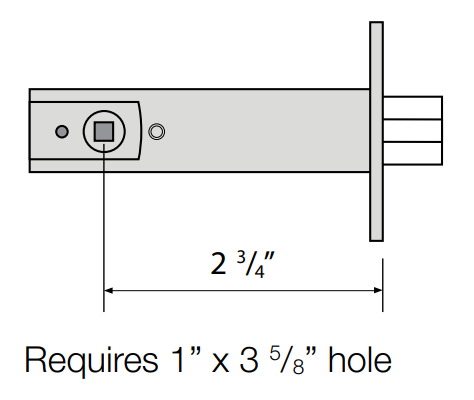

TWO TUBULAR LATCH SIZES AVAILABLE
Standard Supply
ADDITIONAL FEATURES
AUTO DEADBOLT OPTION
The CL550KEY and CL555KEY with the PMLCAUT feature contains a latchbolt and spring-loaded deadbolt that will both automatically lock when the door is closed. When a correct code is entered and the lever suppresses, the latchbolt and deadbolt retracts simultaneously, allowing for single-action egress.
MARINE GRADE
Selected CL500KEY models are also available in a black, marine grade finish. Salt spray test up to 1000 hours2 .
CODE FREE ACCESS
The CL515KEY and CL555KEY models provide a Code Free option. The outside lever will retract the latch freely until disabled.
BACK TO BACK (BB) OPTION
Two coded plates for installation on both sides of the door. Provides coded access in both directions.
