WOOD BURNING CAST IRON STOVE KRATKI K10 Ø 130 10 KW
WOOD BURNING CAST IRON STOVE KRATKI K10 Ø 130 10 KW
SKU : KOZA/K10/130
INFORMATION
BRAND
kratki
PRODUCT TYPE
Wood Burning Stove
NOMINAL POWER (KW)
9.5
THERMAL EFFICIENCY (%)
75
FRONT
Cast iron front with ceramic glass
BASE MATERIAL
Cast iron
MAX BILLET LENGTH (CM)
35

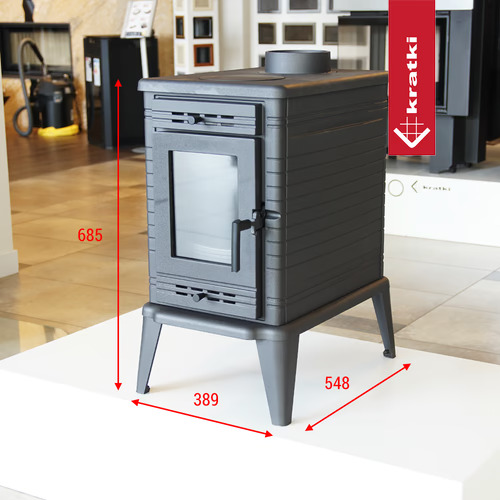

PHYSICAL PARAMETERS
- Height : 73 cm
- Width : 38.9 cm
- Depth : 56.8 cm
WEIGHT
109 kg
ADDITIONAL CLOSING
No
EEI
98.8
COLOR
Black
SEASONAL ENERGY EFFICIENCY (%)
65
DIAMETER OF THE FLUE GAS OUTLET
130
ENERGY CLASS
A
FLUE GAS TEMPERATURE (OC)
323
ENVIRONMENT
Indoor
DOOR OPENING
Left

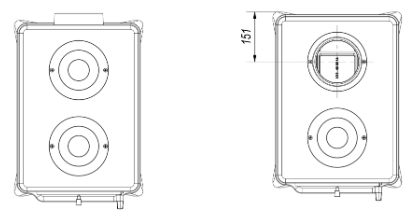

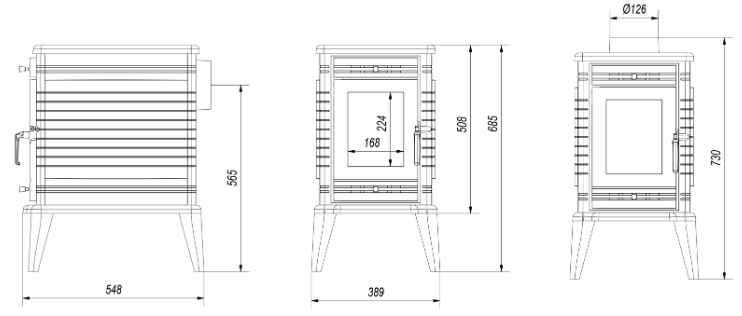

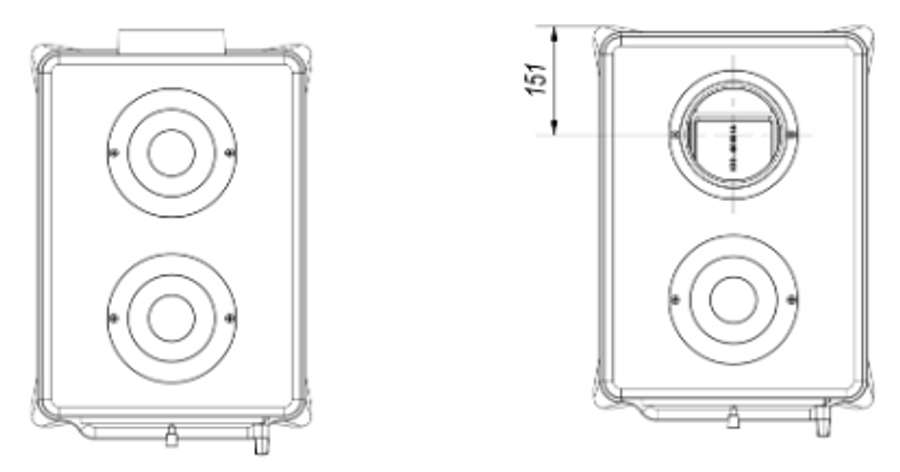

TECHNICAL DIAGRAM
DOWNLOADS
↓ Product Card
↓ Technical Drawings
↓ Energy card (UE) 2015/1186
↓ Instruction Kozy_zeliwne_15.PDF
↓ Print dop dop_kratki_koza_k10_130.PDF
↓ Ecodesign printing koza_k10_ecodesign_EU_2015_1185.PDF
EAN
5901350046357
FUEL TYPE
Seasoned Deciduous Wood (Humidity ≤20%)
POLLEN EMISSION (MG/M3)
9
CO EMISSION (MG/M3)
1825
HEAT OUTPUT FOR SPACE HEATING (KW)
9.5
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.147
NOX EMISSION (MG/M3)
128
OGC EMISSION (MG/M3)
86
OPTIMAL LOG LENGTH (MM)
300
EQUIPMENT
Ashpan
FLUE GAS MASS FLOW (G/S)
9.1
CERTIFICATES
Ecodesign
NUMBER OF PIECES IN A PACKAGE.
2
MAXIMUM USE OF ENERGY
Maximum use of heat and trouble-free operation thanks to the walls of the device made of high-quality cast iron with a thickness of 8 mm. Combustion of fuel particles thanks to the deflector, which extends the exhaust gas path.
CONVENIENT TO USE
- Reduced soot deposition through a system of pure glass (air curtain).
- The cold handle system allows for disassembly when the stove is in use.

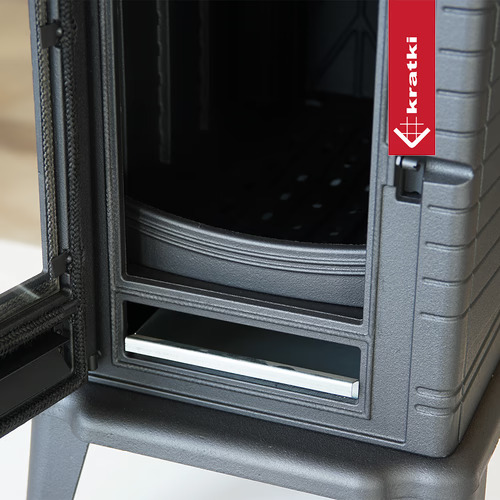

- Ash drawer/ashtray, where burnt wood remains are gathered and grated for easy ash removal.

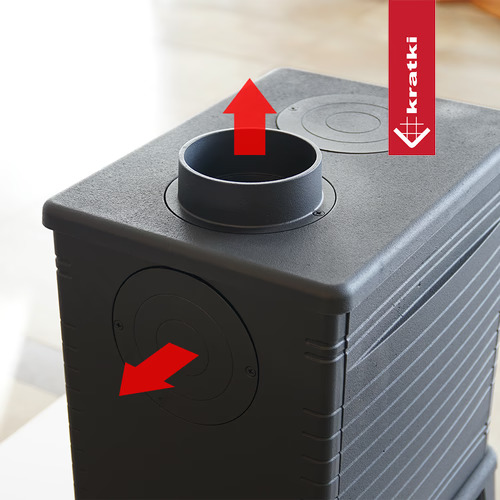

- The possibility of different assembly, thanks to the adjustable flue gas outlet from the back or top of the stove.
SAFETY AT THE HIGHEST LEVEL
The Classic front of the stove is equipped with heat-resistant ceramics that can withstand temperatures up to 660°C. Decorative fence helps to maintain tidiness and protects against falling out of wood.
