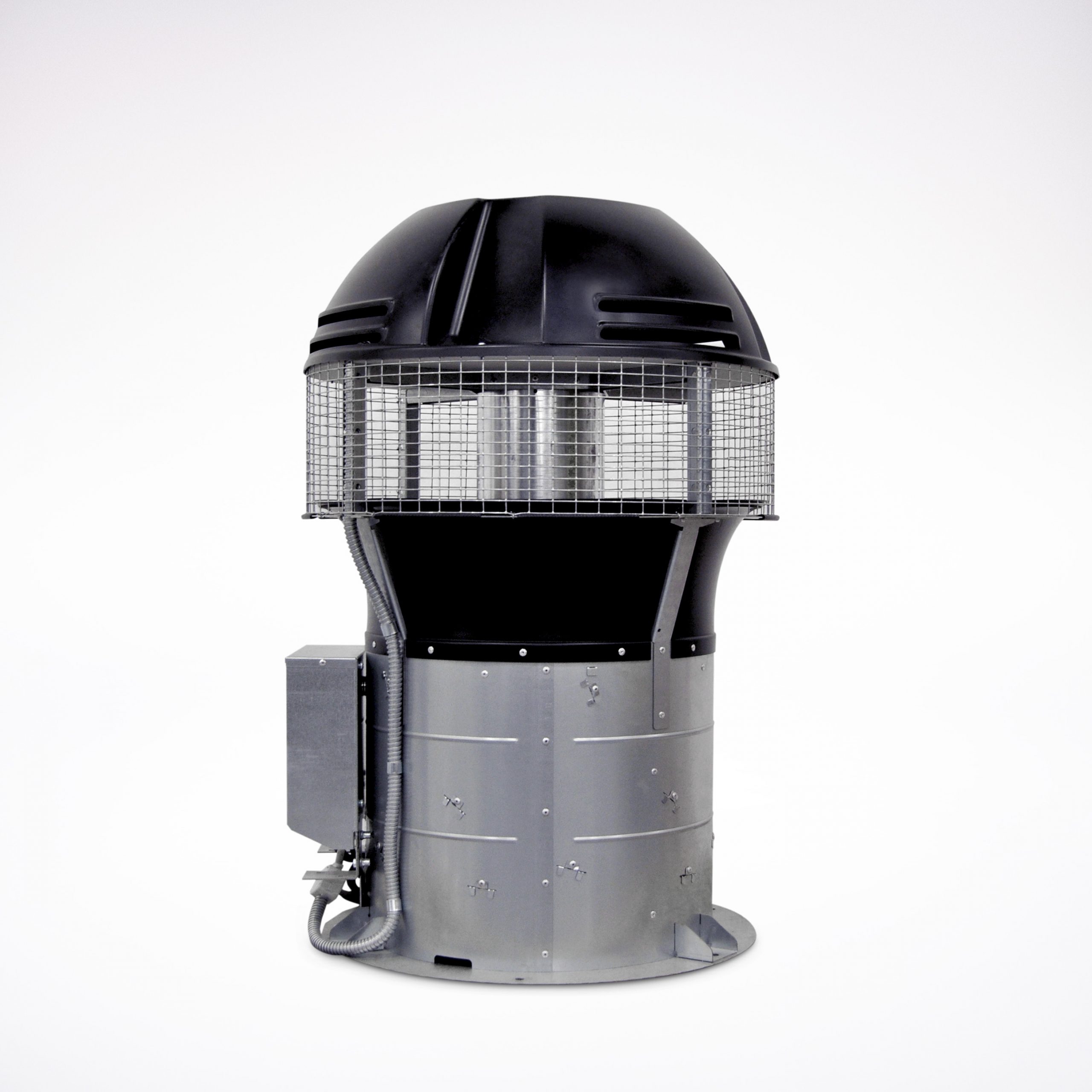

Aereco VBP+ Exhaust Fan
VBP+ EXHAUST FAN
VBP+ EXHAUST FAN
Hybrid ventilation, more energy efficient than ever
The VBP+ hybrid ventilation fan range is the ideal solution for the renovation of buildings equipped with natural or passive stack ventilation ducts, improving the performance of the ventilation through a very low electrical consumption.
Its hybrid working, at very low pressure, (natural or mechanical mode) enables to automatically adapt to weather conditions to keep the pressure in the ductwork, all year long.
INFORMATION
BRAND
Aereco
PRODUCT TYPE
Exhaust Fan
HYBRID WORKING
Allows natural ventilation when stopped / at very low speed.
WEIGHT
17 kg
COLOR
Metal Grey / Black

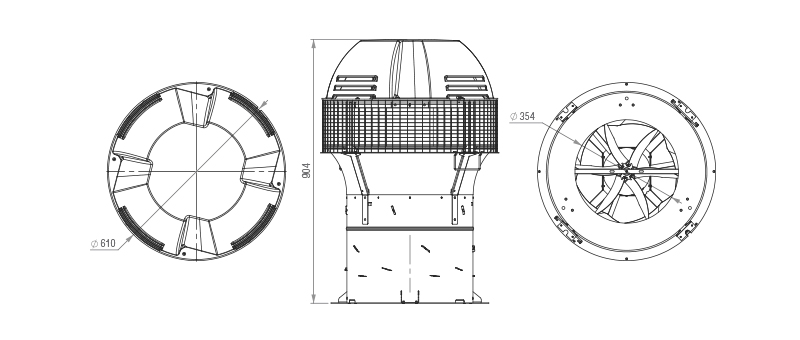

EXTERNAL DIMENSIONS
- Height : 904 mm
- Diameter : 610 mm
ADAPTS TO WEATHER CONDITIONS
Management system (MS version) with temperature sensor.
ALARM OUTPUT
MS Version
CODE
VB21184 (ST) / VB21183 (MS)
ACOUSTICS
- Max. sound power level Lw : 59 dB(A)
- Max. sound pressure level Lp @ 4m : 36 dB(A)
RENOVATION OR NEW BUILDING
On natural ventilation ductwork.
LOW ENERGY CONSUMPTION
Only 35 W at 800 m³/h @ 20 Pa.
NOT CRITICAL
Ensures natural ventilation if the fan stops.
CONTROL
By built-in potentiometer (ST) or by management system (MS)
MATERIAL (ENVELOPE)
Galvanized Steel / PE
DEGREE OF POLLUTION
1
CONSTANT PRESSURE
Adapted to demand controlled ventilation.
MAX. POWER
- 42 W (ST)
- 42 W (MS)
OPERATION
- Max. speed : 650 RPM
- Direct-drive impeller : By motor coupler

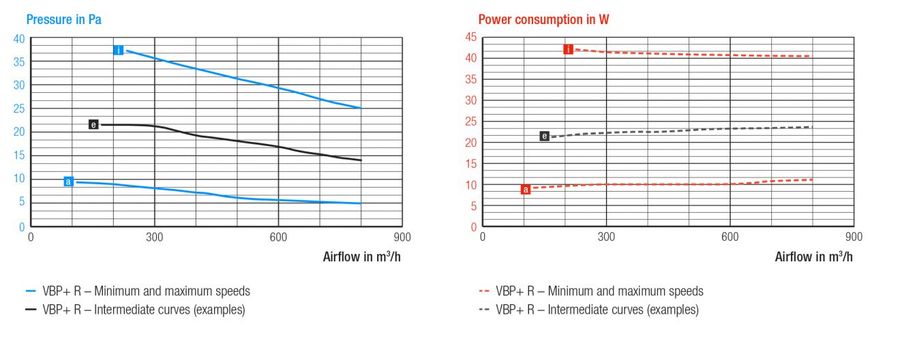

VBP+ R PRESSURE

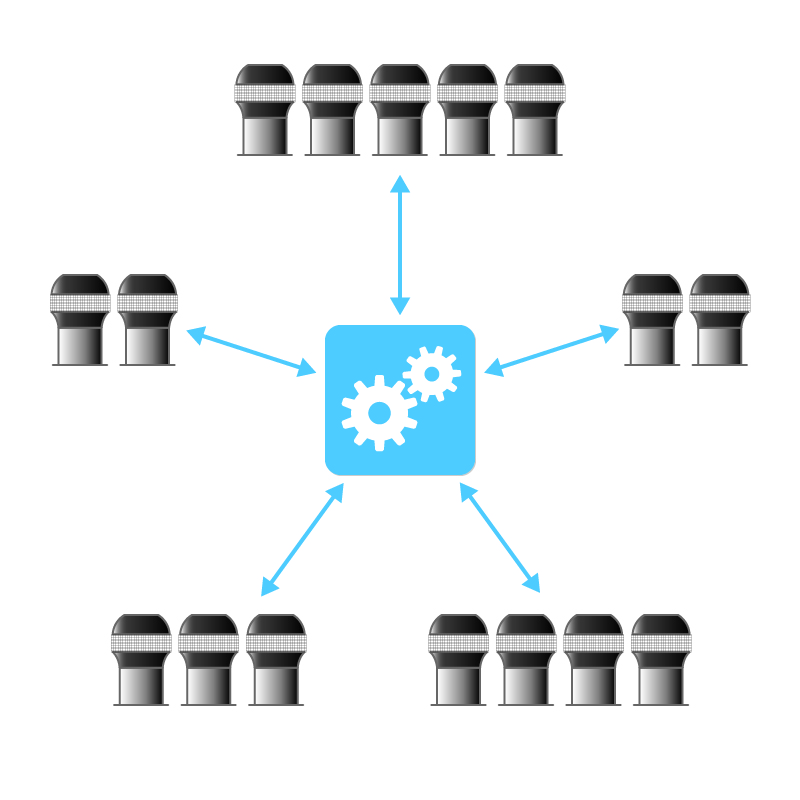

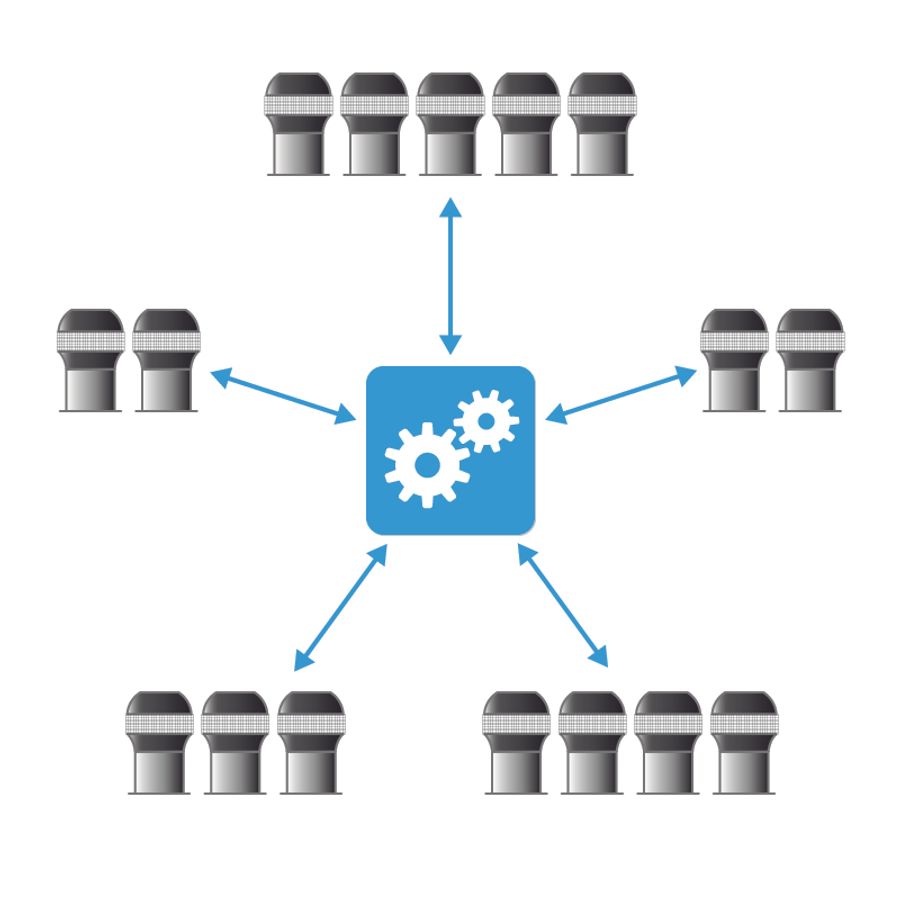

NUMBER OF FANS PER GROUP & MAIN MODULE
1 to 5
VOLTAGE
230 VAC
FREQUENCY
50-60 Hz

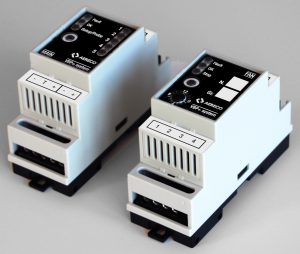

MODULE
- Fan module : Ref. VB21118
- Main module : Ref. VB21119
INSTALLED

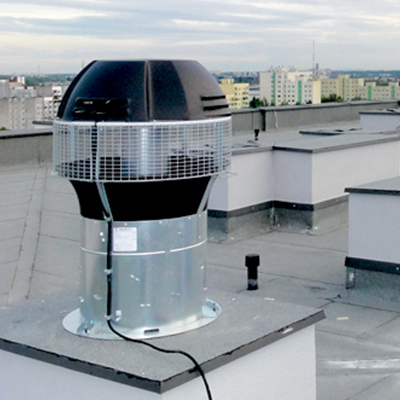

The VBP+ is specially designed for demand controlled ventilation (humidity sensitive, presence detection or other activation modes) thanks to its pressure management. Located on a terrace or on a slope roof, the VBP+ is easily installed on the top of chimney through adaptation parts. Its large free area (equivalent to 8 ducts of ø125 mm) allows to gather several collective or individual ducts without reducing the cross section.
ELECTRICAL BOX (NOT INCLUDED)
- IP65
- Rail DIN
INSTALLATION
- Inlet : ø354 mm
- Number of available draft connections : 1
- Installation : On roof, head of the air duct – 3 x screws ø8

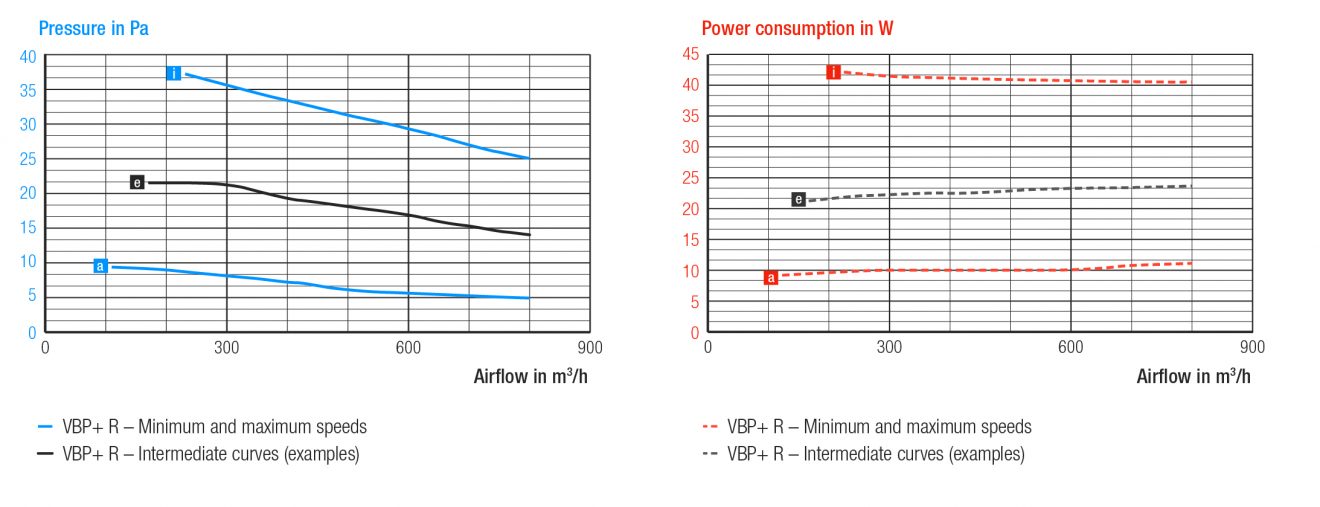

AIRFLOW CHARACTERISTICS
- Max. airflow : 800 m3/h
- Max. pressure @ 200 m3/h : 39 (ST) / 35 (MS) Pa
- Max. pressure @ Max. airflow : 27 (ST) / 27 (MS) Pa
DOWNLOADS
↓ Product booklet – FLY596GB_V8
↓ Installation and maintenance instructions – TF5602_L
↓ Installation and maintenance instructions – TF5774_D

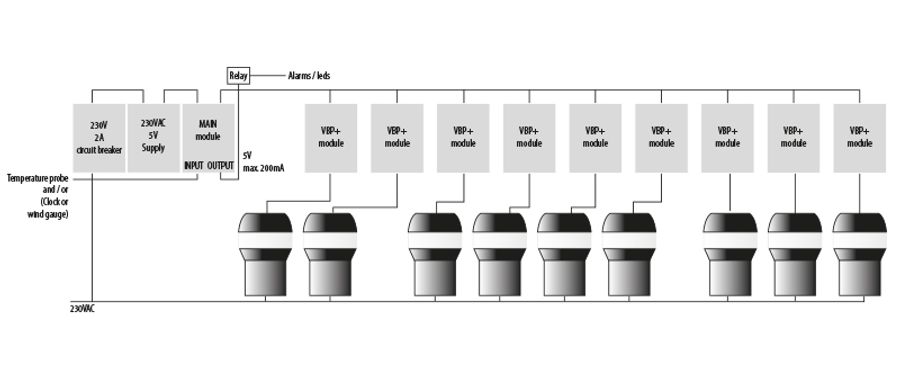

MANAGEMENT SYSTEM MS
MOTOR TYPE
EC (Electronic commutation)
IP DEGREES OF PROTECTION
IP54
BLADE DESIGN
Not critical in case of supply default with its patented blades design (no pressure losses when stopped), the VBP+ requires a very light maintenance in comparison with standard mechanical systems, making of it a privileged solution for social housing. Equipped with an EC motor, the VBP+ has a very low energy consumption.

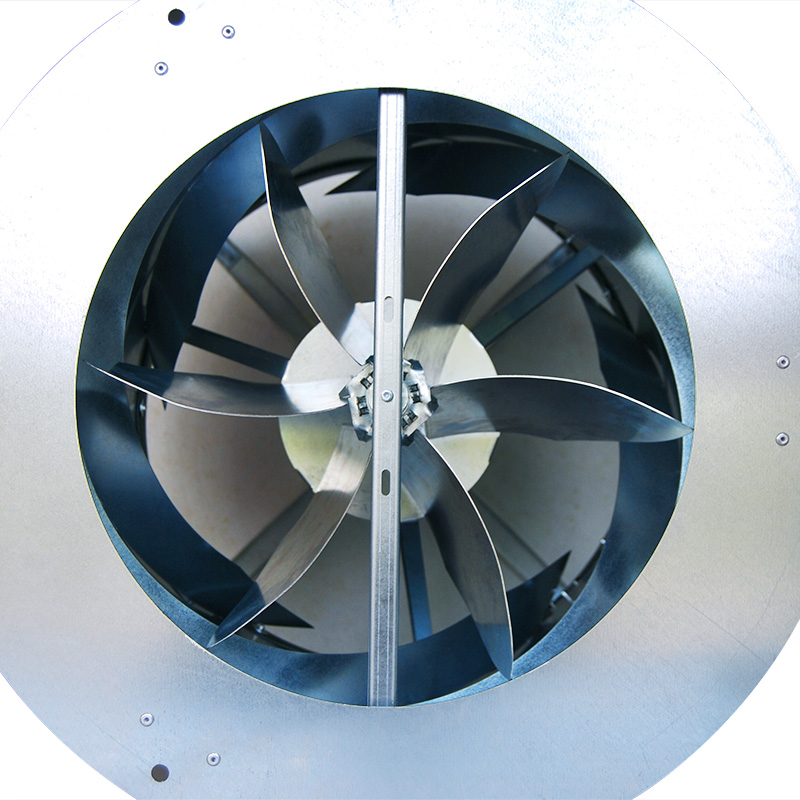

PATENTED SMART BLADES DESIGN
The unique smart propeller design of VBP+ prevents from creating pressure loss when stopped: the central blades are parallel to the airflow, the airflow being generated through static peripheral paddles. Thus, the system is not critical in case of supply failure (natural ventilation working mode). The C4 version offers a galvanised steel propeller; the R version is equipped with a plastic one.
TEMPERATURE SENSOR
Specific
ALARM OUTPUT (RELAY OUTPUT)
5V – max. 200 mA
LOW MAINTENANCE, LOW ENERGY CONSUMPTION
Thanks to its hybrid mode, the VBP+ operates only when outdoor conditions do not generate enough pressure to exhaust stale air from the dwellings. That way, VBP+ runs less in average, which leads to a very low energy consumption. Moreover, VBP+ roof fan needs a very low level of maintenance and owns a long lifetime for a reliable ventilation system.
ACCESSORIES
- AVE1146 : Numerical thermal sensor for MS system
- VBP1119 & VBP1118 : Electronic module for MS system (MAIN module)
