Alfa Plam Commo Compact 37 Boilers
COMMO COMPACT 37 BOILERS
COMMO COMPACT 37 BOILERS
A central heating pellet furnace of reasonable dimensions and simple design, suitable for positioning in basements as well as residential rooms.
INFORMATION
BRAND
Alfa Palm
PRDUCT TYPE
Boilers
MAX HEATING SURFACE
370 m2
PRODUCTION
Made in Germany
МAXIMUM OPERATING TIME PER FULL TENK
33 h
DIAMETER OF THE FLUE EXTENSION
100 mm
NET WEIGHT
360 / 380 kg
DEGREE OF UTILIZATION
90 %
SPECIAL CAST AND BOILER
Fire box made of special cast and boiler made of sheet metal intended for boilers.
DETAIL
Components necessary for the operation of the heating system are factory-installed in the product. Built-in safety thermostats prevent water overheating in the boiler and the furnace self-ignitiion.
DIMENSIONS OF THE FIREBOX
- Width : 180 mm
- Height : 80 mm
- Depth : 130 mm

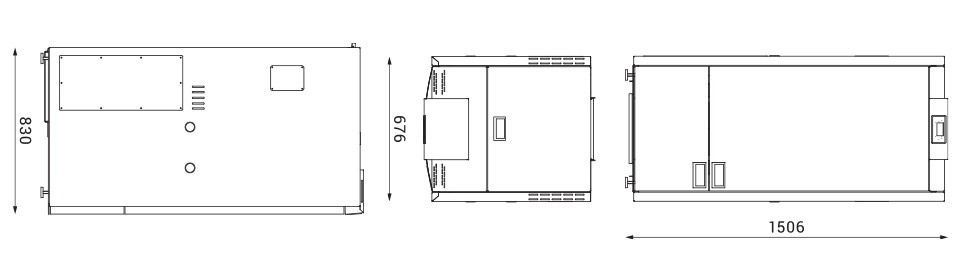

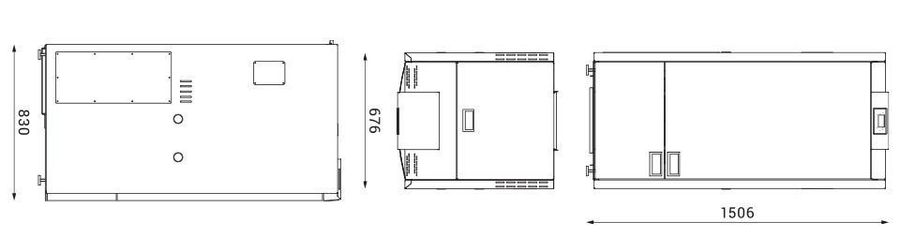

DIMENSIONS
- Width : 676 mm
- Height : 830 mm
- Depth : 1506 mm
ENERGY EFFICIENCY CLASS
A+
POWER
37 kW
STANDARDS
EN 303-5 Ecodesign
MIN/MAX PELLET CONSUMPTION
2.13 / 8.36 kg/h
HIGH-QUALITY SHEET METAL
A High level of automation with an innovative semi-automatic cleaning mode enables maximal comfort during use. High level of efficiency. The possibility of achieving greater operational autonomy by installing an additional pellet container. Remote control through android and IOS applications (optional).
HEATING VOLUME
555-925 m3
PELLET TANK CAPACITY
70 kg
DOWNLOADS
↓ DOC
↓ User manual
↓ Technical parameters
↓ Product Fiche according to regulation (EU) 2015/1187
COLORS
Red
QUANTITY OF WATER IN THE BOILER
68 l
THERMAL POWER TRANSFERRED TO WATER
37 kW
COLLECTION
Commo
MIN HEATING SURFACE
222 m2
HIGH TEMPERATURES
The casing and fire box door are made of quality sheet metal and protected with paint and varnish resistant to high temperatures.
SAFE AND LONG-LASTING OPERATION
Heat insulation of fire box door by vermiculite as well as additional heat insulation of the very boiler by mineral wool reduces heat emission into the room and increase fuel efficiency coefficient.
ADVANTAGES
- Weekly programming of the boiler operation.
- The boiler ability to operate on 5 power levels
- Cleaning systems additionally facilitate the furnace maintenance and enable reliable operation.
