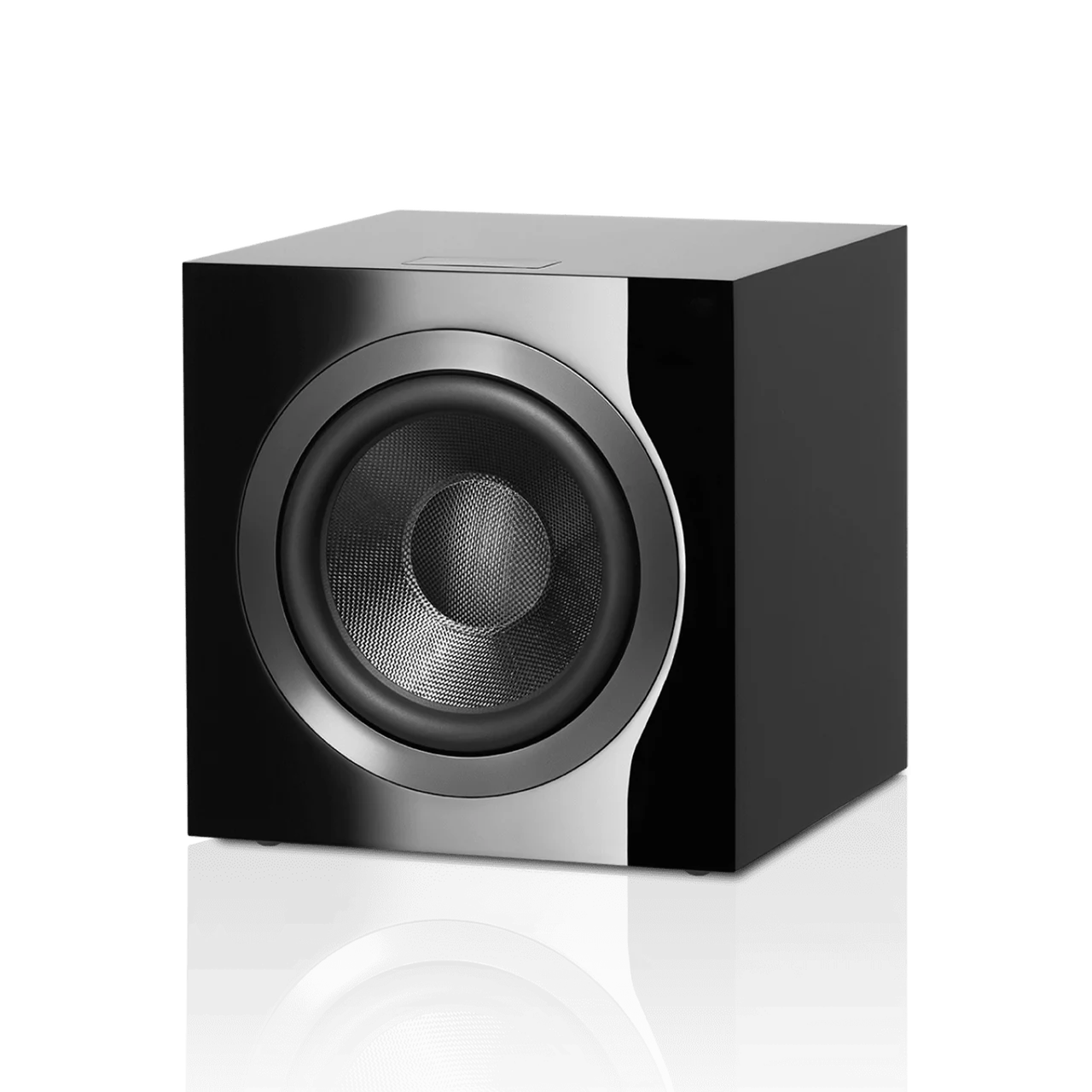

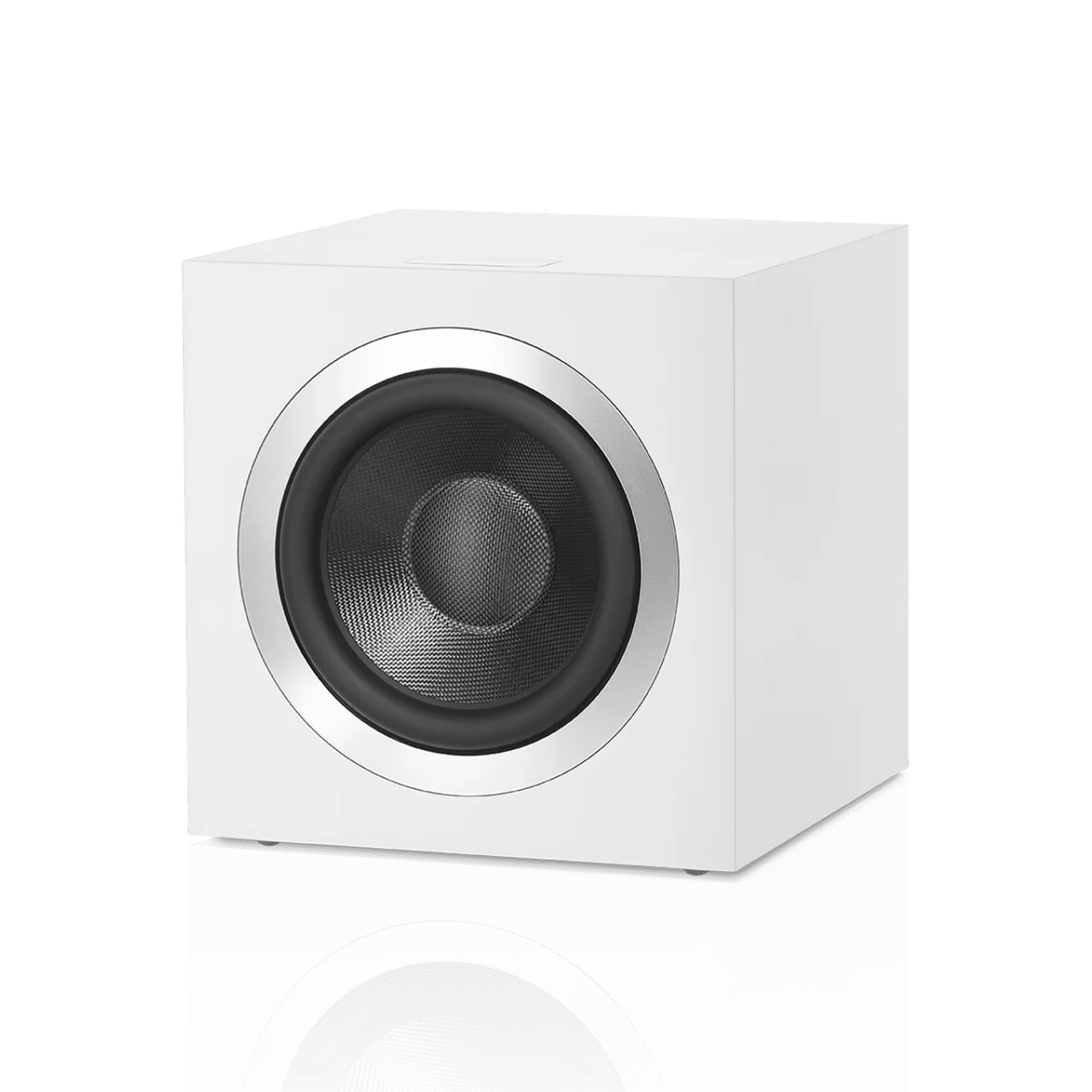

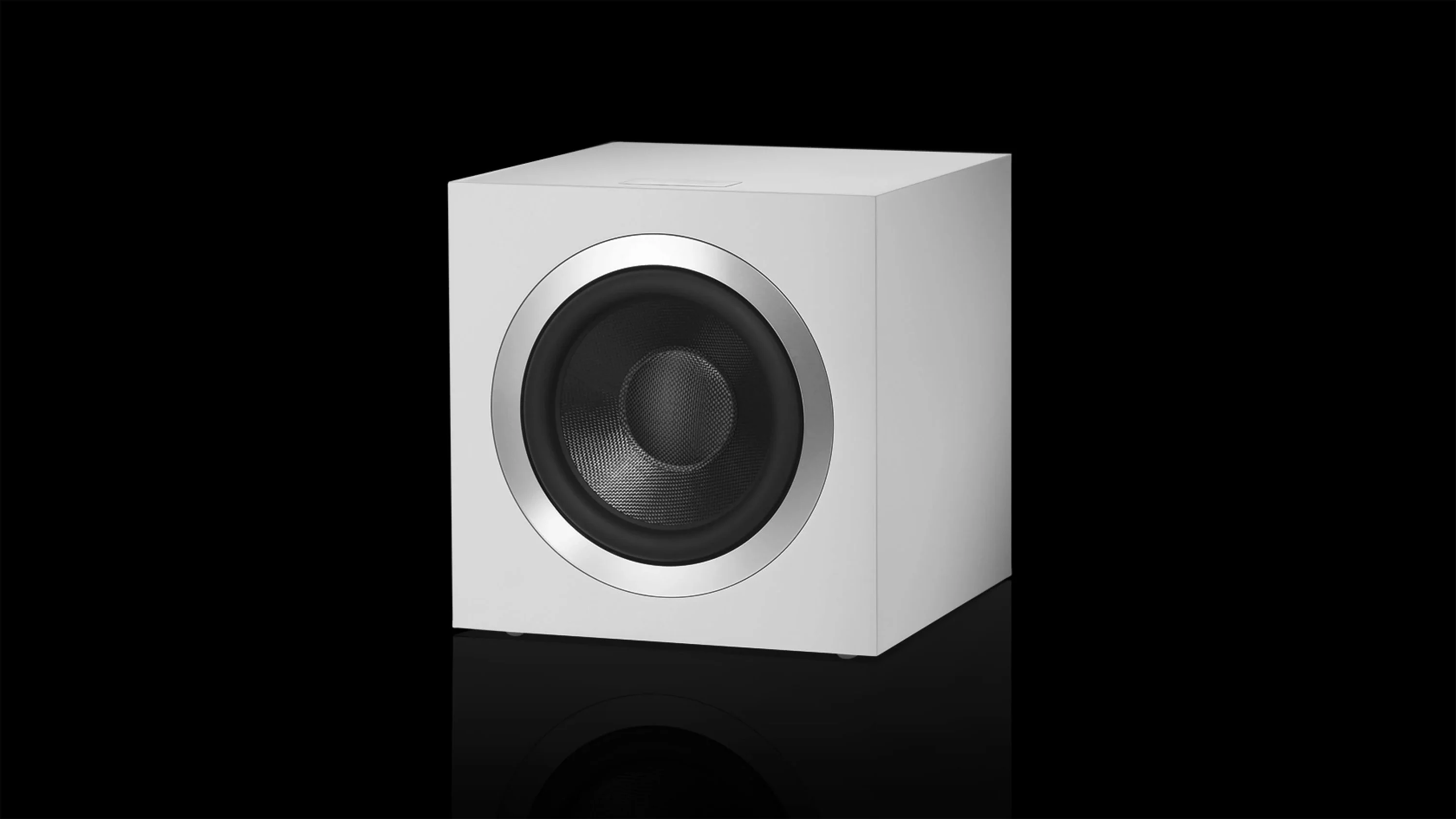

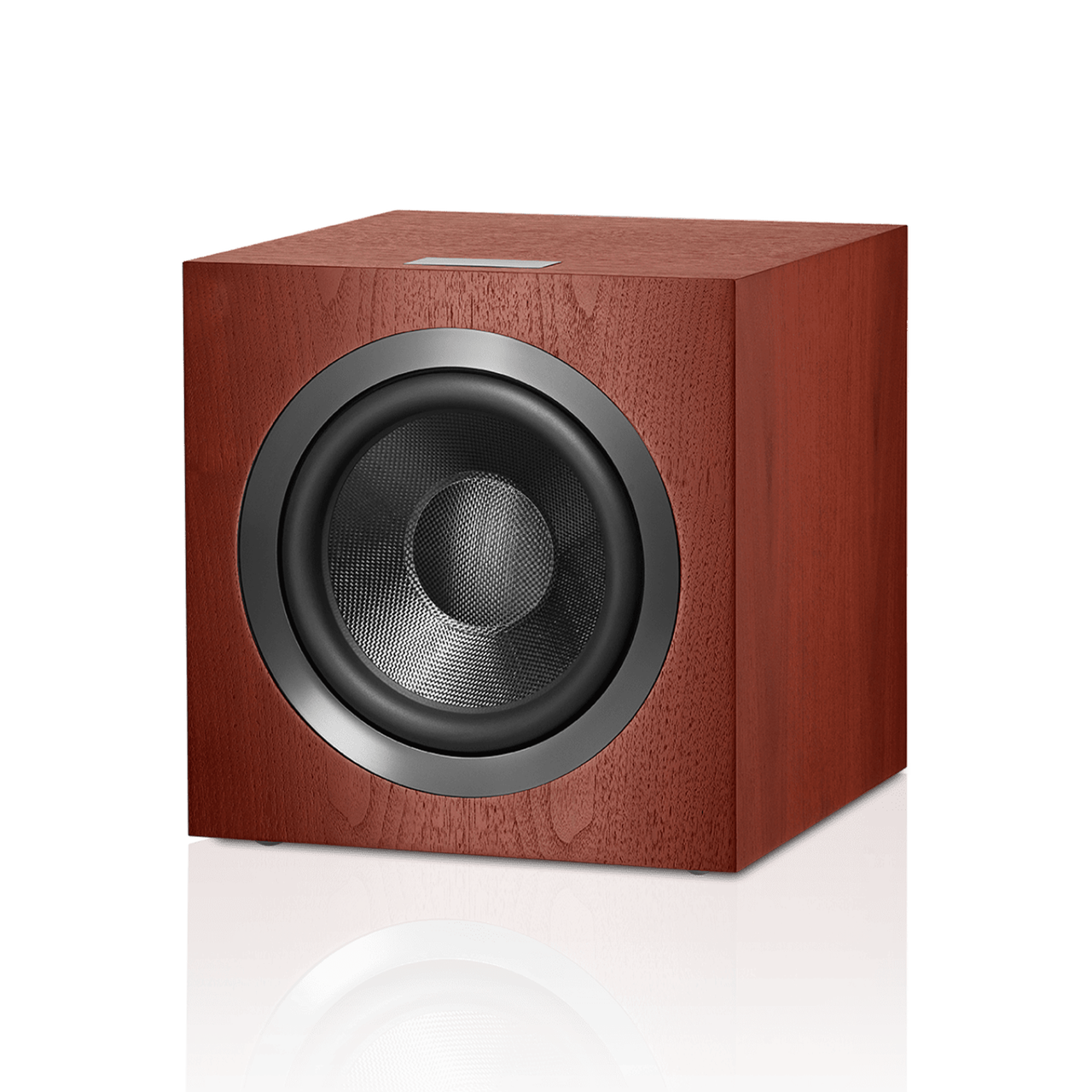

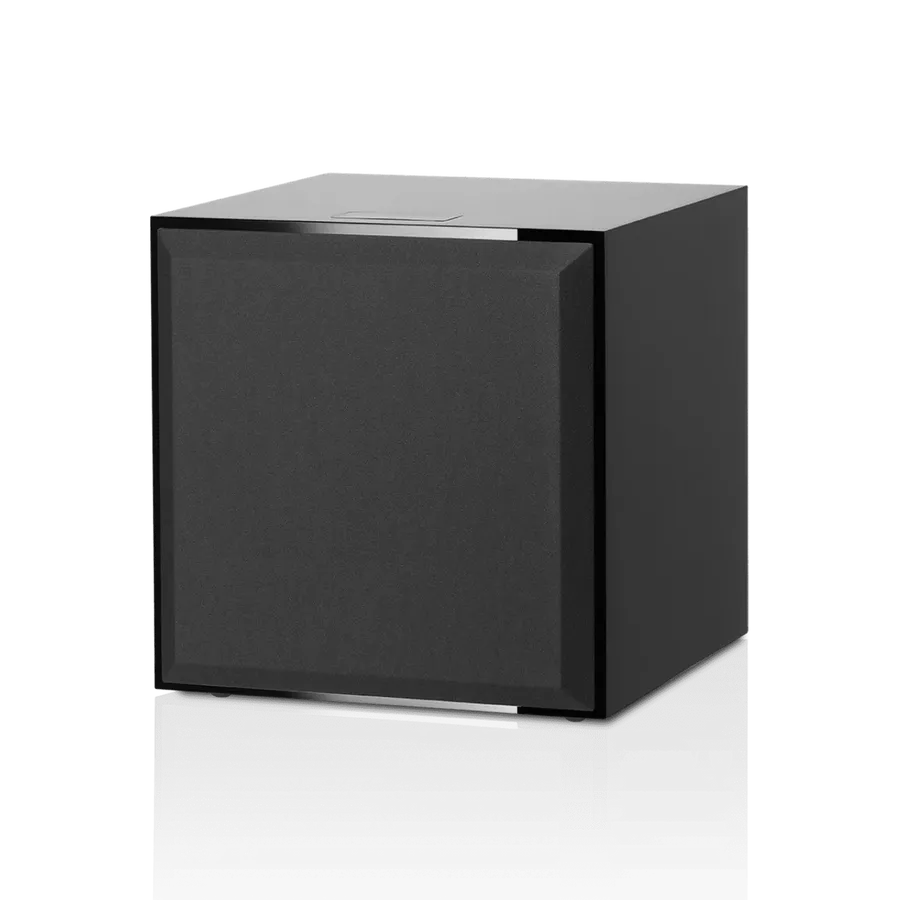

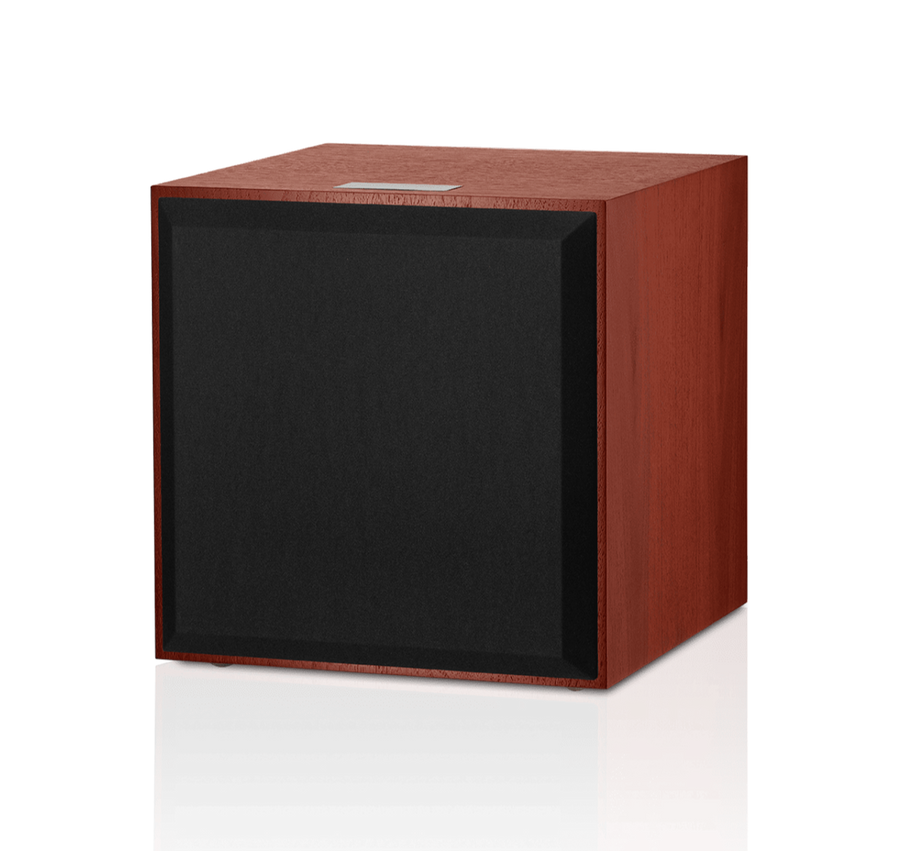

Bowers & Wilkins DB4S 10-in Subwoofer
DB4S 10-IN SUBWOOFER
DB4S 10-IN SUBWOOFER

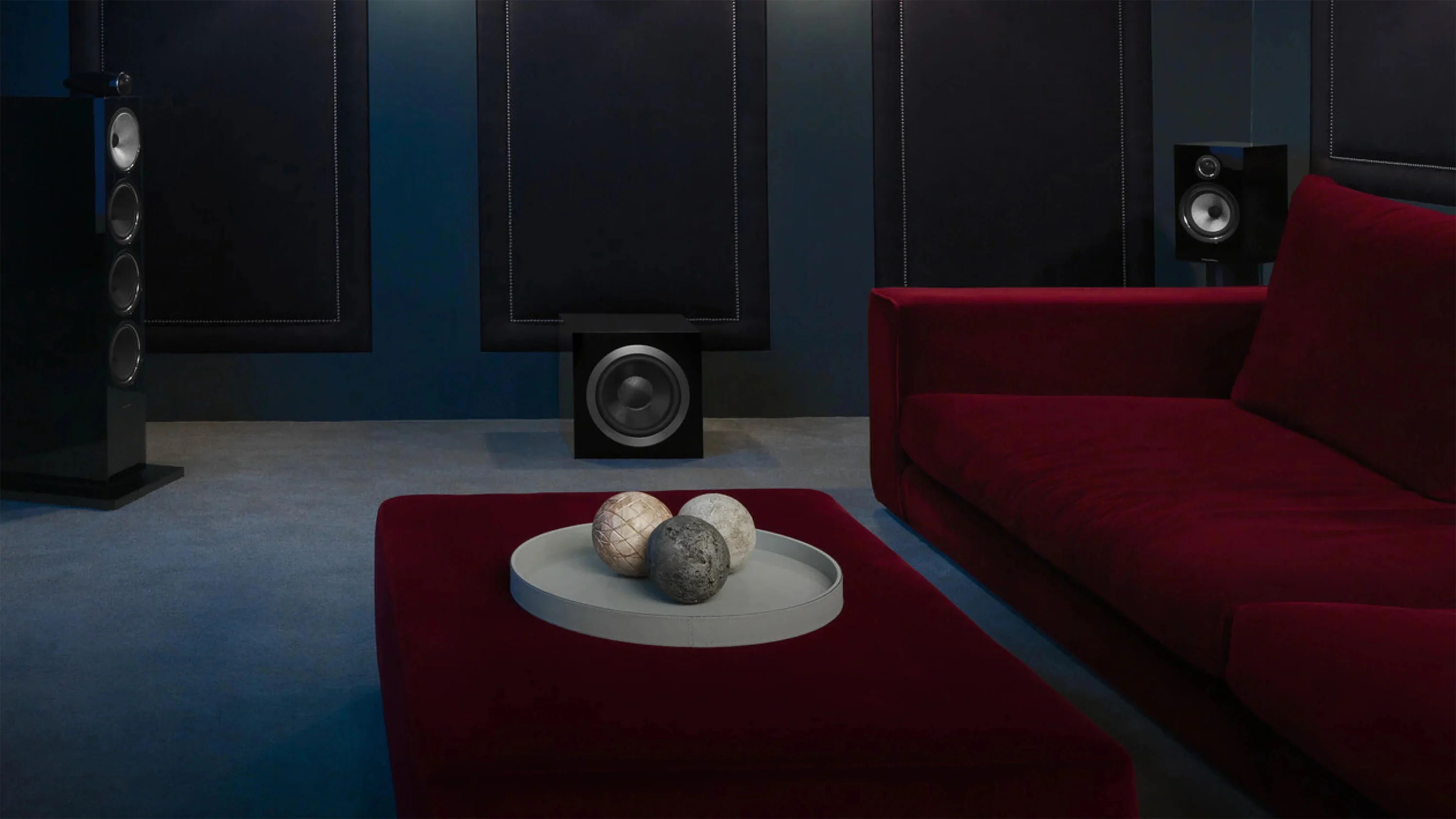

Give your home theater set-up the bass impact it deserves with DB4S – a powerful, classically styled single driver subwoofer that's a perfect match for the 700 Series.
INFORAMTION
BRAND
Bowers & Wilkins
PRODUCT TYPE
Subwoofer

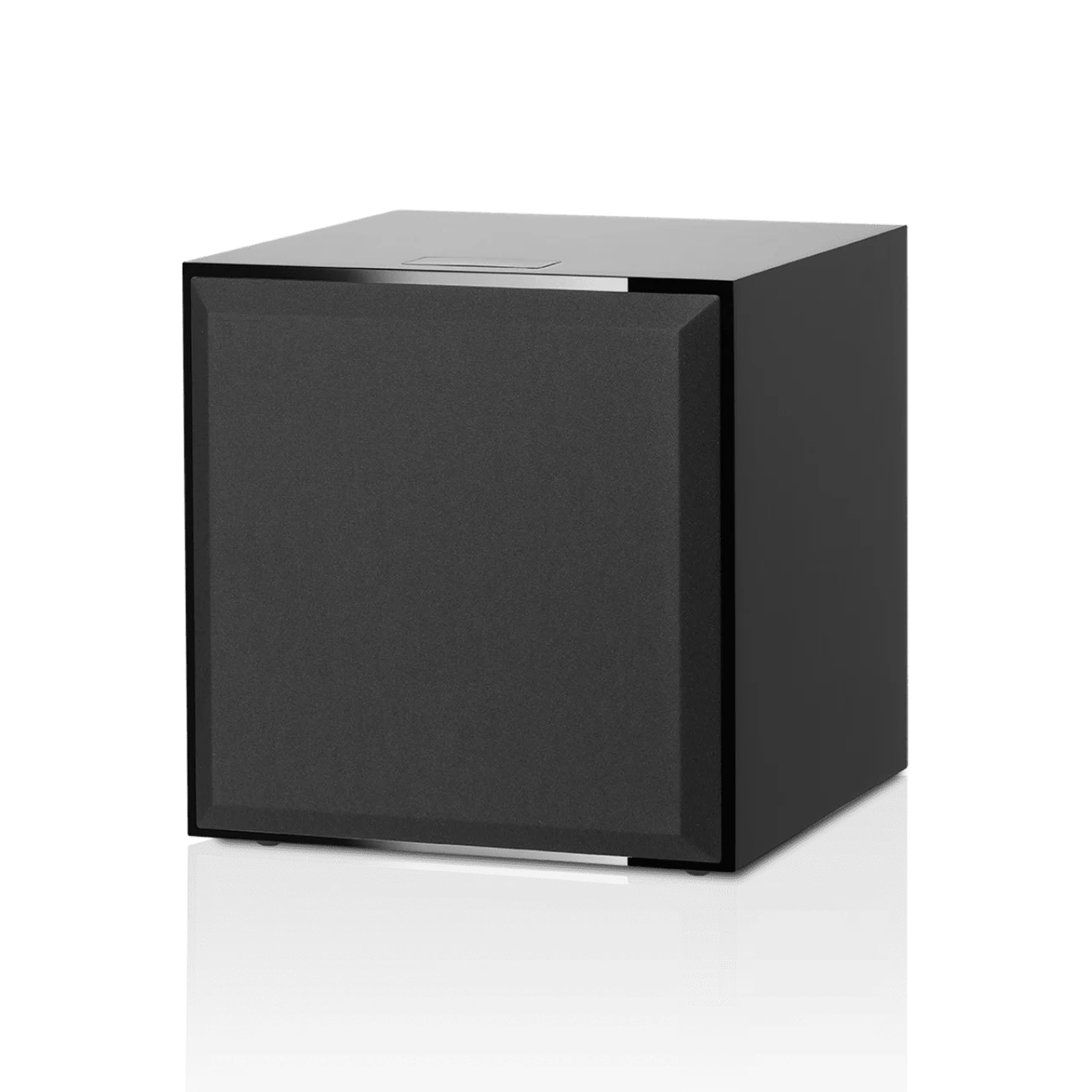

GRILLE FINISHES
- Black
- Grey
INPUT IMPEDANCE
- RCA : 10 kOhm
- XLR : 20 kOhm
DIMENSIONS
- Width : 360mm (14.1 in)
- Depth : 368mm (14.5 in)
- Height : 377mm (14.8 in) including feet
FREQUENCY RANGE
-6dB at 8.5Hz - 500Hz
FREQUENCY RESPONSE
10Hz - 350 Hz -3dB (centered on level at 100Hz)
COLLECTION
DB4S 10
NET WEIGHT
26kg (57.3 lb)
DRIVE UNITS
1x ø250mm (10 in) Aerofoil™ cone bass
POWER CONSUMPTION
- Standby <0.5W
- 1/8th of rated power 195W
SIGNAL / NOISE
82 dB
WARRANTY
5 Years
AVAILABLE COLORS
3
MAX POWER OUTPUT
1000W
USE
Entertainment
PRODUCTION
Made in United States
INPUTS
- 2 x XLR
- 2 x RCA
- 2 x 3.5mm 12V trigger
- RS-232 - 9-pin D connector
TECHNICAL FEATURES
- 1x ø250mm (10 in) Aerofoil™ cone bass
- Digital preamplifier with Dynamic EQ
- App-based set-up and BT-LE control
SOUND
For bass you can feel
With digital amplification, DB4S delivers all the visceral rumble and punch you need to bring cinema sound to life.
SYSTEM
Active closed-box subwoofer system
DOWNLOADS
↓ Manual
↓ Data Sheet

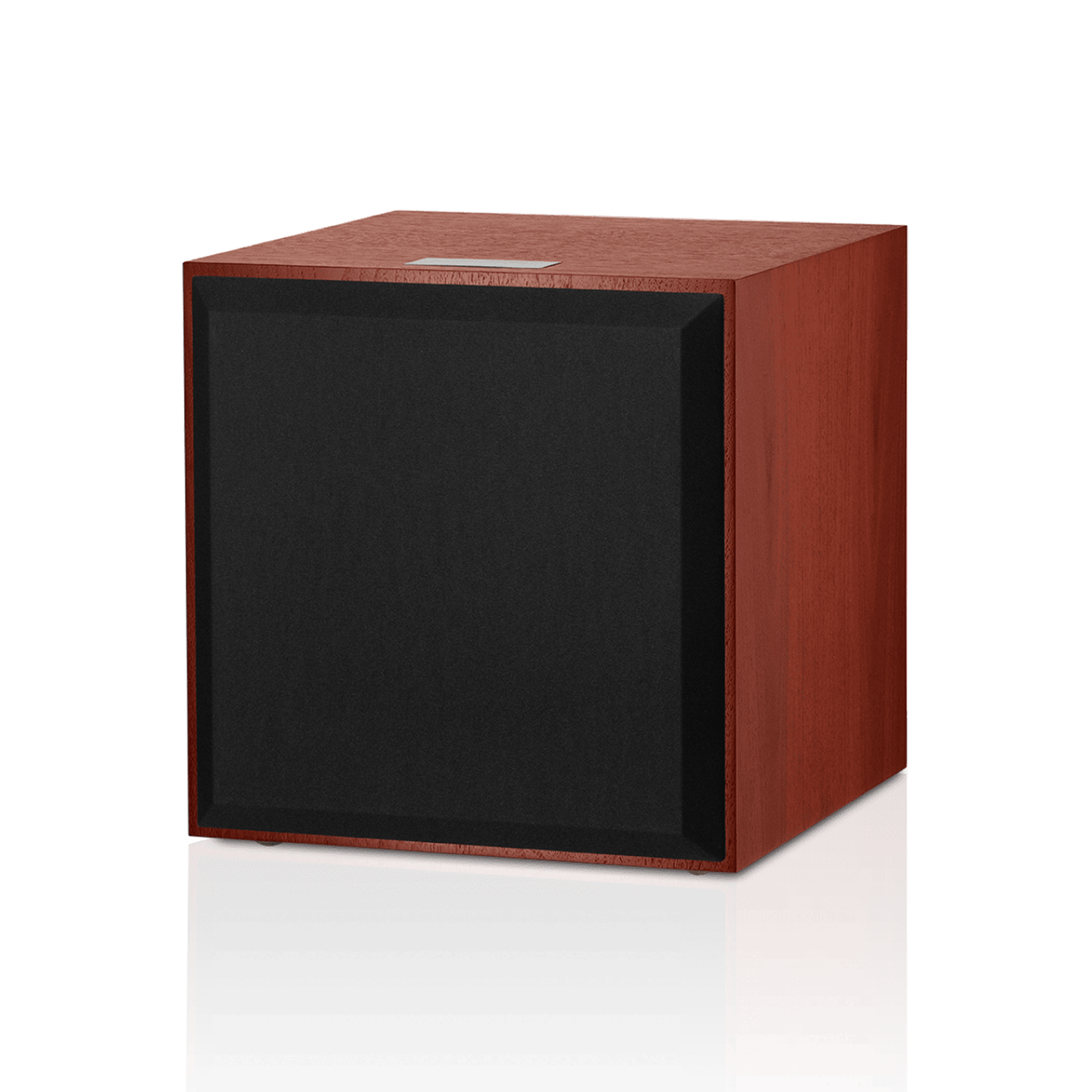

CABINET FINISHES
DETAIL

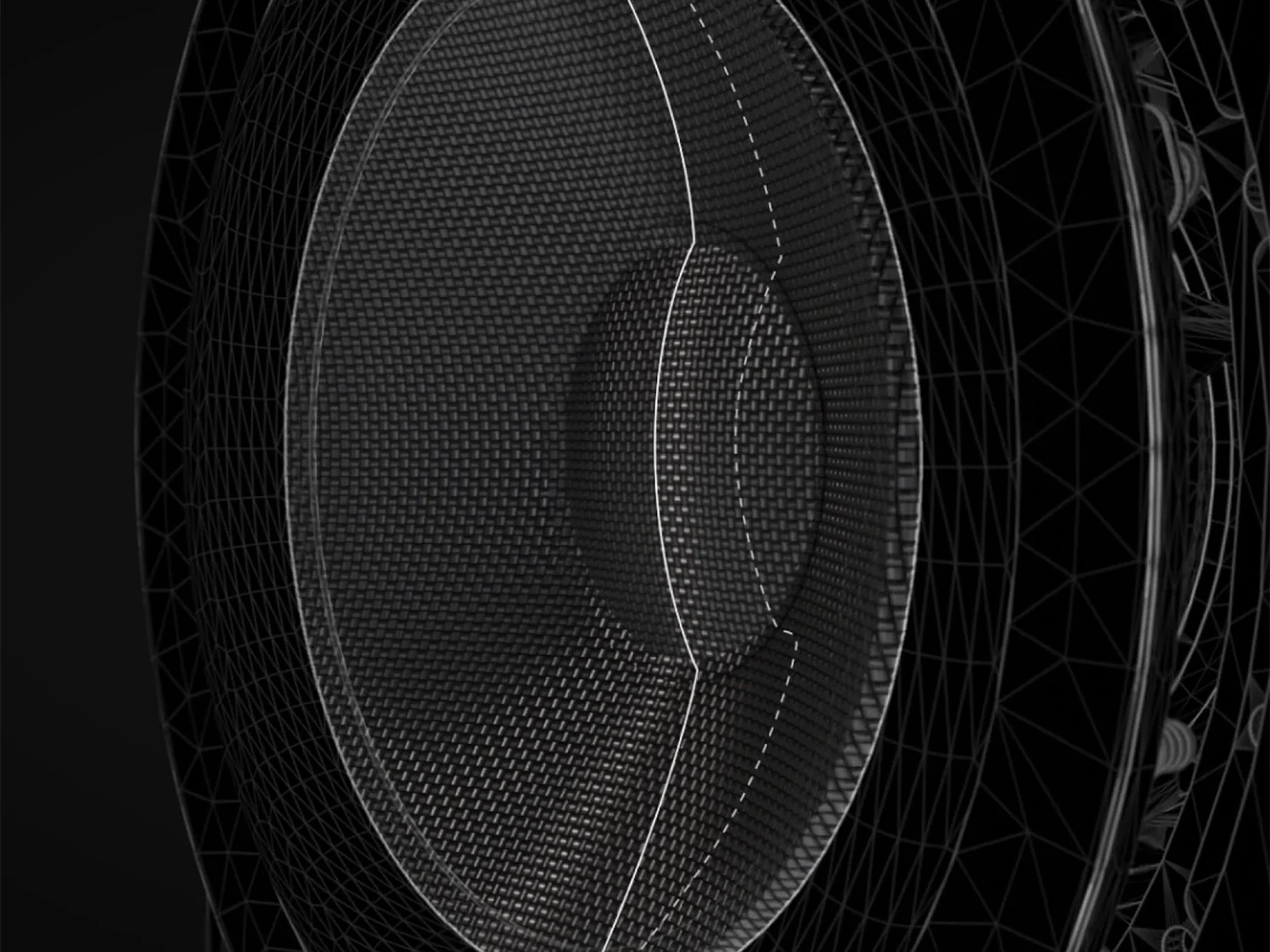

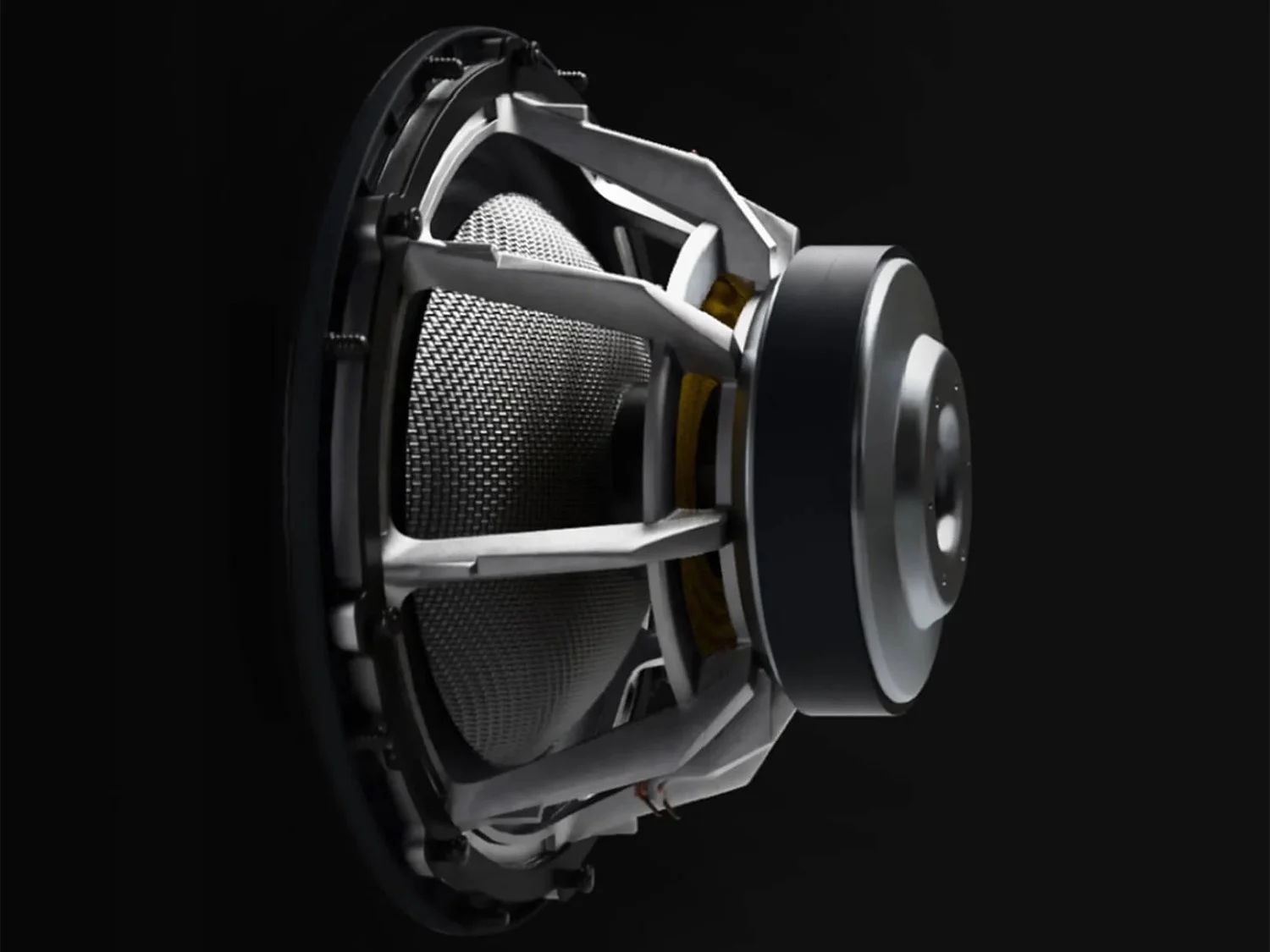

NIMBLE AND POWERFUL
Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.

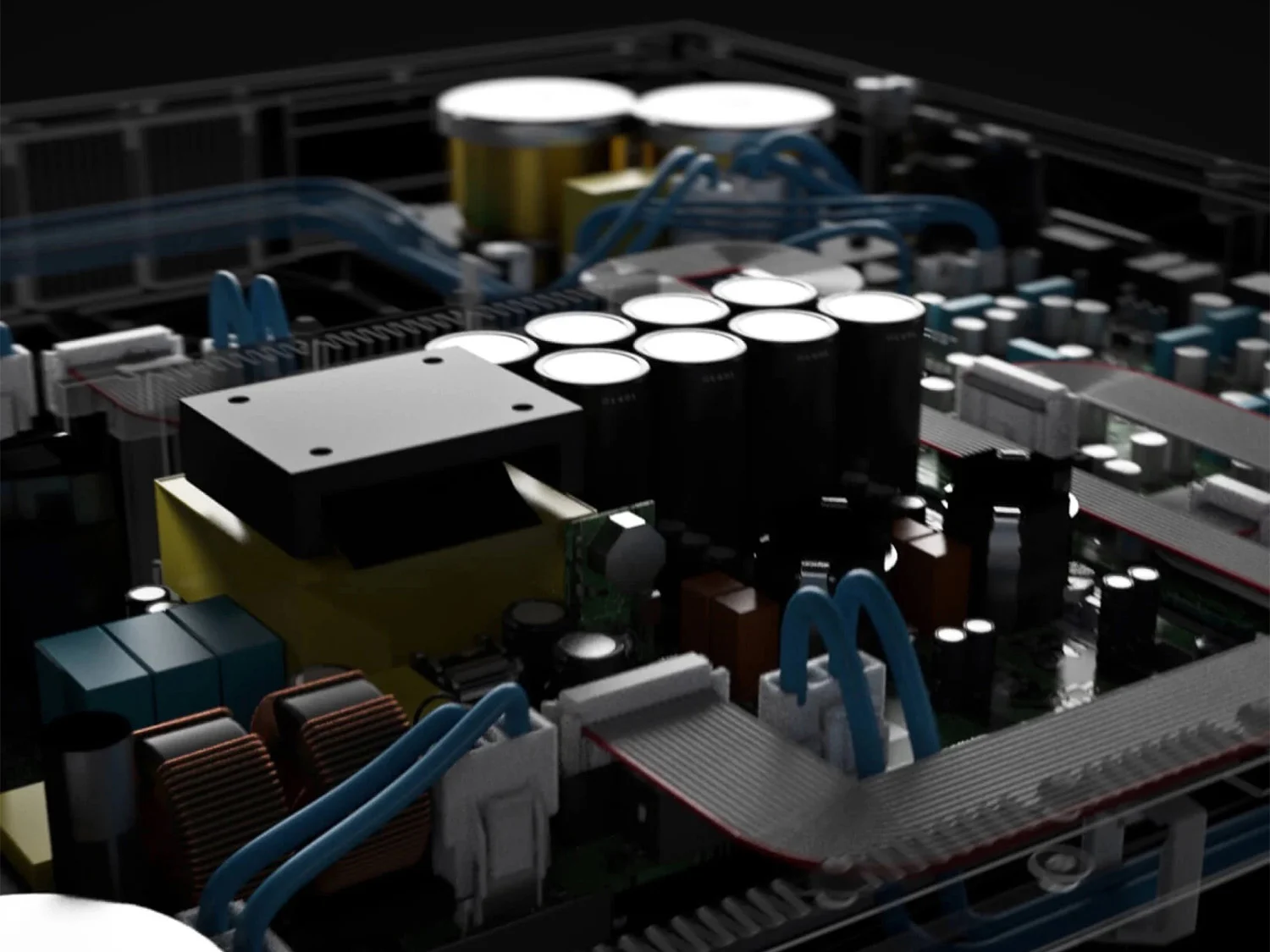

POWERFUL AMPLIFICATION
Thanks to digital amplification, DB4S delivers all the precision, control and authority you could ask for.
DIGITAL PREAMPLIFIER
DB4S uses a digital preamplifier featuring Dynamic EQ, for optimized audio performance across the available frequency range.

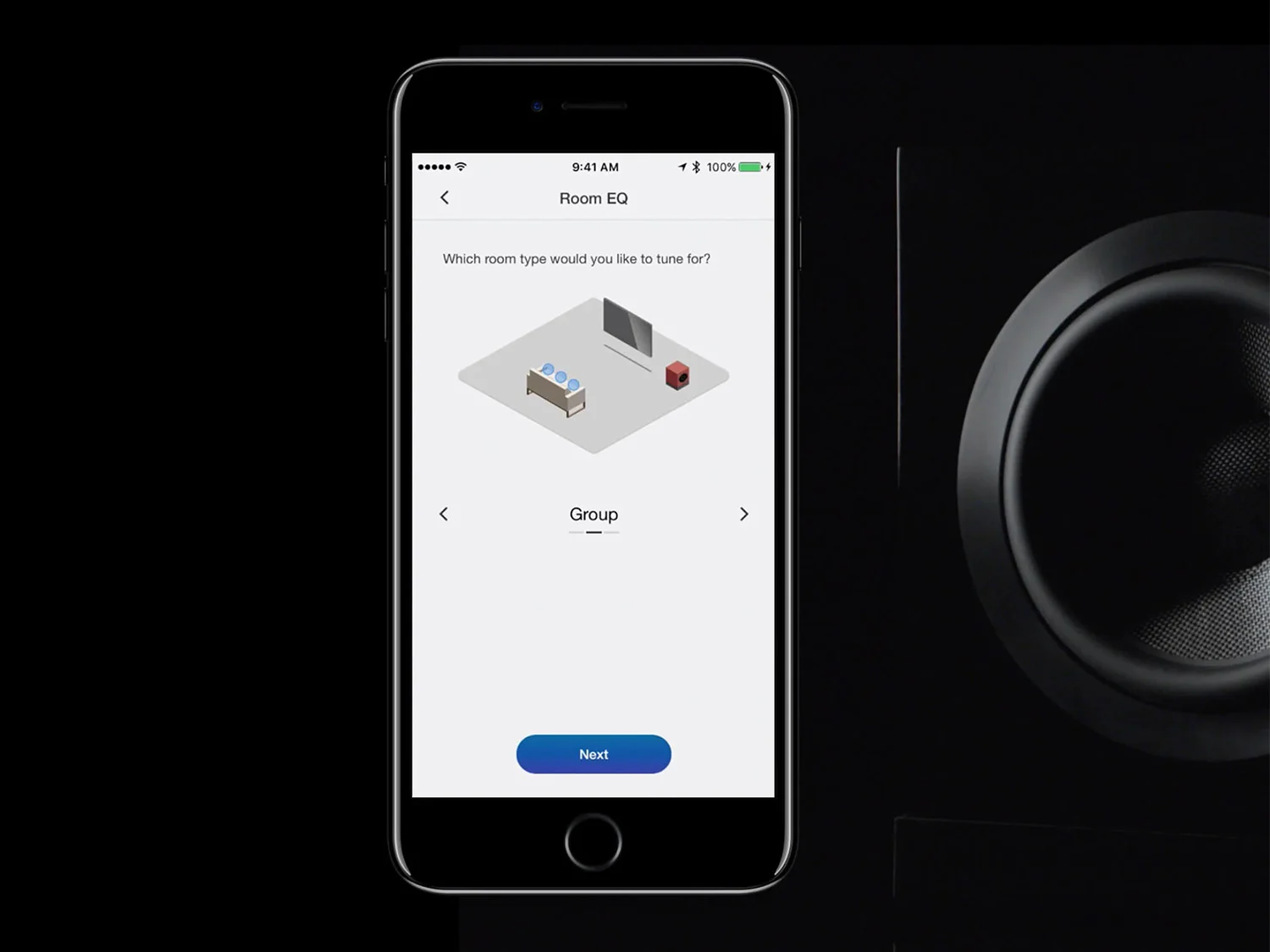

CONTROL APP
Adjust calibration and correction easily using the dedicated DB4S smartphone app.
