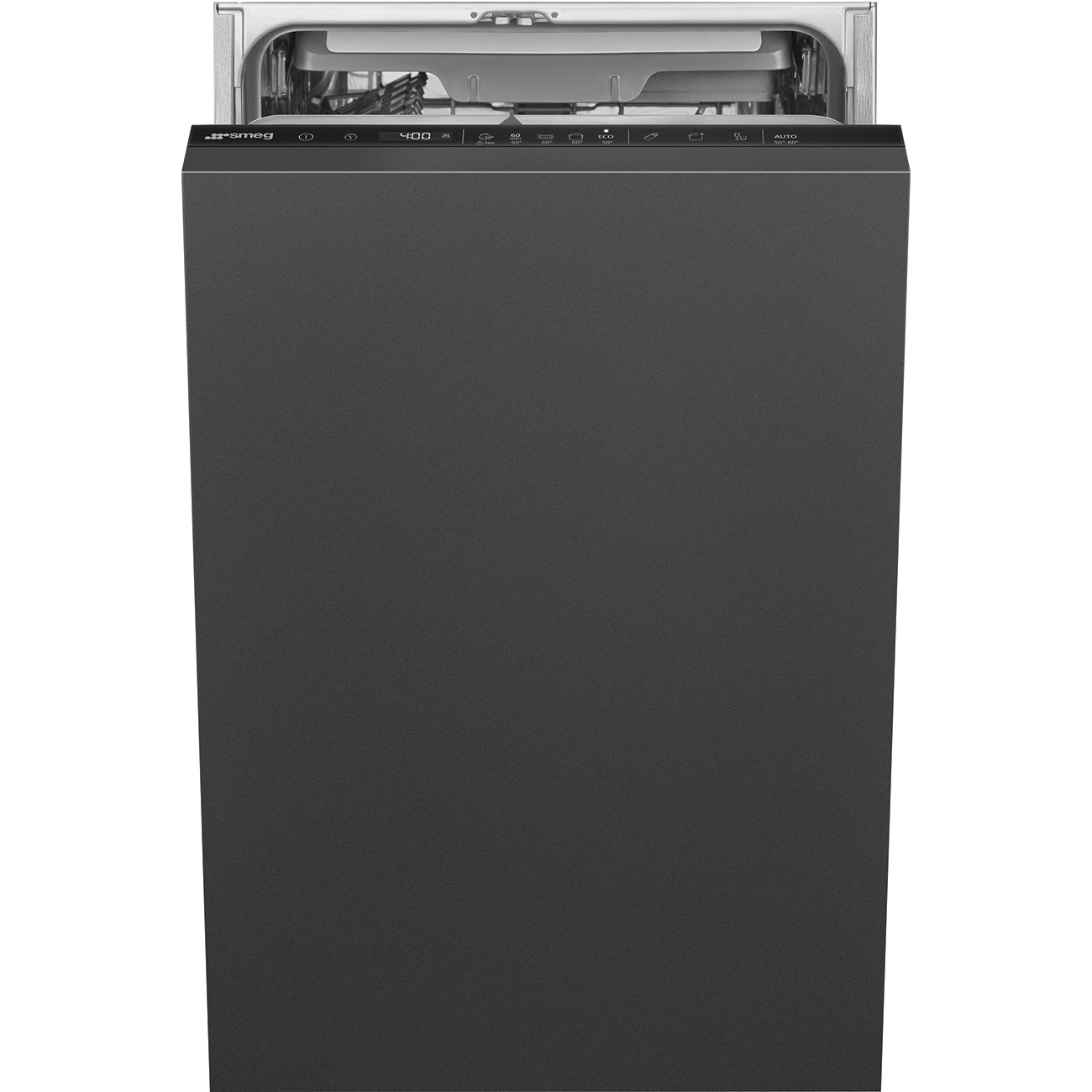

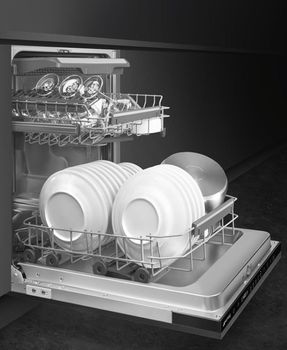

Smeg Fully-integrated Built-in Dishwasher
FULLY-INTEGRATED BUILT-IN DISHWASHER
FULLY-INTEGRATED BUILT-IN DISHWASHER
Built-in fully integrated dishwasher that blends seamlessly with the kitchen design.
It offers optimal washing performance and flexibility for everyday needs. Its height ensures compatibility with standard furniture.
INFORMATION
BRAND
Smeg
PRODUCT TYPE
Dishwasher
PRODUCT CODE
ST4533IN
WATER SOFTENER
With electronic setting
BACK FEET ADJUSTABLE FROM FRONT
Yes
PRODUCT DIMENSIONS - 1
- Depth : 550 mm
- Width : 446 mm
- Height : 818 mm
PACKAGING DIMENSIONS - 2
- Depth : 685 mm
- Width : 490 mm
- Height : 870 mm
TYPE OF PACKAGING
Shrinkwrap
OTHER ACCESSORIES
Salt funel
NET WEIGHT
33.700 kg
GROSS WEIGHT
35.200 kg
PACKAGING WEIGHT
- Plastic : 0.190 kg
- Wood : 0.249 kg
- Polystyrene : 0.777 kg
- Paper & Cardboard : 0.353 kg
AESTHETICS
- Colour : Black
- Finishing : Glossy black
- Aesthetic : Universale
- Door type : Galvanized
- Buttons colour : Black
- LED/display colour : White
- Front panel colour : Black
OPTIONS
- Extreme Option : Yes
- Crystal Option : Yes
- Sterilise Option : Yes
- Delay Timer Option : Up to 24 hours
COMMERCIAL WIDTH
45 cm
COMMERCIAL HEIGHT
82 cm
EAN CODE
8017709302924
INSTALLATION
Fully-integrated built-in
NUMBER OF PLACE SETTINGS
10
PROGRAMS
- Mix : Yes
- ECO : Yes
- Soak : Yes
- Self clean : Yes
- Intense 60° : Yes
- Express 50° : Yes
- Auto 50°-60° : Yes
- N. Of Programmes : 8
- Full express - 60 minutes : Yes
- Washing Temperatures : 50, 60 °C
DOOR OPENING SYSTEM
Yes
DISPLAY TYPE
LED display (3 digit)
AUTO SWITCH-OFF
Yes
CONTROLS
Electronic touch control
HINGES
- Sliding
- Flexifit
- Self balancing

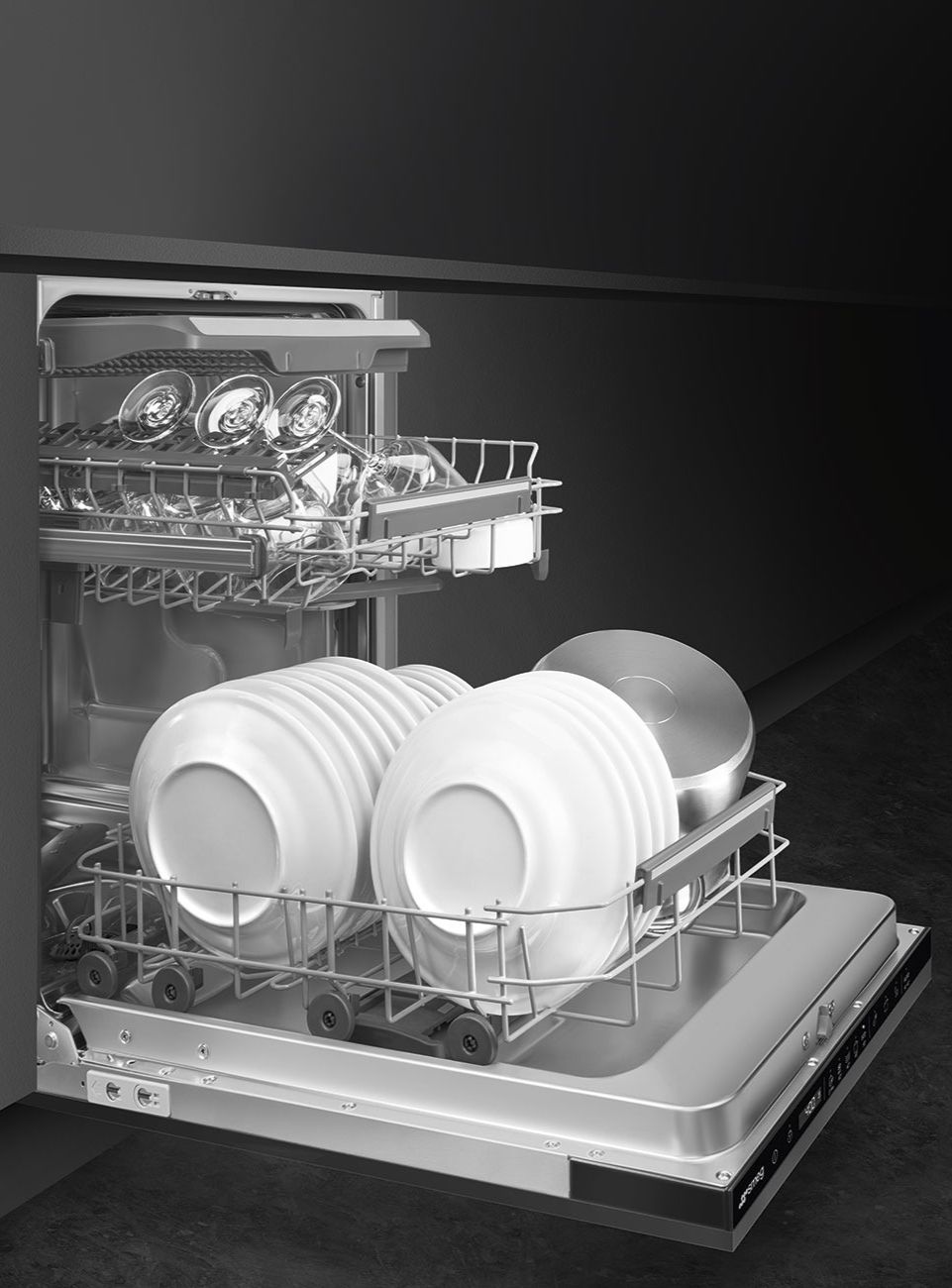

BASKET
- Glass holder : Yes
- N° baskets : 3, Flexi
- Basket & Components color : Grey
- Upper Basket : With central fixed racks
- Lower Basket : With 2 foldable racks
- Lower basket with anti-drip inserts : Yes
- Handle : In plastic on upper and lower basket
- Largest loadable dish in upper basket : 14.0 cm
- Largest loadable dish in lower basket : 31.5 cm
- Height adjustment of the upper basket : On two levels (4 cm)
MIN. AND MAX. FRONTAL PANEL WEIGHT
2 - 7.5 kg
STEAM PROTECTION
In plastic
CONCEALED HEATING ELEMENT
Yes
END OF CYCLE INDICATOR
ActiveLight
SALT LIGHT & RINSE AID INDICATOR
Light
MOTOR
Inverter
WASHING SYSTEM
Standard
ON/OFF INDICATOR
Yes
PERFORMANCE / ENERGY LABEL - REG. 2019
- Energy Efficiency Class : D
- Rated capacity (ps) : 10
- Energy efficiency Index (EEI) : 49.9
- Programme duration : 4:00 h:min
- Water consumption [per cycle] : 9.9 litres
- Airborne acoustical noise emission class : B
- Airborne acoustical noise emissions : 44 dB(A) re 1 pW
- Energy consumption [per 100 cycles, based on the eco programme] : 67 kWh
TUB & FILTER MATERIAL
Stainless Steel
MIN. AND MAX PLINTH HEIGHT
40 - 175 mm
USE
Kitchen
MAX WATER HARDNESS
90°fH; 50°dH
FLOOD PROTECTION SYSTEM
Total Acquastop
CAN BE INSTALLED IN-COLUMN
Yes, with siphon
ADJUSTABLE FEET
6 cm, from 820 to 880 mm
FEATURES ATTRIBUTES
Noise level : 40 - 44 dB(A)
TURBIDITY SENSOR AQUATEST
Yes
ELECTRICAL CONNECTION
- Current : 10 A
- Plug : (F;E) Schuko
- Voltage : 220-240 V
- Frequency (Hz) : 50 Hz
- Connected power : 1950 W
- Power supply cable length : 150 cm
- Type of connection : Single-phase
DETAIL
-The easy and intuitive lexan touch display guides the user towards conscious and sustainable choices, reducing waste - Glassy Touch Display -Smooth-running door for optimal integration into the kitchen deisgn - Flexifit hinge system
-Maximum control thanks to the light projected on the floor that indicates when the dishwasher is running and when the cycle is complete - Active Light -Enhanced energy efficiency and improved cleaning performance thanks to the AquaTest turbidity sensor, which detects water clarity and helps optimize the wash cycle
-Improved flexibility and convenience with the Delay Start option, which allows cycles to be scheduled up to 24 hours in advance. -Enhanced protection and peace of mind with Total Aqua Stop, an advanced leak detection system that automatically shuts off the water supply if a leak is detected beneath the drum or within the water intake hose.
HIGHLIGHTS

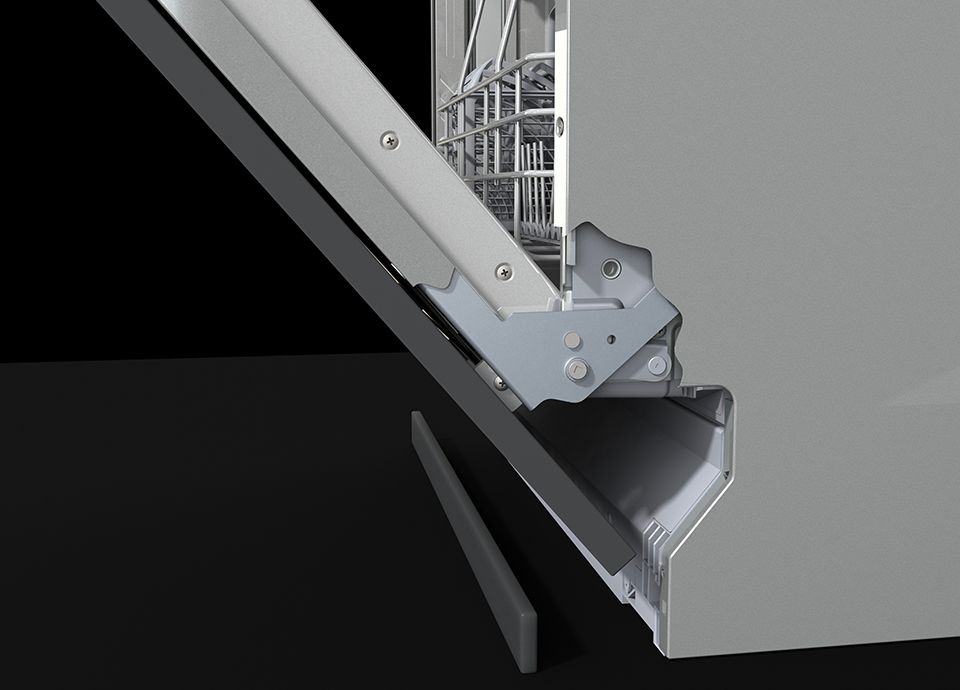

SMOOTHNESS AND HARMONY
The flexifit hinge system allows smooth sliding of the dishwasher door, in order to offer freedom in the choice of the dimensions of the panel and the plinth, the height of which can vary from 5 to 21.5 cm. The dishwasher harmonises with the cabinet in which it is inserted, allowing the door and the plinth to appear almost flush, with a minimum distance between the two of only 3 mm.

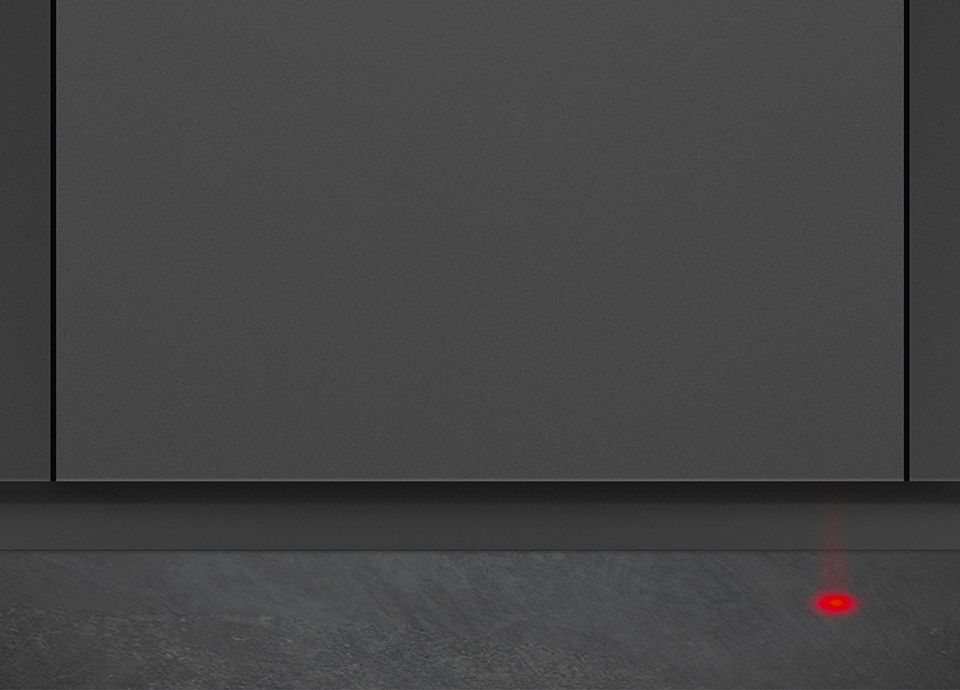

END-OF-CYCLE ALERTS
Selected smeg dishwashers fitted with activelight project a red light onto the floor when the appliance is in operation. At the end of cycle, the light automatically turns off alerting you to open the door.

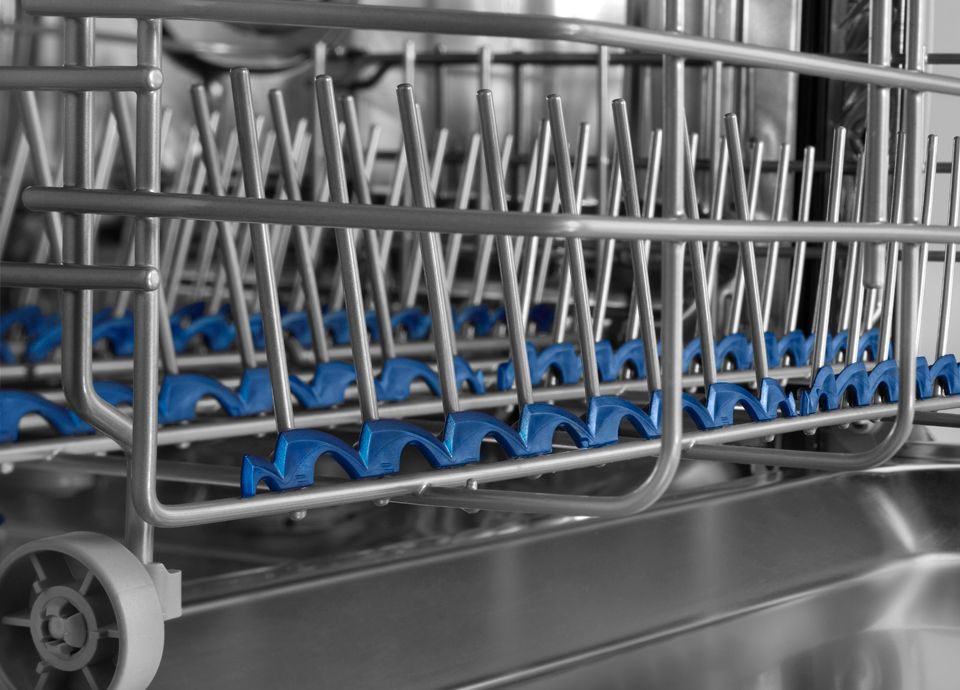

NOT A SINGLE DROP WASTED
Blue anti-drip inserts are installed in the lower basket of smeg's new generation dishwashers. This addition improves drying results and cuts down drips between dish and basket.
SHINING TABLEWARE IN AN HOUR
Full express 60' program completes the entire cycle in just 60 minutes, making it ideal for everyday use.

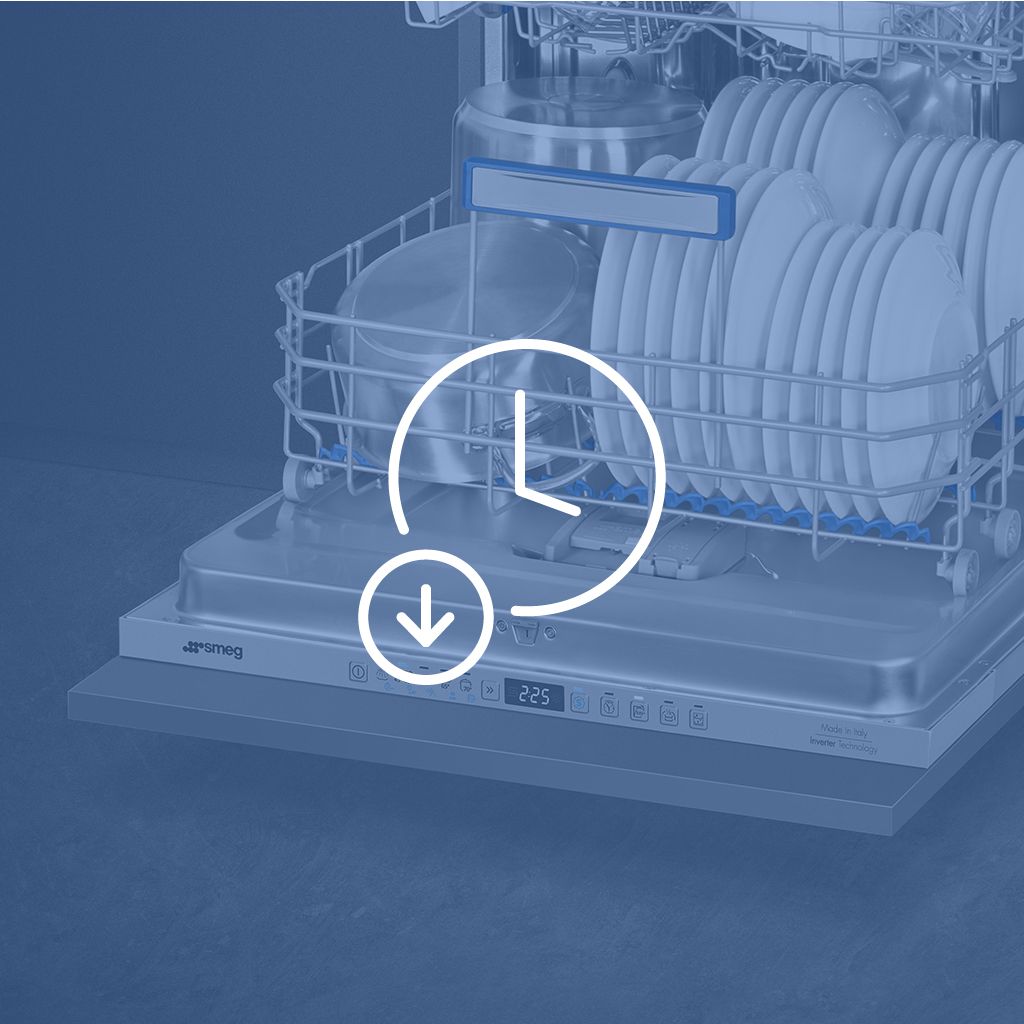

WHENEVER YOU PREFER
With the delayed start option it is possible to postpone the start of the desired program to plan the operation of the dishwasher in the range desired time.
SAFETY GUARDANTEED
Smeg dishwashers have total acquastop, an electronic device which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately directly from the source when necessary, preventing water spillages onto the floor.
TOP PERFORMANCE FOREVER
The self clean program is the secret behind excellent results. With a self-clean cycle, you can ensure unchanged over time washing performance and perfect dishwasher maintenance.
