WOOD BURNING STOVE TUNNEL KRATKI KARI 80 12 KW Ø 180
WOOD BURNING STOVE TUNNEL KRATKI KARI 80 12 KW Ø 180

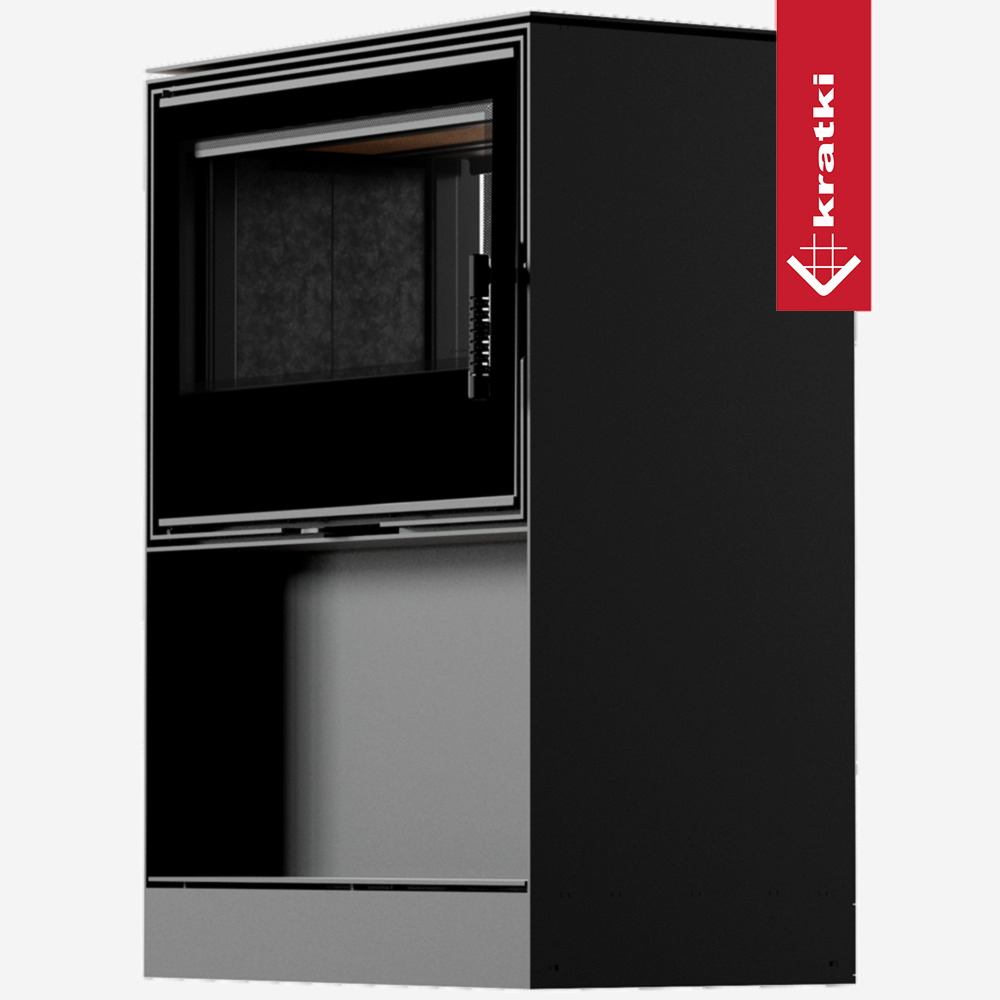

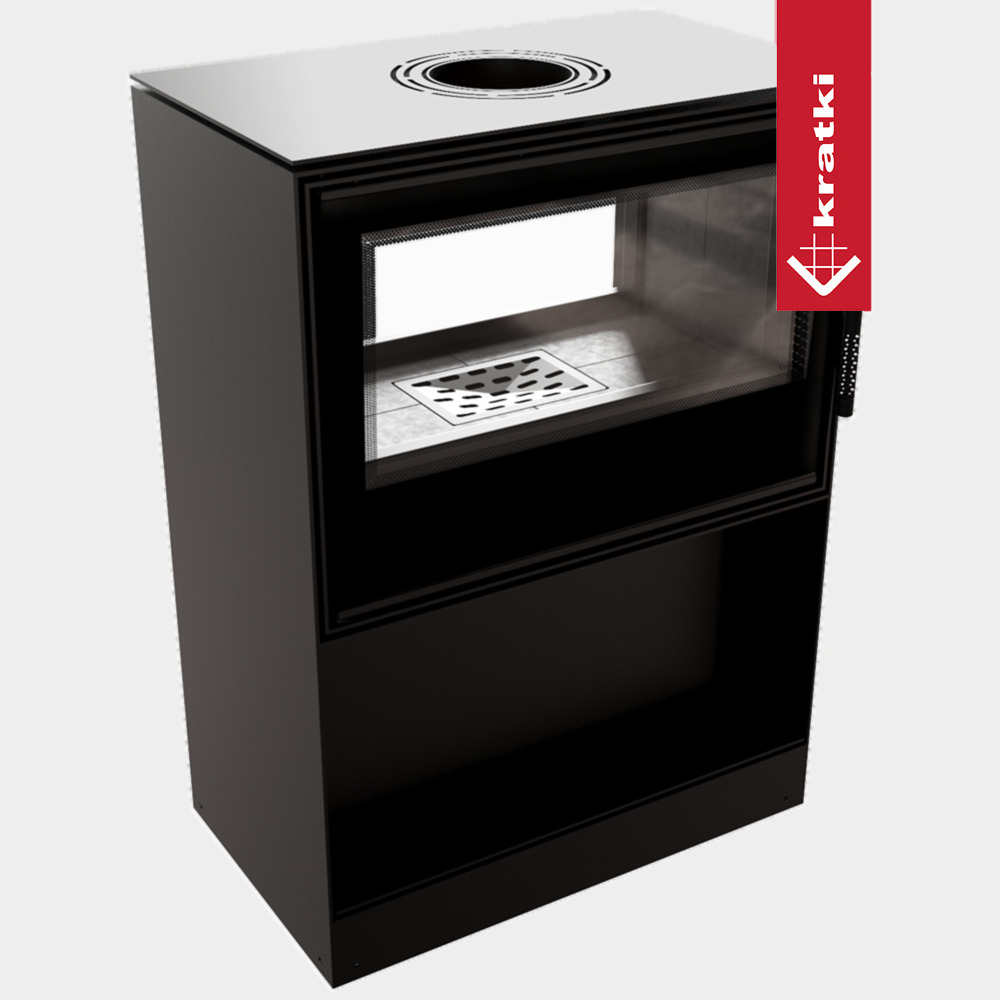

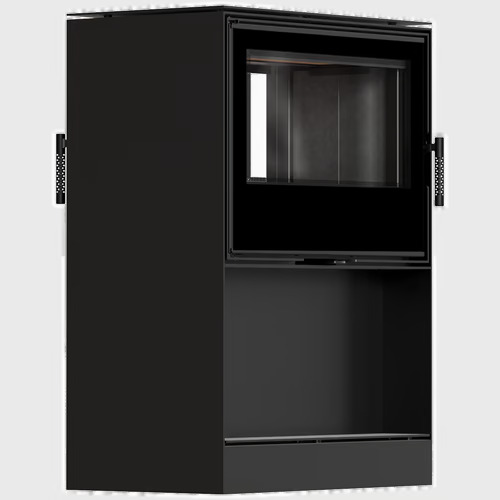

KARI 80 Tunnel is a modern built-in fireplace cassette that impresses with its functionality, design, and eco-friendly approach to heating.
The wood recess provides easy access to fuel and adds charm and a cozy atmosphere to the home.
INFORMATION
BRAND
kratki
PRODUCT TYPE
Wood Burning Stove
SKU
KARI/80/W/TUNEL/BLACK
EAN
5903751400127
THERMAL EFFICIENCY
75 %
EEI
98
NOMINAL POWER
12 kw
FLUE GAS TEMPERATURE (°C)
319
BASE MATERIAL
Steel
MAX BILLET LENGTH
50 cm
DIAMETER OF THE FLUE GAS OUTLET
180
HEAT OUTPUT FOR SPACE HEATING
12 kw
FUEL TYPE
Seasoned Deciduous Wood (Humidity ≤20%)
AIR INTAKE DIAMETER
100 mm
SEASONAL ENERGY EFFICIENCY
65 %
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.124
CERTIFICATIONS / COMPLIANCE
- Ecodesign
- BImSchV 2
- Designed for recuperation
OGC EMISSION (MG/M3)
54
NOX EMISSION (MG/M3)
102
FLUE GAS MASS FLOW (G/S)
11.5
POLLEN EMISSION (MG/M3)
34
OPTIMAL LOG LENGTH
300 mm
CO EMISSION (MG/M3)
1208
DETAIL
Its minimalist form and striking glazing make it a perfect complement to a variety of styles – from classic to contemporary. The glazed tunnel design allows you to enjoy the view of the fire in two rooms simultaneously. Perfect for a combined living room and dining room, day area, or open-plan loft. This solution not only heats, but also connects interiors, people, and emotions.
FEATURES

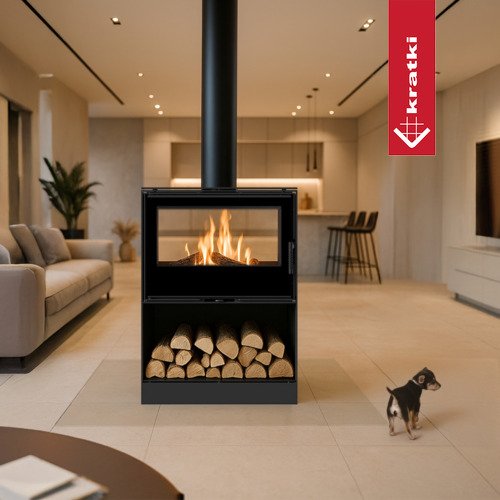

- Tunnel version - glazing on both sides allows you to admire the fire from two rooms
- Longer temperature retention thanks to the combustion chamber lining with TERMOTEC heat-storing material
- aria-level="1">wood recess - provides easy access to fuel -intuitive air flow adjustment.
- Perforated handle for natural cooling
- Cast iron grate and steel ash pan for easy everyday use -Clean glass system keeps the glass clean
- Heat-resistant glass with temperature resistance up to 600°C
- Triple combustion chamber air system - high efficiency and clean combustion
- Steel deflector extends the exhaust gas path for optimal energy utilization
- Air intake via an external 100mm diameter connector
- Surface coated with paint with increased scratch resistance and uniform structure
- Construction made of high-quality 5mm-thick steel guarantees durability and stability
- Decorative glass - modern look and optical enlargement of the front
- 10-year warranty confirming quality and reliability.
EVEN MORE ECOLOGICAL AND EFFICIENT
The kari 80 tunnel fireplace was designed with the future and the environment in mind.It meets the strict environmental requirements of regional regulations regarding emission standards for fireplaces and other SOLID fuel heating appliances, including: ecodesign, bimschv 2.
This guarantees clean combustion, low emissions, and the highest energy efficiency. The fireplace works perfectly with heat recovery systems, making it an excellent choice for modern, energy-efficient homes. Quality, durability, and universal use the kari series is part of the kratka pro LINE, which means the highest quality of workmanship and a 10-year warranty. The external elements - the casing, recess, and top plate - are made of high-quality 5 mm thick steel, ensuring the stability and durability of the entire structure.
