Mitsui Mono Split Trend Air conditioner
MONO SPLIT TREND AIR CONDITIONER
MONO SPLIT TREND AIR CONDITIONER
High efficiency air conditioner
Air conditioners in the Trend line are designed for use in all 4 seasons, being able to ensure that the temperature is always comfortable in summer and effectively warming the air in winter.
INFORMATION
BRAND
Mitsui
PRODUCT TYPE
Air conditioner
ENERGY EFFICIENCY
Inverter technology with class A++.
WI-FI AS STANDARD
Wi-fi connectivity and remote control.
MODELS
- 9000 BTU/h | A++
- 12000 BTU/h | A++
- 18000 BTU/h | A++
- 24000 BTU/h | A++
INDOOR UNIT DIMENSIONS — (9000 BTU/H | A++)
- Width: 715 mm
- Depth: 194 mm
- Height: 285 mm
EXTERNAL UNIT DIMENSIONS — (9000 BTU/H | A++)
- Width: 720 mm
- Depth: 270 mm
- Height: 495 mm
INDOOR UNIT DIMENSIONS — (12000 BTU/H | A++)
- Width: 805 mm
- Depth: 194 mm
- Height: 285 mm
EXTERNAL UNIT DIMENSIONS — (12000 BTU/H | A++)
- Width: 720 mm
- Depth: 270 mm
- Height: 495 mm
INDOOR UNIT DIMENSIONS — (18000 BTU/H | A++)
- Width: 957 mm
- Depth: 213 mm
- Height: 302 mm
EXTERNAL UNIT DIMENSIONS — (18000 BTU/H | A++)
- Width: 805 mm
- Depth: 330 mm
- Height: 554 mm
INDOOR UNIT DIMENSIONS — (24000 BTU/H | A++)
- Width: 1040 mm
- Depth: 220 mm
- Height: 327 mm
EXTERNAL UNIT DIMENSIONS — (24000 BTU/H | A++)
- Width: 890 mm
- Depth: 342 mm
- Height: 673 mm
SIMPLIFIED MAINTENANCE
With simple steps you have access to the electronic board, fan and exchanger. All visible behind the front panel.
HEATING (SCOP) 9000 BTU/H | A++ & 12000 BTU/H | A++
4.10
HEATING (SCOP) 18000 BTU/H | A++ & 24000 BTU/H | A++
4.00
HEATING CAPACITY
- 9000 BTU/H | A++: 2800-11500 BTU/h
- 12000 BTU/h | A++: 3700-14200 BTU/h
- 18000 BTU/h | A++: 4700-19960 BTU/h
- 24000 BTU/h | A++: 5500-27000 BTU/h
COOLING (CAPACITY)
- 9000 BTU/H | A++: 3500-11600 BTU/h
- 12000 BTU/h | A++: 3800-13400 BTU/h
- 18000 BTU/h | A++: 6200-19900 BTU/h
- 24000 BTU/h | A++: 7100-27000 BTU/h
COOLING (SEER)
- 9000 BTU/H | A++: 7.00
- 12000 BTU/h | A++: 6.50
- 18000 BTU/h | A++: 7.40
- 24000 BTU/h | A++: 6.10
INDOOR & EXTERNAL UNIT POWER SUPPLY
220-240/1/50 V/Ph/Hz
EASY CLEANING
Thanks to intuitive access to key compatibilities for quick and easy periodic cleaning of the air conditioner.
REFRIGERANT
R32
USE
Cooling
COMFORT
The use of inverter technology enables continuous modulation of power output depending on the ambient temperature.
Once the desired temperature is set, the motor works at full power until it is reached, then slows down to idle to keep it constant.
This system allows for maximum comfort (avoiding unpleasant surges) and optimizes energy consumption (up to 30 percent less than a traditional on/off air conditioner).
PURIFICATION
ANTIBACTERIAL FILTER
The first LINE of defense against dust, pollen and other impurities. The high-intensity antibacterial filter traps heavier particulate matter, preventing outside pollutants from entering.
SELF-CLEANING FILTERS
For a short period after shutdown, the air conditioner continues to run at minimum power, reversing the duty cycle: this allows any condensation formed inside to dry out, preventing mold growth.

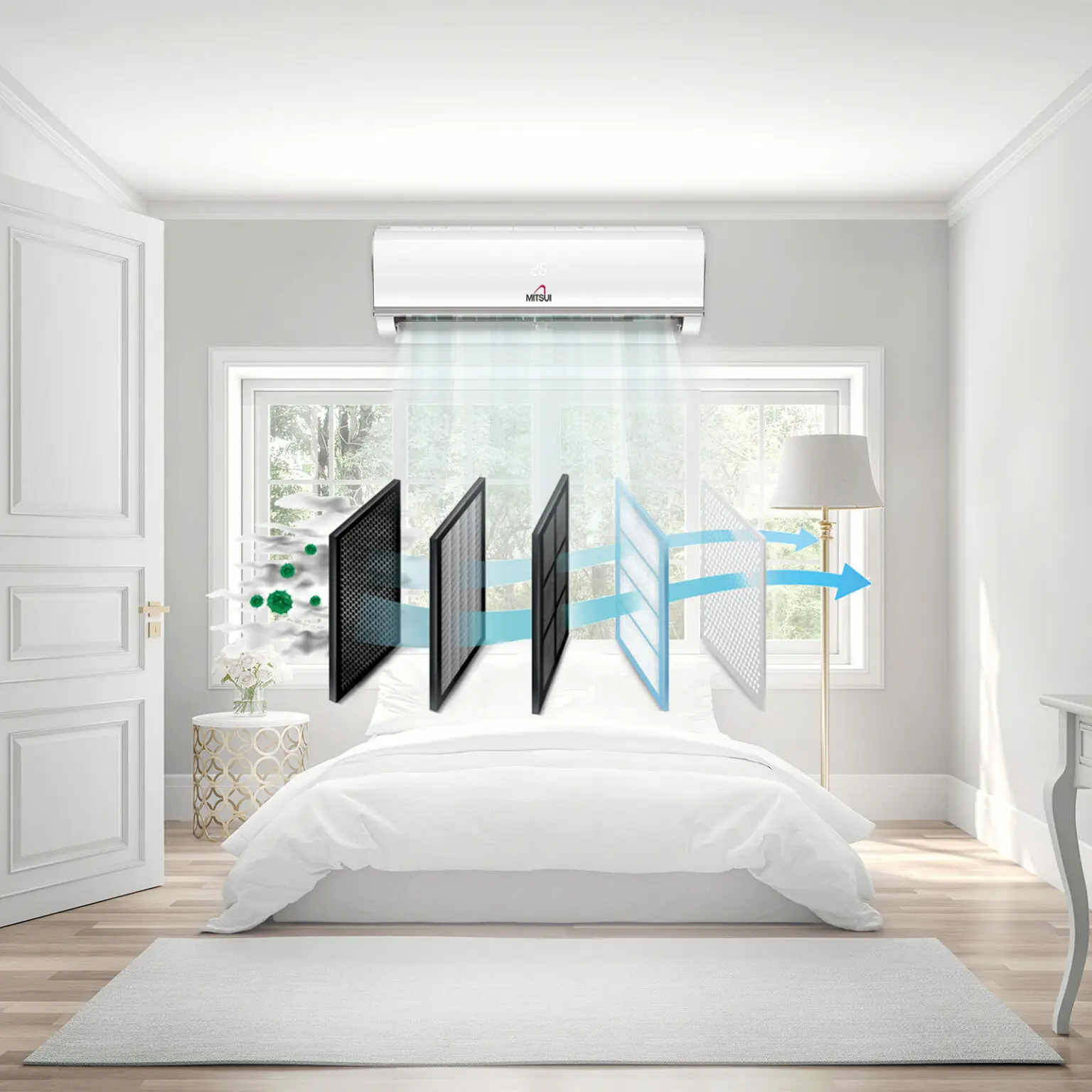

TRIPLE SILVER ION FILTER
Models in the Trend line feature a three-stage filtration system to purify the air of all kinds of harmful elements. The first layer consists of a high-density filter capable of capturing larger particles, such as dust and pollen. A second activated carbon filter acts on smoke, dust mites, and microparticulates (below 0.3 um). The third silver ion filter eliminates bacteria, fungi and other harmful substances, inhibiting their proliferation inside the home.
The three-stage filter package operates in a continuous cycle to ensure constant well-being and sanitation while eliminating odors.
FEATURES
FEATURES
-Anti-corrosion Treatment Of Batteries -Antibacterial Filter High Density -Triple Silver Ion Filter -Extremely Silent -Tax Deductions -Wi-fi Optional -Energy Saving 1w Standby -Easy Installation, Maintenance And Cleaning -CE -Frost Protection A 8°c*
