Hako Sweepmaster 980 R/Rh Vacuum Sweeper
SWEEPMASTER 980 R/RH VACUUM SWEEPER
SWEEPMASTER 980 R/RH VACUUM SWEEPER

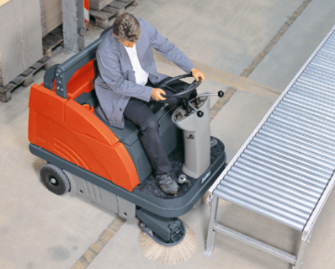

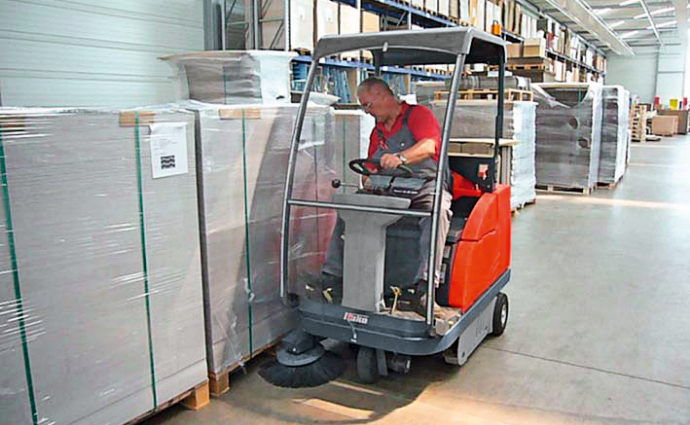

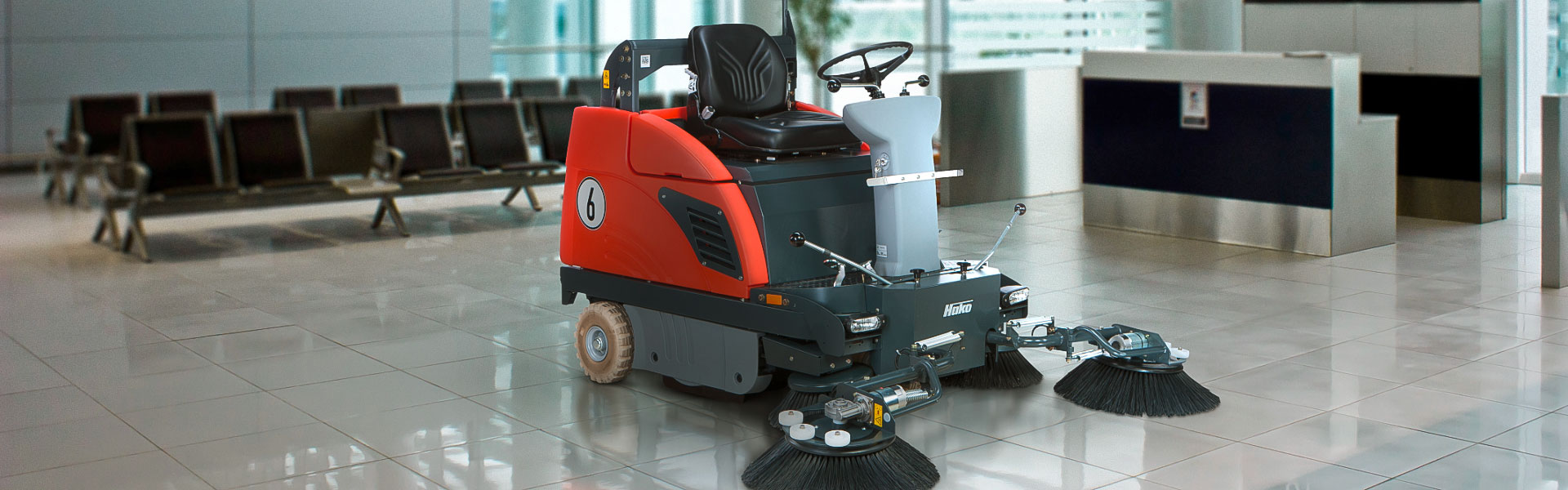

Ride-on vacuum sweeper for medium-sized industrial floors
High levels of economic efficiency, first-class comfort: When compared with the Sweepmaster 900 R, the Sweepmaster 980 R/RH offers even more features and individual extras.
Even more powerful drive systems as well as an automated filter-cleaning system and many practical, optional extras extend the machine’s range of applications. Comfort seats, flashing beacons, a vacuum cleaner (battery-powered version) or an overhead guard are available for individual configuration.
This ride-on vacuum sweeper is particularly manoeuvrable and provides a high sweeping performance of up to 7,200 m²/h, which makes it ideal for cleaning medium-sized areas.
INFORMATION
BRAND
Hako
PRODUCT TYPE
Vacuum Sweeper
EDGES
Efficient sweeping close to edges with up to four side brooms
SYSTEM
Automatic-Hopper-Broom-Adjustment system ensures safe handling by any operator
BATTERY OR PETROL : EXCELLENT DRIVE SYSTEMS OPTIMISED FOR IN- AND OUTDOOR USE
With our ride-on vacuum sweeper Sweepmaster 980 R/RH, you can choose between emission-free electric drives with different battery systems for indoor use (Sweepmaster B980 R/RH) and powerful yet smooth-running petrol engines for demanding outdoor applications (Sweepmaster P980 R/RH).
This machine can work for up to 4.5 hours without interruption and has a climbing ability of up to 16%, depending on the model. This ensures sufficient power reserves for cleaning access ramps and driveways, e.g. in multi-storey car parks.
OPERATION
Heavy-duty design for tough continuous operation
USE
Cleaning
STEERING ANGLE
90-degree
ENGINE
Electric drive system or powerful combustion engine
ENVIRONEMNT
Outdoor
PERFORMANCE
Up to 7.200 m²/h
TECHNOLOGY
Clean exhaust air thanks to a separation efficiency of over 99% and Hako’s patented R²S filter-cleaning technology
PRODUCTION
Made in Germany
MACHINE WORK TIME
Up to 4.5 hours
BRILLIANT RESULTS
The 90-degree steering angle ensures that this machine is extremely manoeuvrable. The Sweepmaster 980 R/RH can be equipped with up to four side brooms to ensure efficient sweeping close to edges. The brooms do the groundwork for the large sweeping cylinder, which then collects the dirt and deposits it into the dirt hopper. The powerful suction fan ensures constantly clean exhaust air – thanks to both the plate filter providing a separation efficiency of over 99% and Hako’s patented R²S filter-cleaning technology.
TECHNICAL DATA
SWEEPMASTER 980 R/RH AT A GLANCE
| SWEEPMASTER | UNITS | P980 R | B980 R | P980 RH | B980 RH |
|---|---|---|---|---|---|
| Working Width With 1 Side Brush (2 Sb) | cm | 95 (120) | 95 (120) | 95 (120) | 95 (120) |
| Theoretical Area Performance With 1 Sb, Main Sweeping Cylinder | m²/h | 5800 | 5800 | 5800 | 5800 |
| Working Speed | km/h | 6 | 6 | 6 | 6 |
| Dirt Hopper Capacity | l | 60 | 60 | 75 | 75 |
| Total Output | kW | - | 2 | - | 2 |
| Nominal Voltage | V | - | 24 | - | 24 |
| BATTERY CAPACITY MAX. | Ah | - | 240 | - | 240 |
| Length | cm | 150 | 150 | 150 | 150 |
| Width | cm | 100 | 100 | 100 | 100 |
| Height Above The Seat(Operating Handle) | cm | 133 (200) | 133 (200) | 133 (200) | 133 (200) |
| Weight, Ready To Use (Incl. Battery) | kg | 380-410 | 520-600 | 410-480 | 550-620 |
FEATURES

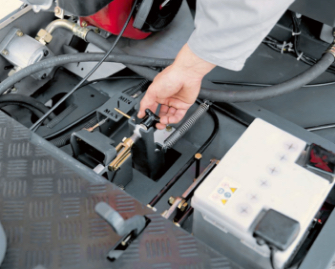

ADJUSTING THE BROOMS
Central adjustment of the brooms; no tools needed.

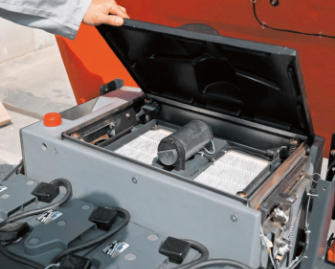

FILTER
Easy-to-access electric R²S filter shaker system.

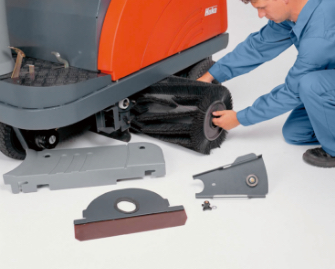

EASY CHANGING OF THE CYLINDER
Changing the sweeping cylinder is particularly easy; no tools needed.

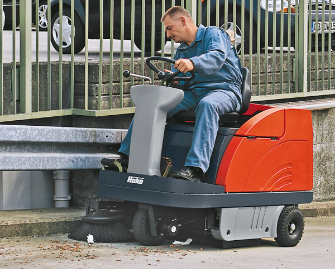

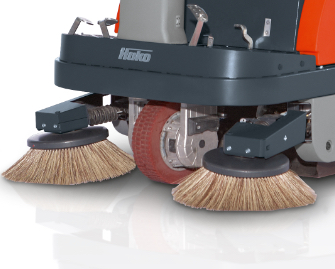

UP TO FOUR SIDE BROOMS
Additional side brooms are available for increased efficiency and even better sweeping results.

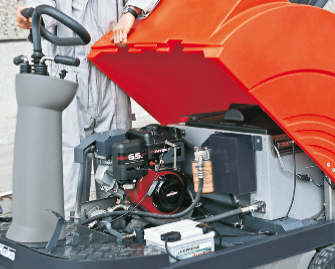

HIGHLY SERVICE- AND MAINTENANCE-FRIENDLY
Clearly structured engine compartments provide easy access for service- and maintenance purposes.

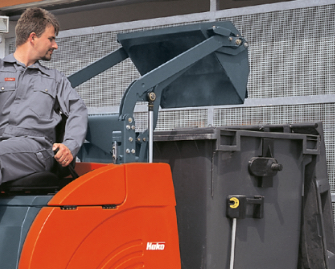

COMFORTABLE HIGH DUMP
At the push of a button, the dirt hopper can be emptied directly into any customary waste container (option).

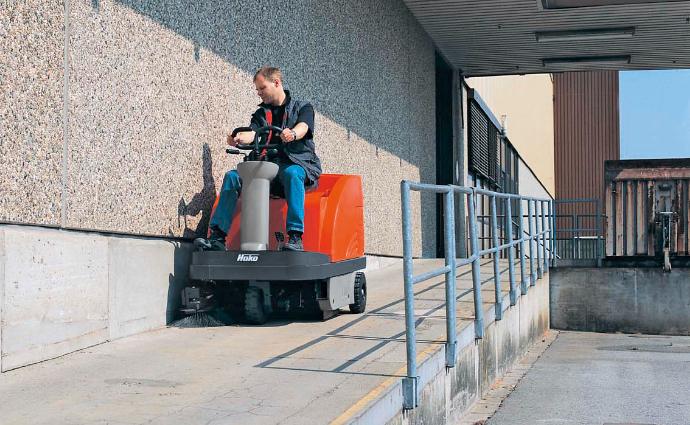

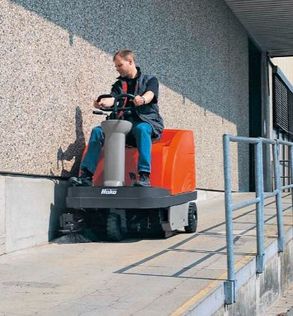

SAFE WORKING
This machine ensures both safe working and stopping on access ramps at any time. Climbing ability, depending on the model: up to 16%.
MANOEUVRABILITY
Small turning circle even in particularly confined areas – thanks to the 90-degree steering angle.

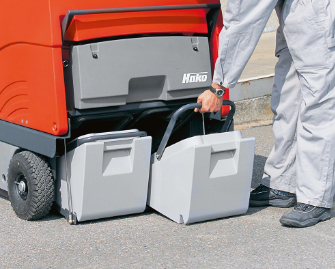

TAKE-IT-EASY
The two dirt hoppers can be removed separately and emptied with ease. The hopper lifting system is particularly easy to operate and allows checking the filling level or throwing coarse pieces of debris into the hoppers at any time.
