WOOD BURNING STEEL STOVE KRATKI THOR VIEW Ø 150 8 KW
WOOD BURNING STEEL STOVE KRATKI THOR VIEW Ø 150 8 KW
Ecological Combustion
The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 standard, which determines the maximum CO emission.
INFORMATION
CERTIFICATIONS / COMPLIANCE
Certificates : Ecodesign, Designed for recuperation, BImSchV 2
BRAND
Kratki
PRODUCT TYPE
Stove
EAN
- White : 5901350043110
- Black : 5903751222842
NOMINAL POWER
8 kW
HEATING POWER RANGE
5.5 - 10.0 kW
THERMAL EFFICIENCY (%)
83 %
FLUE GAS TEMPERATURE
175 °C
Sku
- White : THOR/VIEW
- Black : THOR/VIEW/BLACK
DOOR OPENING
Right
BASE MATERIAL
Steel
DIAMETER OF THE FLUE GAS OUTLET
150
CO EMISSION (MG/M3)
1240
SEASONAL ENERGY EFFICIENCY
73 %
HEAT OUTPUT FOR SPACE HEATING (KW)
8
ENERGY CLASS
A
FLUE GAS MASS FLOW (G/S)
9.1
EEI
109
OGC EMISSION (MG/M3)
65
NOX EMISSION (MG/M3)
111
POLLEN EMISSION (MG/M3)
38
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.099
EQUIPMENT
- Air intake - built in
- Ashpan
- Combustion chamber lining
- Decorative glass
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
NUMBER OF PIECES IN A PACKAGE.
2
TECHNICAL DRAWING
WEIGHT
140 kg
FRONT
Steel front with ceramic glass
PHYSICAL PARAMETERS
- Width : 52.1 cm
- Depth : 43.8 cm
- Height : 122.4 cm
MAX BILLET LENGTH
35 cm
AIR INTAKE DIAMETER
100 mm
COLOR LINING
- White
- Black Thermotec Lining
DETAIL
MODERN DESIGN
Three side glazing makes the vision of fire more attractive, and the extra decorative glass highlight its charm. The interior of the stove is lined with TERMOTEC which perfectly contrasts with the stove, giving it a modern look. TERMOTEC is a ceramic material which accumulates heat and raises the temperature in the furnace. Solid handle, makes it easy to seal the door. Thanks to this, the device works well in homes with recuperation.
SAFETY ON THE HIGHEST LEVEL
Front of the stove is equipped with a heat resistant ceramic withstanding temperatures up to 660°C. We offered by us glass certified quality and safety.
The body and the front of the stove is resistant to high temperatures through the use of high quality steel. They also ensure the stability of the entire structure.
Excellent tightness thanks to the solid welding made in shielded noble gas. Steel elements are laser cut with the help of modern equipment, and then they are bent on CNC benders.
COMFORTABLE USE

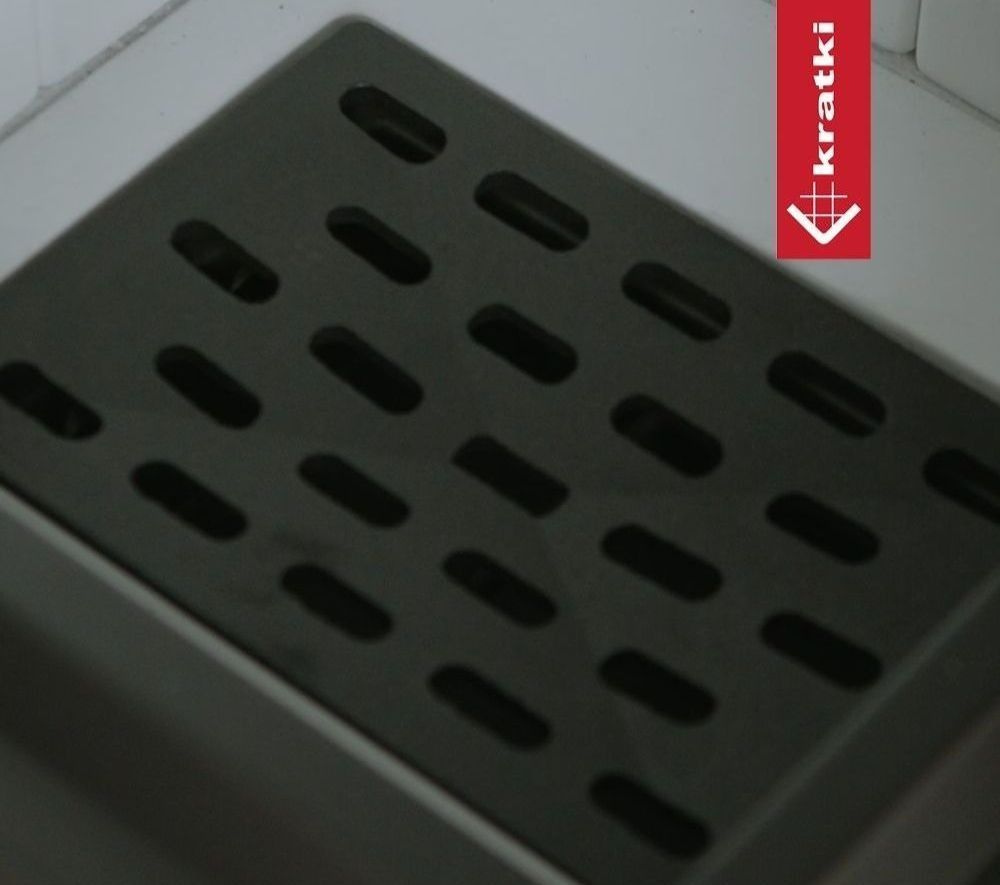

- Movable grate and ash drawer enable to keep the insert clean.
- The glazing of the insert remains clean thanks to the clear glass system.
- The air curtain separates the glass from the chamber. So it does not get dirty.
- Under the fireplace is the chamber where the external air inlet system is hidden.
- THOR has the ability to mount exhaust outlet both from the top and the back of the unit, making it easy for installation.
- Special profiled bottom plate of TERMOTEC is used in this insert. Thank to that the chamber of the stove is bigger and larger amount of wood can be put inside. Additionally shallow combustion chamber was used, this results on low demand for heating power.
MAXIMUM USE OF ENERGY
More efficient combustion and longer maintenance of temperature by lining the combustion chamber with ceramic material TERMOTEC which accumulates heat and raises the temperature in the furnace.
Full combustion on the dust thanks to deflector which extend the exhaust path. This process increases the efficiency of burning and guarantees better energy use. It also minimizes the emission of harmful substances to the atmosphere. Additionaly a diphragm that functions similarly to the deflector has been installed at the exhaust outlet, which further enhances the effects of the device.
Primary air is supplied to the insert thanks to the built-in 100 mm external air inlet. Air inlet is located from the bottom of the insert. Insert has a cover plate on the back wall and a hole in its base. Thanks to it the user can choose how to connect the external air kit. Air adjustment is done with a throttle adjustable by one regulator placed below the door. This solution prevents from improper usage. Whole mechanism works quietly and without fail.
In this insert there is triple air system of combustion chamber. Primary air which enables setting a fire is supplied under the grate. Secondary air - providing economic and ecological burning is supplied by holes on the back wall.
Additionally, this insert is equipped with Clean Glass System (air curtain), so the air is supplied directly to the glass through a system of channels located on the sides of the fireplace. In this way oxygen is supplied to the upper part of the combustion chamber, were happens post-combustion of gases produced while combustion of wood. At the same time it reduces harmful CO emissions to the atmosphere.
