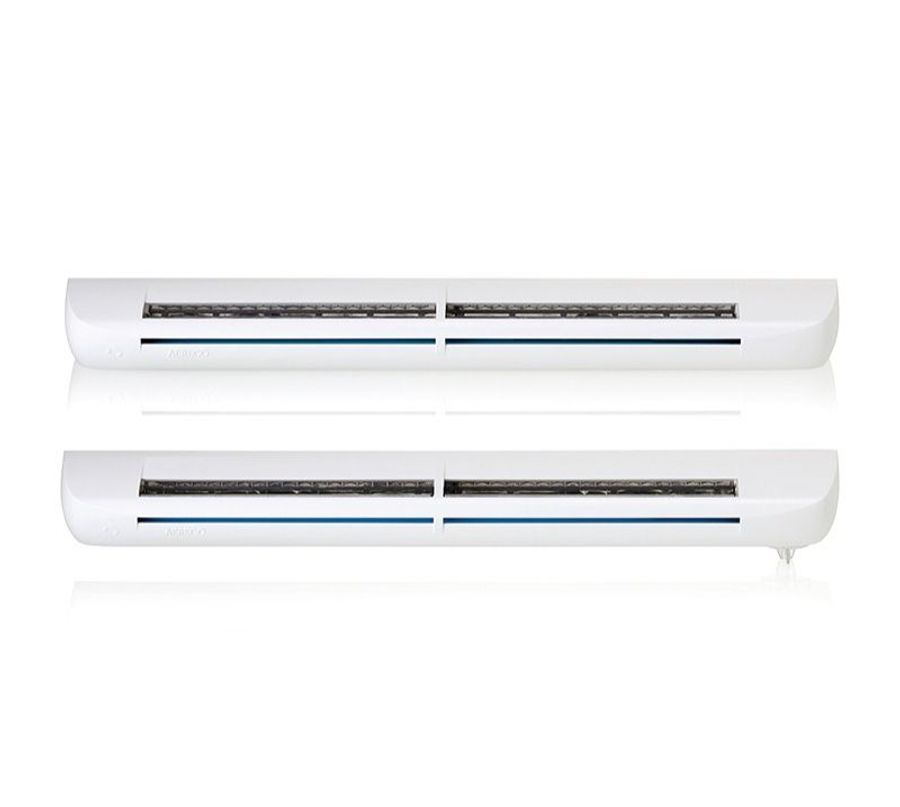

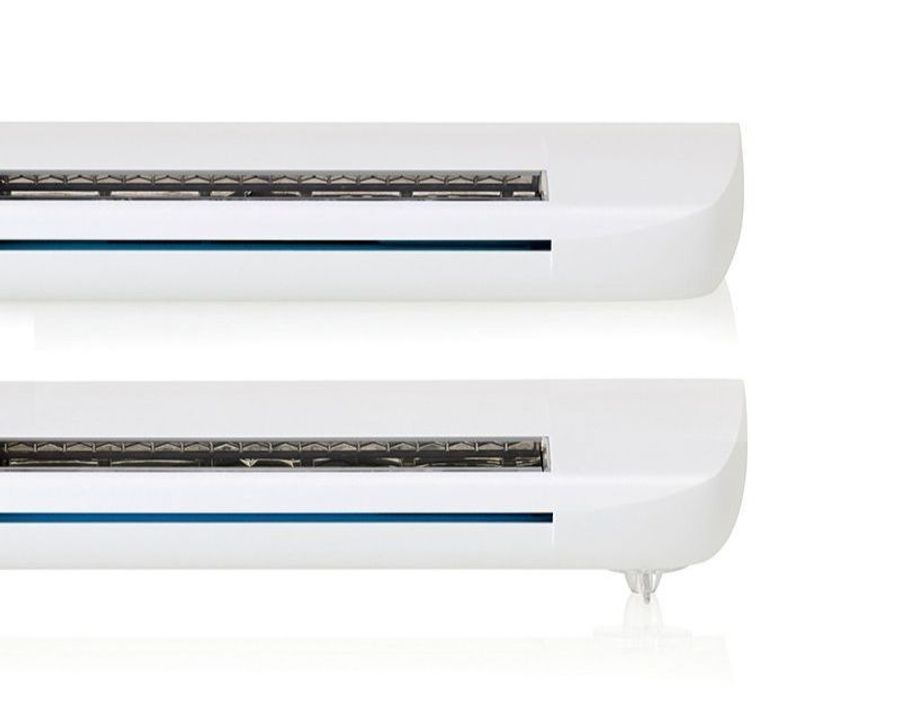

Aereco EHA² Window Acoustic Air Inlet
EHA² WINDOW ACOUSTIC AIR INLET
EHA² WINDOW ACOUSTIC AIR INLET
Acoustic humidity sensitive air inlet for windows
Stylish design, with maximum functions

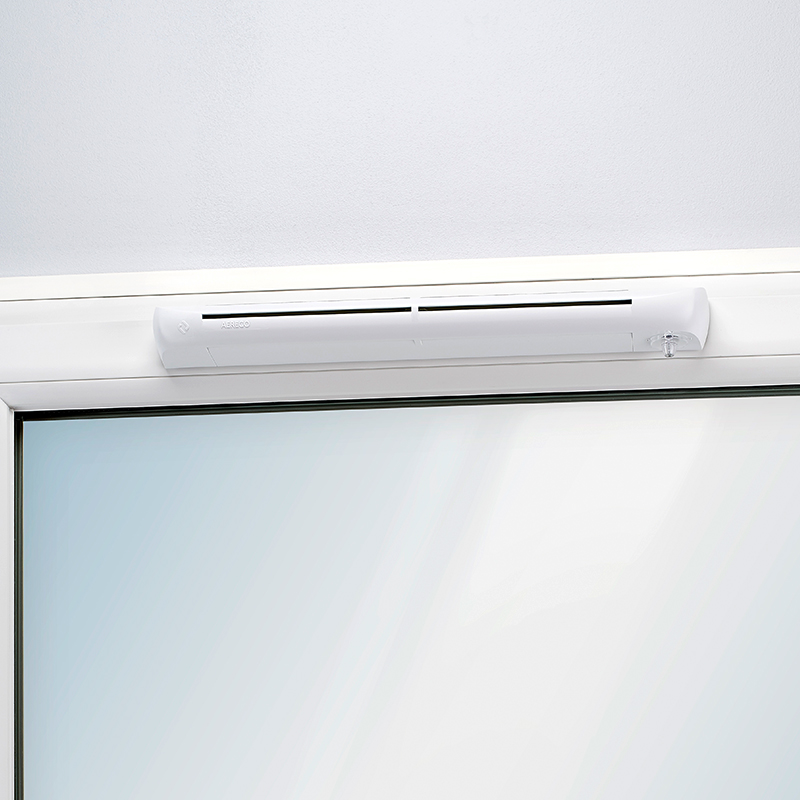

The stylish design of the EHA² air inlet enables perfect integration on most windows or rolling shutter casings.
FEATURES

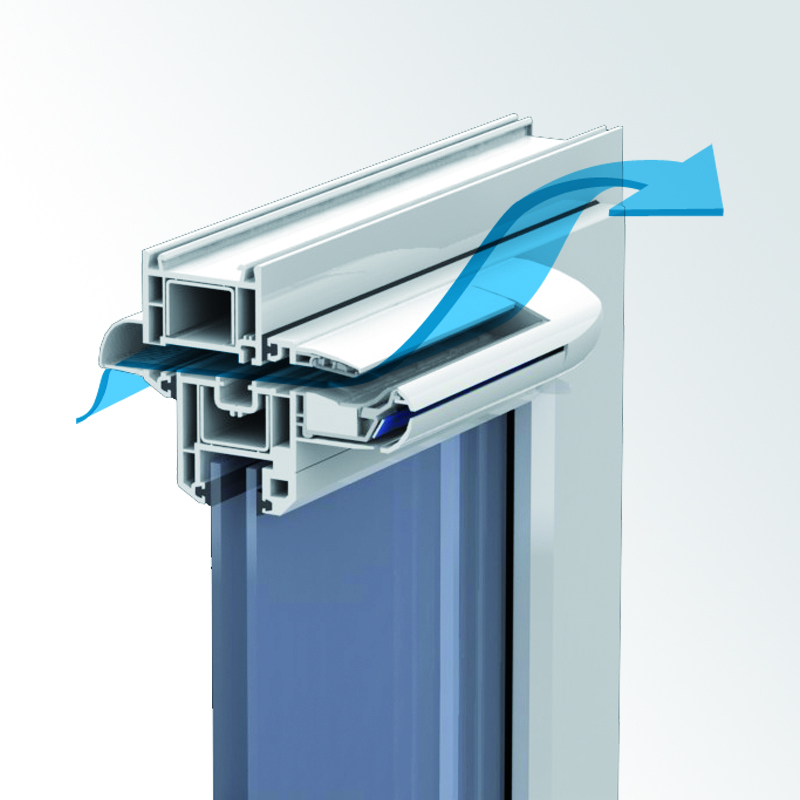

OBLIQUE AIR JET FOR OCCUPANT COMFORT
The oblique air jet of the EHA² skims the ceiling ensuring progressive heating of fresh air for the improved comfort of the occupants.

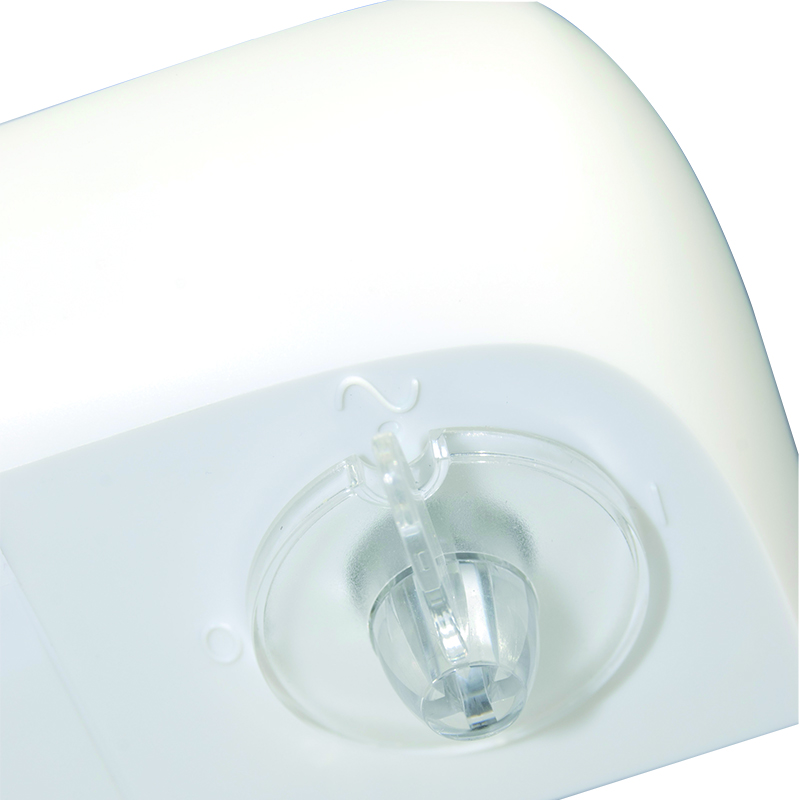

OPTIONAL OPENING AND CLOSING DEVICE
This device is available on versions 5-35 (humidity sensitive) and 35 (without humidity control); it enables the occupant to choose between three modes: minimum, automatic (humidity sensitive) or maximum airflow. The device can be added after the product is installed.
EFFICIENT PROTECTION AGAINST EXTERNAL NOISE
When installed on its acoustic base and with acoustic external canopy (A-EHA), the EHA² air inlet offers great acoustic attenuation, up to 44 dB at maximum opening, which makes it one of the best products available on the market with an air cross section this size (3600 mm²).
INFORMATION
SLIM PROFILE
Slim profile for easy adaptation on windows.
OPTIONAL
Optional closing and opening device.
BRAND
Aereco
PRODUCT TYPE
Window acoustic air inlet
SLOT
2 x (172 x 12) mm
MATERIAL (MAIN)
PS, ABS
HUMIDITY SENSITIVE SYSTEM
Modulates the Airflow according to the local relative humidity rate.
REINFORCED ACOUSTIC BASE +
E-EHA²+
REINFORCED ACOUSTIC BASE
E-EHA2
DESTINATION ROOM
- Bedroom
- Living Room
WEIGHT
- 271 G
- EFA2 35 : 250g

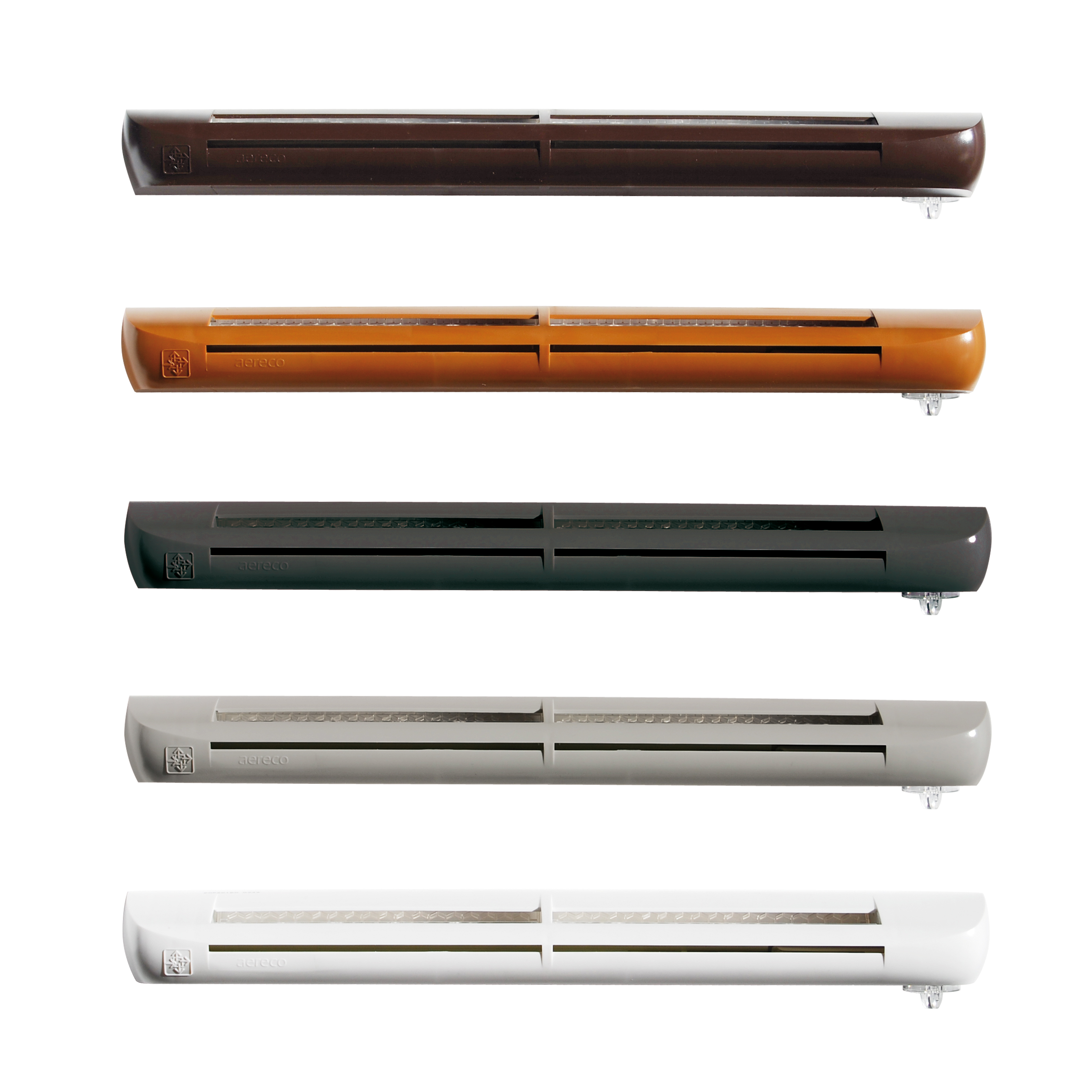

AVAILABLE COLORS
- RAL 7016
- RAL 8001
- RAL 8017
- RAL 7045
- RAL 9003
AIRFLOW CONTROLLER CANOPY
AC
ANTI-INSECT CANOPY
AS
ACOUSTIC CANOPY
A-EHA
STANDARD CODE
- EHA2 5-35 : EAR200
- EHA2 11-35 : EAR202
- EHA2 17-35 : EAR203
- EFA2 35 : EAR309
FLAT CANOPY
AP
MAX. OPENING AREA
3600 mm2
AIRFLOW (MIN – MAX) @ 10 PA
- EHA2 5-35 : 5-35 m3/h
- EHA2 11-35 : 11-35 m3/h
- EHA2 17-35 : 17-35 m3/h
- EFA2 35 : 35 m3/h
EASY TO MAINTAIN
No adjustment, simple yearly dusting.
ACOUSTIC ATTENUATION
Up to 44 dB with accessories.
USE
Indoor
AVALABLE COLOR
5
CLOSING + OPENING DEVICE*
- EHA2 5-35 : (EAR201)
- EFA2 35 : (EAF313)
DN,E,W (C ; CTR) ACOUSTIC ATTENUATION IN DB
- Comb n.1 : 37 (0 ; 0)
- Comb n.2 : 39 (0 ; 0)
- Comb n.3 : 41 (0 ; -1)
- Comb n.4 : 42 (0 ; 0)
- Comb n.5 : 43 (-0.8 ; -0.7)
- Comb n.6 : 44 (-0.8 ; -1.8)
FEATURES
With the inclusion of high efficiency acoustic foam the product reaches an acoustic attenuation of up to 44 dB* when mounted with the special base and canopy. An optional device allows on demand manually closing or opening of the air inlet, complementing the humidity sensitive function available on the EHA².
PRODUCTION
Made in France
COLLECTION
EHA²

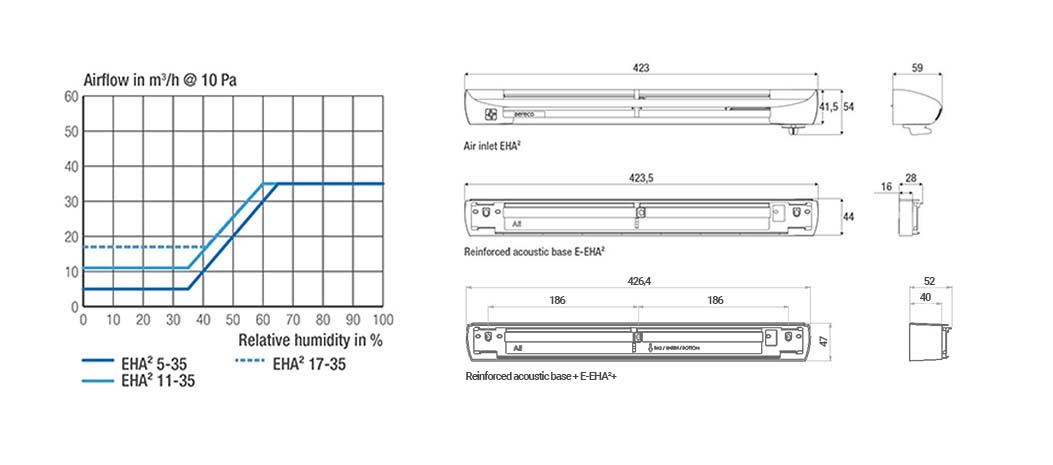

AIRFLOW / DIMENSIONS IN MM
