Alfa Plam Commo Compact 23 Plus Boiler
COMMO COMPACT 23 PLUS BOILER
COMMO COMPACT 23 PLUS BOILER
The compact pellet boiler of 23 kW, with a large pellet tank of 135 kg that provides longer-term independence in operation, is an efficient solution for heating a house or apartment, meeting the requirements of modern life.
INFORMATION
BRAND
Alfa Palm
PRDUCT TYPE
Boilers
MAX HEATING SURFACE
370 m2
PRODUCTION
Made in Germany
МAXIMUM OPERATING TIME PER FULL TENK
90 h
DIAMETER OF THE FLUE EXTENSION
80 mm
NET WEIGHT
298/313 kg
DEGREE OF UTILIZATION
90 %
HIGH TEMPERATURES
The casing and fire box door are made of quality sheet metal and protected with paint and varnish resistant to high temperatures.
HEAT INSULATION
Heat insulation of fire box door by vermiculite as well as additional heat insulation of the very boiler by mineral wool reduces heat emission into the room and increase fuel efficiency coefficient.
FIREBOX
The firebox is made of stainless steel resistant to high temperatures, while the boiler is made of dedicated 5 mm thick boiler steel.

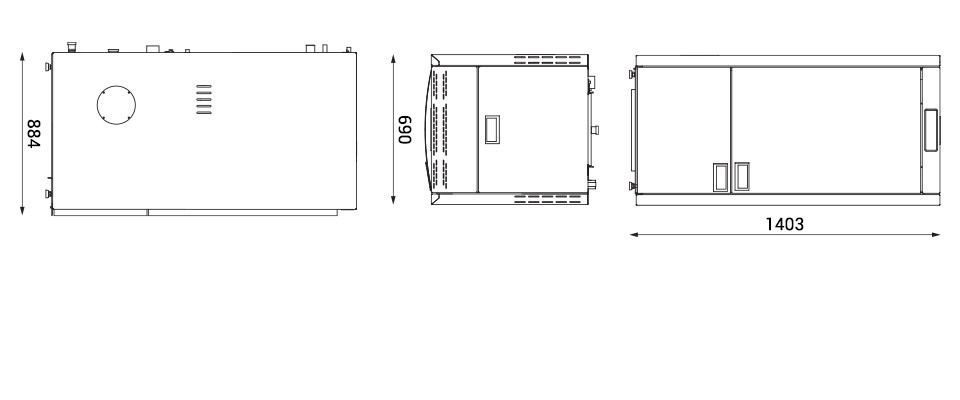

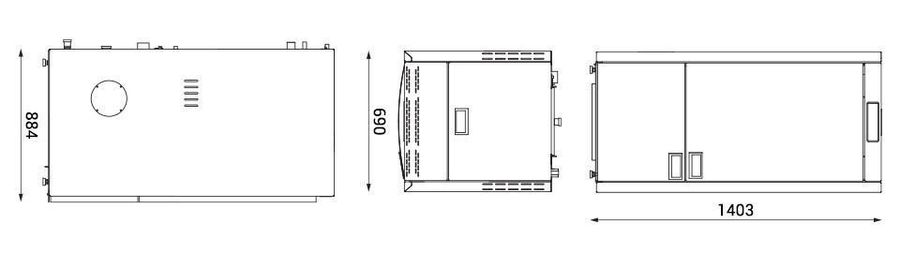

DIMENSIONS
- Width : 690 mm
- Height : 884 mm
- Depth : 1403 mm
ENERGY EFFICIENCY CLASS
A++
POWER
23 kW
STANDARDS
EN 303-5 Ecodesign
MIN/MAX PELLET CONSUMPTION
1.7 / 5.4 kg/h
DETAIL
All components required for the heating system are already installed. The compact shape and small dimensions allow installation even in a small space. Additional cleaning springs allow the user to use the boiler for many years without losing efficiency. There is a possibility of seven-day programming of boiler operation, and by installing a Wi-Fi module, the option of remote programming via a mobile phone application is also available.
HEATING VOLUME
345/575 m3
PELLET TANK CAPACITY
135 kg
COLORS
Plava
QUANTITY OF WATER IN THE BOILER
35.5 l
THERMAL POWER TRANSFERRED TO WATER
23 kW
COLLECTION
Commo
MIN HEATING SURFACE
138 m2
WIFI MODEM
The possibility of installing a remote control device using a smartphone application and a WiFi modem.
COMPONENTS
Components necessary for the operation of the heating system are factory-installed in the product. Built-in safety thermostats prevent water overheating in the boiler and the furnace self-ignitiion.
ADVANTAGES
- Weekly programming of the boiler operation.
- The boiler ability to operate on 5 power levels.
- Cleaning systems additionally facilitate the furnace maintenance and enable reliable operation.
