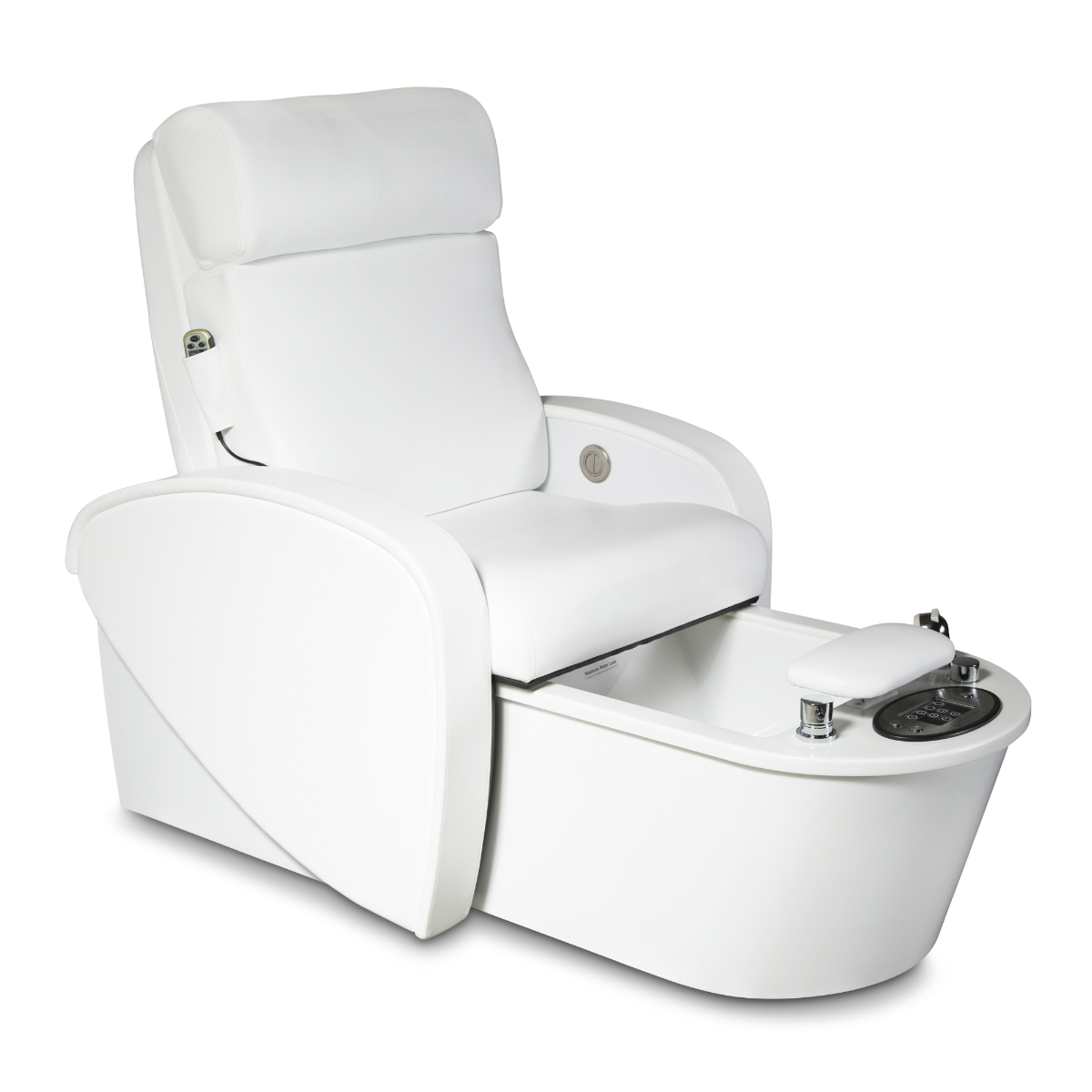

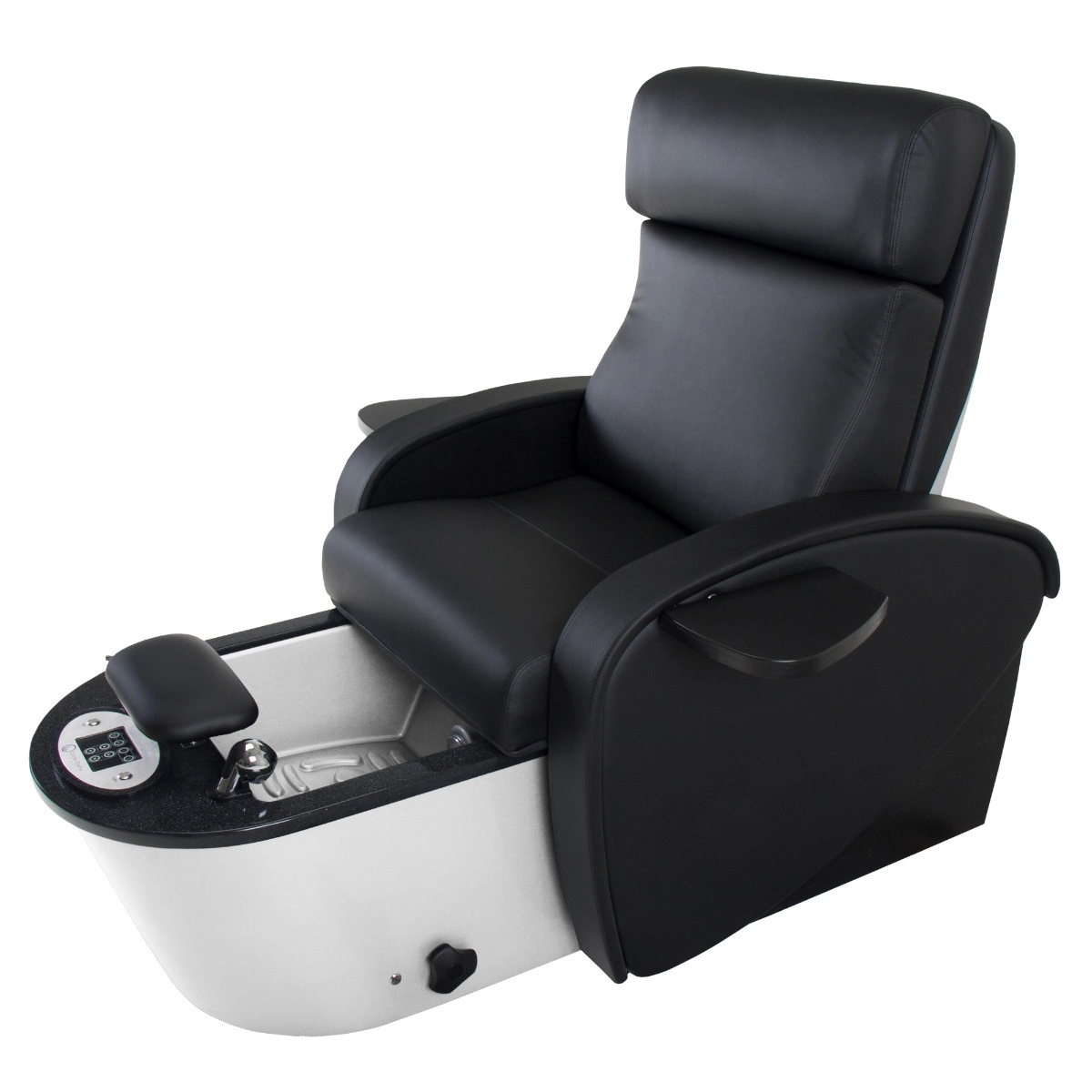

CONTOUR LX II™ PEDICURE CHAIR MASSAGING
CONTOUR LX II™ PEDICURE CHAIR MASSAGING
The sweeping lines of the revamped Contour II™ Pedicure Chair bring a glimpse of the past to the future of pedicure.
Inspired by the retro furniture movement, our designers have created a mid-century silhouette with modern day technology. This timeless eye-catching pedicure chair brings an elegant mix of comfort and ergo style.
INFORMATION
VOLTAGE
110V/220V available
BRAND
Living Earth Crafts
PRODUCT TYPE
Massaging Chaise
CUSTOM OPTIONS
- Relaxor® heat & massage
- Manicure side trays
- Wide variety of upholstery and surface color combinations
RELAXOR
Relaxor® = 4 Max Amps
DISCHARGE PUMP
Discharge Pump = 1.5 Amps Max
WARRANTY
Limited lifetime warranty
SPECIFICATIONS
- CE Mark
- ETL Pending
OPTIONS
- Relaxor® Heat & Massage
- Manicure side trays
- Upgraded Avonite® surface options
- Wide variety of upholstery and surface color combinations
FEATURES
- White tub & shroud
- Patented pipeless hydrotherapy
- Durable and comfortable Comfort-Flex™ upholstery
- Luxurious Strata™ seat cushioning
- Reinforced fiberglass tub with reflexology nodes
- Adjustable electric footrest, raises 7” (18 cm)
- ADA Title III compliant option with fully motorized seat and retractable armrest doors
PLUMBING
Commercial grade chrome plumbing fixtures
PANEL

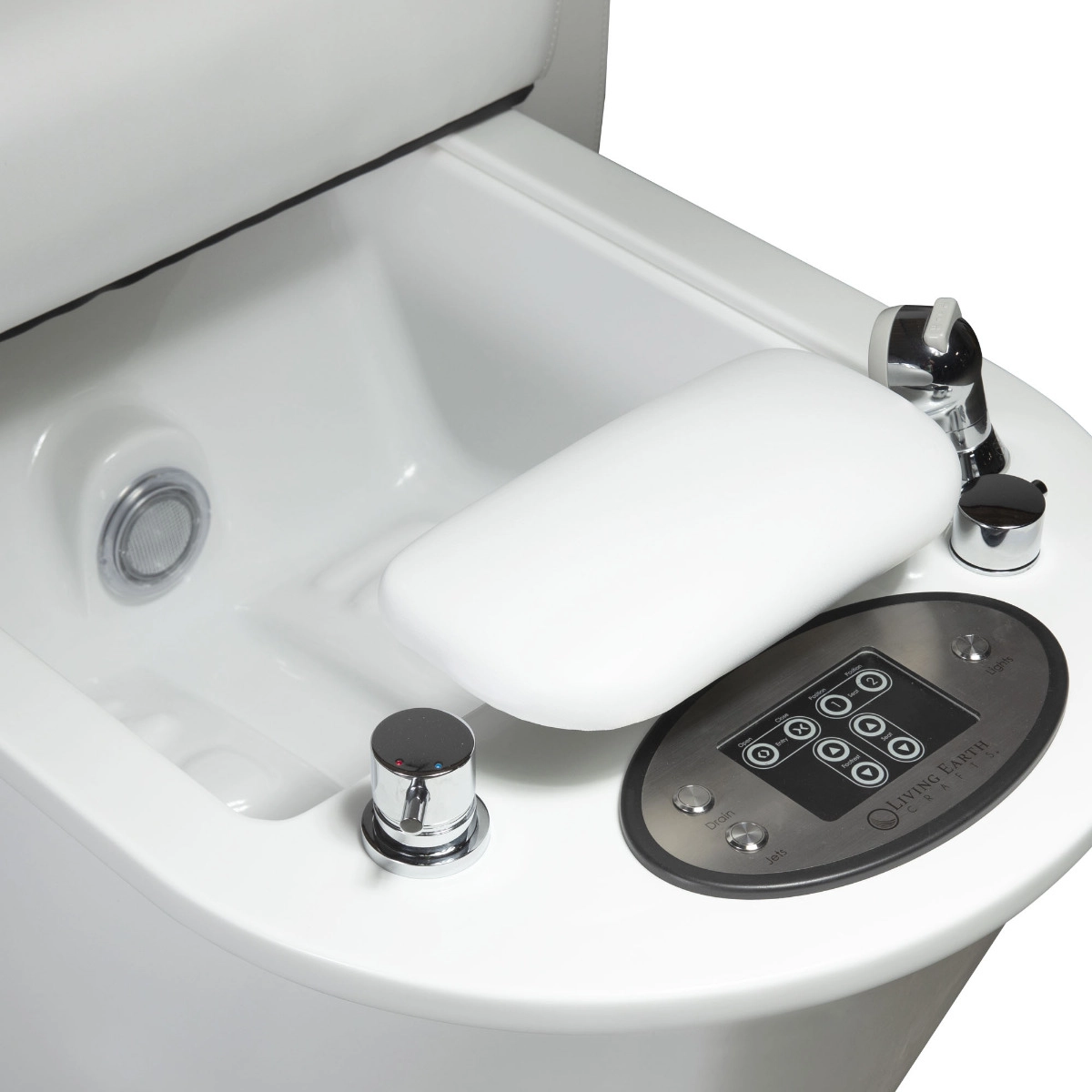

Embedded control panel
ELECTRIC
Electric back tilt & foot rest
SURFACE
Milled solid surface Avonite®
DOUBLE
Contrast double stitching
FOOTPRINT DIMENSIONS
- Width : 33" (84 cm)
- Open armrest doors : 73" (185 cm)
- Closed armrest doors : 57" (145 cm)
CHAIR DIMENSIONS
- Height : 46" (117 cm)
- Seat Width : 23" (145 cm)
- Seat Height : 21" (53 cm)
OPTIONS
International plug options
CHAIR AND TUB
Chair and tub = 6.5 Max Amps

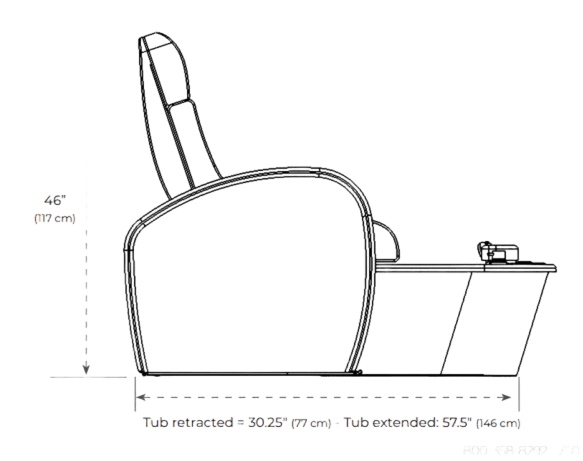

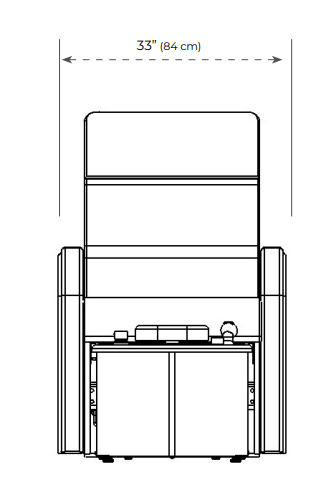

TECHNICAL DRAWING
DETAIL
CLEANING SANIJET® PIPELESS JETS
- Always refer to your state/local codes for specific cleaning requirements.
- NEVER USE abrasive cleaners on any surface area. Failure to comply can cause damage and void your warranty.
DISINFECTION
- Rinse surfaces with fresh water.
- Allow to set for the required disinfection contact period (refer to manufacturer specs).
- Spray surface of the jet covers, impellers/rotors, and basin until throughly coated with an EPA-registered disinfectant.
PREPARATION & CLEANING
- Drain the bath of all water

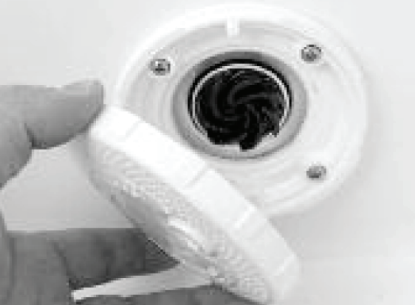

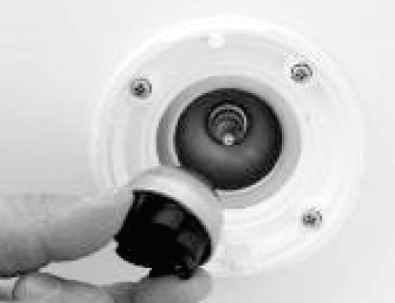

- Rotate the jet covers to unlock. (Fig. 1)

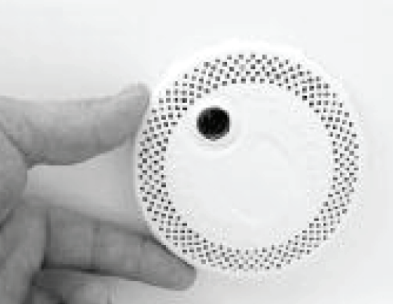

- Remove the jet covers. (Fig. 2)
- Remove the magnetic impellers/rotors from the jet case. (Fig. 3)
- Place the jet covers and impellers/rotors in a sink.
- Use a non-abrasive antibacterial cleaner to remove any visible residue, and rinse with fresh water.
- Use a non-abrasive antibacterial cleaner to clean the basin, jet cases, drain stopper, and light casing, followed by a rinse with fresh water.
FINISHES
ADDTIONAL OFFERINGS AVAILABLE ONLY FOR
Century City, Parker Trolley & Parker Mini Trolley (6-8 Week Lead Time)
STANDARD STOCK OFFERINGS - 1
Alpha 2 Trolley, Alpha 3 Trolley, Element Trolley & Parker SPA
STANDARD STOCK OFFERINGS - 2
Pedi Roll Up
STANDARD STOCK OFFERINGS - 3
Parker Trolley, Parker Mini Trolley & Century City
+STUDIO LAMINATE OFFERINGS
-White Pearl -Afternoon Peral -Madagascar -Copper Braid -Black Night
STANDARD LAMINATE OFFERINGS
