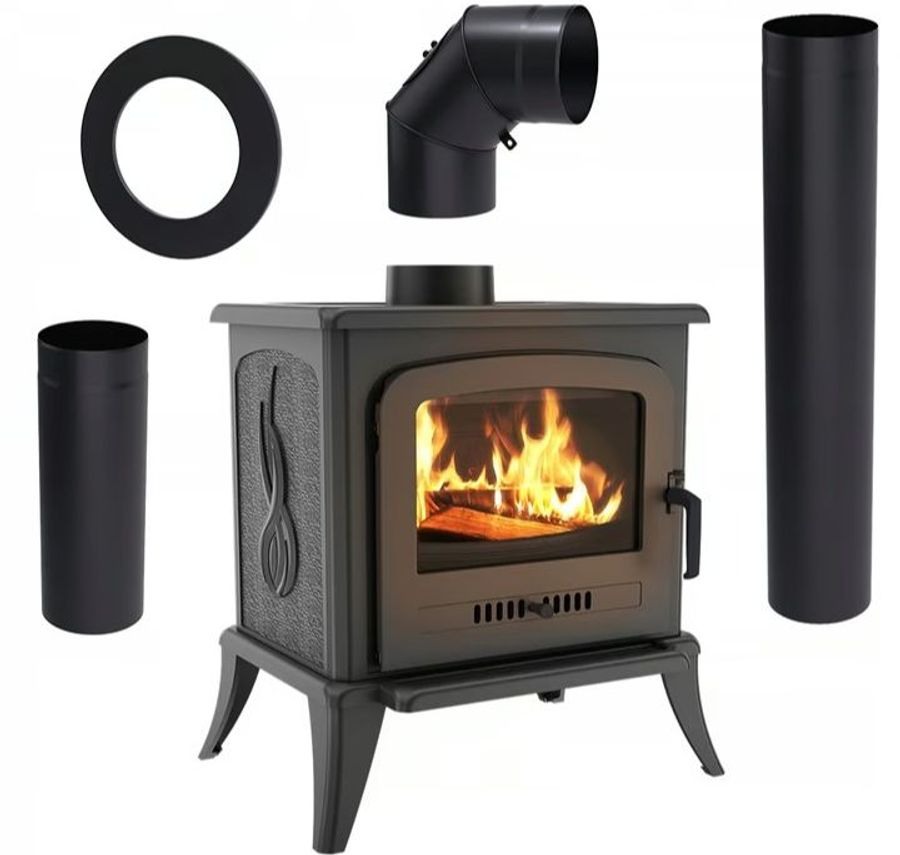

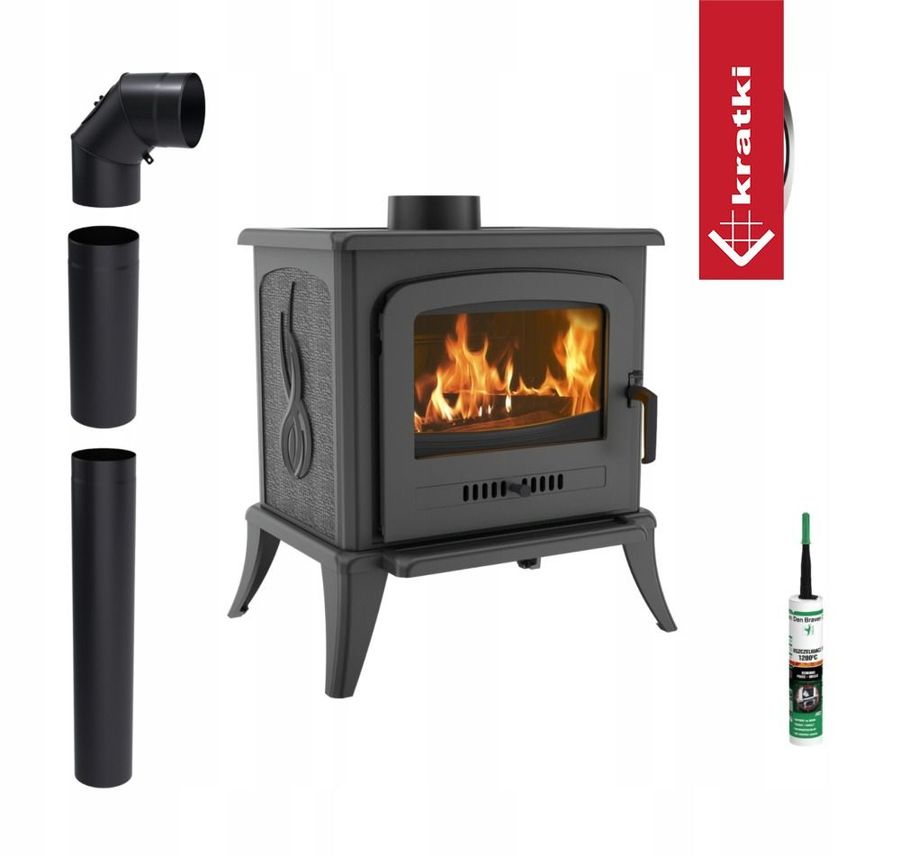

Kratki Freestanding Stove Fireplace Kratki Koza K7 5kw Ø130 Cast Iron Mounting Kit
FREESTANDING STOVE FIREPLACE KRATKI KOZA K7 5KW Ø130 CAST IRON MOUNTING KIT
FREESTANDING STOVE FIREPLACE KRATKI KOZA K7 5KW Ø130 CAST IRON MOUNTING KIT
MAXIMUM USE OF ENERGY
Maximum use of heat and trouble-free operation thanks to the walls of the device made of high-quality cast iron with a thickness of 8 mm. Combustion of fuel particles thanks to the deflector, which extends the exhaust gas path.
INFORMATION
CERTIFICATIONS / COMPLIANCE
Certificates : Ecodesign
BRAND
Kratki
PRODUCT TYPE
Stove
FUEL TYPE
Seasoned deciduous wood (humidity ≤20%)
SKU
KOZA/K7/ZESTAW
EAN
5903751027997
EQUIPMENT
Ashpan
NUMBER OF PIECES IN A PACKAGE
4
FRONT
Cast iron front with ceramic glass
WEIGHT
87.6 kg
EEI
91
PHYSICAL PARAMETERS
- Width : 53.6 cm
- Depth : 41.3 cm
- Height : 55.7 cm
ENERGY CLASS
A
OPTIONAL EQUIPMENT
None
SAFETY AT THE HIGHEST LEVEL
The Classic front of the stove is equipped with heat-resistant ceramics that can withstand temperatures up to 660°C. Decorative fence helps to maintain tidiness and protects against falling out of wood.
CONVENIENT TO USE
- The cold handle system allows for disassembly when the stove is in use.
- Reduced soot deposition through a system of pure glass (air curtain).
- Ash drawer/ashtray, where burnt wood remains are gathered and grated for easy ash removal.
- The possibility of different assembly, thanks to the adjustable flue gas outlet from the back or top of the stove.
BASE MATERIAL
Cast iron
COLOR
Black
ADDITIONAL CLOSING
No
DOOR OPENING
Left
DIAMETER OF THE FLUE GAS
OUTLET
150
MAX BILLET LENGTH
35 cm
THERMAL EFFICIENCY (%)
70 %
OPTIMAL LOG LENGTH
300 mm
FLUE GAS TEMPERATURE
287 °C
HEATING POWER RANGE
3.0 - 8.0 kW
NOMINAL POWER
5 kW
HEAT OUTPUT FOR SPACE HEATING
5 kW
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.141
SEASONAL ENERGY EFFICIENCY
60 %
CO EMISSION (MG/M3)
1761
OGC EMISSION (MG/M3)
109
FLUE GAS MASS FLOW (G/S)
8.1
DOWNLOADS
↓ Energy card
↓ Instruction
↓ Product card
↓ Technical drawing
↓ Print Dop
↓ Print Doc Doc_koza_k7
POLLEN EMISSION (MG/M3)
15
NOX EMISSION (MG/M3)
95

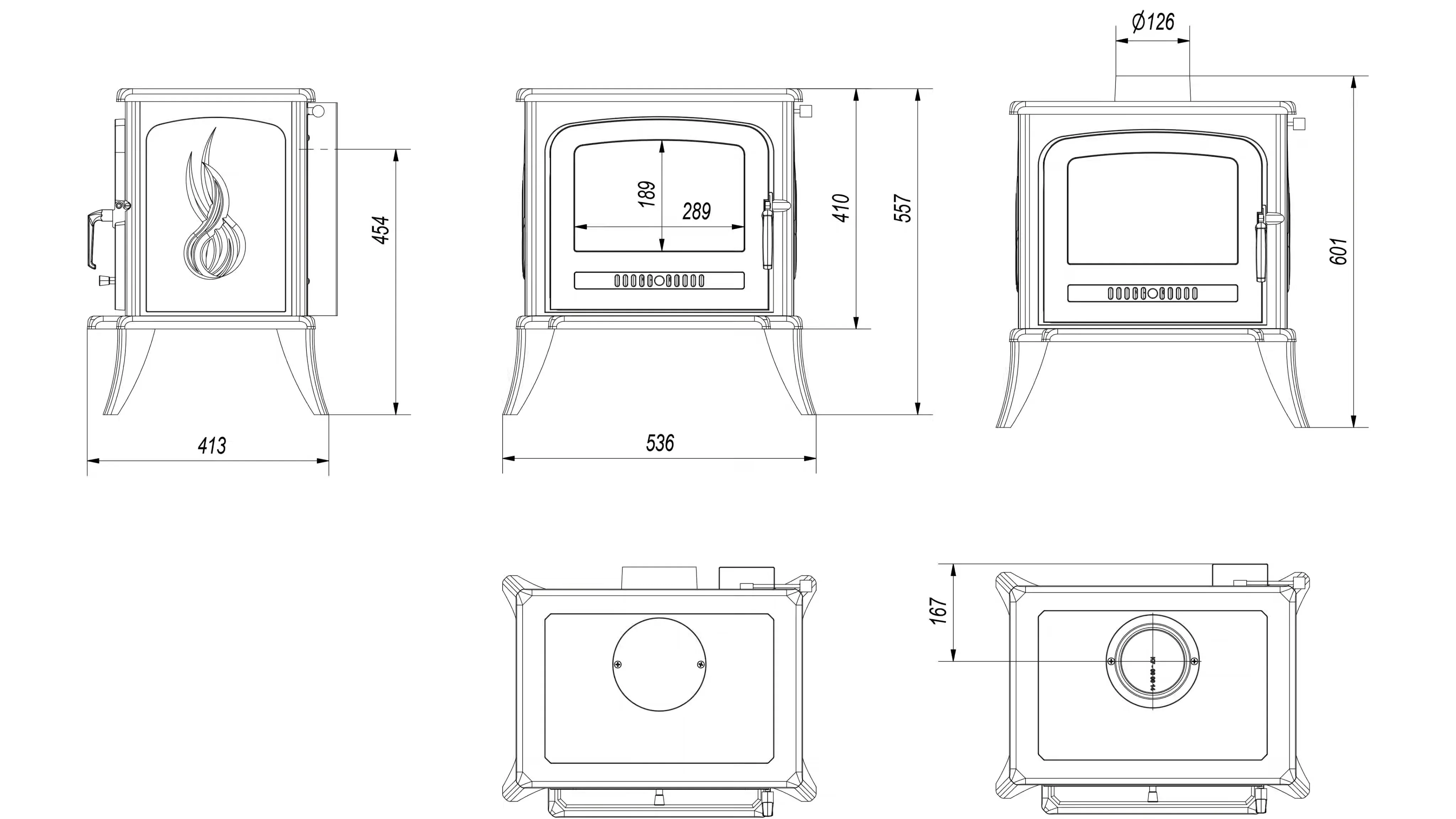

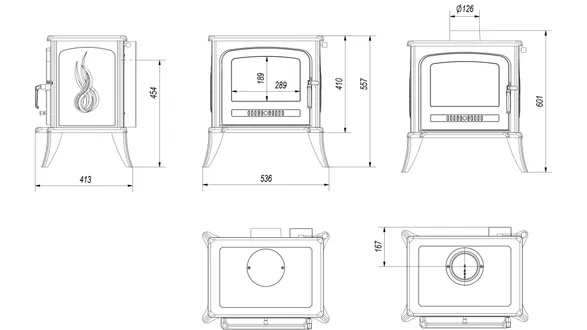

TECHNICAL DRAWING
