Roband Austheat Hotplate/Grill
AUSTHEAT HOTPLATE/GRILL
AUSTHEAT HOTPLATE/GRILL
The electric Austheat Hotplate Griller is the ideal solution for busy fast food outlets where high speed grilling and toasting is required.

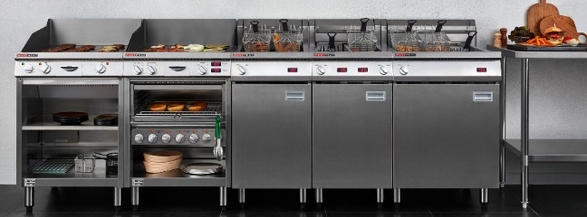

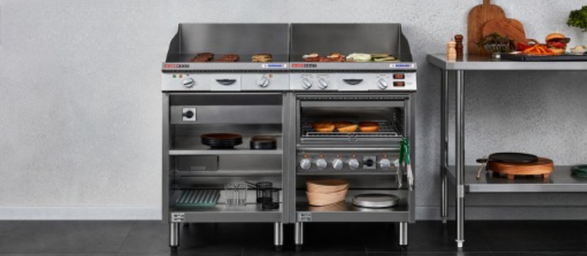

Ideal as a hamburger or grill station, the Austheat Hotplate/Grill is designed to work either as a stand alone machine or alongside Austheat Deep Fryers in a modular configuration.
INFORMATION
BRAND
Roband
PRODUCT TYPE
Electric Hotplate/Grill
MODELS
- AH860
- AHT860
AMPS PER PHASE
- 15.5 Amps (AH860)
- 23.0 Amps (AHT860)
COLLECTION
Austheat
TOASTER POWER
1.7 kW
TOTAL POWER
12.5 kW
HOTPLATE POWER
10.5 kW
HEAT SETTING
The toaster also has a Cook/Idle (standby) setting. The twin energy regulator controls enable one heat setting to “Cook” and another heat setting for “Idle” periods so the chef can quickly switch between high and low settings in busy or quiet periods. It additionally provides a backup in the unlikely instance of a primary energy regulator failure.
COOKING SURFACE

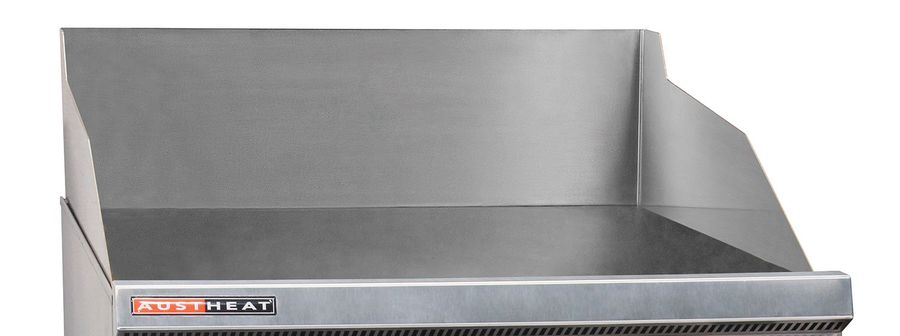

A 12 mm thick heavy-duty machined steel hotplate cooking surface provides the temperature and heat retention required for efficiently cooking foods such as hamburgers, steak, eggs, bacon and pancakes. Features separate controls for the left side and right side of the hotplate providing flexibility in the use of the cooking surface area and ability to conserve electricity by only heating the cooking surface space required.
HEAT OUTPUT
The toasting compartment below has a dedicated element for perfect one-sided toasting or salamander function. This is unlike many other brands available in the market that use the heat from the hotplate surface for toasting, which can result in uneven toasting. The heat output of the toaster is controlled by an energy regulator.
THICKNESS
12 mm
PHASE
3 phase + n
AH860 - WITH EXTRA STORAGE SPACE
-Removable shelf for easy cleaning – 3 step adjustment -The extra storage space under the steel hotplate is ideal for storing plates, pans or cooking materials - the perfect storage size for 1/1 gastronorm pans
FEATURES OF BOTH AHT860 AND AH860
- 3 phase electric hotplate / griddle toaster
- 12 mm thick heavy-duty machined steel hotplate
- Castors on the rear and adjustable legs at the front
- Separate controls for left and right side of the hotplate
- “Cook” and “Idle” dual controls provide backup in the unlikely event of a thermostat failure
PRODUCTION
Made in Australia
WARRANTY
Two year on parts and one year labour.
SWITCHES
Each of the two cooking surface sections is controlled by it’s own Cook/Idle (standby) switch. Each has two thermostats – one to control the temperature when switched to “Cook” and the other to control the temperature when switched to “Idle”.
This feature allows the chef to quickly turn the temperature of the machine up to “Cook” and down to an “Idle” heat setting in quieter times to conserve electricity. The dual controls have the added benefit of providing a backup in the unlikely event of a component failure.

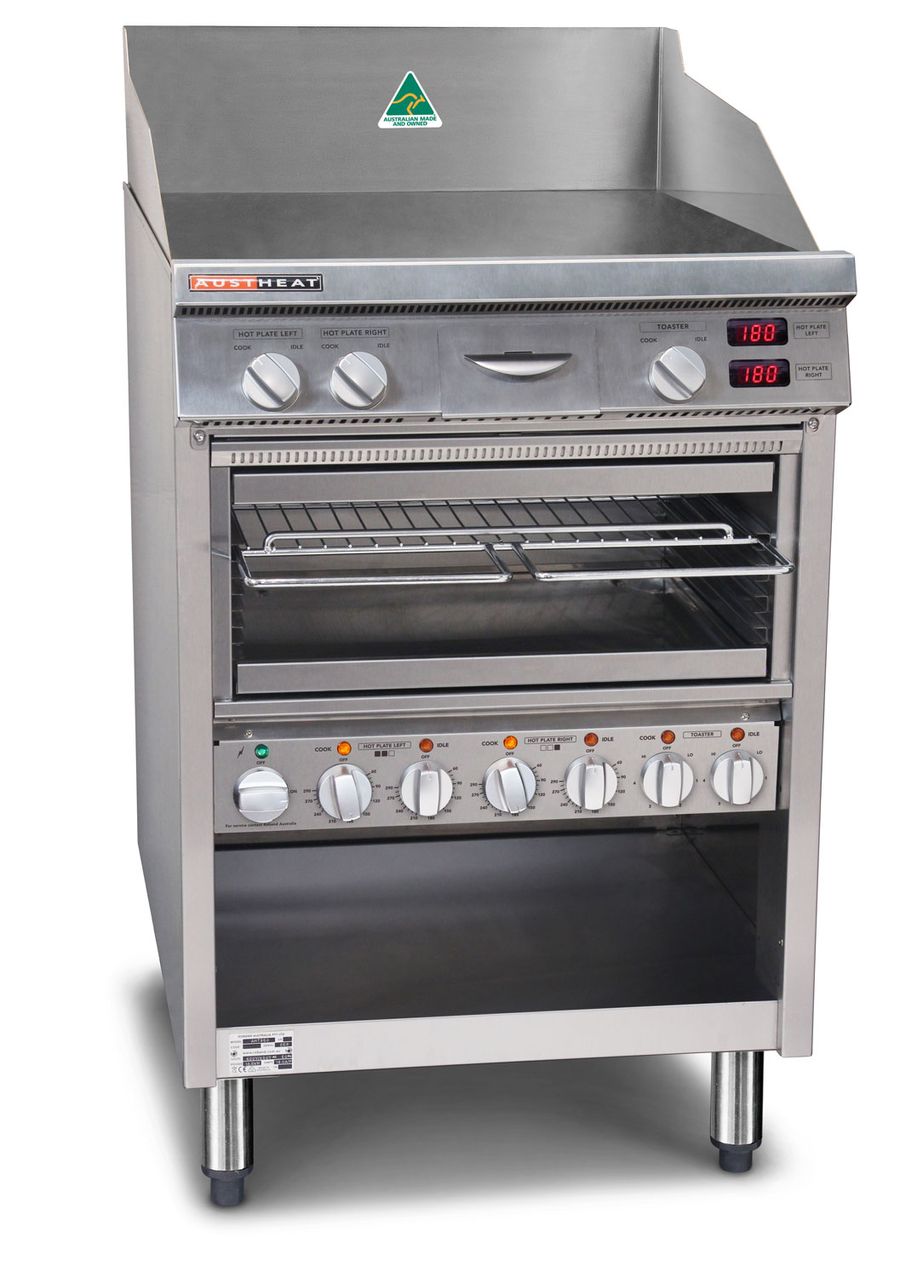

AHT860 - WITH TOASTING/SALAMANDER FUNCTION

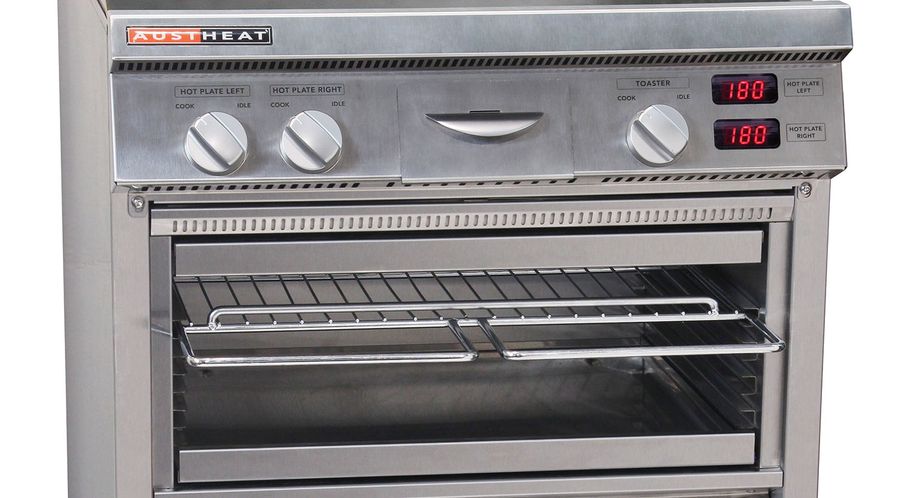

- Easily readable twin digital temperature displays show plate temperature
- Ideal for high speed grilling and toasting of foods, such as hamburgers, steak and eggs
- The toaster has a dedicated element for perfect onesided toasting/salamander function
- Individual control for left & right cooking zones with separate Cook/Idle (standby) functionality
- The toaster also has a Cook/Idle (i.e. standby) setting for quick switching between high and low settings
TECHNICAL DRAWINGS

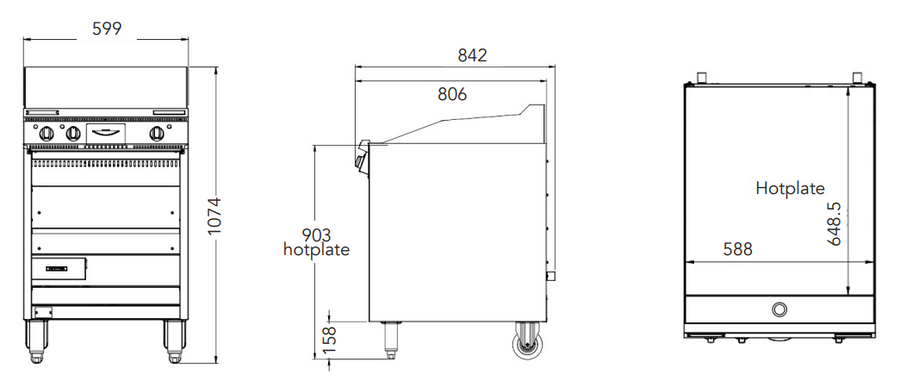

MODEL - AH860

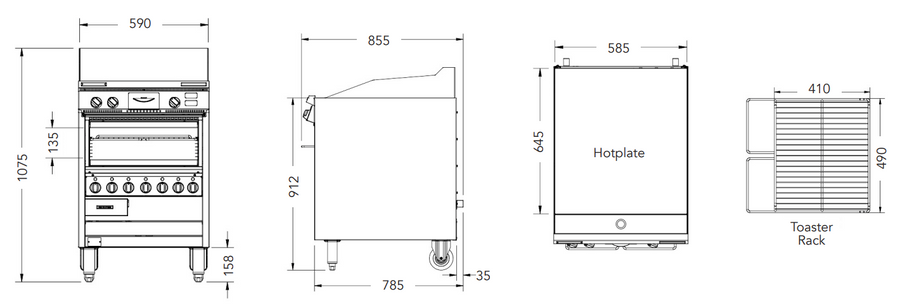

MODEL - AHT860
