Alfa Plam Dino 24 Stoves
DINO 24 STOVES
DINO 24 STOVES

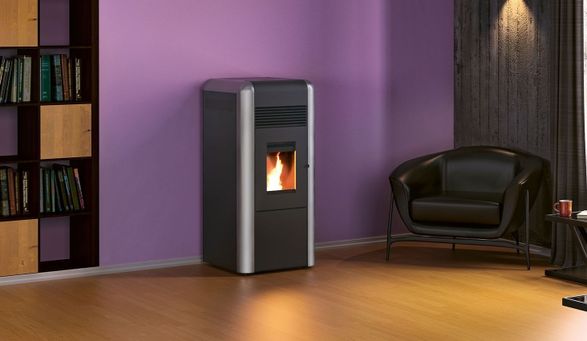

Pellet furnace for floor heating with a modern design with advanced combustion control system achieves high performance within its operation.
INFORMATION
BRAND
Alfa Palm
PRDUCT TYPE
Stove
MAX HEATING SURFACE
235 m2
MIN/MAX PELLET CONSUMPTION
1.8/5,1 kg/h
MODERN DESIGN
The modern design with advanced combustion control system achieves high performance within its operation. By implementing modern technology the user is enabled to get maximum safety levels in use while the additional cleaning systems significantly facilitate the furnace maintenance.
NET WEIGHT
94 %
DEGREE OF UTILIZATION
94 %
HIGH TEMPERATURES
The casing made of quality sheet metal protected with paint resistant to high temperatures.
INSTALLATION OF CAST IRON FIRE BOX DOOR
Improved tightness and complete control of the combustion air inflow is achieved by installation of cast iron fire box door and sealing the reservoir cap.
CONTROLLED
Fully controlled combustion process and adjustment of furnace operation to pellet quality and chimney draft is provided by installation of additional components.

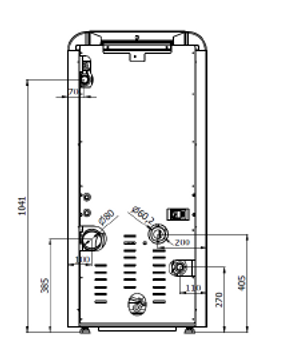

DIMENSIONS
-Width : 574 mm -Height : 1237 mm -Depth : 568 mm
THERMAL POWER TRANSFERRED TO WATER
21.5 kW
COLLECTION
Dino 24
STANDARDS
EN 16510-2-6
QUANTITY OF WATER IN THE BOILER
32 l
ENERGY EFFICIENCY CLASS
A+
RADIANT HEATING ABILLITY
2 kW
DIAMETER OF THE FLUE EXTENSION
80 mm
МAXIMUM OPERATING TIME PER FULL TENK
25 h
HEATING SYSTEM
Components necessary for the operation of the heating system are factory-installed in the product.
VISIBLE FLAME
Large, ceramic glass on the fire box door resistant to 700° C and visible flame bring additional wormth to your home.
HEATING VOLUME
353-588 m3
PELLET TANK CAPACITY
45 kg
HANDLE
The special fire box door safety handle.
FURNACE OPERATION
Weekly programming of the furnace operation.
FIRE BOX MADE OF SPECIAL FIRE-RESISTANT
Fire box made of special fire-resistant cast, combustion chamber made of special sheet metal and boiler made of sheet metal intended for boilers.
ADVANTAGES
- The furnace ability to operate on 5 power levels.
- Built-in safety thermostats prevent water overheating in the boiler and the furnace self-ignitiion.
- Cleaning systems additionally facilitate the furnace maintenance and enable reliable operation.
- The possibility of heating sanitary water (in the boiler) and connection to the floor heating system.
POWER
23.5 kW
PRODUCTION
Made in Germany
COLORS
COLORS
-Brown -Black -Orange -Sliver
