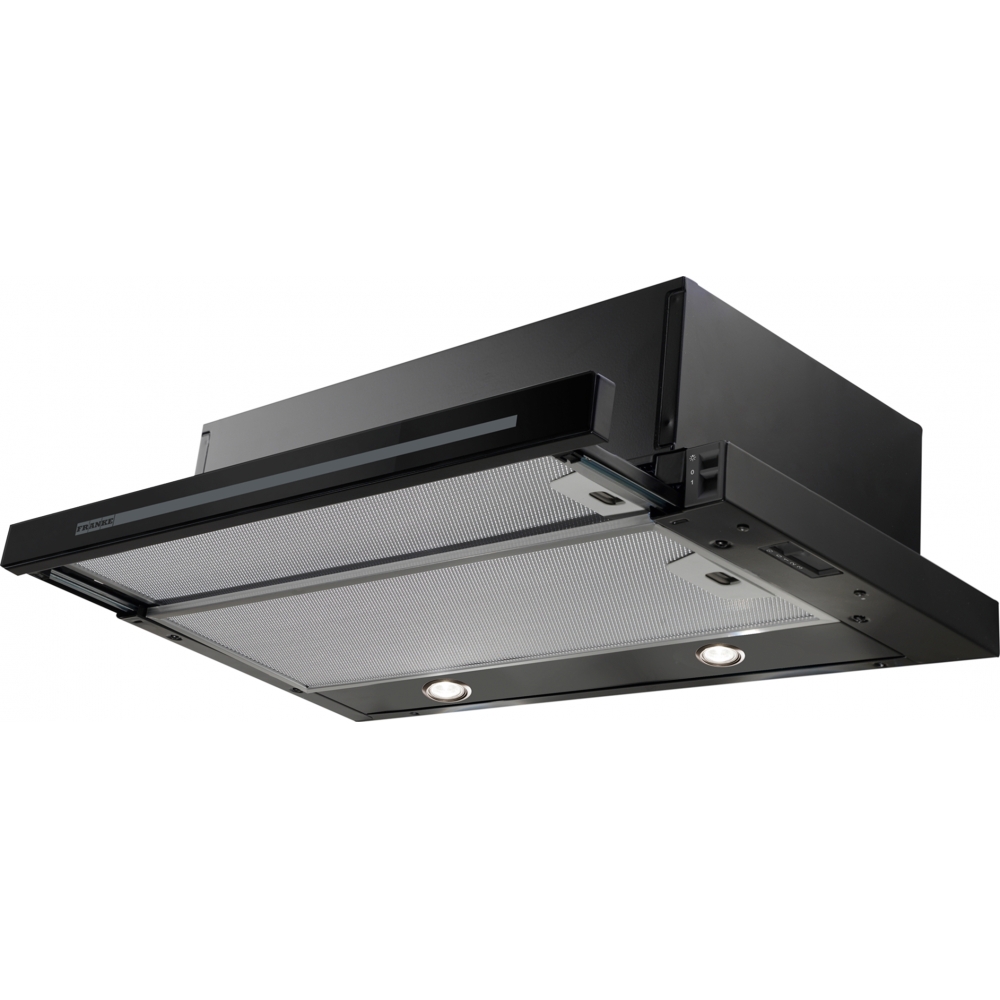

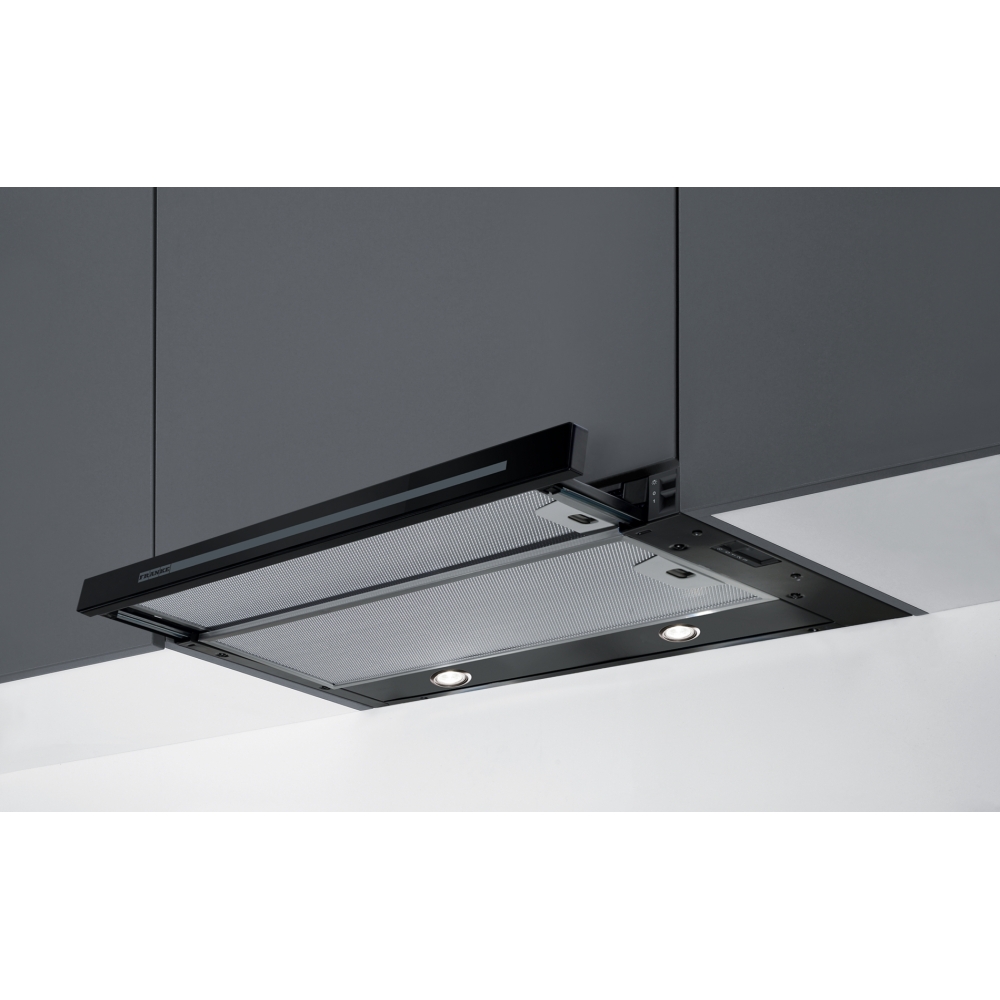

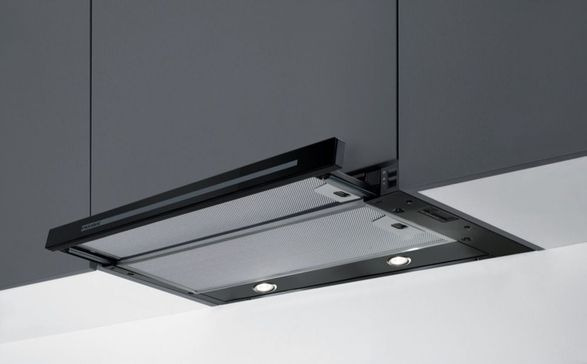

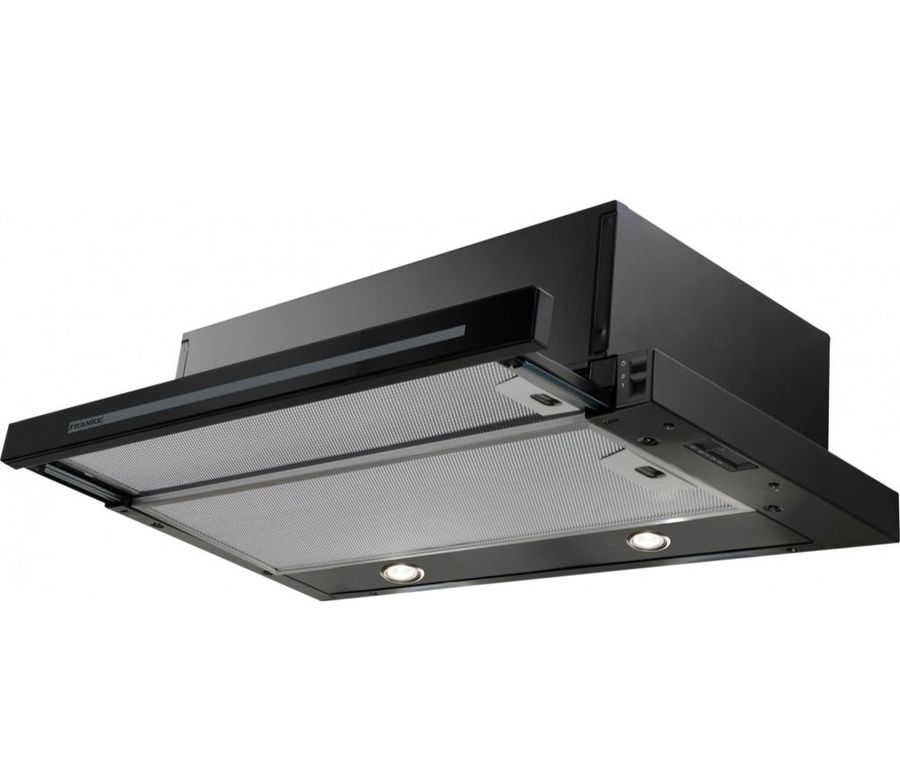

Franke Hood Fsm 601 Bk/gl Franke
HOOD FSM 601 BK/GL FRANKE
HOOD FSM 601 BK/GL FRANKE
ART NO : 315.0489.958
information
LIGHT EFFICIENCY CLASS
A
BRAND
Franke
PRODUCT TYPE
Oven
F. DYNAMIC EFFICIENCY CLASS
E
UI TYPE
PCB
FINISH
Black/Glass

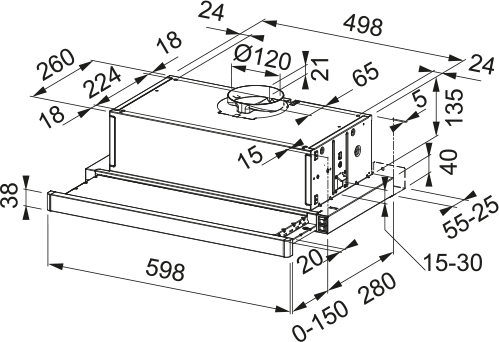

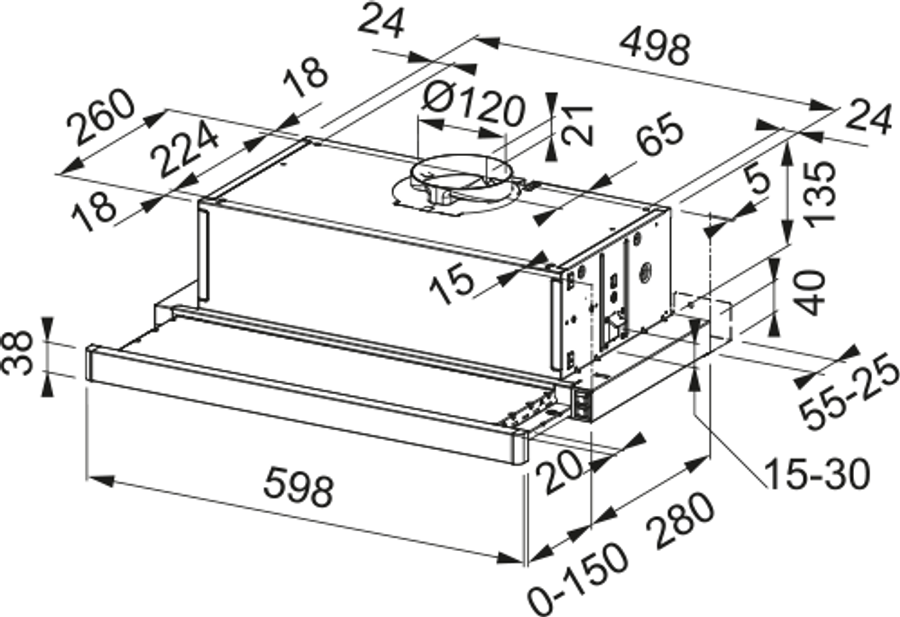

TECHNICAL DRAWINGS
DIMENSIONS
- Width : 600 mm
- Diam. air outlet : 120 mm
PLUG TYPE
EU
MODEL RANG
FLEXA
ANNUAL ENERGY CONSUMPTION AEC
85.4
EAN/UPC
7612981899790
PRODUCT FAMILY
Smart
ENERGY EFFICIENCY CLASS
D
PRODUCTION
Made in Switzerland
AIR QUALITY SENSOR
No
LAMP TYPE
Led S1000 3000K
PROPERTIES
- 24h : No
- Waterproof : No
- Speed number : 3
- Speed setting : No
- Sensor self start : No
- Delay : No
- WI-FI : No
- Charcoal filter : No
- Type of filter : Aluminium
- Filter typology Cassette
NUMBER OF MOTOR
1
MOTOR GR COMM.NAME
D22 430
TECHNICAL UI TYPE
Electromechanical Slider
NUMBER OF LAMP
2
REMOTE CONTROL
No
TYPE OF LIGHT
Led S1000 Neo 3000K
MOTOR VOLTAGE
220-240V 50-60Hz
GREASE FILTERING EFFICIENCY CL
C
HOOD CATEGORY
Pull-out
BLOWER TECH.NAME
D22
PERFORMANCE
| SPEED | 1 | 2 | 3 |
|---|---|---|---|
| Flow (m³h) | 225 | 315 | 380 |
| Press. max | 200 | 220 | 240 |
| Power (Watt) | 85 | 100 | 140 |
| Noise level (db) | 58 | 67 | 69 |
