BXC² EXHAUST UNITS
BXC² EXHAUST UNITS

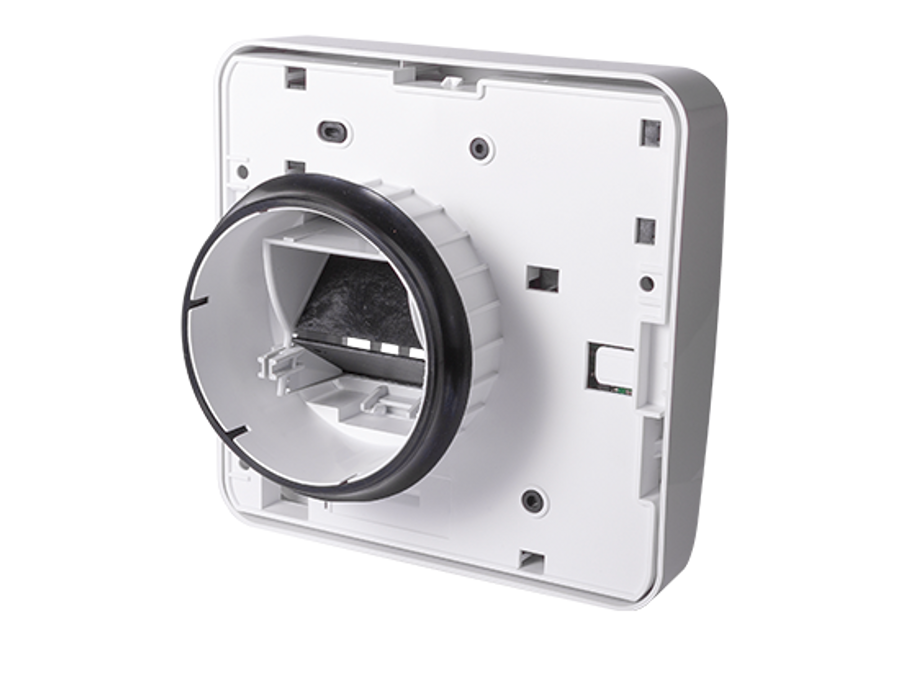

Demand controlled exhaust unit for mev
A multifunctional exhaust unit to optimise indoor air quality and energy efficiency in MEV applications
The BXC² incorporates all of the functions one could want in an air exhaust unit: various activation modes, such as humidity sensitive, presence detection, switch are available to adapt the ventilation to occupants’ needs.
The exhaust airflow is automatically modulated, in silent operation. The range of variable airflows can be set at installation to meet special needs, or to compensate for a lack of pressure; commissioning is also facilitated by the presence of a pressure plug, which allows measurement and easy calculation of the airflow.
INFORMATION
BRAND
Aereco
PRODUCT TYPE
Exhaust Units
AIRFLOW “+”
Possibility of setting the airflow levels at installation up to + 50 m³/h on the max. airflow.
ACOUSTICS
- Sound power level Lw(A), 100 Pa, RH = 65 %, minimum. airflow ‘+’ setting :
28.3 dB(A)
- Dn,e,w (C, Ctr) acoustic insulation, RH = 65 %, min. airflow ‘+’ setting : 28.3 dB
- Dn,e,w (C, Ctr) Acoustic insulation, RH = 65 %, min. airflow ‘+’ setting (
BXC1921) : 57 (-2 ; -4) dB
PRESSURE PLUG
A llows pressure measurement to determine the airflow.
COLOUR
White
MATERIAL (MAIN)
PS / ABS
ADJUSTABLE AIRFLOW AT INSTALLATION
The BXC² exhaust unit offers a range of possible airflow settings to meet specific needs, or regulatory requirements. The fixed shutter can be set at one of six positions, with an average step between each setting of + 10 m3/h (maximum = + 50 m3/h). This can, for example, be very useful to compensate for a lack of pressure.
AIRFLOW @ 100 PA (MIN. – MAX.) (1)
12 – 80 dB(A)
AIRFLOW ‘+’ – MAX. AVAILABLE AIRFLOW @ 100 PA (2)
130 m3/h
HUMIDITY SENSITIVE, PRESENCE DETECTOR AND SWITCH VERSIONS
Modulates the airflow according to the various needs of the dwelling.
OTHER ACTIVATION MODES
- BXC1921, BXC1920 : Remote control
- BXC1919 : BXC co2or voc
PRESSURE PLUG
Allows pressure measurement to determine the Airflow.
BATTERY INDICATOR
Buzzer to indicate low battery level.
MODES
Various activation modes
PRESSURE PLUG TO HELP COMMISSIONING
The built-in pressure plug makes it easy to measure the pressure using a manometer, then calculate airflow using a table in the installation instructions.
EASY TO MAINTAIN
Removable shutter case and front cover for easy cleaning.
OPERATION
The exhaust airflow is automatically modulated, in silent operation
INSTALLATION
- Round air duct compatibility with integrated spigot : ø100 mm
- Round air duct compatibility with accessory spigot (3) : ø125 mm
- Round air duct compatibility – bracket version (min. – max.) : ø85 – ø90 mm
- Rectangular air duct compatibility – bracket version (min. – max.) : 67 x 60 – 67 – 66 mm
STANDARD CODE
- BXC² h : BXC1900
- BXC² p : BXC1902
- BXC² hi : BXC1901
- BXC² hp : BXC1906
- BXC² pd : BXC1905
- BXC² hpd : BXC1903
- BXC² hrc : BXC1921
- BXC² rc : BXC1920
- BFX : BFX1929
- BXC² s : BXC1919

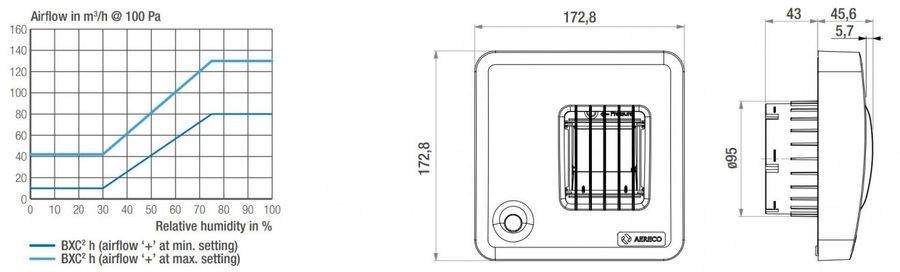

AIRFLOW / DIMENSIONS IN MM
