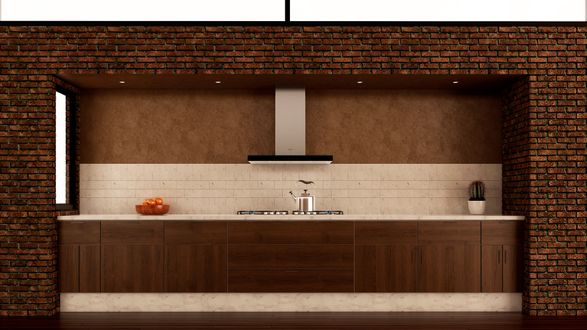

Elica Mezzano Hood
MEZZANO HOOD
NMEZZANO HOOD
Designed by Elica Design Center

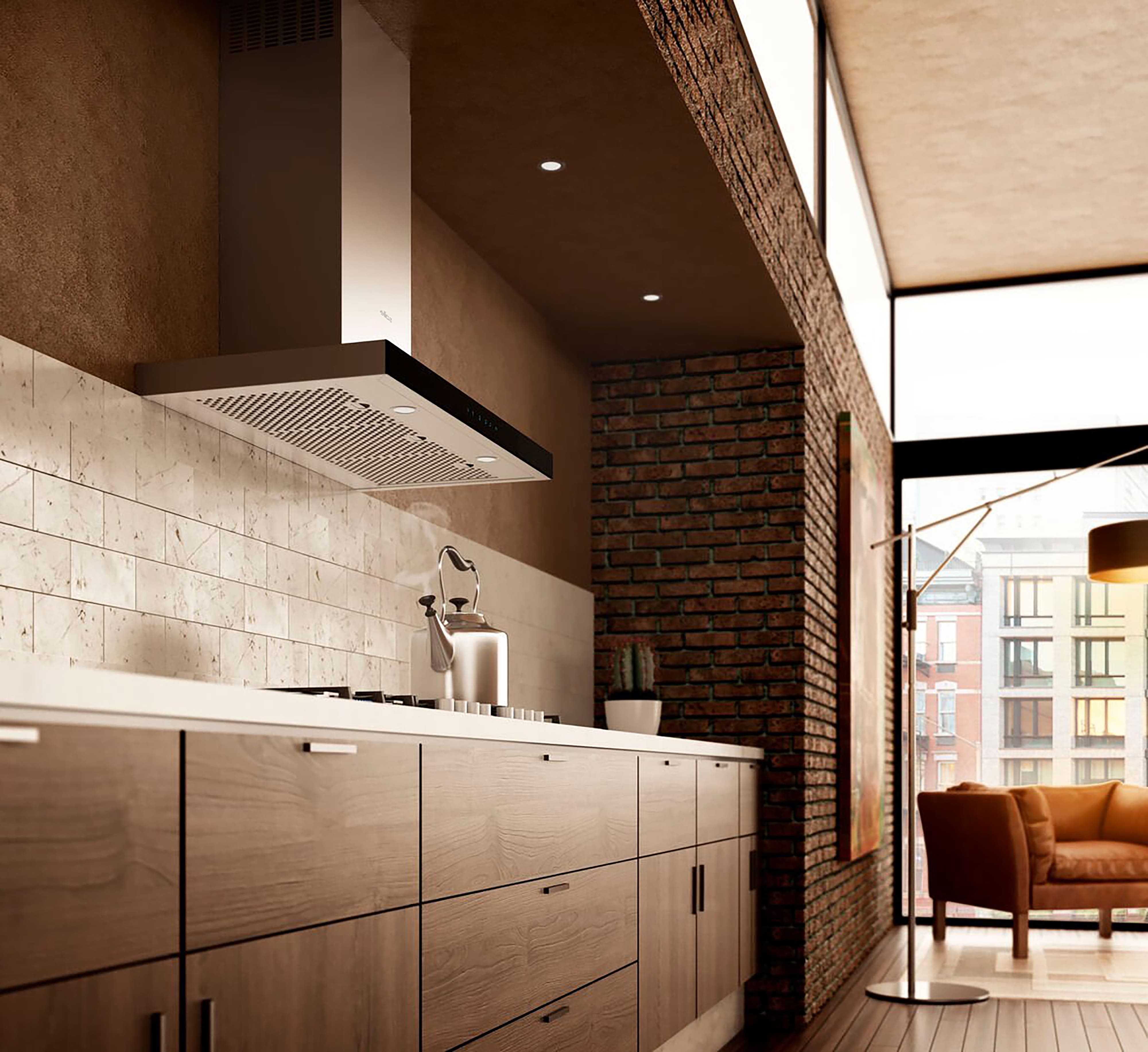

Perfect blend of minimalist elegance and durability with Mezzano island range hood, featuring sleek black glass touch controls and a strong stainless steel construction.
FEATURES
LED LIGHT
Illuminate your culinary journey with LED brilliance
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
HUSH SYSTEM
Silent innovation, redefine tranquility An exclusive sound-deadening technology that effectively reduces sound levels by over 35%
TOUCH CONTROL HOOD
Experience the power behind the touch with soft blue illumination Multifunction electronic touch control behind sleek black glass illuminates soft blue when activated.
TOP PERFORMANCE
High fume capture, low noise – the perfect balance.
Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM’s with low noise levels, 1.2 - 1.7 sones at working speed.
DIM LIGHT
Lighting: as much and however you want it. With this feature, you can adjust the lighting of your hood: bright light or dim light, as you prefer.
CFM REDUCTION SYSTEM
Customize CFM with ease. Enables users to reduce directly the maximum blower CFM to meet local code requirements. CFM Reduction
INFORMATION
LIGHTING
Premium Dimmable LED 2 x 2.1 ww 4000 KK
BRAND
Elica
PRODUCT TYPE
Hood
INSTALLATION TYPE
Ducted or recirculating with kit (sold separately)
FINISHIN
Stainless Steel + Black Glass
WARRANTY
2 Year
DUCT TRANSITION
Round 6"
VENTING TYPE
Convertible With Kit
SERIES
Techne
COLLECTION
Mezzano
GREASE FILTERS
Stainless Steel Microhole Filter

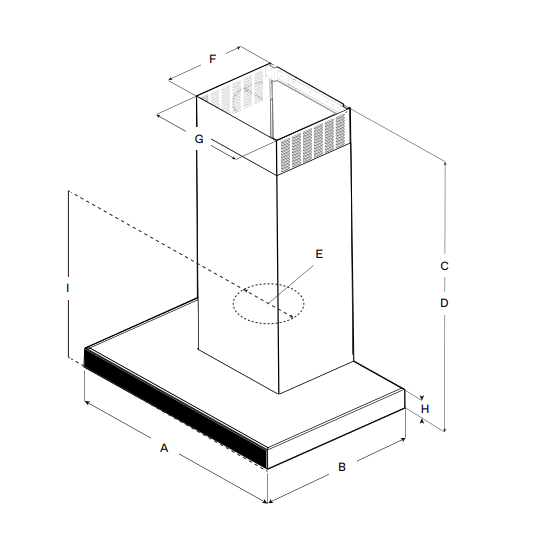

DIMENSIONS EMZ630S3/EMZ636S3
- A : 30” (76.2 cm) /36” (91.4 cm)
- B : 19 11/₁₆” (50cm)
- C* : Min: 33 7/₈” (86 cm) Max: 54 3/₄” (139 cm)
- D** : Min: 29 11/₁₆” (77cm) Max: 50 5/₁₆” (129 cm)
- E : 6” (15.24 cm)
- F : 10 ³/₄” (27 cm)
- G : 13” (33 cm)
- H : 2 1/₁₆” (6 cm)/2 5/₈” (4 cm)
- I : 16 7/₈” (40.8 cm)
CONTROLS
Multi-function Electronic with black glass touch display
TELESCOPIC CHIMNEY
Can reach ceiling heights of min 7’6”, max 10’2” (ducted out) & min 7’10”, max 10’6” (recirculating)
MODEL
EMZ630S3
WIDTH
36"
AIRFLOW
600cfm
VOLTAGE
120 V
TECHNOLOGY AND PERFORMANCE AT HOME.
With a minimalist design but a strong stainless steel construction, the Mezzano island range hood is in tune with avant-garde appliances where clear and architectural lines take precedence. Mezzano has a powerful 600 CFM blower, LED dimmable stainless steel microhole filters, and high-tech multi-function touch controls that deliver convenience and safety. Mezzano was designed for standard ducted installation, but can also be installed using the Recirculating Kit, available as an accessory.
BLOWER TYPE
Interior Unit
SONES
1.7 - 6.8
