START 80 MATTE BLACK VENTING HOBS
START 80 MATTE BLACK VENTING HOBS
The essence of venting hobs
A venting hob, designed to deliver reliable performance, clean design, and all the practicality of Galvamet technology.
INFORMATION
BRAND
Galvamet
PRODUCT TYPE
Induction Cooktop
PRODUCT CODE
0ESTR080A865000
FINISH
Matte Black Glass Ceramic
ACCESSORIES
- Cod. 005LV03014 – Long Life odour filter 335 × 156
- Cod. 005PRC030204 – Plasma filtering kit
- Cod. 005PRC050001 – Ducting kit for plinth-mounted filtering installation H6
- Cod. 005PRC050002 – Ducting kit for plinth-mounted filtering installation H10
COOKING ZONES 4
- Zone 1 : 190×210 mm / 2,3-3,0 kW
- Zone 2 : 190×210 mm / 2,3-3,0 kW
- Zone 3 : 190×210 mm / 2,3-3,0 kW
- Zone 4 : 190×210 mm / 2,3-3,0 kW
MAX AIRFLOW
650 m3/h
RESIDUAL WATER
Residual water drain valve.
BRIDGE ZONES
2
PRODUCTION
Made in Italy
DIMENSIONS
- Width : 80 cm
- Depth : 52 cm
CONTROLS
Slider
SOUND POWER
65 dB(A) at maximum speed
TOTAL ABSORPTION
Adjustable (1,5/2,8/3,3/4,5/5,7/7,4) kWF
ENERGY CLASS
A+
POWER LEVELS/SPEED NUMBER
9 + Booster

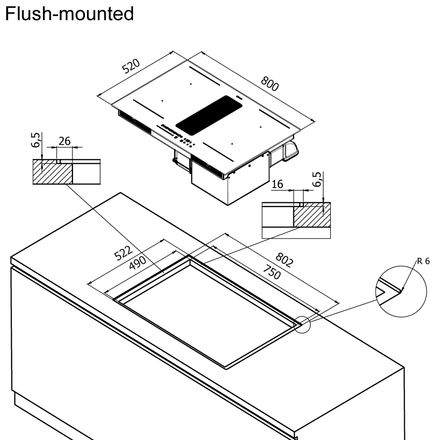

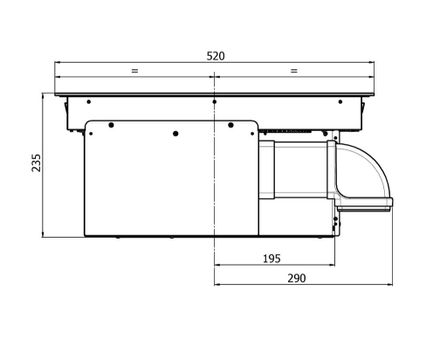

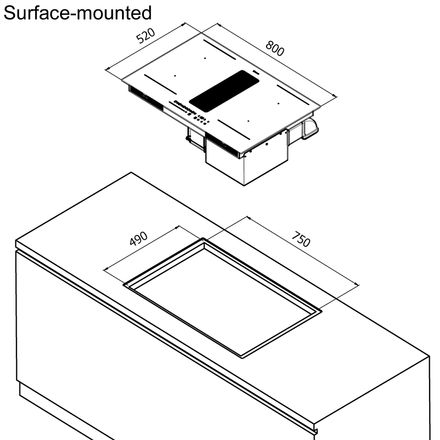

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
FUNCTION
INSTALLATION
It is possible to install the induction hob non-flush or flush uninterrupted on the top (filotop).
ADAPTABILITY AND DESIGN FREEDOM
The system can be adapted to any type of space thanks to the possibility of air outlet towards the floor or towards the wall (plug&play).
THE METAL GREASE FILTER
The metal grease filter and grease collection tray are easily removable and reinserted from above after removing the grille. They are dishwasher safe.
LIGHT INDICATOR FOR LONG LIFE ODOUR FILTER REGENERATION
The Long Life odour filter captures cooking fumes and eliminates unwanted smells, ensuring clean air in your kitchen. Unlike standard charcoal filters, it does not need frequent replacement, as it can be regenerated every 2–3 months, depending on usage. The filter cartridge is easily removable from the top after taking off the grille.
ADJUSTABLE AND DELAYED SELF-SWITCHING OFF
This function allows you to programme delayed cooker hood shutdown which, in the shortest time possible, provides the right level of air purity in your kitchen.
PAUSE AND RESUME FUNCTION
Allows you to temporarily pause cooking and later resume with the same settings. A practical solution that offers maximum freedom and control, even during the most dynamic cooking phases.
RESIDUAL HEAT INDICATOR
A safety system that signals the presence of heat on the surface after use. The “H” symbol warns that the area is still hot, helping to prevent accidental contact and ensuring total peace of mind in the kitchen.
PAN DETECTION
The technology automatically recognizes the presence and size of the pan, activating the cooking zone only when necessary. An intelligent system that optimizes efficiency and ensures maximum safety.
OPERATING TIME LIMITER
Each cooking zone is controlled by an automatic system that stops heat output after a maximum usage time, ensuring safety and protection even in case of accidental oversight.
CHILD LOCK
A safety function that temporarily disables the controls, preventing accidental changes and ensuring maximum peace of mind during everyday use.
OVERHEAT PROTECTION
An intelligent safety system that constantly monitors the temperature and automatically intervenes in case of overheating, ensuring reliability and long-lasting performance of the cooktop.
DUC OUT/RECYCLING
Duc out/Recycling, with a simple filtering kit (optional) the hood can be transformed from duct out (with pipes) to recycling (without pipes). The kit features Long Life technology (regenerable in the oven) and guarantees approximately 80% odor elimination. A filtering kit with Plasma technology is also available (optional) to ensure maximum elimination of odors (up to 95%), viruses spores bacteria (up to 99,9%) from the air.
GREASE FILTER MAINTENANCE WARNING
Automatic warning to the user of the need to clean the metal filter that captures the grease. Correct cleaning of these filters guarantees the protection of the internal components of the hood and prevents the spread of bad odors generated by the fats captured over time.
